Seco-Larm EV-N7406-YW8Q, EV-N7203-AYWQ, EB-P104-01HQ, OC-201-2B3Q, OC-201-2BQ User Manual

FULL CATALOG

For All
Your
Security
Needs

47

Wireless • Access • Sensors • Security • CCTV and Accessories • Audio/Video • Vehicle Security

years

Since

2017-M02B

About SECO-LARM

SECO-LARM is the best choice for
distributors and dealers around the world
when it comes to the business side of
security and this is true today more than ever.

Just compare this catalog to our catalog of
a few years ago and see our aggressive
growth in the kind of products dealers and
distributors need to serve the fast-chang­ing requirements of their customers,
including completely new lines of high-end
video cameras, DVRs, and access control
equipment.

A History of Innovation

SECO-LARM means innovation, with
security technologies built around 40
years of R&D experience and over 50
domestic and international patents.

We have been developing, manufactur­ing, and selling state-of-the-art security
and access control products for 47
years.

Distributors and dealers in nearly 100
countries worldwide know they can
count on us for a full range of access
control, physical security, CCTV, A/V,
and wireless components and solutions
to satisfy their customers’ requirements.

Customer Support

We also provide a full range of
marketing, pre-sales, and post-sales
support as well as services needed to
help ensure our dealers’ customers and
their assets receive the protection they
require.

The Future Ahead

Whether it is security for customers at
home, work, or in their vehicles, count
on SECO-LARM for the technology and
support to get almost any security job
done right.

Visit www.SECO-LARM.com for
more information.

ENFORCER

Access Control - Locking Devices

6-23

ADDRESS

16842 Millikan Avenue
Irvine, CA 92606

PHONE/FAX

[phone]
[phone]
Fax: [phone]

Access Control - Enter/Exit Devices

CCTV - Cameras

CCTV - Accessories

RF Wireless

Sensors

Burglar & Security

Audio & Video

Stand-Alone Security

Vehicle Security

24-49

50-62

63-75

76-81

82-91

92-107

108-115

116-121

122-125

EMAIL

[e-mail]

WEB

www.seco-larm.com

Model Number Index

126-127

CONTENTS

All-New Website

Desktop

11

12

10

1

2

10

2

3456789

2

1

10

10

Mobile

Our new, completely redesigned website is much more intuitive, more informative, and easier to use. Everything is right at your fingertips.
You'll find our product search much easier to use. Type any part of a product name or model number and find what you want easily. Since
you are often on the go, we now also offer a mobile version which includes the new search engine. Visit the new site and see for yourself!

1 5 9

Product Search

2 6 10

Browse Products

3 7 11

Tracking

4 8 12

Contact us

Support
Downloads
News & events
New Products

Catalog
Featured
Language
Product Catagories

Online Tracking

Our online tracking dialog lets you follow your order from the moment it is entered into our system. You don't even need to login to find the
most current information about your order, including shipping and tracking information and your packing list.

NO LOGIN

REQUIRED

Door Strike for Metal Frames

SD-995C

• 12 or 24 VDC/VAC
versions available

• Programmable fail-safe or
fail-secure operation

• Stainless steel faceplate: 4-7/8” x 1-1/4”

Surface Mount Rim Strike

SD-998C-NUQ

• Use with rim-type exit devices

• Operating voltage: 12~28 VDC/VAC

• Lock and door status outputs

• 1,500-lb Static strength

Door Strike for Wood Frames

SD-994C

• 12 or 24 VAC/VDC versions available

• Programmable fail-safe or
fail-secure operation

• Stainless faceplate: 7-15/16” x 1-7/16”

Universal Door Strike

SD-996C-NUQ

• Operating voltage: 12/24 VDC/VAC

• Programmable fail-safe
or fail-secure

• Includes three faceplates for
nearly any type of door

Reversible Door Strike

SD-994A-A1AQ

• Operating voltage: 8~16VAC, 12VDC

• Fail-secure operation

• Chrome faceplate: 5-7/8” x 1-1/4”

• Asymmetrical and symmetrical
versions available

No-Cut Door Strike

SD-993C-D3Q

• Reversible non-handed design

• Operating voltage: 12/24 VDC

• Low profile: 1-1/16" deep

• Field selectable for fail-safe or
fail-secure operation

Vertical-Adjustment Door Strike

SD-996C-NUVQ

• Adjustable deadbolt keeper, deadlatch
ramp and sliding shim to compensate
for installation issues

• Operating voltage: 12/24 VDC/VAC

• Programmable fail-secure or fail-safe

• Includes 5 different stainless-steel faceplates

Horizontal-Adjustment Door Strike

SD-995A-A1Q

• Adjustable keeper to compensate
for installation issues

• Operating voltage: 8~16VAC, 12VDC

• Fail-secure operation

• Stainless-steel faceplate: 4-7/8” x 1-1/4”

Tel: [phone]
Fax:

[phone]

Email: [e-mail]
Website: www.seco-larm.com

Manufacturer of

ENFORCER

®

1,200-lb Single-Door Maglocks

Model Numbers

*

E-941SA-1200

1,200-lb, single door, UL listed

E-941SA-1K2PQ

1,200-lb, single door, with bond
sensor and status LED, UL listed

E-941SA-1K2PD*

1,200-lb, single door, with bond
sensor, status LED, and timer

Accessories

Access Control

LIFETIME

LIMITED

WARRANTY

Features

• Anodized aluminum housing (US 28)

• Dual voltage: 12/24 VDC Operation

• No residual magnetism

• Detachable faceplate

• Adjustable mounting bracket

• MOV Surge protection

• Complete mounting hardware included

E-941SA-1K2PD Only:

• Built-in 1~78 second timer

E-941SA-1K2PQ and
E-941SA-1K2PD Only:

• Status LED – Built-in 2-color LED shows

lock status

• Built-in bond sensor with 3-amp dry relay

output for monitoring door status

• 3A@12VDC SPDT Relay

LED Status

Green Door is closed and locked

Red Door not closed and/or locked

Off Door in use / No power

Specifications

Model E-941SA-1200 E-941SA-1K2PQ E-941SA-1K2PD
Holding force 1,200-lb (545kg)
Operating voltage 12/24 VDC

Current draw

Coil resistance 48Ω±10% per coil
Bond sensor relay N/A 3A@12VDC
Status LED N/A Yes
Timer N/A 1~78 sec
Operating temperature 14°~131° F (-10°~55° C)

Dimensions

Weight 11-lb (5kg)

12VDC 500mA
24VDC 250mA

Magnet

Armature plate

10½"x1⁄"x2⁄" (268x42x67 mm)

7¼"x⁄"x2⁄" (185x16x61 mm)

E-941S-1K2/LQ

L-Bracket

E-941S-1K2/ZQ

Z-Bracket

E-941S-1K2/UQ

U-Bracket for glass
doors

E-941S-1K2/PQ

Plate spacer

E-941S-1K2/HQ

Armature plate
holder

E-941EC2-N1Q

Camera for 1,200-lb
maglocks (see page
55 for details)

Applications

Typical Installation

With "L" Bracket

Plate Spacers

With "Z" and

"L" Bracket

Dimensions

Electromagnet

1

/4” (6mm

25/8”(

101/2” (268mm)

15/8"

)

15/8” 42mm

(42mm)

*E-941SA-1K2PD is not UL listed.

6

SECO-LARM® 2017 Product Catalog

67mm

)

)

Armature Plate

)

71/4” (185mm)

5

/8”

(16mm)

23/8”

(61mm)

With "U" Bracket

With Armature

Plate Holder

600-lb Single-Door Maglocks

Features

• Anodized aluminum housing (US 28)

• Dual voltage: 12/24 VDC Operation

• No residual magnetism

• Detachable faceplate

• Adjustable mounting bracket

• MOV Surge protection

• Complete mounting hardware included

Specifications

Model E-941SA-600 E-941SA-600PQ
Holding force 600-lb (272kg)
Operating voltage 12/24 VDC

Current draw

Coil resistance 48Ω±10% per coil
Bond sensor relay N/A 3A@12VDC
Status LED N/A Yes
Operating temperature 14°~131° F (-10°~55° C)

Dimensions

Weight 4-lb 6-oz (2kg)

12VDC 500mA
24VDC 250mA

Magnet

Armature
plate

E-941SA-600PQ Only:

• Status LED – Built-in 2-color LED shows

lock/unlock status

• Built-in bond sensor with 3A dry relay

output for monitoring door status

• 3A@12VDC SPDT Relay

LED Status

Green Door is closed and locked

Red Door not closed and/or locked

Off Door in use / No power

9⁄"x1⁄"x1⁄" (250x26x40 mm)

7¼"x½"x1½" (185x12x38 mm)

LIFETIME

LIMITED

WARRANTY

Model Numbers

E-941SA-600

600-lb, single door, UL listed

E-941SA-600PQ

600-lb, single door, with bond
sensor and status LED, UL listed

Accessories

E-941S-600/LQ

L-Bracket

E-941S-600/ZQ

Z-Bracket

E-941S-600/UQ

U-Bracket for glass
doors

E-941S-600/PQ

Plate spacer

E-941S-600/HQ

Armature plate
holder

Applications

Typical Installation

With "L" Bracket

Plate Spacers

With "Z" and

"L" Bracket

Access Control

Dimensions

Electromagnet

(26mm)

With Armature

Plate Holder

1

/4” (6mm

Armature Plate

)

71/4” (185mm)

With "U" Bracket

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

7

1,200-lb Double-Door Maglocks

LIFETIME

LIMITED

WARRANTY

Model Numbers

E-941DA-1K2Q

1,200-lb, double-door, UL listed

E-941DA-1K2P

1,200-lb, double-door, with bond
sensor and status LED, UL listed

LED Status

Green Door is closed and locked

Red Door not closed and/or locked

Off Door in use / No power

Accessories

Access Control

Features

• 1,200-lb Holding force for each door

• Anodized aluminum housing (US 28)

• Dual voltage: 12/24 VDC Operation

• No residual magnetism

• Detachable faceplate

• Adjustable mounting bracket

E-941DA-1K2P Only:

• Status LED – Built-in 2-color LED shows

lock status

• Built-in bond sensor with 3-amp dry relay

output for monitoring door status

• 3A@12VDC SPDT Relay for bond sensor

• MOV Surge protection

• Complete mounting hardware included

Specifications

Model E-941DA-1K2Q E-941DA-1K2P
Holding force 1,200-lb (545kg) per door
Operating voltage 12/24 VDC

Current draw

Coil resistance 48Ω±10% per coil
Bond sensor relay N/A 3A@12VDC
Status LED N/A Ye s
Operating temperature 14°~131° F (-10°~55° C)

Dimensions

Weight 21-lb (10kg)

12VDC 500mA per door (1A total)
24VDC 250mA per door (500mA total)

Magnet

Armature plate

21"x1⁄"x2⁄" (536x42x67 mm)

7¼"x⁄"x2⁄" (185x16x61 mm)

E-941S-1K2/LQ

L-Bracket

E-941S-1K2/ZQ

Z-Bracket

E-941S-1K2/UQ

U-Bracket

E-941D-1K2/P

Plate spacer

E-941S-1K2/HQ

Armature plate
holder

E-941EC2-N1Q

Camera for 1,200-lb
maglocks (see page
55 for details)

Applications

Typical

Installation

Plate

Spacers

With "L"

Bracket

Dimensions

Electromagnet

21" (536mm)

1

4

/

" (6mm)

25/8" (67mm)

5

1

/8"

(42mm)

8

SECO-LARM® 2017 Product Catalog

Armature Plate

71/4" (185mm)

5

/8"

(16mm)

23/8" (61mm)

With "Z" and

"L" Bracket

With "U"

Bracket

With Armature

Plate Holder

600-lb Double-Door Maglocks

LIFETIME

LIMITED

WARRANTY

Model Numbers

E-941DA-600Q

600-lb, double-door, UL listed

E-941DA-600PQ

600-lb, double-door, with bond
sensor and status LED, UL listed

LED Status

Green Door is closed and locked

Red Door not closed and/or locked

Off Door in use / No power

Access Control

Features

• 600-lb Holding force for each door

• Anodized aluminum housing (US 28)

• Dual voltage: 12/24 VDC Operation

• No residual magnetism

• Detachable faceplate

• Adjustable mounting bracket

E-941DA-600PQ Only:

• Status LED - Built-in 2-color LED shows

lock status

• Built-in bond sensor with 3-amp dry relay

output for monitoring door status

• 3A@12VDC SPDT Relay for bond sensor

• MOV Surge protection

• Complete mounting hardware included

Specifications

Model E-941DA-600Q E-941DA-600PQ
Holding force 600-lb (272kg) per door
Operating voltage 12/24 VDC

Current draw

Coil resistance 48Ω±10% per coil
Bond sensor relay N/A 3A@12VDC
Status LED N/A Yes
Operating temperature 14°~131° F (-10°~55° C)

Dimensions

Weight 9-lb (4kg)

12VDC 500mA per door (1A total)
24VDC 250mA per door (500mA total)

Magnet

Armature
plate

11

19

/16"x1⁄"x1⁄" (500x26x40 mm)

7¼"x½"x1½" (185x12x38 mm)

Accessories

E-941S-600/LQ

L-Bracket

E-941S-600/ZQ

Z-Bracket

E-941S-600/UQ

U-Bracket

E-941D-600/PQ

Plate spacer

E-941S-600/HQ

Armature plate
holder

Applications

Typical Installation

Plate Spacers

Dimensions

Electromagnet

1"

(26mm)

1

4

/

" (6mm)

15/8"(42mm)

With "Z" and

"L" Bracket

With Armature

Plate Holder

19

11

/16" (500mm)

With "L" Bracket

With "U" Bracket

Armature Plate

11/2" (38mm)

71/4"

(185mm)

1

1

/2"

/2"

(12mm)

(12mm)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

9

1,500-lb Single-Door Maglock

Features

• No residual magnetism

• Adjustable mounting bracket

• MOV surge protection

• Anodized aluminum housing (US 28)

• Complete mounting hardware included

Model Number

NEW

E-941SA-1K5Q*

1500-lb Holding force@12/24 VDC

• "L" bracket and "Z" brackets available

for easy mounting

• 12/24VDC selectable

• Detachable faceplate

300-lb Single-Door Maglock

Access Control

Features

• No residual magnetism

• Adjustable mounting bracket

• MOV Surge protection

• Complete mounting hardware included

LIFETIME

LIMITED

WARRANTY

300-lb Single-Door Maglock

LIFETIME

LIMITED

WARRANTY

• Weatherproof for outdoor use

• Pre-wired 36" (91cm) cable

• 12VDC Operation

Features

• No residual magnetism

• Adjustable mounting bracket

• MOV Surge protection

• Complete mounting hardware included

• Anodized aluminum housing (US 28)

• Reversible installation

• Detachable faceplate

Model Number

E-941SA-300*

300-lb Holding force,
indoor/outdoor use

• Stainless steel housing

• Dimensions

- Magnet:

6¾"x1"x1¼ (170x23x32 mm)

- Armature Plate:

6"x3/8"x1¼" (152x10x32 mm)

Model Number

E-941SA-300RQ*

300-lb Holding force,
indoor use only

• 12/24 VDC Operation

• Optional mounting brackets available

• Dimensions

- Magnet:

77/8"x1"x13/8" (200x24x35 mm)

- Armature Plate:

6"x3/8"x1¼" (152x10x32 mm)

10

80-lb Single-Door Maglock

Features

• No residual magnetism

• Adjustable mounting bracket

• MOV Surge protection

• Anodized aluminum housing (US 28)

• For small, minimum security doors

including cabinets and drawers

LIFETIME

LIMITED

WARRANTY

SECO-LARM® 2017 Product Catalog

• 12~24 VDC Operation

• Detachable mounting bracket for easy

installation

Model Number

E-941SA-80Q

80-lb Holding force@12VDC
110-lb Holding force@24VDC

• Current draw

- 12VDC: 85mA

- 24VDC: 165mA

• Dimensions

- Magnet:

23/4"x13/16"x11/4" (70x20x31 mm)

- Armature Plate:

23/8"x3/8"x11/4" (60x9x31 mm)

*For additional information on the SECO-LARM® Maglock Accessories see page 11.

Mounting Brackets

Z-Brackets

Model Numbers: Compatible with:

E-941S300R/ZQ

E-941SA-300RQ

Access Control

E-941S-600/ZQ

E-941SA-600, E-941SA-600PQ,
E-941DA-600Q, E-941DA-600PQ

E-941SA-1200, E-941SA-1K2PQ,

E-941S-1K2/ZQ

E-941SA-1K2PD, E-941DA-1K2Q,
E-941DA-1K2P, E-941SA-1K5Q

L-Brackets

L-Brackets

Model Number: Compatible with:

Model Numbers: Compatible with:

E-941S300R/LQ

E-941S300R/LQ

E-941S-600/LQ

E-941S-600/LQ

E-941S-1K2/LQ
E-941S-1K2/LQ

E-941S-1K5/L

U-Brackets

Model Numbers: Compatible with:

E-941S300R/UQ

E-941S-600/UQ

NEW

E-941SA-300RQ

E-941SA-300RQ
E-941SA-600, E-941SA-600PQ

E-941SA-600, E-941SA-600PQ
E-941DA-600Q, E-941DA-600PQ

E-941DA-600Q, E-941DA-600PQ
E-941SA-1200, E-941SA-1K2PQ

E-941SA-1200, E-941SA-1K2PQ
E-941SA-1K2PD, E-941DA-1K2Q

E-941SA-1K2PD, E-941DA-1K2Q
E-941DA-1K2P

E-941DA-1K2P
E-941SA-1K5Q

E-941SA-300RQ
E-941SA-600, E-941SA-600PQ

E-941DA-600Q, E-941DA-600PQ
E-941SA-1200, E-941SA-1K2PQ,

E-941S-1K2/UQ

E-941SA-1K2PD, E-941DA-1K2Q
E-941DA-1K2P, E-941SA-1K5Q

Plate Spacers

Model Numbers: Compatible with:

E-941S300R/PQ

E-941S-600/PQ

E-941S-1K2/PQ

E-941S-1K5/P

E-941D-600/PQ

E-941D-1K2/P

Armature Plate Holders

Model Numbers: Compatible with:

E-941S-600/HQ

NEW

E-941SA-300RQ
E-941SA-600, E-941SA-600PQ
E-941SA-1200, E-941SA-1K2PQ
E-941SA-1K5Q
E-941DA-600Q, E-941DA-600PQ
E-941DA-1K2Q, E-941DA-1K2P

E-941SA-600, E-941SA-600PQ,
E-941DA-600Q, E-941DA-600PQ

E-941SA-1200, E-941SA-1K2PQ,

E-941S-1K2/HQ

E-941SA-1K2PD, E-941DA-1K2Q,
E-941DA-1K2P, E-941SA-1K5Q

Note: Brackets and spacers not available for E-941SA-300

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

11

Electromagnetic Gate Locks

E-942FC-600

Access Control

E-942FC-1300

E-946FC-600Q

LIFETIME

LIMITED

WARRANTY

Face and surface mounting

Model Numbers

E-942FC-600

600-lb Holding force, face-mount

E-942FC-1300

1,200-lb Holding force, face-mount

E-946FC-600Q

1,200-lb Holding force, face and
surface mount

E-946FC-1K2Q

1,200-lb Holding force, face and
surface mount

Dimensions

E-942FC-600 &
E-946FC-600Q:

8" (203mm)

71/4" (185mm)

9

/16"

(14mm)

3'

(91cm)

15/8"

(41mm)

111/16"

(43mm)

19/16"

(40mm)

Features

• Face or surface mounting

• For indoor & outdoor applications

• For sliding or swinging gates

• Water resistant and vandal resistant

• Maintenance-free, factory-sealed design

• Dual-threaded conduit fitting

• Attractive stainless steel housing

• Dual voltage: 12/24 VDC Operation

• 6½ ft (2m) Hookup cord (E-946FC-1K2Q

and E-942FC-1300)

Accessories

E-942F-600/L

L-Bracket for:
E-942FC-600
E-946FC-600Q

E-942F-600/Z

Z-Bracket for:
E-942FC-600
E-946FC-600Q

E-946FC-1K2Q

Face and surface mounting

• 3ft (91cm) Hookup cord (E-946FC-600Q

and E-942FC-600)

• No residual magnetism

• MOV Surge protection

• Complete mounting hardware included

• "L" and "Z" brackets available

• Current draw

- 12VDC: 500mA

- 24VDC: 250mA

E-946F-1K2/LQ

L-Bracket for:
E-946FC-1K2Q

E-942F1300/ZQ

Z-Bracket for:
E-942FC-1300
E-946FC-1K2Q

E-942FC-1300:

8"(203mm)

71/4" (185mm)

E-942F-1300/L

L-Bracket for:
E-942FC-1300

5

/8"

(16mm)

(2m)

23/8"

(61mm)

61/2'

21/2"

(63mm)

19/16"

(40mm)

12

SECO-LARM® 2017 Product Catalog

Weldable Magnetic Gate Locks

E-942FC-600SQ

E-942FC-1K3SQ

E-946FC-1K2SQ

Features

• For sliding or swinging gates

• Weld or bolt brackets directly to the gate

• Brackets are zinc-plated for corrosion

resistance

• Water resistant and vandal resistant

• Maintenance-free, factory-sealed design

Dual-threaded conduit fitting

• Anodized aluminum housing (US 28)

• No residual magnetism

• MOV Surge protection

LIFETIME

LIMITED

WARRANTY

Model Numbers

E-942FC-600SQ

600-lb Holding force,
face mounting

E-942FC-1K3SQ

1,200-lb Holding force,
face mounting

E-946FC-1K2SQ

1,200-lb Holding force, face and
surface mounting

Dimensions

E-942FC-600SQ:

11

1

/16"

(43mm)

19/16"

(40mm)

3

/8"

(10mm)

9

/16"

(14mm)

111/16"

(43mm)

3

/8"

(10mm)

E-942FC-1K3SQ:

101/2" (267mm)

15/8"

(41mm)

8" (203mm)

71/4" (185mm)

73/8" (188mm)

1

2

(63mm)

/2"

2"

(50mm)

Access Control

Specifications

Model E-942FC-600SQ E-942FC-1K3SQ E-946FC-1K2SQ
Holding force 600-lb (272kg) 1,200-lb (544kg)
Operating voltage 12/24 VDC

Current draw

12VDC 500mA
24VDC 250mA

Operating temperature 14°~131° F (-10°~55° C)

Mounting Diagram

E-942FC-1K3SQ, E-942FC-600SQ

(Face Mount)

E-946FC-1K2SQ

(Surface Mount)

Armature Mounting

(All Models)

1

2

/2"

(63mm)

19/16"

(40mm)

1

/2"

(13mm)

5

/8"

(16mm

1

2

/2"

(63mm)

1

/2"

(13mm)

E-946FC-1K2SQ:

21/2"

(63mm)

15

/32"

(11mm)

15

5

/32"

/8"

(11mm)

(16mm

101/2" (267mm)

)

3

2

/8"

(61mm)

811/16" (220mm)

113/6" (283.5mm)

)

3

2

/8"

(61mm)

15

/32"

(11mm)

8" (203mm)

71/4" (185mm)

73/8" (188mm)

71/4" (185mm)

73/8" (188mm)

(63mm)

1

2

/2"

(63.5mm)

(40mm)

2

1

1

(50mm)

9

/16"

/2"

2"

(74mm)

2 5/6"

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

13

Magnetic Door Holders

DH-171SQ

Access Control

Features

• For use with door closers to control

the release and closing of residential,
commercial, and public area doors

• Adjustable armature plate reduces

installation time and adjusts to door
alignment changes

• Low profile design

DH-151SQ

• Extension bars available: ½", ¾", 1", 2",

3", 4", 5", 6", 7"

• Cast aluminum faceplate

• No residual magnetism for easy release

• Built-in voltage spike suppressor

• Use with SECO-LARM door closers

SD-C121-S, SD-131-SQ, SD-C101-SGQ,
SD-C101-SBAQ, or SD-C101-SBBQ

Model Numbers

DH-171SQ

Flush-mount, Fail-Safe, UL listed

DH-151SQ

Surface-mount, Fail-Safe, UL listed

Specifications

Model DH-171SQ DH-151SQ
Installation Flush-mount Surface-mount

52mA@12VAC, 60mA@12VDC

Current draw

Holding Force 33-lb (15kg)
Magnet box

dimensions
Door armature

dimensions
Magnet box

weight
Operating

voltage

27mA@24VAC, 31m@24VDC

24mA@120VAC

3

/4"x49/16"x21/16"

2

(70x116.5x52 mm)

29/16"x29/16"x19/16" (65x65x40 mm)

1-lb 6.4-oz

(635g)

12 VAC/VDC, 24 VAC/VDC, 120VAC

23/4"x49/16"x3"

(70x116.5x76 mm)

1-lb 1.5-oz

(496g)

NEW

NEW

Extension Bars

DH-100E-05SQ

½" Extension bar

DH-100E-20SQ

2" Extension bar

DH-100E-50SQ

5" Extension bar

DH-100E-07SQ

3

/4" Extension bar

DH-100E-30SQ

3" Extension bar

DH-100E-60SQ

6" Extension bar

1,500-lb Electric Shear Lock

Features

• Concealed security for remote access

control with aluminum or steel doors and
gates

• Small size for use with most metal door

jambs

• Fail-safe operation

• Works with sliding, single-action, and

double-action doors and gates

• Spring-loaded locking bolts and magnetic

bond hold door securely in place with
approximately 1,500-lb (680kg) of shear
holding force

DH-100E-10SQ

1" Extension bar

DH-100E-40SQ

4" Extension bar

DH-100E70SQ

7" Extension bar

Model Number

SD-993B-SS

12/24 VDC, fail-safe operation,
1,500-lbs holding force

Specifications

Operating Voltage 12 or 24 VDC
Current

12VDC 420mA

draw

24VDC 210mA

1

Door Gap Max.
Weight (Approx.) 2lb 8-oz (1.1kg)

/16" (2mm)

• Anodized aluminum housing

• Armature plate adjusts to compensate for

gaps between door
and frame

14

SECO-LARM® 2017 Product Catalog

Electric Door Strikes

Model Numbers

SD-995C

Fail-safe/fail-secure, 12VDC,
for metal doors, UL listed

SD-995C24

Fail-safe/fail-secure, 24VDC,
for metal doors, UL listed

SD-994C

Fail-safe/fail-secure, 12VDC,
for wood doors, UL listed

SD-994C24

SD-994C / SD-994C24SD-995C / SD-995C24

Fail-safe/fail-secure, 24VDC,
for wood doors, UL listed

Accessories

Access Control

Features

• Field-programmable in just seconds for

fail-safe or fail-secure applications

• Can be used with virtually any cylindrical

door locking system

• Use with an optional digital keypad

• Suitable for office-type applications

• Symmetrical-sized, reversible for right-

hand or left-hand doors

• Shallow design for use with most doors

• Powered by a solenoid, not a buzzer coil

• Static strength – 1,000-lb (454kg)

• Stainless steel lip (keeper) for strength

and long life

• Non-polarized connection; wires can be

reversed

• Tested to 1 million cycles

• Includes trim plate to hide gaps in

installation

• Optional lip-extension brackets available:

- SD-995C-LE25 – 1" Extension

- SD-995C-LE50 – 2" Extension

• Dimensions:

- SD-995C/SD-995C24

47/8"x11/4"x11/4" (124x32x32 mm)

- SD-994C/SD-994C24

715/16"x17/16"x11/4" (202x36x32 mm)

Basic Electric Door Strikes

SD-995C-LE25

Lip extender, 1" (25mm)

SD-995C-LE50

Lip extender, 2" (50mm)

SD-995JA-11Q

Frame preparation jig

Trim Plate Included

Trim plate included for
cleaner installations.

Model Numbers

SK-990AQ

Fail-secure, 12VDC, for wood
doors

SK-990BQ

Fail-safe, 12VDC, for wood doors

Features

• Converts cylindrical lock sets into an

electronic access-controlled locking
system

• Can be used on virtually any cylindrical

door locking system

• Combine with an optional digital keypad

such as the SECO-LARM SK-1011-SDQ
for keyless high security

• Baked painted finish

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

• Use fail-secure (SK-990AQ) units for

entrance door installations

• Use fail-safe (SK-990BQ) units for

emergency door and escape door
installations

• Input voltage: 10~14 VDC

• Current draw:

- SK-990AQ: 450mA

- SK-990BQ: 200mA

Dimensions

211/16"

(69mm)

(39.5mm)

11/8"

(28.5mm)

19/16"

57/8"

(150mm)

33/8"

(86mm)

13/8"

(39.5mm)

15

Electric Door Strikes (

Keeper Adjustment

SD-994A-A1AQ SD-994A-A1SQ

Access Control

Reversible)

Model Numbers

SD-994A-A1AQ

Asymmetrical plate, Fail-secure

SD-994A-A1SQ

Symmetrical plate, Fail-secure

Specifications

Current draw

Operating temperature 14°~113° F (-10°~45° C)
Weight 10.3-oz (292g)
Operating voltage 8~16 VAC/12VDC
Operation Fail secure

16VAC 800mA

12VDC 750mA

Dimensions

NEW

NEW

Features

• Can be used on virtually any mortise or

cylindrical door locking system

• Powered by a solenoid

• US26D Bright chrome faceplate

• Miniature lock body for easier installation

• Zinc alloy faceplate

• Frame type - wood

• Tamper strength test - 1000lbs (454kg)

• Cycle test - 500,000 cycles

• Keeper depth

latch projection possible with ⁄"door /
frame clearance - ¾"

• Strike depth 1½" Overall

• Non-handed

• Corrosion-resistant case and moving parts

Electric Door Strike (

Features

• ¼" Horizontal keeper adjustment

compensates for installation difficulties
such as warped doors, different-sized
latch bolts, etc.

• Unique design accommodates both wood

and metal doors

• Fail-secure operation

• Reversible for right or left-handed doors

• Durable stainless steel faceplate

• Miniature lock body for easier installation

• Corrosion-resistant case and moving parts

• Complete mounting hardware included

• Screw terminals for ease of wiring

• Operating voltage: 8~16 VAC/12VDC

• 1,000-lb (453kg) Holding force

• Tested to 500,000 cycles

• Keeper depth:

• Latch depth: ¾" (19mm)

21

/32" (16.8mm) maximum

Horizontal Adjustment)

Screws

21

/32" (16.8mm)

SD-994A-A1AQ

15/16"

(34mm)

31/

(80mm)

Model Number

Model Number

SD-995A-A1Q

(75mm)

8

8

13/

(34mm)

3"

SD-994A-A1SQ

16

25/

(58mm)

16

25/

(58mm)

8~16 VAC/12VDC, Fail-Secure

Accessory

Model Number

SD-995RE-21Q

Optional Faceplate, Stainless Steel
7 15/16"x11/4"x1/8" (202x32x3.2 mm)

Specifications

Current draw

Operating temperature 14°~113° F (-10°~45° C)
Weight 10.3-oz (292g)
Max. Latch throw
Strike depth 1
Adjustable keeper Max.
ANSI Faceplate

dimensions
Optional ANSI

Faceplate dimensions

16VAC 800mA
12VDC 750mA

5

/8" (16mm)

1

/2" overall (38mm)

7

/8"x11/4"x1/8"

4

(124x32x3.2 mm)

15

/16"x1¼"x1/8"

7

(202x32x3.2 mm)

1

/4" (6mm)

13/8"

(34mm)

3"

(75mm)

NEW

NEW

16

SECO-LARM® 2017 Product Catalog

Universal Door Strike

Features

• Includes three faceplates for nearly any

kind of door

• Listed under UL 1034 Burglary

• Convert cylindrical lock sets into

electronic access control systems

• Use on virtually any cylindrical door

locking system

• Holding – 2,000-lb (908kg)

• Powered by a solenoid

• Stainless steel lip for added strength and

longer life

• Low profile – strike has a depth of only

1¼" for use with hollow aluminum frames

• Reversible non-handed design

Model Number

SD-996C-NUQ

Fail-safe/fail-secure, 12 or 24 VDC

Specifications

Operating voltage 12 or 24 VDC ±15%

Current draw

Operating temperature
Operating humidity 85% ±15%

12VDC 280mA
24VDC 140mA

0°~120°F (-18°~49° C)

• Easily connects to an optional keypad

• Trim plate Included

• Faceplate dimensions:

- Aluminum: 4⁄"x1¼" (124x32 mm)

- Hollow metal: 4⁄"x1¼" (124x32 mm)

- Wood: 7⁄"x1⁄" (202x37 mm)

Access Control

Electric Door Strike

Features

• Vertical adjustable deadbolt opening,

sliding shim keeper, and deadlatch ramp
accommodates a wide range of locks

• Accommodates deadbolts up to 1"

• Powered by a solenoid

• Reversible non-handed design fits either

right-hand or left-handed doors

• Convert cylindrical lock sets into

electronic access control systems

• Use on virtually any cylindrical door

locking system

• Includes trim plate to hide gaps in

installation

• Tested to 250,000 cycles (UL tested)

(Vertical Adjustment)

Model Numbers

SD-996C-NUVQ

12/24 VAC/VDC
Fail-Safe/Fail-Secure

Specifications

Model SD-996C-NUVQ
Current draw 300mA@12VDC 150mA@24VDC
Operating

temperature
Operating

humidity
Static

strength

Latch throw

Dimensions 1
Weight 1-lb 5.8-oz (618g)

5 Faceplates

Included:

14°F~113°F (-10°~45° C)

0~85%

1,000-lb (454kg)

1

1" (25mm) max with

13

/16"x15/8"x35/16" (47x42x84 mm)

door gap

/8" (3mm)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

17

No-Cut Electric Door Strike

Access Control

Features

• Horizontally adjustable keeper

accommodates latchbolt positioning

• Vertically adjustable ramp

accommodates nib positioning

• Low profile: Strike is only 1

use with aluminum frames

1

/16" deep for

• Mounting tabs included for mounting to

hollow aluminum & metal doors

• For Indoor Use Only

• Reversible non-handed design fits

either right-hand or left-hand doors

• The SD-993C-D3Q is intended to be

used with UL Listed Exit Hardware

• The SD-993C-D3Q shall not impair the

intended operation of an emergency exit

• The SD-993C-D3Q shall not impair the

operation of panic hardware mounted
on the door

Model Number

SD-993C-D3Q

Fail-safe/Fail-secure, 12/24 VDC

Specifications

Operating voltage 12/24 VDC

Current
draw

Latch throw
Keeper width
Static strength
Dynamic strength

Endurance

Operating
temperature

Operating humidity 0~85% ±15%

12VDC 300mA
24VDC 150mA

9

/16" (15mm)

17/16" (36mm)

1,500-lb (680kg)

70 ft-lbs (9.68 m-kgs)

100,000 cycles (UL Tested),

1,000,000 cycles

(Factory Tested)

32°~120°F (0°~49° C)

NEW

Mini No-Cut Electric Door Strike

SD-991A-D1Q with

no-cut strike plate

Features

• Includes no-cut and low-cut strike

plates

• Can be used with almost any cylindrical

door locking system

• Converts cylindrical lock sets into an

electronic access-controlled system

• 2-wire installation, non-polarized

connection

• Stainless steel keeper for strength and

long life

• Suitable for office-type applications

• For indoor use only

• Compatible with keypads, pushbutton

switches and other entry devices

• Reversible non-handed design fits

either right-hand or left-hand doors

• Shallow design for use with most metal

doors

• Powered by a solenoid, not a buzzer coil

• Optional bronze low-cut strike plate

(SD-991RA-61Q/B) available:

- Fits most metal or wood doors with

minimum cutting of door frame
beyond the hole for the strike

SD-991RA-61Q/S

low-cut strike plate

Model Number

SD-991A-D1Q

Fail-secure, 12VDC

Specifications

Operation Fail-secure
Operating voltage 12VDC
Current draw 280mA@12VDC

Holding force

Endurance

Latch throw

SD-991SS-01Q 11/8" (28mm)

Keeper
width

SD-991RA-01Q/S or B 13/16" (30mm)

Operating humidity 0~85%

Operating temperature

Additional Strike Plate

1,000-lb

(454kg)

250,000 cycles

(Factory Tested)

1

/2" (13mm)

14°~120° F

(-10°~49° C)

SD-991RA-61Q/B

Bronze low-cut
strike plate

NEW

18

SECO-LARM® 2017 Product Catalog

Surface-Mount Electric Rim Strike

Features

• Non-polarized connection

• ¾ " (19mm) thick metal housing

• Accommodates up to ¾ " Pullman latch

• Dynamic strength 70 ft-lbs.

• Field-programmable for fail-safe or fail-

secure operation

• For ANSI standard fire doors

• Horizontal adjustment

• Metal construction

• Metal or wood frames installation

• Rated for 250,000 cycles (Factory test for

1,000,000 cycles)

Model Number

SD-998C-NUQ

NEW

Fail-safe/ Fail-secure,
12 or 24 VDC

Specifications

Operating voltage 12/24 VDC

Current
draw

Operating temp. 14°~113° F (-10°~45° C)
Operating humidity 0~95%
Lock mode Fail-safe/Fail-secure
Static strength 1,500-lb (680kg)
Dynamic strength 70 ft-lbs

Dimensions

12VDC 540mA
24VDC 270mA

3

/4"x3/4"

8"x1

(203x45x19mm)

• Works with standard rim-type exit devices

including SECO-LARM, SD-962AR-36A,
SD-962AR-36G, and SD-962AR-36M

• See page 36 for more information on

SECO-LARM

®

Rim Exit Bars

• Five-year limited warranty

Access Control

Weatherproof Door/Gate Strike

Features

• Weatherproof (IP42)

• For use in wood jambs or

metal gate posts

• One piece cast body

• Compatible with most locksets

• Low current

• Extra wide keeper 1

Door Strike Accessories

SD-995JA-11Q*

Frame preperation jig

SD-995C-LE25*

Lip extender, 1" (25mm)

SD-995C-LE50*

Lip extender, 2" (50mm)

Model Number

SD-995A-D3Q

NEW

Fail-secure, 12 VAC/VDC

Specifications

Operating voltage 12 VAC/VDC
Current draw 310mA@12VDC
Operating temp. 14°~113° F (-10°~45° C)
Operating humidity 0~95%
Lock Mode Fail-secure

1

3

5

/8"

Dimensions

SH-506Q

93dB Buzzer,

/2"x17/16"x25/8"

(89x35x67 mm)

SA-026Q

Mini timer

3~28 VDC

* Compatible with SD-994C and SD-995C series, and SD-996C-NUQ door strikes

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

19

Electric Deadbolts

SD-997B-GBQ

Access Control

Features

• Adds concealed deadbolt security to most

wood or hollow metal doors, with the
convenience of electrical operation

• Stainless steel bolt, ⁄" (16mm) diameter

and ⁄" (16mm) throw

• Magnetic switch senses door position for

positive locking

• Attempts to relock multiple times if the

door is not closed properly

• Door open/close monitor (NO/NC/COM)

SD-997A-GBQ

Incorporates manual

lock/unlock cylinder

• Solenoid shuts off if door is not closed

properly

• Adjustable door lock delay timer

• Easily connects with an optional keypad

SD-997A-GBQ Only:

• Incorporates manual lock/unlock cylinder

to operate lock if power is lost, (turn lock
knob from inside protected premises
and/or use key from outside protected
premises)

Model Numbers

SD-997B-GBQ

Fail-safe, 12/24 VDC

SD-997A-GBQ

Fail-secure, 12/24VDC,
with manual lock/unlock

Accessories

SD-997SMB-AQ

Surface mount
bracket kit for
SD-997B-GBQ

SD-997UB-AQ*
U-Bracket for
glass doors for
SD-997-GBQ

*Must use with SD-997SMB-AQ.

Accessory Mounting Diagrams

Mounting with the
SD-997SMB-AQ:

Specifications

Model SD-997A-GBQ SD-997B-GBQ
Operation Fail-secure Fail-safe
Operating voltage 12/24 VDC

Current draw

Manual lock/unlock Yes No
Relay rating SPDT, 250mA@12VDC (NO/NC/COM)
Adjustable delay timer 0/3/5/9 seconds 0/2.5/5/9 seconds
Weight 2-lb 5-oz (1kg) 1-lb 13-oz (0.8kg)

12VDC 880mA 900mA
24VDC 470mA 440mA

Dimensions

5

3

/4" (19.3mm)

17/16" (37mm)

41/8" (105mm)

SD-997A-GBQ

31/8" (80mm)

SD-997B-GBQ

/8" (16mm) Throw

63/8" (162mm)

21/4" (57mm)

5

/8" (16mm) Throw

Mounting with the
SD-997UB-AQ:

Applications

For single doors

Top mount Side mount

For double doors

20

77/8" (200mm)

7

/

32

"

SECO-LARM® 2017 Product Catalog

Mini Electric Deadbolt (Surface Mount)

Features

• Adds deadbolt security to smaller doors

and cabinets, with the convenience of
electrical operation

• Surface-mount design for easy

installation

• Aluminum-alloy bolt,

diameter and 9/16" (14mm) throw

15

/32" (13mm)

• Easily connects with an optional keypad

• Magnetic switch senses door position for

positive locking

• Automatically relocks after 6 seconds if

the lock was unlocked but the door was
not opened

• Door open/close monitor (NC/COM)

and adjustable door lock delay timer
(0/3 seconds)

Model Number

SD-997B-1SQ

12VDC, Fail-safe operation

Specifications

Operation Fail-safe
Operating voltage 12VDC
Current

draw

Status sensor 250mA@30VDC (NC/COM)
Adjustable lock delay

timer
Operating

Temperature
Weight 1-lb 2.5-oz (450g)

Standby 237mA@12VDC max.
Active 650mA@12VDC max.

0/3 seconds (default)

32°~158° F (0°~70° C)

41/2"

(114mm)

41/2"

(114mm)

Dimensions

Lock Body

Strike Body

1 9/16"

(39mm)

25

/

32

(20mm)

41/

(114mm)

2

1

1

/16"

(27mm)

"

41/

(114mm)

2

1

/16"

1

(27mm)

Access Control

Electric Deadbolt Cabinet Lock

Features

• Electronically secure lockers, cabinets,

cases, and drawers

• Lock status sensor allows for monitoring

whether doors are locked

• Selectable fail-safe/fail-secure operation

• Operating voltage: 12/24 VDC

• Current draw: 300mA@12VDC,

150mA@24VDC

• NO/NC Rated contacts

• Mounting hardware included

Model Number

SD-997C-GCQ

12/24 VDC, Fail-safe/Fail-secure

Specifications

Operating voltage 12/24 VDC
Current

draw

Contact Switch NO/NC
Lock status
Lock status rating 1A@30VDC
Door status Reed switch
Dimensions

12VDC 300mA
24VDC 150mA

Micro-switch

31/4"x13/16"x11/8" (82x30x28 mm)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

21

Access Control Power Supplies

Access Control

EAP-3D8SQ

EAP-5D5Q

Model Numbers

EAP-3D1Q

3 Amps, 1 output

EAP-3D4SQ

3 Amps, 4 outputs, power controller

EAP-3D8SQ

3 Amps, 8 outputs, power controller

EAP-5D1Q

5 Amps 1 output

EAP-5D4SQ

5 Amps, 4 outputs, power controller

EAP-5D5Q

5 Amps, 5 outputs

EAP-5D8SQ

5 Amps, 8 outputs, power controller

EAP-7D1Q

7 Amps, 1 output

EAP-7D4SQ

7 Amps, 4 outputs, power controller

EAP-7D8SQ

7 Amps, 8 outputs, power controller

NEW

NEW

NEW

NEW

NEW

NEW

NEW

NEW

Features

• AC Power failure supervision relay

• Battery failure/low battery supervision

• Auxiliary output relay

• Relays rated 3A@24VDC, 3A@120VAC

• Adjustable voltage range to compensate

for voltage drop

• Built-in backup battery charger

• Selectable 2.2kΩ End-of-Line (EOL)

resistor for AC failure and battery failure
supervision relays via DIP switch

• LED Status indicator for AC input, DC

output and channel outputs

• Selectable delay timer (5 seconds,

5 minutes, 5 hours) for AC failure
supervision relay via DIP switch

Power:

• Field selectable for 12VDC or 24VDC

• Operating input voltage 110~240 VAC

• Adjustable voltage range (11~15 VDC,

23~28 VDC)

• 3A@12VDC / 3A@24VDC supply current

EAP-7D4SQ

• AC Input fuse rating 3.15 A (glass fuse)

• DC Output overload sensing with red LED

indicator and automatic shutdown during
short circuit

EAP-5D1Q, EAP-5D4SQ,
EAP-5D5Q, EAP-5D8SQ Only:

• 5A@12VDC / 2.5A@24VDC supply

current

EAP-7D1Q, EAP-7D4SQ,
EAP-7D8SQ Only:

• 7A@12VDC / 3.5A@24VDC supply

current

Enclosure:

• Heavy-duty steel case

• Removable steel cover for easy access

• Enclosure has room for two 7AH

batteries

• 6ft Power cord and battery leads

included

• Dimensions: 12⁄"x12¼"x3⁄"

Specifications

Input Voltage 110~240 VAC
Output Voltage 12 or 24 VDC selectable via DIP switch
Adjustable

Output Voltage
Range

Supply Current 5A@12VDC / 2.5A@24VDC
AC Input

Fuse Rating
LED Status

Indicator
End-of-Line

Resistor (EOL)
AC-Fail Relay

Delay Timer
Supervision

Relays

11~15 @ 12VDC setting, via VR switch
23~28 @ 24VDC setting, via VR switch

3.15A ( glass fuse )

AC input ( Green ), DC Output ( Red )

Selectable ON ( 2.2KΩ)

or OFF via DIP switch

Selectable @ 5sec, 5min

or 5hr via DIP switch

Contact Rating:

3A@24VDC Dry Relay Output

Accessories

PD-4GTQ

4-Channel power
distribution board
(see page 23)

PD-8GTQ

8-Channel power
distribution board
(see page 23)

22

SECO-LARM® 2017 Product Catalog

Power Distribution Boards

Features

• Multiple access control trigger inputs

PD-4GTQ

• Multiple independently controlled fused

outputs

PD-8GTQ

Model Number

PD-4GTQ

4-Channel controller board
12~24 VAC/VDC

PD-8GTQ

8-Channel controller board
12~24 VAC/VDC

PD-5PAQ

5-Output power distribution board

• Multiple 5A Form C relay outputs

• Fail-safe and/or fail-secure power outputs

• Multiple auxiliary outputs (unswitched)

NEW

NEW

Access Control

Electro-Mechanical RIM Lock

Electro-Mechanical Bolt Lock

Model Number

NEW

SD-211-BD1Q

Surface-mount

Features

• Easy to install on existing gates

• Fully mechanical, can be unlocked if

power is lost

• Available for left and right handed gates

• Compatible with access control devices

• 12VDC, Fail-secure operation with

mechanical override

Model Number

NEW

SD-221-NE1Q

Surface-mount

Features

SD-221-NE1Q Only:
Same as SD-211-BD1Q plus:

• Quiet operation, no need to slam gate

shut

• Door sensor with auto lock

• Weatherproof design

Electro-Mechanical Bolt Latch

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

Model Number

NEW

SD-231-NEUQ

Surface-mount

Features

SD-231-NEUQ Only:
Same as SD-211-BD1Q plus:

• Quiet operation, no need to slam gate

shut

• 12/24 VAC/VDC, Fail-secure operation

with mechanical override

23

Indoor Access Control Keypad

Access Control

Features

Features

• Output – Form C relay, 1,000 users

• Super user code gives admin access

• All features are programmed directly

from the keypad: No need for an external
programmer

• Indoor keypad

• Up to 50 possible temporary visitor codes,

which can be programmed for one-time
or limited-time use (1~99 hours)

• Programmable output time

(Up to 99,999 seconds)

• Auto-disable access at specific times

LIFETIME

LIMITED

WARRANTY

Model Number

Model Number

SK-1011-SDQ

SK-1011-SDQ

1,000 Users, 1 relay output

1,000 Users, 1 relay output

Specifications

Specifications

Operating voltage 12~24 VAC/VDC

Operating voltage 12~24 VAC/VDC

Standby 15mA

Current

Current

(12VDC)

(12VDC)

Outputs

Outputs

Inputs Egress N.O. Ground

Operating temperature -4°~158° F (-20°~70° C)

Operating temperature -4°~158° F (-20°~70° C)
Dimensions

Dimensions
(Including back box)

(including back box)
Weight 6-oz (170g)

Weight 6-oz (170g)

Standby 15mA

draw

draw

Total max

Total max
current draw

current draw

#1 - Form C 1A@30VDC

Form C 1A@30VDC
Tamper 50mA@24VDC

Tamper 50mA@24VDC

Inputs Egress N.O. Ground

90mA

90mA

5

5

/8"x27/8"x11/2"

4

/8"x27/8"x11/2"

4

(117x73x38 mm)

(117x73x38 mm)

• Programmable egress input with optional

warning alarm and delayed egress

• Mounts to a standard single-gang back

box (surface-mount back box included)

Indoor Access Control Keypad

Features

Features

• 4 Available programmable access modes

for all 3 outputs: card only, code only,
card and common user code, card and
unique user code

• Three relay outputs (two Form C relay,

and one Transistor ground), 1,200 users

• Programmable output time

(Up to 99,999 seconds)

• Super user code gives admin access

• Up to 50 possible temporary visitor

codes, which can be programmed for
one-time or limited-time use
(1~99 hours)

• Auto-disable access at specific times

• Programmable egress input with optional

warning alarm and delayed egress

• Duress code signals a silent alarm if an

authorized user is forced to open the door

• Mounts to a standard single-gang back

box (surface-mount back box included)

• Illuminated keypad with programmable

status LEDs

• Door sensor input for anti-tailgating

operation

• Door-propped-open warning

• Door-forced-open warning

• Door open warning and alarm

LIFETIME

LIMITED

WARRANTY

Model Number

Model Number

SK-1131-SPQ

SK-1131-SPQ

1,200 Users, 3 relay outputs,

1,200 Users, 3 relay outputs,
built-in proximity card reader

built-in proximity card reader

Specifications

Specifications

Operating voltage

Operating voltage 12~24 VAC/VDC

Standby 66mA

Current

Current

(12VDC)

(12VDC)

Outputs

Outputs

Proximity reader
frequency

Proximity reader
Proximity reader

frequency
sensing distance

Proximity reader
Operating temperature -4°~158° F (-20°~70° C)

sensing distance
Dimensions

Operating temperature -4°~158° F (-20°~70° C)
(Including back box)

Dimensions
Weight 6-oz (170g)

(including back box)
Weight 6-oz (170g)

Standby 66mA

draw

draw

Total max

Total max
current draw

current draw

#1 - Form C

#1 - Form C
#2 - Form C

#2 - Form C
#3 - Transistor

#3 - Transistor
ground

ground

Tamper 50mA@24VDC

Egress
Egress

Inputs

Door sensor

Inputs

Door sensor

Door inhibit
Door inhibit

160mA

160mA

1A@30VDC

1A@30VDC
1A@30VDC

1A@30VDC

100mA@24VDC

100mA@24VDC

N.O. Ground
N.O. Ground

N.C. Ground
N.C. Ground

N.O. Ground
N.O. Ground

125kHz (EM125)
125kHz (EM125)

112" (38mm)

1

/2" (38mm)

1

5

/8"x27/8"x11/2"

4

(117x73x38 mm)

5

/8"x27/8"x11/2"

4

(117x73x38 mm)

24

SECO-LARM® 2017 Product Catalog

Split Series Keypad (w/ Proximity Reader)

LIFETIME

LIMITED

WARRANTY

Features

• Split-Series keypad - keypad and control

board are separated for high security
applications

- Only Power and data I/O are sent from

keypad to control board - no way to
manually activate relay from keypad
without a valid access code

• 1,200 Users over 3 Outputs

• Built-in Door chime

• Programmable egress input

• 4 available programmable access modes

for all outputs: card only, code only, card
and common user code, card and unique
user code

• Up to 50 possible temporary visitor codes

• Programmable lock out/duress output after

5-10 failed key-in attempts

• Real-time clock

• Alarm outputs for tamper, door-forced-

open, and door propped open

Model Number

SK-4131-SPSQ

NEW

Split series keypad with built-in
proximity card reader

Specifications

Specifications

Operating voltage 12~24 VDC
Proximity reader

frequency
Proximity reader sensing

distance
Operating temperature -4°~158° F (-20°~70° C)

Keypad

Dimensions

Controller

125kHz (EM125)

1

/2" (38mm)

5

/8"x27/8"x11/2"

4

(117x73x38 mm)

7

/16"x43/4"x11/4"

3
(87x120x32 mm)

Accessories

PR-K1S1-A

Proximity Cards (EM125)
(Sold in packs of 10)

PR-K1K1-AQ

Proximity Keyfob (EM125)
(Sold in packs of 10)

Access Control

Outdoor Access Keypads

SK-1123-FDQ SK-1123-SDAQ

Features

• 1,100 Users over 2 Outputs - codes may be

4~8 digits

• Super user code gives admin access

• Up to 50 (01~50) possible temporary visitor

codes, which can be programmed for one­time or limited-time use (1~99 hours)

• Programmable egress input with optional

warning alarm and delayed egress

• Auto-disable access at specific times

• Up to 50 (01~50) duress codes for output

#1 and 10 (01~10) for output #2

• Duress code signals a silent alarm if an

authorized user is forced to open the door

• Programmed directly from the keypad

Illuminated keys for

easy anytime use

• Mounts to a standard single-gang back box

(surface-mount back box included)

• Durable stainless steel faceplate

• Keypad illuminates when a button is

pressed; backlight can be programmed for
FULL, AUTO, or OFF in standby mode

• Mantrap: for a protected area with two

doors, this feature allows only one door to
be open at a time

• Door sensor input for anti-tailgating

operation

• Door-propped-open warning

• EEPROM Memory protects programmed

information in case of power loss

Model Number

SK-1123-FDQ

Flush-mount, 1,000 Users

SK-1123-SDAQ

Surface-mount, 1,000 Users

Specifications

Operating voltage 12~24 VAC/VDC

Standby 15mA

Current

Key pressed 40mA

draw

Relay active

#1 - Form C 1A@30VDC

#2 - Transistor

Outputs

Egress N.O. Ground
Door sensor input N.C. Ground

Dimensions

IP Rating IP66
Weight 16-oz (460g)

Ground

Timer

Output 1: 65mA

Output 1&2: 66mA

100mA@24VDC

Active for up to

99,999 seconds

(nearly 28 hours)

3

/4"x31/8"x113/16"

4

(125x79x52 mm)

NEW

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

25

Sealed-Housing Outdoor Keypads

Access Control

SK-1323-SPQ SK-1323-SDQ

Features

• 1,010 Users (Output #1: 1,000 users,

Output #2: 10 users)

• 2 Form C relay outputs, each rated

1A@30VDC

• All features are programmed directly

from the keypad—no need for an
external programmer

• EEPROM memory prevents data loss

• Optical tamper sensor for added security

• Circuitry is potted with epoxy for outdoor

use

• IP65 Weatherproof, rugged aluminum

construction

• Status LEDs show when a relay is active

• Each relay has programmable output

time from 1~99 seconds or toggle

• Output #2 can be programmed for use

with a doorbell

• 2 Egress inputs; 1 door sensor input

• Backlit keys for easy nighttime use

SK-1323-SPQ Only

• Built-in 125kHz proximity reader

• 3 Programmable access modes for

Output #1: Card Only, Card or Code, and
Card with Code

• Output #2 may have either a card or a

code programmed for each user

Model Numbers

SK-1323-SDQ

Standard keypad

SK-1323-SPQ

Standard keypad with built-in
proximity card reader

Accessories

PR-K1S1-A

Proximity Cards (EM125)
(Sold in packs of 10)

PR-K1K1-AQ

Proximity Keyfob (EM125)
(Sold in packs of 10)

Specifications

Operating voltage 12~24 VAC/VDC

Current
draw

Relay outputs

Egress
inputs

Door sensor input N.C. Ground
Tamper sensor Optical
Operating

temperature
Keypad LED life 60,000 hours (over 6.8 years)
Weight 1-lb 2-oz (510g)
Dimensions

Standby 64mA@12VDC
Active 120mA@12VDC (Max)

1A@30VDC

Form C NO/NC/COM
Input #1 N.O. Ground
Input #2 N.O. Ground

-4°~122° F (-20°~50° C)

7

4¾"x3"x

/8" (120x76x22 mm)

Dimensions

SK-1323-SPQ:

26

Wiring Diagram

SECO-LARM® 2017 Product Catalog

43/4"

(120mm)

3"(76mm)

7

/8"(22mm)

Mullion-Style Outdoor Keypads

Model Numbers

SK-2323-SDQ

Mullion-style keypad

SK-2323-SPQ

Mullion-style keypad with built-in
proximity card reader

SK-2323-SPAQ

Mullion-style piezoelectric keypad
with built-in proximity card reader

Accessories

PR-K1S1-A

Proximity Cards (EM125)
(Sold in packs of 10)

Access Control

SK-2323-SDQ &

SK-2323-SPQ

Features

• 1,010 Users (Output #1: 1,000 users,

Output #2: 10 users)

• 2 Form C relay outputs, each rated

1A@30VDC

• Each relay has programmable output

time from 1~99 seconds or toggle

• Output #2 can be programmed for use

with a doorbell

• 2 Egress inputs; 1 door sensor input

• Backlit keys for easy nighttime use

• Status LEDs show when a relay is active

• All features are programmed directly

from the keypad—no need for an
external programmer

• EEPROM memory prevents data loss

• IP65 Weatherproof, rugged aluminum

construction

• Optical tamper sensor for added security

Wiring Diagram

SK-2323-SPAQ

• Circuitry is potted with epoxy for outdoor

use

SK-2323-SPQ Only

• Built-in 125kHz proximity reader

• 3 Programmable access modes for

Output #1: Card Only, Card or Code, and
Card with Code

• Output #2 may have either a card or a

code programmed for each user

• Dimensions:

- 6"x1¾"x

SK-2323-SPAQ Only

15

/16" (152x44x24 mm)

• Similar to SK-2323-SPQ, but with the

following additional features:

- Piezoelectric touch keys

- Lower profile: ⁄" (10mm)

- No moving parts allow for heavy use

PR-K1K1-AQ

Proximity Keyfob (EM125)
(Sold in packs of 10)

Specifications

Operating voltage 12~24 VAC/VDC

Current
draw

Relay outputs

Egress
inputs

Door sensor input N.C. ground
Tamper sensor Optical
Operating

temperature
Keypad LED life 60,000 hours (over 6.8 years)

Standby 64mA@12VDC
Active 120mA@12VDC (Max)

1A@30VDC

Form C NO/NC/COM
Input #1 N.O. ground
Input #2 N.O. ground

-4°~122° F (-20°~50° C)

Dimensions

SK-2323-SDQ:

6"

(152mm)

SK-2323-SPQ:

13/4"(44mm)

6"

(152mm)

13/4"(44mm)

15

/16"(24mm)

15

/16"(24mm)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

27

Heavy-Duty Outdoor Keypad

Access Control

Features

• Rugged construction: Heavy-duty

stainless steel faceplate with a coated
steel backing

• Up to 210 user codes

• Code flexibility: Codes can be four or five

digits long

• Dual voltage: 12/24 VAC/VDC Operation

• Two Form C relays rated 12A@14VDC

• Door sensing input allows for anti-

tailgating operation

• Overhead LEDs and programmable

backlit keys for easy use in the dark

• Each relay output can be set from 1~99

seconds or toggle

• Wrong code lockout: After three wrong

codes are entered, the keypad will go into
lockdown for 55 seconds

• Tamper switch: N.C. dry contact,

3A@125/250 VAC

• Egress / push button input

Model Numbers

SK-3523-SDQ

Outdoor keypad

SK-3523-KEY

Extra keys for faceplate lock

Overview

Overhead LEDs: Illuminate the

face of the keypad.

LED indicators: Show the

status of the keypad.

Heavy duty: Weather and vandal resistant for

protected installations.

CDS sensor: Turns on overhead

LEDs when the surrounding area is dark.

Keypad: Heavy-duty programmable

backlit keys provide years

of use in adverse weather.

Keylock: Provides secure access

to the interior of the keypad.

Specifications

Model SK-3523-SDQ
Operating voltage 12/24 VAC/VDC
Current draw 220mA@12VDC / 110mA@24VDC
Relay outputs (each output) 12A@14VDC / 7A@120VDC
Tamper switch 3A@125/250 VAC
Egress (P.B.) input N.O. Ground
Reed input N.C. Ground
Operating temperature -4°~158° F (-20°~70° C)
Dimensions

6⁄"x5⁄"x4⁄" (167x128x112 mm)

Programmable Timers

SA-027HQ

Annual timer

SA-027WQ

7-Day timer

SA-026Q

Mini timer

For more information on programmable timers, please see page 48, 49, 101.

Hinged Faceplate

Hinged faceplate allows for

easy access

SA-025Q

Multi-purpose timer

28

SECO-LARM® 2017 Product Catalog

Outdoor Access Control Keypads

SK-1123-SDQSK-1123-SPQ

Features

Model Numbers

SK-1123-SPQ

Prox. Card Reader, 1,100 Users

SK-1123-SDQ

1,100 Users

Accessories

PR-K1S1-A

Proximity Cards (EM125)
(Sold in packs of 10)

PR-K1K1-AQ

Proximity Keyfob (EM125)
(Sold in packs of 10)

Access Control

• Built-in proximity reader. 125kHz (EM125)*

• 12~24 VAC/VDC Auto-adjusting operation

• Up to 1,000 possible user codes

(000~999) and/or proximity cards*
programmable for output #1, 100
(001~100) for output #2

• Up to 50 (01~50) possible temporary

visitor codes, which can be programmed
for one-time or limited-time use (1~99
hours)

• Keypad illuminates when a button is

pressed; backlight can be programmed for
FULL, AUTO, or OFF in standby mode

*SK-1123-SPQ ONLY

• Output #1: Form C relay, 1A@30VDC max.

• Output #2: Form C relay, 1A@30VDC max.

• Outputs #1, #2 can be programmed to

activate for up to 99,999 seconds (nearly
28 hours)

• Surface-mount back box included

• Duress code signals a silent alarm if an

authorized user is forced to open the door
under duress

• Egress input lets users exit the premises

without keying in the code

• Interlocking input for connecting to a

second keypad

Specifications

Model SK-1123-SPQ SK-1123-SDQ
Operating voltage 12~24 VAC/VDC

Current draw
(at 12VDC)

Outputs

Inputs

Proximity reader frequency 125kHz (EM125) N/A

Proximity reader sensing distance 1

Operating temperature -4°~158° F (-20°~70° C)
Weight 1-lb 2-oz (520g)
Dimensions (including back box) 4

Standby 66mA
Total max current 160mA
#1 – Form C 1A@30VDC
#2 – Form C 1A@30VDC
Key Active 100mA@24VDC
Duress 100mA@24VDC
Interlock 100mA@24VDC
Tamper 50mA@24VDC

Egress N.O. Ground

Door sensor N.C. Ground

Door inhibit N.O. Ground

1

/2" (38mm) N/A

15

/16"x31/8"x21/16" (125x79x52 mm)

• All features are programmed directly

from the keypad: No need for an external
programmer

• Tamper output: N.C. Dry contact,

50mA@24VDC max.

• IP66 Weatherproof Rating

• EEPROM Memory protects programmed

information in case of power loss

• Up to 50 (01~50) duress codes for output

#1, 10 (01~10) for output #2

• Door sensor input for anti-tailgating

operation

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

29

Fingerprint Reader Keypad

Access Control

Features

• 500DPI Optical fingerprint reader

• All programing done through the keypad

• Tri-color LED provides status information

• Timed (1-99 seconds) or Toggle mode

output

• Verification Method: Fingerprint or PIN

• Fingerprint identification time: <1 second

• Fingerprint false rejection rate: 0.01%

• Fingerprint false acceptance rate:

0.0001%

• User capacity: 1,000 users (500

fingerprint user and 500 PIN users)

• PIN length:4~6 digits

• Illuminated fingerprint reader window

• Access control interface for 3rd party

electric lock, exit button, alarm, door bell

• Dimensions:

25/8"x57/8"x15/16" (66x150x24 mm)

Model Number

SK-2611-SFSQ

Fingerprint Reader and Keypad

Specifications

User Capacity

Pin Length 4~6
Operating Voltage 12VDC
Current draw Idle 40mA
Current draw Active 100mA
Fingerprint Reader

Type
Fingerprint Resolution 500DPI
Response time <1S

Relay

Output Time

Lock Output Load 2A
Alarm Output Load 2.5A
Environment Indoor
Operating Temperature -4°~122° (-20°C~50°C)

1000 (500 fingerprints,

500 PIN)

Optical

One Form "C"

(NO, NC, Common)

1-99 Seconds (5 seconds

default) or Toggle

NEW

RF Wireless Keypad

Features

• Range up to 100ft (30m)

• 433.92MHz Wireless frequency

• Anti-tamper output

• Dual-color LED status indicator

• Code length of 4~8 digits

• Rugged weather-resistant (IP66) keypad

housing

• Transmitter is battery operated with up to

2 years of battery life

• Includes RF receiver with relay output

Model Number

SK-5611-SPQ

1,000 Users

Features

Pin length 4~8

Operating
voltage

Current

Output tamper

Transmitter 4.5VDC
Receiver 12~30 VAC/VDC

Transmitter

Receiver

Standby - 10uA

Active - 1~25mA

Standby - 22mA@12VDC

Active - 65mA@12VDC

with buzzer

Form C, 2A@28V,

transmitter buzzer output,

receiver buzzer and

transistor ground output

NEW

30

SECO-LARM® 2017 Product Catalog

Outdoor Proximity Card Reader

Model Number

PR-112S-A

Up to 100 users, outdoor use

Accessories

PR-K1S1-A

Proximity Cards (EM125)
(Sold in packs of 10)

PR-K1K1-AQ

Proximity Keyfob (EM125)
(Sold in packs of 10)

Access Control

Features

• 12VDC Operation, 200mA@12VDC

• Read range: 6" (15cm)

• Proximity frequency: 125kHz (EM125)

• Sealed and weatherproof (IP67)

• Tri-color wave-shaped LED status bar

indicates proximity reader's mode and
status:

- Blue: On/Valid card indicator

- Green: Programming mode

- Red: Invalid card

• Output relay for either time (1 to 180

• Egress input for easy exiting

• Buzzer for audible confirmation or silent

mode (programmable)

• Up to 100 user cards can be programmed

• User cards easily deleted. Delete a single

card, or all cards

• Up to 5 "Master" cards can be

programmed

• 10 Cards included

• Dimensions: 3¾"x1¾"x⁄"

(95x44x17 mm)

seconds) or toggle mode

Indoor Proximity Card Reader

Specifications

Power input 12VDC

Current draw

Max. read distance 6" (15cm)
User card limit 100 cards
Master card limit 5 cards
Transmit frequency 125kHz
Outputs 1 relay (NO/NC/COM)
Contact rating 1A@30V

Relay time delay

Temperature -4°~158° F (-20°~70° C)
Enclosure rating IP67

Standby: 80mA@12VDC

Active: 200mA@12VDC

1~180 secs/
Toggle mode

Model Number

PR-312S-PQ

Up to 500 users, indoor use

Accessories

PR-K1S1-A

Proximity Cards (EM125)
(Sold in packs of 10)

Features

• 12VDC Operation, 80mA@12VDC

• Proximity frequency: 125kHz (EM125)

• Ten cards included

• Up to 500 users

• Up to five super-user cards and one

master card

• Status LEDs for status and programming

• Auxiliary doorbell button rated 1A@24VDC

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

• Read distance of 6" (15cm)

• Tamper output rated 50mA@16VDC

• Selectable fail safe / fail secure via door

lock jumper

• Output relay for timed (1~60 seconds) or

toggle mode

• Dimensions 4¾"x2

(120x60x23 mm)

3

/8"x15/16"

PR-K1K1-AQ

Proximity Keyfob (EM125)
(Sold in packs of 10)

Overview

Door lock
selection jumper

Front View

CMC
Jumper

Back View

(cover removed)

31

Rim-Type Exit Devices

(SD-962AR-36A)

Access Control

Features

SD-962AR-36A Only:

• Fits doors from 30"~48" (76~122 cm)

• Works with standard external door

handle/lock devices such as the
ENFORCER Lever Trim (not included)

• Allen-type ¼-turn dogging lock allows

the exit bar to be unlocked for extended
periods of time

• Heavy-duty steel construction

• Compatible with SD-998C-NUQ

Surface-Mount Electric Rim Strike

SD-962AR-36MSD-962AR-36A

SD-962AR-36M Only:

• Modern flat rim type

• Fits doors from 36"~48" (91~122 cm)

• Works with rim cylinder locks

(not included)

• Sturdy aluminum construction

• Compatible with SD-998C-NUQ

Surface-Mount Electric Rim Strike

Model Numbers

SD-962AR-36A

For doors 30"~48"
(76~122 cm) wide, UL listed

SD-962AR-36M*

Modern flat design, for doors
36"~48" (91~122 cm) wide

Accessories

SD-962HL-4A

Entry-type lever trim
for SD-962AR-36A
and SD-962AR-36G

Features

• Non-handed

• SC4, 6-pin lock

• Entry type

• Key locks and unlocks

• Two keys included

SD-998C-NUQ

See page 18 for more

Grade 1 Rim-Type Exit Device

Features

• Heavy-duty ANSI Grade 1 steel

• Allows exit from inside while locked from

outside

• Reversible, non-handed design

• Separate deadlocking latch prevents the

use of credit cards or similar means to
open the latch bolt

• Allen-type ¼-turn dogging lock allows

the exit bar to be unlocked for extended
periods of time

*Not UL listed

• Includes all hardware for typical

installation

• Works with standard external door

handle/lock devices (not included)

• For metal or wood doors up to 1¾" thick

(44.5mm)

• UL Listed

• Fits door from 33"~48" (84~122 cm)

• Compatible with SD-998C-NUQ

Surface-Mount Electric Rim Strike

Model Number

SD-962AR-36G

For doors 33"~48" (84~122 cm),
UL listed

Accessories

SD-962HL-4A

Entry-type lever trim
for SD-962AR-36A
and SD-962AR-36G

Features:

• Non-handed

• SC4, 6-pin lock

• Entry type

• Key locks and unlocks

• Two keys included

SD-962H-6LB

Escutcheon lever trim
for SD-962AR-36G

Features:

• Non-handed

• Includes high-security lock with two keys

• Actuating shaft telescopes to the proper

length to fit almost any door size

32

SECO-LARM® 2017 Product Catalog

Push-to-Exit Bar

Features

• New end caps come off and go on in

seconds.

• Designed to allow egress from inside an

area normally locked by an electric lock
or electromagnetic lock, and/or to disarm
(shunt) or trigger an alarm when the door
is opened.

• Pushing the bar at any point sends a

signal to release the lock and/or sound an
alarm.

• For 36 inch doors (actual length is 34.5

inches).

• Rugged, heavy-duty construction.

• Includes 2 built-in non-latching

(momentary), dual-contact switches
(NO/COM/NC), rated 5A@125VAC.

Model Number

SD-961A-36

Push-to-Exit bar

Specifications

Circuit type 2 NO/NC Contacts
Contact rating 5A@125VAC
Door size For 36" doors

Dimensions

Weight 7-lb (3kg)

34½"x2¾"x2⁄"

(876x70x61 mm)

• Attractive brushed-aluminum bar with

black base and trim.

• Includes SECO-LARM SD-969-A18

Armored Door Cord, and mounting
hardware (for mounting in wood or metal
doors).

• Designed for easy cutting in field to match

width of non-standard-sized doors

Access Control

Battery Testers

ST-BT02Q

Features

• Performs 6 essential tests in the field:

- Continuity Testing

- Voltage Testing

- Load Testing

- Polarity Testing

- Voltage Drop Testing

- PTC Fuse Testing

High-Speed Latching Continuity Tester

ST-BT03Q

• Strength indication LEDs help test Load,

Voltage, and PTC Fuses

• Selectable load

• Illuminated power connector

• Overheat indicator

• Alligator clips included

Model Numbers

ST-BT02Q

12VDC Tester

ST-BT03Q

12/24VDC Auto-Sensing Tester

Specifications

Model ST-BT02Q ST-BT03Q

Operating

voltage

0.5A@12VDC

For

12VDC

For

Simulated load

24VDC

Model Number

ST-BL01Q

1A@12VDC

12 VDC

or

N/A 0.25A or 0.5A

12/24 VDC

(auto sensing)

0.5A or 1.0A

Features

• Three testing modes:

- Real-time

- Auto-reset

- Latch mode

• Test N.O. and N.C. circuits

• Verify circuit continuity through beeper

or visual indication

• Built-in LED light

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

33

Armored Door Cords (Removable Covers)

Pre-wired

Access Control

Features

• Designed to carry wiring to conduct

power to electric locks or access systems
mounted in doors

• Once mounted, to access simply remove

cover. Door cord stays in place. No need to
remove door cord from the door.
Prevents stripping of the screws and
mounting points

SD-969-T15Q/S

(Silver finish)

SD-969-M15Q/B

(Bronze finish)

• Surface mount

• 15" (39cm) Stainless steel armored cable

• Security screws (included) to prevent

tampering

• Available in bronze and silver finish

• Terminal blocks with pre-wired cables

(8 connections) for quick, easy, and secure
installation (SD-969-T15Q)

Model Numbers

SD-969-T15Q/S: Silver

Door cord with Terminal Blocks

SD-969-T15Q/B: Bronze

Door cord with Terminal Blocks

SD-969-M15Q/S: Silver

Door cord with Removable Cover

SD-969-M15Q/B: Bronze

Door cord with Removable Cover

Specifications

Model

Cord Length 15" (39cm)
Terminal Block Yes No
Pre-wired Yes No
Maximum

Current
Construction Stainless steel armored
Outside Dia.
Inside Dia.

SD-969-T15Q/S SD-969-M15Q/S
SD-969-T15Q/B SD-969-M15Q/B

3A@30VAC/VDC N/A

5

/16" (8mm)

7

/16" (11mm)

Terminal Block Wiring Diagram

(SD-969-T15Q only)

1
2
3
4

NEW

NEW

NEW

NEW

8
7
6
5

34

Armored Door Cords

SD-969-A18QSD-969-S18Q

Features

• Designed to carry wiring to conduct power to electric locks or access systems

installed in doors

• Surface mount

• Stainless steel armored cable

• Mounting screws included

SECO-LARM® 2017 Product Catalog

Model Numbers

SD-969-S18Q

Aluminum capped, 17"

SD-969-A18Q

Plastic capped, 16"

Specifications

Model SD-969-S18 SD-969-A18
End cap Aluminum Plastic
Cord Length 17" (43cm) 16" (40cm)
Construction Stainless steel armored
Inside door

cord diameter
Outside door

cord diameter

⁄" (8mm)

⁄" (11mm) ½" (13mm)

Surface-Type Door Closer w/ Back Check

Features

• Heavy-duty Grade 1 door closer for

commercial use

• Adjustable sweep speed, latching

speed, and back check

• Non-handed installation

• ANSI 156.4 certification 2 million life

cycles

Cover included

Model Number

SD-C101-SBBQ

Up to 330-lb, ANSI size 1~6

• Cast iron body & forged steel arm

• Concealing plastic cover

• Adjustable spring force

• Max. Door Opening Angle

Hinge Side: 130˚

• Door width: 32"~60" (800~1500 mm)

• Door weight: 145~330-lb (65-150 kg)

NEW

Access Control

Surface-Type Door Closer w/ Back Check

Features

• Heavy-duty Grade 1 door closer for

commercial use

• Adjustable sweep speed, latching

speed, and back check

• Non-handed installation

• ANSI 156.4 certification 2 million life

cycles

Cover included

Grade 1 Door Closer

Features

• Fits metal or wood doors

up to 59" (150cm) wide

• Door weight up to 330-lb (150kg),

adjustable for size 1~6

• Two independent valve adjustments for

easy setting of sweep and latch speed

Model Number

SD-C101-SBAQ

Up to 330-lb, ANSI size 1~6

• Cast-aluminum body & forged steel arm

• Concealing plastic cover

• Adjustable spring force

• Max. Door Opening Angle

Hinge Side: 180˚

• Door width: 32"~60" (800~1500 mm)

• Door weight: 45~330-lb (20-150 kg)

Model Number

SD-C101-SGQ

Up to 330-lb, ANSI size 1~6

• Grade 1 door closer

• Reversible, non-handed design

• Anodized aluminum body

• Silver finish

• Forged steel arms

• Includes mounting hardware

NEW

NEW

Door Closers

SD-C121-S

SD-C131-SQ

Model Numbers

SD-C121-S

Up to 100-lb, ANSI size 2

SD-C131-SQ

Features

• Reversible, non-handed design

• Two independent valve adjustments for

easy setting of sweep and latch speed

• Anodized aluminum body

• Silver finish

• Forged steel arms

• Includes mounting hardware

Up to 140-lb, ANSI size 3

SD-C121-S Only:

• Fits metal or wood doors

up to 42" (107cm) wide

• Door weight up to 100-lb (45kg),

ANSI size 2

SD-C131-SQ Only:

• Fits metal or wood doors

up to 36" (91cm) wide

• Door weight up to 140-lb (65kg),

ANSI size 3

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

35

Request-to-Exit Plates

SD-7202GC-PEQ SD-7103GC-PEQ

Illuminated IlluminatedSPDT DPST

• 2" Square illuminated pushbutton

• Includes interchangeable messages in

English, Spanish, and French

• Single-gang, stainless steel faceplate

• NO/NC Contacts rated 10A@125VAC

Access Control

SD-7202GC-PTQ SD-7103GC-PTQ

Illuminated IlluminatedSPDT SPDTTimer Timer

Similar to SD-7202GC-PEQ but with:

• Built-in timer: 1~180 seconds

• Buzzer output for audible status

• Illuminated green pushbutton

• Includes interchangeable messages in

English, Spanish, and French

• Slimline, stainless steel faceplate

• NO/NC Contacts rated 5A@250VAC

Similar to SD-7103GC-PEQ but with:

• Built-in timer: 1~180 seconds

• Buzzer output for audible status

SD-7223GW-LQ SD-7217GWQ

Illuminated SPDTSPDT

• 2" Square illuminated pushbutton

• Includes interchangeable messages in

English, Spanish, and French

• Single-gang, white plastic faceplate

• NO/NC Contacts rated 10A@125VAC

SD-7201GCPE1Q

SD-7201GFPE1Q

• "EXIT" and "SALIDA"

• Green 1½" pushbutton

• Single-gang, stainless steel faceplate

• NO/NC Contact rated 5A@125VAC

SPDT
DPDT

• No message screen printed on plate

• Green 1½" pushbutton

• Single-gang white-plastic faceplate

• NO/NC Contact rated 5A@125VAC

SD-7201GC-PEQ

SPDT

• "PUSH TO EXIT"

• Green 1½" pushbutton

• Single-gang, stainless steel faceplate

• NO/NC Contact rated 5A@125VAC

36

SECO-LARM® 2017 Product Catalog

Request-to-Exit Plates

SD-7201RCPE1Q SD-7201GAPT1Q

• "EXIT" and "SALIDA"

• Red 1½" pushbutton

• Single-gang, stainless steel faceplate

• NO/NC Contact rated 5A@125VAC

Pneumatic Timer Pneumatic Timer

• Single-gang, stainless steel faceplate

• Green mushroom pushbutton

• Built-in pneumatic timer requires no

external power

• NO/NC Contacts rated 5A@125VAC

• Timer adjustable from 1~60 seconds

DPST

Access Control

TimerSPDT SPDT

Similar to SD-7201GCPE1Q but with:

• Built-in timer: 1~180 seconds

• Buzzer output for audible status

• NO/NC Contact rated 3A@24VDC

SD-7213-RSPSD-7213-GSP

DPST

• Single-gang, stainless steel faceplate

• Red mushroom pushbutton

• Built-in pneumatic timer requires no

external power

• NO/NC Contacts rated 5A@125VAC

• Timer adjustable from 1~60 seconds

SD-7623-GSTQ SD-7217-GSBQ

Illuminated BuzzerLED DPSTTimer LED

• Single-gang, stainless steel faceplate

• Built-in dual-colored status LED

• Field-programmable color, red or green

• Built-in timer, 1~180 seconds

• 12/24 VDC Operation

• NO/NC Contacts rated 3A@24VDC

SD-7286-GWQ SD-8201GTPE1Q

• Large green 2" diameter pushbutton

• Flush mount, protrudes only ⁄" (15mm)

• Aluminum back plate fits to single-gang box

• ABS plastic front cover snaps to back plate

• DPDT Momentary switch, 5A@125VAC

contact rating

NEW

• Single-gang, stainless steel faceplate

• Built-in buzzer with adjustable sound

level

• Built-in LED for visible status

• 12/24 VDC Operation

• NO/NC Contacts rated 10A@125VAC

WirelessDPDT SPDT

• Single-gang, stainless steel faceplate

• For hard-to-wire installations

• Green 1½" pushbutton

• Built-in RF transmitter (similar to

SK-919TD1S-UP; see page 76-78 for
compatible receivers)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

37

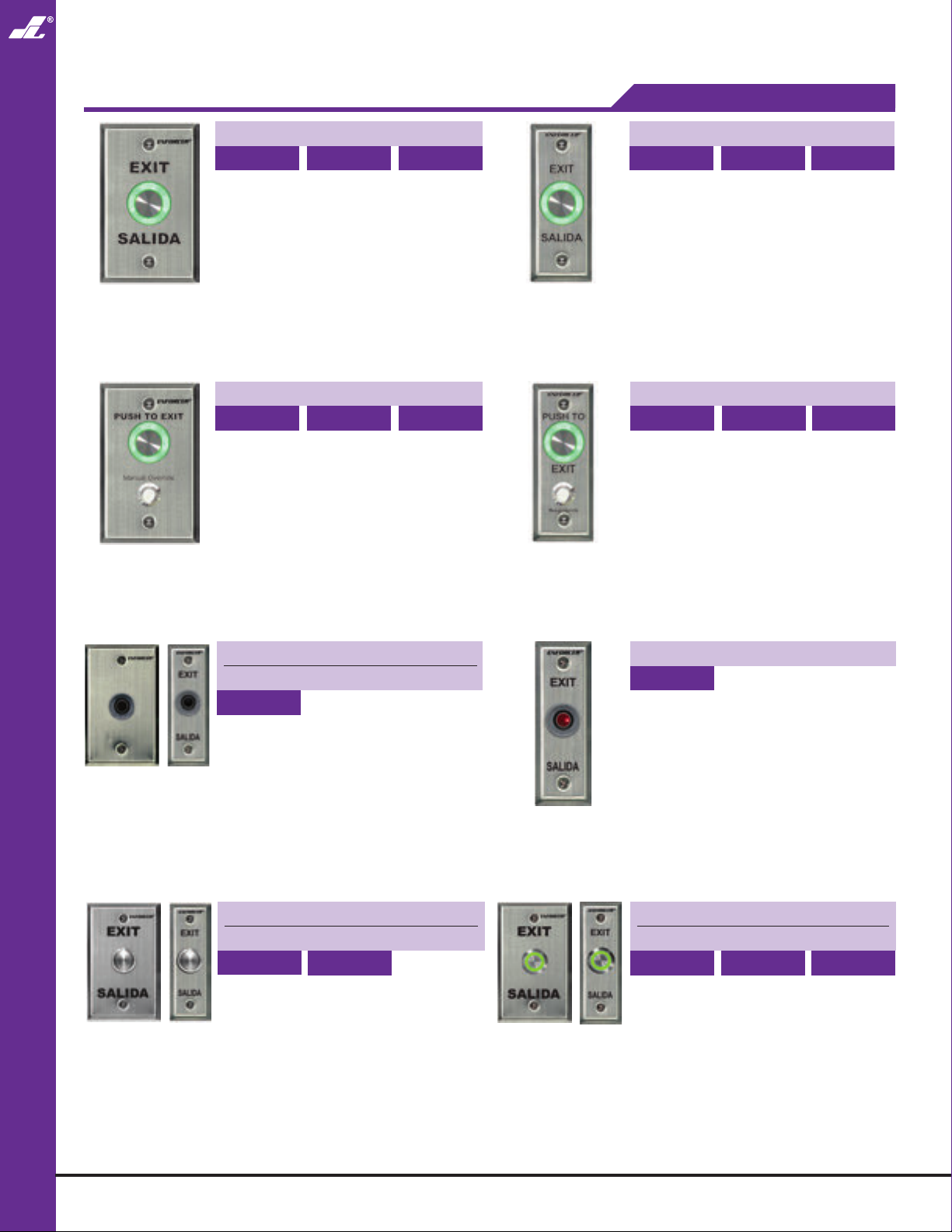

Request-to-Exit Plates

Access Control

SD-6276-SS1Q

Illuminated

SPDT

• Single-gang, stainless steel faceplate

• Piezoelectric buttons for indoor or

outdoor use

• Dual color LED ring shows status

• Timer adjustable 1~30 seconds or toggle

• Dual NO/NC contacts rated 2A@30VDC

SD-6276-SSVQ

Illuminated Illuminated

Timer Timer

Override

• Single-gang, stainless steel faceplate

• Piezoelectric buttons for indoor or

outdoor use

• Dual color LED ring shows status

• Timer adjustable 1~30 seconds or toggle

• Dual NO/NC contacts rated 2A@30VDC

• Built-in manual override button

SD-6176-SS1Q

Illuminated

• Slimline, stainless steel faceplate

• Piezoelectric buttons for indoor or

outdoor use

• Dual color LED ring shows status

• Timer adjustable 1~30 seconds or toggle

• Dual NO/NC contacts rated 2A@30VDC

SD-6176-SSVQ

• Slimline, stainless steel faceplate

• Piezoelectric buttons for indoor or

outdoor use

• Dual color LED ring shows status

• Timer adjustable 1~30 seconds or toggle

• Dual NO/NC contacts rated 2A@30VDC

• Built-in manual override button

Timer

SPDTTimer

Override

SD-7201KBQ

SD-7101KBPE1Q

SPST

Single-gang

Slimline

• Black pushbutton

• Stainless steel, ring guard

• N.C. Contact rated 1A@125VAC

• IP56 Weatherproofing

SD-7204SGEX1Q

SD-7104SGEX1Q

Vandal

Single-gang

Slimline

DPST Illuminated DPST

• Vandal-resistant, 1" diameter, stainless

steel pushbutton

• NO/NC Contact rated 5A@250VAC

• "EXIT" and "SALIDA" silk-screened on

plate

• IP56 Weatherproofing

SD-7101RAEX1Q

SPST

• Red pushbutton

• Stainless steel, ring guard

• N.O. Contact rated 1A@125VAC

• IP56 Weatherproofing

SD-7275SGEX1Q

SD-7175SGEX1Q

Vandal

Single-gang

Slimline

• 1" diameter, illuminated 2-color,

momentary pushbutton

• NO/NC Contact rated 5A@250VAC

• "EXIT" and "SALIDA" silk-screened on

plate

• IP56 Weatherproofing

38

SECO-LARM® 2017 Product Catalog

Miniature Push Buttons/RTE Plates

Access Control

PB-2618-GQ

• Large green metal mushroom button

• Surface-mount with backbox

• N.O. Push-to-close 3A@36VDC

1

• 2

/16"x21/16"x13/8" (53x53x35 mm)

PB-5118-GQ

• Large green metal mushroom button

• Surface-mount with backbox

• N.O. Push-to-close 3A@36VDC

3

• 3

/16"x11/4"x11/4" (81x32x32 mm)

PB-5115-GQ

• Large green metal mushroom button

• Mini RTE plate

• Flush-mount

• N.O. Push-to-close 3A@36VDC

9

• 3

/16"x11/8"x11/4" (91x28x32 mm)

NEW

NEW

NEW

PB-2318-SQ

NEW

• Large flush-mount metal button

• Surface-mount with backbox

• SPDT switch (NO/NC/COM) 1A@24VDC

1

• 2

/16"x21/16"x19/16" (53x53x39 mm)

• Pushbutton component is UL

Recognized

PB-5318-SQ

NEW

• Small flush-mount metal button

• Surface-mount with backbox

• SPDT switch (NO/NC/COM) 1A@24VDC

7

• 3

/16"x15/16"x19/16" (88x34x39 mm)

• Pushbutton component is UL

Recognized

PB-5348-SQ

NEW

• Small flush-mount metal button

• Surface-mount with backbox

• SPDT switch (NO/NC/COM) 1A@24VDC

3

• 3

/16"x11/4"x115/16" (81x32x50 mm)

• Illuminated button

Rocker Switches

PB-2811-WWQ

• Rocker switch

• Surface-mount with backbox

• SPDT switch (NO/NC/COM) 3A@36VDC

11

• 2

/16"x211/16"x13/8" (69x69x35 mm)

PB-1311-WWQ

• Rocker switch

• Flush-mount

• SPDT switch (NO/NC/COM) 1A@24VDC

3

• 3

/8"x33/8"x17/16" (86x86x36 mm)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

NEW

NEW

PB-1811-WWQ

NEW

• Rocker switch

• Surface-mount with backbox

• SPDT switch (NO/NC/COM) 3A@36VDC

7

• 3

/16"x37/16"x15/16" (88x88x33 mm)

PB-5811-WWQ

NEW

• Rocker switch

• Surface-mount

• SPDT switch (NO/NC/COM) 3A@36VDC

3

• 3

/8"x111/16"x7/8" (86x43x23 mm)

• UL Recognized microswitch

39

Indoor No-Touch Sensors

SD-927PKC-NEQ SD-927PKC-NSQ SD-927PKC-NFQ SD-927PWCQ

Access Control

Model Numbers

SD-927PKC-NEQ

Single-gang, stainless steel
faceplate, English message

SD-927PKC-NSQ

Single-gang, stainless steel
faceplate, Spanish message

SD-927PKC-NFQ

Single-gang, stainless steel
faceplate, French message

SD-927PWCQ

Single-gang, white plastic
faceplate, English, French, and
Spanish messages

Features

• No-touch – just wave a hand in front of

the sensor

• Sensing range up to 4" (10cm); sensing

range up to 2" (5cm) for SD-927PWCQ

• Selectable LED color: Green to red or red

to green

• SPDT relay output, 3A@24VDC

• Clean and simple no-touch operation

reduces the risk of cross-contamination

• Reliable motion-sensing IR technology

• Durable, stainless steel, single-gang

faceplate (except for SD-927PWCQ)

• Triggers a minimum of 0.5 sec, or as long

as hand is near the sensor

• 12VDC Operation

• Current draw: 50mA@12VDC

• Dimensions:

23/4"x41/2"x15/16" (70x115x33.5 mm)

Outdoor No-Touch Sensors

SD-9263-KSQ SD-9163-KSQ SD-9263-KSVQ SD-9163-KSVQ

Features

• Weatherproof (IP65) construction for

outdoor use

• Clean and simple no-touch operation

reduces the risk of cross-contamination

• Adjustable sensor range up to 7" (18cm)

• SPDT Relay output, 1A@30VDC

• Adjustable trigger duration 0.5~30

seconds or toggle

• Selectable LED color: Green to red or red

to green

• 12/24 VDC Operation

• Current draw: 25mA@12VDC,

32mA@24VDC

SD-9263-KSVQ and
SD-9163-KSVQ only:

• Manual override button function in case

of power failure

SD-9263-KS1Q and
SD-9163-KS1Q only:

• Spanish versions

Specifications

Model SD-927PKC-NxQ SD-927PWCQ

Operating voltage 12VDC

Current draw 50mA@12VDC

Relay type Form C NO/NC/COM

Switching capacity 3A@24VDC

Response time 10mS

Standby Green

LEDs

Triggered Red

Output time

Range 4" (10cm) 2" (5cm)

Operating temp. -4°~131° F (-20°~55° C)

Weight 3.0-oz (85g) 2.5-oz (70g)

(selectable)

(selectable)

0.5sec or as long as sensor is triggered

Red

Green

(selectable)

(selectable)

Model Numbers

SD-9263-KSQ

Single-gang, no-touch sensor

SD-9163-KSQ

Slimline, no-touch sensor

SD-9263-KSVQ

Single-gang, no-touch sensor with
mechanical override

SD-9163-KSVQ

Slimline, no-touch sensor with
mechanical override

SD-9263-KS1Q

Single-gang, no-touch
sensor, Spanish message

SD-9163-KS1Q

Slimline, no-touch sensor,
Spanish message

French versions also available

Contact SECO-LARM for Details

40

SECO-LARM® 2017 Product Catalog

Post-Mount No-Touch Sensor

Features

• Adjustable sensor range up to 7" (18cm)

• Weather resistant for outdoor use (IP65)

• Stainless steel faceplate

• Hinged faceplate easily removes from

box for easy wiring

• Gooseneck or wall-mountable

• Manual override button

• LED-Illuminated sensor area

• Selectable LED colors (turns from red

to green or green to red) on sensor
activation

• Includes heavy-duty steel box

Model Number

SD-9963-KSGQ

Post-mount, no-touch sensor with
manual override

Specifications

Power 12/24 VDC

Current
drain
(max.)

Relay type Form C dry contact, 1A@30VDC
Response time 10ms

LEDs

Output time 0.8~30 s or toggle
IP Rating IP65
Temperature range -4°~131° F (-20°~55° C)
Size
Keys included 2

Standby 16mA@12VDC / 25mA@24VDC

Triggered

Standby Red (selectable)
Triggered Green (selectable)

25mA@12VDC /

32mA@24VDC

4"x5½"x3" (102x134x77 mm)

Access Control

RTE Plate w/ Delayed Egress Timer

Features

• Door unlocks and stays unlocked until the

system is re-energized using the included
keys and keyswitch

• Programmable nuisance delay timer

(0~3 seconds) to prevent accidental door
unlocking

• Adjustable pre-delay timer (1~30

seconds) before the door unlocks

• Form C relay outputs for lock relay and

remote alarm relay (3A@30VDC)

• Fits standard double-gang backbox

• Keyswitch to re-energize door lock

Mullion Surface-Mount RTE Bar

Model Number

SD-7428-GSEQ

Request-to-Exit Button with
Delayed Egress Timer

Specifications

Operating voltage 12~24 VDC

Standby 60mA@12VDC, 90mA@24VDC

Current

Release delay

draw

Lock relay
output

Lock control output

Remote alarm output

Buzzer sound level

Keys included 2

150mA@12VDC,

55mA@24VDC

10mA@12VDC, 15mA@24VDC

3A@30VDC, Form C, NO/NC/

COM

3A@30VDC, Form C, NO/NC/

COM

12VDC: 95db@1m,

24VDC:100db@1m

Model Number

SD-7093-SGDQ

RTE Bar with multi-color LED

NEW

Standby Activated

Features

• Illuminated text for easy visibility

• Press anywhere on surface to activate

contact

Specifications

Operating voltage 12VDC
Contact rating 1A@30VDC
Current 100mA@12VDC

• Blue LED on when in standby, green

LED when contact is activated

• Thin attractive design (½")

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

41

RF Wireless RTE Transmitters

Model Number

SD-8202GT-PEQ

Wireless 2" square, illuminated
green pushbutton, SPDT

SD-8103GT-PEQ

Wireless square, illuminated green
pushbutton, SPDT

SD-862T-GWSQ

Wireless 2" square,
green pushbutton

NEW

SD-8202GT-PEQ SD-8103GT-PEQ SD-862T-GWSQ

Access Control

Features

SD-8202GT-PEQ:

• Single-gang, stainless steel faceplate

• For hard-to-wire installations

• 2" Square illuminated pushbutton

• Built-in RF transmitter (similar to

SK-919TD1S-UPQ; see page 76-78 for
compatible receivers)

SD-8103GT-PEQ:

• Slimline, stainless steel faceplate

• For hard-to-wire installations

• Illuminated pushbutton

• Built-in RF transmitter (similar to

SK-919TD1S-UPQ; see page 76-78 for
compatible receivers)

SD-862T-GWSQ:

• Completely wireless and portable

• Range of 160ft (50m)

• Useful for hard-to-wire installations

• Use in offices, factories, institutions, or

residences

• Desk mount or wall mount wireless

RTE button

• No exposed antenna

• Singlegang faceplate

• 2"square pushbutton

• Back box included

• 9V alkaline battery included

• Compatible with SECOLARM receivers

(see pages 76-78)

Microwave Motion Sensor

Accessories

SK-910RBQ

315MHz 1-Channel
RF receiver
(see page 76)

SK-910RAV2Q

315MHz Miniature
2-channel RF receiver
(see page 77)

SK-910R3Q

315MHz 3-Channel
RF receiver
(see page 78)

SK-910R4-4Q

433.92MHz 4-Channel
RF receiver
(see page 78)

Model Number

NEW

SD-R400-BQ

Microwave Motion Sensor,
Sensing Range 10' (3m)

42

Application

Horizontal area of detection

At center 0°, the area of detection is

12ft (4m) wide and 6.5ft (2m) deep

SECO-LARM® 2017 Product Catalog

Vertical area of detection

At center 0° with a 45° vertical tilt,

the area of detection extends to 14.7ft (4.5m)

Specifications

Sensing Type Microwave
Sensing Frequency 24.125GHz
Sensing range 6' (2m)
Operating Voltage 12~24 VAC/VDC
Relay Type Form "A" (N.O./Common)
IP Rating IP54
Temperature Range -4°~122°F (-20°~50°C)

Features

• Microwave technology, 24.125GHz

• Sensing Range 6' (2m)

• Weatherproof for outdoor use (IP54)

• Adjustable sensing angle

• Black ABS housing

Request-to-Exit Key Switch Plates

SD-71051-V0, SD-71002-V0SD-72051-V0, SD-72002-V0

Features

Model Numbers

SD-72051-V0

Single-gang, momentary

SD-72002-V0

Single-gang, shunt

SD-71051-V0

Slimline, momentary

SD-71002-V0

Slimline, shunt

Application

Electromagnetic Lock

Access Control

SD-72051-V0 and SD-71051-V0:

• N.C. Turn-to-Open

• Stainless steel plate

• Includes shunt ON, momentary OFF

spring loaded keylock switch

• Switch is maintained ON, springs back

from OFF

• Key is removable from the ON position

• Replacement key available (SS-090KN-0)

SD-72002-V0 and SD-71002-V0:

• N.C.Turn-to-Open

• Stainless steel plate

• Includes maintained ON/OFF

keylock switch

• Switch can be left ON or OFF

• Key is removable from the ON or

OFF position

• Replacement key available (SS-090KN-0)

Mortise Cylinder Key Switch

Strobe Light (SL-1301-BAQ)

Electromagnetic Lock

(E-941SA-600)

Keypad

SD-72051-V0

Powe r
Supply

Keylock Switch Type

ON (N.C.)

6

0

3

0

OFF (N.O.)

N.C. Turn-to-Open

Model Number

SD-72081-6MQ

Single-gang, mortise switch

Specifications

Switch Type DPDT Switch (momentary)
Contact Rating 5A@125VAC, NO/NC

3

Dimensions 2

/4"x41/2"x17/16" (69x114x37 mm)

Dimensions

Features

• Acts as a backup for access control

systems so that the system does not rely
on the integrity of a single device

• For electric lock control or alarm panels

• Keyed mortise cylinder (2 keys included)

• Mortise cylinder removable for ease of

keying

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

SD-72081-6MQ

• Flush-mount with vandal-resistant screws

• Back plate fits to single-gang box

• Stainless steel front cover conceals screws

• DPDT Momentary switch rated

5A@125VAC

• Color-coded wires

15/16"

(34mm)

PCB

11/8"

(28mm)

3

(9mm)

11/2"

(38mm)

/8"

Screw

switch

Screw

Front ViewSide View

hole

Key

hole

23/4"

(69mm)

41/2"

(114mm)

43

Tubular Key Lock Switches

Access Control

SS-090

SS-090-1H0

SS-095

SS-090

Shunt ON/OFF, two terminals, SPST

• Maintained ON/OFF, key removable from both ON and OFF positions

• Commonly used as an ON/OFF switch to arm/disarm alarm or

shunt zone

• Rated 2A@12VDC

• N.O. Turn to close

• Replacement keys available (see chart)

SS-090-1H0

Shunt ON/OFF, two terminals, SPST

• Maintained ON/OFF, key removable from OFF position only

• Commonly used in situations that require return of key to ensure

that device is OFF

• N.O. Turn to close

• Replacement key available (SS-090-1H0)

SS-095

Momentary ON, shunt OFF, two terminals, SPST

• Maintained OFF, springs back from ON; key removable from ON

position only

• Commonly used for momentary arm/disarm alarm inputs or other

applications requiring high-security momentary ON

• N.O. Turn to close

• Replacement keys available (see chart)

OFF (N.O.)

OFF (N.O.)

OFF (N.O.)

6

0

3
0

ON (N.C.)

6

0

3

0

ON (N.C.)

6

0

3

0

ON (N.C.)

Spare / Replacement Keys

SS-090KN

• Replacement keys for tubular key lock switches

• Eleven different key numbers available (1300-1310)

• See the chart below for which key numbers are available for each key lock and the

correct key lock part numbers for ordering

Ordering Information

Key # SS-090 SS-095 SS-090-1H0 SS-090KN
1300 SS-090-2H0 SS-095-1H0 SS-090-1H0 SS-090KN-0
1301 SS-090-2H1 SS-095-1H1 N/A SS-090KN-1
1302 SS-090-2H2 SS-095-1H2 N/A SS-090KN-2
1303 SS-090-2H3 SS-095-1H3 N/A SS-090KN-3
1304 SS-090-2H4 SS-095-1H4 N/A SS-090KN-4
1305 SS-090-2H5 SS-095-1H5 N/A SS-090KN-5
1306 SS-090-2H6 SS-095-1H6 N/A SS-090KN-6
1307 SS-090-2H7 SS-095-1H7 N/A SS-090KN-7
1308 SS-090-2H8 SS-095-1H8 N/A SS-090KN-8
1309 SS-090-2H9 SS-095-1H9 N/A SS-090KN-9
1310 SS-090-2HX SS-095-1HX N/A SS-090KN-0

Accessories

SS-199Q

Stainless steel slimline
plate with ¾" (19mm)
"D" hole

SS-299Q

Stainless steel
single-gang plate with
¾" (19mm) "D" hole

44

SECO-LARM® 2017 Product Catalog

Wireless Video Door Phone

Features

• Talk with visitors and unlock doors or

gates via the monitor

• Handheld monitor's rechargeable battery

allows communication with visitors while
moving around the premises

• Wide 3⁄" monitor screen for enhanced

viewing

• Connect up to two additional monitors

(sold separately)

• Includes a kickstand and charging base

for the monitor

• Adjustable pan and tilt angle

(20° from centerline)

• Camera is rated IP55 for outdoor use

Specifications

Monitor

Display

Operating voltage

Current
draw

Battery
life

Operating
frequency

RF power 120mW
Wireless range 492' (150m)*

Dimensions

Weight 3.9-oz (110g)
Operating

temperature

*Range may vary greatly depending on the
installation and operating environment.

Active 250mA@4.2VDC
Standby 5mA@4.2VDC
Active 4.4 Hours
Standby 220 Hours (9 days)

3⁄" (86mm) TFT

5VDC (adapter) or 3.7VDC

(battery)

2410.875~2471.625 MHz

3

5"x3

/8"x7/8"

(127x85x22 mm)

32°~104° F (0°~40° C)

• Egress input allows the door phone to be

connected with a Request-to-Exit plate or
other egress device

• Camera's built-in PIR sensor takes photos

of approaching visitors

• Up to 100 images can be stored in

memory

• Camera has built-in LEDs for nighttime

operation

• Tamper switch triggers alarm if camera is

removed from base

• Four programmable doorbell tones

• Wide (170°) field of view

Camera

Type Color Camera
Chip CMOS
Resolution 480 TV Lines
Lens 2mm
Field of view 170°
Operating voltage 9~16 VAC/5~16 VDC
Relock delay 1~6 s
Relay output 3A@250VAC/30VDC

Current
draw

Battery
life

Dimensions
(with bracket)

Weight 4.3-oz (122g)
Operating

temperature

Active 250mA@4.2VDC
Standby 3mA@4.2VDC
Active 4.4 Hours
Standby 366 Hours (15 days)

14°~122° F (-10°~50° C)

5⁄"x3⁄"x1⁄"

(144x80x50 mm)

with bracket

Model Number

DP-236Q

Camera and monitor set

Accessories

DP-236-MQ

Additional monitor

DP-236-SQ

Replacement monitor
charger stand

DP-236-BQ

Replacement
rechargeable lithium
ion battery

Special Features

Unlocks Doors

Allows access remotely
via the monitor

Wireless Operation

Range: Up to 492ft (150m)

1 Camera, 3 Monitors

Pair up to 3 monitors with
1 camera

Adjustable Viewing
Angle

Larger variety of viewing
angles

Overview

Camera

Camera Angle

Adjustment

Joystick

Wiring

Wiring

connections

connections

Reset button

Reset button

Battery cover

Battery cover

Monitor

Status

LED

Up

Charging
indicator

Down/Gallery

ON/OFF Button:

- Turn monitor ON/OFF

- Standby mode

- Unlock door

Volume
buttons

Talk
View

Photo/Settings

Microphone

Camera
IR LEDs

PIR Sensor

Speaker

Status LED
Doorbell

Microphone

USB

Connector

(Mini-B)

NEW

Access Control

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

45

Hands-Free Video Door Phone

Access Control

Features

• Simple 2-wire connection

• Camera unit has built-in microphone

and speaker for hands-free two-way
communication

• Unlock doors with a single button press

from the main monitor or secondary
monitor (not included)

• Adjustable color tone, brightness, and

contrast

• Adjustable speaker and ringer volume

• Camera has four LEDs for nighttime

operation

• ¼" CMOS Sensor

• 700 TV Line resolution

• Large 7" screen

• Connect an additional monitor for up to

two monitor stations
(DP-234-MQ or DP-222-MQ – sold
separately)

Model Number

DP-234Q

Camera and monitor set

Accessory

DP-234-MQ

Optional secondary
hands-free monitor

Specifications

Camera

1

CMOS
Resolution 700 TV lines
Lens 3.6mm
Relay output 1A@12VDC Max. dry contact
Current draw 180mA
Dimensions

Display 7" Color TFT
Operating

voltage
Relock delay 3 seconds

Current draw

Dimensions

/4" CMOS sensor

2⁄"x5⁄"x1⁄" (55x135x39 mm)

Monitor

17VDC

Active: 225mA

Standby: 40mA

9⁄"x6⁄"x⁄" (245x160x18 mm)

Color Video Door Phone

Features

• Simple 2-wire connection

• Camera unit has built-in microphone and

speaker for two-way communication

• Unlock doors with a single button press

• Adjustable color tone, brightness, and

contrast

• Adjustable speaker and ringer volume

• Camera has six LEDs for nighttime

operation

• ¼" CMOS Sensor

• 700 TV Line resolution

• Connect an additional monitor for up

to two monitor stations (DP-234-MQ or
DP-222-MQ – sold separately)

Model Number

DP-222Q

Camera and monitor set

Accessory

DP-222-MQ

Optional secondary
handset monitor

Specifications

Camera

1

CMOS
Resolution 700 TV lines
Lens 3.6mm
Relay output 1A@12VDC Max. dry contact
Current draw 150mA
Dimensions

Display 4" Color TFT
Operating

voltage
Current draw Active 700mA, Standby 50mA
Dimensions

/4" CMOS sensor

5¼"x3⁄"x1⁄" (130x90x33 mm)

Monitor

17VDC

7⁄"x8½"x1⁄" (194x216x46 mm)

46

SECO-LARM® 2017 Product Catalog

Alarm Pager System

Features

• Monitors up to three zones per premises

or vehicle, plus manual paging

• Connect to nearly any type of burglar

alarm control panel, vehicle alarm,
communications panel, etc.

• One positive and two negative instant

trigger inputs

• Range: Up to one half mile (4W output)

• Over two million possible coding

combinations

• Code-learning receiver learns up to three

transmitters

• Color LEDs (Green, Orange, or Red) on

the receiver indicate which zone of the
premises or vehicle was triggered

• EEPROM memory stores codes for up to

one year without power

• Audible or vibrating page indicator

• Belt-clip receiver included

• Stores the last six pages for easy recall

• Unattended page indicator

• Low battery indicator

• Receiver uses two AAA batteries

(not included)

• Extra vibrating receiver available

(E-37RV)

• Connect to a CB antenna, car AM radio

antenna (adapter cable included), or
external antenna (E-37ANT)

Model Number

E-37EV

Range: 1/2 mile (800m)

Accessories

E-37RV

Additional vibrating
receiver

E-37ANT

Optional external
antenna

Specifications

Model

Range Up to
Operating

frequency

Memory
capacity

Operating
voltage

Current
draw

RF output
power

Weight 5.1-oz (145g)

Dimensions

Transmitter Receiver

Over 2 million

1A (active) 50mA

4W max. N/A

41/8"x31/8"x15/16"
(105x79x33 mm)

E-37EV

1

/2 mile (800m)*

27MHz N/A

codes

12VDC

Access Control

Up to 3

transmitter

codes

3VDC

(2x AAA

batteries)

1.6-oz (45g)

(without battery)

3"x21/8"x5/8"

(75x54x16 mm)

Wireless Intercom

Features

• Simple and easy setup

• Encrypted transmission offers security

and protection

• 4 selectable channels

• Connect up to 16 wireless intercoms

• Each intercom has adjustable volume

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

• 3 function modes: full broadcast to all

stations, private talk, and hands-free

• Failsafe design: each unit automatically

reconnects with other intercoms if any
one connection is lost

• Powered by batteries or power adapter

Model Number

DP-A11Q

Range up to 1,000ft (300m)

Specifications

Power

Low battery
indicator

Operating
frequency

Channels 4
Max # of

intercoms
connected

RF Power 20dBm

Dimensions

Weight 5.3-oz (150g)

12VDC or 4 AA batteries

(batteries not included)

Yes

900MHz (frequency hopping)

16

1

7

/2"x31/2"x11/4"

(190x89x32 mm)

NEW

47

Programmable Timers

SA-025Q SA-026Q

Access Control

Features

Model Number

SA-025Q

Multipurpose timer with case

SA-026Q

Mini programmable timer

Specifications

Model SA-025Q SA-026Q

Operating Volt. 12~24 VDC

Current

Form C relay 8A@24VDC 3A@24VDC

Standby 1mA 2mA
Active 50mA 75mA

12~24 VAC/

VDC

SA-025Q

• Can be triggered via N.O. positive (+)

trigger, N.C. negative (-) trigger, or by
powering up the unit

• Relay can be programmed to

activate at the start or at the end of
the timing cycle

• Built-in reset function

• Timer can be set from 1sec to 60min

• Programmable for pulse (flash)

activation

• LED indicates relay is energized

• Functions programmed via DIP

switches – no jumpers to cut

• For more information see page 101

Delayed Egress Timer

Features

• 3 Relock modes to meet different

installation requirements

- Standard manual relocking

- BOCA (Building Officials Code

Administrators) relocking

- Timed relocking (1~60 sec)

• Door status input

• Programmable nuisance delay timer

(0~3 sec)

• Adjustable pre-delay timer (1~30 sec)

• Adjustable post-delay timer (1~60 sec)

• Selectable manual or automatic relocking

after power loss

SA-026Q

• Adjustable timer from 1~180 seconds via an

onboard potentiometer

• NO/NC Switch trigger

• Relay output: Form C (SPDT) via terminal blocks

• Includes double-sided foam tape

• For more information see page 101

Model Number

SA-025EQ

Delayed egress timer

Specifications

Operating voltage 12~24 VAC/VDC

Standby 120mA@12VDC
Pre-delay 90mA@12VDC

Current

Local alarm 35mA@12VDC

draw

Timer module
only

Lock control output

Remote alarm output

Local alarm output

15mA@12VDC

10A@24VDC,

Form C, NO/NC/COM

10A@24VDC,

Form C, NO/NC/COM

Transistor ground,

500mA@12VDC

• Status LEDs show relay status

• Bypass input immediately releases locks

• Free egress input allows easy egress

during the delay

• Works with SD-961A-36 and other

electrical push-to-exit bars

48

SECO-LARM® 2017 Product Catalog

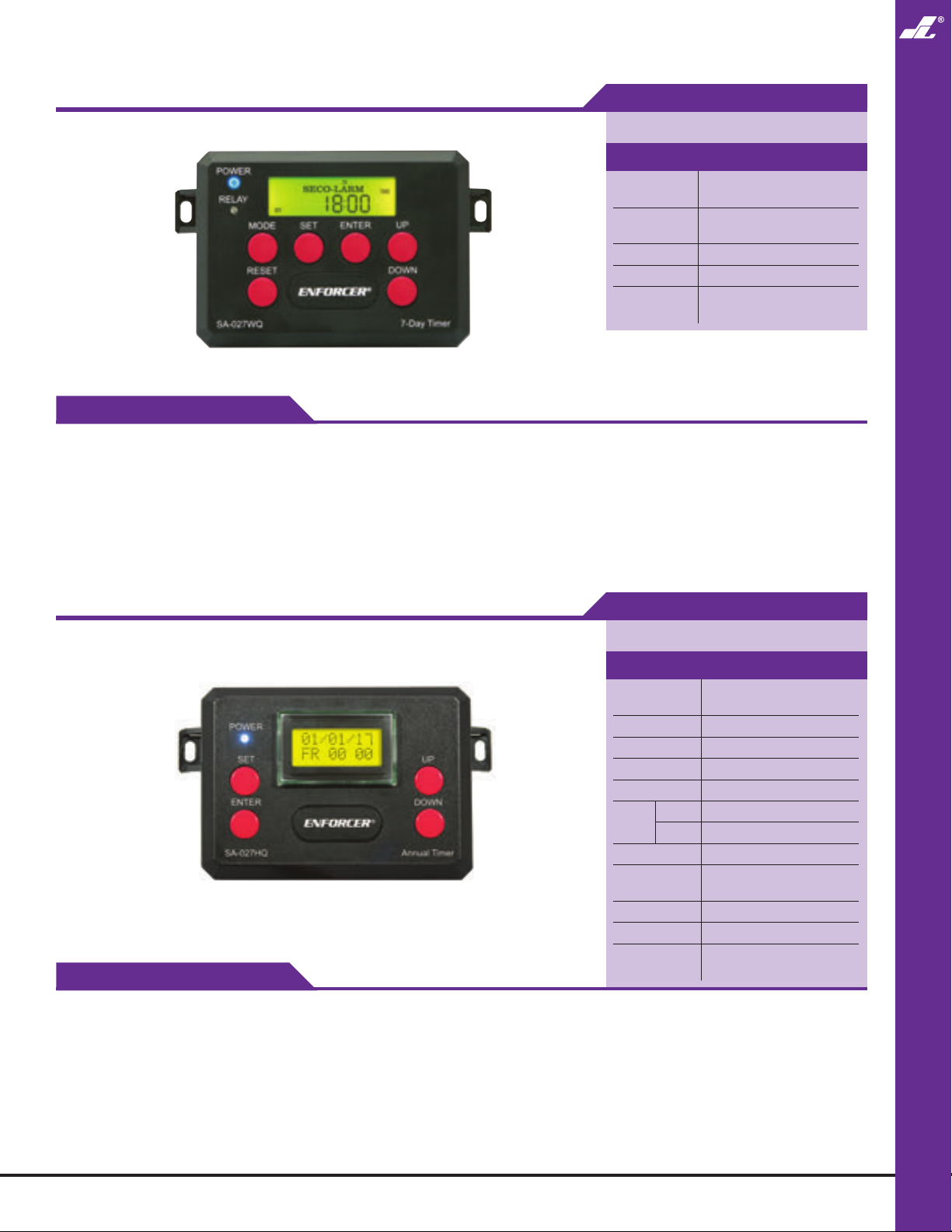

7-Day Timer

Features

• Enclosed terminals for a safer installation

• 12~24 VAC/VDC Operation

• Backup battery: 1x CR-2016 (included)

• Holiday function (up to 99 days)

• Easy-to-read backlit LCD

• Adjustable output time

• Programmable security code

• 12 or 24-Hour clock format

• 16 Schedules including daily, weekly,

weekends, etc

• Memory saved if power fails

• Egress input terminal

Model Number

SA-027WQ

Specifications

Operating
voltage

Current draw

Relay rating 10@120VAC/28VDC
Weight 4.6-oz (130g)

Dimensions

12~24 VAC/VDC

Standby: 15mA@12VDC

Active: 70mA@12VDC

4⁄"x3⁄"x1¼"

(107x78x31 mm)

• Form C relay output

(10A@120VAC/28VDC)

• Mode selection button for manual relay

operation

Access Control

365-Day Annual Timer

Features

• Enclosed terminals for safer installation

• 2 N.O. Or N.C. Form C relays

• Each relay can be programmed for

50 events, total of 100 individual
programmable events

• 100 Programmable events can be set

weekly, daily, or hourly 365 days a year

• Password protection can be turned ON/OFF

• One egress input per relay (2 total)

• Block programming allows events to be

repeated on consecutive days

• Event output can be shunt or momentary;

momentary programmable for 1~99 sec

• 10 Programmable holidays

• Tandem mode allows both relays to

operate simultaneously

Model Number

SA-027HQ

Specifications

Operating
voltage

# Of Relays 2
Relay rating 10A@14VDC
Current draw 100mA
# Of Events 50 for each relay, 100 total

ON Power is ON

Blue
LED

OFF Power is OFF

# Of Holidays 10
Battery charging

current
Security code 4-digits, numeric, ON/OFF
Weight 5.8-oz (164g)

Dimensions

12~24 VAC/VDC

90mA

4⁄"x3⁄"x1¼"

(107x78x31 mm)

• Built-in back-up battery charger for

external back-up battery use

• Memory saved if power fails

• Compensates for leap years

• Set for standard or Daylight Savings Time

• Alpha-numeric, back-lit LCD display,

and simple button layout for easy
programming

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

49

4-in-1 HD

CCTV

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p Resolution

• 12VDC Operation

1

•

/

" 2MP Sony CMOS

2.9

• 2.8mm ICR lens

• 36 IR LEDs, up to 50ft IR range

Fixed Rollerball Camera

• Split-glass design to eliminate IR

reflection

• Cables concealed in bracket to prevent

tampering

• Heavy-duty vandal-resistant design

• Rugged, weatherproof (IP65) construction

• Mounting brackets available (see page 54)

HD

Model Number

EV-Y2201-A2WQ

2.8mm lens, 1080p, white

EV-Y2201-A2GQ

2.8mm lens, 1080p, gray

Specifications

Format TVI / CVI / AHD / Analog
Lens 2.8mm ICR
Viewing angle 90°

1

CMOS
Minimum Lux

(IR Off)
Voltage 12VDC
3DNR Yes
DWDR Yes
Onboard OSD

control
# of IR LEDs 24
IR LED range Up to 50ft (15m)
Gamma correction 0-1
Gain control Yes
Dimensions 3
Weight 13.1-oz (370g)

2.9

/

" 2MP Sony CMOS

Color 0.1Lux/F1.4,
B/W 0.01Lux/F1.4

Yes

11

/16"x215/16" (93x75 mm)

NEW

NEW

4-in-1 HD Varifocal Rollerball Camera

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p Resolution

• 12VDC/24VAC Operation

1

•

/

" 2MP Sony CMOS

2.9

• 2.8~12mm Varifocal ICR lens

• 36 IR LEDs, up to 100ft IR range

• Split-glass design to eliminate IR

reflection

• Cables concealed in bracket to prevent

tampering

• Heavy-duty vandal-resistant design

• Rugged, weatherproof (IP65) construction

• Mounting brackets available (see page 54)

HD

Model Number

EV-Y2201-AMWQ

2.8~12mm lens, 1080p, white

EV-Y2201-AMGQ

2.8~12mm lens, 1080p, gray

Specifications

Format TVI / CVI / AHD / Analog
Lens 2.8~12mm ICR
Viewing angle 30°~90°

1

CMOS
Minimum Lux

(IR Off)
Voltage 12VDC
3DNR Yes
DWDR Yes
Onboard OSD

control
# of IR LEDs 36
IR LED range Up to 100ft (30m)
Gamma correction 0-1
Gain control Yes
Dimensions
Weight 1-lb, 10.1-oz (740g)

2.9

/

" 2MP Sony CMOS

Color 0.1Lux/F1.4,
B/W 0.01Lux/F1.4

Yes

3

4

/4"x33/4" (120x95 mm)

NEW

NEW

50

SECO-LARM® 2017 Product Catalog

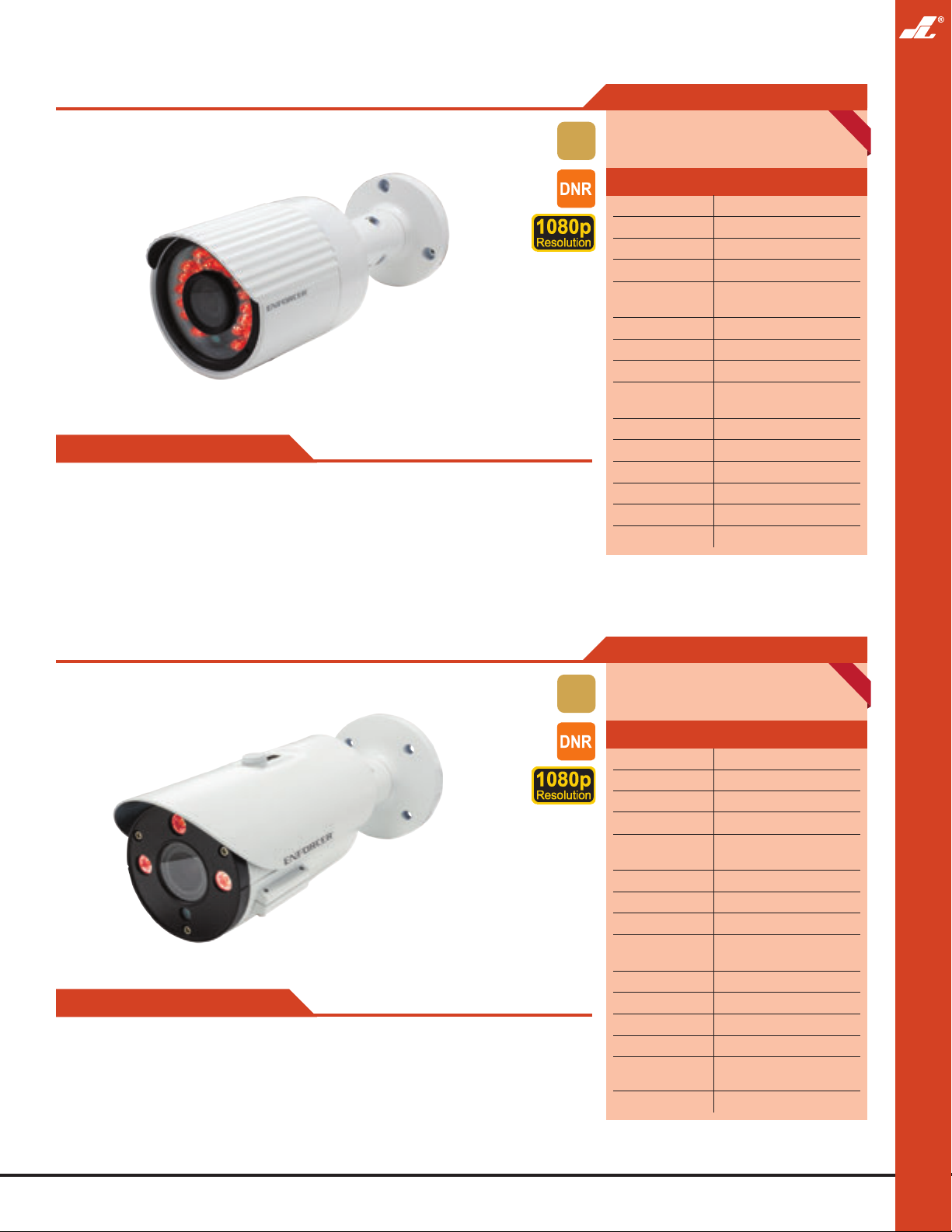

4-in-1 HD

Fixed Bullet Camera

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p Resolution

• 12VDC Operation

1

•

/

" 2MP Sony CMOS

2.9

HD

• 2.8mm ICR Lens

• 30 IR LEDs, up to 50ft IR range

• Cables concealed in bracket to prevent

tampering

• Rugged, weatherproof (IP66) construction

Model Number

EV-Y1201-A2WQ

2.8mm lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Lens 2.8mm ICR
Viewing Angle 90°

1

CMOS
Minimum Lux

(IR Off)
Voltage 12VDC
3DNR Yes
DWDR Yes
Onboard OSD

Control
# of IR LEDs 30
IR LED Range Up to 50ft (15m)
Gamma Correction 0-1
Gain Control Yes
Dimensions
Weight 14.1-oz (400g)

2.9

/

" 2MP Sony CMOS

Color 0.1Lux/F1.4,
B/W 0,01Lux/F1.4

Yes

69/16"x29/16" (166x65 mm)

NEW

CCTV

4-in-1 HD

Varifocal Bullet Camera

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p Resolution

1

•

/

" 2MP Sony CMOS

2.9

• 12VDC Operation

• 2.8~12mm Varifocal ICR lens

HD

• Cables concealed in bracket to prevent

tampering

• 3 (IR III) LEDs for low-light situations

(equivalent to 36 LEDs), up to 160ft IR
range

• Rugged, weatherproof (IP66) construction

Model Number

EV-Y1201-AMWQ

2.8~12mm Varifocal lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Lens 2.8~12mm ICR
Viewing angle 30°~90°

1

CMOS
Minimum Lux

(IR Off)
Voltage 12VDC
3DNR Yes
DWDR Yes
Onboard OSD

control
# of IR LEDs 3 X IR III
IR LED range Up to 100ft (30m)
Gamma correction 0-1
Gain control Yes

Dimensions

Weight 1-lb, 10.8-oz (760g)

2.9

/

" 2MP Sony CMOS

Color 0.1Lux/F1.4,
B/W 0,01Lux/F1.4

Yes

107/16"x31/4"

(265x83 mm)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

51

4-in-1 HD

CCTV

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p Resolution

• 12VDC Operation

• 2.8~12mm ICR Lens

1

•

/

" 2MP Sony CMOS

2.9

Varifocal Dome Camera

• Rugged, vandal-resistant design with no

exposed screws and concealed cable

• 24 IR LEDs (850nm),

Up to 100ft (30m) range

• Two-axis gimbal rotation

• Rugged, weatherproof (IP65) design

HD

Model Number

EV-Y2201-AMWAQ

2.8~12mm lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Viewing angle 30°~90°

1

CMOS
FPS 30
Minimum Lux (IR

Off)
3DNR Yes
DWDR Yes
Onboard OSD

control
# of IR LEDs 24 (850nm)
IR LED range Up to 100ft (30m)
Dimensions
Weight

2.9

/

" 2MP Sony CMOS

Color 0.1Lux/F1.4,
B/W 0.01Lux/F1.4

Yes

3

5

/16"x41/2" (132x114 mm)

1-lb, 9.3-oz (717g)

NEW

4-in-1 HD UFO

Camera

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p resolution

1

•

/

" 2MP Sony CMOS

2.9

• 12VDC Operation

• Low-profile design, extends outward only

one inch

• Day/Night operation captures images

even in low light

• 3.7mm Pinhole lens

• Heavy-duty, vandal-resistant design

• Lens rotates to nearly any angle for

flexible installation

• Rugged, weatherproof (IP66) design

HD

Model Number

EV-Y6201-A3WQ

3.7mm Pinhole lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Lens 3.7mm Pinhole

1

CMOS
3DNR Yes
DWDR Yes
Onboard OSD

Control
Dimensions 3"x1

2.9

/

" 2MP Sony CMOS

Yes

15

/16" (77x49 mm)

Accessory

EV-6640SWQ

Optional surface-mount
bracket

NEW

52

SECO-LARM® 2017 Product Catalog

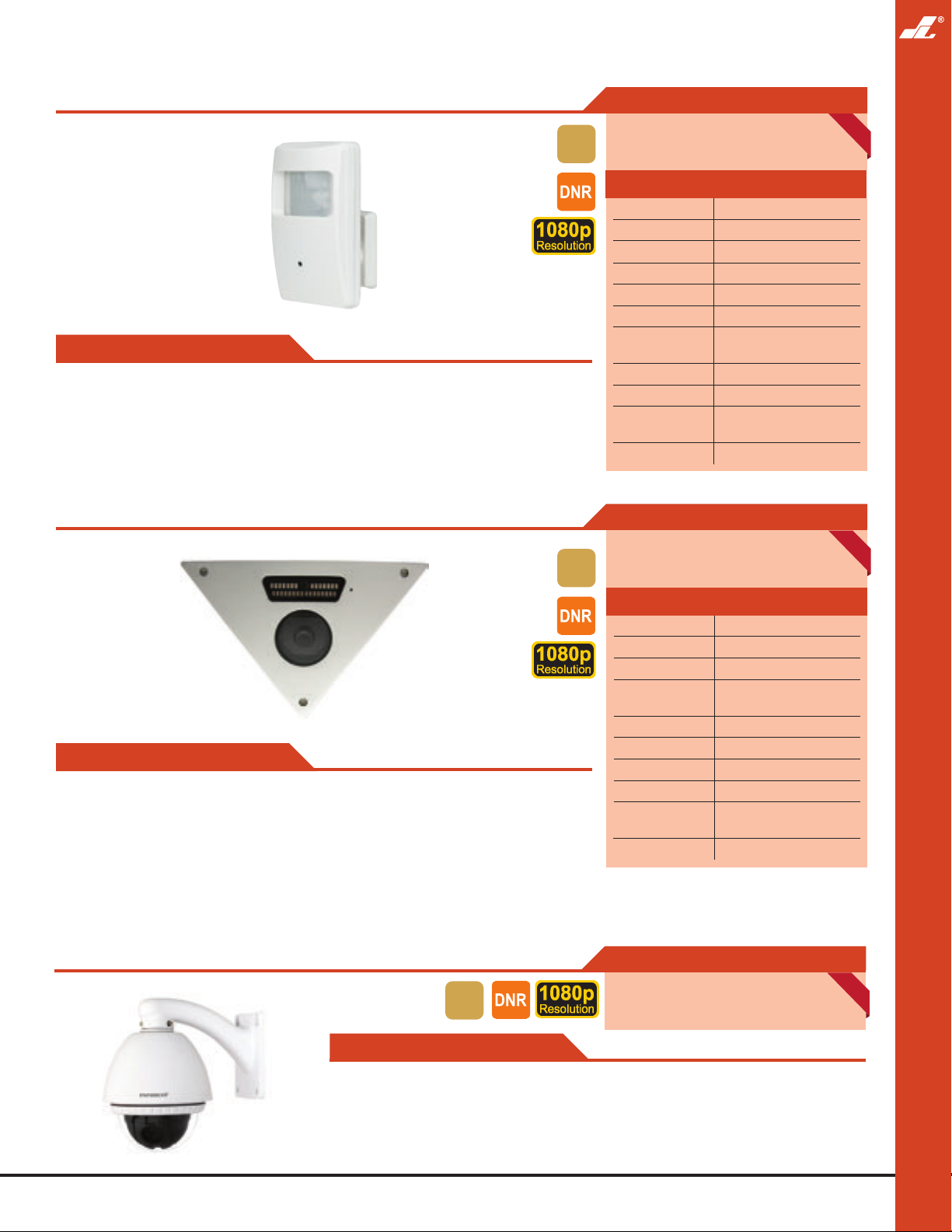

4-in-1 HD

Covert PIR Camera

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

1

•

/

" 2MP Sony CMOS

2.9

• Joystick OSD control

HD

• 3.7mm Covert pinhole lens

• Camera is hidden in a non-functioning

PIR sensor housing

• 18 Covert IR LEDs for discreet monitoring

Model Number

EV-Y6221-A3WQ

3.7mm Pinhole lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Viewing angle 85°

1

CMOS
FPS 50~60
2DNR Yes
DWDR Yes
Onboard OSD

control
# of IR LEDs 18 Covert (940nm)
IR LED range Up to 50ft (15m)

Dimensions

Weight

2.9

/

" 2MP Sony CMOS

Yes

1

4

/16"x23/8"x15/16"

(104x60x34 mm)

12.3-oz (350g)

NEW

CCTV

4-in-1 HD

Corner-Mount Camera

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p resolution

1

•

/

" 2MP Sony CMOS, 2.9mm ICR Lens

2.9

• 12VDC

• True Day & Night function with ICR

mechanism

4-in-1 HD

PTZ Camera

HD

• 30 Covert IR LEDs for discreet monitoring

• Built-in joystick OSD control

• Vandal-resistant metal front panel

• Designed to easily fit corners in office

buildings, elevators, and more

• Rugged, weatherproof (IP65) design

HD

Model Number

EV-Y4201-A2SQ

2.9mm lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Viewing angle 130˚

1

CMOS
Minimum Lux

(IR Off)
3DNR Yes
DWDR Yes
# of IR LEDs 30 (940mm)
IR LED range Up to 82ft (25m)

Dimensions

Weight 13.75-oz (390g)

2.9

/

" 2MP Sony CMOS

Color: 0.2Lux/F1.8

B/W: 0.02Lux/F1.8

1

7

/2"x51/2"x111/16"

(190x140x43 mm)

Model Number

EV-N7203-AYWQ

4.7~47mm lens, 1080p

NEW

NEW

Features

• 1080p resolution

• 4.7~47mm Lens with 10x Optical zoom

• IR Range up to 262ft (80m)

• 360° horizontal rotation

• 0°~90° vertical rotation

• 3DNR (3D digital noise reduction)

• DWDR (Digital Wide Dynamic Range)

• NTSC and PAL Support

• Lightning-proof and weatherproof for

indoor and outdoor use (IP66)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

53

4-in-1 HD

CCTV

Features

• Supports HD TVI, CVI, AHD, and

Analog formats

• 1200 TV Lines, 1080p Resolution

• 12VDC Operation

1

•

/

" 2MP Sony CMOS

2.9

Rollerball with Motorized Lens

• 2.8~12mm Motorized ICR lens

• 36 IR LEDs, up to 100ft IR range

• Heavy-duty vandal-resistant design

• Rugged, weatherproof (IP65) construction

• Mounting brackets available (see below)

HD

Model Number

EV-Y2201-ANWQ

2.8~12mm Motorized lens, 1080p

Specifications

Format TVI / CVI / AHD / Analog
Viewing angle 30°~90°
Megapixels 2MP
Minimum Lux

(IR Off)
3DNR Yes
DWDR Yes
Onboard OSD

control
# of IR LEDs 36
IR LED range Up to 100ft (30m)

0.1

Yes

NEW

Rollerball Mounting Brackets

Conduit Box Brackets

Model Numbers: Compatible with:

EV-DSSGQ

Small, gray

EV-DSSWQ

Small, white

EV-DSLGQ

Large, gray

EV-DSLWQ

Large, white

Conduit Drop Brackets

Model Numbers: Compatible with:

EV-DDSGQ

Small, gray

EV-DDSWQ

Small, white

EV-2706-N3GQ

EV-2706-N3WQ, EV-C2001-NZWQ

EV-2706-NFGQ

EV-2706-NFWQ, EV-C2001-NMWQ

EV-2706-N3GQ

EV-2706-N3WQ, EV-C2001-NZWQ

EV-DSSGQ / EV-DSLGQ

EV-DSSWQ / EV-DSLWQ

54

EV-DDLGQ

Large, gray

EV-DDLWQ

Large, white

EV-2706-NFGQ

EV-2706-NFWQ, EV-C2001-NMWQ

SECO-LARM® 2017 Product Catalog

EV-DDSQQ / EV-DDLGQ

EV-DDSWQ / EV-DDLWQ

12-Inch Mirror Camera

Model Number

Features

• ⁄" Sony Super HAD II CCD

• 2D Digital Noise Reduction (2D-NR) for

• 2.8mm Lens, 600 TV lines

• 12VDC Operation

• DWDR (Digital Wide Dynamic Range)

provides clear images in strong backlight

• 3-Axis mounting arm

• Cables concealed in bracket

• OSD (On-Screen Display) for

Wall-Plate Camera

Features

1

•

/

" 1.3MP Sony STARVIS CMOS

3.2

• 1000 TV Lines, 960H resolution

• 2.4mm, 150° Wide-angle lens

• 12VDC Operation

• DWDR (Digital Wide Dynamic Range)

provides clear images in strong backlight

• Rugged, weatherproof (IP67) design

• Heavy-duty vandal resistant design

• 2D Digital Noise Reduction (2D-NR) for

• Low-profile design – Install on doors,

• Includes two stainless steel mounting

• Camera can be installed without

extreme low-light conditions

programming special features

extreme low-light conditions

walls, car bumpers, entryways, and more

plates (single-gang and slimline)

mounting plates

EV-6600-N2BQ

2.8mm Lens, 600 TV lines

Specifications

Pickup elements 768x494 pixels
Video output format NTSC
Video output
S/N Ratio >48dB
Shutter control Max 1/100,000 sec.
Minimum illumination 0.1 Lux
Current draw 67mA
Operating temperature 14°~122° F (-10°~50° C)

1Vp-p composite video, 75Ω

Model Number

EV-5105-N1SQ

2.4mm Lens, 1000 TV Lines

Specifications

Video output format NTSC
Effective pixels 1280x960 pixels

Video outputs

Viewing angle 150°
Minimum illumination 0.0001 Lux@F/2.0
IP Rating IP67
Current draw 80mA
Operating

temperature

1.0Vp-p Composite video,
75Ω

-22°~176° F (-30°~80° C)

Installation Options:

CCTV

NEW

Maglock Camera

Features

1

•

/

" 1.3MP Sony STARVIS CMOS

3.2

• 1000 TV Lines, 960H resolution

• 2.4mm, 150° Wide-angle lens

• 12VDC Operation

• Rugged, weatherproof (IP67) design

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

• Heavy-duty vandal-resistant design

• Patented design seamlessly integrates

with 1,200-lb maglocks; see page 6 and
8 for more information

Model Number

E-941EC2-N1Q

2.4mm Lens, 1000 TV lines

Specifications

Video output format NTSC
Effective pixels 1280x960 pixels

Video outputs

Minimum illumination 0.0001 Lux @ F1.9
Scanning system 2:1 Interlace
IP Rating IP67 (Camera only)
Current draw 80mA

1.0Vp-p Composite video,
75Ω

55

IP Fixed Rollerball Camera

Model Number

EV-N2206-2W4Q

1

/3" 4MP Sony Exmor CMOS,

1080p

NEW

CCTV

Features

• 1080p Resolution

1

•

/3" 4MP Sony Exmor CMOS

• 2.8mm ICR Lens

• 36 IR LEDs, up to 100ft IR range

• H.264 Support

• Cables concealed in bracket to prevent

tampering

IP Varifocal Rollerball Camera

• Heavy-duty vandal-resistant design

• Rugged, weatherproof (IP65) construction

• Split-glass design to eliminate IR

reflection

• 12VDC and PoE 802.3af Operation

• ONVIF Profile S

• Mounting brackets available (see page 54)

Specifications

Format IP
Lens 2.8mm ICR
Viewing angle 90°
Megapixels 4MP
Minimum Lux

(IR Off)
Voltage 12VDC/PoE
CMOS size
3DNR Yes
DWDR Ye s
Onboard OSD

control
# of IR LEDs 36
IR LED range Up to 100ft (30m)
Gamma correction 1.6-2.2
Gain control Yes
Dimensions
Weight 0.8-lb

Color 0.2Lux/F1.4,

B/W 0.05Lux/F1.4

1

2.9

/

"

Yes

15

2

/16"x311/16" (75x93 mm)

Model Number

EV-N2206-MW4Q

1

/3" 4MP Sony Exmor CMOS,

1080p

NEW

56

Features

• 1080p Resolution

1

•

/3" 4MP Sony Exmor CMOS

• 2.8~12mm Varifocal ICR lens

• 36 IR LEDs, up to 100ft IR range

• H.264 Support

• Cables concealed in bracket to prevent

tampering

SECO-LARM® 2017 Product Catalog

• Heavy-duty vandal-resistant design

• Rugged, weatherproof (IP65) construction

• Split-glass design to eliminate IR

reflection

• 12VDC and PoE 802.3af Operation

• ONVIF Profile S

• Mounting brackets available (see page 54)

Specifications

Format IP
Lens 2.8~12mm ICR
Viewing Angle 30°~90°
Megapixels 4MP
Minimum Lux

(IR Off)
Voltage 12VDC/PoE
CMOS Size
3DNR Yes
DWDR Ye s
Onboard OSD

Control
# of IR LEDs 36
IR LED Range Up to 100ft (30m)
Gamma Correction 1.6-2.2
Gain Control Yes
Dimensions
Weight 1.5lbs

Color 0.2Lux/F1.4,

B/W 0.05Lux/F1.4

1

2.9

/

"

Yes

3

4

/4"x33/8" (120x85.28 mm)

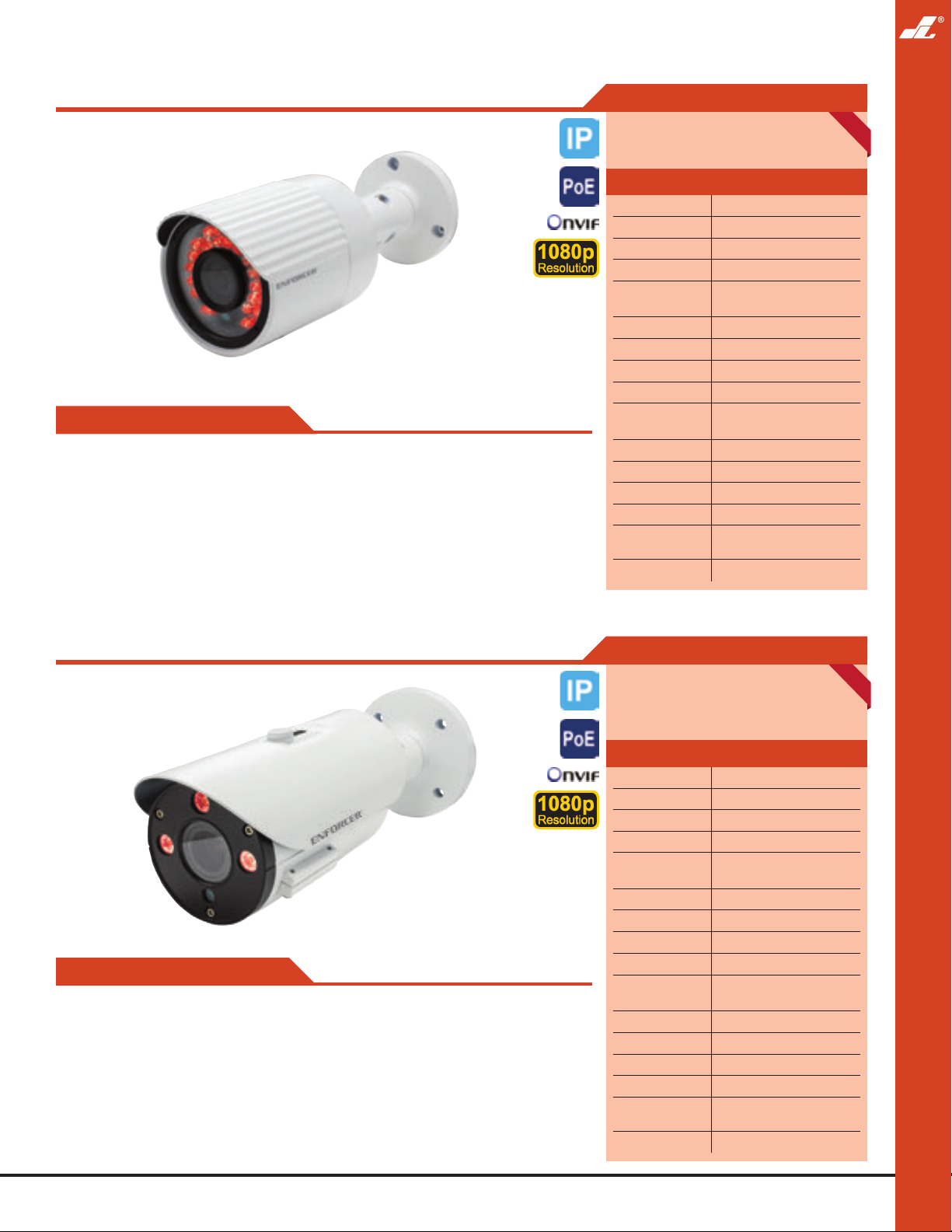

IP Fixed Bullet Camera

Features

• 1080p Resolution

1

•

/

" Sony 2.12MP CMOS

2.9

• 2.8mm Lens

• H.264 Support

• Rugged, weatherproof (IP65) construction

• ONVIF Profile S

• 12VDC and PoE 802.3af Operation

• Cables concealed in bracket to prevent

tampering

Model Number

EV-N1206-2W4Q

½" Sony 2.12MP CMOS, 1080p

Specifications

Format IP
Lens 2.8mm ICR
Viewing angle 90°
Megapixels 2.12MP
Minimum Lux

(IR Off)
Voltage 12VDC/PoE
CMOS size
3DNR Yes
DWDR Ye s
Onboard OSD

control
# of IR LEDs 1 X IR III
IR LED Range 33~50 ft (10~15 m)
Gamma correction 1.6-2.2
Gain control Yes

Dimensions

Weight 0.8-lb

Color 0.2Lux/F1.4,

B/W 0.05Lux/F1.4

1

2.9

/

"

Yes

25/8"x25/8"x69/16"
(66x66x166 mm)

NEW

CCTV

IP Varifocal Bullet Camera

Features

• 1080p Resolution

1

•

/3" 4MP Sony Exmor CMOS

• 2.8~12mm Varifocal lens

• H.264 Support

• Rugged, weatherproof (IP65) construction

• ONVIF Profile S

• Dual Array IR LEDs (equivalent to 48

LEDs), Up to 160ft IR range

• 12VDC and PoE 802.3af Operation

• Cables concealed in bracket to prevent

tampering

Model Number

EV-N1206-MW4Q

1

/3" 4MP Sony Exmor CMOS,

1080p

Specifications

Format IP
Lens 2.8~12mm ICR
Viewing angle 30°~90°
Megapixels 4MP
Minimum Lux

(IR Off)
Voltage 12VDC/PoE
CMOS size
3DNR Yes
DWDR Ye s
Onboard OSD

control
# of IR LEDs 2 X IR III
IR LED range Up to 160ft (50m)
Gamma correction 1.6-2.2
Gain control Yes

Dimensions

Weight 2lbs

Color 0.2Lux/F1.4,

B/W 0.05Lux/F1.4

1

2.9

/

"

Yes

311/16"x33/4"x103/8"

(93x96x263 mm)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

57

IP Varifocal Vandal Dome Camera

Model Number

EV-N2236-MW4Q

1

/3" 4MP Sony Exmor CMOS,

1080p

NEW

CCTV

Features

• 2.8~12mm DC ICR Lens

• H.264, Dual streams

1

•

/3" 4MP Sony Exmor CMOS

• 1080p Resolution

• Rugged, vandal-resistant design with no

exposed screws and concealed cable

• 24 IR LEDs, Up to 100ft IR range

• Weatherproof (IP66)

• 12VDC and PoE 802.3af Operation

• DWDR (Wide Dynamic Range) for clear

images in strong backlight

• ONVIF Profile S

• 3D-NR (3D Digital Noise Reduction) for

cleaner images in low light

Specifications

Lens 2.8~12mm ICR
Viewing Angle 30°~90°
Minimum Lux

(IR Off)
3DNR Yes
DWDR Ye s
# of IR LEDs 24
IR LED Range Up to 100ft (30m)
Gain Control Yes
Dimensions
Weight

Color 0.2Lux/F1.4,

B/W 0.05Lux/F1.4

3

5

/16"x41/2" (132x114 mm)

1-lb, 9.3-oz (717g)

IP Rollerball with Motorized Lens

Features

• 2.8~12mm 3M ICR Lens

• H.264, Dual streams

• ⁄" 4MP Sony Exmor CMOS

• 1080p Resolution

• Rugged, vandal-resistant design with no

exposed screws and concealed cable

• 36 IR LEDs, Up to 50ft IR range

• Rugged, weatherproof (IP65) design

• 12VDC and PoE 802.3af Operation

• DWDR (Digital Wide Dynamic Range) for

clear images in strong backlight

• 3D-NR (3D Digital Noise Reduction) for

cleaner images in low light

• ONVIF Profile S

• IP Rating: IP65

Model Number

EV-N2206-NW4Q



⁄" 4MP Sony Exmor CMOS, 1080p

Specifications

Lens 2.8~12mm ICR
Viewing Angle 30°~90°
Minimum Lux

(IR Off)
3DNR Yes
DWDR Ye s
# of IR LEDs 36
IR LED Range Up to 100ft (30m)
Gain Control Yes

Color 0.2Lux/F1.4,

B/W 0.05Lux/F1.4

NEW

58

SECO-LARM® 2017 Product Catalog

IP Corner-Mount Camera

Features

• 1080p resolution

• ½" 2.43MP Sony CMOS

• Designed to easily fit corners in office

buildings, elevators, jail cells, and more

• 2.9mm Lens

• 12VDC and PoE 802.3af Operation

• Rugged, weatherproof (IP66) design

• 10/100Mbps Ethernet interface (x24)

• ONVIF Support

• IP Rating: IP65

Model Number

EV-N4206-2S4Q

½" 2.43MP Sony CMOS, 1080p

Specifications

Max Streaming
Speed

Video Output Format H.264/MJPEG, Dual Stream
Viewing Angle 135°

Minimum
Illumination

# of IR LEDs 30 (940nm)
Power Supply 12VDC±10%, PoE 802.3af

Dimensions

1080p @30fps

0.002 Lux(F/1.4)(LEDs OFF)

0.0 Lux(F/1.4)(LEDs ON)

1

7

/2"x51/2"x111/16"

(190x140x43 mm)

NEW

CCTV

IP PIR Camera

Features

• 1080p resolution

• ½" 2MP Sony CMOS

• Designed to easily fit corners in office

buildings, elevators, jail cells, and more

• 2.9mm Lens

IP

PTZ Camera

• 12VDC and PoE 802.3af Operation

• Rugged, weatherproof (IP65) design

• 10/100Mbps Ethernet interface (x24)

• ONVIF Support

• IP Rating: IP65

Model Number

EV-N6206-2S4Q

½" 2MP Sony CMOS, 1080p

Specifications

CMOS
Max Streaming

Speed
Video Output Format H.264/MJPEG, Dual Stream
Viewing Angle 120°

Minimum
Illumination

# of IR LEDs 30 (940nm)
Power Supply 12VDC±10%, PoE 802.3af

Dimensions

1

/

" 2MP Sony CMOS

2.9

1080p @30fps

0.002-Lux(F/1.4)(LEDs OFF)

0.0-Lux(F/1.4)(LEDs ON)

1

7

/2"x51/2"x111/16"

(190x140x75 mm)

Model Number

EV-N7406-YW8Q

4.7~47mm lens, 1080p

NEW

NEW

Features

• 1080p resolution

• 4.7~47mm Lens with 10x Optical zoom

• IR Range up to 262ft (80m)

• 360° horizontal rotation

• 0°~90° vertical rotation

• 3DNR (3D digital noise reduction)

• DWDR (Digital Wide Dynamic Range)

• NTSC and PAL Support

• Lightning-proof and weatherproof for

indoor and outdoor use (IP66)

• Dual stream support

• ONVIF Support

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

59

5-in-1 HD Hybrid DVRs (HD+IP)

CCTV

Model Numbers

DRH-104Q

4 Channels

DRH-108Q

8 Channels

DRH-116Q

16 Channels

NEW

NEW

NEW

Features

HD

• Auto recognizes up to 3MP HD TVI, CVI, AHD, and Analog cameras

• High-resolution recording and playback over coaxial

cable – up to 1920x1080

• H.264 Compression

• VGA and HDMI output

• Programmable video and alarm loss detection

• Remotely control monitoring, playback, recording, system setup,

dome camera control, and archiving

• Free CMS software and free P2P service

DRH-108Q Only:

• Video output: 8 channels 1080p at 240FPS

• 8 BNC Inputs + 8 IP channels

Specifications

Model DRH-104Q DRH-108Q DRH-116Q

Inputs 4 BNC 8 BNC 16 BNC
HD Format HD-AHD, HD-TVI, HD-CVI

Video

Outputs Main monitor VGA/HDMI Sync output
VGA output (optional) 1920x1080, 1440x900, 1280x1024, 1366x768, 1024x768, 800x600

Outputs

Audio

Audio compression G.711A
Compression method H.264
Recording modes Continuous, scheduled, alarm, motion detection, pre-alarm
Video output 4 Ch 1080p@120 8 Ch 1080p@240 16 Ch 1080p@480
Recording bit rate 16-8000Kbps VBR, CBR
Built-in storage interface 2xSATA (4TB max)

Recording & Storage

Export USB 2.0 port – Supports flash drive, or DVD/RW drive or external USB HDD
Alarm input x4 via, D-Sub (TTL)
Alarm relay output x1, D-Sub, 1.0A@30VDC or 1.0A@120VAC

Alarm

Alarm detection NO/NC, Programmable

Video loss detection Programmable

Network connectivity RJ-45, 10/100Mbps Ethernet, static IP, DHCP, PPPoE, DDNS

Remote operation Monitoring, playback, recording, system setup, dome camera control, archiving

Mobile viewing iPad/iPhone
IR Remote Yes

Connectivity

Dome camera control protocol Pelco P, Pelco D, AD422, Fastrax 2, Panasonic, GE, DSCP, JVC
USB 2xUSB 2.0 (Exporting, USB mouse)

Main audio 1-ch, BNC
Call audio Bidirected-talk, BNC port

• 5 Recording modes: continuous, scheduled, alarm, motion

detection, and pre-alarm

• Remote monitoring via Internet Explorer, Firefox, Safari,

and Chrome

• Programmable features such as motion detection, events, and

more

• Mobile viewing for iPad/iPhone® & Android™

• Easy and convenient firmware upgrade via USB

• Available without HDD, or with 1TB, 2TB, or 4TB

DRH-116Q Only:

• Video output: 16 channels 1080p at 480FPS

• 16 BNC Inputs + 16 IP channels

®

, Android™

60

SECO-LARM® 2017 Product Catalog

IP NVRs

Model Numbers

DRN-104Q

4 Channels

DRN-108Q

8 Channels

DRN-116Q

16 Channels

NEW

NEW

NEW

CCTV

Features

• ONVIF Profi le S, RTSP, GB28181

• High-definition recording – up to 1920x1080

• H.265/H.264/MJPEG Compression

• Free CMS software and free P2P service

• Remote monitoring via Internet Explorer, Firefox, Safari, and

Chrome

• Supports EXT alarm

• Supports 2 channel inputs, 1 channel alarm output

• Programmable video and alarm loss detection

• 5 Recording modes: continuous, scheduled, alarm, motion

detection, and pre-alarm

• RS-485 Port for PTZ control

• 2 USB Ports

• Remotely control monitoring, playback, recording, system setup,

dome camera control, and archiving

• Easy and convenient firmware upgrade via USB

• Available without HDD, or with 1TB, 2 TB, or 4TB

• Supports up to two 6TB drives

• PC and Mac compatible

DRN-108Q Only:

• Video output: 8 channels 4K at 240FPS

Specifications

Model DRN-104Q DRN-108Q DRN-116Q

Channels 4 8 16

Frames per second 120FPS 240FPS 480FPS

Inputs RJ45 10M/100M/1000M Adaptive Ethernet port
Outputs Main monitor VGA/HDMI Sync output

Video

VGA output (optional) 3840x2160, 1920x1080, 1440x900, 1280x1024, 1366x768, 1024x768, 800x600

Outputs

Audio

Audio compression G.711A
Compression method H.265 / H.264 / MJPEG
Recording modes Continuous, schedule, alarm, motion detection
Video output 1920x1080, 1440x900, 1280x1024, 1366x768, 1024x768, 800x600
Recording bit rate LBR, VBR,16-8000Kbps
Built-in storage interface 2xSATA (6TB max)

Recording & Storage

Export USB 2.0 port – Supports flash drive, or DVD/RW drive or external USB HDD
Alarm input x2 via, D-Sub (TTL)
Alarm relay output x1, D-Sub, 1.0A@30VDC or 1.0A@120VAC

Alarm

Alarm detection NO/NC, Programmable

Video loss detection Programmable

Network connectivity RJ-45, 10/100/1000Mbps Ethernet, static IP, DHCP, PPPoE, DDNS

Remote operation Monitoring, playback, recording, system setup, dome camera control, archiving

Mobile viewing iPad/IPhone
Dome camera control protocol Pelco P, Pelco D, AD422, Fastrax 2, Panasonic, GE, DSCP, JVC

Connectivity

USB 2xUSB 2.0 (Exporting, USB mouse)

Main audio 1-ch, BNC
Call audio Bidirected-talk, BNC port

DRN-116Q Only:

• Video output: 16 channels 4K at 480FPS

®

, Android™

HD

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

61

1080p

EV-Y2201-AMGQ

EV-Y2201-A2WQ

Resolution

SECO-LARM offers a wide variety of HD CCTV cameras with models to satisfy your customer’s
security needs. Choose from bullet, rollerball, vandal dome, corner-mount, PIR or “UFO” styles that
are compatible with the latest HD video formats including TVI, CVI, AHD and analog(CVBS).
Equipped with 2MP image sensors, 3D-NR, DWDR and joystick OSD control for easy camera
programming. SECO-LARM cameras provide high-quality and reliable security imaging solutions.

Tel: [phone]
Fax:

[phone]

Email: [e-mail]
Website: www.seco-larm.com

SECOPAGE

TVI

™

CVI

EV-Y6221-A3WQ EV-Y4201-A2SQEV-Y6201-A3WQEV-Y1201-A2WQEV-Y1201-AMWQ EV-Y2201-AMWAQ

Manufacturer of

AHD

ENFORCER

Analog

®

12VDC High-Amp Power Supplies

PS-U1812-PULQ shown

Features

• 12-Amp supply current

• Universal 100~240 VAC input

• 12.6~13.5 VDC Output

• Ultra-low ripple voltage for improved

image quality

• Adjustable output to compensate for

voltage drop

•

Outputs protected with 2.5-Amp PTC

• High-efficiency switching type

• Built-in protection against short circuit

and overheating

• Individual channel status LEDs

• Heavy-duty steel case with removable

• Dimensions: 12

cover

(308x311x92 mm)

1

/8"x121/4"x35/8"

Model Numbers

PS-U1812-PULQ

PS-U1812-PULQ

18 Outputs, 12A cont., PTC fuses

18 Outputs, 12A cont., PTC fuses

PS-U3612-PULQ*

PS-U3612-PULQ*

36 Outputs, 12A cont., PTC fuses

36 Outputs, 12A cont., PTC fuses

Specifications

Specifications

Model PS-U1812-PULQ PS-U3612-PULQ
Outputs 18 36
Total supply

current
Max. current

(output)
Output fuse PTC
Output

voltage
Input fuse Micro fuse 3.15A@250VAC
Input voltage 100~240 VAC (47~63 Hz)

Dimensions

Weight 7-lb 10-oz (3.45kg)

*Special order item.

12.6~13.5 VDC, adjustable

12A

2.5A

1

/8"x121/4"x35/8"

12

(308x311x92 mm)

CCTV

12VDC Switching CCTV Power Supplies

PS-U0906-PULQ shown

Features

• New lightweight, cost-effective design

• High-efficiency switching type

• Ultra-low ripple voltage for improved

image quality

• Adjustable output to compensate for

voltage drop

• Built-in protection against short circuit

and overheating

• Individual channel status LEDs

• Heavy-duty steel case with removable

cover

Model Numbers

PS-U0406-PULQ

4 Outputs, 6A cont., PTC fuses

PS-U0906-PULQ

9 Outputs, 6A cont., PTC fuses

PS-U1806-PULQ

Multiple Mounting Styles

18 Outputs, 6A cont., PTC fuses

Specifications

Model
Outputs 4 9 18
Total supply

current
Max. current

(output)
Output fuse PTC
Output

voltage
Input fuse Micro fuse 3.15A@250VAC
Input voltage 100~240 VAC (47~63 Hz)
Dimensions 10"x7
Weight 4-lb 7-oz (2.01kg)

PS-U0406-PULQ PS-U0906-PULQ PS-U1816-PULQ

6A

2.5A

12.6~13.5 VDC, adjustable

3

/4"x35/8" (254x197x92 mm)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

63

12VDC/24VAC Power Supply

CCTV

Features

Model Number

EVP-124M6P16Q

16 Outputs, 6A cont., PTC fuses

Specifications

Output voltage 24VAC or 6/12/24 VDC
Number of Outputs 8@24VAC/8@12VDC
Total Output Current 3A per output
Main Fuse Rating 5.0A @ 250VAC
Output Fuse Rating 1.1A @ 250VAC
Input voltage 120 VAC

• Individual status LEDs

• 6 Amp continuous, 8 outputs with

3A@6/12 VDC and 8 outputs with

1.5A@24VDC

• Each output individually fused

• Adjustable DC voltage output

• Extra-large enclosure: 12"x12"x3

(305x305x89 mm)

1

/2"

24VAC Switching CCTV Power Supplies

EVP-1SA4P9UL shown

Features

• Each output individually fused

• Individual red LED for each output

• Main power on/off master switch

• Spare fuse and 6-foot power

cord included

• Heavy-duty steel case to protect the

power connections

• Input: 120VAC, 60z. Output: 24VAC

• Removable steel cover for easy access to

power connections

• Ventilation holes to prevent heat build-up

• Dimensions: 10

(254x196x89 mm)

1

/8"x73/4"x31/2"

• Knock-out for optional cam lock

• AC terminal block for easy connection

from transformer to 6-foot power cord

Model Numbers

EVP-1SA4P4UL

4 Outputs, 4A cont., PTC fuses

EVP-1SA4P9UL

9 Outputs, 4A cont., PTC fuses

EVP-1SA8P16UL

Multiple Mounting Styles

16 Outputs, 8A cont., PTC fuses

Specifications

Model P4UL P9UL P16UL
Outputs 4 9 16
Total Output

Current
Main Fuse

Rating
Output Fuse

Rating

4 Amps 8 Amps

5.0 Amps @ 250VAC

1.1 Amps @ 250VAC

64

Power Distribution Board

Features

• Used in a wide variety of applications

including CCTV, Access, etc

• Surge-protected outputs

• Handles up to 28 VAC/VDC

SECO-LARM® 2017 Product Catalog

• Individual red LEDs for each output

• Green power LED

• Power ON/OFF master switch

• Size: 5

3

/16"x31/8"x1"(132x79x25.5 mm)

Model Number

PD-9PSQ

9 Outputs,main fuse: 5A@250VAC

Specifications

Output fuse type PTC
Output fuse rating 1.1A
No. of Output 9
Main fuse 5A

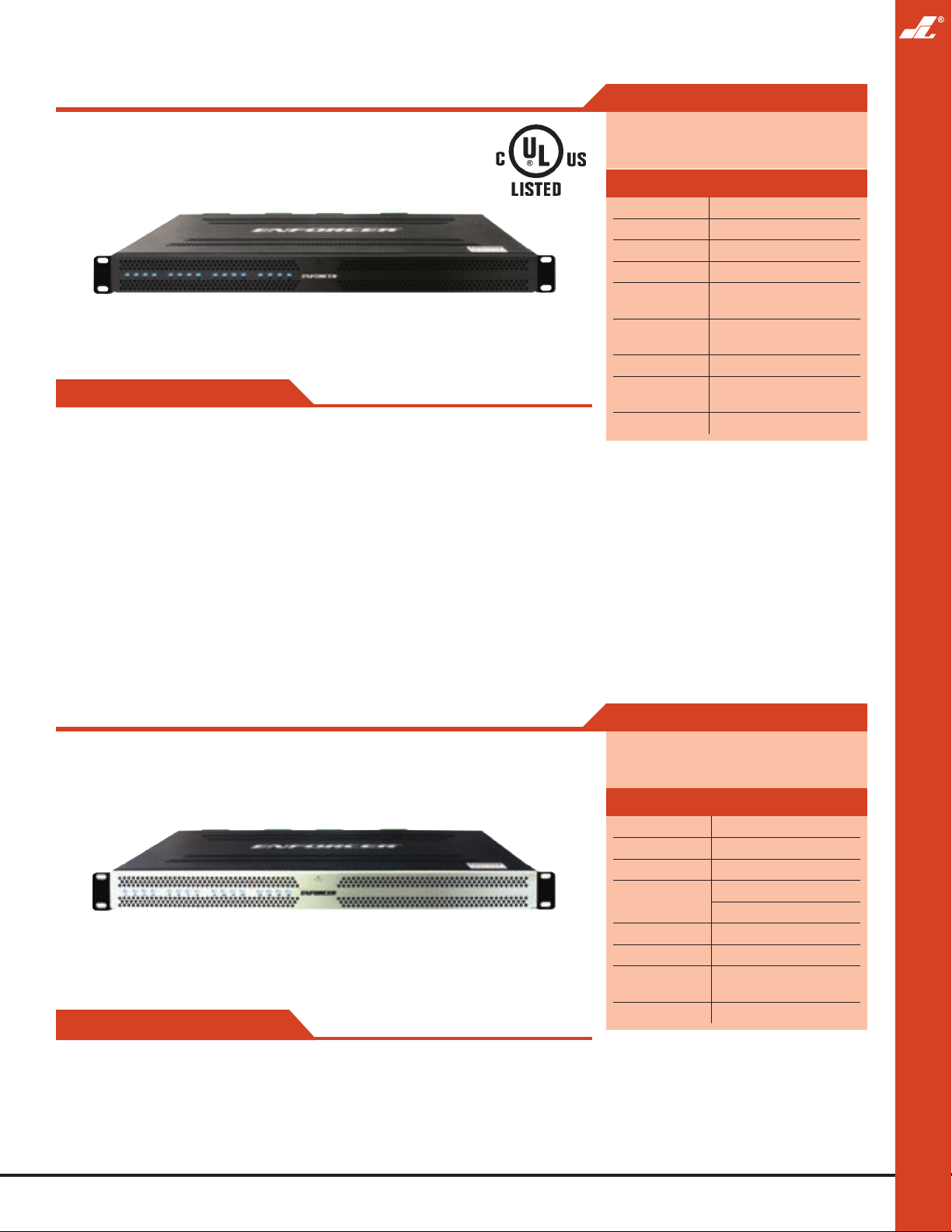

Rack-Mount DC CCTV Power Supply

Features

• Universal 100~240 VAC input

• 12.6~13.5 VDC Output

• High-efficiency switching type

• Adjustable output to compensate for

voltage drop

• Outputs protected with 3-Amp PTC fuses

• Built-in protection against short circuit

and overheating

• Flexible cable management options

- 2 Cable-management brackets with

3 different mounting points

- 2 Cable-management hooks with

3 different mounting points

• Dual-color LED status indicators for each

output (blue - normal, red - fault)

• Rack mount options:

- Facing forward - easy access to

indicator LEDs

- Facing backward - easy access to

connections

• Removable screw terminal blocks for

convenient installation and reliable
connections

• Rack, wall or desk (stackable) mount

• Dimensions: 1

(45x445x289 mm) (excluding brackets)

3

/4"x171/2"x1113/32"

Model Number

PH-U1612-PULQ

16 Outputs, 12A cont., PTC fuses

Specifications

Fuse type PTC
Input voltage 100~240 VAC
# of outputs 16
Total supply current 12A@12VDC max.
Max. current

per output
Adjustable voltage

output
Rack size 1U 19" (45x445x289mm)

Dimensions

Weight 7-lb 14-oz (3.56kg)

3Amp

12.6~13.5 VDC

3

/4"x171/2"x1113/32"

1

(45x445x289 mm)

CCTV

24/28VAC Rack-Mount Power Supply

Features

• Field-selectable 24 or 28 VAC output

• 120VAC Input, 60Hz

• 12A Continuous supply current

• Compact 1U height fi ts into standard 19"

racks

• Each output individually PTC fused @ 3A

• Individual dual color output status LEDs

• Flexible cable management options –

brackets and hooks included

• Removable screw terminals for

convenient installation and reliable
connections

Model Number

PH-A1612-PUQ

16 Outputs, 12A cont., PTC fuses

Specifications

Fuse type PTC
Input voltage 120VAC
# of outputs 16

Total supply current

Max. amps. per ch. 3A@24VAC max
Rack size 1U 19" (45x445x289mm)

Dimensions

Weight 14-lb 14-oz (6.75kg)

12A@24VAC max
10A@28VAC max

3

/4"x171/2"x1113/32"

1

(45x445x289 mm)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

65

Plug-and-Play Backup Power

CCTV

SB-P1012-26Q

SB-L10V1-20Q

Model Numbers

SB-P1012-26Q

10W, 2600mAh, Plug-in

SB-L10V1-20Q

10W, 2000mAh, In-Line

Specifications

Model SB-P1012-26Q SB-L10V1-20Q

Type

Input 85~265 VAC 5/7.5/9/12 VDC
Output 12VDC 5/7.5/9/12 VDC

Plug-in UPS

adapter

In-line UPS

NEW

NEW

Features

• Real-time backup power with no break

when input power is lost

• DC UPS Auto-start

• LED indicators for power and backup

operation

Additional features for SB-L10V1-20Q

• Auto-recognize voltage (5/7.5/9/12VDC)

input and set corresponding output

• Additional indicator LEDs for output

voltage and an audible / visible (LED)
alarm warning of an overload, voltage
issue, or low battery.

4-Channel "Brick" Power Supply

Features

• 5 Amp continous, 4 outputs

• Individual status LEDs

Half

Load

Backup

time

Full

Load

Dimensions

70min 60min

30min 25min

37/16"x27/8"x15/32"
(87x59.8x29mm)

33/8"x21/4"x121/32"
(85x57x42 mm)

Model Number

PA-U0405-NULQ

4 Outputs, 5A Continous

Specifications

Over current protection 12VDC/6.8A
Output voltage 12~13.8 VDC
Input fuse 3.15A@250VAC
Input voltage 100~240 VAC
Operating temperature

Dimensions

Weight

14°~113° F (-10°~45° C)

57/8"x23/16"x15/16"

(150x55x33 mm)

13.4-oz (380g)

66

Power Converters

ST-LA108-TPQ & ST-LA115-TPQ

SECO-LARM® 2017 Product Catalog

Features

• Two models available, providing varying

degrees of low-voltage
DC output

• Built-in overload protection

• Regulated and filtered output

• LED indicates power input

• 2.1mm DC Plug with pigtail for simple and

quick installations

Model Numbers

ST-LA108-TPQ

0.8A@12VDC

ST-LA115-TPQ

1.5A@12VDC

Specifications

Model ST-LA108-TPQ ST-LA115-TPQ

Output
connector

Input
voltage

Output
voltage

Output
current

2.1mm DC Plug

16~28

VAC/VDC

0.8A 1.5A

VAC/VDC

12VDC

18~28

4-in-1 HD Passive Video Baluns

EB-P101-01HQ

EB-P101-20HQ

HD

Model Numbers

EB-P101-01HQ

Standard Balun

EB-P101-20HQ

Balun with 6" pig-tail

EB-P101-20HPQ

Power video balun

EB-P501-02HQ

Balun with pass-through

Specifications

Range over 1080p

HD-TVI 623ft (190m)

HD-CVI 754ft (230m)

HD-AHD 820ft (250m)

Analog 1,312ft (400m)

NEW

NEW

NEW

NEW

CCTV

EB-P101-20HPQ

Features

• 4-in-1 TVI / CVI / AHD / Analog video up to

1080p

• Range over 1080p:

- HD-TVI: 623ft (190m)

- HD-AHD: 820ft (250m)

- HD-CVI: 754ft (230m)

- Analog: 1,312ft (400m)

EB-P101-20HPQ:

• Transmits video and power over Cat5e/6

• Pigtails for flexible installation

• PAL / NTSC / SECAM compatible

• Built-in TVS surge protection

• Anti-static and wave filters

• Lightning protection – Grade III

• 60dB Crosstalk and noise immunity

• Real-time transmission over low-cost

Cat5e/6 instead of costly coaxial

EB-P501-02HQ

• Exceptional interference rejection

• Passive operation – No external power

required

• Quick-connect terminals for easy

installation

• Small size allows mounting of multiple

baluns behind a DVR

EB-P501-02HQ:

• Patented ergonomic design includes built-in terminals for power

or data pass-through

• Terminal blocks - No crimping required

Passive Video Baluns

Passive Weatherproof Balun Passive Video Balun with Ground Loop Isolator

EB-P101-25WQ

Weatherproof Balun

EB-P101-24GQ

Ground loop Balun

• Weatherproof for outdoor

applications

• Transmits up to 1,300ft (400m)

color video or up to 1,950ft (600m)
B/W video

• High immunity from interference

• Built-in surge protection

• Includes six weatherproof

connectors

• Transmits up to 1,300ft

(400m) color video or up to
1,950ft (600m) B/W video

• Built-in ground loop isolator

• High immunity from

interference

• Screwless terminals for

quick installation

• Built-in surge protection

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

67

Active Video Baluns

CCTV

EVT-TB1-42T EVT-RB1-4T2 EB-T101-01HQ

Features

HD

Model Numbers

*

EVT-AB1

Active video balun set

EVT-TB1-42T

Active video balun transmitter

EVT-RB1-4T2

Active video balun receiver

EB-T101-01HQ*

4-in-1 HD Active video
balun transmitter

• Active operation - The transmitter

amplifies the video signal for
excellent picture quality at long
distances

• Terminal blocks for easy installation

- no crimping RJ-45 connectors

• Transmits a B&W video signal up to

1.5 miles (2.4km) or color up to 0.9
miles (1.5km)

• Patented interlocking design for

clean, and professional installs

4-in-1 HD Passive Video Transceivers

EB-P104-01HQ

Features

• Compatible with TVI, CVI, AHD, and

analog cameras

• Removable terminal blocks or RJ45

connectors

• Connects to cameras, DVRs, multiplexers,

• Transmits video over Cat5e/6

• Built-in surge protection

EB-P116-60HQ

and other devices

EB-T101-01HQ Only:

• Supports TVI, CVI, AHD and analog video formats

• Range over 1080p with passive HD Balun:

- HD-TVI: 1,050 ft (320m)

- HD-CVI: 1,180 ft (360m)

- HD-AHD: 1,180 ft (360m)

• Push pin terminal for easy install

Model Numbers

HD

EB-P104-01HQ

4 Channels

EB-P116-60HQ

16 Channels

Specifications

Range over 1080p

HD-TVI 623ft (190m)

HD-CVI 754ft (230m)

HD-AHD 820ft (250m)

Analog 1,312ft (400m)

NEW

NEW

68

Rack-Mount Active Video Balun Hub

Features

• Rack-mount or stackable

• Transmits up to 3,940ft (1.2km) with
passive baluns or 5,000ft (1.5km) with
active transmitter

SECO-LARM® 2017 Product Catalog

• Compact 1U mounts in a standard 19"
rack

• Video in: 16 (terminal blocks)

• Video out: 32 (BNC connections)

Model Number

EVT-AH16-VT2Q

16-Port active balun hub

• Power input: 12/24 VAC/VDC

• Includes 12VDC 1.5-Amp power adapter

• Current draw: 500mA

• Built-in video and data surge protection

Baluns, Extenders and Converters

CCTV

Video, Power, and Data Balun

EB-P101-20VQ

DC Plug and DC jack, RJ45

• Transmits up to 1,300ft (400m) color video or up to 1,950ft

(600m) B/W video

• Transmits power for 12/24 VAC/VDC cameras

• Includes DC plug and DC jack

(only one used at a time)

• Uses low-cost Cat5e/6 cable

instead of costly coaxial cable

• Built-in surge protection

RS-232 to RS-485 Converter

EVA-RS1

Range:

3

/4 mi (1,200m)

• 9-Pin DB-9 female connector for RS-232 to 2-Wire removable

terminal block for RS-485

• Two wire, differential signals, half duplex

• Auto-switching baud rate, speed

up to 115,200 baud
(115.2kbps) over a distance of 1,200m

• Up to 32 devices may be connected

together in RS-485 multi-drop
operation

• Removable terminal blocks

USB Extender

DE-S101Q

USB 1.1, Passive, 1 input, 1 output

• Extends USB devices over Cat5e/6 cable up to
150ft (46m)

• USB 1.1 Compliant

• Easily control a DVR remotely
without accessing a network or
the internet

• Passive operation – no power
required

• Small size: 2½"x17/16"x7/8"
(64x37x22 mm) excluding the
9" (230mm) USB pigtail

4-in-1 HD Video Amplifier

VA-2101B-WYQ

1 Input, 1 output

• TVI / CVI / AHD / Analog compatible

• Transmits up to 2,625ft (800m)

• Pass-through circuit: multiple (up to 3) HD

video amplifiers can be connected to a
single power supply

• Brightness and sharpness adjustments

for each channel

• NTSC and PAL compatible

• 12VDC Power adapter and jumper

included

NEW

HD

4-in-1 HD Video Distributors

VA-1102B-WYQ

VA-1104B-WYQ*

Features

• Compatible with TVI, CVI, AHD, and Analog

• Distributes 1 video input to 2 or 4 video

outputs

• Connect to a video camera, multiplexer,

DVR, etc.

• LED power indicator

• Signals are cleaned and buffered to

ensure clear video over the camera's
recommended maximum distance

Model Numbers

VA-1102B-WYQ

HD

1 Input, 2 outputs

VA-1104B-WYQ*

1 Input, 4 outputs

Specifications

Model VA-1102B-WYQ VA-1104B-WYQ*

Number of
outputs

Video output
format

Video input
level

Video output
level

Image gain 6dB
Video

bandwidth

Dimensions

Weight 2.5-oz (70g) 4.9-oz (140g)

*Special order item. Please contact SECO-LARM

2 4

HD-TVI / CVI / AHD / Analog

0.8~1.2Vp-p, 75Ω

1Vp-p, 75Ω

350MHz, -3dB

25/16"x115/16"x 111/16"

(58x49x42 mm)

57/16"x33/8"x13/16"

(138x86x30 mm)

®

for details.

NEW

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

69

4-in-1 HD Midpoint VPD Combiners

EB-P316-60MQ

CCTV

EB-P304-01MQ

HD

Model Numbers

EB-P304-01MQ

4 Channels, passive operation

EB-P316-60MQ

16 Channels, passive operation

NEW

NEW

Features

• Installs at a point between baluns on

the camera end of an installation and a
video transceiver on the DVR end of an
installation

• Video and data signals pass through

the unit to a video transceiver while
power enters the unit to power the CCTV
cameras

• LEDs indicate power present

• T-568B Standard

• Can be wall-mountable or desk-

mounted (EB-P316-60MQ is also rack­mountable)

• Connect 4 or 16 cameras using low-cost

Cat5e/6 cable

Specifications

Model EB-P304-01MQ EB-P316-60MQ
Type Passive Midpoint

CVBS 984' (300m)

Video Range

Video format NTSC, PAL, SECAM
Maximum input 1Vp-p

Impedance

Max. amperage 1A@12VDC/24VAC
Data Range 2,400' (800m)
Fuse 1.5A max/CH

HD-AHD 720p: 1050' (320m); 1080p: 722' (220m)

HD-CVI 720p: 1476' (450m); 1080p: 820' (250m)
HD-TVI 720p/1080p: 820' (250m)

Coax 75Ω@1MHz
RJ45 100Ω@1MHz

4-in-1 HD Endpoint VPD Combiners

HD

EB-C316-60EQ

Model Numbers

EB-C304-01EQ

4 Channels, active operation

EB-P316-60EQ

16 Channels, passive operation

NEW

NEW

70

EB-C304-01EQ

Features

• For use with VPD baluns such as

EB-P101-20VQ (see page 69)

• Transmits power and data to the camera

while receiving video from the camera

• Installs at the DVR end of an installation

• Can be wall-mounted or desk-mounted

(EB-P316-60EQ also rack-mountable)

• LEDs indicate power present

• Connect 4 or 16 cameras using low-cost

Cat5e/6 cable

• T-568B Standard

• Active models also feature a built-in

power supply (1 Amp per channel) to
power CCTV cameras:

- 24VAC for models EB-C304-01EQ

SECO-LARM® 2017 Product Catalog

Specifications

Model EB-C304-01EQ EB-P316-60EQ
Type 24VAC Endpoint Passive Endpoint

CVBS 984' (300m)

Video Range

Video format NTSC, PAL, SECAM
Maximum input 1Vp-p

Impedance

Max. amperage 1A@24VAC 1A@12VDC/24VAC
Data Range 2,400' (800m)
Fuse 1.5A max/CH
Input power 110VAC N/A

HD-AHD 720p: 1050' (320m); 1080p: 722' (220m)

HD-CVI 720p: 1476' (450m); 1080p: 820' (250m)
HD-TVI 720p/1080p: 820' (250m)

Coax 75Ω@1MHz
RJ45 100Ω@1MHz

4-in-1 HD to HDMI Converter

Model Number

VC-3YAQ

HD to HDMI converter

NEW

CCTV

BNC to VGA Converter

Features

• Converts almost any VGA monitor into a

security monitor

• Video input auto-configure

• OSD (On-Screen Display) for

programming special features

• Desktop, VESA, or wall mountable

• Output: 1280x1024 NTSC

• BNC pass through output

• Stores settings in case of power loss

HD

Features

• Converts HD-TVI, CVI, AHD, and CVBS

video to HDMI, VGA or composite output

• Built-in OSD to display input/output

settings

• Loop output

• Picture in picture display

Model Number

VC-3BAQ

1280x1024 (NTSC)

Specifications

Input signal 1.0Vp-p, 75Ω BNC Composite

VGA: 0.7Vp-p RGB,

Output signal

Current draw 800mA@5VDC
Maximum

resolution
Power source 1A@5VDC, 2.5mm
Dimensions 3
Weight 7.2-oz (205g)

15 pin female D-sub

1.0Vp-p, 75Ω BNC Composite

1280x1024

3

/8"x31/4"x11/16" (85x83x27 mm)

VGA to BNC Converter

Features

• Connect a DVR with VGA output to an

existing monitor with BNC input

• Video standards: NTSC/PAL

• Auto configure resolution: Up to

1024x768 (up to 75Hz)

• Dual composite video (BNC) and VGA

output ports

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

• Gold-plated BNC connector for longer life

• On-screen display (OSD) for image

adjustments including size, brightness,
contrast, hue, saturation, sharpness, and
more

• Quick installation – no driver or operating

system requirements

Model Number

VC-2VAQ

1024x768 (NTSC)

Specifications

Input signal VGA

VGA: 0.7 Vp-p RGB

Output signal

Current draw 500mA@5VDC
Maximum

resolution
Power source 1A@5VDC, 2.5mm

Dimensions

Weight 9.3-oz (265g)

15 pin female D-sub

1.0Vp-p, 75Ù BNC Composite

1024x768

13

/16"x33/16"x11/16"

4

(122x81x27 mm)

71

4-in-1 HD Ground Loop Isolator

VG-1C12YQ

• TVI / CVI / AHD / Analog compatible

• Built-in surge protection

• BNC Terminals for easy installation

• Passive operation - no external power required

• Reduces ground loop interference

CCTV

• Prevents video-signal distortion, picture tearing, cross talk, and

other picture quality problems

NEW

HD

4-in-1 HD Video Surge Protector

VS-1V12YQ

• Helps prevent damage to sensitive HD-TVI, HD-CVI, HD-

AHD, and Analog CCTV cameras, DVRs, and switches

• Intercepts repeated surges and spikes that could

damage HD-TVI, HD-CVI, HD-AHD, and Analog CCTV
equipment

• Passive operation – no external power required

• Includes a 16" grounding wire for convenient connection

to ground

NEW

HD

HD-SDI Surge Protector

VS-1V22AQ

• Helps prevent damage to sensitive HD-SDI

equipment such as cameras and DVRs

• Passive operation - no external power required

• Includes a 16" grounding wire for ground

IP Surge Protector

IPV-PD88Q

• Helps prevent damage to sensitive analog CCTV equipment such

as cameras, monitors, DVRs, and video splitters

• Installs on Cat5e/6 4-pair UTP cable with RJ45 jacks

• Passive operation - No external power required

• Includes a grounding post

HD

PoE Surge Protector

IPV-P188Q

• Helps prevent damage to sensitive networking equipment

• RJ45 Jack to RJ45 jack

• Power and single line protection

• 10/100 Base-T Cat5/5e compatible

• Support mid-span PoE and end-span PoE

• 802.3af/at PoE compatible

• Includes a 16" grounding wire for ground

HDMI Surge Protector

VS-1AHHAQ

• Helps prevent damage to sensitive HDMI equipment such as

players, monitors, and projectors.

• Intercepts repeated surges and spikes that could damage HDMI

A/V equipment.

• Built-in ESD, EFT

• Passive operation - no external power required

• Includes a 12" grounding wire for ground

72

SECO-LARM® 2017 Product Catalog

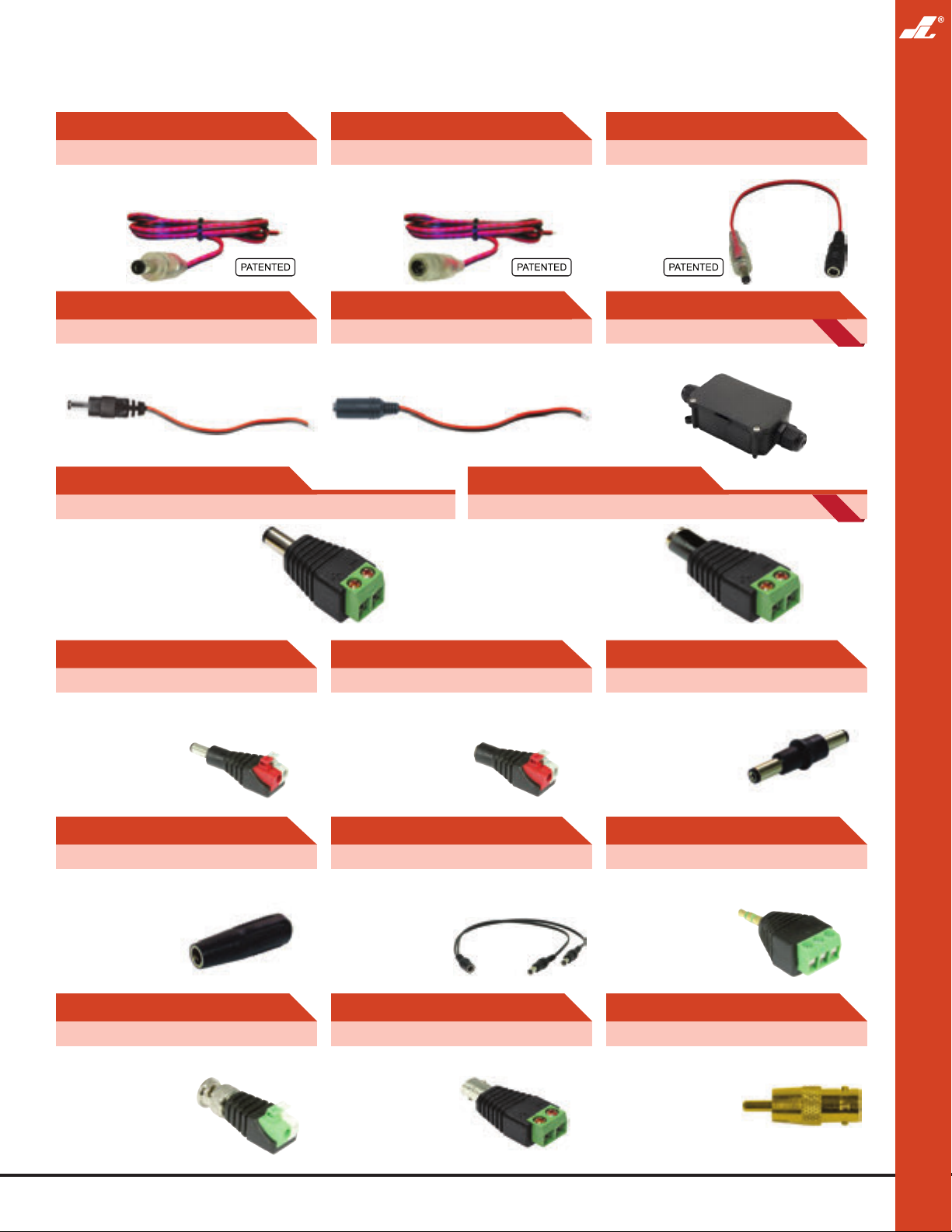

CCTV Connectors

Illuminated Power Connectors

CA-1610-3FLQ

• 2.1mm DC Plug with LED and 3' (0.9m)

red/black wires, LED indicates power and
polanty

Illuminated Power Connectors Illuminated Power Connectors

CA-1510-3FLQ

• 2.1mm DC jack with LED and 3' (0.9m)

red/black wires, LED indicates power and
polanty

CA-1615-06LQ

• 2.1mm DC jack to

2.1mm DC plug
with 6" (15cm)
wire

CCTV

DC Connectors

EVA-F5521-3Q

• 2.1mm DC Plug pigtail connector with 3'

(0.9m) red/black wire

DC Connectors DC Connectors

CA-161T

• 2.1mm DC Plug-to-terminal

block

DC Connectors

CA-161P

• 2.1mm DC Plug-to-terminal

block (screwless)

DC Connectors Weatherproof Housing

EVA-M5521-3Q CH-1G1G-01WQ

• 2.1mm DC Jack pigtail connector with 3'

(0.9m) red/black wire

CA-151T

• 2.1mm DC Jack-to-terminal

block

DC Connectors DC Connectors

CA-151P

• 2.1mm DC Jack-to-terminal

block (screwless)

NEW

• IP66 Weatherproof housing

NEW

CA-1616Q

• 2.1mm DC Plug-to-plug adapter

DC Connectors DC Connectors

CA-1515Q

• 2.1mm DC Jack-to-jack

adapter

BNC Connectors BNC Connectors BNC Connectors

CA-111P

• Male BNC-to-terminal block

(screwless)

CA-1526-1F

• 2.1mm DC Jack-to-dual DC

plug with 1' (3m) wires

CA-121T

• Female BNC-to-terminal block • BNC-to-RCA connector

Audio Connector

CA-1A1T

• 3.5mm Audio Plug-to-terminal

block

EVA-CB0R1Q

(gold-plated)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

73

PoE Injector

CCTV

Features

• Includes splitter and injector

• Works with all DC powered non-POE
devices up to 50VDC

• Supports up to 100Mb/s networks

• Use existing Cat5e/6 wiring to extend
power to non-PoE devices

• Plug & play installation

• For distances up to 328ft (100m)

Model Number

NJ-P101M-PQ

Basic PoE Splitter/Injector

Specifications

Transmission
medium

Input voltage ≤50VDC
Transmission

distance
Transmission

current
Working

temperature
Storage

temperature
Humidity 0 to 95%

Dimensions

Cat5e/6 UTP

328ft (100m) max

1A max

14°~158°F (-10°~70°C)

-22°~158°F (-30°~70°C)

21/16"x11/8"x13/16" (52x28x21 mm)

With 5.9" (15cm cable)

NEW

PoE Repeater

Features

• Extends power and data beyond the

normal limit of 328ft (100m)

• Standard PoE IEEE 802.3af compliant

• Installs on Cat5e/6 4-pair UTP cable with

RJ45 jacks

• Supports 10/100/1000 BASE-T

transmission rates

• Easy plug-and-play installation

• Passive operation – no external power

required

• Auto-sensing for detecting PoE or

non-PoE devices

• Built-in LED status indicators

• Sealed and fanless for increased

reliability

• Compact, wall-mountable

Model Number

NR-P101FQ

802.3af Compliant

Specifications

Connector In/Out RJ45

Standby 1.1W (23mA)

Current draw

Transmission
range

Max device
power range
with PoE
switch

PoE

Data link Pin 1/2, 3/6, 4/5, 7/8
Power link Pin 1/2 (+),3/6 (-) End-Span
Material Aluminum
Operating

temperature

Dimensions

Weight 6.4 oz. (180g)

@10Mbps 1.44W (30mA)

@100/1000

Mbps

Single

repeater

Two repeaters

1st PoE

Repeater

8.58W at

787ft (240m)

IEEE 802.3af Standard,

32°~131° F (0°~55° C)

2

1.92W (40mA)

787ft (240m)

1,181ft (360m)

2nd PoE

Repeater

4.21W at

1,181ft (360m)

48V, 12.95W

5

/8"x45/16"x11/16"

(67x110x27 mm)

Up to

Up to

NEW

74

SECO-LARM® 2017 Product Catalog

Ethernet Extenders

Features

• Extends the range of IP cameras or any

TCP/IP device beyond the 300ft (100m)
limit of Ethernet

• Does not filter out any protocols, codes,

or applications, ensuring compatibility
with most IP cameras

• Status LEDs show power status, link

status, and if the unit is set as a receiver

• Easy setup and installation

• Each kit includes one transmitter, one

• Range:

• Ethernet speed: 10/100Base-T

receiver, and two 5VDC power adapters

- IPB-A1100Q—Up to 3,900ft (1,200m)

- IPB-A1200Q—Up to 5,900ft (1,800m)

*Special order item.

Model Numbers

IPB-A1100Q*

Ethernet over Cat5e/6 cable

IPB-A1200Q*

Ethernet over Coax cable

Specifications

Model IPB-A1100Q IPB-A1200Q

Input RJ-45
Output RJ-45 BNC
Voltage 5VDC (adapter included)
Current draw

(power supply)

Link cable Cat5 or better

Cat5e/6 cable TIA/EIA—568-B

750mA

RG59/U or

better

CCTV

Passive Ethernet over Coax

Features

• 1 Channel Ethernet over coax

• 10 Mbps Full duplex

• Transmission distance: 650ft (200m)

• Link Cable: RG59/U or better

• Passive operation - no external power

• Built-in surge protection

• Fast and easy to install

• Bidirectional – can operate as transmitter

and receiver

• Sold as a set

required

Ethernet over Coax with PoE

Features

• Extends IP/PoE signal camera over coax

• Connects IP/PoE camera to 10/100BaseT
PoE Injector/Switch over one coax cable.

• Supports PoE: IEEE802.3af/at

• Supports 10/100 Mbps transmission rate

• Power source from PoE Injector/ PoE
Switch (order separately)

Model Number

NE-SE01-020Q

Up to 650ft (200m)

Specifications

Type

Input connector RJ-45
Output connector BNC
Ethernet speed 10/100 Mbps
Standard IEEE802.3 10Base-T
Operating

temperature
Dimensions

(Excluding pigtail)

Passive Ethernet Extender

over Coax

-4°~158° F (-20°~70° C)

3

/8"x11/8"x3/16"

2
(60x29x20 mm)

Model Number

NE-AE01-030TQ

Up to 650ft (200m)

Specifications

Link Connection BNC
Ethernet

Connection
Linking Cable 75Ω coax cable
Range 984ft (300m)
PoE mode setting
LED indicator Power (green)
Power 1.25W
Temperature 32°~131°F (0°~55°C)

Dimensions

RJ45

Mid-span/ End-span

25/8"x37/16"x11/16"

(67x87x27cm)

NEW

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

75

1-Channel RF Receivers

RF Wireless

Features

• Five programmable relay output modes:

4-second momentary, 1-second
momentary, toggle, latch,and validity

• Control garage doors, gates, house lights,

alarm panels, or other devices via remote

• LED indicates RF transmission

programming options and output modes

• One-button programming - no need to

cut jumpers

Accessories

Model Numbers

SK-910RBQ

315MHz

SK-910RB-4Q*

433.92MHz

Specifications

Model SK-910RBQ SK-910RB-4Q
Number of

channels
Operating

frequency

Memory capacity

Operating voltage 11~24 VAC/VDC
Current draw 30mA@12VDC

Relay rating

Dimensions

315MHz 433.92MHz

15 Transmitter button codes

10A@24VDC/120VAC

1

per channel

NO/NC/COM Relay,

1

/8"x29/16"x1"

3

(80x65x25 mm)

SK-91ERSD

Extended range
antenna for 315MHz
receivers

*Special order item. Please contact SECO-LARM

SK-93ERSD*

Extended range
antenna for 433.92MHz
receivers

®

for details.

Miniature 1-Channel RF Receivers

Features

• Control garage doors, gates, house lights ,

alarm panel , or other devices via remote

• Small size

SK-91ERSD

Extended range antenna
(SK-910RAQ only)

• LED indicates RF transmission programming

options and output modes

Accessories

Model Numbers

SK-910RAQ

3A relay, 11~24 VAC/VDC

SK-910RAVQ

5A Transistor ground, 3~13.8 VDC

Specifications

Model SK-910RAQ SK-910RAVQ
Number of

channels
Operating

frequency

Memory capacity

Operating voltage

Current draw

Output

Dimensions

15 Transmitter button codes

11~24 VAC/

50mA@

12VDC

NO/NC/COM

Relay, 3A

1

315MHz

per channel

VDC

3

/16"x29/16"x3/4"

3

(80x65x19 mm)

3~13.8 VDC

15mA@

12VDC

Transistor

ground, 5A

76

SECO-LARM® 2017 Product Catalog

2-Channel RF Receivers

Features

• Five programmable relay output modes:

4-second momentary, 1-second
momentary, toggle, latch,and validity

• Control garage doors, gates, house lights,

alarm panels, or other devices via remote

• LED indicates RF transmission

programming options and output modes

• One-button programming - no need to

cut jumpers

Accessories

Model Numbers

SK-910RB2Q

315MHz

SK-910RB2-4Q

433.92MHz

Specifications

Model SK-910RB2Q SK-910RB2-4Q
Number of

channels
Operating

frequency

Memory capacity

Operating voltage 11~24 VAC/VDC
Current draw 30mA@12VDC, per channel

Relay rating

Dimensions

315MHz 433.92MHz

15 Transmitter button codes

2

per channel

NO/NC/COM Relay,

10A@24VDC/120VAC

1

/8"x29/16"x1"

3

(80x65x25 mm)

RF Wireless

SK-91ERSD

Extended range
antenna for 315MHz
receivers

SK-93ERSD

Extended range
antenna for 433.92MHz
receivers

Miniature 2-Channel RF Receiver

Features

• Control garage doors, gates, house lights ,

alarm panel , or other devices via remote

• Small size

• LED indicates RF transmission programming

options and output modes

Model Number

SK-910RAV2Q

3A Transistor ground, 3~13.8 VDC

Specifications

Model SK-910RAV2Q
Number of

channels
Operating

frequency

Memory capacity

Operating voltage 3~13.8 VDC
Current draw 15mA@12VDC per channel
Output Transistor ground, 3A

Dimensions

15 Transmitter button codes

2

315MHz

per channel

3

/16"x29/16"x3/4"

3

(80x65x19 mm)

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

77

3-Channel RF Receiver

RF Wireless

Features

• Four programmable relay output modes:

Timed (1~60 seconds), toggle, latch, and
validity

• Control garage doors, gates, house lights,

alarm panels, or other devices via remote

SK-91ERSD

Extended range antenna for 315MHz
receivers

• LED indicates RF transmission

programming options and output modes

• One-button programming - no need to

cut jumpers

Accessory

Model Number

SK-910R3Q

315MHz

Specifications

Number of
channels

Operating
frequency

Memory capacity

Operating voltage 11~24 VAC/VDC
Current draw 50mA@12VDC

Relay rating

Dimensions

15 Transmitter button codes

10A@24VDC/120VAC

3

315MHz

per channel

per channel

NO/NC/COM Relay,

55/16"x315/16"x11/8"
(135x100x28 mm)

4-Channel RF Receivers

Features

• Four programmable relay output modes:

Timed (1~60 seconds), toggle, latch, and
validity

• Control garage doors, gates, house lights,

alarm panels, or other devices via remote

SK-91ERSD

Extended range
antenna for 315MHz
receivers

SK-93ERSD

Extended range
antenna for 433.92MHz
receivers

• LED indicates RF transmission

programming options and output modes

• One-button programming - no need to

cut jumpers

Accessories

Model Numbers

SK-910R4Q

315MHz

SK-910R4-4Q*

433.92MHz

Specifications

Model SK-910R4Q SK-910R4-4Q
Number of

channels
Operating

frequency

Memory capacity

Operating voltage 11~24 VAC/VDC
Current draw 50mA@12VDC

Output

Dimensions

315MHz 433.92MHz

15 Transmitter button codes

10A@24VDC/120VAC

4

per channel

per channel

NO/NC/COM Relay,

5

/16"x315/16"x11/8"

5
(135x100x28 mm)

78

*Special order item. Please contact SECO-LARM

SECO-LARM® 2017 Product Catalog

®

for details.

Wired 1-Channel RF Transmitters

Features

• Powered by internal battery or external

12VDC power source

• Use to make almost any security output

wireless

• Over 68 billion possible codes

• LED Transmission indicator

• Included 12VDC alkaline battery

• Wiring:

- Two wires for N.O. switch input

- Two wires for 12VDC power input

• Dimensions:

2"x1½"x5/8" (50x38x15 mm)

Model Numbers

SK-919TDWS-BU

315MHz

SK-939TDWS-BUQ*

433.92MHz

Accessories

SK-915BA

12VDC Alkaline
battery for pendant
transmitters

*Special order item.

RF Wireless

NEW

RF Wireless RTE Transmitters

SD-8202GT-PEQ SD-8103GT-PEQ SD-862T-GWSQ

Features

SD-8202GT-PEQ:

• Single-gang, stainless steel faceplate

• For hard-to-wire installations

• 2" Square illuminated pushbutton

• Built-in RF transmitter (similar to

SK-919TD1S-UPQ; see page 76-78 for
compatible receivers)

SD-8103GT-PEQ:

• Slimline, stainless steel faceplate

• For hard-to-wire installations

• Illuminated pushbutton

• Built-in RF transmitter (similar to

SK-919TD1S-UPQ; see page 76-78 for
compatible receivers)

SD-862T-GWSQ:

• Completely wireless and portable

• Range of 160ft (50m)

• Useful for hard-to-wire installations

• Use in offices, factories, institutions,

or residences

• Desk mount or wall mount wireless

RTE button

• No exposed antenna

• Singlegang faceplate

• 2"Square pushbutton

• Back box included

• 9V Alkaline battery included

• Compatible with SECO-LARM receivers

(see pages 76-78)

Model Number

SD-8202GT-PEQ

Wireless 2" square, illuminated
green pushbutton, SPDT

SD-8103GT-PEQ

Wireless square, illuminated green
pushbutton, DPST

SD-862T-GWSQ

Wireless 2" square,
green pushbutton

Accessories

SK-910RBQ

315MHz 1-Channel
RF receiver
(see page 76)

SK-910RAV2Q

315MHz Miniature
2-channel RF receiver
(see page 77)

SK-910R3Q

315MHz 3-Channel
RF receiver
(see page 78)

SK-910R4-4Q

433.92MHz 4-Channel
RF receiver
(see page 78)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

79

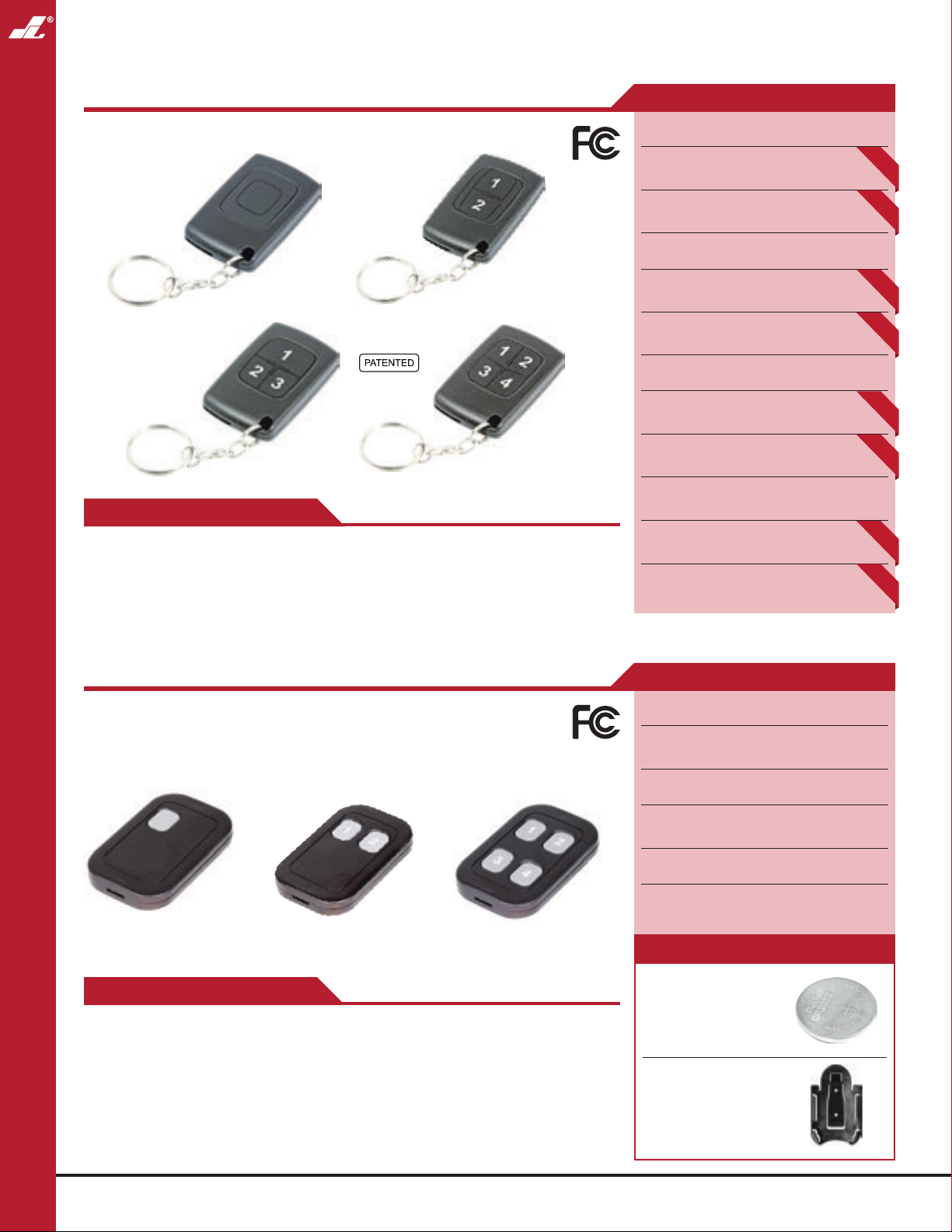

RF Pendant Transmitters (Family)

RF Wireless

Model Numbers

1-Button

SK-919TP1F-NUQ

315MHz, 1-Channel

SK-939TP1F-NUQ*

433.92MHz, 1-Channel

2-Button

SK-919TP2F-NUQ

315MHz, 3-Channel

SK-939TP2F-NUQ*

433.92MHz, 3-Channel

3-Button

SK-919TP3F-NUQ

315MHz, 7-Channel

SK-939TP3F-NUQ*

433.92MHz, 7-Channel

NEW

NEW

NEW

NEW

NEW

NEW

Features

• Over 68 billion (6.8x10

10

) possible codes

• LED transmission indicator

• All transmitters are compatible with all SECO-LARM Receivers of the same frequency

• Includes 12VDC Alkaline battery

• Patented transmitter design

*Special order item. Please contact SECO-LARM

®

for details.

RF Handheld Transmitters

4-Button

SK-919TP4F-NUQ

315MHz, 15-Channel

SK-939TP4F-NUQ*

433.92MHz, 15-Channel

Model Numbers

1-Button

SK-919TP1H-BUQ

315MHz, 1-Channel

2-Button

SK-919TP2H-NUQ

315MHz, 3-Channel

4-Button

SK-919TP4H-NUQ

315MHz, 15-Channel

Accessories

NEW

NEW

80

Features

• Operates up to 500ft

• Over 68 billion (6.8x10

10

) possible codes

• LED transmission indicator

• Includes two 3VDC lithium batteries

• All transmitters are compatible with all SECO-LARM receivers of the same frequency

• Visor clip and belt clip included. Belt Clip Holster/ Wall Mount Switch also available

(Model SK-9HBC)

• Slim-line design: 3½"x2

3

/16"x½" (89x56x12 mm)

SECO-LARM® 2017 Product Catalog

X-930-096

3VDC Lithium battery,
CR2032

SK-9HBC

Belt-clip holster/
wall-mount bracket for
handheld transmitters

RF Pendant Transmitters

Model Numbers

1-Button

SK-919TD1S-UPQ

315MHz, 1-Channel

SK-919TT1S-BU

315MHz, 1-Channel

SK-939TS1S*

433.92MHz, 1-Channel

2-Button

SK-919TD2A-UPQ

315MHz, 3-Channel

SK-917T2A-UQ

315MHz, 3-Channel

SK-939TS2A-PQ

433.92MHz, 3-Channel

3-Button

SK-919TP3JRUQ

315MHz, 7-Channel

RF Wireless

Features

• Over 68 billion (6.8x10

10

) possible codes

• LED Transmission indicator

• Includes 12VDC alkaline battery

• All transmitters are compatible with all SECO-LARM Receivers of the same frequency

SK-919TT1S-BU Only:

• Coding is done by flipping trinary DIP switches. 59,049 combinations

• Use for "block coding" or simple matching of an existing transmitter

SK-917T2A-UQ Only:

• Patented CODEBUMP™ anti-codegrabbing technology changes the transmitter's code

to one of 18 quintillion possible codes every time the transmitter button is pressed

SK-917TP4J-NUQ Only:

• Patented CODEBUMP™ anti-codegrabbing technology changes the transmitter's code

to one of 18 quintillion possible codes every time the transmitter button is pressed

4-Button

SK-919TP4J-NUQ

315MHz, 15-Channel

SK-917TP4J-NUQ

315MHz, 15-Channel

SK-939TS4J-NU*

433.92MHz, 15-Channel

Accessories

SK-915LP

Leather pouch for 1
button transmitters

SK-915BA

12VDC Alkaline
battery for pendant
transmitters

FCC Certified

• Convert your product to wireless control

• All products are FCC or CE certied to bring your
product to market faster

• Contact SECO-LARM for more info

*Special order item. Please contact SECO-LARM

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

®

for details.

81

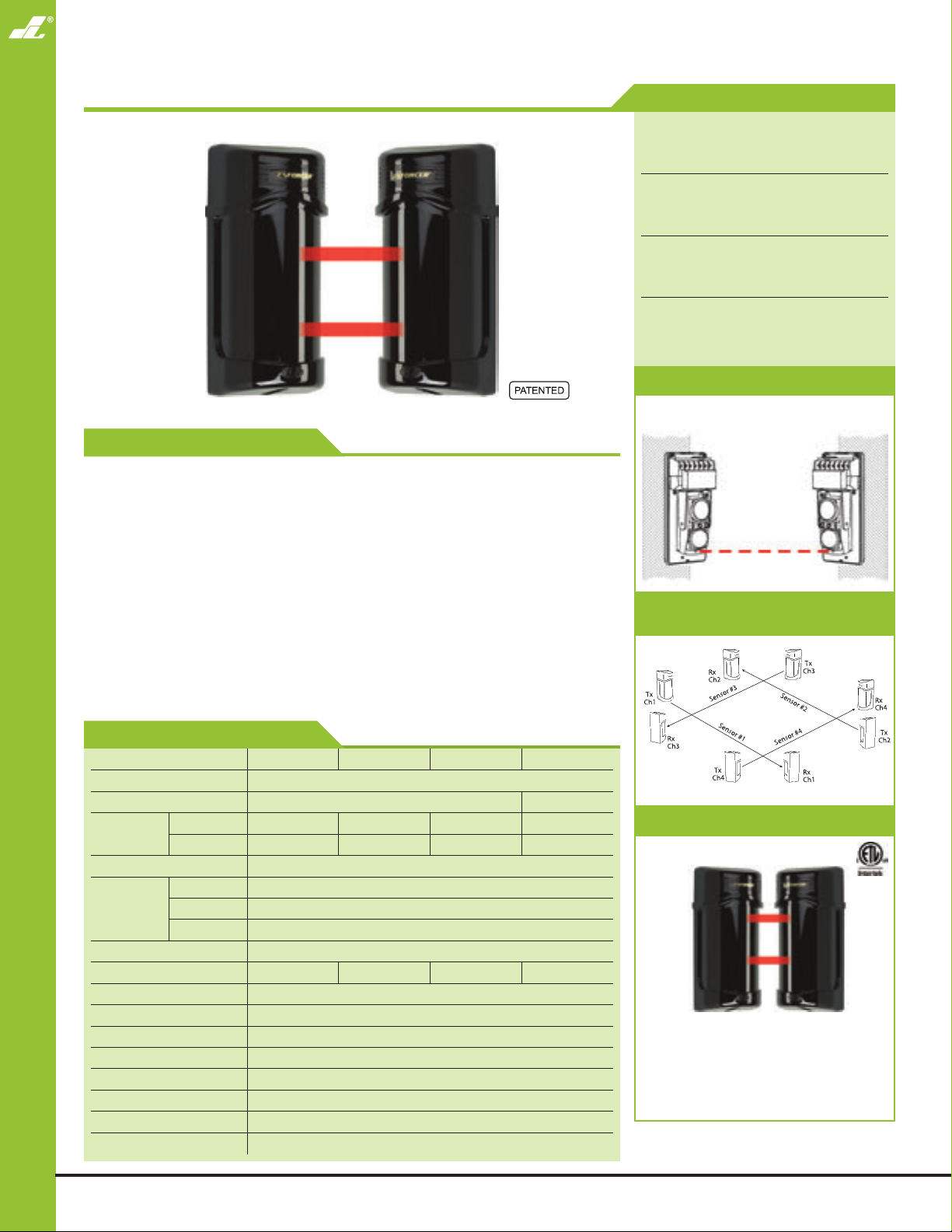

Twin Photobeam Detectors

Sensors

Features

• Twin beams provide reliable perimeter

security, minimizing false alarms from
falling leaves, etc.

• Lensed optics reinforce beam strength

and provide excellent immunity to false
alarms due to rain, snow, mist, etc.

• Weatherproof, sunlight-filtering case for

indoor and outdoor conditions

• Automatically adjusts beam strength

to compensate for different weather
conditions

• Automatic input power filtering with

special noise rejection circuitry

• NO/NC Alarm output

• N.C. Tamper circuit included

• Non-polarized power inputs

• Built-in laser alignment system for quick,

easy installation

• Adjustable interrupt time (50~700 ms)

• "U" Brackets included for pole mounting

E-964-D390Q Only:

• Multi-frequency (four channels

selectable) to reduce interference
between multiple units for more flexible
installation options

Model Numbers

E-960-D90Q

Range: 90ft (30m) outdoor

190ft (60m) indoor

E-960-D190Q

Range: 190ft (60m) outdoor

390ft (120m) indoor

E-960-D290Q

Range: 290ft (90m) outdoor

590ft (180m) indoor

E-964-D390Q

Range: 390ft (120m) outdoor

790ft (240m) indoor

Laser Beam Alignment

Alignment is now easier than ever with our

laser beam alignment system.

LASER BEAM

Multi-frequency to
reduce interference

Specifications

Model D90Q D190Q D290Q D390Q
Number of beams 2
Number of frequencies 1 4

Sensing range

Response time 50~700 ms (Programmable)

LEDs

Operating voltage 10~30 VAC/VDC
Current draw (max.) 64mA@12VDC 70mA@12VDC 74mA@12VDC 88mA@12VDC
Alignment laser Wavelength: 650nm/Output power: ≤5mW
Alarm output NO/NC Relay, 1A@120VAC
Tamper output N.C. Switch, 1A@120VAC
IP Rating IP55
Alignment angle Horizontal: ±90°, Vertical: ±5°
Operating temperature -13°~131° F (-25°~55° C)
Dimensions 6
Weight 2.5-lb (1.1kg)

Outdoor 90' (30m) 190' (60m) 290' (90m) 390' (120m)
Indoor 190' (60m) 390' (120m) 590' (180m) 790' (240m)

Green Good beam signal, properly aligned, connected to power
Yellow Poor beam signal
Red No beam signal, triggered

13

/16"x215/16"x27/8" (173x74x72 mm)

E-964-D390Q

E-960-D90GQ

The E-960-D90GQ is ETL Listed

and conforms to UL325-2016.

For details please see page 87

82

SECO-LARM® 2017 Product Catalog

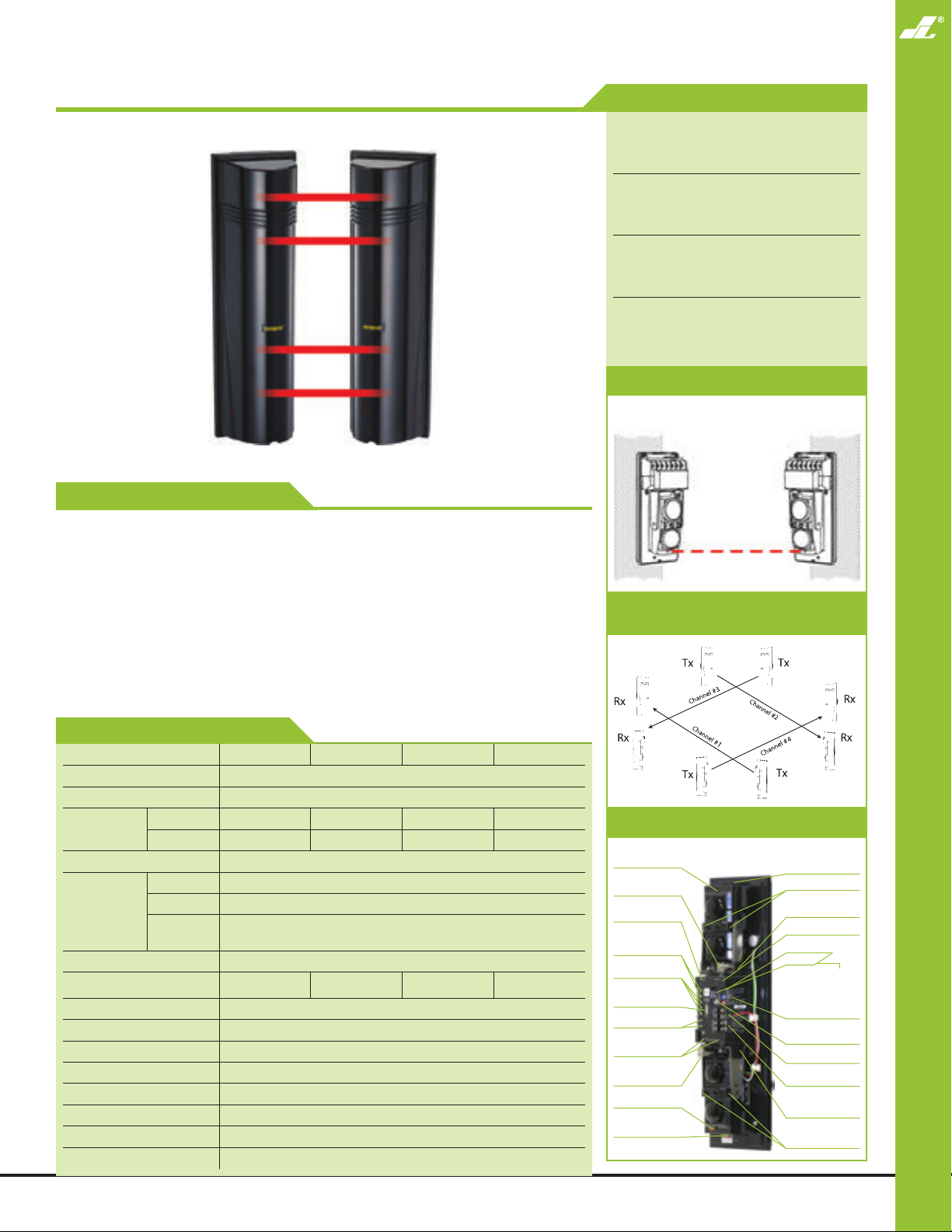

Quad Photobeam Detectors

Features

• Multi-frequency (four channels

selectable) to reduce interference
between multiple units for more flexible
installation options

• Lensed optics reinforce beam strength

and provide excellent immunity to false
alarms due to rain, snow, mist, etc.

• Weatherproof, sunlight-filtering case for

indoor and outdoor conditions

• Built-in heater

• Automatically adjusts beam strength

to compensate for different weather
conditions

• Automatic input power filtering with

special noise rejection circuitry

• Non-polarized power inputs

• Built-in laser alignment system for quick,

easy installation

• Buzzer sound (beep sound) for beam

alignment

Model Numbers

E-964-Q165Q

Range: 165ft (50m) outdoor

330ft (100m) indoor

E-964-Q330Q

Range: 330ft (100m) outdoor

660ft (200m) indoor

E-964-Q495Q

Range: 495ft (150m) outdoor

990ft (300m) indoor

E-964-Q660Q

Range: 660ft (200m) outdoor

1,320ft (400m) indoor

Laser Beam Alignment

Alignment is now easier than ever with our

laser beam alignment system.

LASER BEAM

Multi-frequency to
reduce interference

Sensors

Specifications

Model Q165Q Q330Q Q495Q Q660Q
Number of beams 4
Number of frequencies 4 (selectable)

Sensing range

Response time 50~700 ms (Programmable)

LEDs

Operating voltage 12~24 VAC/VDC

Current draw (max.) 260mA 270mA 280mA 290mA

Alignment laser Wavelength: 650nm/Output power: ≤5mW
Alarm output NO/NC/COM Relay, 1A@125VAC/1A@24VDC
Tamper output N.C. Switch, 1A@120VAC
IP Rating IP55
Alignment angle Horizontal: ±90°, Vertical: ±15°
Operating temperature -13°~131° F (-25°~55° C)
Dimensions 15
Weight 5.7-lb (2.6kg)

Outdoor 165' (50m) 330' (100m) 495' (150m) 660' (200m)
Indoor 330' (100m) 660' (200m) 990' (300m) 1,320' (400m)

Green Good beam signal, properly aligned, connected to power
Red Improper alignment, triggered
5 LED

Indicators

Indicate signal strength from high to low

1

/4"x47/16"x411/32" (387x113x110 mm)

Overview

Alignment laser

Vertical
adjustment screw

Green power LED

Power 12~24V
AC/DC

Alarm output

Beam strength
indicator (5 LEDs)

Tamper output

Voltage output
probes

Vertical
adjustment screw

Alignment laser

On/Off switch
laser

for

(Receiver shown)

On/Off switch for laser

Viewfinder

Horizontal

adjustment grip

Red signal LED

NC/NO switch
On/Off

Environmental

output

Beam channel

selection DIP switches

Delay time

(50ms~700ms)

Heater power

Environmental output

Horizontal

adjustment grip

Viewfinder for

alignment

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

83

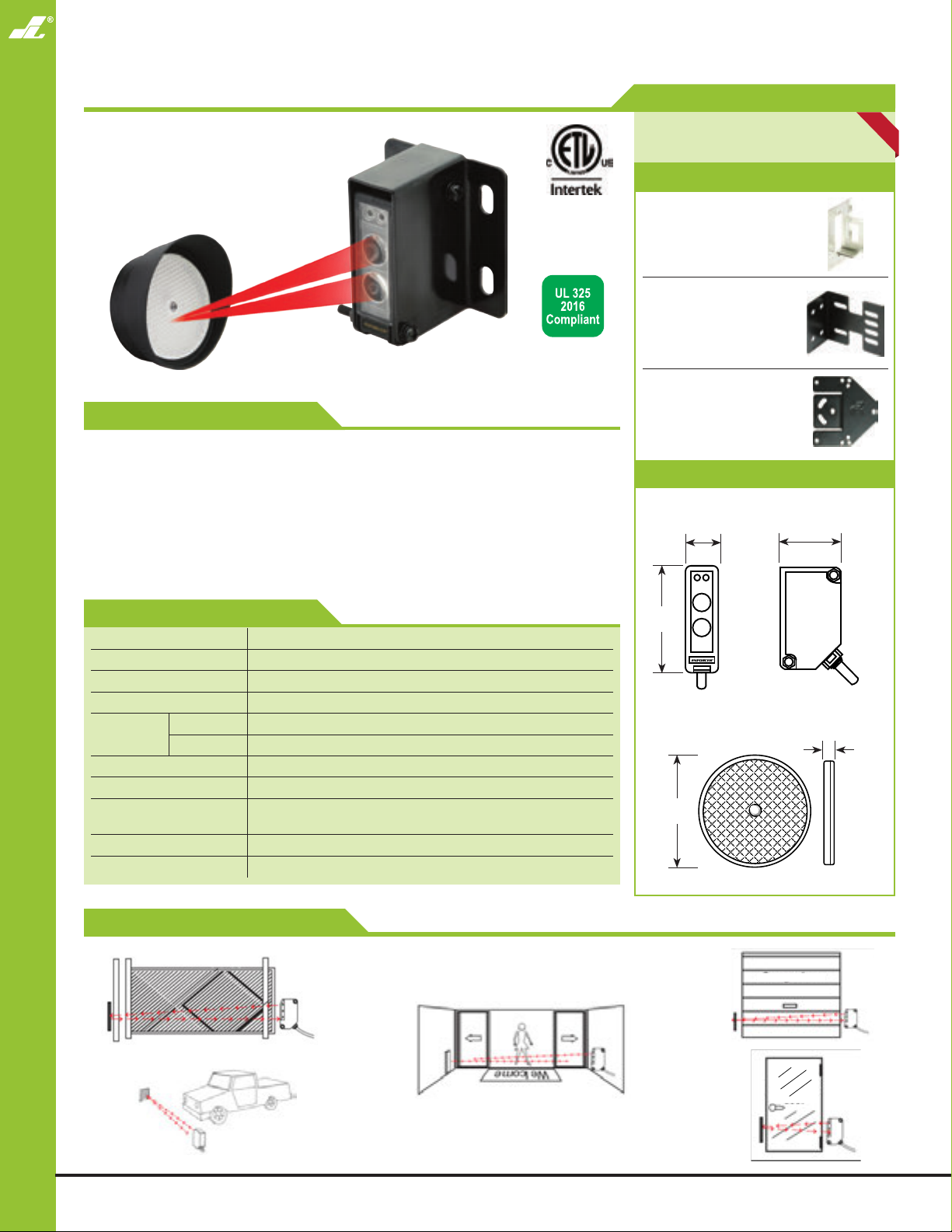

45ft Reflective Beam Sensor

Model Number

E-936-S45RRGQ

Range: 45ft (14m), ETL

Accessories

NEW

Sensors

Features

• Typical applications include garage doors,

outdoor gates, overhead doors, and
entry detection

• Up to 45ft (14m) sensing range

• 10ms Response time

• Pre-wired 6ft (1.8m) cord

• Adjustable sensing range

• Light-On Operation

Specifications

Type Reflective photoelectric beam sensor
Number of beams 1
Sensing range 0.5'~45' (0.1~14 m)
Response time 10ms

LEDs

Operating voltage 12-30V DC/AC 60Hz, 100mA
Current draw (max.) 70mA@12VDC

Alarm output

IP Rating IP66
Operating temperature -4°~131° F (-20°~55° C)

Yellow Good beam signal, properly aligned
Red Power

Conforms to UL325-2016

• 12-30V DC/AC 60Hz, 100mA

• Weatherproof (IP66) construction for

indoor and outdoor use

• Sensor, 3" round reflector, sensor hood,

and mounting hardware included

• Monitored Output

- N.C.

- 10kΩ Resistor

SPDT Relay output (NO/NC/COM, with built-in 10kΩ resistor on N.O. output),

2A@30VAC/VDC

E-931ACC-BLS6Q

Single-gang,
flush-mount bracket

E-931ACC-BLS7Q

L-Bracket for side
mounting

E-931ACC-BLS8Q

Wall or door frame
bracket

Dimensions

Sensor

⁄"

(20.5mm)

2½"

(63mm)

Reflector

3¼"

(82mm)

1⁄"

(39mm)

⁄"

(9mm)

Sample Installations

Entry Gate

Store Entrance

84

SECO-LARM® 2017 Product Catalog

Parking Distance Monitor

Garage Door

Main Entrance Door

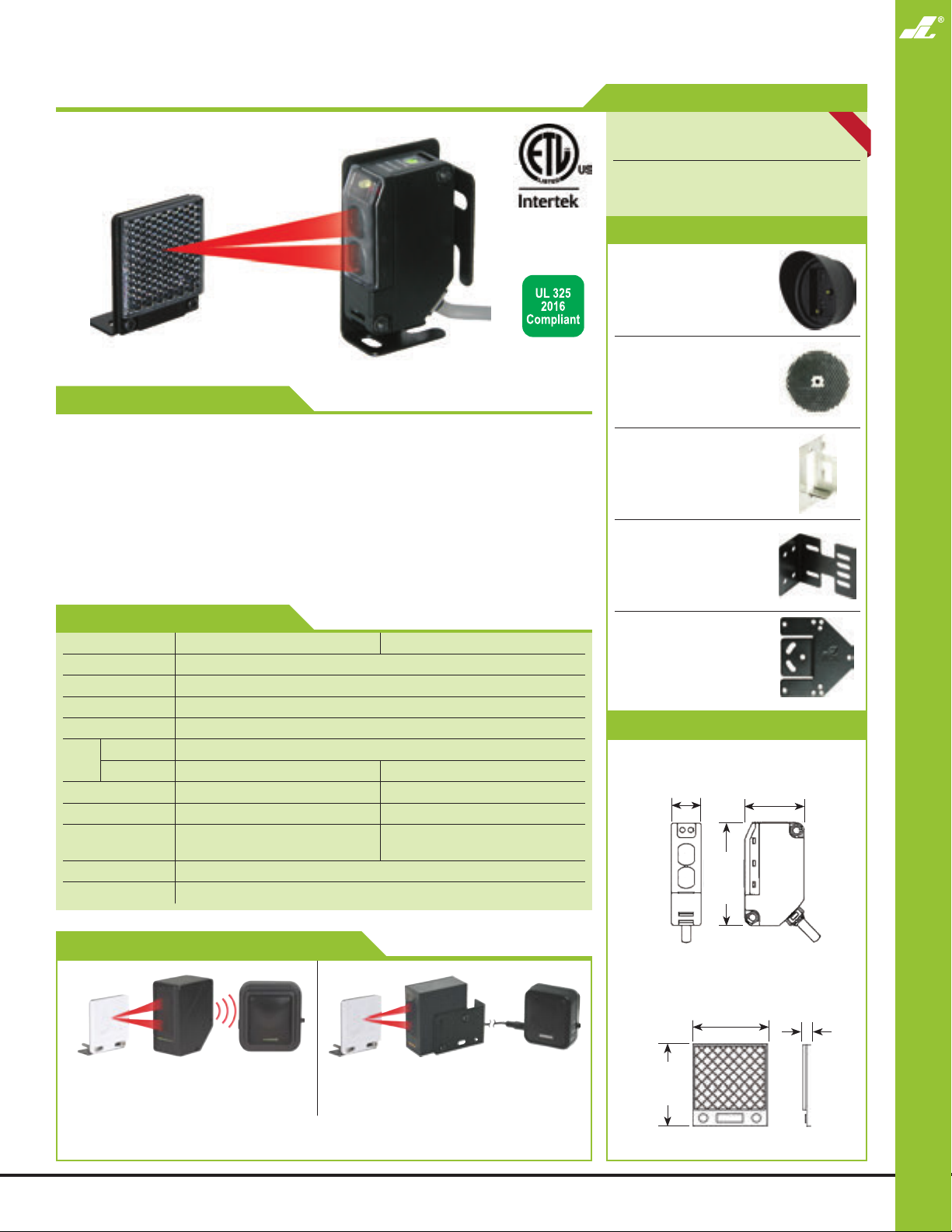

35ft Reflective Beam Sensor

Features

• Typical applications include garage doors,

outdoor gates, or overhead doors

• Up to 35ft (11m) sensing range

• 10ms Response time

• Weatherproof (IP66) construction for

indoor and outdoor use

• Pre-wired 6ft (1.8m) cord

• Sensor, 2" square reflector, and mounting

hardware include

E-936-S35RRGQ:

• Light-on operation

• 12-30V DC/AC 60Hz, 100mA

• Monitored Output

- N.C.

- 10kΩ Resistor

E-931-S35RRQ:

• Dark-on operation

• 12~240 VDC/24~240 VAC, NO/NC output

*

Conforms to UL325-2016

*

Model Number

E-936-S35RRGQ*

Range: 35ft (11m), ETL

E-931-S35RRQ

Range: 35ft (11m)

Accessories

E-931ACC-HR1Q

Hood for
E-931ACC-RC1Q

E-931ACC-RC1Q

3" (76mm) Round
reflector

E-931ACC-BLS6Q

Single-gang,
flush-mount bracket

E-931ACC-BLS7Q

L-Bracket for side
mounting

NEW

Sensors

Specifications

Model E-936-S35RRGQ E-931-S35RRQ
Type Retro-Reflective photoelectric beam sensor
Number of beams 1
Sensing range 0.5'~35' (0.2~11 m)
Response time 10ms (Max.)

Yellow Good beam signal, properly aligned

LEDs

Red Power on, triggered off Trigger
Operating voltage 12-30V DC/24~30V AC 60Hz, 83mA 12~240 VDC/24~240 VAC
Current draw (max.) 60mA@12VDC, 20mA@24VDC 40mA@12VDC, 20mA@24VDC

Alarm output

IP Rating IP66
Operating temperature -4°~131° F (-20°~55° C)

SPDT Relay output (NO/NC/COM),

2A@30 VAC/VDC

SPDT Relay output (NO/NC/COM),

2A@30VDC/1A@250VAC

Also Available from SECO-LARM

E-931ACC-BLS8Q

Wall or door frame
bracket

Dimensions

Sensor

⁄"

(20mm)

2⁄"

(66mm)

Reflector

2"

(50mm)

1⁄"

(40mm)

⁄"

(8mm)

E-931CS22RFCQ

Wireless entry alert system

E-931CS22RRCQ

Entry alert system

For more information on entry alert systems, please see page 120

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

2⁄"

(60mm)

85

50ft Reflective Beam Sensor

Sensors

Features

• Typical applications include: Garage

doors, outdoor gates, or overhead doors

• Housing designed to prevent

condensation

• Up to 50ft (15m) sensing range

• 10ms Response time

• Tamper output will trigger an alarm if the

sensor's cover is removed

• 12-30V DC/AC 60Hz, 100mA

• Light-On Operation

• Weatherproof (IP55) construction for

indoor/outdoor use

• Sensor, 3-inch round reflector, reflector

and sensor hood, and mounting hardware
included

• Terminal block wiring for added

convenience

• Monitored Output

- N.C.

- 10kΩ Resistor

Conforms to UL325-2016

Model Number

E-931-S50RRGQ

Range: 50ft (15m), ETL

Accessory

E-931ACC-HR1Q

Hood for
E-931ACC-RC1Q

Specifications

Number of beams 1
Sensing range 50ft (15m)
Response time 10ms

Solid green

LEDs

Alternating
flash

Solid red No beam signal, triggered
Operating voltage 12-30V DC/AC 60Hz, 100mA
Current draw

(max.)

Alarm output

Tamper output

Good beam signal, properly

aligned

Poor beam signal

55mA@12VDC,

40mA@24VDC

SPDT Relay output,

500mA@30 VAC/VDC

N.C. Switch,

500mA@30 VAC/VDC

NEW

33ft Polarized Reflective Beam Sensor

Non-Polarized Sensor:

Conforms to UL325-2016

Features

• Typical applications include garage doors,

outdoor gates, or overhead doors

• Polarized sensor is immune to shiny

objects, triggers when correctly reflected
light is detected

• Tamper output will trigger an alarm if the

sensor's cover is removed

• Weatherproof (IP55) construction for

indoor and outdoor use

• Light-On Operation

Shiny object

Non-polarized sensor is NOT triggered by shiny object

which reflects beam but changes polarization.

Polarized Sensor:

Polarized sensor IS triggered by shiny object due to

detection of changed polarization of beam.

• Housing designed to prevent

condensation

• 10ms Response time

• Terminal block wiring for added

convenience

• Sensor, 3" round reflector, sensor hood,

and mounting hardware included

• Monitored Output

- N.C.

- 10kΩ Resistor

E-931-S33PRGQ

Range: 33ft (10m), ETL

Accessory

E-931ACC-HR1Q

Hood for
E-931ACC-RC1Q

Specifications

Number of beams 1
Sensing range 33ft (10m)
Response time 10ms

Green

LEDs

Red No beam signal, triggered

Operating voltage 12-30V DC/AC 60Hz, 100mA

Current draw (max.)

Alarm output

Tamper output

Good beam signal,

properly aligned

55mA@12VDC,
40mA@24VDC

SPDT Relay output,

500mA@30 VAC/VDC

N.C. Switch,

500mA@30 VAC/VDC

NEW

86

SECO-LARM® 2017 Product Catalog

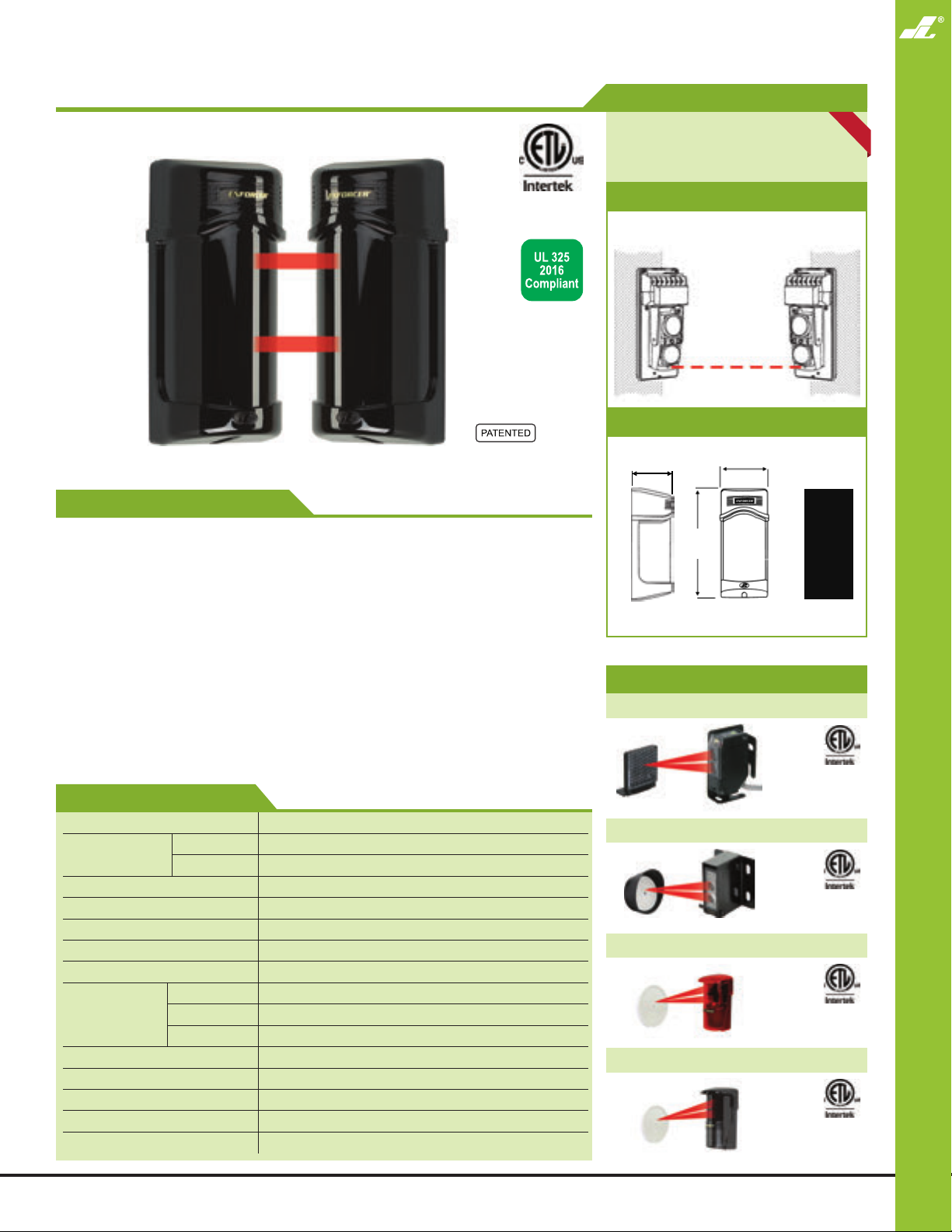

Twin Photobeam Detector

27/8”

(72mm)

27/8”

(74mm)

613/16”

Side View

Front View

Rear View

Model Number

E-960-D90GQ

Range: 90ft (30m) outdoor

190ft (60m) indoor, ETL

NEW

Sensors

Features

• Twin beams provide reliable perimeter

security, minimizing false alarms from
falling leaves, etc.

• Lensed optics reinforce beam strength

and provide excellent immunity to false
alarms due to rain, snow, mist, etc.

• Weatherproof, sunlight-filtering case for

indoor and outdoor conditions

• Automatically adjusts beam strength

to compensate for different weather
conditions

• Light-On Operation

Conforms to UL325-2016

• Automatic input power filtering with

special noise rejection circuitry

• NO/NC Alarm output

• N.C. Tamper circuit included

• Non-polarized power inputs

• Built-in laser alignment system for quick,

easy installation

• Adjustable interrupt time (50~700 ms)

• "U" Brackets included for pole mounting

• Monitored Output

- N.C.

- 10kΩ Resistor

Laser Beam Alignment

Alignment is now easier than ever with our

laser beam alignment system.

LASER BEAM

Dimensions

215/16"

(74mm)

(173mm)

ETL UL 325-2016 Compliant Sensors

E-936-S35RRGQ

Up to 35ft (11m)

Specifications

Model E-960-D90GQ

Max Range

Current (Max) 150mA
Power 12-30V DC/AC 60Hz, 200mA (non-polarized)
Interrupt speed 10ms
Trigger output SPDT NO/NC/COM relay, 1A@30 VAC/VDC
Tamper output N.C. switch, 1A@30 VAC/VDC

LEDs

Laser wavelength 650nm
Laser output power ≤5mW
Alignment angle Horizontal: ±90°, vertical: ±5°
Operating temperature -13°~131° F (-25°~55° C)
Weight 2.5-lb (1.1kg)

Outdoor 90' (30m)
Indoor 190' (60m)

Red ON indicates transmitter and receiver not aligned or bream is broken
Yellow On indicates weak receiver signal or beam is broken
Green ON indicates unit connected to power

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

E-936-S45RRGQ

E-931-S33PRGQ

E-931-S50RRGQ

For more information

see pg. 85

Up to 45ft (14m)

For more information

see pg. 84

Up to 33ft (10m)

For more information

see pg. 86

Up to 50ft (15m)

For more information

see pg. 86

87

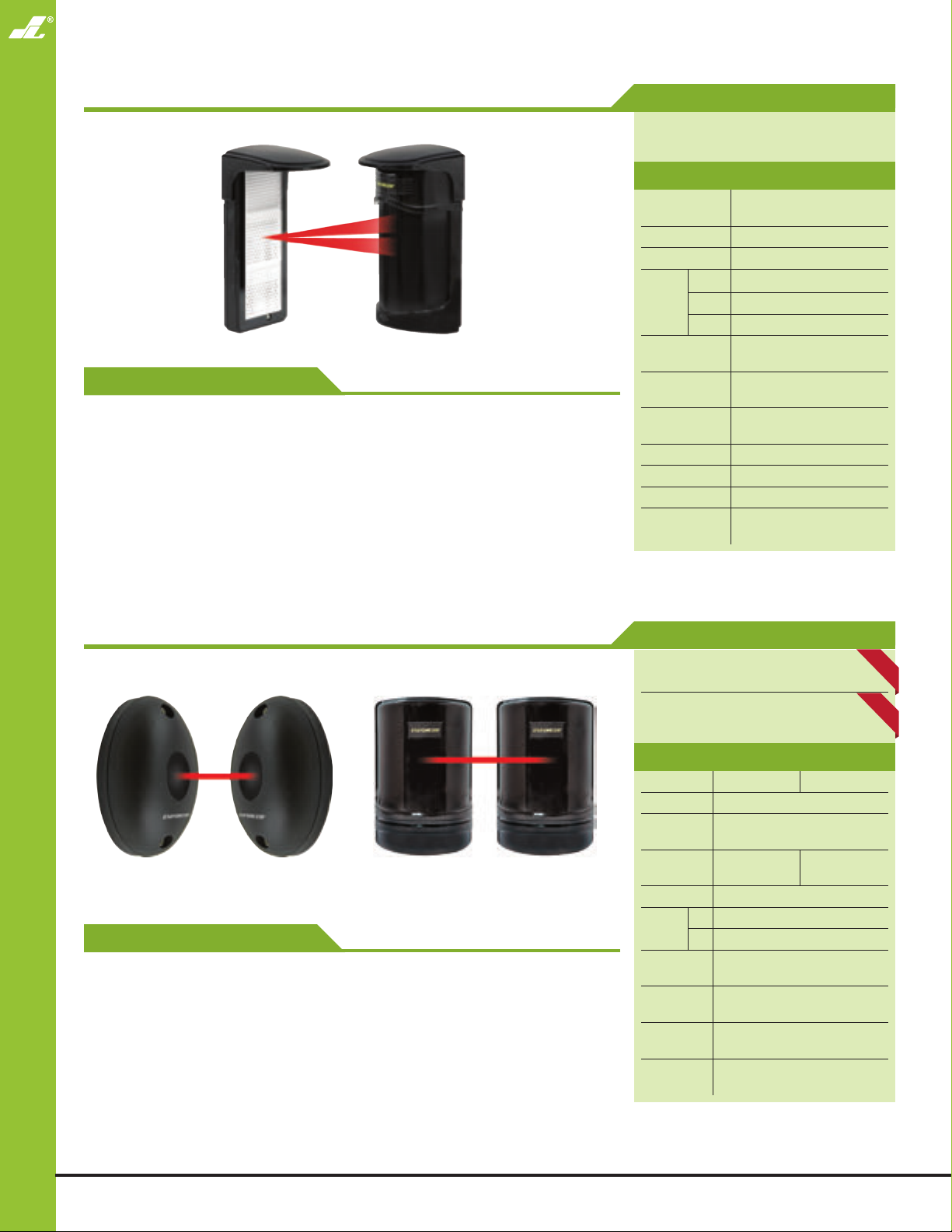

50ft Large Reflective Beam Sensor

Sensors

Features

• Typical applications include: Garage

doors, outdoor gates, overhead doors, or
manufacturing lines

• Large sensor with patented design and

large reflector for a large sensing area
and easier alignment

• Up to 50ft (15m) sensing range

• Response time adjustable from

50~700 ms

• 12~250 VAC/VDC Operation

• Tamper output will trigger an alarm if the

sensor's cover is removed

• Weatherproof construction for indoor or

outdoor use (IP55)

• Sensor, large reflector, sensor and

reflector hoods, and mounting hardware
included

• Terminal block wiring for added

convenience

Model Number

E-931-S50RRLQ

Range: 50ft (15m)

Specifications

Number of
beams

Sensing range 50ft (15m)
Response time 50~700 ms (Programmable)

Green Power

LEDs

Yellow Poor beam signal
Red No beam signal, triggered

Operating
voltage

Current draw
(max.)

Alarm output

Tamper output N.C. Switch, 0.5A@30VDC
IP Rating IP55
Alignment angle Horizontal: ±90°, Vertical: ±5°
Operating

temperature

NO/NC Relay, 0.5A@120VAC,

-13°~131° F (-25°~55° C)

1

12~250 VAC/VDC

100mA@12VDC

min. 1s

Miniature Single Photobeam Sensors

E-964-S50TBE-961-S50TB

Features

• Built-in AGC control to filter out lighting

disturbances

• Sensor range up to 50ft (15m)

• LED indicators for power, signal strength,

and trigger

• Small size for a less conspicuous

installation

• Signal strength indicator for easier

alignment

• Dimensions 3"x1

(76x48x30 mm)

15

/16"x13/16"

• Simple to install

• Weatherproof for indoor or outdoor use

(IP65)

• Mounting hardware included

E-964-S50TB Only:

• Four selectable beam frequencies to

reduce interference

• Dimensions 3

(94x60x46 mm)

11

/16"x23/8"x113/16"

Model Numbers

Model Number

E-961-S50TB

Range: 50ft (15m)

E-964-S50TB

Range: 50ft (15m) Multi-Frequency

Specifications

Model E-961-S50TB E-964-S50TB
Range Up to 50ft (15m)
No. of Beam

Channels
No. of Beam

Frequencies
Input Power 10~24 VDC

Tx 15mA@12VDC

Current
draw

Rx 30mA@12VDC

Infrared LED
Wavelength

Relay Output

Interrupt
Speed

LED
Indicators

Single infrared beam

1 4

940nm

NO/NC relay (set by jumper),

0.5A@30VAC/VDC

50ms

Power, Signal Strength, Triggered

NEW

NEW

88

SECO-LARM® 2017 Product Catalog

Loop Detector

Features

• Single loop input

• ABS / Aluminum housing

• 7 adjustable sensitivity settings

• 2 relays: presence or pulse/fault

• 11-pin connector

• Power-on automatic reset and manual

reset functions available

•

Auto sensitivity boost when vehicle
detected (selectable)

• Tunable operation frequency

• Two presence modes: limited or

permanent

• Dimensions:

31/16"x11/2"x31/8" (78x38x80 mm)

Model Number

LD-1123-PQ

LD-1123-PQ

12~24 VAC/VDC

12~24 VAC/VDC

Specifications
Specifications

Operating voltage 12~24 VAC/VDC
Loop induction range 20~1500 uH
Sensitivity 0.02%~0.2% (7 levels)
Reaction time 50ms

LEDs

Operating voltage 12~24 VAC/VDC
IP Rating IP65
Operating

temperature

Red Power indicator
Green Status indicator

-40°~176° F (-40°~80° C)

Accessory

LD-ACC-WH

Wiring harness
is also available
in place of the
terminal block

NEW

Sensors

50ft Reflective "Pulse" Sensor

Features

• Multimode sensor with 10K, N.C., and

pulse/heartbeat monitoring

• Large sensor with patented design and

large reflector for a large sensing area
and easier alignment

• Up to 50ft (15m) sensing range

• Dual-color LED alignment

• Form C relay: NO/NC/COM, 1A@24VDC

• Adjustable sensor range

• Weatherproof construction for indoor/

outdoor use (IP66)

• Sensor, large reflector, and reflector hood

included

• Monitored output: N.C., 10kΩ resistor,

pulse (2 or 3 Frequency)

• Pre-wired 6ft (1.8m) cord

Model Number

E-939-S50RHGQ

Range: 50ft (15m)

Specifications

Specifications

Retro-reflective

Type

Type

Sensing adjustment Potentiometer

Sensing adjustment Potentiometer
Response time 10ms

Response time 10ms

Yellow

LEDs

LEDs

Operating voltage

Operating voltage

Current draw (max.) 120mA

Current draw (max.) 120mA

Mode selection

Mode selection
switch

switch

Relay output

Relay output
operation

operation

Alarm output

Alarm output

Resistive

Resistive
termination

termination
Power protection Resistive fuse

Power protection Resistive fuse
IP Rating IP66

IP Rating IP66
Operating

Operating
temperature

temperature

Yellow

Red Power

Red Power

Retro-reflective

photoelectric beam sensor

photoelectric beam sensor

Good beam signal,

Good beam signal,

properly aligned

properly aligned

12~30 VAC/VDC 60Hz,

12~30 VAC/VDC 60Hz,

120mA

120mA

Relay output, pulsed

Relay output, pulsed
(3 frequency), pulsed

(3 frequency), pulsed

(2 frequency)

(2 frequency)

Light On/Dark On

Light On/Dark On

Form C relay (NO/NC/COM),

Form C relay (NO/NC/COM),

1A@24VDC

1A@24VDC

10K ohm (switch selectable)

10K ohm (switch selectable)

-4°~131° F (-20°~55° C)

-4°~131° F (-20°~55° C)

NEW

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

89

Curtain Sensors

Model Numbers

Sensors

2B25

Features

• 50ft (16m) Indoor, 25ft (8m) Outdoor

• Multi-frequency to reduce interference

between multiple units

• Install on windows, doorways, skylights,

fence tops, and any place where space
is limited

• Perfect for indoor and outdoor perimeter

security

• Slimline design – 1

• Rugged aluminum construction

• NO/NC Relay output

5

/16"x7/8" (33x22 mm)

4B25

10B25

8B25

6B25

• No synchronizing wires required

• 2, 4, 6, 8, or 10 separate photoelectric

beam sensors; programmable trigger
upon breaking of any single beam
or simultaneous breaking of any two
adjacent beams

• Anti-tamper circuit for use when power is

cut or end cap is removed

• LED alignment indicator

• L-brackets and mounting hardware

included

E-9611-2B25

2 Beams, 11¼" (29cm) long, black

E-9622-4B25

4 Beams, 22½" (57cm) long, black

E-9622-4W25

4 Beams, 22½" (57cm) long, white

E-9644-6B25

6 Beams, 44½" (113cm) long, black

E-9644-6W25

6 Beams, 44½" (113cm) long, white

E-9660-8B25

8 Beams, 60

E-9680-10B25

10 Beams, 79" (201cm) long, black

Applications

Typical Door/

Window Frame

⁄

" (153cm) long, black

Indoor Fence TopsWindows

Garages/Gates/Walls Skylights

Long-Range Barrier Sensors

8B190Q

6B190Q

4B190Q

2B190Q

Features

• Long sensor range up to 190ft (60m)

outdoors, 380ft (120m) indoors

• Programmable response time

(150/300/450/600 ms)

• Built-in heater (activates at 41°F (5°C))

• LED and buzzer alignment indicators

• For indoor or outdoor perimeter security

• Programmable immediate trigger on

simultaneous breaking of beams, or
trigger after a single pair of beams is
broken for at least 2 seconds

• Programmable for 4 different frequencies

to reduce interference between multiple
units

• Built-in tamper switches

• No synchronizing wires required for

alignment

• Form C relay output

• Terminal block wiring

• AGC (Auto Gain Control) Circuits regulate

beams to ensure operation in rain, fog,
and low-temperature

Model Numbers

E-9626-2B190Q

2 Beam pairs, 26" (66cm) long

E-9643-4B190Q

4 Beam pairs, 43" (109cm) long

E-9661-6B190Q

6 Beam pairs, 61" (155cm) long

E-9679-8B190Q

8 Beam pairs, 79" (201cm) long

Swivel Housing

°

Each sensor is built with a swivel housing

for flexible installations and simple

alignment. To use, twist the beams

up to 90°.

°

90

SECO-LARM® 2017 Product Catalog

Flush-Mount Photobeam Detectors

Model Numbers

E-932-D33TBQ

Range: 33ft (10m)

Sensors

Features

• Typical applications include entrances,

• Attractive flush-mount design fits

• Fits a single-gang box

• Alignment LEDs make installation and

IR Proximity Sensor

Features

• Triggers when device is removed from or

• Place objects on sensor, sensor triggers

• N.O. or N.C. Operation

hallways, or rooms in offices or homes

unobtrusively into the decor of most
offices, retail shops, or homes

setup quick and easy

entered into detection range

when object is removed

Specifications

Model E-932-D33TBQ
# Of beams 2
Sensing range 33' (10m)
Response time 10ms
Operating

voltage
Alarm output 1A@120VAC/VDC
Alignment angle Horizontal: ±15°, Vertical: ±15°
Dimensions 4¾"x2¾"x1½" (120x70x38 mm)

Model Number

CS-PD115-PAQ

Specifications

Sensing range 2"~6" (5~15 cm)

Red Standby

LEDs

Green Triggered
Alarm output 1A@30VDC
Output time 1~20 sec or Toggle

Operating life

Dimensions 1

12~18 VDC

100,000 Hours

or 1,000,000 uses

3

/8"x7/8"x7/8" (35x23x23 mm)

Optional Accessories for Sensors

E-931ACC-BLS6Q

Single-gang flush-mount bracket

For use with:

• E-936-S35RRGQ

• E-936-S45RRGQ

• E-931-S35RRQ

E-931ACC-BLS7Q

L-bracket for side mounting

For use with:

• E-936-S35RRGQ

• E-936-S45RRGQ

• E-931-S35RRQ

E-931ACC-BLS8Q

Wall or door frame bracket

For use with:

• E-931CS22RFCQ

• E-931CS22RRCQ

• E-936-S35RRGQ

E-931ACC-R2Q

2" square reflector

For use with:
All reflective sensors

E-931ACC-RC1Q

3" round reflector

For use with:
All reflective sensors

• E-936-S45RRGQ

• E-931-S35RRQ

E-931ACC-RL1

3" square reflector

For use with:
All reflective sensors

E-931ACC-HR1Q

2" Square or 3" round reflector hood

For use with:

NEW

• E-931-S35RRQ

• E-936-S35RRGQ

• E-931-S50RRGQ

• E-931-S33PRGQ

E-931ACC-HR1

3" Round or 3" square reflector hood

For use with:

NEW

• E-931-S50RRGQ

• E-931-S33PRGQ

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

91

Xenon Tube Strobe Lights

Burglar & Security

Features

• For "informative" general signaling requirements

• Incorrect polarity cannot damage circuit or draw current

• Easy 2-wire installation, regardless of voltage. Also, if the strobe light is being powered

by a battery, as the battery is drained the strobe light will continue to function

• Low current consumption with long operating lifespan of over 300 continuous hours

(2,000,000 flashes)

• Includes choice of amber, blue, clear, green, or red lens

• Lens is made of high-impact resistant acrylic, case of high-impact resistant ABS plastic.

• The SECO-LARM strobe light comes with a protective inner cover. This protects the

high-voltage xenon tube when the colored lens has been removed

Model Numbers

SL-126Q

12VDC Operation, UL listed

SL-126-A24Q*

24VDC Operation

SL-126Q Only

Accessories

SL-126LQ/x

Replacement Lens

• SL-126LQ/A – Amber

• SL-126LQ/B – Blue

• SL-126LQ/C – Clear

• SL-126LQ/G – Green

• SL-126LQ/R – Red

SL-1901-DAQ

Conduit drop bracket,
can be used with
SL-1901-JAQ

SL-1901-JAQ

Conduit box bracket,
can be used with
SL-1901-DAQ

Optional Conduit
Mounting Brackets

• The conduit box and conduit drop

bracket are interchangeable

• Compatible with all SL-126 and

SL-1301 Series strobe lights

Specifications

Model SL-126Q SL-126-A24Q
Operating voltage 6~12 VDC 6~24 VDC
Current draw 200mA@12VDC 150mA@24VDC
Flash rate 90/min@12VDC 100/min@24VDC
Brightness 100,000 Candle power
Electrical protection Reverse-polarity protected
Operating life Over 300 continuous hours (2,000,000 flashes)
Operating temperature -22°~140° F (-30°~60° C)
Base High-impact black ABS
Lens High-impact acrylic

15

Dimensions 3

/16"x229/32" (100x74mm)

Ordering Information

Color SL-126Q SL-126-A24Q Replacement Lens

Amber SL-126Q/A SL-126-A24Q/A SL-126LQ/A
Blue SL-126Q/B SL-126-A24Q/B SL-126LQ/B
Clear SL-126Q/C SL-126-A24Q/C SL-126LQ/C
Green SL-126Q/G SL-126-A24Q/G SL-126LQ/G
Red SL-126Q/R SL-126-A24Q/R SL-126LQ/R

*SL-126-A24Q is not UL listed

Conduit drop

bracket only

Conduit box

only

Protective Inner Cover

The SECO-LARM

strobe light comes with a

protective inner cover. This

protects the high-voltage

xenon tube when the

colored lens has been

removed.

Conduit drop

bracket with

conduit box

92

SECO-LARM® 2017 Product Catalog

LED Strobe Lights

Model Numbers

Burglar & Security

SL-1301-EAQ

12 LEDs, 6~12 VDC

SL-1301-BAQ

32 LEDs, 9~12 VDC, 12VAC

SL-1301-SAQ

54 LEDs, 10~24 VAC/VDC, siren

Flashing Patterns

Description Top View

Strobe

LEDs flash on and off

continuously.

(Default setting)

Rotate Clockwise

Light rotates clockwise

in a circular fashion

continuously. (Beacon)

Features

• Utilizes 12 high-intensity LEDs

• Operating life over 50,000 hours

(over 5.7 years)

• Same size as the SL-126Q strobe light

• Simple 2-wire installation

• High-impact resistant case

• High-impact and heat-resistant lens

• Reverse polarity protection

• Visible in all directions

• 5 weather resistant lens covers available

Specifications

Model SL-1301-EAQ SL-1301-BAQ SL-1301-SAQ

# Of flash patterns 1 6 6
Flashing speed 130 times/min Adjustable 30~260 times/min
Vertical LED strips 0 5 10
Total # of LEDs 12 32 54
Backup battery No Yes
Operating temperature -4°~144° F (-20°~65° C)
Electrical protection Reverse polarity protected
Built-in siren No Yes (100dB)
IP rating IP66 IP55

BAQ series also includes all
features of the EAQ plus:

• 5 Vertical LED strips (32 LEDs total)

increase visibility from various directions

• 6 different flashing options

• Adjustable flashing speed

• Backup battery available for continuous

lighting application

SAQ series also includes all
features of the BAQ plus:

• 10 Vertical LED strips (54 LEDs total)

• Built-in 100dB siren (programmable)

Steady ON

All LEDs stay on. Ideal
for continuous lighting

applications.

Flash with

Progressive ON

LEDs turn on progressively

clockwise until all LEDs

are lit (sweep), and then

turn off.

Rotate Back and Forth

LED groups light up one at

a time, rotating clockwise

and counterclockwise.

Flash with

Progressive ON/OFF

LEDs turn on progressively

clockwise (sweep), then

turn off progressively

counterclockwise.

Accessories

SL-126LQ/x

Replacement Lens

• SL-126LQ/A – Amber

• SL-126LQ/B – Blue

• SL-126LQ/C – Clear

Ordering Information

Color SL-1301-EAQ (12 LED) SL-1301-BAQ (32 LED) SL-1301-SAQ (54 LED)

Amber SL-1301-EAQ/A SL-1301-BAQ/A SL-1301-SAQ/A
Blue SL-1301-EAQ/B SL-1301-BAQ/B SL-1301-SAQ/B
Clear SL-1301-EAQ/C SL-1301-BAQ/C SL-1301-SAQ/C
Green SL-1301-EAQ/G SL-1301-BAQ/G SL-1301-SAQ/G
Red SL-1301-EAQ/R SL-1301-BAQ/R SL-1301-SAQ/R

• SL-126LQ/G – Green

• SL-126LQ/R – Red

SL-1901-DAQ

Conduit drop bracket, can be
used with SL-1901-JAQ

SL-1901-JAQ

Conduit box bracket, can be used
with SL-1901-DAQ

See page 92 for more information

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

93

Mini Strobe Sirens

Features

• Synchronized piezo siren and long

operating life LED

• Use single-gang box or surface-mount

Burglar & Security

• High-impact plastic casing and

weatherproof design

• Simple 2-wire connection

Model Numbers

SL-1312-SA/B

SL-1312-SA/R

Blue lens

Red lens

• Alarm siren sound is 110dB@1ft (30cm)

• Operating voltage: 6~15 VDC

• Current draw: 90mA@12VDC

NEW

NEW

High-Intensity LED Strobe Lights

Features

• Weatherproof (IP66) and vibration resistant

for indoor and outdoor use

• Surface or flush mount

• Up to 15 units can be synchronized to flash

simultaneously or alternately

• 19 Built-in programmable flash patterns

Wire Guards

Model Numbers

SL-1311-MA/A

SL-1311-MA/B

SL-1311-MA/C

SL-1311-MA/R

Amber

Blue

Clear

Red

• Operation life of over 100,000 hours

• Operating voltage: 10~30 VDC

Model Numbers

GW-SD31W

GW-SL31W

Smoke Detector

Strobe Light

NEW

NEW

94

GW-SD31W GW-SL31W

Features

• Protects against vandalism and accidental

damage

• Easy removal for cleaning and

maintenance

SECO-LARM® 2017 Product Catalog

• 9-gauge steel wire coated with corrosion

resistant polyester plastic

• Welded at all points for strength

• Mounting hardware included

• Dimensions:

- GW-SD31W: 9

- GW-SL31W: 5

7

/32"x35/32" (234x80 mm)

1

/4"x33/4"(133x95 mm)

Alarm Control Panel

Features

• 5 Separate zone inputs

- N.O. or N.C. (selectable) Instant zone

with exit delay

- N.C. Instant zone with exit delay

- N.C. Delay zone with entry and exit

delays

- N.O. 24-Hour panic zone with no entry

and exit delays

- N.C. 24-Hour tamper zone instant

trigger no delay

• Works on 16 VAC/VDC with back-up

battery input

• 2 Alert signals for entry and exit delay

• 9 Status LEDs

• 3 Adjustable timers

• Patented Automatic Extended Exit

Delay (AEED): Opening a switch/sensor
connected to an exit delay zone before
the exit delay elapses automatically
extends the exit delay for as long as the
switch/sensor remains open

• Dry relay contact panic output

(COM - N.O.): Relay contacts close when
the panic zone is activated

- Adjustable entry delay timer (1~45 sec)

- Adjustable exit delay timer (1~45 sec)

- Adjustable alarm duration timer (3s to

20min)

Model Number

ENFORCER 295

Five separate zone inputs, Five
zone shunting switches, Three
adjustable timers, Nine status
LEDs, Two alert signals, Four
outputs

• Phase-II continual protection: To assure

continuous protection, any input that
remains triggered after the alarm duration
has elapsed will shut down. All other
inputs will remain armed

• All 9 status LEDs visible when cabinet is

closed

• Positive voltage (3A) relay alarm output:

Powers signaling devices like a siren, bell,
dialer, etc.

• Regulated power supply and recharger

• Heavy-duty, beige-colored steel cabinet;

• Dimensions:

8½"x3⁄"x11⁄" (215x79x290 mm)

Burglar & Security

Audio Discriminator

Features

• Eliminates the need for unsightly individual

detectors on each pane of glass

• Detects the high-frequency sound of glass

breaking

• Patented yellow turbulence LED allows

quick and simple sensitivity adjustment
without having to use a test meter

• Red LED shows alarm output status

• Wide detection radius

• Equipped with an N.C. tamper circuit to

protect against opening or breaking the
case

• Installs without RF-shielded cable

• Compact size and attractive appearance

allows for discreet installations anywhere

- 25ft (8m) if ceiling-mounted

- 45ft (14m) if wall-mounted

Model Number

ENFORCER 190

Range: Up to 45ft (14m) front,
Up to 25ft (8m) sides

LEDs Make the Difference

LED Color Function

Indicates whether

Yellow

Red

Protection Pattern

environmental noise is too high,
reducing the likelihood of false
alarms

Indicates whether the sensor
has been triggered and is
sending a signal to the alarm

45"

25"

25"

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

95

Siren and Buzzers

Model Numbers

SH-506QSH-504QSH-532L

Features

SH-532L:

• 3 Tones, 124dB

• Black ABS plastic trumpet

• Miniature size, just 3¼" long with 3½"

diameter (83x89 mm)

• Low current drain of 1A@12VDC

Wall & Flush-Mount Sirens and Speakers

Burglar & Security

SH-512BQ & SH-532BQSH-521RQ / SH-901RQ SH-525SQ / SH-905SQ

Features

SH-504Q:

• Miniature 91dB electronic buzzer

• 3~18 VDC Operation

• Surface mount or mount in ¾" (19mm)

"D' hole of alarm panel or remote plate

• Low current drain of 35mA@12VDC

SH-532L

SH-504Q

SH-506Q

SH-506Q:

3 Tone Siren

Miniature buzzer,
plate/surface mount

Miniature buzzer,
surface mount

• Miniature 93dB electronic buzzer

• 3-28VDC, surface mount

• Low current drain of 35mA@12VDC

Model Number

SH-525SQ

Dual-tone wall siren

SH-521RQ

Flush-mount dual-tone wall siren

SH-512BQ

Single-tone chime

SH-532BQ

Multi-tone electronic chime

SH-905SQ

Wall speaker

SH-901RQ

Flush-mount wall speaker

NEW

NEW

NEW

NEW

NEW

NEW

SH-525SQ & SH-521RQ

• 100dB/1m@12VDC

• 6~14 VDC Operation

• Current draw: 550mA@12VDC

SH-512BQ & SH-532BQ

• 105dB/1m@12VDC

• 6~14 VDC Operation

• Current draw: 200mA@12VDC

Low-Voltage Battery Cut-Off

Features

• Selectable input 12/24 VDC

• Adjustable voltage cut-off and restore

point

• Master On/Off switch

• Green LED AC power indicator

• Dual-color DC LED indicator

• Includes battery leads and double-sided

tape

SH-905SQ & SH-901RQ

• 6~8 Ohms

• 15W

• 450~6000 Hz Frequency

Model Number

ST-BD01Q

Low-Voltage Battery Cut-Off

Specifications

Relay contact
rating

AC Green

DC

LED indicators

AC input Terminal block
AC output Gray wire leads

DC

Connections

7A@30VDC

Red: 12VDC

Blue: 24VDC

Quick-connect terminal

(battery side)

On-board male spade terminal

96

SECO-LARM® 2017 Product Catalog

Switches and Buttons

Burglar & Security

Tamper Switches

SS-072Q

SS-073Q

For normally closed tamper circuits

For normally open tamper circuits

• For drawers and alarm boxes

• Silver-plated contacts

• High-impact plastic case

• Screw terminals

• Rated 0.5A@50VDC

Toggle Switches

SS-076Q/GY

SS-076Q/SW

Gray toggle switch

Snow-white toggle switch

• SPST Toggle switch rated

3A@125VDC

• Attractive plastic case with

two screw holes

• Pre-wired 6" (15cm) leads

Holdup Buttons

SS-077Q

SS-078Q

SS-078-KEYQ

N.C. Push-to-open operation

N.O. Push-to-close operation

Spare key for SS-077Q and SS-078Q

• Latching pushbutton, flag shows

when pressed

• High-impact ABS case, stainless

steel cover

• SPST Switch rated 1A@12VDC

• Two reset keys included

Vibration/Shock Sensors

SS-040Q/BR

SS-040Q/W

N.C., Brown

N.C., White

• Detects shock to window

glass, walls, or ceilings

• Gold-plated contacts for

longer life and reliability

• Built-in tamper switch for

complete security

• Adjustable from 1~50 g

• 1A@50VDC

• Size: 2⁄"x⁄"x⁄"

(60x21x15 mm)

Momentary Pushbuttons

SS-032Q/RD

SS-033Q/BK

Red N.O. Button

Black N.C. Button

• Fits ½" (13mm) hole

• Rated 1A@12VDC

SS-032Q/RD SS-033Q/BK

Momentary Pushbuttons

SS-074/BG

N.O. Push-to-close operation

• N.O. (Push-to-close) Operation

• Double-button operation

virtually eliminates accidental
triggering

• Sturdy metal case, silver-plate

SPST contacts, pre-wired for
quick installation

• Rated 1A@25VDC

Foil connection block

SS-202Q

Emergency Pushbuttons

SS-075Q

SS-075CQ

SS-075C-PEQ

N.O. "Emergency" button

NO/NC "Emergency" button

NO/NC Emergency button kit

• SPST Contact rated

0.5A@12VDC

• Screw terminals for easy

installation

• Large button with printed

message on faceplate

SS-075C-PEQ Only

• Includes three stick-on labels

("PUSH TO EXIT", "PRESIONE
PARA SALIR", 'EMERGENCY")

• SPST Switch rated 1A@12VDC

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

97

Open-Frame Transformers

ST-UV16-W100Q

Features

• Dual-voltage input: 120/240 VAC, 50/60 Hz

• Works with all SECO-LARM power

supplies and chargers

• Shielded windings reduce

electromagnetic interference

Burglar & Security

Specifications

Model ST-UV16-W50Q ST-UV24-W50Q ST-UV16-W100Q ST-UVDA-W100Q ST-UVDA-W180Q
Output voltage 16VAC 24VAC 16VAC 24VAC 28VAC 24VAC 28VAC
Current 3.12A 2.08A 6.25A 4.16A 3.57A 7.50A 6.43A
VA 50VA 100VA 180VA
Input voltage 120/240 VAC, 50/60 Hz

Model Numbers

ST-UV16-W50Q

16VAC, 50VA

ST-UV24-W50Q

24VAC, 50VA

ST-UV16-W100Q

16VAC, 100VA

ST-UVDA-W100Q

24/28 VAC, 100VA

ST-UVDA-W180Q

24/28 VAC, 180VA

Power Adapters

ST-UV12-S1.0Q

ST-UV12-S2.0Q ST-UV12-S5.0Q

Features

ST-UV12-S0.5Q, ST-UV12-S1.0Q,
and ST-UV12-S2.0Q Only:

• Sideways plug for easy use on power

strips

• Universal 100~240 VAC input

• Regulated 12VDC output

• 6ft (1.8m) Cord with 2.1mm plug (positive

center)

• Low current drain

ST-UV12-S5.0Q Only:

• Convert AC input power to low-voltage DC

output power

• LED Power indicator

• Universal 100~240 VAC input

• Regulated 12VDC output

• 6ft (1.8m) Cord with 2.1mm plug (positive

center)

• Includes AC power cord (IEC320-C13)

• Low current drain

Model Numbers

ST-UV12-S1.0Q

1 Amp

ST-UV12-S2.0Q

2 Amps

ST-UV12-S5.0Q

5 Amps

Fits Easily with Power Strip

98

SECO-LARM® 2017 Product Catalog

Power Supply Chargers

ST-1206-1.5AQ

Features

• Convert low-voltage AC input power to

low-voltage DC output power

• Regulated and filtered output voltage

• Short-circuit protection

• Thermal protection and compensation

• Built-in backup battery charger

• Switches to backup battery automatically

in case of power loss

• Fused protection for battery charger

ST-2406-2AQ

• Two LEDs to indicate AC power input and

DC power output status

• Compatible with lead-acid or gel-type

rechargeable batteries

• Reverse-polarity protected

• Includes foam tape and battery terminals

for easy installation

• For transformer selection information, see

below chart, "Transformer Selection Table"

ST-2406-3AQ

ST-2406-10AQST-2406-7AQST-2406-5AQ

Model Numbers

ST-1206-1.5AQ

1.5A Continuous, 6/12 VDC

ST-2406-2AQ

2.0A Continuous, 6/12/24 VDC

ST-2406-3AQ

2.5A Continuous, 6/12/24 VDC

ST-2406-5AQ

4A Continuous, 6/12/24 VDC

ST-2406-7AQ

7A Continuous, 6/12/24 VDC

ST-2406-10AQ

9A Continuous, 6/12/24 VDC

Open-Frame Transformers

SECO-LARM offers a full line of

Open-Frame Transformers.

See Page 98 for details

Burglar & Security

Specifications

Model ST-1206-1.5AQ ST-2406-2AQ ST-2406-3AQ ST-2406-5AQ ST-2406-7AQ ST-2406-10AQ
Output voltage 6/12 VDC 6/12/24 VDC

Current

Current
Output

(Maximum
Charge)

Dimensions

Continuous 1.5A 2.0A 2.5A 4A 7A 9A
Peak 2A 3A 5A 7.5A 10A
6V 100mA
12V 220mA
24V N/A 450mA

2½"x2¾"x1⁄" (64x70x30 mm)

2⁄"x2⁄"x1⁄"

(73x73x35 mm)

2⁄"x3"x1⁄"

(73x76x33 mm)

5½"x5⁄"x2⁄" (140x130x55 mm)

Transformer Selection Table

Output voltage ST-1206-1.5AQ ST-2406-2AQ ST-2406-3AQ ST-2406-5AQ ST-2406-7AQ ST-2406-10AQ

6VDC 12VAC/20VA 12VAC/20VA

12VDC

24VDC N/A

ST-UV16-W50Q

16VAC/50VA

ST-UV24-W50Q

24VAC/50VA

ST-UV16-W50Q

16VAC/50VA

ST-UVDA-W100Q

24~28 VAC/100VA

ST-UVDA-W100Q

24~28 VAC/100VA

ST-UV16-W100Q

16VAC/100VA

ST-UV16-W100Q

16VAC/100VA

ST-UVDA-W180Q

24~28 VAC/180VA

ST-UVDA-W180Q

24~28 VAC/180VA

ST-UVDA-W180Q

24~28 VAC/180VA

24~28 VAC/210VA 28VAC/350VA

[phone] (CA & Int’l) | [phone] (Toll Free)[e-mail] www.seco-larm.com

99

Relay Modules

SR-2206-C5AQ

SR-1212-C2ALQ SR-1212-C7ALQ SR-2112-C7AQ/10

Burglar & Security

Features

• Relay modules for any application where

relays are required

• Easy installation

• Easily fits inside alarm panel enclosures

• Screw terminals allow easy installation

without soldering or other time
consuming connections

SR-2212-C5AQ

• A wide selection of relay modules

available: Single or dual relays, low­current or heavy-duty operation, and
high-sensitivity or normal sensitivity

SR-2112-C7AQ/10 Only:

• Ships with 10 relay modules on a board

• Each module easily snaps off for

individual use

Model Numbers

SR-2206-C5AQ

Heavy-duty, 6/12 VDC supply,
6/12 VDC trigger, 5A, DPDT

SR-2212-C5AQ

Heavy-duty, 12/24 VDC supply,
12/24 VDC trigger, 5A, DPDT

SR-1212-C2ALQ

Low-current, high-sensitivity,
12/24 VDC supply, 3~24 VDC
trigger, 2A, DPDT

SR-1212-C7ALQ

Heavy-duty, high-sensitivity,
12/24 VDC supply, 3~24 VDC
trigger, 7A, Dual SPDT

SR-2112-C7AQ/10

12/24 VDC Supply, 12/24 VDC
trigger, 7A, SPDT, sold in pack of 10

Specifications

Model SR-2206-C5AQ SR-2212-C5AQ SR-1212-C2ALQ SR-1212-C7ALQ SR-2112-C7AQ/10
Supply voltage 6/12 VDC 12/24 VDC
Trigger voltage 6/12 VDC 12/24 VDC 3~24 VDC 12/24 VDC
Voltage selection Auto-sensing Jumper Auto-sensing Jumper
Relay type DPDT SPDT
Relay rating 5A 2A 7A
Number of relays 1 2 1

Current draw

Dimensions

70mA@6VDC

80mA@12VDC

70mA@12/24VDC

2¾"x1⁄"x¾"

(70x48x20 mm)

15mA@12VDC
18mA@24VDC

2¾"x1⁄"x¾"
(70x50x20 mm)

60mA@

12/24VDC

2⁄"x1⁄"x¾"

(60x40x20 mm)

35mA@12VDC
40mA@24VDC

1⁄"x1⁄"x¾"
(40x30x20 mm)

Installation Overview

SR-2206-C5AQ/SR-2212-C5AQ

Negative power input

Form C contact 2

SR-1212-C2ALQ

Negative trigger input

Negative power input Positive power input

Form C contact 2

Positive power input

Form C contact 1

Positive trigger input

Form C contact 1

SR-1212-C7ALQ

Negative trigger input Positive trigger input

Negative power input Positive power input

Form C contact 1 Form C contact 2

SR-2112-C7AQ/10

Positive power input

Negative power input

Form C contact

24VDC Jumper
Cut for 24VDC

24VDC Jumper
Cut for 24VDC

100

SECO-LARM® 2017 Product Catalog
