MVE-WH010Q
Installation Manual
Wireless Extender for HDMI
NOTE: Products with model numbers that end with “Q” or products that have a round green “Q” sticker signify RoHS compliance.
Wirelessly transmits HDMI from a source to a monitor up to 98ft (30m)
Support resolutions up to 1080p
Signal can pass through walls
IR pass-through for remote control support
ENFORCER Wireless Extender for HDMI®
SECO-LARM U.S.A., Inc.
LED Indicator:
Dimensions:
Parts List:
1 x Transmitter
1 x Receiver
1 x Manual
1 x IR Remote extension
2 x Base
2 x 5VDC Adapter
Transmission frequency
5.1~5.9GHz
RF Communication system
MIMO
Modulation mode
OFDM
Frequency stability
/- 4PPM
Bandwidth
40MHz
Transmission power
>15dBm
Receiving sensitivity
<-65dBm
System latency
<1ms
Range
Up to 98ft (30m)
IR Remote frequency
38kHz
Power supply
5VDC
Current draw
2A /- 10%
Dimensions
513/16” x 313/16” x 11/16” (148 x 97 x 18mm)
Weight
15.4-oz (436g)
Operating temperature
14 ~122 F (-10 ~50 C)
Transmitter
Receiver
Specifications:
Transmission frequency
5.1~5.9GHz
Frequency stability
/- 4PPM
Bandwidth
40MHz
Transmission power
>12dBm
Receiving sensitivity
<-75dBm
System latency
<1ms
Power supply
5VDC
Current draw
2A /- 10%
Dimensions
513/16” x 313/16” x 11/16” (148 x 97 x 18mm)
Weight
15.5oz (440g)
Operating temperature
14 ~122 F (-10 ~50 C)
Indicator
Working Status
Network
On
The transmitter and receiver
are connected to each other.
Off
The transmitter and/or receiver
are not connected to power.
Flashing
The unit is not working
properly. See troubleshooting.
Video
On
Video source or monitor is
connected to the unit.
Off
Video source or monitor is not
connected to the unit.
Transmitter & Receiver:
Base:
1”
(25mm)
11
/16”
(18mm)
21/8”
(54mm)
47/16” (113mm)
313/16”
(97mm)
513/16” (148mm)
ENFORCER Wireless Extender for HDMI®
SECO-LARM U.S.A., Inc.
3

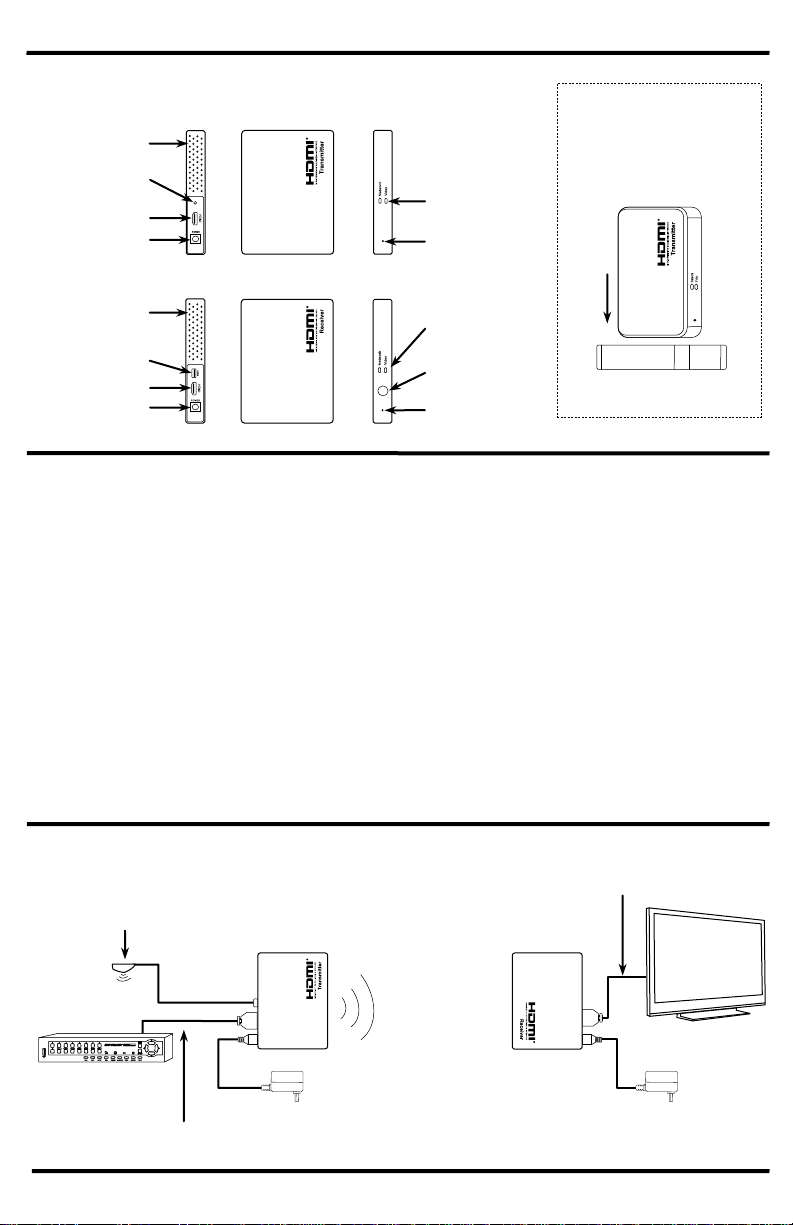

Installation:
Sample Application:
Overview:
1. Determine the location where the wireless HDMI units will be placed.
Note: Do not place the transmitter near a device that would affect the transmission distance.
2. Connect the 5VDC adapter to the transmitter.
3. Connect the wireless HDMI transmitter to the HDMI port of the source device via HDMI cable.
4. Connect the IR remote extension to the IR remote signal output and point it at the IR sensor of the
HDMI source.
5. Connect the 5VDC adapter to the receiver unit.
6. Connect the wireless HDMI receiver to the HDMI port of the display or other device via HDMI cable.
7. Turn ON the source and display devices to test the functionality of the wireless HDMI system.
Note: The video source can be controlled remotely using the IR remote extension. Use any
IR remote control with a frequency of 38kHz.
Note: If video problems occur, reset both units. Use a pencil or small object to hold the reset button
of the receiver down for 3 seconds. Repeat the same process for the transmitter within 30
seconds. If transmitter is not reset with 30 seconds, power off and reboot both units.
Transmitter:
Receiver:
Up to 98ft (30m)
Transmitter
Included 5VDC
Power adapter
HDTV Display
Receiver
Included 5VDC
Power adapter
HDMI Cable
HDMI cable
IR Remote extension
IR Remote
receiving window
Reset button
Status indicators
Power input
HDMI Output
USB Input
(Not used)
Remote
Base included for attractive,
convenient installations. If
using the base, always install
with the antenna end up.
Base
Power input
HDMI Input
IR Remote
signal output
Antenna
Status indicators
Reset button
Antenna
ENFORCER Wireless Extender for HDMI®
SECO-LARM U.S.A., Inc.
HDMI® over Dual
Cat5e/6
HDMI® Matrix
Troubleshooting
WARRANTY This SECO-LARM product is warranted against defects in material and workmanship while used in normal
service for a period of one (1) year from the date of sale to the original consumer customer. SECO-LARM’s obligation is
limited to the repair or replacement of any defective part if the unit is returned, transportation prepaid, to SECO-LARM.
This Warranty is void if damage is caused by or attributed to acts of God, physical or electrical misuse or abuse, neglect,
repair, or alteration, improper or abnormal usage, or faulty installation, or if for any other reason SECO-LARM determines
that such equipment is not operating properly as a result of causes other than defects in material and workmanship.
The sole obligation of SECO-LARM, and the purchaser’s exclusive remedy, shall be limited to replacement or repair only, at
SECO-LARM’s option. In no event shall SECO-LARM be liable for any special, collateral, incidental, or consequential
personal or property damages of any kind to the purchaser or anyone else.
NOTICE: The information and specifications printed in this manual are current at the time of publication. However, the
SECO-LARM policy is one of continual development and improvement. For this reason, SECO-LARM reserves the right
to change specifications without notice. SECO-LARM is also not responsible for misprints or typographical errors.
Copyright © 2012 SECO-LARM U.S.A., Inc. All rights reserved. This material may not be reproduced or copied, in
whole or in part, without the written permission of SECO-LARM.
16842 Millikan Avenue, Irvine, CA 92606 Website: www seco-larm.com
Tel: 800-662-0800 / 949-261-2999 Fax: 949-261-7326 E-mail: sales@seco-larm.com
MiMVE-WH010Q_1209.docx
PICHN1
Also Available from SECO-LARM:
Make sure the transmitter and receiver are connected to power.
Reset the receiver and transmitter. Use a pencil or small object
to hold the reset button of the receiver down for 3 seconds.
Repeat the same process for the transmitter.
Shorten distance between the transmitter and receiver.
HDMI device does not function properly
HDMI® Switcher
HDMI® over Single
Cat5e/6
Component Video Baluns
Over Cat5e/6
Active VGA and Audio
Distributors over Cat5e/6
FCC COMPLIANCE STATEMENT
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may
not cause harmful interference, and (2) this device must accept any interference received, including interference that may
cause undesired operation.
HDMI, the HDMI Logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC in
the United States and other countries.
