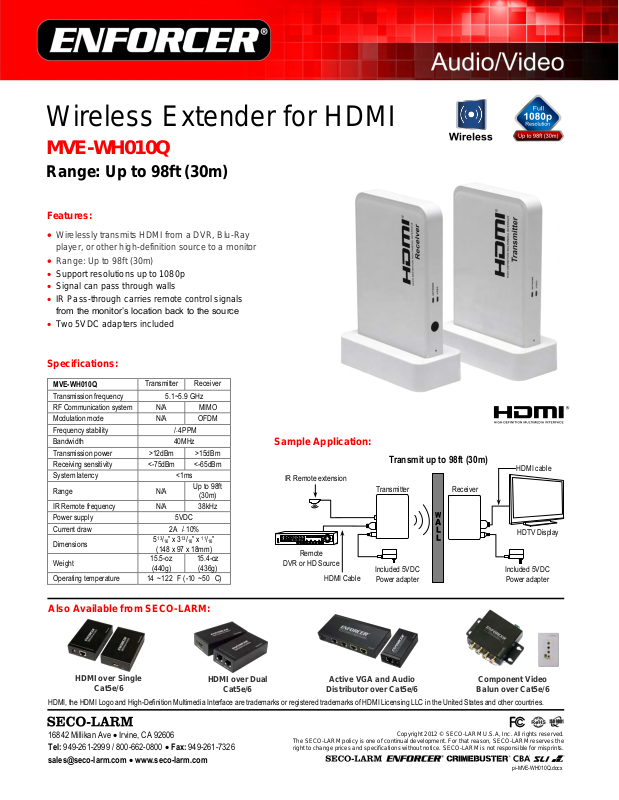

Seco-Larm MVE-WH010Q Specsheet

16842 Millikan Ave  Irvine, CA 92606

Tel: [phone]  Fax: [phone]
[e-mail]  www.seco-larm.com

Copyright 2012 © SECO-LARM U.S.A, Inc. All rights reserved.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the
right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.

pi-MVE-WH010Q.docx

Also Available from SECO-LARM:

Wireless Extender for HDMI

MVE-WH010Q

Range: Up to 98ft (30m)

Specifications:

Features:

 Wirelessly transmits HDMI from a DVR, Blu-Ray

player, or other high-definition source to a monitor

 Range: Up to 98ft (30m)

 Support resolutions up to 1080p
 Signal can pass through walls
 IR Pass-through carries remote control signals

from the monitor’s location back to the source

 Two 5VDC adapters included

Sample Application:

Transmit up to 98ft (30m)

MVE-WH010Q

Transmitter

Receiver

Transmission frequency

5.1~5.9 GHz

RF Communication system

N/A

MIMO

Modulation mode

N/A

OFDM

Frequency stability

/- 4PPM

Bandwidth

40MHz

Transmission power

>12dBm

>15dBm

Receiving sensitivity

<-75dBm

<-65dBm

System latency

<1ms

Range

N/A

Up to 98ft

(30m)

IR Remote frequency

N/A

38kHz

Power supply

5VDC

Current draw

2A /- 10%

Dimensions

513/16” x 313/16” x 11/16”

(148 x 97 x 18mm)

Weight

15.5-oz
(440g)

15.4-oz

(436g)

Operating temperature

14 ~122 F (-10 ~50 C)

Transmitter

Included 5VDC

Power adapter

IR Remote extension

Remote

DVR or HD Source

HDMI Cable

HDMI over Single

Cat5e/6

HDMI over Dual

Cat5e/6

Component Video

Balun over Cat5e/6

Active VGA and Audio

Distributor over Cat5e/6

Receiver

HDTV Display

HDMI cable

Included 5VDC

Power adapter
