MVE-AA11-01NQ
HDMI Extender over Coax Cable
Manual
Extend HDMI over a single coaxial cable.
Supports resolutions from 480i to 1080p with zero signal loss.
Transmits up to 328’ (100m) at 1080p over coaxial cable.
Plug and play operation — comes as a complete set.
IR Pass-through for remote control extension.
Two (2) 5VDC power supplies included.
328ft
Up to
(100m)
1080p Resolution
ENFORCER HDMI Extender over Coax Cable
Introduction:
The ENFORCER HDMI Extender over Coax Cable extends the range of traditional HDMI cabling
methods by using an active transmitter and receiver to send video and audio over a single coaxial
cable. HDMI formats as large as 1080p can be transmitted up to 328’ (100m) between the two
units with zero signal loss by using integrated circuits in the receiver and transmitter.
Features:
Signal Strength – Active operation ensures that the signal strength will remain strong over
the length of the cable.
Distance – The HDMI Extender over Coax Cable is capable of providing a clear HDMI
signal up to 328ft (100m).
Formats Supported – The HDMI Extender over Coax Cable supports both progressive
and interlaced formats: 1080p/1080i/720p/576p/480p/480i.
Plug and Play – The HDMI Extender over Coax Cable comes as a complete set consisting
of a transmitter and receiver, power supplies, and IR dongles.
Zero Signal Loss – Integrated circuits in the transmitter and receiver clean, buffer, and
amplify the HDMI signal to prevent signal loss and ensure a clear signal regardless of the
length of the cable.
IR Pass-through – Send IR signals from the source to the monitor for discrete operation of
devices.
Specifications:
Input video signal
3.3V
Input DDC signal
5Vp-p (TTL)
Maximum single link range
1080p
Deep color
36bits (12bits/color)
Video formats supported
High-speed HDMI, HDCP 1.1
Audio formats supported
LPCM, Dolby-AC3, DTS7.1, DSD
Output video
HDMI
Resolutions supported
1080p/1080i/720p/576i/480i
Range – 1080p
Up to 328’ (100m)
Video amplifier bandwidth
1.65Gbps
Video input connector
HDMI Type A 19-pin female
Maximum input cable length
24AWG (15m), 26AWG (10m), 28AWG (5m)
Video output connector
HDMI Type A 19-pin female
Maximum output cable length
24AWG (15m), 26AWG (10m), 28AWG (5m)
Coaxial cable
RG6
Operating voltage
5VDC
Power supply
1A@5VDC (2 adapters) (2.1mm plug)
ESD protection (human body model)
±8kV (air-gap discharge), ±4kV (contact discharge)
Operating temperature
32°~104° F (0°~40° C)
Operating humidity
20~90% RH (no condensation)
Dimensions
33/16”x115/16”x1” (81x49x25 mm)
Weight
4.2-oz (120g) (each)
Parts List:
1x Transmitter
1x Receiver
2x 5VDC power adapters
1x Manual
1x IR Transmitter (w/ double sided tape)
1x IR Receiver (w/ double sided tape)
2 SECO-LARM U.S.A., Inc.

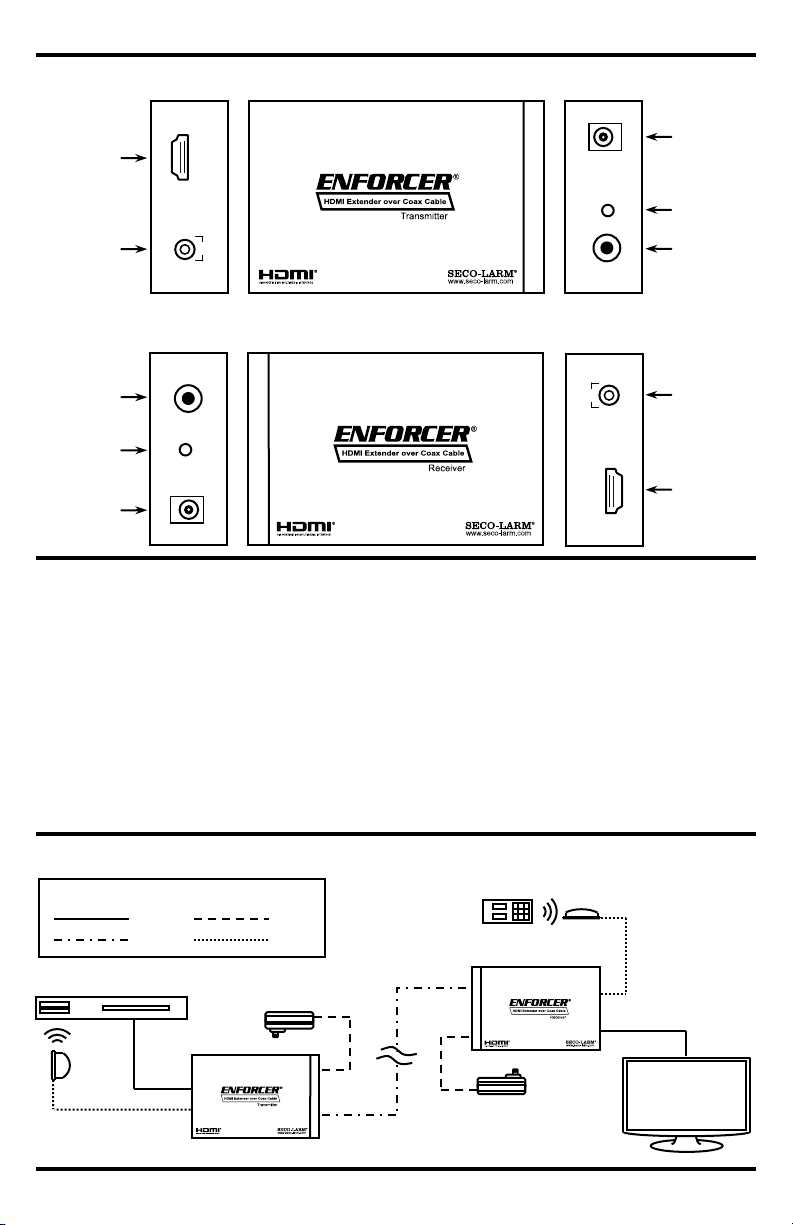

Overview:
Installation:
Transmitter:
Receiver:
1. Determine the location where the MVE-AA11-01NQ units will be wired as well as how much of
the coaxial cable will be necessary.
2. Connect the transmitter to the HDMI output of the source device.
3. Connect the coaxial cable to both the receiver and transmitter units.
4. Connect the receiver to the HDMI input of the display or other device.
5. Connect one 5VDC adapter to the transmitter and another to the receiver.
6. Install the IR transmitter to the IR-TX port, pointing the IR transmitter at the device to be
controlled. Install the IR receiver to the IR-RX port of the other device, pointing the IR receiver
to where the remote control will be. Point the remote control at the IR receiver when in use.
Sample Application:
HDMI Source
Included 5VDC
Power Adapter
Included 5VDC
Power Adapter
IR Tx
Remote
Display
IR Rx
Remote
Cable Legend:
Coax
Power
IR
HDMI
HDMI Input
5VDC Input
IR Tx Port
Status LED
5VDC Input
Coaxial
Output
Status LED
IR Rx Port
Rx
HDMI Output
HDMI Output
Coaxial
Output
5VDC
Status
Coax Out
IR
5VDC
Status
Coax In
Tx
HDMI Input
IR
ENFORCER HDMI Extender over Coax Cable
SECO-LARM U.S.A., Inc. 3
ENFORCER HDMI Extender over Coax Cable
