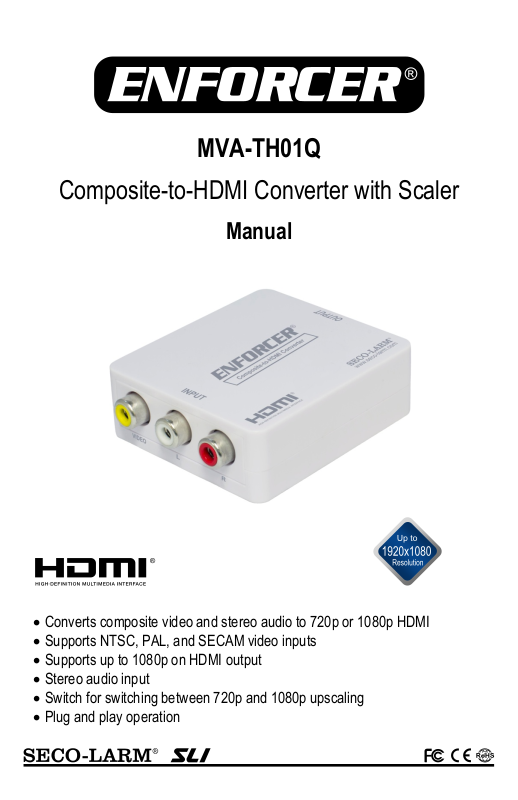

MVA-TH01Q
Manual
• Converts composite video and stereo audio to 720p or 1080p HDMI
Composite-to-HDMI Converter with Scaler
• Supports NTSC, PAL, and SECAM video inputs
• Supports up to 1080p on HDMI output
• Stereo audio input
• Switch for switching between 720p and 1080p upscaling
• Plug and play operation
ENFORCER Composite-to-HDMI Converter with Scaler
Introduction:
The MVA-TH01Q Composite-to-HDMI Converter with Scaler allows the user to convert video from
analog
conversion of formats as
input allowing the conversion of audi
Specifications:
Model
MVA-TH01Q
Video formats supported
NTSC / PAL / SECAM
Video input signal
1Vp-p
Audio formats supported
Stereo
Output amplifier bandwidth
1.65Gbps
Output video resolutions
720p/1080p
Output vertical frequency
60Hz
Output DDC signal
5V
Input video connector
RCA Female
Input audio connector
RCA Female
Output video connector
HDMI Type-A 19-pin female
Power supply
5VDC (USB)
Operating temperature
32°~104° F (0°~40° C)
Operating humidity
20~90% RH (no condensation)
Dimensions
23/8"x21/8"x13/16" (60x54x20 mm)
Weight
1.4oz (40g)
Parts List:
Dimensions:
21/8"
23/8" (60mm)
13
/16"
(20mm)
1x Composite-to-HDMI Converter with Scaler
1x USB Power cable
1x Manual
devices with composite (RCA) outputs on HDMI displays. Active operation allows the
large as 1920x1080. The MVA-TH01Q also has a L/R analog stereo
o as well.
(54mm)
2 SECO-LARM U.S.A., Inc.
ENFORCER Composite-to-HDMI Converter with Scaler
Overview:
Input
Output
Power/Scaler
Top
Installation:
1. Decide where the MVA-TH01Q will be installed.
2.
3.
4.
5.
6.
7.
Sample Application:
HDMI Monitor
Analog Source
Cable Legend:
USB
Composite
Stereo
HDMI
Connect a composite RCA cable from the analog source to the composite RCA input of the
MVA-TH01Q.
Connect a stereo audio cable from the source device to the audio input of the MVA-TH01Q.
Connect a HDMI cable from the HDMI monitor to the output of the MVA-TH01Q.
Using the included USB cable, connect the MVA-TH01Q power to a powered USB port on the
analog source or HDMI monitor.
Select either 720p or 1080p output using the select switch on the side.
Switch on the analog source and HDMI monitor to verify that the system is functioning properly.
SECO-LARM U.S.A., Inc. 3
ENFORCER Composite-to-HDMI Converter with Scaler
Troubleshooting:
• Make sure the converter is powered.
not convert HDMI to composite.
