VPD Passive Midpoint Combiners
EB-P304-01MQ 4 Channel Video/Power/Data Passive Midpoint Combiner
EB-P316-60MQ 16 Channel Video/Power/Data Passive Midpoint Combiner
Features:
Video, power, and data over a single category cable
Compatible with all traditional and HD analog
formats, including HD-AHD, HD-CVI, and HD-TVI
Used in mid-span applications
Supports up to 4 or 16 cameras
Power LED indicator for each channel
Can transfer HD analog video up to 1,476ft (450m)
1
Use any external low-voltage power supply
Rack-mountable using included brackets
2
Sample Application:
ENFORCER VPD (Video/Power/Data) Combiners
work in conjunction with standard passive VPD
baluns and RJ45 cables to simplify and organize a
large scale CCTV installation. Using this allows for
increased flexibility and simplified, more organized
cable installation, providing power to cameras while
delivering high quality video all over a single
CAT5e/6 cable. Troubleshooting is therefore greatly
simplified and clutter reduced. ENFORCER VPD
combiners are compatible with all HD analog,
including HD-AHD, HD-CVI, and HD-TVI, as well as
traditional analog formats.
1
720p HD-CVI video; other formats will have different maximum ranges. See
the included specification chart for complete range information
2
EB-P316-60MQ only
Video
ENFORCER
Passive Video
Transceiver
Power
Video
Video
Data and
Power
Power
Video
Power
Cat5e/6
Cat5e/6
Cat5e/6
Cat5e/6
Cat5e/6 (Video)
Cat5e/6 (Data)
Video
Video
ENFORCER
H.264 Network DVR
ENFORCER Passive 4-Channel
Midpoint VPD Combiner
ENFORCER
Passive VPD Balun
ENFORCER Passive
Baluns with Power or
Data Pass-Through
Monitor
Power for
Camera 1
Power for
Camera 2
Power for
Camera 3
Power for
Camera 4
Or RJ45
Can Use Any
External Low Voltage
Power Supply
EB-P304-01MQ
EB-P316-60MQ
SECO-LARM
®
U.S.A., Inc.
16842 Millikan Avenue, Irvine, CA 92606
Copyright 2015 © SECO-LARM U.S.A., Inc. All rights reserved.
All trademarks are the property of SECO-LARM U.S.A., Inc. or their respective owners.
The SECO-LARM policy is one of continual development. For that reason, SECO-LARM reserves the
right to change prices and specifications without notice. SECO-LARM is not responsible for misprints.
Phone: (949) 261-2999 | (800) 662-0800 Fax: (949) 261-7326
Website: www.seco-larm.com Email: sales@seco-larm.com
PI_EB-P3XX-XXMQ_151103

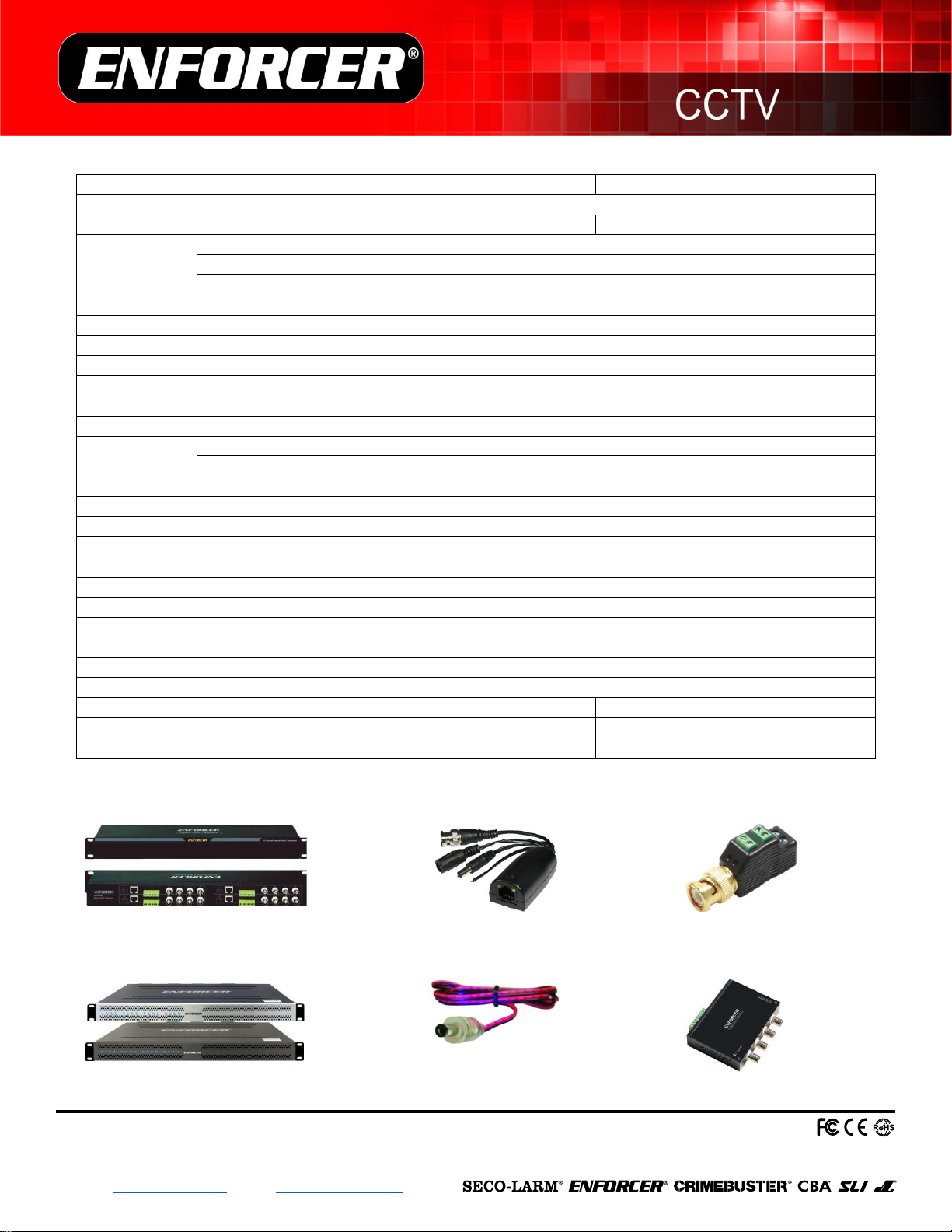

Specifications:
Model #
EB-P304-01MQ
EB-P316-60MQ
Type
Passive Midpoint
Channels 4 16
Video Range
CVBS
984’ (300m)
HD-AHD
720p: 1050’ (320m); 1808p: 722’ (220m)
HD-CVI
720p: 1476’ (450m); 1080p: 820’ (250m)
HD-TVI
720p/1080p: 820’ (250m)
Video format
NTSC, PAL, SECAM
Maximum input
1Vp-p
Frequency response
DC to 60MHz
CMMR
60dB, 20kHz~60MHz
Wire Category
CAT5e~CAT6
BNC Connection
Nickel-plated
Impedance
Coax
75Ω@1MHz
RJ45
100Ω@1MHz
Max. amperage
1A@12VDC/24VAC
Data Range
2,400’ (800m)
DC Loop Resistance
29Ω/1,000’ (9.5Ω/100m)
Differential capacitance
19pF/ft max (62pf/m max)
Output Voltage
N/A
Fuse
1.5A max/CH
Input power
N/A
Input power fuse
N/A
Operating Temperature
-14~140°F (-10~60°C)
Humidity Range
0~95%, non-condensing
Case Material
Steel
Weight
0.89-lbs (404g)
1.93-lbs (876g)
Dimensions
6
5
/16
”x1
3
/4
”x
15
/16”
16
15
/16
”x1
3
/4
”x
15
/16”
(160mm x 44mm x 33mm)
(430mm x 44mm x 33mm)
Also Available:
16-Port Passive Video Transceiver
Passive Power or Data
Pass-Through Video Balun
4-Port Passive Video Transceiver
Rack Mount Power Supply
Passive Video, Power,
and Data Balun
Illuminated Power Connectors
