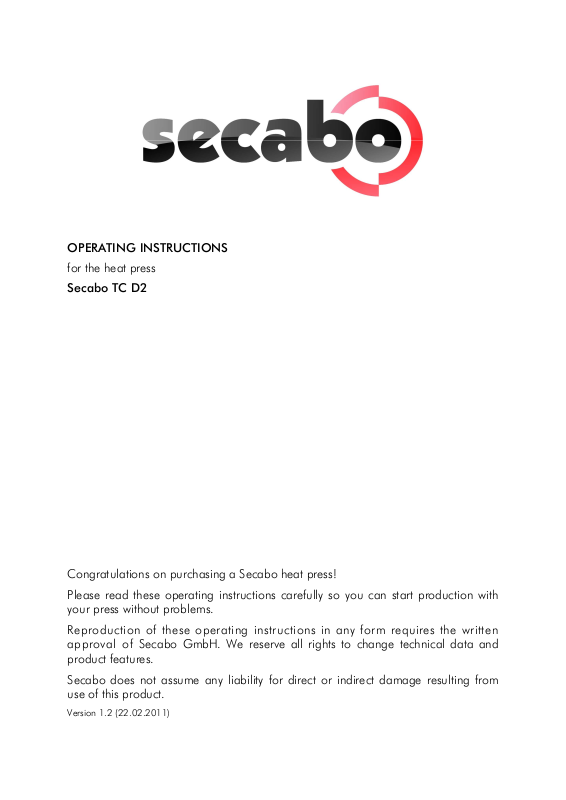

Secabo TC D2 Operating Instructions Manual

OPERATING INSTRUCTIONS

for the heat press

Secabo TC D2

Congratulations on purchasing a Secabo heat press!

Please read these operating instructions carefully so you can start production with your press without problems.

Reproduction of these operating instructions in any form requires the written approval of Secabo GmbH. We reserve all rights to change technical data and product features.

Secabo does not assume any liability for direct or indirect damage resulting from use of this product.

Version 1.2 (22.02.2011)

Table of contents

Table of contentsTable of contents

1111 Safety Precautions

Safety Precautions ................................

Safety PrecautionsSafety Precautions

2222 Scope of Delivery

Scope of Delivery ................................

Scope of DeliveryScope of Delivery

3333 Machine description

Machine description ................................

Machine descriptionMachine description

4444 Controller

Controller................................

ControllerController

5555 Operation

Operation ................................

OperationOperation

6666 Maintenance and cleaning

Maintenance and cleaning ................................

Maintenance and cleaningMaintenance and cleaning

7777 Recommended Times and Temperatures

Recommended Times and Temperatures................................

Recommended Times and TemperaturesRecommended Times and Temperatures

8888 Technical data

Technical data ................................

Technical dataTechnical data

................................................................

...............................................................

................................................................

..............................................................

................................................................

...................................................

................................................................

....................................................

................................................................

................................................

................................................................

.......................................

................................................................

....................................................

................................................................

........................................................

................................................................

................... 2222

......................................

.................... 3333

........................................

................ 4444

................................

............................... 5555

..............................................................

.............................. 6666

............................................................

....... 7777

..............

.................... 8888

........................................

........................ 9999

................................................

1 Safety Precautions

Please

Please read these instructions and safety precautions carefully before using your

Please Please press for the first time!

press for the first time!

press for the first time!press for the first time!

read these instructions and safety precautions carefully before using your

read these instructions and safety precautions carefully before using your read these instructions and safety precautions carefully before using your

• Never reach into the heat press with your hands when it is connected to the

power supply, particularly when it is switched on and heated up – danger of severe burns!

• Never open the housing or attempt to modify the machine yourself.

• In case you are requested by the Secabo customer support to open the

heating plate cover, please make sure you are wearing respiratory protection and only touch the contained insulation wool with gloves. Any disposal of the wool must be contained in a closed bag.

• Ensure that liquids and metal objects do not get into the inside of the heat

press.

• Ensure that the power socket used is grounded. Note that it is only

permissible to operate a heat press from a power socket protected by a ground fault protection switch.

• Disconnect machine from power outlet when not in use!

• Never operate the heat press within the reach of children and never leave the

machine unsupervised when switched on.

• Ensure that the machine is used only in dry rooms.

If you cannot observe one or more of the safety precautions above, or if you are

If you cannot observe one or more of the safety precautions above, or if you are If you cannot observe one or more of the safety precautions above, or if you are not sure whether all points are satisfied, please contact our Technical Support

not sure whether all points are satisfied, please contact our Technical Support

not sure whether all points are satisfied, please contact our Technical Support not sure whether all points are satisfied, please contact our Technical Support Department.

Department.

Department.Department.

2

2 Scope of Delivery

Before starting work, please check whether the following items are all present:

Article Quantity

Heat press 1

230V

1

connecting cable

Instruction manual 1

3

3 Machine description

c)

a)

b)

d)

e)

d

a) Time and Temperature Controller b) Working table c) Pressure Adjustment d) Slide rail e) Knee lever Open/Close

4

4 Controller

Select settings

“START“

Press button - heating process starts

“STOP“

Press button again - heating process stops

Press briefly: increase value

Press for longer: reset values

Press briefly: reduce value

Press for longer: save values

5

5 Operation

• Use the power cable included in the delivery to connect the transfer press

with a 230V power socket.

• Switch on the press with the flip switch on the back.

• The small lamp next to “Current Temp“ is on, the current temperature is

shown on the display. By pressing “SAVE“ or “CLEAR“ you can choose between “°C“ and ”°F“.

• Select the individual menu items by pressing ”SELECT“.

• Set the desired temperature (“Setting Temp.“) and the desired time (“Setting

Time”) by selecting ”SAVE“ or ”CLEAR“. Confirm the entry by pressing “SAVE” for longer.

• Select the "START/STOP" button to start the heating process to the set

temperature.

• “Temp. Rising“ will light up.

• When the set temperature is reached, you will hear a signal and the small

lamp will light up “Temp. Hold“.

• Now you can carry out the first transfers. The time clock will start running as

soon as the press is closed with the press lever.

• You will see the time on the display.

• You will hear a warning signal after the set time has expired.

• You can regulate the contact pressure by increasing or reducing the leverage

by turning the large fixing screw on the upper side of the press. The contact pressure is increased by turning in the clockwise direction. The pressure is reduced by turning in the other direction.

• No settings can be changed during the pressing process.

• With each completed pressing process the counter will rise by one, when the

stated time has completely expired.

• Reset the counter by pressing “CLEAR“ for a longer moment. Previously select

the menu item “COUNTER“ by pressing “SELECT”.

Note: Please note that a certain time is required before the press cools down after

Note: Please note that a certain time is required before the press cools down after Note: Please note that a certain time is required before the press cools down after it is switched off.

it is switched off.

it is switched off.it is switched off.

6

6 Maintenance and cleaning

Maintenance work should always be accomplished with the press switched off and cooled down. The plug must first be disconnected from the power socket. Consult Technical Support before carrying out any maintenance work.

Clean the press regularly with a soft cloth and mild household cleaner to remove adhesive residues etc. Never use scouring sponges, solvents or gasoline!

7

7 Recommended Times and Temperatures

These values are only guidelines; they can vary from material to material and should always be checked before pressing.

Material

Material Temperature

MaterialMaterial

Flock film

Flock film 170°C - 185°C light-medium 25s

Flock filmFlock film

Flex film

Flex film 160°C - 170°C medium-high 25s

Flex filmFlex film

Sublimation flex

Sublimation flex 180°C - 195°C medium-high 10s - 35s

Sublimation flexSublimation flex

Sublimation on

Sublimation on Sublimation on

ceramic mugs

ceramic mugsceramic mugs

Temperature Pressure

TemperatureTemperature

Pressure Time

PressurePressure

Time

TimeTime

200°C medium-high 150s - 180s

Sublimation

Sublimation on tiles

SublimationSublimation

Sublimation on

Sublimation on Sublimation on

jigsaw puzzles

jigsaw puzzles jigsaw puzzles

Sublimation

Sublimation Sublimation

mousepads

mousepadsmousepads

Sublimation on

Sublimation on Sublimation on

textiles

textilestextiles

Sublimation on

Sublimation on Sublimation on

metal plates

metal platesmetal plates

on tiles

on tiles on tiles

200°C high 120s - 480s

(depending on thickness of

material)

200°C light-medium 25s

200°C medium 20s - 40s

200°C medium-high 30s - 50s

200°C high 10s - 50s

(depending on thickness of

material)

8

8 Technical data

Heat press

Heat pressHeat press

Working angle

Working angleWorking angle

Max. contact pressure

Max. contact pressureMax. contact pressure

Type

TypeType

Max. temperature

Max. temperatureMax. temperature

Max. time setting

Max. time settingMax. time setting

Power supply

Power supplyPower supply

Ambient conditions

Ambient conditionsAmbient conditions

TC D2

0° - 50°

250g/cm²

Lineare double plate heat press

260°C

9999s

230V / 50Hz - 60Hz, 1,75kW

+5°C-+35°C/30%-70%

humidity

Weight

WeightWeight

Dimensions (W x H x D)

Dimensions (W x H x D)Dimensions (W x H x D)

44kg

85cm x 53cm x 41cm

9

Konformitätserklärung

Statement of Conformity

Hiermit erklären wir in alleiniger Verantwortung, dass das unter „9. Technische Daten“ genannte Produkt mit den Bestimmungen der folgenden EG-Richtlinien und Normen übereinstimmt: We herewith declare under sole responsibility that the under „9. technical data“ mentioned product meet the provisions of the following EC Directives and Harmonized Standards:

EG-Richtlinien / EC Directives:

2006/95/EG Niederspannungsrichtlinie

2006/95/EC Low Volatge Directive

98/37/EG Maschinenrichtlinie (2006/42/EG ab 29.12.2009)

98/37/EC Directive on machinery (from 2009-12-29: 2006/42/EC)

Norm / Standard:

EN 60204-1:2006

Technische Dokumente bei / Technical documents at:

Secabo GmbH, Hochstatt 6-8, 85283 Wolnzach, Germany

Dipl. Ing. Fabian Franke Dipl. Ing.(FH) Bernhard Schmidt

Secabo GmbH, www.secabo.com, Hochstatt 6-8, 85283 Wolnzach, Germany
