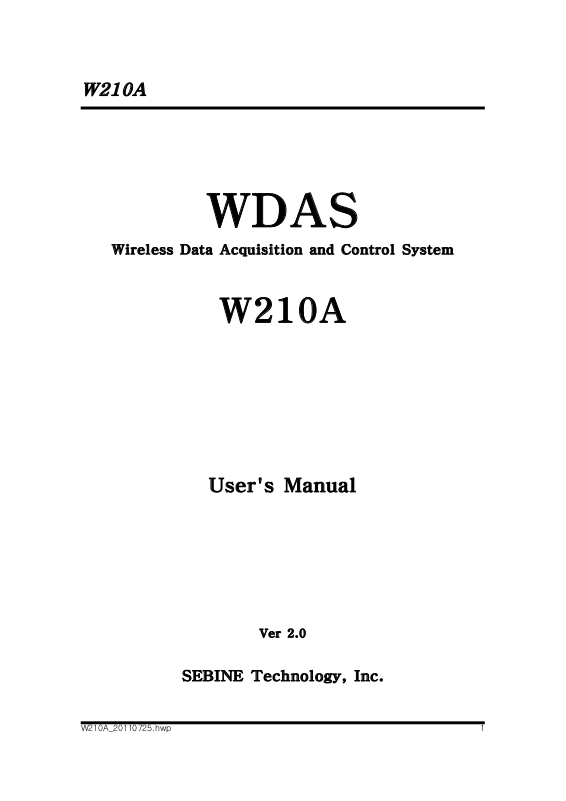

SEBINE Technology W210A Users Manual

W210A

Wireless Data Acquisition and Control System

WDAS

W210A

User's Manual

Ver 2.0

SEBINE Technology, Inc.

W210A_20110725.hwp 1

W210A

This device complies with Part 15 of the FCC Rules. Operation is subject to the following

two conditions: (1) This device may not cause harmful interference, and (2) this device must

accept any interference received, including interference that may cause undesired operation.

W210A_20110725.hwp 2

W210A

CONTENTS

1. Summary

1.1 Product Introduction

1.2 Specification

2. Operation

2.1 PC MODE

3. Device Connection

3.1 Power Supply

3.2 Analog Input Connection

4. Environment Setup

4.1 Hardware Connection

4.2 Setup List of Each Mode

5. Examples

Appendix 1. Dimension
Appendix 2. R&TTE
Appendix 3. Document Information

W210A_20110725.hwp 3

W210A

1. Summary

1.1 Product Introduction

W210A is one of WDAS(Wireless Data Acquisition and Control System) products
and it is a wireless data transmitter-receiver which receives analog input data for
controlling signal by using 433MHz RF frequency bandwidth. W210A allows users
to set communication channels via environment setting. Usable frequency number,
channel number, and serial number are printed in shipping products.

Figure 1. W210A

W210A_20110725.hwp 4

W210A

1.1.1 Application examples

Figure 2. On/Off Status Wireless Transmission by W210A and M110A

1.1.2 Product usage

l Cable system replacement : Maintenance difficulty with cables is solved
l Hard environment for cable installation : Environment that requires long and co

mplicated cable installation is solved

l Uneasy area for data acquisition by cable : Outdoor tank monitoring system

1.1.3 Product application area

l Pump, pipeline, liquid flow monitoring system
l Tank level, temperature monitoring system

1.1.4 Product parts

W210A main body, one λ/4 dipole antenna, one power connector, one Analog
Input connector

W210A_20110725.hwp 5

W210A

1.2 Specification

Item Specification

Name W210A

Dimension 109mm(L)×85mm(W)×18.6mm(H) (w/o Antenna)

Housing Aluminum

Weight 150g (w/o Antenna)

Power Supply +12Vdc ±10%, Reverse Power/Overvoltage/Overcurrent Protection
Current
Consumption

Operating
Temperature

RF Features

Rx 80mA Tx 86mA WDT Reset 88mA (@12Vdc)

-10℃ ~ +60℃

• Frequency : 433.0625MHz ~ 434.7625MHz

• Channel Spacing : 25KHz

• Transmitter Power : 73dBuV/m

• Receiver Sensitivity : -116 ~ -120dBm(-116dBm typ.)

• Modulation : FSK

• Bandwidth : < 14KHz

Performance

I/O

Interface

Antenna

Interface

• Expected Line-Of-Sight Range :
Up To 1.5km with λ/4 Dipole Antenna

• RF Data Rate :

4.8K Baud, 7.2K Baud

2Ch. Analog Input, with 16Bit Resolution

Analog

Input

• SMA(Female, Reverse)Connector

• Impedance 50Ω

(0~5V, 0~10V, 4~20mA)
User Selectable Input Type : Current or Voltage
User Selectable Input Voltage Range : 0~5V or 0~10V

Table 1. W210A Specification

W210A_20110725.hwp 6

W210A

2. Operation

W210A can use only PC MODE. Refer the Programmer guide for detailed protocol
and Function Code.

2.1 PC MODE

2.1.1 Definition of PC MODE
Through M110A(PC MODE), W110A(Only PC MODE) with serial port, W210A
execute the command when valid Function Code is received.

- Valid receiver Function Code : READ

Figure 3. PC MODE of W210A

2.1.2 Function Code available at PC MODE

- READ : Through M110A(PC MODE), W110A(Only PC MODE) with serial port,
current analog input status is read when W210A receives Function Code of
inquiry of analog input status.

- READ_RESPONSE : Function Code of READ_RESPONSE is used when READ
Function Code is received and current analog input status is transmitted.

2.1.3 Environment setting list before PC MODE use

- Non

W210A_20110725.hwp 7

W210A

3. Device Connection

Figure 5. W210A Outer Figure 6. W210A Inner

W210A_20110725.hwp 8

W210A

3.1 Power Supply

W210A works at +12Vdc and equipped with Reverse Power / Overvoltage /
Overcurrent Protection circuitry. Power is supplied by power connector provided
at product purchase as shown in figure below. W210A has no external power
switch and it becomes in working mode when the power is supplied. If normal
power is supplied, power supply indicator LED is on.

 As shown in Figure 7, remove the skin of wire about 7mm and put it into the
terminal and tighten it by turning the left screw using screwdriver.

 As shown in Figure 8, connect it to power.
 As shown in Figure 9, connect the terminal to power port of W210A, Make

sure the direction is exact as shown in Figure 9.

Figure7. Power Supply-1 Figure8. Power Supply-2 Figure9. Power Supply-3

※ Notice
Readily accessible disconnect device shall be incorporated external to the
equipment.

W210A_20110725.hwp 9

W210A

3.2 Analog Input Connection and Setting

W210A supports 2 input channel. For analog input function, use Analog Input
connector in Figure 10. Analog Input connector is included in product purchase.
Connection method is same as power supply connection method.

Figure 10. W210A connector

3.2.1 Analog input connection
Analog input channel generates input via the difference between AGND and
corresponding analog input channel pins. Thus, the both ends of device that
generates analog input should be connected to corresponding channel pins and
AGND.

3.2.2 Analog input channel setup
For use of anlog input, AI#0 voltage input level setting jumper, AI#1 voltage
input level setting jumper, AI#0 voltage/current input setting jumper, AI#1
voltage/current input setting jumper adjustments are needed as shown in Figure

11.

W210A_20110725.hwp 10

W210A

Figure 11. W210A analog input channel setting concept

AI#0 : AI#0 can select voltage/current input receipt. When receiving voltage, set
the jumper of J8 as V and adjust the voltage input range, then receive voltage via
pin 1 of Analog Input connector. When receiving current, set the jumper of J6 as
C, then receive current via pin 4 of analog input connector.

AI#1 : AI#1 can select voltage/current input receipt. When receiving voltage, set
the jumper of J9 as V and adjust the voltage input range, then receive voltage via
pin 2 of Analog Input connector. When receiving current, set the jumper of J9 as
C, then receive current via pin 5 of analog input connector.

W210A_20110725.hwp 11

W210A

4. Environment setup

Environment setup can be made through SetModemEnv.exe program. For details,
consult the corresponding manual.

4.1 Hardware connection

Use DBG port for PC connection shown in Figure 13.

Figure 13. Hardware connection-1(W210A) Figure 14. Hardware connection-2(PC)

For communication frequency adjustment, port and PC must be connected via
serial communication program as shown in Figure 13.

Figure 15. Hardware connection-3

The hardware connection between W210A and PC can be done as shown in
Figure 15.

W210A_20110725.hwp 12

W210A

4.2 Setup list of each mode

4.2.1 PC MODE

- PC/DEVICE MODE Setting : PC MODE Setting

- Channel Setting : Communication Frequency Setting

- Tx Power Level Setting : Communication RF Power Level Setting

4.2.3 Environment Setting Program

1) Channel Setting(Communication Frequency Setting)

Figure 16. Environment Setting Program-Channel Setting Setting

2) Tx Power Level Setting(Communication RF Power Level Setting)

W210A_20110725.hwp 13

W210A

Figure 17. Environment Setting Program-Tx Power Level Setting

W210A_20110725.hwp 14

W210A

5. Examples

(EX 1) M110A(PC MODE) to W210A(PC MODE) Communication

Figure 21. M110A to W210A Communication Example

W210A_20110725.hwp 15

W210A

Appendix 1. Dimension

W210A_20110725.hwp 16

W210A

Appendix 2. R&TTE

Hereby, SEBINE Technology, Inc. declares that this device(M/N:W210A) is in
compliance with the essential requirements and other relevant provisions of
Directive 1999/5/EC.

W210A_20110725.hwp 17

W210A

Appendix 3. Document Information

Revision H/W Version Description

1.0 RF1-AE-AI Ver1.2 02/23/2010 - Initial Release Version

2.0 RF1-AE-AI Ver1.2 07/13/2011 - Modified

W210A_20110725.hwp 18

W210A

SEBINE Technology, Inc.

Homepage : www.sebinetech.com
E-mail : [e-mail]

RN 202, Daedeok Radio Engineering Center, 694, Tamnip-dong,
Yuseong-gu, Daejeon, Korea 305-510
Tel : [phone], 2085
Fax : [phone]

W210A_20110725.hwp 19

RF MODEM / WDAS

Programmer's Guide

Ver 1.0

Ver 1.0

SEBINE Technology, Inc.

Programmer's Guide_20110718_eng.hwp 1

CONTENTS

1. Summary

2. Basic Communication Concept

3. Protocol

3.1 Protocol

3.2 Protocol and Device Operation Mode

3.3 Use of FUNCTION CODE

4. Communication Consumption Time

5. Example

Appendix 1. Document Information

Programmer's Guide_20110718_eng.hwp 2

1. Summary

RF MODEM and WDAS(Wireless Data Acquisition and Control System) is a wireless
transmitter/receiver device. RF MODEM and WDAS are distinguished depending on
I/O interface.

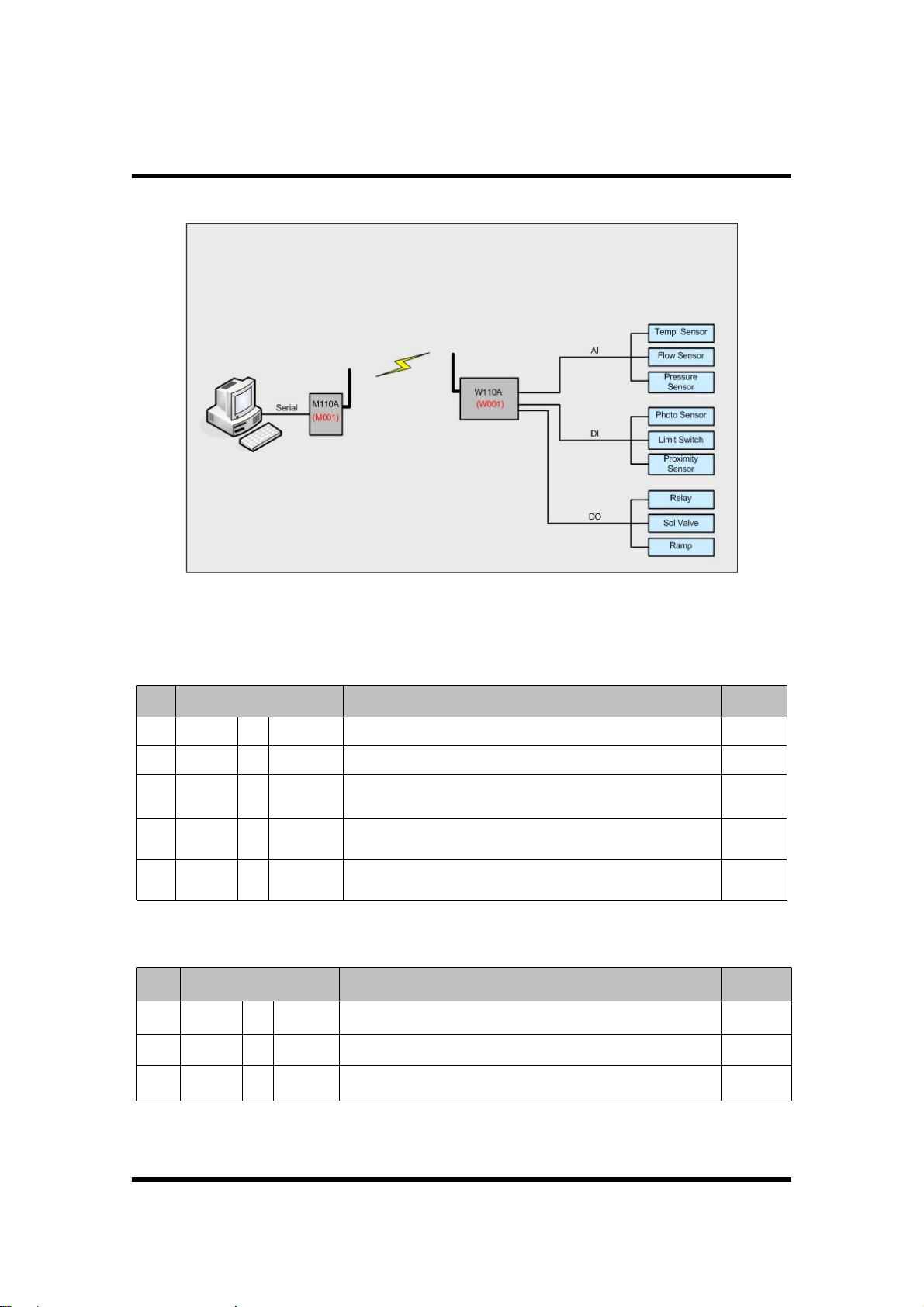

[Products List '09]

Group Products I/O Interface

RF MODEM M110A RS232/RS485 Interface

W110A DI 8ch, DO 8ch, AI 5ch, RS232 Interface
W210A AI 2ch

WDAS

Users select applicable products on their desired system and make a easy use
through simple environment setup and GUI.
For use of RF MODEM and WDAS, use SEBINE Technology's own environment
setup program and protocol.
M110A can't RF transmission and reception without control signal.

W310A DI 8ch, DO 8ch
W410A DI 4ch
W510A AO 2ch

Table 1. Products Classification with I/O

Programmer's Guide_20110718_eng.hwp 3

2. Basic Communication Concept

For system configuration using RF MODEM and WDAS, 1:1, 1:N method is applied.
All products receive command through RF communication and transmit ACK or
NACK for received command through RF communication. ACK means command is
done correctly and NACK means command is done incorrectly. However, if ACK or
NACK is not received within some amount of time, RF communication has problem.
So, users should always check ACK, NACK for system operation.

Figure 1. Transmission ACK after correct command receive (W410A)

Figure 2. Transmission NACK after incorrect command receive(W410A)

Figure 3. Command receive fail(W410A)

Programmer's Guide_20110718_eng.hwp 4

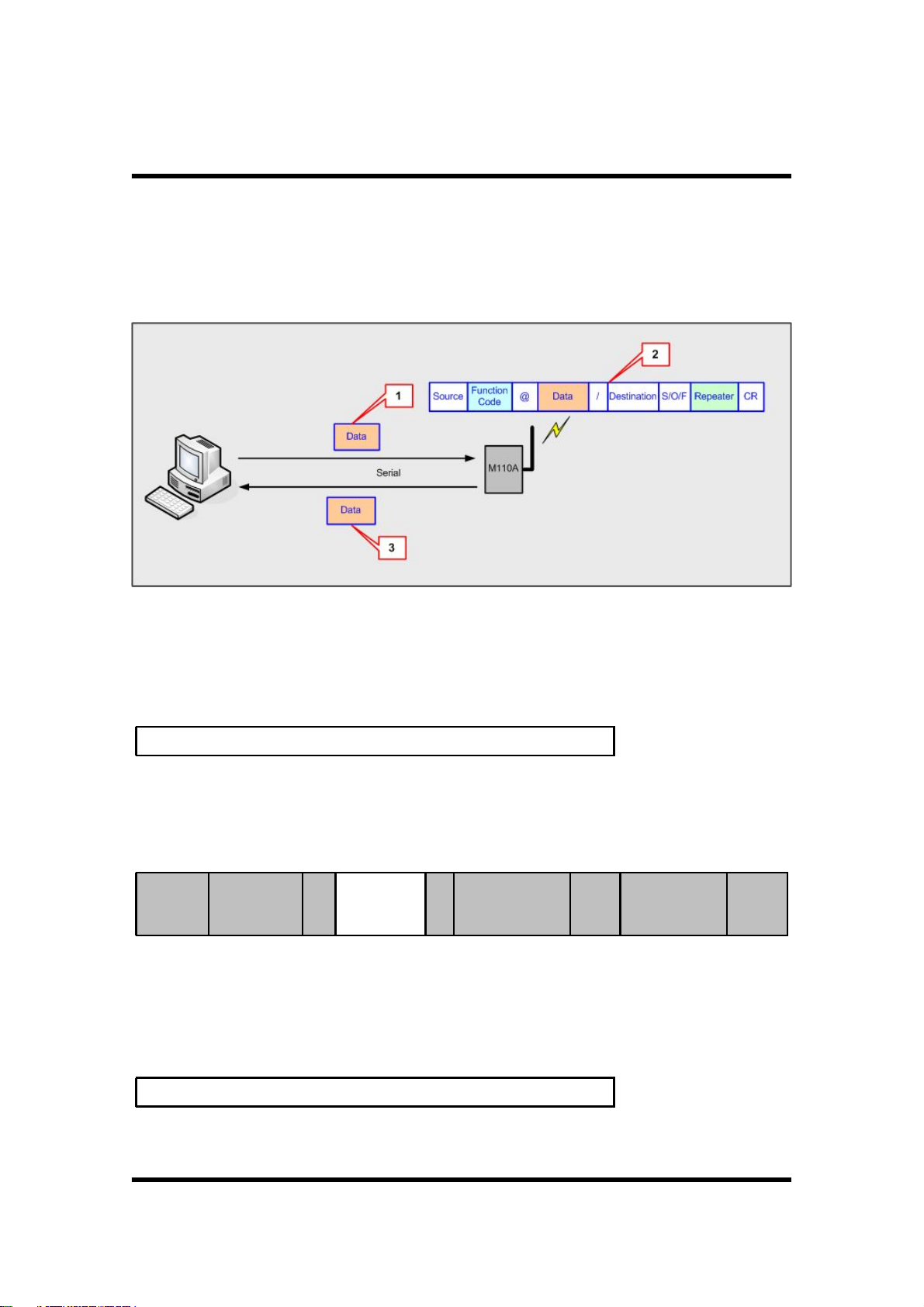

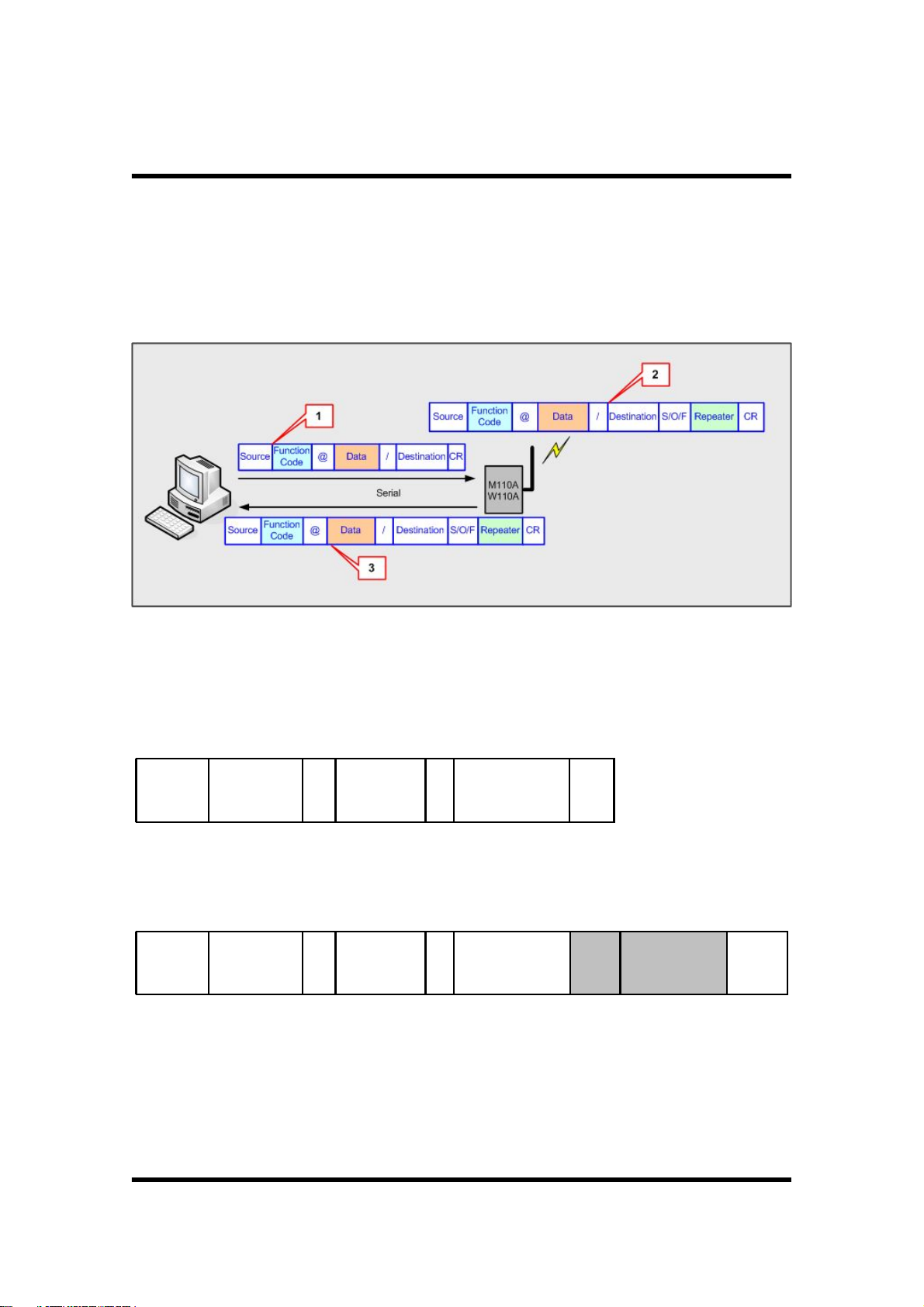

3. Protocol

DESTINATION

3.1 Protocol

For system configuration with RF MODEM and WDAS, use SEBINE Technology's
own protocol for control of installed RF MODEM and WDAS. Protocol is as follows.

SOURCE

FUNCTION

CODE

@

Control

Signal

DATA

/ DESTINATION S/O/F REPEATER CR

3.1.1 SOURCE

- Description : Unique ID of Transmitter(M110A, W110A, W210A, W310A, W410A,
W510A). It is pre-fixed at factory delivery.

- Length : 4byte

- Example : RF MODEM : Mxxx -> M001
WDAS : Wxxx -> W001

3.1.2 FUNCTION CODE

- Description : Command. Use appropriate FUNCTION CODE for each component

Function

Code

10 WRITE

11 WRITE_SERIAL

20 READ

21 READ_RESPONSE

22 STATUS_READ

23 STATUS_RESPONSE

Command Description SOURCE DESTINATION

Signal output command to

with AO, DO function

Data communication command to

DESTINATION with serial interface
function

Measure input signal command to
DESTINATION with AI, DI function

Read and transmit signal command to
SOURCE with AI, DI function

Measure output signal command to

DESTINATION with AO, DO function

Reply output signal value command to
DESTINATION with AO, DO function

M110A,

W110A

M110A,
W110A

M110A,
W110A

W110A,

W210A,
W310A,
W410A

M110A,

W110A

W 3 1 0A ,
W510A

W110A,
W310A,
W510A

M110A,
W110A

W110A,

W210A,
W310A,
W410A

M110A,
W110A

W310A,

W510A

M110A,
W110A

Table 2. Function Code

- Description : 2byte

- Example : None

Programmer's Guide_20110718_eng.hwp 5

3.1.2 @

- Description : Classifier for beginning of DATA
※‘@’is a reserved classifier. User cannot use it for other use

- Length : 1 Byte

- Example : None

3.1.3 Control Signal DATA

- Description : Control Signal Data sent to DESTINATION by SOURCE. Depending
on products, contents of Control Signal DATA changes or skipped. In ACK, NACK,
it is skipped.

- Length : 0 ~ 50byte

- Example : None

3.1.4 /

- Description : Classifier for end of DATA

※‘/’is a reserved classifier. User cannot use it for other use

- Length : 1 Byte

- Example : None

3.1.5 DESTINATION

- Description : Object communicates with SOURCE (M110A, W110A, W210A,
W310A, W410A, W510A)

- Length : 4 Byte

- Example : RF MODEM : Mxxx -> M001
WDAS : Wxxx -> W001

3.1.6 S/O/F

- Description :Transmitting/Receiving data Status (S - Send, O - OK, F - Fail).
Automatically generated from device.

- Length : 1 Byte

- Example : None

3.1.7 REPEATER

- Description : ID of Repeater passes data sent by SOURCE. It is automatically
generated by device. If not passed through repeater, R00 is displayed.

- Length : 3 Byte

- Example : R110A : Rxx -> R01

Programmer's Guide_20110718_eng.hwp 6

3.1.8 CR

- Description : Carriage Return [ = 0x0D ]

- Length : 1 Byte

- Example : None

Programmer's Guide_20110718_eng.hwp 7

3.2 Protocol and Device Operation Mode

3.2.1 PC MODE of device with Serial Interface
: RF MODEM(M110A), WDAS(W110A)

If M110A, W110A(In Serial Port use, only PC MODE is available) set as PC MODE
for 1:1, 1:N system configuration, device operates as follows.

Figure 4. PC MODE of Serial Interface

1) PC->M110A(W110A)

Users transmit Device ID, FUNCTION CODE, @, Control Signal DATA, /,
DESTINATION ID of Device to be communicated, CR to M100A(W110A) through
serial communication program.

SOURCE

FUNCTION

CODE

@

Control

Signal

DATA

/ DESTINATION CR

2) M110A(W110A) <-> RF

M110A(W110A) automatically generate proper Status, REPEATER ID for received
data and transmit them by RF.

SOURCE

FUNCTION

CODE

@

Control

Signal

DATA

/ DESTINATION S/O/F REPEATER CR

Programmer's Guide_20110718_eng.hwp 8

3.2.2 DEVICE MODE of device with Serial Interface : RF MODEM(M110A)

If system is configurated by setting DEVICE MODE for M110A, 1:1, that is only RF
MODEM to RF MODEM communication configuration is possible. It operates as
follows.

Figure 5. DEVICE MODE of Serial Interface device

1) PC->M110A

Users transmit control signal data to M110A through serial communication program.
(Max 50Byte)

Control Signal DATA

2) M110A <-> RF

M110A automatically generates proper SOURCE, FUNCTION CODE, @, /, Status,
REPEATER ID, CR for received data via serial interface and transmit them via RF.

SOURCE

FUNCTION

CODE

@

Control

Signal

DATA

/ DESTINATION S/O/F REPEATER CR

3) M110A -> Serial Interface Controller

If DESTINATION device that request communication is RF MODEM and DEVICE
MODE is set, only Control Signal DATA part is transmitted to Serial Interface
Controller via serial port by protocol.

Control Signal DATA

Programmer's Guide_20110718_eng.hwp 9

3.2.3 PC MODE of device with DI, DO, AI, AO function : WDAS

If system is configured by setting PC MODE for WDAS, 1:1, 1:N communication
setup is available through RF MODEM(M110A), WDAS(W110A Serial Port)with Serial
Port.

Figure 6. PC MODE of DI, DO, AI, AO device

When command is received from RF MODEM(M110A), WDAS(W110A Serial Port),
perform corresponding operation for each model of WDAS, For details, refer the
application example.

Programmer's Guide_20110718_eng.hwp 10

3.3 Use of FUNCTION CODE

3.3.1 10 : WRITE

1) Description : Command that device with Serial Interface (M110A, W110A) in PC

MODE becomes SOURCE, then DESTINATION device in PC MODE with DO[Digital
Output], AO[Analog Output] function generates desired signal value.

2) Send Data :

=> DATA : *DO(2Byte)*, *AO0(4Byte)*AO1(4Byte)*

※‘*’is a classifier. It must be inserted.

=> S/O/F

▸ S : Data Send

3) Value Range of DATA

▸ DO : ※ Current applied products are W110A, W310A

Classification Digital Port

Note

Name DO#7 DO#6 DO#5 DO#4 DO#3 DO#2 DO#1 DO#0

Signal Range 0~1 0~1 0~1 0~1 0~1 0~1 0~1 0~1

Data Range

(Char)

Description

- Example :

Data DO 1st Byte DO 2nd Byte

Port No.

Output Signal 1 1 1 1 1 1 1 1

DO Data

Value

Description All DO#0 ~ DO#7 Signal Output “High"

DO#7 DO#6 DO#5 DO#4 DO#3 DO#2 DO#1 DO#0

0 ~ F 0 ~ F

8 DO ports in bit is expressed as

Express 0x00 ~ 0xFF(Hex) in CHAR(2Byte)

Ex) Express 0xF0(Hex) -> F0(Char)

F F

1="High",

0="Low"

Note

1="High",

0="Low"

=> DATA = *FF*

Programmer's Guide_20110718_eng.hwp 11

▸ AO : ※ Current applied product is W510A

bit

the

an

Classification Analog Port

Name AI#0 AI#1

Signal Range 0~5V, 0~10V, 0~20mA 0~5V, 0~10V, 0~20mA

Note

Data Range

(Char)

0000~FFFF(16Bit) 0000~FFFF(16Bit)

0~5V : 0V->0000, 5V->FFFF

0~10V : 0V->0000, 10V->FFFF

0~20mA : 0mA->0000, 20mA->FFFF

Description

AO0, AO1 is generated proportionally in 16
resolution (0000~FFFF(HEX)) depending on
setup output value range. AO Data Value is
approximate value.

- Example :

Classification Analog Port

Port Num

AI#0 AI#1

Output Signal FFFF 0000

AO Data

Value

5V when 0~5V 0V when 0~10V

Note

Description AO Data Value is approximate value.

=> DATA = *FFFF*0000*

4) ACK Data :

=> DATA : Blank
=> S/O/F

▸ O : Data Receive OK
▸ F : Data Receive Fail

5) Applicable products :

▸ SOURCE : M110A, W110A
▸ DESTINATION : W110A , W310A, W510A

Programmer's Guide_20110718_eng.hwp 12

6) Example :

▸ M110A(PC MODE) : Serial Interface
▸ W310A(PC MODE) : DO [Digital Output]
▸ Configuration :

Figure 8. WRITE communication configuration example

- DO = 99 output is desired

Flow Data Flow Data Format Status

1 PC à M001 M00110@*99*/W001↵ Wire

2 M001 à W001 M00110@*99*/W001SR00↵ Wireless

3 M001 ß W001

4 PC ß M001

▸ W00110@/M001FR00↵ -> Fail ACK
▸ W00110@/M001OR00↵ -> OK ACK

▸ W00110@/M001FR00↵ -> Fail ACK
▸ W00110@/M001OR00↵ -> OK ACK

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 13

3.3.2 11 : SERIAL_WRITE

1) Description : Command that device with serial interface (M110A, W110A) in

DEVICE MODE becomes SOURCE, then transmit control signal data to
DESTINATION device with serial interface function in DEVICE MODE.

2) Send Data :

=> Control Signal DATA : MAX 20Byte
=> S/O/F

▸ S : Data Send

3) Control Signal DATA Value Range : MAX 20Byte

4) ACK Data :

=> DATA : Blank
=> S/O/F

▸ O : Data Receive OK
▸ F : Data Receive Fail

5) Applicable products :

▸ SOURCE : M110A(DEVICE MODE)
▸ DESTINATION : M110A(DEVICE MODE)

6) Example-1 : Serial Interface of PC MODE to PC MODE

▸ M110A(DEVICE MODE) : Serial Interface
▸ M110A(DEVICE MODE) : Serial Interface
▸ Configuration :

Figure 9. WRITE_SERIAL communication configuration example_1

- Control Signal Data = Inverter Pump open

Programmer's Guide_20110718_eng.hwp 14

Flow Data Flow Data Format Status

1 PC à M001 Pump Open Control Signal Data send Wire

2 M001 à M002 M00111@/M002SR00(CRC)↵ Wireless

3 M001 ß M002

Inverter

4

Pump

Controller

ß M002

▸ M00211@/M001FR00(CRC)↵ -> Fail ACK
▸ M00211@/M001OR00(CRC)↵ -> OK ACK

▸ Pump Open Action -> OK ACK
▸ -> Fail ACK

Wireless

Wire

※ Cautions in using DEVICE MODE :

1. When data is sent through serial port, data must be sent at once without delay.

2. Only WRITE_SERIAL function can be used.

Programmer's Guide_20110718_eng.hwp 15

3.3.3 20 : READ

1) Description : Command that device with serial interface in PC MODE (M110A,

W110A) becomes SOURCE, then ask current received value from DESTINATION
device in PC MODE with DI[Digital Input], AI[Analog Input] function.

2) Send Data :

=> DATA : Blank
=> S/O/F

▸ S : Data Send

3) DATA Value Range : None

4) ACK Data :

=> READ_RESPONSE(21) is used as ACK for READ(20).

5) Applicable products : W110A , W210A, W310A, W410A

6) Example :

▸ M110A(PC MODE) : Serial Interface
▸ W310A(PC MODE) : DI[Digital Input] Interface
▸ Configuration :

Figure 11. READ communication configuration example

- Case that Destination with AI, DI function is requested to measure the current

input signal.

Flow Data Flow Data Format Status

1 PC à M001 M00120@/W001↵ Wire

2 M001 à W001 M00120@/W001SR00↵ Wireless

Programmer's Guide_20110718_eng.hwp 16

3.3.4 21 : READ_RESPONSE

1) Description : Command that SOURCE device with DI[Digital Input], AI[Analog

Input] function in PC MODE measures current input value and transmits
DESTINATION device requesting measured value. If 20(READ) is received,
measures and transmits current input value.

2) Send Data :

=> DATA : DI[Digital Input], AI[Analog Input] acquisition data

▸ W210A : *AI0(4Byte)*AI1(4Byte)*
▸ W310A, W410A : *DI(2Byte)*

=> S/O/F

▸ S : Data Send

3) Value Range of DATA

▸ DI : ※Current applied products are W110A, W310A, W410A

Classification Digital Port

Note

Name DI#7 DI#6 DI#5 DI#4 DI#3 DI#2 DI#1 DI#0

Signal Range 0~1 0~1 0~1 0~1 0~1 0~1 0~1 0~1

Data Range

(Char)

0 ~ F 0 ~ F

8 DI Ports are expressed in Bit as

Description

Express 0x00 ~ 0xFF(Hex) in CHAR(2Byte)

Ex) Express 0xF0(Hex) -> F0(Char)

- Example :

Data order DI 1st Byte DI 2nd Byte

Port Num

DI#7 DI#6 DI#5 DI#4 DI#3 DI#2 DI#1 DI#0

Output Signal 1 1 1 1 1 1 1 1

DI Data

F F

Value

Description DI#0 ~ DI#7 Set all “High"

1="High",

0="Low"

Note

1="High",

0="Low"

=> DATA = *FF*

Programmer's Guide_20110718_eng.hwp 17

※ W410A has 4 DI[Digital Input] Ports. So, DI 1st Byte is '0'.

bit

the

▸ AI : ※ Current applied product is W210A(16Bit resolution)

Classification Analog Port

Name AI#0 AI#1

Signal Range 0~5V, 0~10V, 0~20mA 0~5V, 0~10V, 0~20mA

Note

Data Range

(Char)

0000~FFFF(16Bit) 0000~FFFF(16Bit)

0~5V : 0V->0000, 5V->FFFF

0~10V : 0V->0000, 10V->FFFF

0~20mA : 0mA->0000, 20mA->FFFF

Description

AI0, AI1 is generated proportionally in 16
resolution (0000~FFFF(HEX)) depending on
setup input value range.

- Example :

Classification Analog Port

Port Num

AI#0 AI#1

Input Signal 5V when 0~5V 0V when 0~10V

AI Data

FFFF 0000

Value

Description AI Data Value is an approximate value

Note

=> DATA = *FFFF*0000*

Programmer's Guide_20110718_eng.hwp 18

4)ACK Data :

=> DATA : Blank
=> S/O/F

▸ O : Data Receive OK
▸ F : Data Receive Fail

5) Applicable products : W110A , W210A, W310A, W410A

6) Example :

▸ M110A(PC MODE) : Serial Interface
▸ W310A(PC MODE) : DI[Digital Input] Interface
▸ Configuration :

Figure 12. READ_RESPONSE communication configuration example

- DI Range : 00~FF(HEX)

- Acquisition case : DI = FF

Flow Data Flow Data Format Status

1 M001 ß W001 W00121@*FF*/M001SR00↵ Wireless

2 M001 à W001

3 PC ß M001

Programmer's Guide_20110718_eng.hwp 19

▸ M00121@/W001FR00↵ -> Fail ACK
▸ M00121@/W001OR00↵ -> OK ACK

▸ W00121@*FF*/M001SR00↵-> case OK
▸ -> case Fail

Wireless

Wire

3.3.5 22 : STATUS_READ

1) Description : Command that device with Serial interface in PC MODE (M110A,

W110A) becomes SOURCE, then requests DESTINATION device with AO[Analog
Output], DO[Digital Output] function in PC MODE about current output value.

2) Send Data :

=> DATA : Blank
=> S/O/F

▸ S : Data Send

3) Value Range of DATA : None

4) ACK Data :

=> STATUS_RESPONSE(23) is used as ACK for STATUS_READ(22).

5) Applicable products : W110A , W310A, W510A

6) Example :

▸ M110A(PC MODE) : Serial Interface
▸ W310A(PC MODE) : DO[Digital Output] Interface
▸ Configuration :

Figure 13. READ communication configuration example

- Case that Destination with DO, AO function is requested to measure the current

output signal value.

Flow Data Flow Data Format Status

1 PC à M001 M00122@/W001↵ Wire

2 M001 à W001 M00122@/W001SR00↵ Wireless

Programmer's Guide_20110718_eng.hwp 20

3.3.6 23 : STATUS_RESPONSE

1) Description : Command that SOURCE device with AO[Analog Output], DO[Digital

Output] function in PC MODE transmits current output value to DESTINATION
device requesting output value.

2) Send Data :

=> DATA : DO[Digital Output], AO[Analog Output] Output Data

▸ W110A, W310A : *DO(2Byte)*
▸ W510A : *AO0(4Byte)*AO1(4Byte)*

=> S/O/F

▸ S : Data Send

3) Value Range of DATA : Same as 10(WRITE) command

4) ACK Data :

=> DATA : Blank
=> S/O/F

▸ O : Data Receive OK
▸ F : Data Receive Fail

5) Applicable products : W110A, W310A, W510A

6) Example :

▸ M110A(PC MODE) : Serial Interface
▸ W310A(PC MODE) : DO[Digital Output] Interface
▸ Configuration :

Figure 14. STATUS_RESPONSE communication configuration example

Programmer's Guide_20110718_eng.hwp 21

- DO Range : 00~FF(HEX)

- Output case : DO = FF

Flow Data Flow Data Format Status

1 M001 ß W001 W00123@*FF*/M001SR00↵ Wireless

2 M001 à W001

3 PC ß M001

▸ M00123@/W001FR00↵ -> Fail ACK
▸ M00123@/W001OR00↵ -> OK ACK

▸ W00123@*FF*/M001SR00↵-> case OK
▸ -> case Fail

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 22

4. Communication Consumption Time

Intial booting time needed for normal operation after power on is about 200ms. In
serial data transmission (maximum 50Byte), it takes 450ms. Total time up to normal
ACK/NACK receiving takes 650ms. Also, total time for receiving READ command
and READ_RESPONSE, then transmitting ACK/NACK and for receiving
STATUS_READ command and STATUS_RESPONSE, then transmitting ACK/NACK
takes about 850ms. It takes about 400ms for transmitting WRITE command and
receiving ACK/NACK. However, in W500A case, it takes up to 1100ms. Users
should use products considering the communication consumption time.
(Communication consumption time is a time with some spare time. Consumption time
becomes longer when transmitting data length by RF becomes longer.) when users
send repeated data through RF MODEM, WDAS, ACK/NACK must be checked.
All device has silent period between transmission 10 seconds.

Table 3. Communication consumption time

Programmer's Guide_20110718_eng.hwp 23

5. Example

(EX 1) M110A(DEVICE MODE) to M110A(DEVICE MODES) communication

Figure 17. WRITE_SERIAL communication configuration example_1

- Control Signal Data = Inverter Pump open

Flow Data Flow Data Format Status

1 PC à M001 Pump Open Control Signal Data send Wire

2 M001 à M002 M00111@/M002SR00(CRC)↵ Wireless

3 M001 ß M002

Inverter

4

Pump

Controller

ß M002

▸ M00211@/M001FR00(CRC)↵ -> Fail ACK
▸ M00211@/M001OR00(CRC)↵ -> OK ACK

▸ Pump Open Action -> OK ACK
▸ -> Fail ACK

Wireless

Wire

※ Caution in using DEVICE MODE : When data is sent through serial port, data
must be sent at once without delay.

Programmer's Guide_20110718_eng.hwp 24

(EX 2) M110A(PC MODE) to W110A(Only PC MODE) communication

Figure 18. M110A to W110A communication example

1. DO Control

W110A : DO#0, DO#1, DO#4, DO#5 output is desired

Flow Data Flow Data Format Status

1 PC à M001 M00110@*33*/W001↵ Wire

2 M001 à W001 M00110@*33*/W001SR00↵ Wireless

3 W001 à Device DO#0, DO#1, DO#4, DO#5 => "High[=1]" Output Wire

4 M001 ß W001

5 PC ß M001

▸ W00110@/M001FR00↵ -> Fail ACK
▸ W00110@/M001OR00↵ -> OK ACK

▸ W00110@/M001FR00↵ -> Fail ACK
▸ W00110@/M001OR00↵ -> OK ACK

Wireless

Wire

2. Read AI, DI Status

Flow Data Flow Data Format Status

1 PC à M001 M00120@/W001↵ Wire

2 M001 à W001 M00120@/W001SR00↵ Wireless

3 W001 ß Sensors Analog Input, Digital Input Signal Read Wire

Programmer's Guide_20110718_eng.hwp 25

3. AI, DI Data Transmission

(AI0 = 0x03FF, AI1 = 0x03FF, AI2 = 0x03FF, AI3 = 0x03FF, AI4 = 0x03FF, Digital
Input Data = 0xFF )

Flow Data Flow Data Format Status

1 M001 ß W001

2 M001 à W001

3 PC ß M001

W00121@*03FF*03FF*03FF*03FF*03FF*FF*/M001S
R00↵

▸ M00121@/W001FR00↵ -> Fail ACK
▸ M00121@/W001OR00↵ -> OK ACK

▸W00121@*03FF*03FF*03FF*03FF*03FF*FF*/M00
1SR00↵ -> case OK
▸ -> case Fail

Wireless

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 26

(EX 3) W210A(PC MODE) to M110A(PC MODE) communication

Figure 19. W210A to M110A communication example

1. Read AI Status

Flow Data Flow Data Format Status

1 PC à M001 M00120@/W001↵ Wire

2 M001 à W001 M00120@/W001SR00↵ Wireless

3 W001 ß Sensors Analog Input Signal Read Wire

2. AI Data Transmission(Analog Input Data AI0 = FFFF, AI1 = 0000)

Flow Data Flow Data Format Status

1 M001 ß W001 W00121@*FFFF*0000*/M001SR00↵ Wireless

2 M001 à W001

3 PC ß M001

▸ M00121@/W001FR00↵ -> Fail ACK
▸ M00121@/W001OR00↵ -> OK ACK

▸ W00121@*FFFF*0000*/M001SR00↵

-> case OK

▸ -> case Fail

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 27

(EX 4) W310A(PC MODE) to M110A(PC MODE) communication

Figure 22. W310A to M110A communication example

1. DO Control

W310A : DO#0, DO#1, DO#4, DO#5 output is desired

Flow Data Flow Data Format Status

1 PC à M001 M00110@*33*/W001↵ Wire

2 M001 à W001 M00110@*33*/W001SR00↵ Wireless

3 W001 à Device DO#0, DO#1, DO#4, DO#5 => "High[=1]" Set Wire

4 M001 ß W001

5 PC ß M001

▸ W00110@/M001FR00↵ -> Fail ACK
▸ W00110@/M001OR00↵ -> OK ACK

▸ W00110@/M001FR00↵ -> Fail ACK
▸ W00110@/M001OR00↵ -> OK ACK

Wireless

Wire

2. Read DI Status

Flow Data Flow Data Format Status

1 PC à M001 M00120@/W001↵ Wire

2 M001 à W001 M00120@/W001SR00↵ Wireless

3 W001 ß Sensors Digital Input Signal Read Wire

Programmer's Guide_20110718_eng.hwp 28

3. DI Data Transmission(Digital Input Data = 0xFF)

Flow Data Flow Data Format Status

1 M001 ß W001 W00121@*FF*/M001SR00↵ Wireless

2 M001 à W001

3 PC ß M001

▸ M00121@/W001FR00↵ -> Fail ACK
▸ M00121@/W001OR00↵ -> OK ACK

▸ W00121@*FF*/M001SR00↵-> case OK
▸ -> case Fail

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 29

(EX 5) W410A(PC MODE) to M110A(PC MODE) communication

Figure 25. W410A to M110A communication example

1. Read DI Status

Flow Data Flow Data Format Status

1 PC à M001 M00120@/W001↵ Wire

2 M001 à W001 M00120@/W001SR00(CRC)↵ Wireless

3 W001 ß Sensors Digital Input Signal Read Wire

2. DI Data Transmission (Digital Input Data = 0x0F)

Flow Data Flow Data Format Status

1 M001 ß W001 W00121@*0F*/M001SR00↵ Wireless

2 M001 à W001

3 PC ß M001

▸ M00121@/W001FR00↵ -> Fail ACK
▸ M00121@/W001OR00↵ -> OK ACK

▸ W00121@*0F*/M001SR00↵ -> case OK
▸ -> case Fail

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 30

(EX 6) W510A(PC MODE) to M110A(PC MODE) communication

Figure 27. W510A to M110A communication example

1. AO Control

Flow Data Flow Data Format Status

1 PC à M001 M00110@*FFFF*FFFF*/W001↵ Wire

2 M001 à W001 M00110@*FFFF*FFFF*/W001SR00↵ Wireless

3 W001 à Device Analog Output Signal Write Wire

2. Read AO Status

Flow Data Flow Data Format Status

1 PC à M001 M00122@/W001↵ Wire

2 M001 à W001 M00122@/W001SR00↵ Wireless

3 W001 ß Sensors Analog Output Signal Read Wire

3. AO Status Transmission (Analog Output Data : AO0=0xFFFF, AO1=0xFFFF)

Flow Data Flow Data Format Status

1 M001 ß W001 W00123@*03FF*03FF*/M001SR00↵ Wireless

2 M001 à W001

3 PC ß M001

▸ M00123@/W001FR00↵ -> Fail ACK
▸ M00123@/W001OR00↵ -> OK ACK

▸ W00123@*FFFF*FFFF*/M001SR00↵

-> case OK

▸ -> case Fail

Wireless

Wire

Programmer's Guide_20110718_eng.hwp 31

Appendix 1. Document Information

Revision Description

1.0 07/13/2011 - Initial Release Version

Programmer's Guide_20110718_eng.hwp 32

SEBINE Technology, Inc.

Homepage : www.sebinetech.com
E-mail : [e-mail]

RN 202, Daedeok Radio Engineering Center, 694, Tamnip-dong, Yuseong-gu,
Daejeon, Korea 305-510
Tel : [phone], 2085
Fax : [phone]

Programmer's Guide_20110718_eng.hwp 33
