FM Transmitter
Instruction Manual
Please read this manual carefully before operating and save it
Have a question? Please visit http://www.i-Luv.com
i703
for future reference.
FM Transmitter V10M10_IM_EN_09192006
USER SAFETY GUIDE
YOU CAN HELP TO PROTECT THE ENVIRONMENT!
Please remember to respect the local regulations: Hand
in the non-working electrical equipment to an
appropriate waste disposal center.
Important Safety Warnings
1. FCC regulations state that any change or modification to
the equipment, not expressly approved by maker or its
authorized parties, could void user’s authority to operate
this equipment.
2. To prevent fire or electric shock, do not expose the unit to
rain or moisture.
3. Never attempt to open the cabinet. Always refer servicing to
a qualified technician.
Important Safety Instructions
1. READ INSTRUCTIONS - All the safety and operating
instructions should be read before the appliance is operated.
2. RETAIN INSTRUCTIONS - The safety and operating
instructions should be retained in a secure place for future
reference.
3. HEED WARNINGS - All warnings on the appliance and in
the operating instructions should be upheld.
4. FOLLOW INSTRUCTIONS - All operating and use
instructions should be followed.
5. WATER AND MOISTURE - The appliance should not be
used near water. For example: near a bathtub, kitchen sink,
laundry tub, and/or swimming pool.
-1 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
USER SAFETY GUIDE
Important Safety Instructions – Continued
6. HEAT - The appliance should be situated away from heat
sources such as radiators, heat registers, stoves, or other
appliances (including amplifiers) that produce heat.
7. POWER SOURCES - The appliance should be connected
to a power supply only of the type described in the
operating instructions or as marked on the appliance.
8. CLEANING - The appliance should only be cleaned with a
dry cloth.
9. OBJECT AND LIQUID ENTRY - Care should be taken so
that objects do not fall and liquids are not spilled into the
device’s openings.
10. CARTS AND STANDS - The appliance
should be used only with a cart or stand that
is recommended by the manufacturer. An
appliance and cart combination should be
moved with care. Quick stops, excessive
force, and uneven surfaces may cause the appliance and
cart combination to overturn causing possible injury to the
user and/or damage to the unit.
11. DAMAGE REQUIRING SERVICE - The appliance should
be serviced by qualified service professional when:
a. Objects have fallen into, or liquid has been spilled
into the appliance’s apertures.
b. The appliance has been exposed to rain.
c. The appliance has been dropped and suffered
damage.
d. The appliance does not appear to operate normally,
or exhibits a change in performance.
-2 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
USER SAFETY GUIDE
Important Safety Instructions – Continued
12. SERVICING - The user should not attempt to service the
appliance beyond what is described in the user's operating
instructions. All other servicing should be referred to
qualified service professional.
13. LEAD AND MERCURY - This product may contain lead
and/or mercury. Disposal of these materials may be
regulated by your local authorities due to environmental
considerations. For more detailed disposal or recycling
information, please contact your local authorities or the EIA
(Electronic Industries Alliance) – http://www.eiae.org
Additional Safety Instructions
• When not in use, keep your device in a safe place where it
will not be bent or crushed.
• Do not listen to music with high volume while driving.
Warning horn sounds may not be heard which could result
in a traffic accident.
NOTE: Changes or modifications not expressly approved by
the party responsible for compliance could void the user’s
authority to operate the equipment. Refer to 47 CFR Sec.
15.21.
About Electromagnetic Interference (EMI)
This device is designed and manufactured not to exceed the
exposure limit for radio frequency energy, which is set by the
Federal Communications Commission of the U.S government.
-3 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
USER SAFETY GUIDE
About Electromagnetic Interference (EMI)
– Continued
The term “EMI” is short for the electromagnetic interference
caused by the electromagnetic field generated by electronic
devices. In fact, most electrical appliances and devices emit
electric and magnetic fields, and most of modern electronic
devices are susceptible to electromagnetic interference (EMI) if
they are inadequately shielded or designed.
• If you use any personal medical device, such as a
pacemaker, please consult the manufacturer of the device
to determine if it is adequately shielded from
electromagnetic interference. Your physician may assist
you in obtaining this information.
• Please turn off this device if you are instructed to do so,
especially on an airplane and in a hospital.
• Please keep away from the medical instruments in a
hospital or medical unit while using this device.
FCC Notices to U.S. Users
This device complies with Part 15 of the FCC Rules. Operation is
subject to the following two conditions: (1) this device may not
cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause
undesired operation. Refer to 47 CFR Sec. 15.19.
This equipment has been tested and found to comply with the
limits for a Class B digital device, pursuant to Part 15 of the FCC
Rules. These limits are designed to provide reasonable
protection against harmful interference in a residential installation.
-4 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
USER SAFETY GUIDE
FCC Notices to U.S. Users – Continued
This equipment generates, uses, and can radiate radio
frequency energy and, if not installed and used in accordance
with the instructions, may cause harmful interference to radio
communications, which can be determined by turning the
equipment off and on, the user is encouraged to correct the
interference by one or more of the following measures:
• Reorient or relocate the receiving antenna.
• Increase the separation between the equipment and
receiver.
• Connect the equipment to an outlet on a circuit different
from that to which the receiver is connected.
• Consult the dealer or an experienced radio/TV technician
for help.
Industry Canada Notice to Canadian Users
Operation is subject to the following two conditions: (1) this
device may not cause harmful interference, and (2) this device
must accept any interference received, including interference
that may cause undesired operation of the device. Refer to IC
RSS 210 Sec. 5.11. The term “IC” before the certification or
registration number only means that the registration was
performed based on a Declaration of Conformity and that
Industry Canada technical specifications were met. It does not
imply that Industry Canada (IC) approved this equipment. Refer
to Self-Marking 6(f) and RSP 100 Sec. 4.
-5 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006

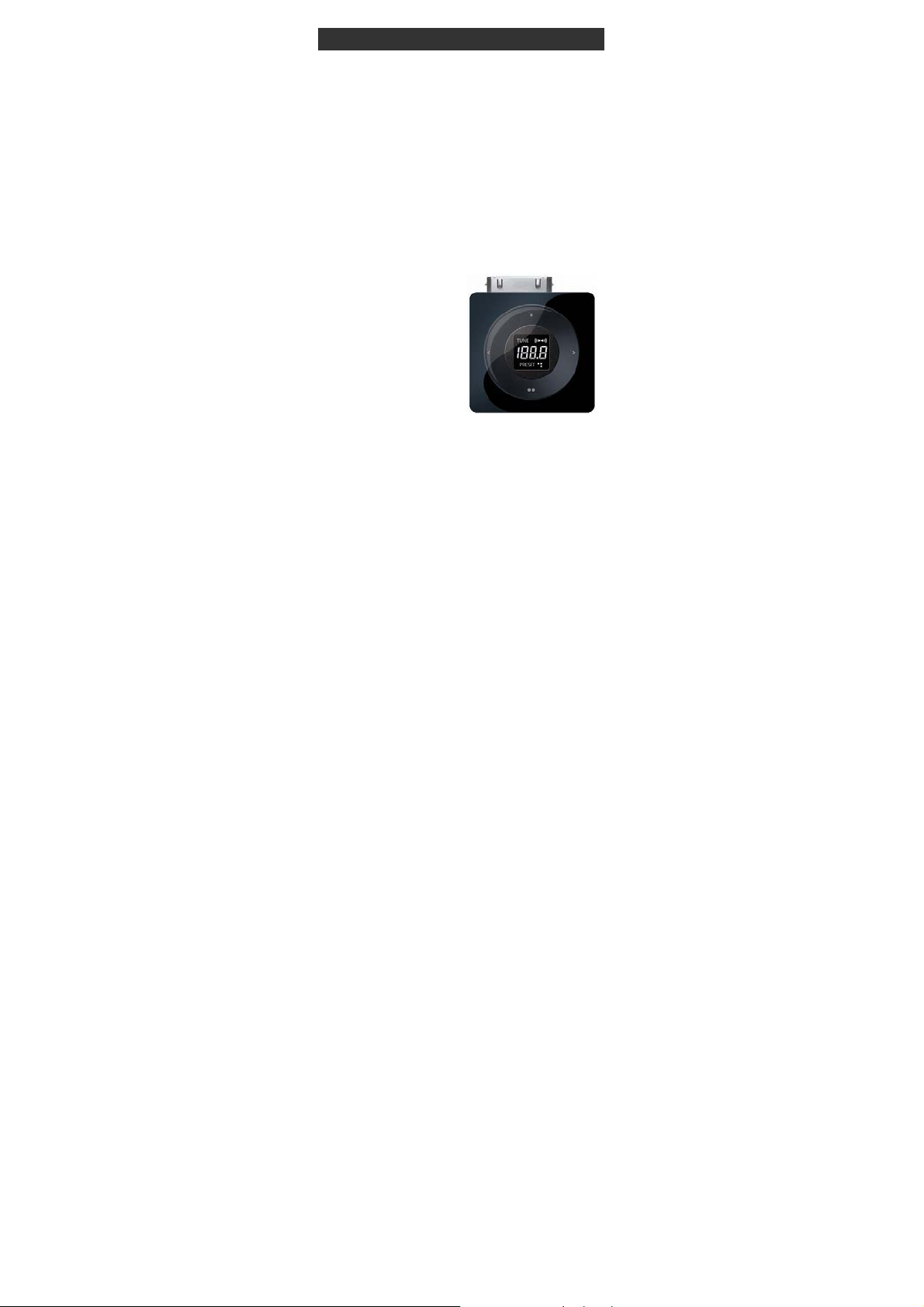

GETTING STARTED
Thank you for purchasing the i703. Unpack the unit and make
sure all the accessories are put aside so they will not be lost.
Be Free from Headphones and Share Your
Music with Your Friends.
• Transmit your favorite songs on your iPod® to a nearby FM
radio
• Supports the wide frequency range (88.1MHz to 107.9MHz)
with the step size of 0.1MHz
• You can charge or synchronize your iPod without
disconnecting i703
• Enjoy easy digital FM tuning with PLL technology
• Preset memory for up to 2 FM stations
• LCD screen with the white backlight
• Compact and easy-to-use design
• Powered by iPod
What’s Included?
• FM transmitter
• USB cable
• Instruction manual
• Warranty card
-6 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
6
GETTING STARTED

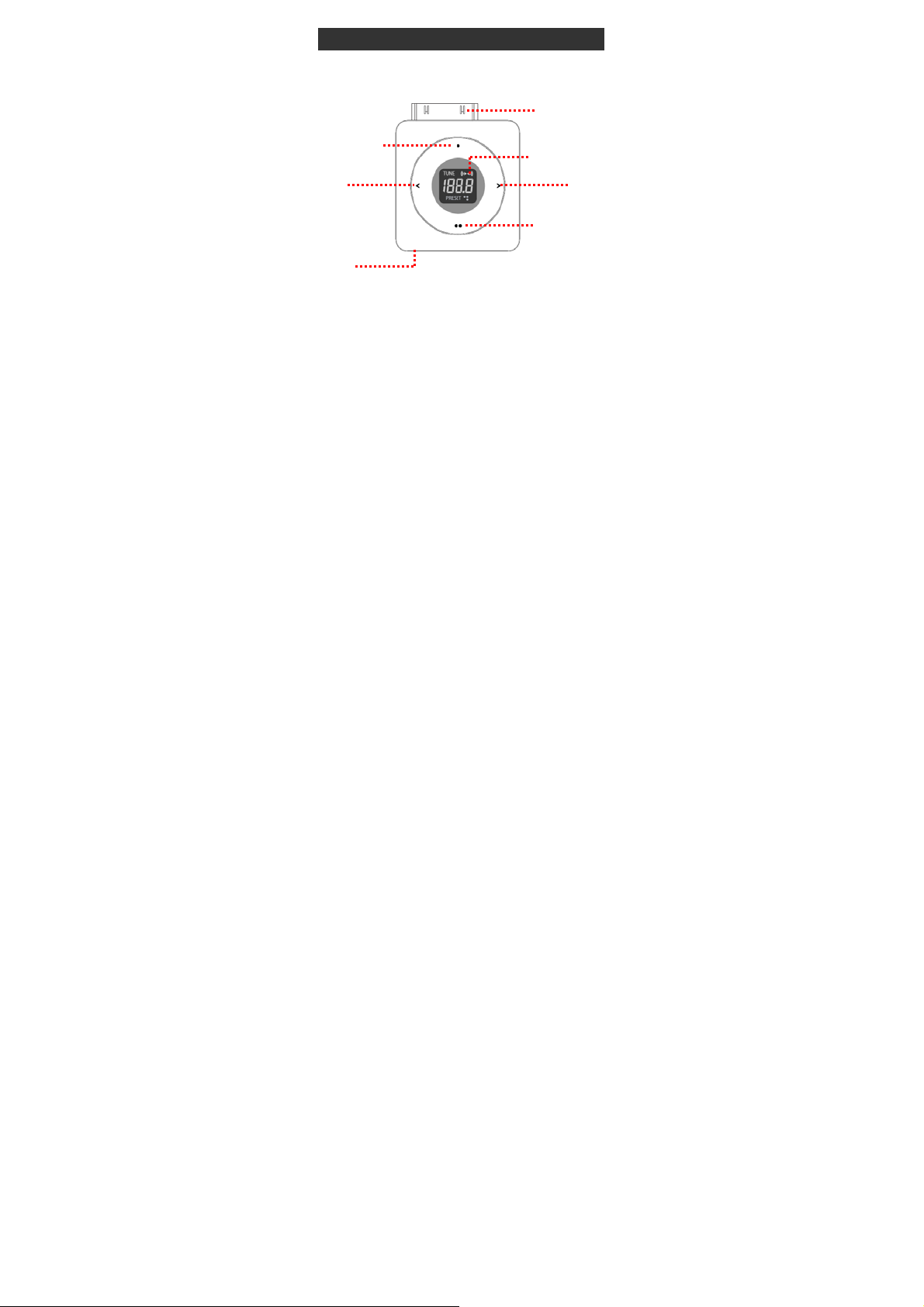

Location of Controls
1
2
3
1. • (Preset 1) button
2. < (Frequency down) button
3. Mini USB port
4. •• (Preset 2) button
5. > (Frequency up) button
6. LCD screen
7. 30-pin connector
-7 -
7
5
4
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
OPERATING INSTRUCTIONS
Turning on/off the FM Transmitter
This unit is designed to be powered by your iPod. When
connected to your iPod, it automatically turns on. When
disconnected, it automatically turns off. If there is no audio input
signal until 1 minutes after connected to your iPod, this unit
automatically enters the standby mode. In the standby mode, it
stops transmitting and the LCD turns off. If there is an audio
signal, it automatically wakes up and starts transmitting the
music.
Setting up the Preset Memory
You can store two FM frequencies in the preset memoy and
easily call them up later by pressing one of the preset buttons.
The default frequency for Preset 1 is 90.1MHz, and 98.1MHz for
Preset 2. To change the default preset frequencies with other
frequencies, follow the instructions below:
1. Connect the FM transmitter to your iPod. The LCD screen
turns on.
2. Select a frequency using the “<” (Frequency Down) and “>”
(Frequency Up) buttons.
3. Press and hold “•” (Preset 1) button until the selected
frequency display blinks.
4. Select a frequency using the “<” (Frequency Down) and “>”
(Frequency Up) buttons.
5. Press and hold “••” (Preset 2) button until the selected
frequency display blinks.
-8 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
OPERATING INSTRUCTIONS
Transmitting Your Favorite Songs to a
Nearby FM Radio
1. Connect the FM transmitter to your iPod.
2. Play a song on your iPod.
3. Press one of the preset buttons.
4. Tune your FM radio to a FM frequency stored on the
selected preset memory, and listen to your favorite music.
Note: Do not listen to music with high volume while driving.
Warning horn sounds may not be heard which could result in a
traffic accident.
Helpful Tips on Getting the Clearer Sound
• An FM transmitter employs frequency modulation to
transmit a song to an FM radio, and it can be disturbed by a
nearby strong FM broadcasting. Thus, before transmitting a
song using this unit, it is very important to select a clear FM
station, which has no other broadcasting which renders only
static noises.
• The sound quality of a FM transmitter also depends on the
direction of its built-in antenna and its surroundings. If you
hear some static noises while listening to music using the
FM transmitter, rotate or move the FM transmitter around
until you get a clearer sound.
• If a battery is low, the sound quality may also be poor. In
this case, charge your iPod first and try it again.
-9 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
OPERATING INSTRUCTIONS
Turning on/off the Backlight
To turn on the backlight, press any button on the unit. The
backlight will turn on for approximately 5 seconds and turn off
automatically. It is recommended to press the preset button,
which is currently on.
Charging and Synchronizing Your iPod
You can charge or synchronize your iPod without disconnecting
the FM transmitter. To do so, connect the mini USB plug of the
supplied USB cable to the mini USB port located at the bottom of
the FM transmitter. Connect the other end of the USB cable to
your computer or USB power adapter. Your iPod will be charged
or synchronized as usual.
- 10 -
www.i-Luv.com
FM Transmitter V10M10_IM_EN_09192006
OPERATIING INSTRUCTIONS
Specifications
• Modulation: FM Stereo
• Tuning Type:PLL(Phase-Lock Loop )
• Oscillating frequency: 16MHz
• Frequency Range: 88.1MHz – 107.9MHz (Step: 0.1MHz)
• Frequency Response (Audio): 80Hz – 20kHz
• Audio Input Level: 800mV
• Total Harmonic Distortion: 2.0%
• Transmitting Power: ≤ -43 dBm
• Transmitting Range: ≤ 33ft (Limited by FCC)
• Power by iPod
o Operating Voltage: 2.7V – 3.5V
o Operating Current: 35mA (Max)
• Power Consumption: ≤ 100m W
• Operating Temperature: -4°F to 122°F (-20℃ to 50℃)
• Storage Temperature: 14°F to 113°F (-10℃ to 45℃)
• Unit Dimension (W x H x D)
o 41mm x 40mm x 8mm
o 1.61” x 1.57” x 0.31”
• Unit Weight: 13±0.3g
* Features and specifications are subject to change without prior
notification. The unit dimensions and weights are approximate.
- 11 -
www.i-Luv.com
iLuv is a trademark of jWIN Electronics Corp. iPod is a trademark
of Apple Computer Inc. All logos and brands are property of their
respective owners. iPod is not included in this package. Features
and specifications are subject to change without prior notification.
© 2006 jWIN Electronics Corp. All rights reserved. No portion of
this printing material or product enclosed herewith including
design, shape and graphics, may be not reproduced or
transmitted in any form without the expressed written consent of
jWIN Electronics Corp. by any means, electronics or mechanical,
including photocopy, recording or information storage and
retrieval system. Any unauthorized distribution or reproduction of
this printing material or product, or any portion there of, will be
prosecuted to the fullest possible extent of the law. iPod is not
included with this product.
TEL: 516-626-7188
FAX: 516-626-7105
website: www.i-Luv.com
e-mail: info@i-Luv.com
Loading...
