Page 1

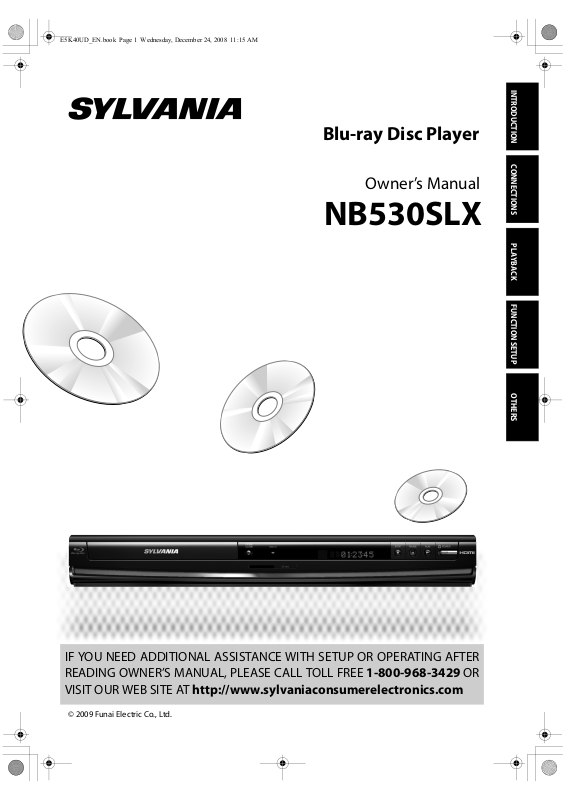

Owner’s Manual

INTRODUCTION CONNECTIONS PLAYBACK FUNCTION SETUP OTHERS

Blu-ray Disc Player

Owner’s Manual

NB530SLX

IF YOU NEED ADDITIONAL ASSISTANCE WITH SETUP OR OPERATING AFTER READING OWNER’S MANUAL, PLEASE CALL TOLL FREE 1-800-968-3429 OR VISIT OUR WEB SITE AT http://www.sylvaniaconsumerelectronics.com

Page 2

Prepare

Play

After all the connections are complete,

connect the AC power cord.

VIDEO OUT

PB/C

PR/C

OPTICAL

COAXIAL

DIGITAL OUT

COMPONENT

AUDIO OUT

PCM/BITSTREAM

VIDEO OUT

to AC outlet

Insert two Size AA (R6) batteries.

Press [POWER] to turn on the unit.

Turn on your TV.

Press the button on the TV’s remote control

that accesses the external input channel repeatedly until you see this player’s opening picture. (Please refer to your TV’s owner's manual.)

Press [OPEN/CLOSE ] to open the disc tray.

HDMI OUT

Place the disc on the disc tray with its label

side facing up.

Align the disc to the disc tray guide.

Press [OPEN/CLOSE ] to close the disc tray.

It may take a while to load the disc.

Quick Start Guide

Playback may start automatically.

If not, press [PLAY ].

To pause playback: Press [PAUSE ].

To return to the normal playback: Press [PLAY ].

To stop playback: Press [STOP ].

Select

Connect

For more info, please contact 1-800-968-3429 or visit : http://www.sylvaniaconsumerelectronics.com

Blu-ray Disc Player

Prepare

NB530SLX

Play

Manual

If the TV is connected by an HDMI cable, it may take a while for the opening picture to come up.

Please read the supplied Owner's Manual for the detailed instructions.

E5K40UD 1VMN26816 ★★★★★

Printed in China

Page 3

1. 2.

Select

the appropriate connection

Connect

Best

Video Audio

Supports up to 1080i / 1080p, 1080p24 resolution.

HDMI cable

HDMI IN

High

Definition

HDMI cable sends both audio and video digital signals. (No additional audio connection is required.)

HDMI cable not included.

High Speed HDMI Cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Better

Video

Audio

Cables used in this connection are as follows:

• Audio cable (L/R) x 1 (Included)

• Component video cable x 1 (Cable not included)

Supports up to 1080i resolution.

Component video cable

Audio cable

COMPONENT

VIDEO IN

PB/CB

PR/CR

AUDIO IN

High

Definition

Your TV

HDMI Cable

VIDEO OUT

PB/C

PR/C

OPTICAL

COAXIAL

DIGITAL OUT

COMPONENT

AUDIO OUT

PCM/BITSTREAM

VIDEO OUT

HDMI cable

HDMI OUTHDMI OUT

HDMI IN

HDMI OUT

Component Video Cable and Audio Cable

VIDEO OUT

PB/C

PR/C

OPTICAL COAXIAL

DIGITAL OUT

COMPONENT

AUDIO OUT

PCM/BITSTREAM

VIDEO OUT

PB/C

PR/C

COMPONENT

VIDEO OUT

AUDIO OUT

VIDEO OUT

HDMI OUT

Audio cable

Component video cable

Your TV

Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the connector are matched.

Your TV

COMPONENT

VIDEO IN

PB/CB

AUDIO IN

PR/CR

Basic

Video

Supports only 480i resolution.

Video cable

Audio

Cables used in this connection are as follows:

• Audio cable (L/R) x1 (Included)

Audio cable

VIDEO IN

AUDIO IN

Your TV

Standard

Definition

Audio/Video Cable

VIDEO OUT

PB/C

PR/C

OPTICAL COAXIAL

DIGITAL OUT

COMPONENT

AUDIO OUT

PCM/BITSTREAM

VIDEO OUT

AUDIO OUT

HDMI OUT

Video cable

Audio cable

VIDEO IN

AUDIO IN

Your TV

• Video cable x1(Included)

Manual

For more info, please contact 1-800-968-3429 or visit : http://www.sylvaniaconsumerelectronics.com

Please read the supplied Owner's Manual for the detailed instructions.

Page 4

Safety Instructions

INTRODUCTION

The model and serial numbers of this unit may be found on the cabinet. You should record and retain those numbers for future reference.

WARNING:

TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK, DO NOT EXPOSE THIS

Model No.:

Serial No.:

APPARATUS TO RAIN OR MOISTURE. APPARATUS SHALL NOT BE EXPOSED TO DRIPPING OR SPLASHING AND NO OBJECTS FILLED WITH LIQUIDS, SUCH AS VASES, SHALL BE PLACED ON THE APPARATUS.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION:

TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT REMOVE COVER (OR BACK). NO USER SERVICEABLE PARTS INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

The important note is located on the rear or bottom of the cabinet.

The lightning ash with arrowhead symbol, within an equilateral triangle, is intended to alert the user to the presence of uninsulated “dangerous voltage”within the product’s enclosure that may be of sucient magnitude to constitute a risk of elec tric shock to persons.

The exclamation point within an equilateral triangle is intended to alert the user to the presence of important operating and maintenance (servicing) instructions in the literature accompanying the appliance.

IMPORTANT SAFETY INSTRUCTIONS

1. Read these instructions.

2. Keep these instructions.

3. Heed all warnings.

4. Follow all instructions.

5. Do not use this apparatus near water.

6. Clean only with dry cloth.

7. Do not block any ventilation openings. Install in

accordance with the manufacture’s instructions.

8. Do not install near any heat sources such as radiators, heat registers, stoves, or other apparatus (including ampliers) that produce heat.

9. Do not defeat the safety purpose of the polarized or grounding-type plug. A polarized plug has two blades with one wider than the other. A grounding type plug has two blades and a third grounding prong. The wide blade or the third prong are provided for your safety. If the provided plug does not t into your outlet, consult an electrician for replacement of the obsolete outlet.

10. Protect the power cord from being walked on or pinched particularly at plugs, convenience receptacles, and the point where they exit from the apparatus.

11. Only use attachments/accessories specied by the manufacturer.

12. Use only with the cart, stand, tripod, bracket, or table specied by the manufacturer, or sold with the apparatus. When a cart is used, use caution when moving the cart/apparatus combination to avoid injury from tip-over.

13. Unplug this apparatus during lightning storms or when unused for long periods of time.

14. Refer all servicing to qualied service personnel. Servicing is required when the apparatus has been damaged in any way, such as power-supply cord or plug is damaged, liquid has been spilled or objects have fallen into the apparatus, the apparatus has been exposed to rain or moisture, does not operate normally, or has been dropped.

FCC WARNING

This equipment may generate or use radio frequency energy. Changes or modications to this equipment may cause harmful interference unless the modications are expressly approved in the manual. The user could lose the authority to operate this equipment if an unauthorized change or modication is made.

RADIO-TV INTERFERENCE

This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation. This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with the instructions, may cause harmful interference to radio communications. However, there is no guarantee that interference will not occur in a particular installation. If this equipment does cause harmful interference to radio or television reception, which can be determined by turning the equipment o and on, the user is encouraged to try to correct the interference by one or more of the following measures:

1) Reorient or relocate the receiving antenna.

2) Increase the separation between the equipment and receiver.

3) Connect the equipment into an outlet on a circuit dierent from that to which the receiver is connected.

4) Consult the dealer or an experienced radio/TV technician for help.

This Class B digital apparatus complies with Canadian ICES-003.

Disconnect the mains plug to shut o when nd trouble or not in use. The mains plug shall remain readily operable.

2EN

Page 5

INTRODUCTION

CAUTION: Danger of explosion if battery is incorrectly replaced. Replace only with the same or equivalent type. WARNING:

LASER SAFETY

This apparatus employs a laser. Only a qualied service person should remove the cover or attempt to service this apparatus, due to possible eye injury.

CAUTION: Use of controls or adjustments or performance of procedures other than those specied herein may

CAUTION: Visible and invisible laser radiation when open and inter lock defeated. Do not stare into beam.

LOCATION: Inside, near the deck mechanism.

IMPORTANT COPYRIGHT INFORMATION

Unauthorized copying, broadcasting, public performance and lending of discs are prohibited. This product incorporates copyright protection technology that is protected by U.S. patents and other intellectual property rights. Use of this copyright protection technology must be authorized by Macrovision, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision. Reverse engineering or disassembly is prohibited.

Do not place the unit on the furniture that is capable of being tilted by a child and an adult leaning, pulling, standing or climbing on it. A falling unit can cause serious injury or even death.

Batteries (Battery pack or battery installed) shall not be exposed to excessive heat such as sunshine, re, or the like.

result in hazardous radiation exposure.

INTRODUCTION C

ONNECTIONS

LAYBACK

Note

To Avoid the Hazards of Electrical Shock and Fire

Do not handle the power cord with wet hands.

•

Do not pull on the power cord when disconnecting it from an AC outlet. Grasp it by the plug. Do not put your ngers or objects into the unit.

•

Location and Handling

•

Do not install the unit in direct sunlight, near strong magnetic elds, or in a place subject to dust or strong vibration.

•

Avoid a place with drastic temperature changes.

•

Install the unit in a horizontal and stable position. Do not place anything directly on top or bottom of the unit. Depending on your external devices, noise or disturbance of the picture and/or sound may be generated if the unit is placed too close to them. In this case, please ensure enough space between the external devices and the unit. Depending on the environment, the temperature of this unit may increase slightly. This is not a malfunction.

•

Be sure to remove the disc and unplug the AC power cord from the outlet before carrying the unit.

Dew Condensation Warning

•

Dew condensation may form inside the unit in the following conditions. If so, do not use this unit at least for a few hours until its inside gets dry.

- The unit is moved from a cold place to a warm place.

- Under conditions of high humidity.

- After heating a cold room.

Note about Recycling

This unit’s packaging materials are recyclable and can be reused. Please dispose of any materials in

• accordance with your local recycling regulations.

•

Batteries should never be thrown away or incinerated but disposed of in accordance with your local regulations concerning chemical wastes.

Notice for Progressive Scan Output

•

Consumers should note that not all high denition television sets are fully compatible with this product and may cause artifacts to be displayed in the picture. In case of picture problems with 525(480) progressive scan output, it is recommended that the user switch the connection to the ‘standard denition’ output. If there are questions regarding your TV set compatibility with this 525p(480p) BD/DVD player, please contact our customer service center.

UNCTION

ETUP

THERS

3EN

Page 6

Contents

INTRODUCTION

Introduction

Safety Instructions ........................................................................2

Contents ...........................................................................................4

Supplied Accessories ...................................................................5

Trademark Information...............................................................5

Features ............................................................................................6

Symbols Used in this Manual....................................................6

Front Panel.......................................................................................7

Rear Panel.........................................................................................7

Remote Control..............................................................................8

Front Panel Display.................................................................... 10

Connections

Connection to the TV................................................................ 11

Connection to an Audio System ........................................... 13

Finding the Video Channel on Your TV.............................. 14

Playback

Information on Playback.......................................................... 15

How to Insert a Disc................................................................... 18

Reading the SD Memory Card ...............................................18

Selecting the Media Mode...................................................... 19

Playing Back (BD / DVD)........................................................... 20

Playing Back a VR mode DVD-RW/-R...................................21

Playing Back (Audio CD / JPEG Files)...................................22

Kodak Picture CD........................................................................23

Fast Forward / Fast Reverse.................................................... 24

Slow Forward Playback ............................................................24

Step by Step Playback ..............................................................24

Repeat Playback.......................................................................... 24

A-B Repeat ....................................................................................25

Program Playback ......................................................................25

Random Playback....................................................................... 26

Rapid Playback ............................................................................26

Adjusting the Picture ................................................................26

Virtual Surround.......................................................................... 27

PIP (BONUSVIEW) Setting........................................................ 27

Camera Angle ..............................................................................27

Search............................................................................................. 28

Switching Subtitles.................................................................... 29

Switching Audio Soundtrack .................................................29

Setting the BD Audio Mode.................................................... 30

Function Setup

Using the Setup Menu ..............................................................31

Quick..........................................................................................31

Custom......................................................................................32

Language ............................................................................33

Video.....................................................................................34

Audio ....................................................................................36

Parental................................................................................41

Others...................................................................................42

Initialize.....................................................................................43

Others

Troubleshooting..........................................................................44

Glossary ..........................................................................................45

Language Code List....................................................................46

Maintenance.................................................................................47

Limited Warranty ...................................................... back cover

4EN

Page 7

Supplied Accessories

INTRODUCTION

INTRODUCTION C

Owner’s Manual

ONNECTIONS

remote control with batteries (AAx2) (NB804UD)

RCA audio / video cables (WPZ0102TM018 / WPZ0102LTE01)

Trademark Information

HDMI, the HDMI logo and High-Definition Multimedia Interface are trademarks or registered trademarks of HDMI Licensing LLC.

Manufactured under license from Dolby Laboratories. Dolby and the double-D symbol are trademarks of Dolby Laboratories.

Manufactured under license under U.S. Patent #: 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,487,535 & other U.S. and worldwide patents issued & pending. DTS is a registered trademark and the DTS logos, Symbol, DTS-HD and DTS-HD Advanced Digital Out are trademarks of DTS, Inc. © 19962008 DTS, Inc. All Rights Reserved.

owner’s manual (EN/ES/FR) (1VMN26813 / 1VMN26814 / 1VMN26815)

“BONUSVIEW” is a trademark of Blu-ray Disc Association.

Java and all other Java trademarks and logos are trademarks or registered trademarks of Sun Microsystems, Inc. in the United States and / or other countries.

Products that have earned ENERGY STAR® are designed to protect the environment through superior energy efficiency.

quick start guide (EN/ES/FR) (1VMN26816 / 1VMN26817 / 1VMN26913)

LAYBACK

UNCTION

ETUP

THERS

“Blu-ray Disc” and are trademarks.

is a trademark of DVD Format/Logo Licensing

Corporation.

All rights reserved. No part of this manual may be reproduced, copied, transmitted, disseminated, transcribed, downloaded or stored in any storage medium, in any form or for any purpose without the express prior written consent of Funai. Furthermore, any unauthorized commercial distribution of this manual or any revision hereto is strictly prohibited.

Information in this document is subject to change without notice. Funai reserves the right to change the content herein without the obligation to notify any person or organization of such changes.

with the design is a registered trademark of Funai Electric Co., Ltd and may not be used in any way without the express written consent of Funai. All other trademarks used herein remain the exclusive property of their respective owners. Nothing contained in this manual should be construed as granting, by implication or otherwise, any license or right to use any of the trademarks displayed herein. Misuse of any trademarks or any other content in this manual is strictly prohibited. Funai shall aggressively enforce its intellectual property rights to the fullest extent of the law.

is trademark of Eastman Kodak Company.

5EN

Page 8

INTRODUCTION

Features

Full high-definition video playback

Watch movies in the highest picture quality available for your HDTV. This unit offers full high-definition video playback up to 1080p resolution for an amazing viewing experience. A highly detailed picture and increased sharpness delivers a more trueto-life picture.

Upconvert DVD for enhanced picture quality

Your current DVD will look even better than before thanks to video upconversion. Upconversion will increase the resolution of standard definition DVD to high definition up to 1080p over an HDMI connection. The picture will be less jagged and more realistic for a near high-definition experience.

Enjoy your content on different kinds of media

Full backwards compatibility with DVD, CD ensures that you can continue to enjoy your current audio-video collection. Additionally, you can view JPEG images.

Listen to the rich multi-channel surround sound

Multi-channel surround sound, which recognizes real-to-life sound and makes you feel like you are really there.

PIP (BONUSVIEW)

Some BD-videos have the PIP function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing [PIP] whenever the scene contains the secondary video.

Pop-up menu

Some BD-video have pop-up menu which is a navigation menu that can be called up and be operated on the TV screen without interrupting the playback. You can call up the pop-up menu by pressing [POP MENU / MENU]. Contents in the popup menu vary depending on the disc.

Rapid playback

Playback in slightly faster speed while keeping the sound output. Rapid playback is available only on discs recorded in the Dolby Digital format.

Playing back the contents in SD Memory Card

You can play back JPEGs stored in an SD Memory Card. You can store picture-in-picture commentary, subtitles or other extras for BD-ROM Profile 1 ver.1.1 files in an SD Memory Card and play back with the BD-video.

Easy and simple connection to your HDTV via HDMI

Connect this unit to your HDTV with one single HDMI (HighDefinition Multimedia Interface) cable. It is recommended to use High Speed HDMI Cable for better compatibility. The high definition video output signal will be transferred to your HDTV without conversion to analog signals, so you will get excellent picture and sound quality, completely free from noise. Thanks to other multiple outputs, you can also easily connect to your home theater system or amplifier.

HDMI Deep Color

Deep Color reduces the posterization effect of the playback image. Refer to “HDMI Deep Color” in “Function Setup” on page 34.

HDMI CEC (Consumer Electronics Control)

This unit supports HDMI CEC, which allows integrated system control over HDMI and is part of the HDMI standard. This function may not work properly on some devices.

HDMI 1080p24 output (BD only)

This unit is equipped with a feature which can provide the smooth movement in the playback of film originated material with the frame rate of 24 frames per second with progressive scan. (Available only when the TV is connected by an HDMI cable and compatible with 1080p24 frame input.) Refer to “HDMI Video Resolution” in “Function Setup” on page 34.

To play back the digital video images of a BD / DVD via an HDMI connection, it is necessary that both the unit and the TV (or an AV amplifier) support a copyright protection system called HDCP (high-bandwidth digital content protection system). HDCP is copy protection technology that comprises data encryption and authentication of the connected AV device. This unit supports HDCP. Please read the operating instructions of your TV (or AV amplifier) for more information.

Symbols Used in this Manual

To specify for which media type each function is, we put the following symbols at the beginning of each item to operate.

Symbol Description

Description refers to BD-video and BD-RE (ver. 3.0) / BD-R (ver. 2.0) recorded in BDMV format

Description refers to DVD-video

Description refers to DVD-RW/-R recorded in VR mode

Description refers to audio CD / DTS-CD

Description refers to DVD, CD-RW/-R and SD Memory Card with JPEG files

If you do not find any of the symbols listed above under the function heading, the operation is applicable to all media.

6EN

Page 9

Front Panel

INTRODUCTION

INTRODUCTION C

(*) The unit can also be turned on by pressing these buttons.

1. Disc tray

• Place a disc when opening the disc tray.

2. OPEN/CLOSE A button*

• Press to open or close the disc tray.

3. Disc indicator

• This indicator lights up in blue when a disc is in this unit.

4. Infrared sensor window

• Receive signals from your remote control so that you can control the unit from a distance.

5. Display

• Refer to “Front Panel Display” on page 10.

6. STOP C button

• Press to stop playback.

OPEN/ CLOSE

32*

DISC IN

SD card

7. PAUSE F button

• Press to pause playback.

8. PLAY B button*

• Press to start or resume playback.

9. POWER indicator

• This indicator lights up in red when the unit is active and turns off when the unit is in standby mode.

10. POWER Q button

• Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

11. SD card slot

• Insert an SD Memory Card and play back the contents in it.

8*76951 4

PLAY

PAUS E

STOP

POWER

ONNECTIONS

LAYBACK

UNCTION

ETUP

THERS

Rear Panel

2435 61

PB/CB

PR/CR

OPTICAL

COAXIAL

COMPONENT

DIGITAL OUT

PCM/BITSTREAM

1. AC Power Cord

• Connect to a standard AC outlet to supply power to this unit.

• Unplug this cord from the AC outlet to completely shut down the unit.

2. DIGITAL OUT (OPTICAL / COAXIAL) jacks

• Use to connect an AV receiver / amplifier, Dolby Digital / DTS decoder or other device with a digital audio optical / coaxial input jack with a digital audio optical or digital audio RCA cable.

3. COMPONENT VIDEO OUT jacks

• Use to connect a TV with component video inputs with an RCA component video cable.

4. VIDEO OUT jack

• Use to connect a TV, an AV receiver or other device with an RCA video cable.

VIDEO OUT

AUDIO OUT

VIDEO OUT

HDMI OUT

5. AUDIO OUT jacks

• Use to connect a TV, an AV receiver / amplifier or other device with an RCA audio cable.

6. HDMI OUT jack

• Use to connect a TV with an HDMI compatible port with an HDMI cable.

Note

• Do not touch the inner pins of the jacks on the rear panel. Electrostatic discharge may cause permanent damage to the unit.

• This unit does not have the RF modulator.

7EN

Page 10

Remote Control

OPEN/ CLOSE

PIP

ANGLE

HDMI

DISPLAYPOWER

TOP MENU

POP MENU/

CLEAR

A-B

REPEAT

RED GREEN BLUE YELLOW

123

456

789

11*

(*) The unit can also be turned on by pressing these buttons.

1. DISPLAY button

• Press to display the on-screen display menu.

2. POWER button

• Press to turn on the unit, or to turn the unit into the standby mode. (To completely shut down the unit, you must unplug the AC power cord)

3. Number buttons

• Press to enter the title, chapter, track or file number.

• Press to enter values in the input field.

4. SEARCH button

5. RED / GREEN / BLUE / YELLOW button

6. TOP MENU button

7. Cursor K / L / s / B buttons

8. SETUP button

9. SUBTITLE button

10. REV E button

11. PLAY B button*

12. SKIP H button

• Press to display the search menu.

• Press to select items on some BD menus.

• When file list / thumbnail list is shown, press to switch between pages.

• Press to display the top menu.

• Press to select items or settings.

• Press to display the setup menu.

• Press to display the subtitle menu.

• During playback, press to fast reverse the playback.

• Press to start playback or resume playback.

• During playback, press once to return to the beginning of the current title, chapter or track.

ENTER

SETUP RETURN

SUBTITLE

REV PLAY

PAUSE

AUDIO

STOP

FWD

SKIPSKIP

MODE

INTRODUCTION

• During playback, press twice to return to the

15*

18 19

previous title, chapter or track.

• During the JPEG playback, press to return to the previous file.

13. PAUSE F button

• Press to pause playback.

• When playback is in pause mode, press repeatedly to forward the playback step by step.

14. HDMI button

• Press to set the HDMI output mode.

15. OPEN/CLOSE A button*

• Press to open or close the disc tray.

16. PIP button

• Press to turn the picture-in-picture feature on or off (only applicable to BD-video which supports the PIP function).

17. ANGLE button

• Press to access various camera angles on the disc.

• Press to rotate the JPEG files clockwise by 90 degrees.

18. REPEAT button

• Press to toggle between various repeat modes.

19. A-B button

• Pre ss to play b ack a defined sec tion betwe en point A and B repeatedly.

20. CLEAR button

• Press to clear the information once entered, to clear the marker settings, or to cancel the programming for audio CD, etc.

21. POP MENU / MENU button

• Press to display the pop-up menu / disc menu.

• Press to change “Original” or “Playlist” on the TV screen.

22. ENTER button

• Press to confirm or select menu items.

23. RETURN button

• Press to return to the previously displayed menu screen.

24. AUDIO button

• Press to display the audio menu.

25. FWD D button

• During playback, press to fast forward the playback.

• In pause mode, press to slow forward the playback.

26. STOP C button

• Press to stop playback.

27. SKIP G button

• During playback, press to skip to the next title, chapter, track or file.

28. MODE button

• During BD or DVD playback, press to display the setting for the rapid playback and the picture adjustment.

• During BD, DVD and CD playback, press to display the setting for the virtual surround.

• During BD playback, press to turn the picture-inpicture feature on or off (only applicable to BD-video which supports the PIP function)

• During the JPEG playback, press to display menus for changing the visual effect for switching the image or changing the size of the image.

• In stop mode with BD inserted, press to display a menu for setting the BD audio mode.

• In stop mode with audio CD or JPEG files inserted, press to display menus for program and random playback.

8EN

Page 11

INTRODUCTION

Installing the Batteries in the Remote Control

Install the batteries (AAx2) matching the polarity indicated inside battery compartment of the remote control.

1) Open the cover.

2) Insert batteries.

Using a Remote Control

Keep in mind the following when using the remote control:

• Make sure that there are no obstacles between the remote control and the infrared sensor window on the unit.

• Remote operation may become unreliable if strong sunlight or fluorescent light is shining on the infrared sensor window of the unit.

• Remote control for different devices can interfere with each other. Avoid using remote control for other device located close to the unit.

• Replace the batteries when you notice a fall off in the operating range of the remote control.

• The maximum operable ranges from the unit are as follows.

- Line of sight: approx. 23 feet (7 m)

Either side of the center:

- Above: approx. 16 feet (5 m) within 15°

- Below: approx. 10 feet (3 m) within 30°

approx. 16 feet (5 m) within 30°

INTRODUCTION C

ONNECTIONS

Line of sight:

LAYBACK

Either side of t Above: Below:

Make sure to match + and - on the batteries to the marks indicated in the battery compartment.

3) Close the cover.

Note

Incorrect use of batteries can result in hazards such as leakage and bursting. Please observe the following:

• Do not mix new and old batteries together.

• Do not use different kinds of batteries together. Although they may look similar, different batteries may have different voltages.

• Make sure that the + and - ends of each battery match the indications in the battery compartment.

• Remove batteries from battery compartment that are not going to be used for a month or more.

• When disposing of used batteries, please comply with governmental regulations or environmental public rules that apply in your country or area. (Refer to page 3.)

• Do not recharge, short-circuit, heat, burn or disassemble batteries.

16 feet (5 m)

OPEN/

DISC IN

SD card

30˚30˚

23 feet (7 m)

16 feet (5 m)

PLAY

PAUSE

STOP

POWER

UNCTION

ETUP

THERS

9EN

Page 12

INTRODUCTION

Front Panel Display

1 2

* Brightness of the display can be adjusted. Refer to “Panel Display” in “Function Setup” on page 42.

1. Displays playback status icon. Refer to the table below.

2. Displays various kinds of information such as title number, elapsed time, repeat mode, etc.

Playback status icon

Disc SD Memory Card

Example of Display Message

Title is being played back. Indicating the current title number and the elapsed time.

Mode

Playback is in progress

Stop mode

Pause mode

Fast forward mode

Fast reverse mode

Slow forward mode

Appears while repeat function is set

Current chapter is in chapter repeat mode.

Loading a disc.

Dolby Digital audio is being played back.

DTS audio is being played back.

10 EN

Page 13

Connection to the TV

Choose the appropriate connection, then proceed to the corresponding

instruction (A, B or C) on the next page.

CONNECTIONS

NTRODUCTION

(Supports up to 1080i / 1080p, 1080p24 resolution.)

Best

Your TV

Video

Audio

No analog audio connection required.

No supplied cables are used in this connection:

Please purchase the necessary cables at your local store. High Speed HDMI Cable (also known as HDMI category 2 cable) is recommended for the better compatibility.

Better

Video

HDMI Cable

(Supports up to 1080i resolution.)

RCA component video cable

HDMI IN

COMPONENT

VIDEO IN

PB/CB

PR/CR

High

Definition

Your TV

High

Definition

Go To

CONNECTIONS P

LAYBACK

UNCTION

ETUP

THERS

Audio

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store.

Good

Video

Audio

• Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted due to the copy right protection system.

Supplied cables used in this connection are as follows:

• RCA audio cable (L/R) x1

• RCA video cable x1

RCA audio cable

(Supports only 480i resolution.)

RCA video cable

RCA audio cable

AUDIO IN

VIDEO IN

AUDIO IN

Your TV

Standard

Definition

Go To

11EN

Page 14

Connect the cables by following the descriptions below.

HDMI Video / Audio Connection

6)$%/ /54

0"#

2#2

/04)#!,

#/!8)!,

$)')4!,/54

#/-0/.%.4

!5$)//54

0#-")4342%!-

6)$%//54

CONNECTIONS

Your TV

($-)/54

HDMI Cable

HDMI IN

($-)/54

Note

• Do not tilt the connector when inserting it into the HDMI jack, and make sure the shapes of the jack and the

connector are matched.

• When using HDCP-incompatible TV, the image will not be viewed properly.

Component Video + Standard Audio Connection

/04)#!, #/!8)!,

$)')4!,/54

0#-")4342%!-

0"#

2#2

#/-0/.%.4

!5$)//54

6)$%//54

6)$%/ /54

0"#

2#2

#/-0/.%.4

6)$%//54

!5$)//54

($-)/54

6)$%/ /54

RCA audio cable

RCA component video cable

AUDIO IN

COMPONENT

VIDEO IN

PB/CB

PR/CR

Standard Video + Standard Audio Connection

Your TV

/04)#!, #/!8)!,

$)')4!,/54

0#-")4342%!-

6)$%/ /54

0"#

2#2

#/-0/.%.4

!5$)//54

6)$%//54

!5$)//54

6)$%/ /54

($-)/54

RCA video cable

RCA audio cable

VIDEO IN

AUDIO IN

12 EN

Page 15

CONNECTIONS

Connection to an Audio System

• When you change the connections, all devices should be turned off.

• Refer to the manual accompanying external devices for more information.

2-Channel Analog Audio Connection Digital Audio Connection

stereo system

AUDIO IN

audio

AV receiver/amplifier

DIGITAL AUDIO INPUT

OPTICAL

DIGITAL AUDIO INPUT

COAXIAL

NTRODUCTION

CONNECTIONS P

Analog audio input jacks

VIDEO OUT

AUDIO OUT

HDMI OUT

OPTICAL

DIGITAL OUT

PCM/BITSTREAM

VIDEO

OUT

PB/C

R/CR

COAXIAL

COMPONENT

AUDIO OUT

VIDEO OUT

AUDIO OUT

HDMI Audio Connection

audio

To set up “HDMI Audio Out”, refer to pages 36 and 37.

AV receiver / amplifier with an HDMI input jack

HDMI IN

HDMI cable

RCA audio cable

this unit

digital audio optical/ coaxial input jacks

digital audio optical cable

OPTICAL COAXIAL

DIGITAL OUT

PCM/BITSTREAM

OPTICAL COAXIAL

DIGITAL OUT

PCM/BITSTREAM

digital audio RCA cable

DIGITAL OUT (OPTICAL / COAXIAL)

To set up “Digital Out”, refer to page 38.

this unit

HDMI OUT

LAYBACK

UNCTION

ETUP

THERS

Supplied cables used in this connections are as follows:

• RCA audio cable (L/R) x 1 Please purchase the rest of the necessary cables at your local store.

13EN

Page 16

CONNECTIONS

After you have completed all the connections, you must find the correct video channel (external input channel) on your TV.

Finding the Video Channel on Your TV

After you have made all the necessary connections, press [POWER] to turn on the

unit.

Turn on your TV.

Press the button on the TV’s remote control that accesses the external input

channel repeatedly until you see this player’s opening picture. (Please refer to your TV’s owner's manual.)

Note

• If the TV is connected by an HDMI cable, it may take a while for the opening picture to come up.

14 EN

Page 17

PLAYBACK

Information on Playback

Before you start playing back a disc, read the following information.

NTRODUCTION

Playable Discs and Files

This unit is compatible to play back the following discs / files. To play back a disc / file, make sure that it meets the requirements for region codes and color systems as described below. You can play back discs that have the following logos. Other disc types are not guaranteed to play back.

Playable discs Logos

Blu-ray Disc

- BD-video (single / dual layer)

- BD-RE ver. 3.0 (single / dual layer) (Recorded in BDMV format)

- BD-R ver. 2.0 (single / dual layer) (Recorded in BDMV format) (Unclosed discs may not be played back.)

DVD-video

DVD-RW (finalized discs only)

DVD-R (single/double layer) (finalized discs only)

CD-DA (audio CD)

Note for SD Memory Cards

• This unit supports SD Memory Card with FAT12/ FAT16 file system, and SDHC Memory Card with FAT32 file system.

• This unit does not support NTFS file system.

• This unit may not read the SD Memory Cards formatted on a computer. If that is the case, please reformat the SD Memory Cards in this unit and try again.

• This unit does not support miniSDHC and microSDHC Memory Card.

• For miniSD Card and microSD Card, the adapter is necessary.

miniSD Card adapter

miniSD Card

• Portions of this product are protected under copyright law and are provided under license by ARIS / SOLANA / 4C.

• Please keep the SD Memory Cards in their cases when you are not using them.

• Do not try to open or modify the card.

• Do not touch the terminal surface with your fingers or any metals.

• Do not attach additional labels or stickers to cards.

• Do not remove the label of the SD Memory Cards.

• This unit recognizes up to 8 characters of file name in the SD Memory Card. Characters after 9th will not be displayed.

microSD Card adapter

microSD Card

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

CD-RW

CD-R

Kodak Picture CD

DTS-CD

Playable files Media

JPEG

DVD, CD-RW/-R, SD Memory Card (including SDHC), miniSD Card, microSD Card

Readable cards Playable files / data

SD Memory Card (8 MB - 2 GB) SDHC Memory Card (4 GB) miniSD Card (8 MB - 2 GB) microSD Card (8 MB - 2 GB)

JPEG, picture-in-picture commentary, subtitles or other extras for BD-ROM Profile 1 ver.1.1

Unplayable Discs and Files

The following discs will not be played back in this unit.

• CD-ROM • CD-I (compact disc-interactive)

• DVD-RAM • VSD (video single disc)

• DVD-audio • Video CD

• HD DVD • SVCD

• Unfinalized disc

• BD-RE (ver.1.0)

• BD-RE (ver.2.0) (Recorded in BDAV format)

• BD-R (ver.1.0) (Recorded in BDAV format)

• DVD / CD / SD Memory Card contains MP3, Windows Media™ Audio and DivX® files.

• Super Audio CD - Only the sound on the CD layer can be heard. The sound on the high-density Super Audio CD layer cannot be heard.

• Playability of dual discs are not guaranteed.

15EN

Page 18

PLAYBACK

Color Systems

BD-video and DVD-video are recorded in different color systems throughout the world. The most common color system is NTSC (which is used primarily in the United States and Canada). This unit employs NTSC color system, so the disc you play back must be recorded in the NTSC system. You cannot play back the disc recorded in other color systems.

Region Codes

This unit has been designed to play back BD-video with region “A” and DVD-video with region “1” or “ALL”. You cannot play back BD-video or DVD-video that are labeled for other regions. Look for the symbols on the right on your BD-video or DVD-video. If these region symbols do not appear on your BD-video or DVD-video, you cannot play back the disc in this unit. The letter or number inside the globe refers to region of the world. A BD-video or DVD-video labeled for a specific region can only be played back in the unit with the same region code.

BD-video

DVD-video

Structure of Disc / SD Memory Card Contents

The contents of BD/DVD are generally divided into titles. Titles may be further subdivided into chapters.

BD/DVD

title 1 title 2

chapter 1

chapter 2 chapter 2chapter 1 chapter 3

On-Screen Display

You can check information about the current disc by pressing [DISPLAY].

To call the on-screen display menu, press [DISPLAY] during playback. Every time you press [DISPLAY], the information changes. Depending on the media, available information varies.

off A Title / Chapter information

A Title information (elapsed time) A Title information (remaining time) A HDMI information A off

off A Chapter information (elapsed time) A Chapter information (remaining time) A Title information (elapsed time) A Title information (remaining time) A Bit rate information A HDMI information A off

Track information (elapsed time)

A Track information (remaining time) A Disc information* (elapsed time) A Disc information* (remaining time) A Track information (elapsed time)

(* not available during program / random playback)

off A File information A File name information A off

audio CD are divided into tracks.

track 1 track 2 track 3 track 4 track 5

Data discs or SD Memory Cards containing JPEG are divided into folders, and the folders are subdivided into files.

folder (group) 1

file (track) 1

file (track) 2 file (track) 3 file (track) 4 file (track) 5

audio CD

JPEG

folder (group) 2

16 EN

Page 19

S Title / Chapter information (BD only)

/: : :

PLAYBACK

S Track / File information

NTRODUCTION

1 32

1 1/10 A B

S Chapter information (DVD only)

2 76

3 / 5 0 : 01 : 02

4 5

ORG

S Title information

1 / 18 0 : 08 : 04

Current title number

Current chapter number / Total number of chapters

Current repeat setting (Only when repeat setting is active) (C: Chapter repeat, T: Title repeat, AB: A-B repeat)

Indicates that the multi camera angle images are available on the scene

Current playback status

Elapsed time / Remaining time of the current chapter

Type of title (ORG: Original, PL: Playlist) (VR mode DVD-RW / -R only)

Current title number / Total number of titles

Elapsed time / Remaining time of the current title

ORG

1 3 42

SD1 / 14 0 : 00: 51

Current track (file) number / Total number of track (file)

Elapsed time / Remaining time of the current track

Indication of SD Memory Card playback

Current repeat setting (Only when repeat setting is active) (T: Track / File repeat, G: Group repeat, A: All repeat, AB: A-B repeat)

S Disc information

1 2

1 / 14 0 : 00: 51

Current track number / Total number of tracks

Elapsed time / Remaining time of the current disc

S File name information

File_name_001

Media icon and file name

: JPEG file

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

S Bit rate information

ORG

Bit rate (The amount of video data currently being read)

Layer number (Only for 2-layered discs) (L0: Layer 0 is played back. L1: Layer 1 is played back)

Type of title (ORG: Original, PL: Playlist) (VR mode DVD-RW / -R only)

S HDMI information

Video Info Audio Info Max Channel

HDMI video format

Resolution of the HDMI output image

HDMI audio format

Maximum numbers of audio channels that can be accepted by the connected device

YCbCr 1080i

PCM 2ch

Note

• If the HDMI cable is not connected, “---” will be displayed for HDMI information.

17EN

Page 20

PLAYBACK

SD card

How to Insert a Disc

Press [OPEN/CLOSE A] to open the

1 2

• Make sure the disc is compatible with this unit.

To eject the disc:

Press [OPEN/CLOSE A] to open the disc tray. Remove the disc. Press [OPEN/CLOSE A] to close the disc tray.

disc tray.

Place the disc on the disc tray with its label side facing up.

Align the disc to the disc tray guide.

(Refer to page 15 for the list of compatible discs.)

Press [OPEN/CLOSE A] to close the disc tray.

It may take a while to load the disc.

Reading the SD Memory Card

You can play back the JPEG files in an SD Memory Card. With the SD Memory Card, you can also enjoy the special additional contents for BD-ROM Profile 1 ver.1.1 which can be downloaded from the Internet. You can store the contents on an SD Memory Card via computer and play them back with the BD-video. For more information about the special additional contents, please refer to the instruction book that came with the disc.

Insert an SD Memory Card, with the

label side facing up, into the SD card slot until it clicks.

If no disc is in operation, “Media Select” screen will appear on the TV screen.

OPEN/ CLOSE

SD card

SD Memory Card

PLAY

PAUSESTOPDISC IN

POWER

Use [K / L] to select “SD Card”, then press [ENTER].

The file list will appear.

Media Select

Disc

SD Card

Follow step 2 in “Playing Back

(Audio CD / JPEG Files)” on page

22.

To remove the SD Memory Card:

In stop mode, gently push in the SD Memory Card, then pull it out slowly.

Note

• The “Media Select” screen will disappear under the conditions listed below:

- when the screen saver is activated.

- when [RETURN ] is pressed.

- when the setup menu is called up.

• If the “Media Select” screen disappears before you make the selection, refer to “Selecting the Media Mode” on page 19.

• Do not remove the SD Memory Card or turn the unit to the standby mode while the contents of the card are in playback. It may result in malfunction or loss of the card’s data.

• Do not delete the folders or files in the SD Memory Card with your computer. This unit may not read the SD Memory Cards formatted on a computer.

18 EN

Page 21

PLAYBACK

RETURN

MODE

UDIO

PAUS

STOP

POWER

REPEAT

Selecting the Media Mode

For the playback media to be read by this unit, the correct media mode should be selected. You can switch the media mode by following the steps below. “Media Select” is available only when an SD Memory Card is inserted.

NTRODUCTION

EAR

ED YELLOW

OP MENU/

ENTER

SETUP

UBTITLE

KIP

LOSE

NGLE

SKIP

In stop mode, press [SETUP].

ONNECTIONS

Use [K / L] to select , then press

[ENTER] .

Quick

Media Select HDMI Audio Out HDMI Video Resolution Component Output Player Menu

Disc HDMI Multi(Normal) Auto 480i English

Use [K/L] to select “Media Select”.

PLAYBACK F

UNCTION

ETUP

Quick

Media Select

HDMI Audio Out HDMI Video Resolution Component Output Player Menu

Disc

HDMI Multi(Normal) Auto 480i English

THERS

Press [ENTER] repeatedly to select

the desired media.

Press [SETUP] to exit.

Even if you turn the unit to the standby mode in “SD Card” mode, it will be in “Disc” mode the next time you turn it on.

• Selected media mode is now activated.

19EN

Page 22

Playing Back (BD / DVD)

SETUPRETURN

AUDIO

FWD

SKIP

REV

PIP

ANG

RED

POWER

DISPLAY

EAR

LOSE

ELLO

POP MENU

PLAYBACK

Press [POWER].

Turn on the TV and select the appropriate input on the TV to

which the unit is connected. Insert a disc (refer to page 18 on how

to insert a disc).

Playback may start automatically.

If not, press [PLAY B].

Some discs may show a title or a disc menu. In such case, refer to “Using the Title / Disc / Pop-up Menu” on page 21.

To pause playback: Press [PAUSE F].

To return to the normal playback: Press [PLAY B].

To stop playback:

Press [STOP C]. Playback will be in Resume-On-Stop mode.

UBTITLE

SKIP

PAUSE

PLAY

STOP

MOD

Resume-On-Stop mode

If a playback is in Resume-On-Stop mode, when you press [PLAY B] next time, the playback will start from the point where it has been stopped.

Note

• Resume playback may not be available for the BD that supports Java applications (BD-Java).

• In the “Disc” mode, the resume information will be cleared when;

- [STOP C] is pressed while in the Resume-On-Stop

mode.

- the parental level is changed.

- the disc tray is opened.

• In the “SD Card” mode, the resume information will be cleared when;

- [STOP C] is pressed while in the Resume-On-Stop

mode.

- the SD Memory Card is removed.

- the unit is turned into the standby mode.

Note

• may appear at the top-right on the TV screen when the operation is prohibited by the disc or this unit.

• During the playback of 2-layered disc, pictures may stop for a moment. This happens when the 1st layer switches to the 2nd layer. This is not a malfunction.

• The operation may vary when you play back BDvideo and DVD-video with disc menu. Refer to the manual accompanying the disc for details.

• Set “Still Mode” setting to “Field” in “Video” menu if pictures in the pause mode are blurred. Refer to “Still Mode” on page 35.

20 EN

Page 23

Using the Title / Disc / Pop-up Menu

PLAYBACK

Playing Back a VR mode DVD-RW/-R

NTRODUCTION

Many of BD-video and DVD-video discs contain title menu (BD-video / DVD-video), disc menu (DVD-video) or pop-up menu (BD-video) which guides you through the available functions in the disc. The contents of the menus may differ depending on the discs.

Title menu (BD-video / DVD-video)

1 Press [TOP MENU].

• The title menu will appear.

2 Use [K / L / s / B] to select an item, then press

[ENTER].

3 Press [TOP MENU] to exit.

Disc menu (DVD-video)

1 Press [POP MENU / MENU].

• The disc menu will appear.

2 Use [K / L / s / B] to select an item, then press

[ENTER].

3 Press [POP MENU / MENU] to exit.

Pop-up menu (BD-video)

• This is a special feature available for some BD-videos.

When you press [POP MENU / MENU], a menu pops out on the TV screen during play back.

1 During the playback of BD-video, press [POP

MENU / MENU].

• The pop-up menu will appear.

2 Use [K / L / s / B] to select an item, then press

[ENTER].

3 Press [POP MENU / MENU] to exit.

Note

• Contents of menus and corresponding menu operations may vary among discs. Refer to the manual accompanying the disc for details.

When you are playing back a VR mode DVD-RW/-R, you can choose “Original” or “Playlist” if the disc contains a “Playlist”.

In stop mode, press [POP MENU /

MENU] to call up the DVD menu.

Use [s / B] to select “Original” or

2 3

* The number of characters displays the amount that can

be displayed.

“Playlist”.

1 2 43 5

Drama 01302 Maximum number of clips

Original Playlist

8. 01301 First Play List

9. 01302 Maximum number of

10. 013008

11. 013008

12. 01310

13. 01311 Maximum number of

14. 01311 Maximum number of

6 7 98 10

2 / 28

Page DownPage Up

Disc name Title name (Long)* Selection of

title types

: Selects the title type (“Original” or

“Playlist”) in which you want to play back a file.

Thumbnail image

: Indicates the highlighted title in the

small window, and plays back from the beginning. The image in the small window will be displayed at the same size regardless of the setting of “TV Aspect” setting in

the setup menu. Recording time Title name

(Short)* Operation

guide

: The page can display seven titles or

less.

: Press [RED] to go to the previous page.

Press [GREEN] to go to the next page. Current page / Total page number Record beginning time Recording date

Time 1:37:40

Date 1/5/2009(MON):

Start 12:00 AM:

Title Info

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

21EN

Page 24

PLAYBACK

Use [K / L] to select a desired title,

then press [ENTER].

Note

• “Original” is the title which is actually recorded on the disc.

• “Playlist” is edited version of the “Original”.

• DVD menu varies depending on discs.

• If the disc does not contain “Playlist”, “Playlist” will not be displayed on the DVD menu.

Playing Back (Audio CD / JPEG Files)

Before you begin, make sure the correct media mode is

selected. Refer to “Selecting the Media Mode” on page 19.

Insert an audio CD or a disc/card

1 2

with JPEG files.

• The file list will appear on the TV screen.

Use [K / L] to select a desired track, folder or file, then press [ENTER]. Use [s / B] to go back and forward between the hierarchies.

•If you press [ENTER] on the desired file,

playback will start.

- - / 20

File List

JPEG_DISC

Folder_1

Folder_2

Folder_3

JPEG_A JPEG_B JPEG_C JPEG_D

5 62

Page Up Page Down

e.g.) JPEG

audio CD JPEG

Operation guide

Current page / Total page number

Playback status

Icons:

: Folder

: audio CD tracks

: JPEG files

::Track information

File information

::“CD-DA” will be displayed.

Current disc, SD Memory Card, or folder name will be displayed.

::List of the track number and time.

List of the file / folder names in the current folder/ disc

: Press [RED] to go to the previous page.

Press [GREEN] to go to the next page.

22 EN

Page 25

PLAYBACK

It is recommended that files to be played back in this unit are recorded under the following specifications: <JPEG>

• Upper limit : 2,560 x 1,900 dots (sub sampling is 4:4:4) 5,120 x 3,840 dots (sub sampling is up to 4:2:2)

• Lower limit : 32 x 32 dots

• File size of image

maximum

Note

• Do not delete the folders or files in the SD Memory Card with your computer. This unit may not read the SD Memory Cards formatted on a computer.

Kodak Picture CD

This unit can also run JPEG files stored on Kodak Picture CD. You can enjoy picture images on the TV set by playing back the Kodak Picture CD. This unit conforms to ver.7.0 of Kodak Picture CD. For details of Kodak Picture CD, contact a shop that provides developing service of Kodak Inc.

When Kodak Picture CD is inserted

in this unit, Kodak Picture CD menu will appear automatically on the TV screen.

File information Playback status Operation guide: Press [BLUE] to go to the previous

Current page / Total page number

:12 MB

1 2

T R

- - / 16

Thumbnail Pictures

㪉㩷㩷㪆㩷㩷㪊

Page Prev Page Next

4 3

page. Press [YELLOW] to go to the next page.

Use [K / L / s / B] to select a

desired track to be played back, then press [PLAY B] or [ENTER].

• An image will be played back from the selected track and go to the next one in turn.

Press [STOP C] to stop playback.

To return to the first item: Press [TOP MENU].

To return to the track/file played last: Press [POP MENU / MENU].

Tips for JPEG / Kodak Picture CD Playback

• Every press on [ANGLE] will turn the image

clockwise by 90 degrees when an image is displayed.

• To change the visual effect for switching the playback image, press

[ENTER]

In/Out”.

• During JPEG / Kodak Picture CD playback, press [MODE] twice to change the size of the playback image, then use [s / B] or [ENTER] to switch between “Normal” (100 %) and “Small” (95 %). The size change may have no effect on some files (e.g. files with a small picture size).

[MODE]

to switch between “Cut In/Out” and “Fade

once, then use

[s / B]

Note

• Unrecognizable characters will be replaced with asterisks.

• Some unplayable folders or files may be listed due to the recording status.

• High-resolution JPEG files take longer to be displayed.

• Progressive JPEG files (JPEG files saved in progressive format) cannot be played back in this unit.

• The system can recognize up to 255 folders / 999 files for CD, 999 folders / 9,999 files for DVD and SD Memory Card.

• The 9th and deeper hierarchies cannot be displayed for CD. The 10th and deeper hierarchies cannot be displayed for DVD and SD Memory Card.

• For the SD Memory Card playback, refer to “Reading the SD Memory Card” on page 18.

• For an SD Memory Card, only an extension of “.jpg” can be recognized. For other media, only “.jpg” and “.jpeg” can be recognized, and any other extensions cannot be read.

NTRODUCTION

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

23EN

Page 26

PLAYBACK

Fast Forward / Fast Reverse

1 During playback, press [FWD D] repeatedly

for fast forward. During playback, press [REV E] repeatedly for fast reverse.

Every time you press [FWD D] or [REV E], the playback speed will change.

2 Press [PLAY B] to return to normal playback.

Note

• For BD, the approximate speed for the fast forward is 1 (1.3x), 2 (10x), 3 (30x), 4 (70x), and 5 (200x). And for the fast reverse, it is 1 (2x), 2 (10x), 3 (30x), 4 (70x), and 5 (200x).

• For DVD, the approximate speed for the fast forward or reverse playback is 1 (2x), 2 (8x), 3 (20x), 4 (50x), and 5 (100x).

• For audio CD, the approximate speed is 1 (2x), 2 (8x), and 3 (30x).

• For audio CD, fast forward / fast reverse search between different tracks are not available during program and random playback.

Slow Forward Playback

Step by Step Playback

1 In pause mode, press [PAUSE F] repeatedly.

Every time you press [PAUSE F], playback will advance one step at a time.

2 Press [PLAY B] to return to normal playback.

Note

• Only step by step forward is available.

• Set “Still Mode” setting to “Field” in “Video” menu if pictures in step by step playback mode are blurred. Refer to “Still Mode” on page 35.

Repeat Playback

Available repeat functions vary depending the discs.

1 During playback, press [REPEAT] repeatedly to

select the desired repeat mode.

Repeat mode Available media

Chapter repeat

The current chapter will be played back repeatedly.

1 During playback, press [PAUSE F], then press

[FWD D].

Every time you press [FWD D], playback speed will change.

2 Press [PLAY B] to return to normal playback.

Note

• The approximate speed for the slow forward playback is 1 (1/16x), 2 (1/8x), 3 (1/2x).

• Only slow forward is available.

• Set “Still Mode” setting to “Field” in “Video” menu if pictures in the slow forward playback mode are blurred. Refer to “Still Mode” on page 35.

Title repeat

The current title will be played back repeatedly.

Track repeat

The current track or file will be played back repeatedly.

Group repeat

The current folder will be played back repeatedly.

All repeat

All tracks in the media will be played back repeatedly.

Note

• The repeat setting will be canceled when you stop playback.

• The chapter, title, track or group repeat will be cleared when moving to another chapter, title, track / file or folder.

• Repeat playback does not function during A-B repeat playback.

• Chapter and title repeat are not available with some scenes.

24 EN

Page 27

PLAYBACK

A-B Repeat

You can play back the specific part (between point A and point B) repeatedly.

1 During playback, press [A-B] at the desired

starting point A.

2 During playback, press [A-B] at the desired

ending point B.

As soon as you set the point B, the part between point A and point B will start playback repeatedly.

• To cancel the A-B repeat, press [A-B] again.

Note

• Point B should be set within the same title or track as point A.

• A-B repeat is not available with some scenes.

• To cancel the A point which was set, press [CLEAR].

• A-B repeat does not function during chapter, title, track, group or all repeat playback.

Program Playback

You can play back the disc/card in your desired order.

1 In stop mode, press [MODE].

• The program screen will appear.

2 Use [K / L] to select a track / file, then press

[ENTER].

1 62 3 4

- - / 16

Program Total

CD_DA

0:36

1:14

0:45

0:50

0:53

0:20

0:54



e.g.) audio CD

audio CD JPEG

::Track information

File information

::“CD-DA” will be displayed.

Current disc, SD Memory Card, or folder name will be displayed.

Track / File list : Track / File list in the original

order.

Programmed list : Track / File list in the

programmed order.

Cumulative playback time of all tracks / files in the programmed list.

Playback status

Current page / Total page number

0 : 26 : 24

1:14 0:50

1:14

0:50

0:53

0:54

0:36



Page Prev Page NextPage DownPage Up

Operation guide: Press [RED] to go to the previous

page in the track / file list. Press [GREEN] to go to the next page in the track / file list. Press [BLUE] to go to the previous page in the programmed list. Press [YELLOW] to go to the next page in the programmed list.

• For JPEG files, use [K / L] to select a folder, then press [ENTER] first, and then use [K / L] to select a file, then

press [ENTER].

•Press [CLEAR] to erase the last file of the program.

•Use [K / L] to select “All Clear” at the bottom of the list to erase all the tracks / files in the program.

• The programmed tracks / files is displayed in the right hand screen.

•Use [s / B] to go back/forward between the hierarchy of folders.

3 Press [PLAY B] to start program playback.

• Programmed file list will appear and the program playback will start.

2/16

Program

CD_DA

9 11 12 14

To exit from the program playback mode:

•Press [RETURN ] in stop mode.

Note

• During program playback, press [STOP C] once to set the resume point, and then press [PLAY B] to resume program playback from where [STOP C] was pressed (audio CD) or from beginning of the file where [STOP C] was pressed (JPEG).

• During program playback, press [STOP C] twice to display the program screen. To go back to the normal program playback, press [RETURN ] to exit from the program screen, then press [PLAY B].

• Up to 99 tracks / files can be entered.

• To repeat the current track / file in the program, press [REPEAT] repeatedly until “ Track” appears during playback. To repeat the entire program, press [REPEAT] repeatedly until “ All” appears during playback.

• Playback from a desired track / file and random playback are not available during program playback.

• Press

[MODE]

• The program will be cleared when;

- the unit is turned into the standby mode.

- the media mode is switched to the other mode.

- the disc / card is removed. (as for “Disc” mode, just

opening the disc tray will clear the program info.)

0:01:05

1:14

0:50 1:14 0:50 0:53 0:54 0:36

Tot al

Page Down

0:26:24



to switch to the random playback mode.

NTRODUCTION

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

25EN

Page 28

PLAYBACK

Random Playback

This function shuffles the playback order of tracks / files.

1 In stop mode, press [MODE] twice.

• The random screen will appear.

1 62 3 4 5

- - / 16

Random Total

CD_DA

1 0:36

1:14

0:45

0:50

0:53

0:20

0:54

Page Down

1 : 13 : 29



e.g.) audio CD

audio CD JPEG

::Track information

File information

::“CD-DA” will be displayed.

Current disc, SD Memory Card, or folder name will be displayed.

Track / File list : Track / File list in the original order

will be displayed.

Operation guide

: Press [RED] to go to the previous

page in the track / file list. Press [GREEN] to go to the next page in the track / file list.

Total playback time of all tracks / files.

Playback status

2 Press [PLAY B] to start random playback.

To exit from the random playback mode:

•Press [MODE] in stop mode.

Rapid Playback

This function plays back approximately at 1.3 times the normal playback while keeping the sound output. This function is available only on discs recorded in the Dolby Digital format.

1 During playback, press [MODE] repeatedly

until the Rapid playback setting appears.

Off

2 Press [ENTER] or [s / B] to switch (x1.3), or

off.

“Off” : Plays back in normal speed.

: Plays back approximately at 1.3 times of normal

“”

playback.

3 Press [B] to return to normal playback.

Note

• Picture adjustment and audio language setting cannot be changed during this function.

• Virtual surround does not work during this function.

• This function may not work at some points on a disc.

• During this function, 2ch LPCM will be output from HDMI OUT jack and DIGITAL OUT jack.

Adjusting the Picture

You can adjust the picture quality.

1 During playback, press [MODE] repeatedly

until appears.

2 Use [K / L] to select your desired item, then

use [s / B] to adjust the setting.

Note

• During the random playback, press [STOP C] once to set the resume point, and then press [PLAY B] to

Black Level Noise Reduction

e.g.) DVD-video

On Off

resume random playback from where [STOP C] was pressed (audio CD) or from beginning of the file where [STOP C] was pressed (JPEG).

• To repeat the current track / file in the random selection, press [REPEAT] repeatedly until

“ Track” appears during playback. To repeat the entire random selection press [REPEAT] repeatedly until “ All” appears during playback.

S Black level

You can adjust the black level setting to make the black parts of the pictures as bright as you prefer. You can select “On” or “Off”.

“On” : Makes the dark parts brighter. “Off” :Shows the original picture as recorded.

• Playback from a desired track / file is not available during random playback.

• Press [RETURN ] to switch to the program playback mode.

26 EN

Page 29

PLAYBACK

S Noise reduction (DVD-only)

Reduces the noise of the playback picture.

“Off” : Shows the original picture as recorded. “1” :Executes 3D noise reduction which detects and

deletes the noise by comparing each picture frames.

“2” :Executes MPEG noise reduction which reduces

the block noise and mosquito noise on the subtitle on movie.

“3” :Executes both MPEG noise reduction and 3D

noise reduction.

3 Press [RETURN ] to exit.

Note

• The setting will remain the same even if the unit is turned to the standby mode.

• For the picture output from HDMI OUT jack, “Black Level” is not effective.

• You cannot adjust the setting during rapid playback.

Virtual Surround

You can enjoy stereophonic virtual space through your existing 2 channel stereo system.

1 During playback, press [MODE]. 2 Use [K / L] to select your desired setting.

Off

“Off” : No surround effect “1” :Natural surround effect “2” :Stronger surround effect

3 Press [RETURN ] to exit.

PIP (BONUSVIEW) Setting

Some BD-video have the PIP function which enables you to display the secondary video in the primary video. You can call up the secondary video by pressing [PIP] whenever the scene contains the secondary video.

primary

video

secondary

video

1 During playback, press [PIP].

PIP information will appear.

2 Use [K / L] to select the secondary video you

want.

• The secondary video will be displayed and the secondary audio will be output.

3 Press [RETURN ] or [PIP] to remove the PIP

information.

Note

• The secondary audio will not be output when the secondary audio is set to “Off” or when “BD Audio Mode” is set to “HD Audio Output”. Refer to “Switching Audio Soundtrack” on page 29 and “Setting the BD Audio Mode” on page 30.

• Secondary video can also be called up by pressing

[MODE].

NTRODUCTION

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

Note

• Set the virtual surround setting to “Off” or lower the volume if the sound is distorted.

• Virtual surround does not function during rapid playback.

• For the virtual surround, audio signal will always be 2-channel LPCM.

Camera Angle

Some BD-video and DVD-video contain scenes which have been shot simultaneously from various angles. You can

change the camera angle when appears on the TV screen.

1 During playback, press [ANGLE].

• The selected angle will be displayed on the display bar at the top of the TV screen.

2 Use [K / L] to select your desired angle.

1 / 3

Note

• If “Angle Icon” setting is “Off” in “Others” menu, will not appear. Refer to page 42.

27EN

Page 30

PLAYBACK

Using [SKIP H / G]

1 During playback, press [SKIP G] to move to

the next track/title/chapter/file. Press it repeatedly to skip to subsequent tracks. Press [SKIP H] once to go back to the beginning of the current track. Press it repeatedly to go to the previous tracks.

• For JPEG files, press [SKIP H] to go back to the

previous file.

Note

• For BD and DVD, if title contains no chapters, [SKIP H / G] changes the title.

• For JPEG files, [s / B] is also available.

Using [SEARCH]

By using [SEARCH], you can select the following search modes.

Search mode Available media

Chapter / Title search

Track search

Time search

Marker search

1 During playback, press [SEARCH] repeatedly

until your desired search mode appears.

2 Enter the desired chapter, title, track, file

number or time to search for using [the Number buttons].

• Chapter, title, track or time search will start.

•Press [CLEAR] to erase an incorrect input.

Note

• During program and random playback, search functions are not available except the search using [SKIP H / G].

• Time search is available only in the same track, file or title.

• For BD, chapter and time search are available only during playback.

Using [the Number buttons] (Direct Search)

Title Search

1) In stop mode, enter the title number you want to search using [the Number buttons].

Playback of the title will start in a few seconds.

Chapter Search

1) During playback of a title, enter the chapter number you want to search using [the Number buttons].

Playback of the chapter will start in a few seconds.

Note

• As for the BD-video, how it performs will be strongly determined by the disc, and may not perform as described here.

Marker Search

This feature allows you to assign a specific point on a title to be called back later.

1 During playback, press [SEARCH] repeatedly

until the marker setting menu appears.

2 Use [s / B] to select a marker number (1-9).

___ __ : __ :__

3 When the disc reaches the point at which you

want to set a marker, press [ENTER].

• The title and elapsed playback time will appear on the TV screen.

4 Press [SEARCH] or [RETURN ] to exit. 5 To return to the marker later, call the marker

setting by pressing [SEARCH] repeatedly during playback or in stop mode, and use [s / B] to select a desired marker, then press [ENTER].

Note

• Opening the disc tray, changing to the standby mode, or selecting “ ” at step 2 and pressing

[ENTER] will erase all markers.

• To clear a marker, use [s / B] to select the marker number to be cleared and press [CLEAR].

• You can mark up to 9 points.

• For BD, marker search between different titles is not available.

• For BD, you can return to the marker only during playback.

28 EN

Page 31

PLAYBACK

You can select the format of audio and video as you prefer depending on the contents of the disc you are playing back.

NTRODUCTION

Switching Subtitles

Some BD and DVD may have subtitles in 1 or more languages. For commercially available discs, the supported languages can be found on the disc case. Follow the steps below to switch the subtitle languages during playback.

1 During playback, press [SUBTITLE] repeatedly

to display “Primary Subtitle”, “Secondary Subtitle” or “Subtitle Style”.

“Primary Subtitle” : Sets the subtitle for the

primary video.

“Secondary Subtitle” : Sets the subtitle for the

secondary video.

“Subtitle Style” : Sets style of the subtitle.

2 Use [K / L] to select your desired subtitle or

style.

Primary Subtitle JPN

•Use [s / B] to switch between current subtitle

setting and “Off”.

4 /1

3 Press [SUBTITLE] repeatedly to exit.

1 During playback, press [SUBTITLE]. 2 Use [K / L] to select your desired subtitle.

1 / 4

ENG

•Use [s / B] to switch between current subtitle

setting and “Off”.

3 Press [SUBTITLE] to exit.

Switching Audio Soundtrack

Some BD and DVD contain multiple audio streams. Those are often in different audio languages or audio formats. For BD, available audio varies depending on “BD Audio Mode” setting. Refer to page 36 for more information.

1 During playback, press [AUDIO ] repeatedly

to display “Primary” or “Secondary”.

“Primary” : Sets the audio for the primary video. “Secondary” : Sets the audio for the secondary video.

2 Use [K / L] to select your desired audio stream

channel.

Primary

• For “Secondary”, use [s / B] to switch between

current audio setting and “Off”.

JPN Dolby D Multi-ch

2 /1

3 Press [AUDIO ] repeatedly to exit.

1 During playback, press [AUDIO ]. 2 Use [K / L] to select your desired audio stream

channel.

• For audio CD, you can select following options. “Stereo” : Both right and left channels are active

(stereo).

“L-ch” :Only left channel is active. “R-ch” : Only right channel is active.

Dolby D

ENG

e.g.) DVD-video

3/2.1ch

48k

/ 3

3 Press [AUDIO ] to exit.

ONNECTIONS

PLAYBACK F

UNCTION

ETUP

THERS

Note

• Some discs will only allow you to change the subtitles from the disc menu or pop-up menu. Press [TOP MENU] or [POP MENU / MENU] to display the disc menu or pop-up menu.

• If 4-digit-language code appears in the subtitle menu, refer to “Language Code List” on page 46.

• If the disc has no subtitle language or subtitle style, “Not Available” will be displayed on the TV screen.

• During playback of the secondary video, the primary subtitle setting is not available except when there is no subtitle for the secondary video.

• If you select a language that has a 3-letter-language code, the code will be displayed every time you change the subtitle language setting. If you select any other languages, “---” will be displayed instead. (Refer to page 46.)

29EN

Page 32

PLAYBACK

Note

• The secondary audio will not be output when the secondary video is not displayed or when “BD Audio Mode” is set to “HD Audio Output”. (For some BD, secondary audio will be output even when secondary video is off.)

• The sound mode cannot be changed during playback of discs not recorded in multiple audio.

• Some discs allow changing the audio language setting on the disc menu. (Operation varies depending on the discs. Refer to the manual accompanying the disc.)

• [AUDIO ] may not work on some discs with multiple audio streams or channels (e.g. DVDs that allow changing audio setting on the disc menu).

• If you select a language that has a 3-letter-language code, the code will be displayed every time you change the audio language setting. If you select any other languages, “---” will be displayed instead. (Refer to page 46.)

• Audio Language selection cannot be made during rapid playback. (Refer to page 26.)

• If 4-digit-language code appears in the subtitle menu, refer to page 46.

• If the disc has no audio language, “Not Available” will be displayed on the TV screen.

• For DTS-CD (5.1 music disc), selecting audio streams or channels is not available.

• For VR mode DVD-RW/-R with MTS (Multi-channel television sound) system, you can switch among “1.Main” (main audio), “1. Sub” (sub audio), and “1.Main/Sub” (main and sub audio).

Setting the BD Audio Mode

There are 2 options for the “BD Audio Mode” setting; either by setting the output to the secondary and interactive audio accompanied by the primary audio or by setting only the primary audio. Depending on the setting of the mode, Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD output changes between multi LPCM and bitstream.

1 In stop mode with BD inserted, press [MODE]. 2 Use [K / L] to select your desired setting.

BD Audio Mode Mix Audio Output

“Mix Audio Output”:

If it is available, BD-video’s secondary and interactive audio will be output with the primary audio.

• The secondary audio is the audio for the secondary video (Director’s comment etc.) and the interactive audio is the audio for the interactive application (Button click sounds etc.).

“HD Audio Output”:

Only the primary audio will be output. Set this mode in order to output, Dolby Digital Plus, Dolby TrueHD, or DTS-HD audio of BD through HDMI connection.

3 Press [RETURN ] to exit.

• You can also set “BD Audio Mode” from the setup menu. Refer to page 36.

• Refer to “Audio signals output from HDMI OUT jack” on page 37 and “Audio signals output from DIGITAL OUT (OPTICAL / COAXIAL) jack” on page 38 for how BD Audio will be output.

Note

• In “Mix Audio Output” mode, if there is no secondary and interactive audio, the audio will be output as “HD Audio Output” mode.

30 EN

Page 33

PLAY

OWE

AUDIO

FWD

SKIP

REV

PIP

ANG

RED

EAR

FUNCTION SETUP

Using the Setup Menu

In the setup menu you can change the setting for audio,

LOSE

ELLO

POP MENU

video, language, etc. You cannot change the setting during playback. Setting items displayed in gray indicates they are not available under the conditions at the time.

Quick

“ Quick” menu contains setting items extracted from “ Custom” menu which may be used frequently.

In stop mode, press [SETUP].

Use [K / L] to select , then press

[ENTER].

NTRODUCTION

ONNECTIONS

LAYBACK

ENTER

SETUP RETURN

UBTITLE

SKIP

TOP

MOD

Use [K / L] to select your desired setting items.

Quick

Media Select

HDMI Audio Out HDMI Video Resolution

Component Output Player Menu

Disc

HDMI Multi(Normal) Auto

480i English

Follow the procedure below depending on the setting items.

A) If “B” does not appear on the right side

of the setting items when you highlight the items: Press [ENTER] repeatedly to change options.

B) If “B” appears on the right side of the

setting items when you highlight the items:

1) Press [ENTER].

2) Use [K / L] to select options, then press [ENTER].

•Use [s] or [RETURN ] to go back to

the previous screen.

Press [SETUP] to exit.

FUNCTION SETUP O

THERS

31EN

Page 34

FUNCTION SETUP

PLAY

AUDIO

SKIP

REV

PIP

ANG

Custom

“ Custom” menu contains all the setting items.

OWE

EAR

ENTER

SETUP RETURN

UBTITLE

SKIP

TOP

LOSE

ELLO

POP MENU

MOD

1 2 3

4 5

In stop mode, press [SETUP].

Use [K / L] to select , then press [ENTER].

Use [K / L] to select your desired setting category, then press [ENTER].

: Language : Video : Audio : Parental : Others

• For “Parental” menu, follow the procedure on page 41.

Use [K / L] to select your desired setting items.

Follow the procedure below depending on the setting items.

A) If “B” does not appear on the right side

of the setting items when you highlight the items: Press [ENTER] repeatedly to change options.

B) If “B” appears on the right side of the

setting items when you highlight the items:

1) Press [ENTER].

2) Use [K / L] to select options, then press [ENTER].

•Use [s] or [RETURN ] to go back

to the previous screen.

Press [SETUP] to exit.

32 EN

Page 35

S Language

Language

FUNCTION SETUP

NTRODUCTION

Audio Subtitle Disc Menu

Player Menu

Original Off English

English

• To select the setting items and options, refer to “ Custom” on page 32.

• “ Quick” menu consists of the setting menus frequently used, and they are accompanied with .

Setting items Options

Audio

Sets the language for audio.

Original* / English / French / Spanish / German / Italian / Swedish / Dutch / Russian / Chinese / Japanese / Korean / Danish / Finnish / Norwegian / Icelandic / Hungarian / Romanian / Turkish / Greek / Irish / Portuguese / Polish / Czech / Slovak / Bulgarian / Other

Subtitle

Sets the language for subtitle.

Off* / English / French / Spanish / German / Italian / Swedish / Dutch / Russian / Chinese / Japanese / Korean / Danish / Finnish / Norwegian / Icelandic / Hungarian / Romanian / Turkish / Greek / Irish / Portuguese / Polish / Czech / Slovak / Bulgarian / Other

Disc Menu

Sets the language for disc menu or pop-up menu.

English* / French / Spanish / German / Italian / Swedish / Dutch / Russian / Chinese / Japanese / Korean / Danish / Finnish / Norwegian / Icelandic / Hungarian / Romanian / Turkish / Greek / Irish / Portuguese / Polish / Czech / Slovak / Bulgarian / Other

Player Menu

Sets the language for OSD

Auto(XXXX)

/ English* / Français / Español

(on-screen display).

*) Settings with (*) are the default. *1) “Auto” activates the Get & Set Menu Language function. (Refer to page 42)

- “Auto” is available only when “HDMI CEC” is set to “On”.

- inside the parentheses next to “Auto” will be the language which is currently selected by your TV.

• For “Audio”, “Subtitle”, and “Disc Menu”, if you select “Other”, enter the 4-digit-number code for the desired language (Refer to “Language Code List” on page 46). Only the languages supported by the disc can be selected.

ONNECTIONS

LAYBACK

FUNCTION SETUP O

THERS

33EN

Page 36

S Video

FUNCTION SETUP

Video

TV Aspect HDMI Video Resolution HDMI Deep Color

Component Output Progressive Mode

Still Mode

16:9 Wide Auto Auto

480i Auto

Auto

• To select the setting items and options, refer to “ Custom” on page 32.

• “ Quick” menu consists of the setting menus frequently used, and they are accompanied with .

Setting items Options

TV Aspect

Sets the picture size according to aspect ratio of the connected TV.

16:9 Wide*: Select this when a wide-screen TV is connected. Discs recorded in wide-screen format is played back over the entire TV screen.

4:3 Pan & Scan: Select this to play back the discs recorded in wide-screen format with 4:3 TV in the pan & scan mode (with the sides of the picture cut off). Discs which are not specified for pan & scan are played back in the letter box mode.

4:3 Letter Box: Select this to play back the discs recorded in wide-screen format with 4:3 TV in the letter box mode. (with black strips at the top and bottom.)

16:9 Squeeze: When playing back 4:3 images, the picture is displayed in the center of the 16:9 screen with a 4:3 aspect ratio.

HDMI Video Resolution

Sets the HDMI video resolution.

Auto*: HDMI video resolution will be selected automatically depending on the connected HDMI device. If you want to change the resolution manually, press [HDMI] repeatedly.

480p 720p 1080i 1080p 1080p24:

Gives a natural and high quality film reproduction of 24-frame film material. The connected TV has to be compatible with 1080p24 frame input.

HDMI Deep Color

Sets whether to output the picture from HDMI OUT jack with Deep Color or not.

Auto*: The picture from HDMI OUT jack will be output with Deep Color to the connected TV which supports HDMI Deep Color.

Off: The picture from HDMI OUT jack will be output without Deep Color.

Component Output

Sets the video resolution for component output.

480i* 480p 720p 1080i

Progressive Mode

Sets the optimum progressive mode for the image material output from HDMI OUT jack and COMPONENT VIDEO OUT jacks.

Auto*: The progressive mode will detect 24-frame film material (movies) and automatically select appropriate progressive mode.

Video: Suited for playing back video material discs (TV shows or animation).

34 EN

Page 37

FUNCTION SETUP

Setting items Options

Still Mode

Adjusts picture resolution and quality in still mode.

*) Settings with (*) are the default. *1) An individual picture on the TV screen is called “Frame”, which consists of two separate images called “Field”.

Some pictures may be blurred at the auto setting in “Still Mode” setting due to their data characteristics.

Note for “HDMI Video Resolution” and “Component Output”

• You cannot select the video resolutions which are not supported by the connected TV, except when this unit’s

HDMI OUT jack is connected to a DVI compatible display devices with an HDMI-DVI cable.

• Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.

• You cannot change the video resolution during Blu-ray Disc playback. To change the resolution, stop playback.

• In order to get natural and high quality film reproduction of 24-frame film material, use an HDMI cable (High Speed

HDMI Cable is recommended) and select “1080p24” if the connected TV is compatible with 1080p24 frame input.

• Even if you set “HDMI Video Resolution” setting to “1080p24”, when the contents of the disc are not compatible for

1080p24 frame, 1080p60 frame will be output.

• There is no output from VIDEO OUT or COMPONENT VIDEO OUT when playing back a 24 frame BD material with

1080p24 video resolution.

• If the picture is not output properly to the TV because of “HDMI Video Resolution” or “Component Output” setting,

press and hold [PLAY B] on the front panel for more than 5 seconds. Both settings will be reset to the default automatically.

• For video resolution of the component output, you can only select the video resolution which is currently output

from HDMI OUT jack or “480i” if HDMI cable is connected.

• If the video resolution for the component output and HDMI video resolution do not match, the video resolution for

the component output will be switched to “480i”.

• COMPONENT VIDEO OUT jacks may not output any signals depending on the disc material.

• If you play back copy-protected DVD-video, 480p signal will be output from COMPONENT VIDEO OUT jacks, when

“Component Output” setting is set to “720p” or “1080i”.

Auto*:

Automatically selects the best resolution setting (“Frame” or “Field”) based on the data characteristics of the pictures.

Field:

Stabilizes the pictures, although the picture quality may become coarse due to the limited amount of data. Select “Field” when the pictures are still unstable even if “Auto” is selected.

Frame:

Displays relatively motionless pictures in higher resolution. “Frame” improves the picture quality, although it may unstabilize the pictures due to alternate output of 2-field data.

NTRODUCTION

ONNECTIONS

LAYBACK

FUNCTION SETUP O

THERS

35EN

Page 38

S Audio

FUNCTION SETUP

Audio

BD Audio Mode HDMI Audio Out Down Sampling

DRC

Mix Audio Output HDMI Multi(Normal) On

Off

• To select the setting items and options, refer to “ Custom” on page 32.

• “ Quick” menu consists of the setting menus frequently used, and they are accompanied with .

Setting items Options

BD Audio Mode

For BD, selects whether to output the

Mix Audio Output*:

Outputs the secondary and interactive audio with primary audio if it is available. secondary and interactive audio with primary audio if it is available or only the primary audio. Refer to “Setting the BD Audio Mode” on page 30.

HD Audio Output:

Outputs only the primary audio. Set this mode in order to output Dolby Digital,

Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD audio of BD through HDMI

connection.

HDMI Audio Out

Sets the audio format for the audio output from HDMI OUT jack. Refer to page 37.

HDMI Multi(Normal)*:

The multi-channel audio signals are output from HDMI OUT jack with bitstream

or LPCM.

HDMI Multi(LPCM):

The multi-channel audio signals are output from HDMI OUT jack with LPCM.

Refer to pages 39-40 for setting options.

Audio Mute:

Mutes the HDMI audio signal, and set the signal format from DIGITAL OUT jack.

Refer to “Digital Out setting” on page 38 for setting options.

Down Sampling

Sets the digital audio output when playing back BD or DVD recorded in LPCM.

On*:

LPCM signals are converted to 48 kHz for output.

Set to “On” when using digital connections to an AV amplifier that is not

compatible with sampling frequencies of 96 kHz.

Off:

For BD and DVD recorded in LPCM without copyright protection, 2-channel

audio signals up to 192 kHz are output as LPCM signals with no conversion.

DRC

On Sets whether to compress the range of sound volume (dynamic range control) when Dolby Digital, Dolby Digital Plus or Dolby TrueHD audio is

Off*

played back.

*) Settings with (*) are the default.

• Under following circumstances, “HDMI Multi(Normal)” and “HDMI Multi(LPCM)” are not available.

- HDMI cable is not connected to HDMI OUT jack.

- Connected TV is off.

- Connected TV is not compatible with audio output.

36 EN

Page 39

FUNCTION SETUP

HDMI Audio Out Setting

When using HDMI connections make “HDMI Audio Out” setting in “Audio” menu according to the specifications of the device to be connected. Refer to page 36. Normally, set it to “HDMI Multi(Normal)” so that the unit automatically picks and outputs the best audio format suited to your connected device.

Device to be connected “HDMI Audio Out” setting Output HDMI audio signal

Device compatible with Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD decoding

Device compatible with 3 or more channels of audio inputs (not Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD compatible)

HDMI connection to a TV and digital audio connection (optical/coaxial) to an AV amplifier.

HDMI Multi(Normal)

HDMI Multi(LPCM)

Audio Mute

Audio signals output from HDMI OUT jack

“HDMI Audio Out” setting

HDMI Multi(Normal) HDMI Multi(LPCM)

Media Recording format

Dolby Digital Dolby Digital Dolby Digital Multi LPCM Multi LPCM

Dolby Digital Plus Dolby Digital Plus Dolby Digital Multi LPCM

BD-video

DVD-video/ DVD-RW/-R (VR mode)

audio CD 2ch LPCM 2ch LPCM

DTS-CD DTS Multi LPCM

Dolby TrueHD Dolby TrueHD Dolby Digital Multi LPCM

DTS DTS DTS Multi LPCM Multi LPCM

DTS-HD DTS-HD DTS Multi LPCM

LPCM Multi LPCM Multi LPCM Multi LPCM Multi LPCM

Dolby Digital Dolby Digital Multi LPCM

DTS DTS Multi LPCM

LPCM 2ch LPCM 2ch LPCM

*1) Outputs audio signals decoded from independent substream. *2) Outputs audio signals decoded from Dolby Digital stream. *3) Outputs audio signals decoded from DTS core stream.

When “BD Audio Mode” is set to “HD Audio Output”

When “BD Audio Mode” is set to “Mix Audio Output”

Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS, or DTS-HD bitstream are output from HDMI OUT jack. Make the speaker settings on the connected AV amplifier, etc.

Multi-channel audio signals are output from HDMI OUT jack. Make the speaker settings with the speaker setting items appear after you select “HDMI Multi(LPCM)”. Refer to page 36.

HDMI audio will be mute, and Dolby Digital / DTS bitstream or LPCM will be output from DIGITAL OUT jack depending on “Digital Out setting”. Refer to page 38.

When “BD Audio Mode” is set to “HD Audio Output”

When “BD Audio Mode” is set to “Mix Audio Output”

Multi LPCM

NTRODUCTION

ONNECTIONS

LAYBACK

FUNCTION SETUP O

THERS

• If the connected device is not compatible with the HDMI BITSTREAM, audio will be output as multi LPCM or 2-channel down-mixed LPCM depending on the capability of the connected device even if you select “HDMI Multi(Normal)” in “HDMI Audio Out” setting.

Note

• The audio signals from HDMI OUT jack (including the sampling frequency, the number of channels and bit length)

maybe limited by the device that is connected.

• Among the devices that support HDMI, some do not support audio output (e.g, projectors). In connections with

device such as this unit, audio signals are not output from HDMI OUT jack.

• Video and audio signals may be distorted temporarily when switching to / from the HDMI output mode.

37EN

Page 40

FUNCTION SETUP

Digital Out setting

When “Audio Mute” is selected in “HDMI Audio Out” setting, HDMI audio signal will be mute and the audio signals output from DIGITAL OUT jack changes depending on “Digital Out” setting.

Quick A HDMI Audio Out A Audio Mute A Digital Out

Bitstream* : When playing back discs recorded in Dolby Digital, Dolby Digital Plus, Dolby TrueHD, DTS or DTS-HD, the corresponding core stream (Dolby Digital or DTS) are output.

LPCM : LPCM signal will be output from DIGITAL OUT jack.

• This setting is not effective when the HDMI audio signal is output.

Audio signals output from DIGITAL OUT (OPTICAL / COAXIAL) jack

For the settings in the “Digital Out” to take effect, “HDMI Audio Out” should be set to “Audio Mute”. Otherwise, the settings made in the “HDMI Audio Out” will have a priority, and the same signal as being output from the HDMI OUT jack will be output from the DIGITAL OUT jack as well. (Except that Dolby Digital will be output instead of Dolby Digital Plus and Dolby TrueHD, and DTS signal will be output instead of DTS-HD.)

Media Recording format

Dolby Digital Dolby Digital 2ch Downmix LPCM Dolby Digital Plus Dolby Digital 2ch Downmix LPCM

BD-video

DVD-video / DVD-RW/-R (VR mode)

audio CD 2ch LPCM 2ch LPCM DTS-CD DTS 2ch Downmix LPCM

Dolby TrueHD Dolby Digital 2ch Downmix LPCM DTS DTS 2ch Downmix LPCM DTS-HD DTS 2ch Downmix LPCM LPCM 2ch Downmix LPCM 2ch Downmix LPCM Dolby Digital Dolby Digital 2ch Downmix LPCM DTS DTS 2ch Downmix LPCM LPCM 2ch LPCM 2ch LPCM

Bitstream LPCM

“Digital Out” setting

Note

• In order to output LPCM signal from DIGITAL OUT jack while outputting the HDMI audio signal, set “HDMI Audio

Out” setting to “HDMI Multi(LPCM)”.

38 EN

Page 41

FUNCTION SETUP

Speaker setting (Available when you have HDMI cable connected to HDMI OUT jack)

This unit allows you to enjoy multi-channel surround sound such as 7.1-channel / 5.1-channel surround. To make the most of its feature, set up your speakers appropriately by referring to the following table.

How to navigate through “HDMI Multi(LPCM)”:

1) Use [K / L] to select your desired menu item then

press [ENTER].

2) Use [K / L] to select your setting items.

• Press

[RETURN

] to go back to the previous screen.

3) Use [s / B] to select desired options. (Except for

“Test Tone”, “Default” and setting options in “Speaker Size” setting.)

For setting options in “Speaker Size” setting: Press [ENTER] to select desired options.

For “Test Tone”: Use [s / B] to select “Off”, “Manual” or “Auto”, then press [ENTER].

• The test tone will be output. If you select “Manual”, use [K/L] to select desired speaker, then use [s/B] to adjust the volume. If you select “Auto”, use [s/B] to adjust the volume of the speaker that outputs the test tone.

• If you want to stop the test tone, press

[RETURN

For “Default”: Press [ENTER] to reset to the default.

4) Press [SETUP] to exit.

Front speaker (left) Front speaker (right)

Center speaker

Surround speaker (left)

Surround back speaker (left)

e.g.) basic layout with 7.1-channel surround system

Subwoofer

Surround speaker (right)

Surround back speaker (right)

NTRODUCTION

ONNECTIONS

LAYBACK

FUNCTION SETUP O

Quick A HDMI Audio Out A HDMI Multi(LPCM) Custom A Audio A HDMI Audio Out A HDMI Multi(LPCM)

Menu Setting items Options Descriptions

Speaker Size

Selects the desired speaker to set. Then change the setting by referring to the descriptions.

Front Large* Large:

Small

Center Large*

Small Subwoofer On Surround Large*

Small Surround Back Large*

Small Default Select “Default”, then press [ENTER] to reset

THERS

For the large speakers with strong low frequency reproduction capabilities. Small: For the small speakers which do not provide strong bass sound. You cannot change the setting of “Subwoofer”. Speakers which are not supported by the connected device will be displayed in gray.

“Speaker Size” setting to the default.

39EN

Page 42

FUNCTION SETUP

Menu Setting items Options Descriptions

Channel Level

Tests or sets the volume for each speaker.

Delay Time

This is a parameter for optimizing the timing at which the sound outputs from the speakers according to the distance from the listening position.

*) Settings with (*) are the default.

• For “Speaker Size” setting, the settings of each speaker size may be adjusted automatically corresponding to each setting. (e.g. If “Front” is set to “Small”, you cannot set “Center”, “Surround”, and “Surround Back” to “Large”.)

• For “Delay Time”, the difference between the value of the “Front”, “Surround” and “Surround Back” setting cannot exceed 15 ft (4.5m), and the difference between the value of the “Front” and “Center” setting cannot exceed 5 ft (1.5m).

• For “Delay Time”, the value of the “Center”, “Surround” and “Surround Back” setting cannot exceed the value of the “Front” setting.

• For “Delay Time”, the setting of “Center”, “Surround” and “Surround Back” will be changed automatically to the setting value of the “Front”. (e.g., If the “Front” is set to 60ft (18m), the setting of “Center”, “Surround” and “Surround Back” will be changed to 60ft (18m) as well.)

Test Tone: “Test Tone” is the test tone which can be output from the speakers so you can adjust the volume for each speaker.

Front Lch 0dB to -12dB

Center 0dB to -12dB

Subwoofer 0dB to -12dB

Front Rch 0dB to -12dB

Surround Rch 0dB to -12dB

Surround Back Rch 0dB to -12dB

Surround Back Lch 0dB to -12dB

Surround Lch 0dB to -12dB

Default Select “Default”, then press [ENTER] to reset

Distance Feet* Set the desired measure system. This measure

Front 0ft to 60ft (12ft*)

Center 0ft to 60ft (12ft*)

Surround 0ft to 60ft (10ft*)

Surround Back 0ft to 60ft (10ft*)

Default Select “Default”, then press [ENTER] to reset

Off* Select “Off” to deactivate “Test Tone”. Manual Auto

(0dB*)

Meters

(0 m to 18 m (3.6 m*))

(0 m to 18 m (3.0 m*))

Select “Manual”, then press [ENTER] to manually set the volume for the desired speaker. Select “Auto”, then press [ENTER] to automatically output the test tone from each speaker.

If you have selected “Manual” in “Test Tone”, select the desired speaker to set and adjust the volume for the selected speaker. If you select “Auto” in “Test Tone”, test tone will automatically be output in order. Adjust the volume of the speaker that outputs the test tone.

“Channel Level” setting to the default.

system will be used for “Delay Time” setting. Press [ENTER] to switch the settings.

Select the distance from the listening position to the speaker to get the ideal delay time.

“Delay Time” setting to the default.

40 EN

Page 43

FUNCTION SETUP

S Parental

Ratings control allows you to set a limit, which prevents your children from viewing inappropriate materials. Playback will be stopped if the ratings exceed the levels you set, and it will require you to enter a password before playing back the disc.

Parental

BD Rating Level DVD Rating Level Password Change

1 Use [K / L] to select , then press [ENTER]. 2 Use [the Number buttons] to enter your 4-digit password.

For the first time use: Use [the Number buttons] to enter any 4-digit number (except for 4737), then press [ENTER]. That number will be used as the password from the second time. Record your password in case you forget

it.

• If you forget the password, enter [4], [7], [3], [7]. The password will be cleared and rating level will be set to “All”.

• While you input the password, press [CLEAR] to clear the number, then re-enter the password.

3 Proceed to A – C

A) BD Rating Level

1) Use [K / L] to select “BD Rating Level”, then press [ENTER].

2) Use [K / L] to select your desired option, then press [ENTER]. “All”: To release the limitation. “Age Setting”: To set the age limitation.

• After selecting “Age Setting”, use [the Number buttons] to enter the age from 0 – 254.

(e.g. for age 15, press [0], [1], [5])

3) Press [SETUP] to exit.

All All

NTRODUCTION

For the first time use

ONNECTIONS

LAYBACK

FUNCTION SETUP O

THERS

B) DVD Rating Level

1) Use [K / L] to select “DVD Rating Level”, then press [ENTER].

2) Use [K / L] to select your desired level, then press [ENTER].

3) Press [SETUP] to exit.

RATING EXPLANATIONS

• All : Parental Control is inactive; all discs can played back.

• 8 [Adult] : DVD software of any grades (adult/general/children) can be played back.

• 7 [NC-17] : No one under 18 admitted.

• 6 [R] : Restricted; under 18 requires accompanying parent or adult guardian.

• 5 [PGR] : Parental guidance recommended.

• 4 [PG-13] : Unsuitable for children under 13.

• 3 [PG] : Parental guidance suggested.

• 2 [G] : General audience.

• 1 [Kid Safe] : Suitable for children.

C) Password Change

1) Use [K / L] to select “Password Change”, then press [ENTER].

2) Enter a new 4-digit password, then press [ENTER].

3) Press [SETUP] to exit.

41EN

Page 44

S Others

Others

FUNCTION SETUP

Angle Icon Auto Pow er Off Panel Display

Slide Show HDMI CEC

Media Select

On On Auto

5sec Off

Disc

• To select the setting items and options, refer to “ Custom” on page 32.

• “ Quick” menu consists of the setting menus frequently used, and they are accompanied with .

Setting items Options

Angle Icon On*:

The angle icon appears on the TV screen when playing back the scene with various angle.

Off: The angle icon disappears on the TV screen.

Auto Power Off On*:

If this unit is left with no activity for more than 30 minutes, this unit turns into the standby mode automatically.

Off: Sets off the auto power off.

Panel Display

Sets the brightness of the front panel display.

Auto*: Front panel display gets darker during playback.

Bright: Front panel display gets brighter.

Dimmer: Front panel display gets darker.

Slide Show

Sets the display time for the still

5sec* 10sec

picture (in JPEG format) playback.

HDMI CEC

Sets whether to utilize the HDMI CEC

On Off*

function.

Media Select

Selects the media to playback.

Disc*: Select this when you play back a disc.

SD Card: Select this when you play back an SD Memory Card.

S HDMI CEC

HDMI CEC allows integrated system control over HDMI and is part of the HDMI standard. This function may not work properly depending on a device to be connected. When “HDMI CEC” setting is set to “On”, functions listed below will be available.

One Touch Play

When this unit is turned on, the TV also is turned on and the appropriate external input channel will be selected automatically. The appropriate external input channel can also be selected on your TV automatically when you press

[PLAY B], [SKIP H], [SKIP G], [the Number buttons], [DISPLAY], [TOP MENU], or [POP MENU / MENU] when

the unit’s power is on.

System Information

Get & Set Menu Language

The unit recognizes the OSD language set for the TV and automatically sets the same language as the player menu language (OSD menu language) for this unit.

• This feature is available only when “Auto(XXXX)” is selected in “Player Menu” in the setup menu. (Refer to “Player Menu” on page 33.)

Standby

When you press and hold [POWER] for 2 seconds, it turns off the power of the TV first and then turns off the power of this unit also. When the connected HDMI CEC compatible display device is turned off, this unit may also turn off together.

42 EN

Page 45

RETURN

PLAY

OWE

AUDIO

FWD

SKIP

REV

PIP

ANG

RED

EAR

SETUP

UBTITLE

SKIP

ENTER

TOP

FUNCTION SETUP

Initialize the setting or SD Memory Card.

LOSE

ELLO

POP MENU

Initialize

In stop mode, press [SETUP].

Use [K / L] to select , then press [ENTER].

Use [K / L] to select a desired option, then press [ENTER].

“Setup”:

Resets the setup menu to the default.

“Format SD Card” (Available only when an SD Memory Card is inserted.):

Initializes the SD Memory Card. After confirmation message appears, use [K / L] to select “Yes”, then press [ENTER].

“Erase Saved BD-ROM Data (Player)”:

Clears the data saved for the BD-ROM contents, such as BD-ROM game scores, from this player.

“Erase Saved BD-ROM Data (SD Card)” (Available only when an SD Memory Card is inserted.):

Clears the supplemental data for the BD-ROM playback, such as subtitle data, from the SD Memory Card.

NTRODUCTION

ONNECTIONS

LAYBACK

FUNCTION SETUP O

MOD

Initialize

Setup

Format SD Card Erase Saved BD-ROM Data (Player) Erase Saved BD-ROM Data (SD Card)

THERS

Press [ENTER]. (For “Setup” and

“Format SD Card” only)

• Confirmation message will appear. Select “Yes”,

then press [ENTER].

Press [SETUP] to exit.

Note

• The setting for “Parental” will not be reset.

Caution

• Do not remove the SD Memory Card while executing the “Format SD Card” or the “Erase Saved BD-ROM Data (SD Card)”. It damages the card.

43EN

Page 46

OTHERS

Troubleshooting

If the unit does not perform properly when operated as instructed in this manual, check the unit, consulting the following checklist.

Problem Solution

No power - Check if the AC cord is properly connected.

No sound or picture - Check if the connected TV is turned on.

Distorted picture - Sometimes a small amount of picture distortion may appear.

Completely distorted picture or black / white picture with BD / DVD No sound or distorted sound - Adjust the volume.

Picture freezes momentarily during playback

Disc cannot be played back - Clean the disc.

SD Memory Card cannot be read No return to start-up screen when disc is removed The unit does not respond to the remote control

Buttons do not work or the unit stops responding The unit does not respond to some operating commands during playback The unit cannot read BD / DVD/ CD

Angle does not switch - The angle cannot be switched for BD / DVD which do not contain multiple angles.

Playback does not start when the title is selected The password for rating level has been forgotten

- Unplug the AC cord once, and wait for 5-10 seconds and then plug it in again.

- Check if the connections are made securely and correctly.

- Check whether the connected TV or other device supports HDCP. (This unit will not output a video signal unless the other device supports HDCP.)

- Check whether the output format of this unit (HDMI FORMAT) matches the supported input format of other connected device.

- Set “HDMI Video Resolution” setting other than “Auto” or “1080p24”.

This is not a malfunction.

- Connect this unit directly to the TV. If the RCA audio / video cables are connected to a VCR, pictures may be distorted due to the copy right protection system.

- Make sure the disc is compatible with this unit.

- Check if speakers are connected correctly.

- Check the HDMI connections.

- Check the settings in “Audio” menu.

- This unit does not support LPCM 192 kHz 5.1ch.

- Check the disc for fingerprints / scratches and clean with a soft cloth wiping from center to edge.

-Clean the disc.

- Ensure the disc label is facing up.

- Check if the disc is defective by trying another disc.

- Cancel the ratings control or change the control level.

- Insert a correct disc that can be played back on this unit.

- The format of the card does not match that accepted by this unit or the card is not compatible.

- Reset this unit by turning it off, then on again.

- Aim the remote control directly at infrared sensor window on the front panel.

- Reduce the distance to infrared sensor window.

- Replace the batteries in the remote control.

- Re-insert the batteries with their polarities (+ / - signs) as indicated.

- To completely reset the unit, unplug the AC cord from the AC outlet for 5-10 seconds.

- Operations may not be permitted by the disc. Refer to the instructions of the disc.

- Condensation? (Let sit 1 or 2 hours)

- You are attempting to playback a disc other than one with one of the Logos on page 15.

- Wipe the dirt off the disc or replace the disc.

In some cases multiple angles are only recorded for specific scenes.

- Check the settings in “Parental” menu.

- Enter the default password “4737”, then your forgotten password will be cleared.

Note

• Some functions are not available in specific modes, but this is not a malfunction. Read the description in this manual for details on correct operations.

• Some functions are prohibited on some discs.

44 EN

Page 47

Glossary

OTHERS

NTRODUCTION

Analog Audio

An electrical signal that directly represents sound. Compare this to digital audio which can be an electrical signal, but is an indirect representation of sound. See also “Digital Audio”.

Aspect Ratio

The width of a TV screen relative to its height. Conventional TVs are 4:3 (in other words, the TV screen is almost square); widescreen models are 16:9 (the TV screen is almost twice as wide as it is high).

BD-Java

With some BD which support Java applications, you can enjoy the interactive functions such as games or interactive menus.

Blu-ray Disc (BD)

Blu-ray Disc is a next generation optical video disc which is capable of storing much more data than a conventional DVD is. The large capacity makes it possible to benefit from the features such as high-definition videos, multichannel surround sounds, interactive menus and so on.

Chapter

Just as a book is split up into several chapters, a title on a BD-video or DVD-video is usually divided into chapters. See also “Title”.

Component Video Output

Each signal of luminance (Y) and component (PB/CB, PR/CR) is independent to output so that you can experience picture color as it is. Also, due to compatibility with progressive video (525p/ 480p), you can experience higher-density picture than that in interlace (525i/480i).

Digital Audio

An indirect representation of sound by numbers. During recording, the sound is measured at discrete intervals (44,100 times a second for CD audio) by an analog-todigital converter, generating a stream of numbers. On playback, a digital-to-analog converter generates an analog signal based on these numbers. See also “Sampling Frequency” and “Analog Audio”.

Dolby Digital

The system to compress digital sound developed by Dolby Laboratories. It offers you sound of stereo (2ch) or multichannel audio.

Dolby Digital Plus

Dolby Digital Plus is the next generation digital audio compression technology developed as an extension to Dolby Digital. Blu-ray Disc supports 7.1 multi-channel surround sound output.

Dolby TrueHD

Dolby TrueHD is a lossless coding technology developed for next generation optical discs. Blu-ray Disc supports 7.1 multi-channel surround sound output.

DTS (Digital Theater System)

DTS is a multi-channel surround sound system. By connecting to DTS decoder, you can enjoy movie dynamic and realistic sound like movie theater. DTS surround sound technologies were developed by DTS, Inc.

DTS-HD

DTS-HD is a lossless coding technology developed as an extension of the original DTS Coherent Acoustics format. Blu-ray Disc supports 7.1 multi-channel surround sound output.

HDMI (High-Definition Multimedia Interface)

A digital interface between audio and video source. It can transmit component video, audio, and control signal with one cable connection.

JPEG (joint photographic experts group)

JPEG is a method of compressing still picture files. You can copy JPEG files on CD-RW/-R, DVD or SD Memory Card from a computer and play back the files in this unit.

PCM (pulse code modulation)

The most common system of encoding digital audio, found on CD and DAT. Excellent quality that requires a lot of data compared to formats such as Dolby Digital and MPEG audio. For compatibility with digital audio recorders (CD, MD and DAT) and AV amplifiers with digital inputs, this unit can convert Dolby Digital, DTS, and MPEG audio to PCM. See also “Digital Audio”.

Region Code

Regions associate discs and players with particular areas of the world. This unit will only play back discs that have compatible region codes. You can find the region code of your unit by looking on the rear panel. Some discs are compatible with more than one region (or all regions).

Sampling Frequency

The rate which sound is measured by a specified interval to turn into digital audio data. The numbers of sampling in one second defines as sampling frequency. The higher the rate, the better the sound quality.

Title

A collection of chapters on BD-video or DVD-video. See also “Chapter”.

Track

Audio CD use tracks to divide up the content of a disc. The BD-video or DVD-video equivalent is called a chapter. See also “Chapter”.

ONNECTIONS

LAYBACK

UNCTION

ETUP

OTHERS

45EN

Page 48

Language Code List

OTHERS

Language Code

A-B

Abkhazian 4748 Afar 4747 Afrikaans 4752 Albanian 6563 Amharic 4759 Arabic 4764 Armenian 5471 Assamese 4765 Aymara 4771 Azerbaijani 4772 Bashkir 4847 Basque 5167 Bengali;Bangla 4860 Bhutani 5072 Bihari 4854 Bislama 4855 Breton 4864 Bulgarian [BUL] 4853 Burmese 5971 Byelorussian 4851

C-E

Cambodian 5759 Catalan 4947 Chinese [CHI] 7254 Corsican 4961 Croatian 5464 Czech [CZE] 4965 Danish [DAN] 5047 Dutch [DUT] 6058 English [ENG] 5160 Esperanto 5161 Estonian 5166

F-H

Faroese 5261 Fiji 5256 Finnish [FIN] 5255

Language Code

French [FRE] 5264 Frisian 5271 Galician 5358 Georgian 5747 German [GER] 5051 Greek [GRE] 5158 Greenlandic 5758 Guarani 5360 Gujarati 5367 Hausa 5447 Hebrew 5569 Hindi 5455 Hungarian [HUN]

I-K

Icelandic [ICE] 5565 Indonesian 5560 Interlingua 5547 Interlingue 5551 Inupiak 5557 Irish [IRI] 5347 Italian [ITA] 5566 Japanese [JPN] 5647 Javanese 5669 Kannada 5760 Kashmiri 5765 Kazakh 5757 Kinyarwanda 6469 Kirghiz 5771 Kirundi 6460 Korean [KOR] 5761 Kurdish 5767

L-N

Laothian 5861 Latin 5847 Latvian;Lettish 5868 Lingala 5860 Lithuanian 5866

5467

Language Code

Macedonian 5957 Malagasy 5953 Malay 5965 Malayalam 5958 Maltese 5966 Maori 5955 Marathi 5964 Moldavian 5961 Mongolian 5960 Nauru 6047 Nepali 6051 Norwegian [NOR]

O-R

Occitan 6149 Oriya 6164 Oromo (Afan) 6159 Panjabi 6247 Pashto;Pushto 6265 Persian 5247 Polish [POL] 6258 Portuguese

[POR] Quechua 6367 Rhaeto-

Romance Romanian

[RUM] Russian [RUS] 6467

Samoan 6559 Sangho 6553 Sanskrit 6547 Scots Gaelic 5350 Serbian 6564 Serbo-Croatian 6554 Sesotho 6566 Setswana 6660 Shona 6560 Sindhi 6550 Singhalese 6555

6061

6266

6459

6461

Language Code

Siswat 6565 Slovak [SLO] 6557 Slovenian 6558 Somali 6561 Spanish [SPA] 5165 Sundanese 6567 Swahili 6569 Swedish [SWE] 6568

Tagalog 6658 Tajik 6653 Tamil 6647 Tatar 6666 Telugu 6651 Thai 6654 Tibetan 4861 Tigrinya 6655 Tonga 6661 Tsonga 6665 Turkish [TUR] 6664 Turkmen 6657 Twi 6669

U-Z

Ukrainian 6757 Urdu 6764 Uzbek 6772 Vietnamese 6855 Volapuk 6861 Welsh 4971 Wolof 6961 Xhosa 7054 Yiddish 5655 Yoruba 7161 Zulu 7267

Note

• If you choose a language that has a 3-letter-language code (written in bracket), the code will be displayed every time you change the audio or subtitle language setting on page 29. If you choose any other languages, “---” will be displayed instead.

46 EN

Page 49

OTHERS

General

Signal system NTSC color Power requirements 120 V AC, 60 Hz Power consumption 22 W (standby: 0.5 W) Dimensions (width x height x depth) 17.2 × 2.4 × 12.0 inches (435 x 59 x 303 mm) Weight 6.7 lbs. (3.0 kg) Operating temperature 41°F (5°C) to 104°F (40°C) Operating humidity Less than 80 % (no condensation)

Terminals

Video output

RCA jack x 1 1 Vp-p (75Ω)

Component video output

RCA jack x 3 Y: 1 Vp-p (75Ω) P

HDMI output

HDMI jack x 1 Video: 480p, 720p, 1080i, 1080p, 1080p24 / Audio

Rear

Audio output (Analog)

RCA jack x 2 L/R: 2 Vrms (output impedance: more than 1kΩ)

Audio output (Digital)

RCA jack x 1 Optical jack x 1

500 mVp-p (75Ω) Digital connector

B/CB: 700 mVp-p (75Ω) PR/CR: 700 mVp-p (75Ω)

NTRODUCTION

ONNECTIONS

LAYBACK

UNCTION

Note

• The specifications and design of this product are subject to change without notice.

Maintenance

Servicing

• Please refer to relevant topics on “Troubleshooting” on page 44 before returning the product.

• If this unit becomes inoperative, do not try to correct the problem by yourself. There are no user-serviceable parts inside. Turn the unit to the standby mode, unplug the power plug, and please call our toll free customer support line found on the cover of this manual to locate an authorized service center.

Cleaning the cabinet

• Wipe the front panel and other exterior surfaces of the unit with a soft, slightly damp cloth.

• Never use a solvent, thinner, benzene or alcohol to clean the unit. Do not spray insecticide liquid near the unit. Such chemicals may discolor the surface or damage the unit.

Cleaning discs

• When a disc becomes dirty, clean it with a cleaning cloth. Wipe the disc from the center to out. Do not wipe in a circular motion.

• Do not use solvents such as benzine, thinner, commercially available cleaners, detergent, abrasive cleaning agents or antistatic spray intended for analog records.

Cleaning the disc lens

• If this unit still does not perform properly although you refer to the relevant sections and to this manual, the laser optical pickup unit may be dirty. Consult your dealer or an authorized service center for inspection and cleaning of the laser optical pickup unit.

“Troubleshooting”

Disc handling

• Handle the discs so that fingerprints and dust do not adhere to the surfaces of the discs.

• Always store the disc in its protective case when it is not used.

• Note that discs with special shapes (heart-shaped discs, octagonal discs, etc.) cannot be played back on this unit. Do not attempt to playback such discs, as they may damage the unit.

IR signal check

• If the remote control is not working properly, you can use an AM radio or digital camera (including a cellular phone with built-in camera) to see if it is sending out an infrared signal.

•With an AM radio:

Tune the AM radio to a nonbroadcasting frequency. Point the remote control towards it, push any button and listen. If the sound from the radio flutters, it is receiving the remote control’s infrared signal.

•With a digital camera (including built-in cell phone

cameras):

Point a digital camera towards the remote control. Push any button on the remote control and look through the digital camera. If the infrared light appears through the camera, the remote control is working.

ETUP

OTHERS

47EN

Page 50

Limited Warranty

LIMITED WARRANTY

FUNAI CORP. will repair this product, free of charge in the USA in the event of defect in materials or workmanship as follows:

DURATION:

PARTS: FUNAI CORP. will provide parts to replace defective parts without charge for one (1) year from the date

of original retail purchase. Certain parts are excluded from this warranty.

LABOR: FUNAI CORP. will provide the labor without charge for a period of ninety (90) days from the date of

original retail purchase.

LIMITS AND EXCLUSIONS:

THIS WARRANTY IS EXTENDED ONLY TO THE ORIGINAL RETAIL PURCHASER. A PURCHASE RECEIPT OR OTHER PROOF OF ORIGINAL RETAIL PURCHASE WILL BE REQUIRED TOGETHER WITH THE PRODUCT TO OBTAIN SERVICE UNDER THIS WARRANTY.

This warranty shall not be extended to any other person or transferee. This warranty is void and of no eect if any serial numbers on the product are altered, replaced, defaced, missing

or if service was attempted by an unauthorized service center. This limited warranty does not apply to any product not purchased and used in the United States.

This warranty only covers failures due to defects in material or workmanship which occur during normal use. It does not cover damage which occurs in shipment, or failures which are caused by repairs, alterations or products not supplied by FUNAI CORP., or damage, which results from accident, misuse, abuse, mishandling, misapplication, alteration, faulty installation, improper maintenance, commercial use such as hotel, rental or oce use of this product, or damage which results from re, ood, lightning or other acts of God.

THIS WARRANTY DOES NOT COVER PACKING MATERIALS, ANY ACCESSORIES (EXCEPT REMOTE CONTROL), ANY COSMETIC PARTS, COMPLETE ASSEMBLY PARTS, DEMO OR FLOOR MODELS.

FUNAI CORP. AND ITS REPRESENTATIVES OR AGENTS SHALL IN NO EVENT BE LIABLE FOR ANY GENERAL, INDIRECT OR CONSEQUENTIAL DAMAGES ARISING OUT OF OR OCCASIONED BY THE USE OF OR THE INABILITY TO USE THIS PRODUCT. THIS WARRANTY IS MADE IN LIEU OF ALL OTHER WARRANTIES, EXPRESS OR IMPLIED, AND OF ALL OTHER LIABILITIES ON THE PART OF FUNAI, ALL OTHER WARRANTIES INCLUDING THE WARRANTY OF MERCHANTABILITY AND FITNESS FOR A PARTICULAR PURPOSE, ARE HEREBY DISCLAIMED BY FUNAI AND ITS REPRESENTATIVES IN THE UNITED STATES.

ALL WARRANTY INSPECTIONS AND REPAIRS MUST BE PERFORMED BY AN AUTHORIZED SERVICE CENTER. THIS WARRANTY IS ONLY VALID WHEN THE UNIT IS CARRIED-IN TO AN AUTHORIZED SERVICE CENTER. THE PRODUCT MUST BE ACCOMPANIED BY A COPY OF THE ORIGINAL RETAIL PURCHASE RECEIPT. IF NO PROOF

OF PURCHASE IS ATTACHED, THE WARRANTY WILL NOT BE HONORED AND REPAIR COSTS WILL BE CHARGED.

IMPORTANT:

THIS LIMITED WARRANTY GIVES YOU SPECIFIC LEGAL RIGHTS. YOU MAY HAVE OTHER RIGHTS THAT VARY FROM STATE TO STATE. IF, AT ANY TIME DURING THE WARRANTY PERIOD, YOU ARE UNABLE TO OBTAIN SATISFACTION WITH THE REPAIR OF THIS PRODUCT, PLEASE CONTACT FUNAI CORP.

ATTENTION:

FUNAI CORP. RESERVES THE RIGHT TO MODIFY ANY DESIGN OF THIS PRODUCT WITHOUT PRIOR NOTICE.

WARRANTY STATEMENT REGARDING NON AUTHORIZED REPAIRS:

To obtain warranty service, you must take the product, or deliver the product freight prepaid, in either its original packaging or packaging aording an equal degree of protection, to any AUTHORIZED SERVICE CENTER. FUNAI CORP. will not reimburse you for any service done by unauthorized service providers without prior written approval.

To locate your nearest AUTHORIZED SERVICE CENTER or for general service inquiries, please contact us at:

FUNAI SERVICE CORPORATION

Customer Service

Tel: 1-800-968-3429

http://www.sylvaniaconsumerelectronics.com

2200 Spiegel Drive, Groveport, OH 43125

Printed in China

E5K40UD

1VMN26813

Sears NB530SLX User Manual

Specifications and Main Features

Frequently Asked Questions

User Manual
