Page 1

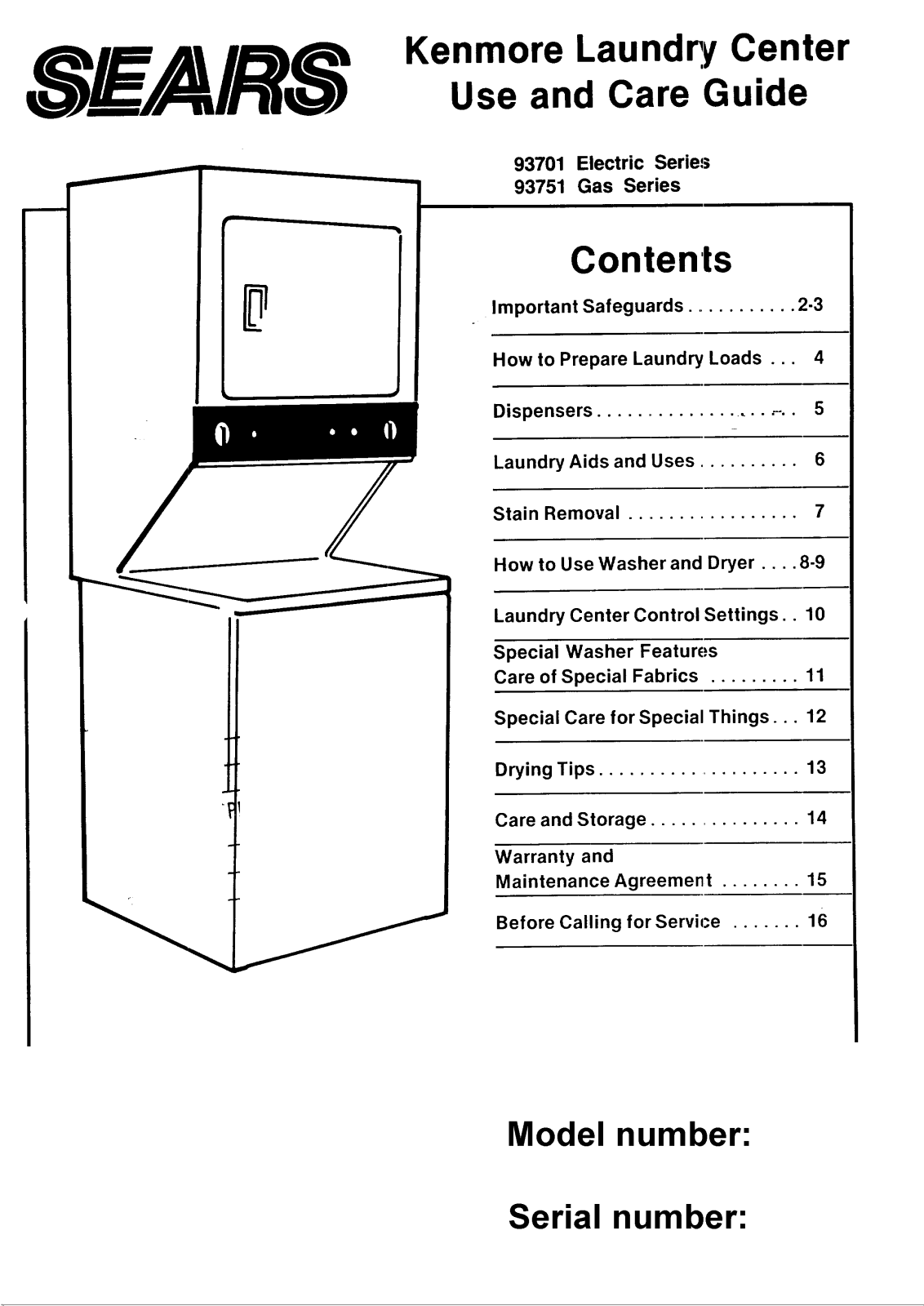

Kenmore Laundry Center

SEA/RS

7--

Use and Care Guide

93701 Electric Series 93751 Gas Series

Contents

Important Safeguards ............ 2-3

How to Prepare Laundry Loads .., 4

Dispensers .................... -.. 5

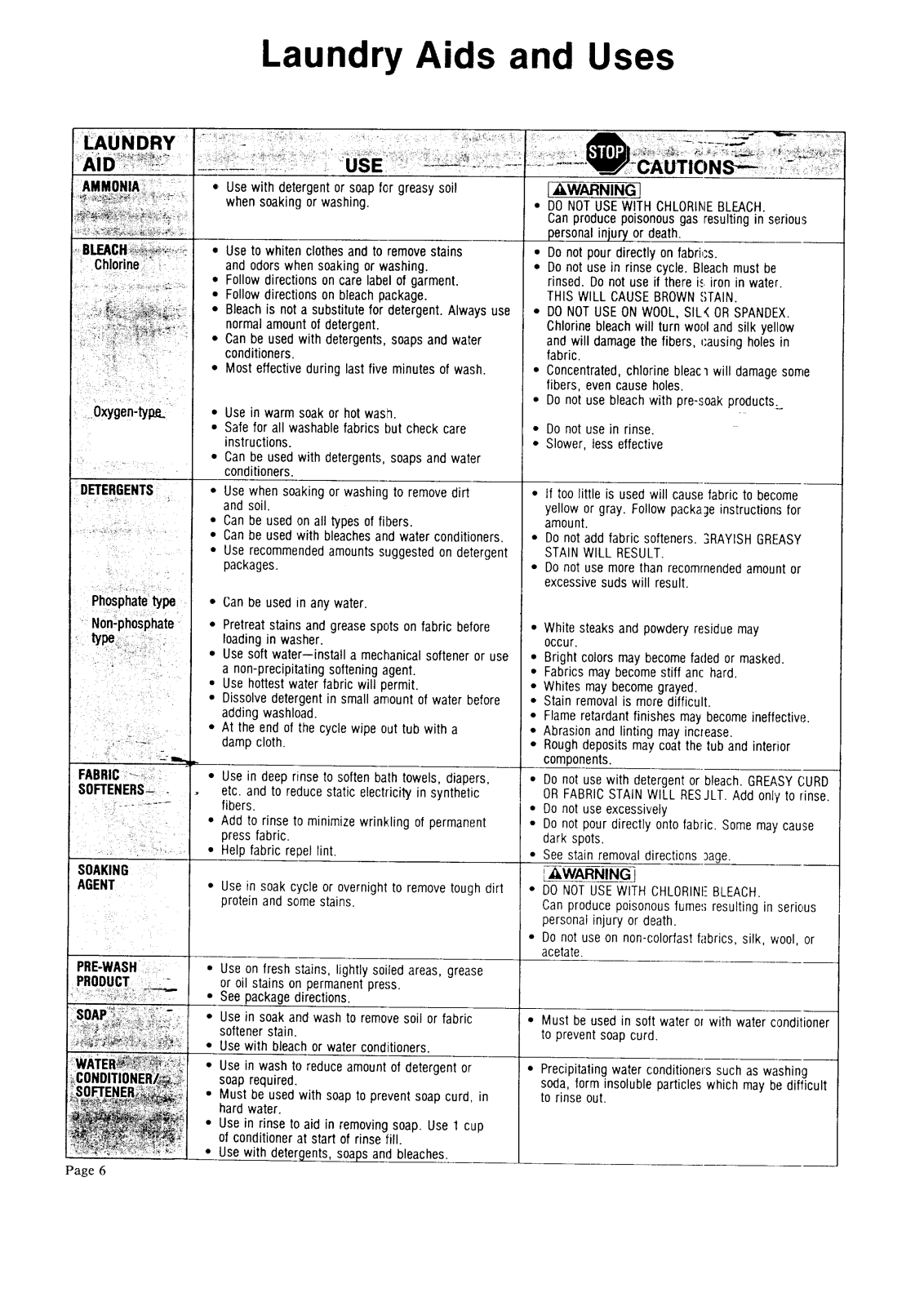

Laundry Aids and Uses .......... 6

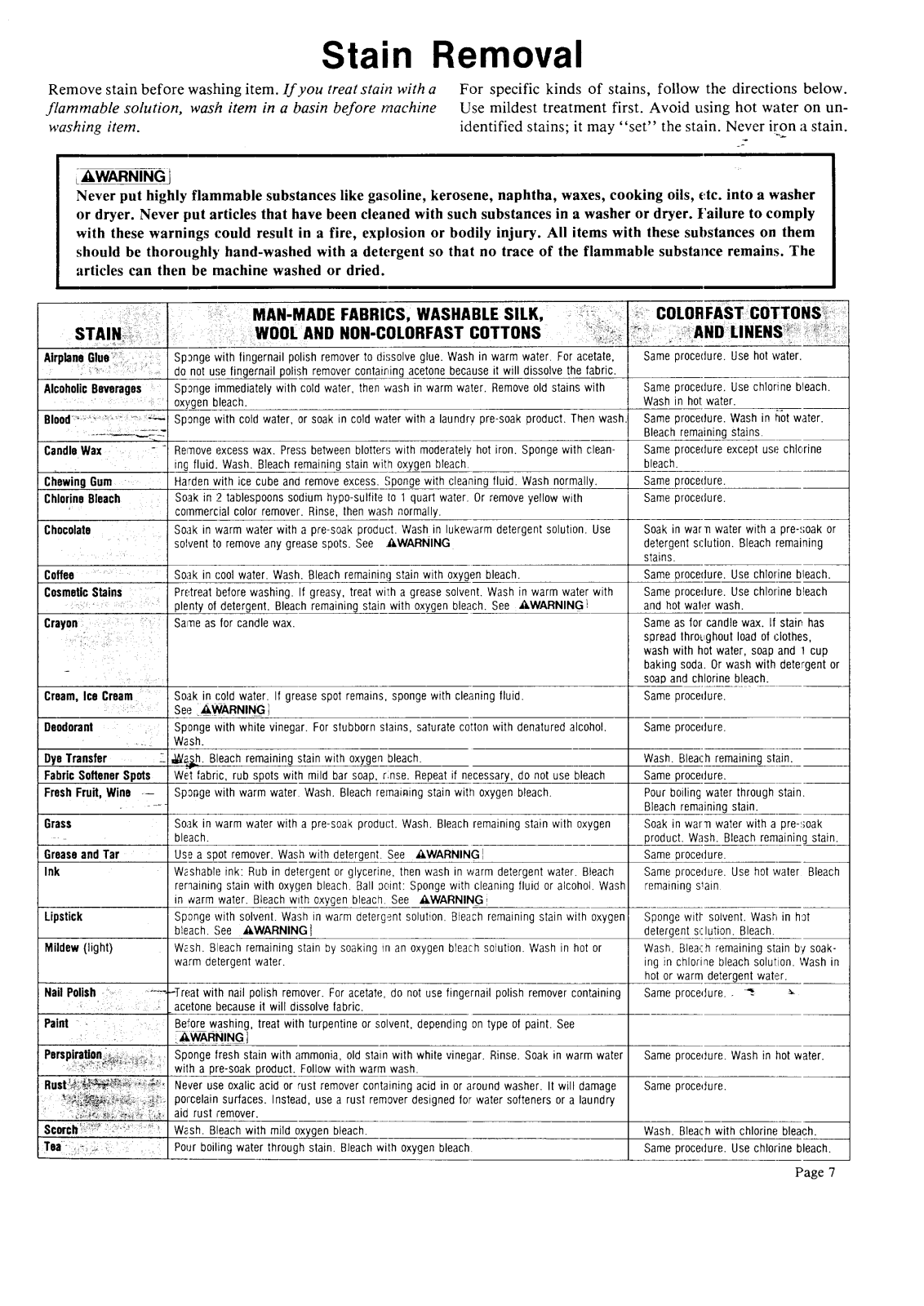

Stain Removal ................. 7

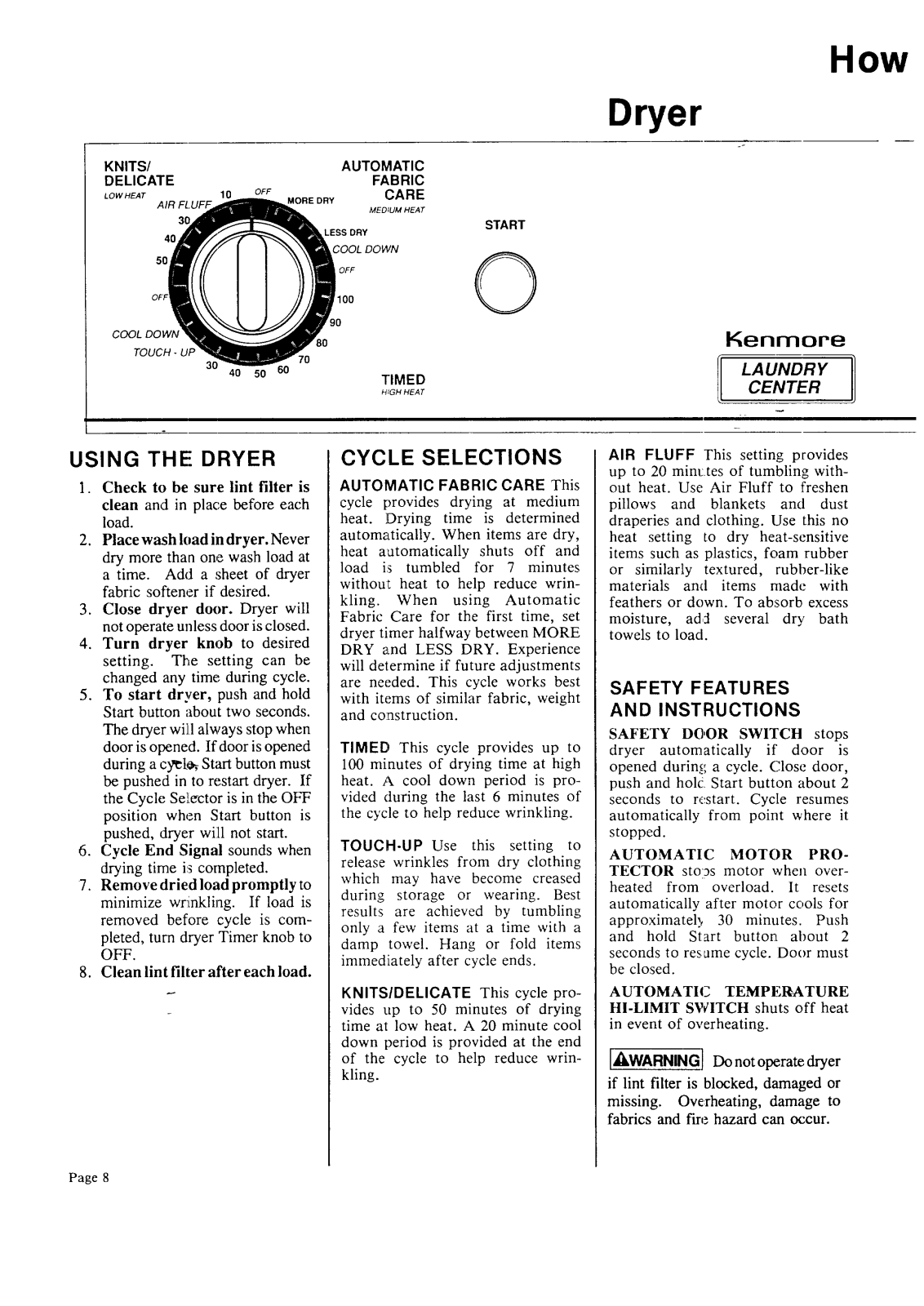

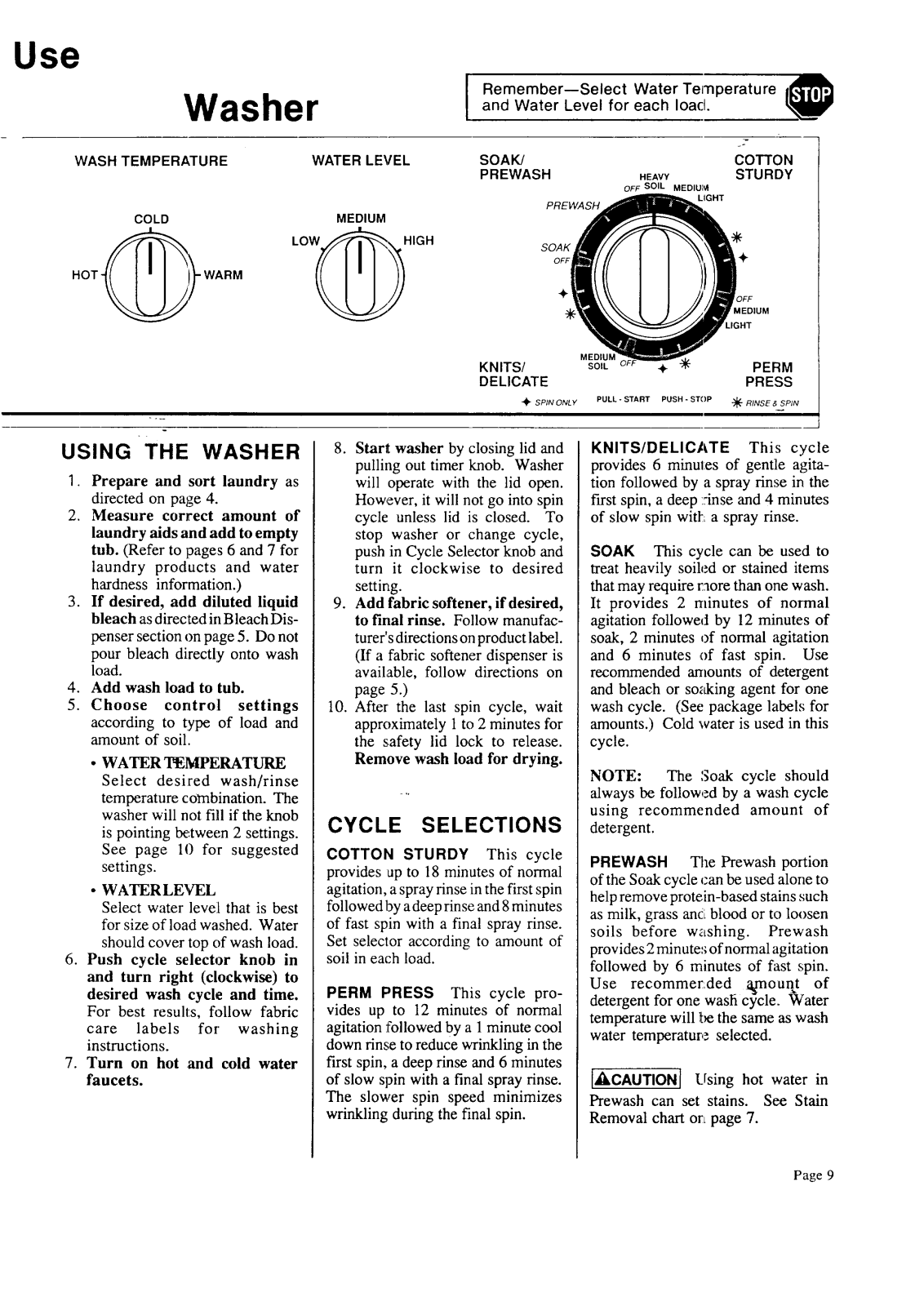

How to Use Washer and Dryer .... 8-9

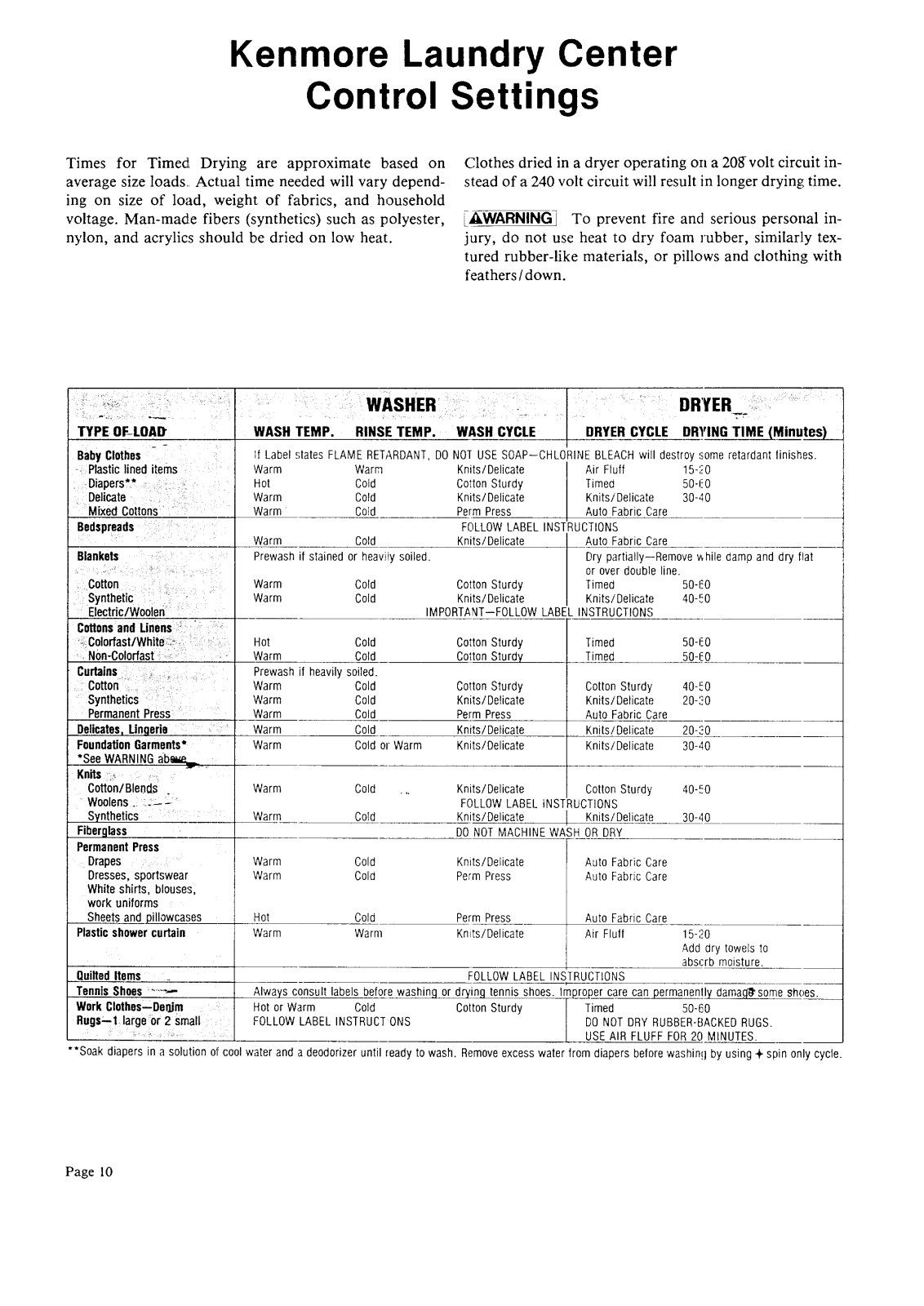

Laundry Center Control Settings.. 10

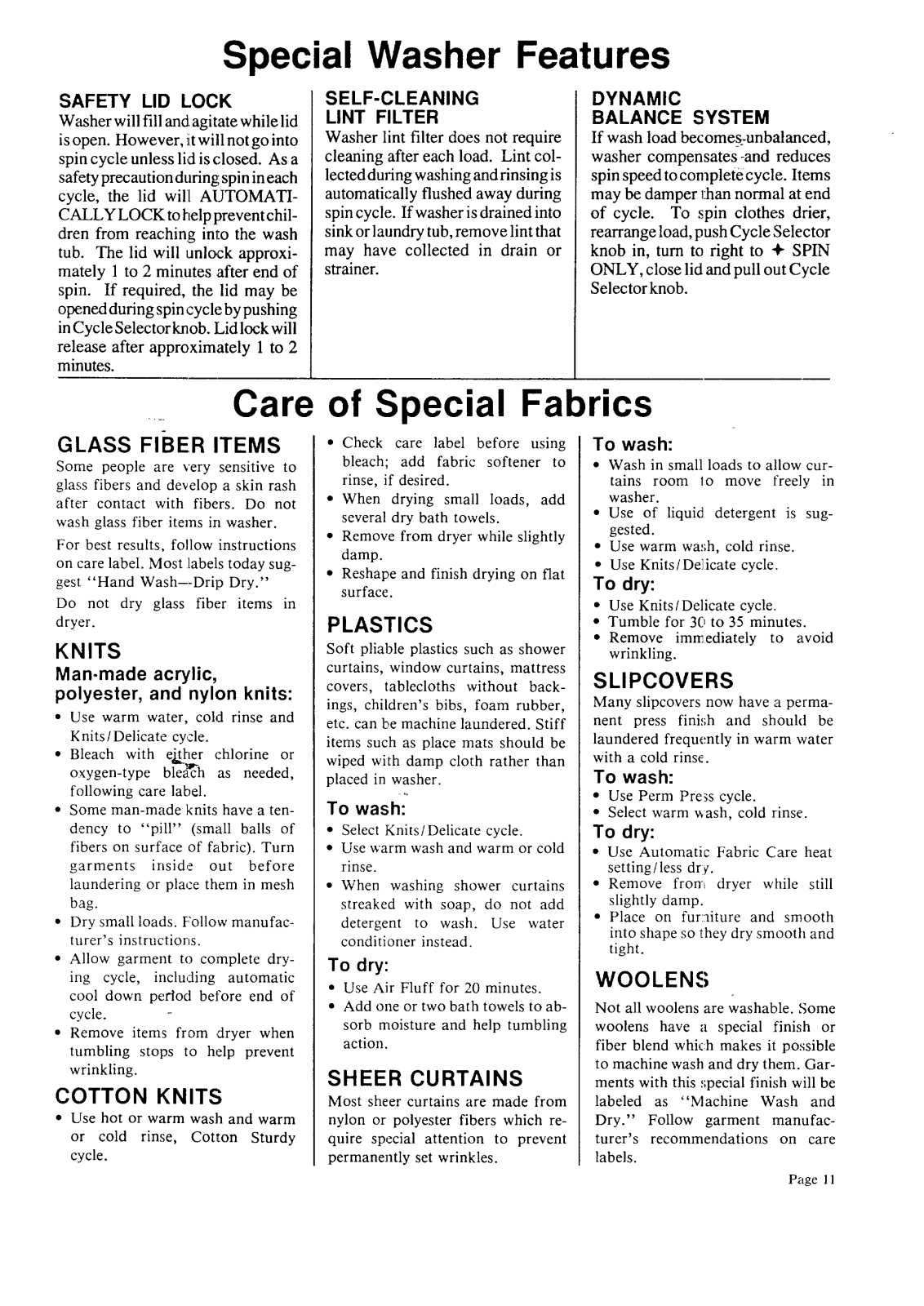

Special Washer Features

Care of Special Fabrics ......... 11

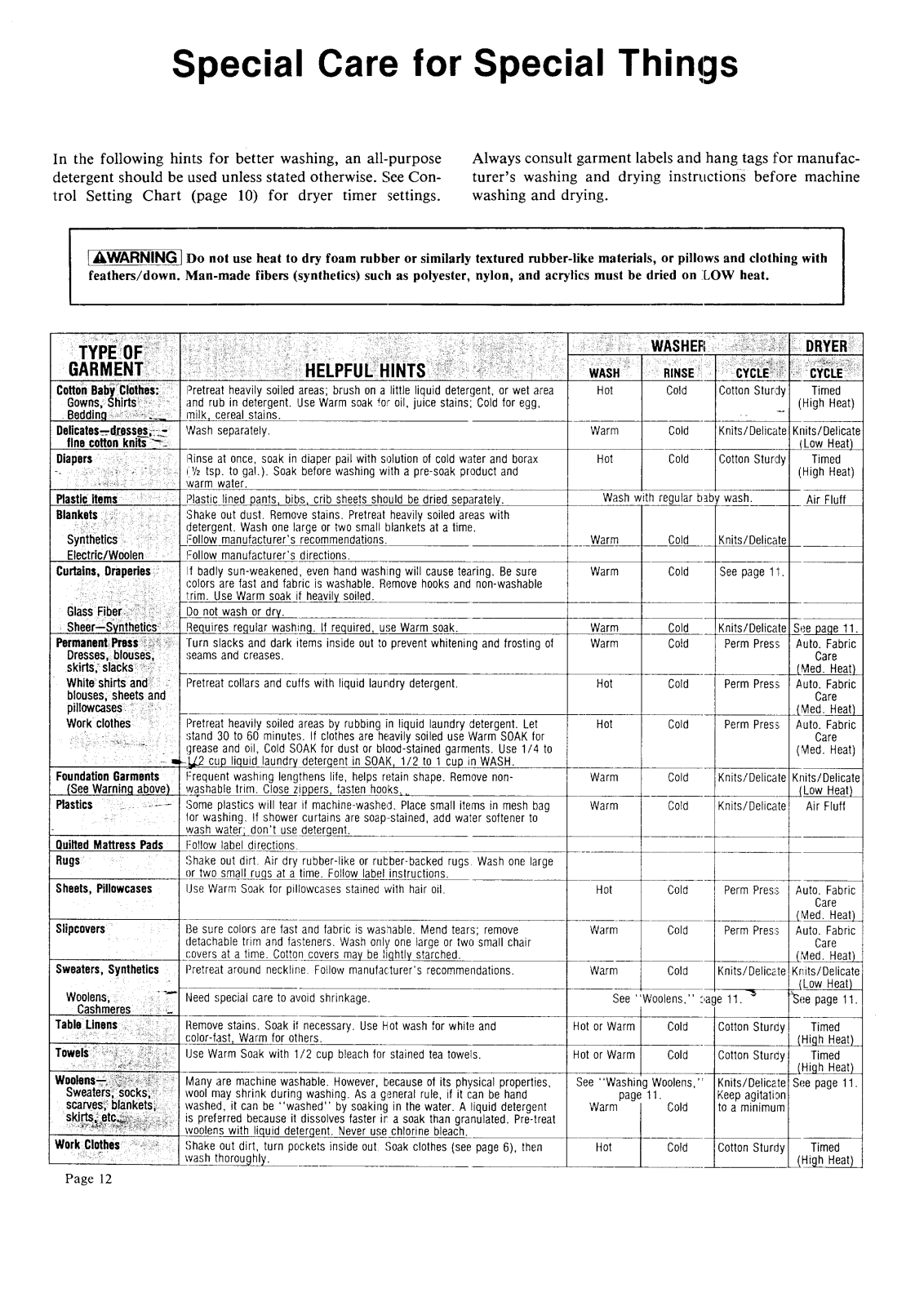

Special Care forSpecial Things... 12

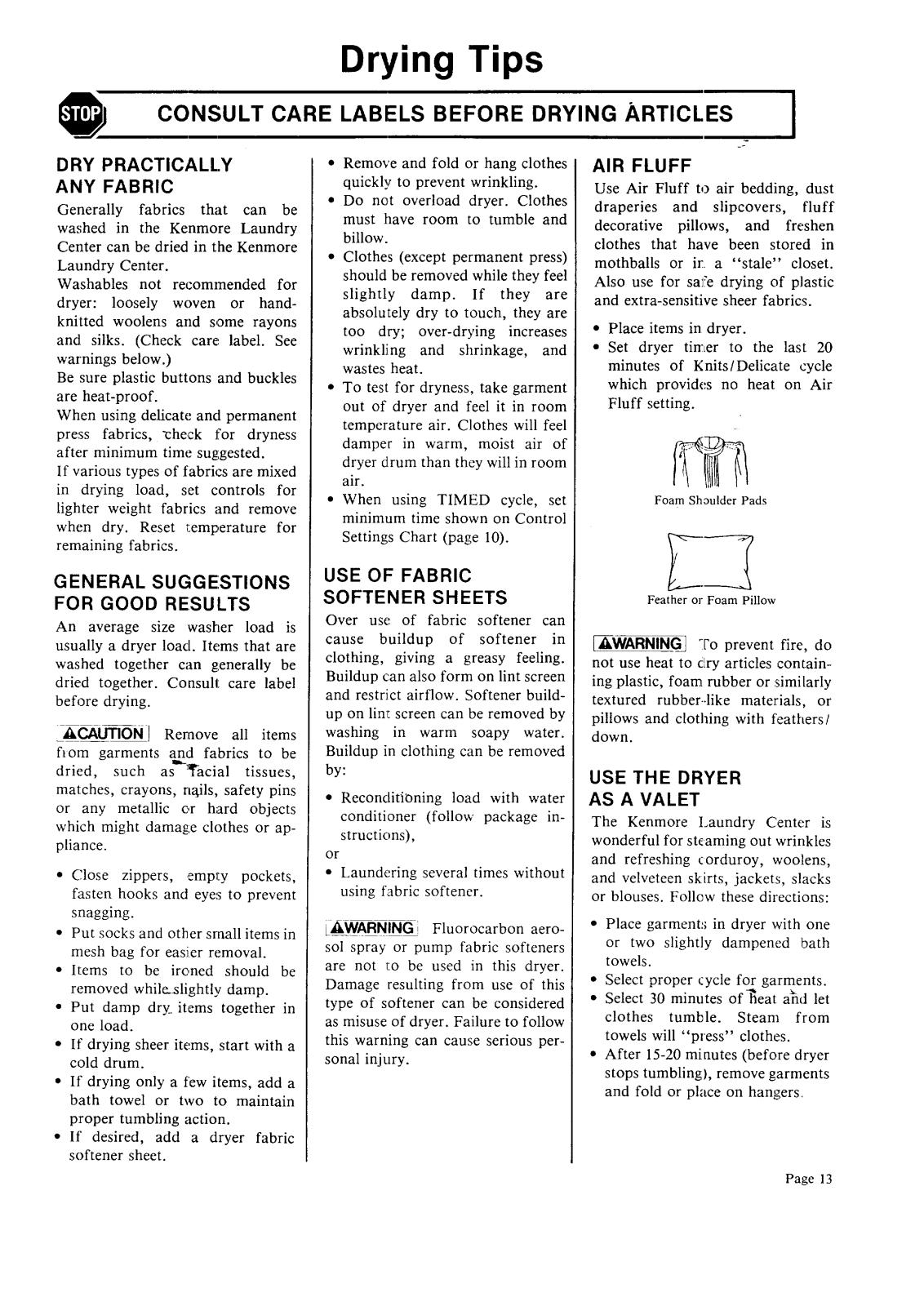

Drying Tips .................... 13

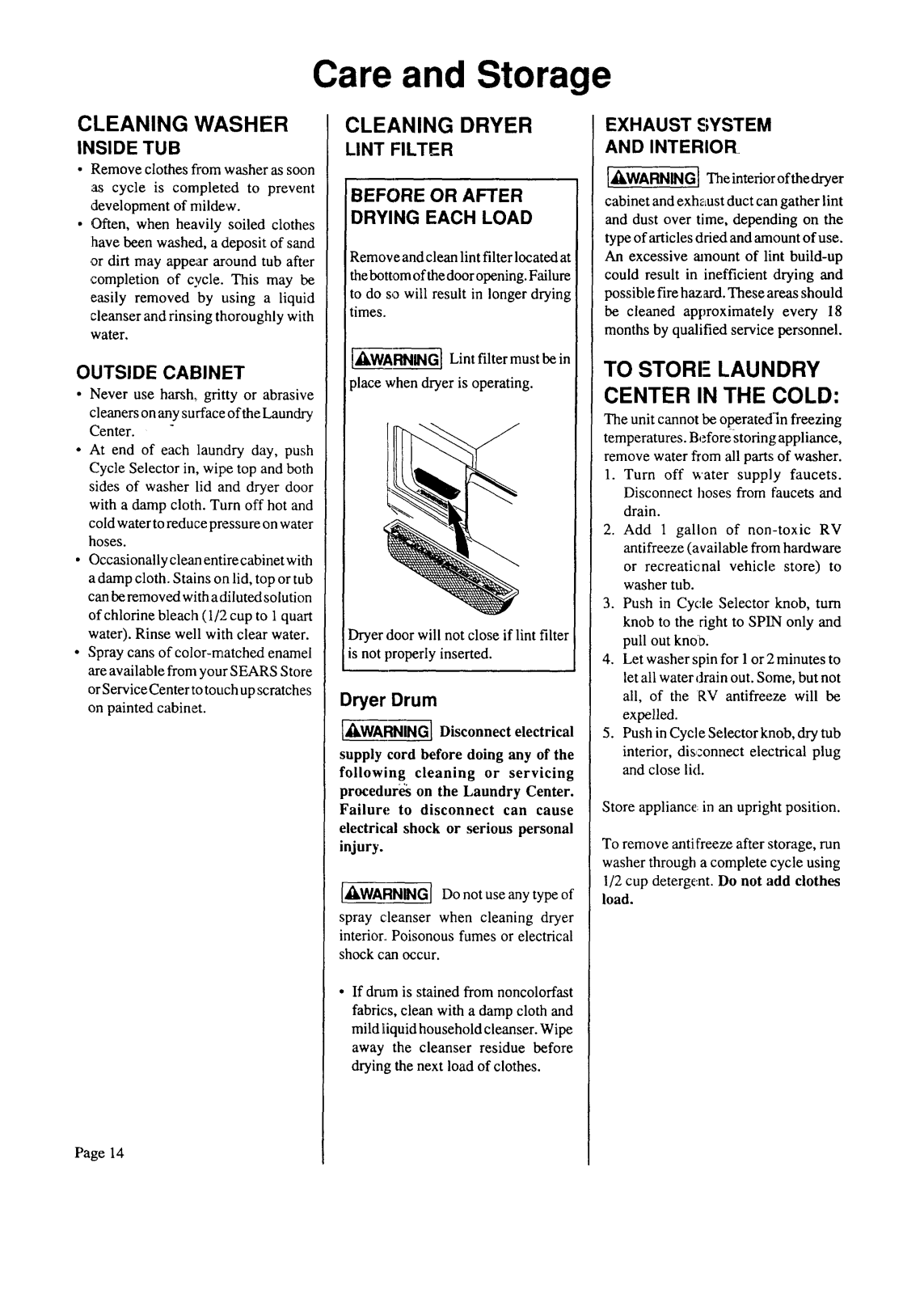

Care and Storage ............... 14

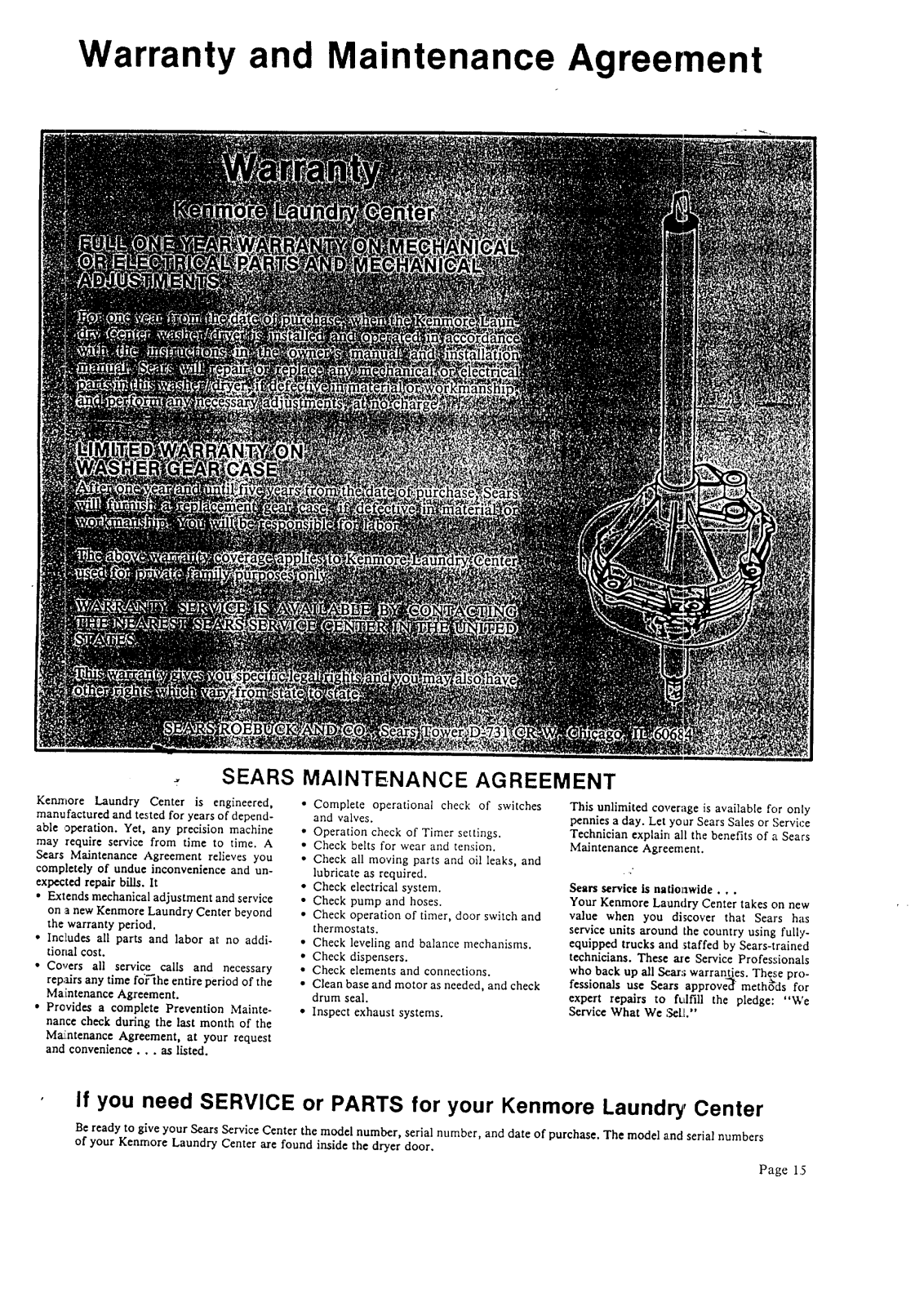

Warranty and

Maintenance Agreement ........ 15

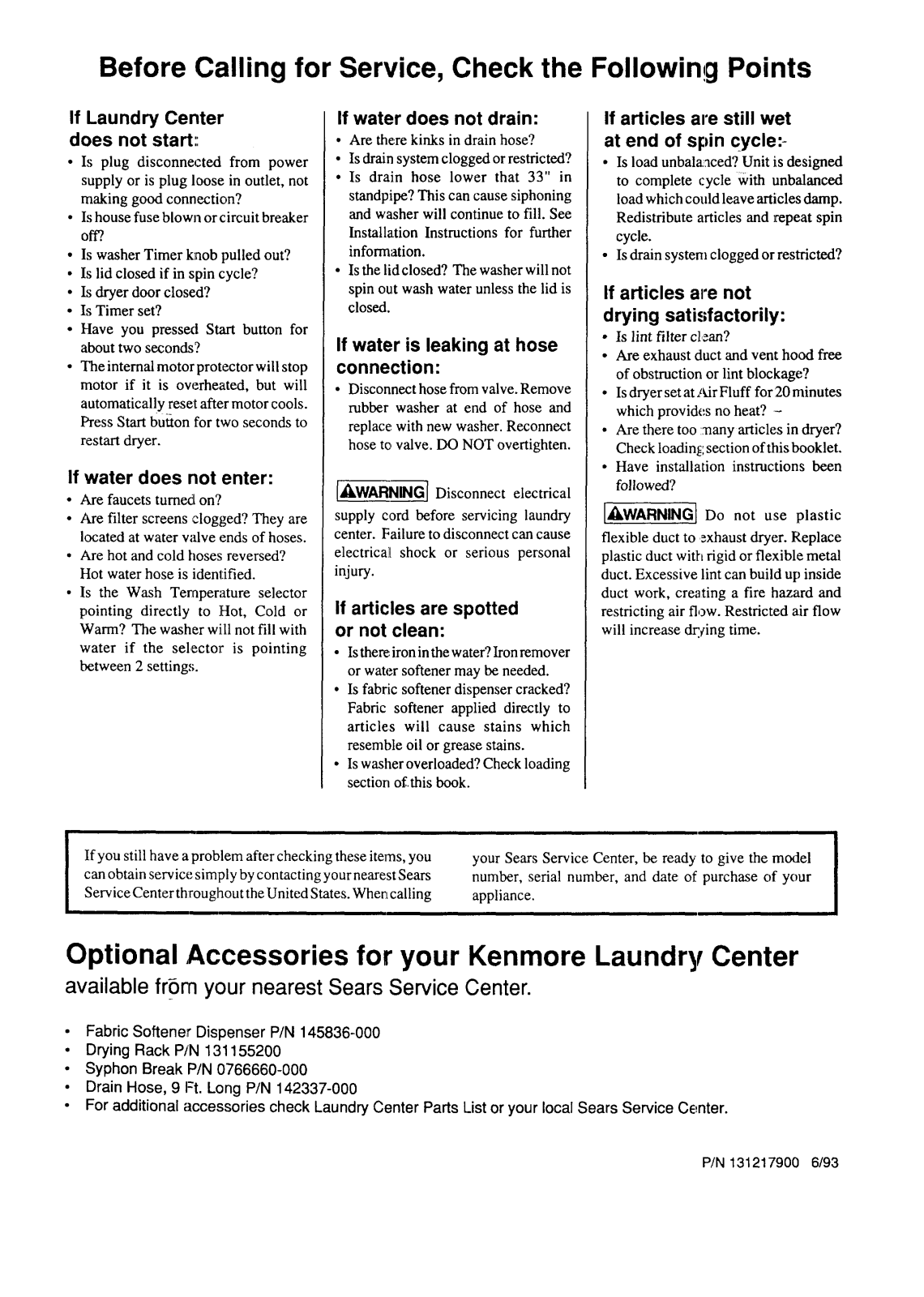

Before Calling for Service ....... 16

Model number:

Serial number:

Page 2

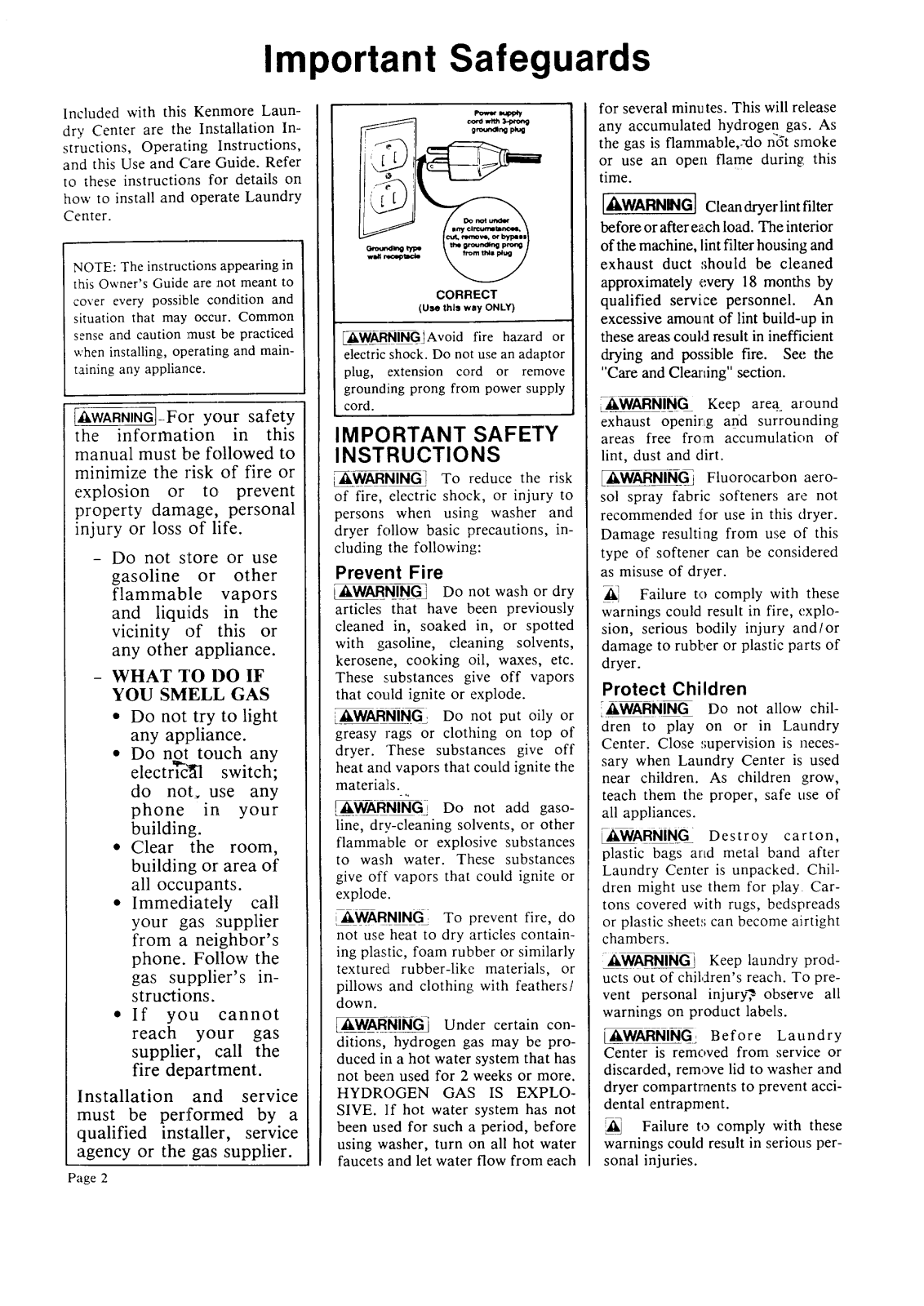

Important Safeguards

Included with this Kenmore Laun- dry Center are the Installation In-

structions, Operating Instructions, and this Use and Clare Guide. Refer

to these instructions for details on how to install and operate Laundry

Center.

NOTE: The instructions appearing in this Owner's Guide are not meant to

cover every possible condition and situation that may occur. Common

sense and caution :must be practiced when installing, operating and main-

raining any appliance.

[_WARNING]-For your safety

the information in this manual must be followed to

minimize the risk of fire or explosion or to prevent

property damage, personal injury or loss of life.

Do not store or use gasoline or other

flammable vapors and liquids in the vicinity of this or any other appliance.

WHAT TO I)O IF YOU SMELL GAS

• Do not try to light

any appliance.

• Do not touch any electr_ switch;

do not. use any phone in your building.

• Clear the room, building or area of all occupants.

• Immediately call your gas supplier

from a neighbor's phone. Follow the gas supplier's in-

structions.

• If you cannot

reach your gas supplier, call the fire department.

Installation and service

must be performed by a qualified installer, service agency or the gas supplier.

Page 2

CORRECT

(Use this way ONLY)

_/_N_G]Avoid fire hazard or

electric shock. Do not use an adaptor

plug, extension cord or remove

grounding prong from power supply

cord.

MPORTANT SAFETY NSTRUCTIONS

_W--ARNING_ To reduce the risk

of fire, electric shock, or injury to persons when using washer and dryer follow basic precautions, in- cluding the following:

Prevent Fire

[_kWARNING_ Do not wash or dry

articles that have been previously cleaned in, soaked in, or spotted with gasoline, cleaning solvents, kerosene, cooking oil, waxes, etc. These substances give off vapors that could ignite or explode.

i,lkWARNING. Do not put oily or

greasy rags or clothing on top of dryer. These substances give off heat and vapors that could ignite the

materia]Is. [_.WARNING! Do not add gaso-

line, dry-cleaning solvents, or other flammable or explosive substances

to wash water. These substances give off vapors that could ignite or

explode. I_kWARNING- To prevent fire, do

not use heat to dry articles contain-

ing plastic, foam rubber or similarly

textured rubber-like materials, or

pillows and clothing with feathers/ down.

_WARNiNG] Under certain con-

ditions, hydrogen gas may be pro- duced in a hot water system that has

not been used for 2 weeks or more. HYDROGEN GAS IS EXPLO-

SIVE. ]if hot water system has not been used for such a period, before using washer, turn on all hot water

faucets and let water flow from each

for several minutes. This will release any accumulated hydrogen gas. As

the gas is flammable,-xto n(St smoke

or use an open flame during this time.

[AWARNING] Clean dryerlint filter

before or after each load. The interior

of the machine, lint filter housing and exhaust duct should be cleaned

approximately every 18 months by qualified service personnel. An

excessive amount of lint build-up in these areas could result in inefficient

drying and possible fire. See the "Care and Cleasfing" section.

I_WARN!NG Keep area around

exhaust openirtg and surrounding areas free fro:rn accumulation of

lint, dust and dirt. _WARNINGi Fluorocarbon aero-

sol spray fabric softeners are not recommended for use in this dryer.

Damage resulting from use of this type of softener can be considered as misuse of dryer.

-1

_kj Failure to comply with these warnings could result in fire, explo- sion, serious bodily injury and/or damage to rubber or plastic parts of dryer.

Protect Children

IAWARNING Do not allow chil-

dren to play on or in Laundry Center. Close supervision is neces-

sary when Laundry Center is used

near children. As children grow,

teach them the proper, safe use of all appliances.

_A[kWARNING Destroy carton,

plastic bags and metal band after

Laundry Center is unpacked. Chil-

dren might use them for play Car-

tons covered with rugs, bedspreads

or plaslic sheeL'; can become airtight

chambers.

AkWARNINGi Keep laundry prod- ucts out of children's reach. To pre- vent personal injury_ observe all

warnings on product labels.

__WARNING, Before Laundry Center is removed from service or

discarded, remove lid to washer and dryer compartrnents to prevent acci- dental entrapment.

Failure to comply with these warnings could result in serious per- sonal injuries.

Page 3

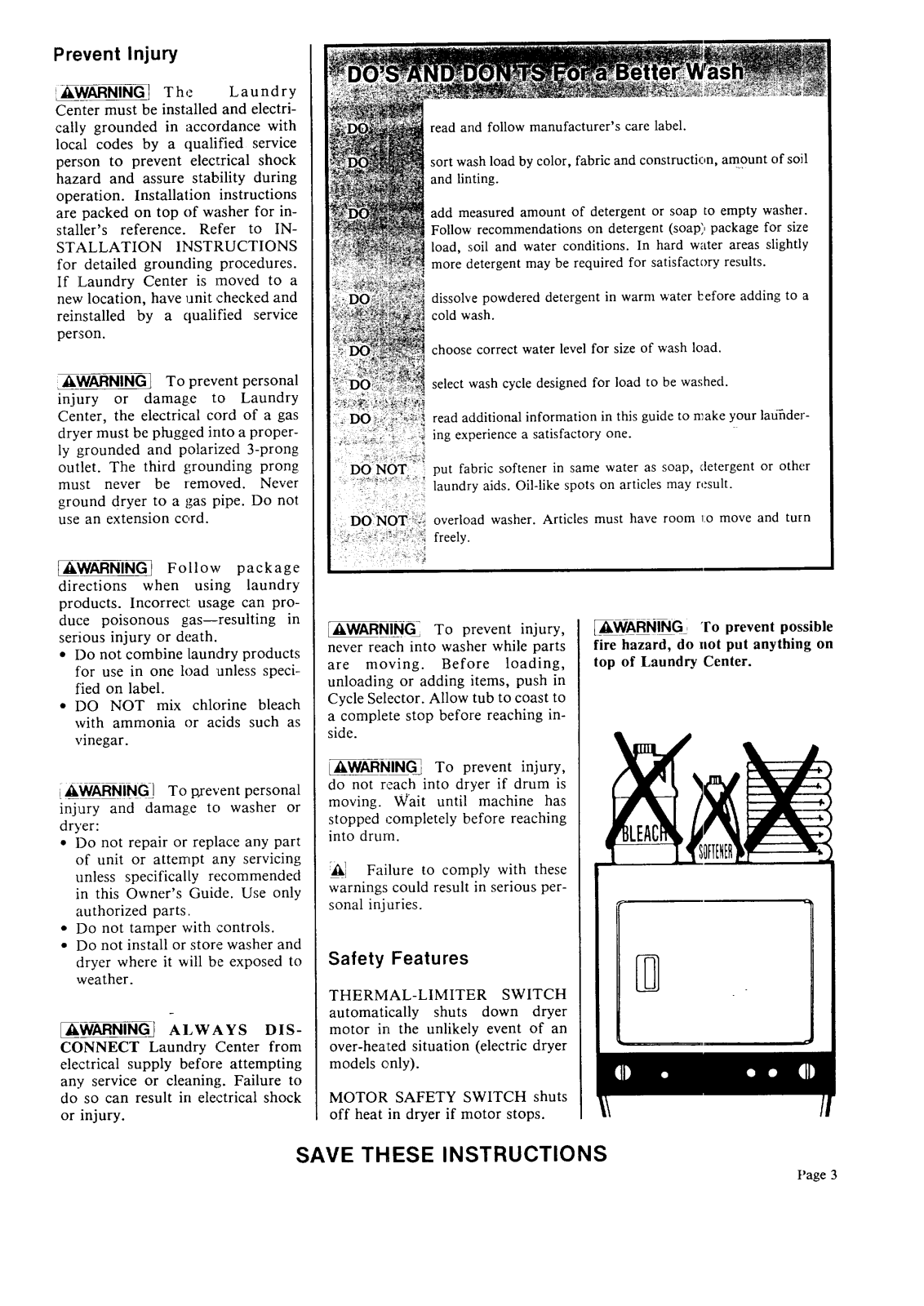

Prevent Injury

_AW_/_] The Laundry Center must be installed and electri-

cally grounded in accordance with local codes by a ctualified service

person to prevent electrical shock hazard and assure stability during

operation. Installation instructions are packed on top of washer for in-

staller's reference. Refer to IN- STALLATION INSTRUCTIONS

for detailed grounding procedures.

If Laundry Center is moved to a new location, have unit ,checked and reinstalled by a qualified service

person.

read and follow manufacturer's care label.

sort wash load by color, fabric and construction, amount of soil and linting.

add measured amount of detergent or soap to empty washer. Follow recommendations on detergent (soap)package for size

load, soil and water conditions. In hard water areas slightly

more detergent may be required for satisfactory results.

dissolve powdered detergent in warm water t:efore adding to a cold wash.

choose correct water level for size of wash load.

AWARNINGI Toprevent personal

injury or damage to Laundry

Center, the electrical cord of a gas

dryer must be plugged into a proper-

ly grounded and polarized 3-prong

outlet. The third grounding prong

must never be removed. Never

ground dryer to a gas pipe. Do not

use an extension cord.

[AWARNINGI Follow package

directions when using laundry

products. Incorrect usage can pro- duce poisonous gas--resulting in serious injury or death.

• Do not combine laundry products for use in one load 'unless speci-

fied on label.

• DO NOT mix chlorine bleach with ammonia or acids such as

vinegar.

[AWARNING/ To prevent personal injury and damage to washer or

dryer:

• Do not repair or replace any part of unit or attempt any servicing unless specifically recommended in this Owner's Guide. Use only

authorized parts.

• Do not tamper with controls.

• Do not install or store washer and

dryer where it will be exposed to weather.

[AWARNING] ALWAYS DIS- CONNECT Laundry Center from electrical supply before attempting any service or cleaning. Failure to

do so can result in electrical shock or injury.

select wash cycle designed for load to be washed.

read additional information in this guide to make your latihder- ing experience a satisfactory one.

put fabric softener in same water as soap, detergent or other laundry aids. Oil-like spots on articles may result.

overload washer. Articles must have room 1:o move and turn freely.

[AWARNING To prevent injury, never reach into washer while parts are moving. Before loading, unloading or adding items, push in

Cycle Selector. Allow tub to coast to a complete stop before reaching in-

side.

[AWARNINGI To prevent injury,

do not reach into dryer if drum is moving. Wait until machine has stopped completely before reaching

into drurn.

__A] Failure to comply with these warnings could result in serious per- sonal injuries.

Safety Features

THERMAL-LIMITER SWITCH automatically shuts down dryer

motor in the unlikely event of an over-heated situation (electric dryer models only).

MOTOR SAFETY SWITCH shuts off heat in dryer if motor stops.

__WARNING, "to prevent possible fire hazard, do not put anything on top of Laundry Center.

SAVE THESE INSTRUCTIONS

Page 3

Page 4

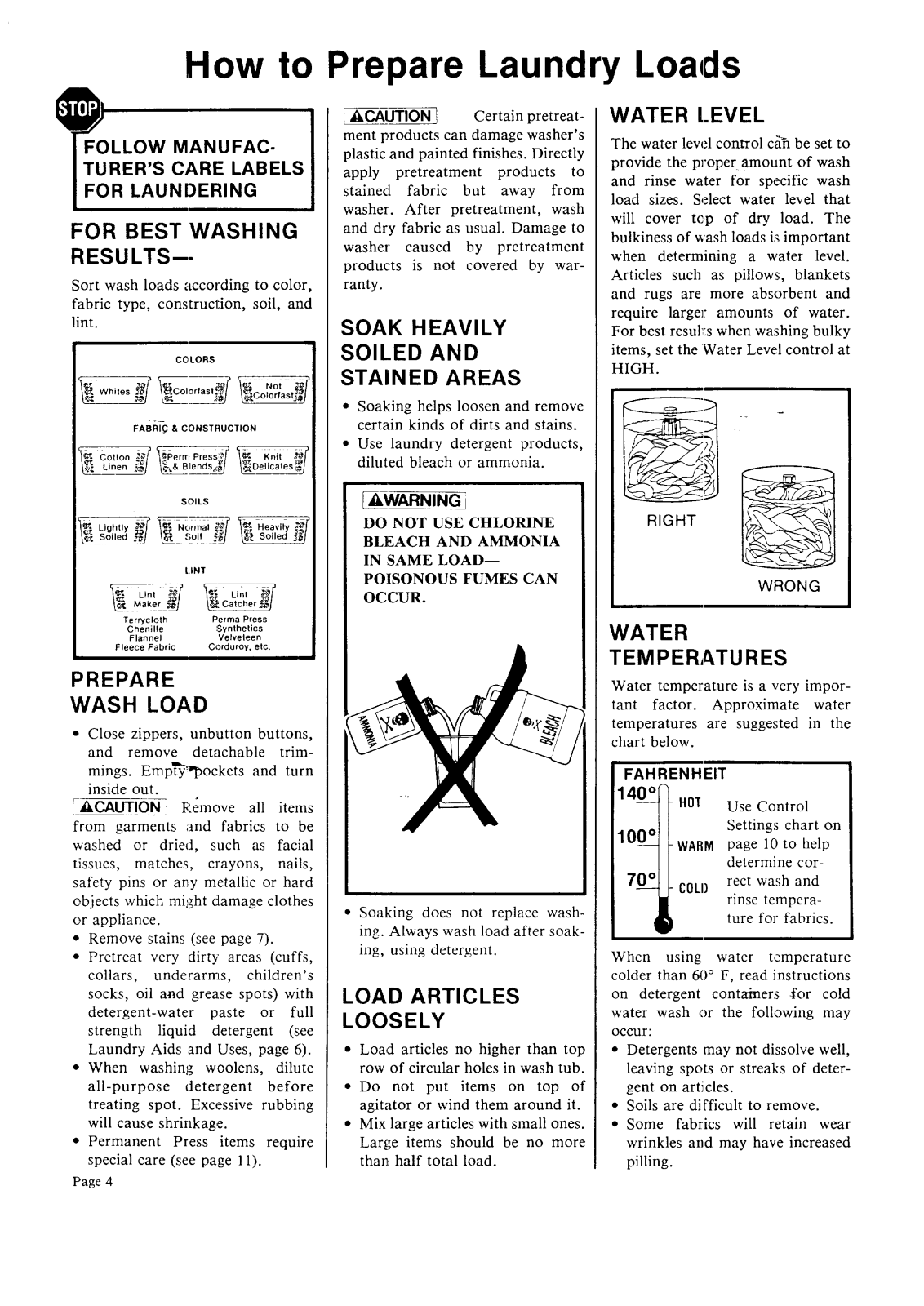

How to Prepare Laundry Loads

FOLLOW MANUFAC-

TURER'S CARE LABELS

FOR LAUNDERING

FOR BEST WASHING RESULTS--

Sort wash loads according to color, fabric type, construction, soil, and

lint.

COLORS

'_- _ _ :_

Whites.dIoCo,or,as,, "0'--'

FAI3Ri_ & CONSTRUCTION

'_. co.oo_:f'_Pe,_,Pres_ '_ K.,. b;

/_ Linen _'_l _'_& Blends ,_J _-_D_

SOILS

LINT

'_. Lint ._f

Terrycloth

Chenille

Flannel

Fleece Fabric

_ L,nt _

Catcher_J

Perma Press

Synthetics

Velveleen

Corduroy, etc.

PREPARE

WASH LOAD

• Close zippers, unbutton buttons, and remove detachable trim-

mings. Emp'_ockets and turn inside out.

_OAUTION Remove all items

from garments and fabrics to be washed or dried, such as facial tissues, matches, crayons, nails, safety pins or a_,y metallic or hard objects which might damage clothes or appliance.

• Remove stains (see page 7).

• Pretreat very dirty areas (cuffs,

collars, underarms, children's socks, oil and grease spots) with detergent-water paste or full strength liquid detergent (see Laundry Aids and Uses, page 6).

• When washing woolens, dilute all-purpose detergent before

treating spot. Excessive rubbing

will cause shrinkage.

• Permanent Press items require special care (see page 11).

Page 4

[IIOAUTION I Certain pretreat- ment products can damage washer's

plastic and painted finishes. Directly apply pretreatment products to

stained fabric but away from washer. After pretreatment, wash

and dry fabric as usual. Damage to washer caused by pretreatment products is not covered by war- ranty.

SOAK HEAVILY SOILED AND

STAINED AREAS

• Soaking helps loosen and remove certain kinds of dirts and stains.

• Use laundry detergent products, diluted bleach or ammonia.

I&,WARNING i

DO NOT USE CHLORINE BLEACH AND AMMONIA IN SAME LOAD-- POISONOUS FUMES CAN OCCUR.

• Soaking does not replace wash- ing. Always wash load after soak- ing, using detergent.

LOAD ARTICLES LOOSELY

• Load articles no higher than top row of circular holes in wash tub.

• Do not put items on top of agitator or wind them around it.

• Mix large articles with small ones.

Large items should be no more than half total load.

WATER LEVEL

The water level control c_h be set to provide the proper amount of wash

and rinse water for specific wash load sizes. Select water level that

will cover top of dry load. The bulkiness of _ash loads is important

when determining a water level. Articles such as pillows, blankets

and rugs are more absorbent and require larger amounts of water. For best resuks when washing bulky items, set the Water Level control at

HIGH.

RIGHT

WRONG

WATER

TEMPERATURES

Water temperature is a very impor- tant factor. Approximate water temperatures are suggested in the

chart below.

FAHRENHEIT

140'

-- - HOT

100°i

--- -WARM

70_ .COLD

When using: water temperature

colder than 60° F, read instructions on detergent containers for cold water wash or the following may

occur:

• Detergents may not dissolve well, leaving spots or streaks of deter- gent on articles.

• Soils are difficult to remove.

• Some fabrics will retain wear wrinkles and may have increased

pilling.

Use Control Settings chart on

page 10 to help determine cor-

rect wash and rinse tempera-

ture for fabrics.

Page 5

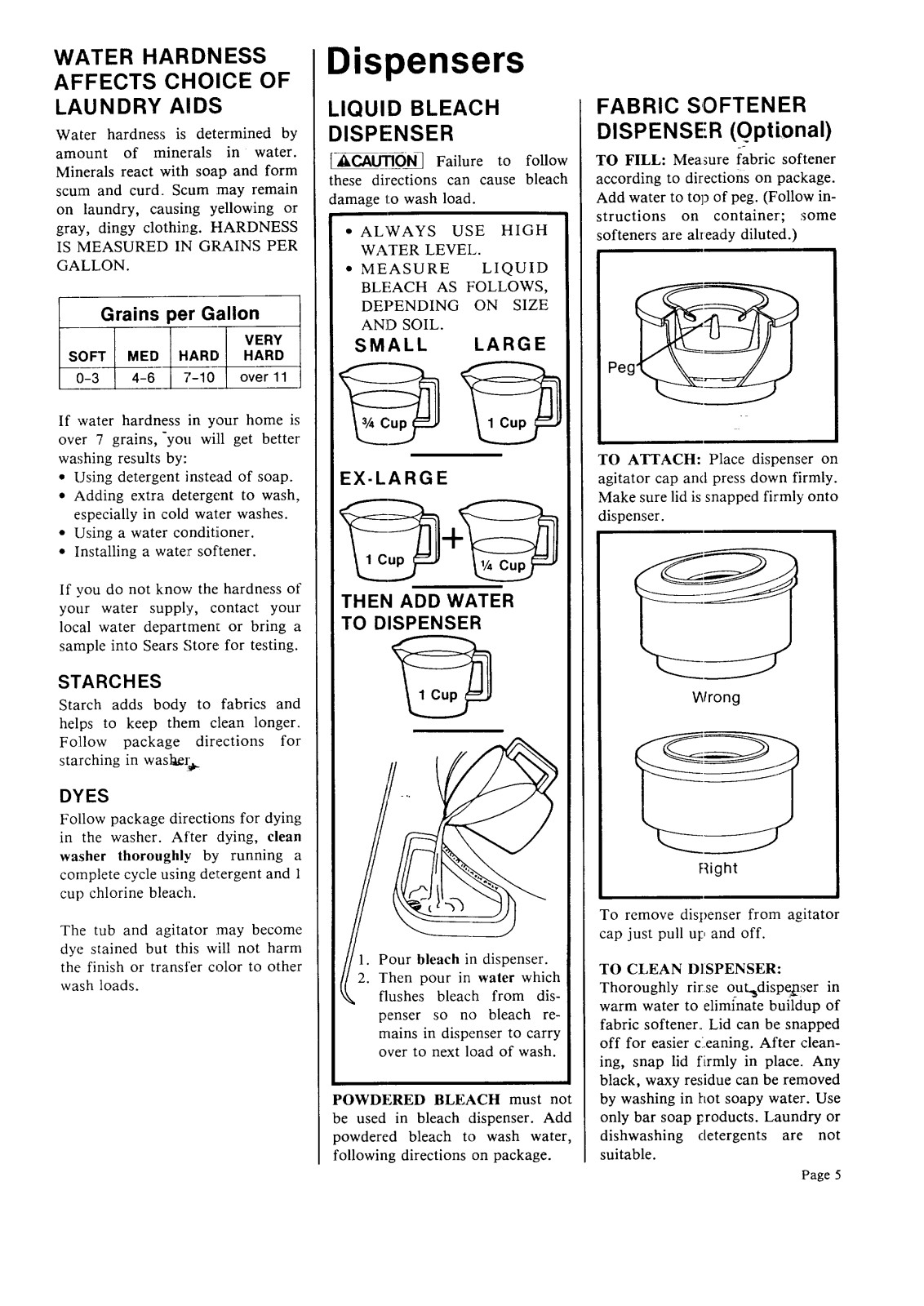

WATER HARDNESS

AFFECTS CHOICE OF

LAUNDRY AIDS

Water hardness is determined by amount of minerals in water.

Minerals react with soap and form scum and curd. Scum may remain on laundry, causing yellowing or

gray, dingy clothing. HARDNESS IS MEASURED IN GRAINS PER

GALLON.

Grains per Gallon

VERY

3FT MED HARD HARD )-3 4-6 i'-10 over 11

If water hardness in your home is over 7 grains,-you will get better

washing results by:

* Using detergent instead of soap.

• Adding extra detergent to wash,

especially in cold water washes.

• Using a water conditioner.

• Installing a water softener.

Dispensers

LIQUID BLEACH

DISPENSER

[_tJ_ON_ Failure to follow these directions can cause bleach

damage 1:owash load.

• ALWAYS USE HIGH

WATER LEVEL.

• MEASURE LIQUID BLEACH AS FOLLOWS, DEPENDING ON SIZE

AND SOIL.

SMALL LARGE

EX-LARGE

FABRIC SOFTENER

DISPENSER (Qptional)

TO FILL: Measure fabric softener according to directions on package. Add water to top of peg. (Follow in- structions on container; some

ofteners are aheady diluted.)

TO ATTACH: Place dispenser on agitator cap and press down firmly.

Make sure lid is snapped firmly onto dispenser.

If you do not know the hardness of your water supply, contact your local water department or bring a sample into Sears Store for testing.

STARCHES

Starch adds body to fabrics and helps to keep them clean longer. Follow package directions for

starching in wasl_e!_

DYES

Follow package directions for dying in the washer. After dying, clean washer thoroughly by running a complete cycle using detergent and 1

cup chlorine bleach.

The tub and agitator may become

dye stained but this will not harm the finish or transfer color to other

wash loads.

THEN ADD WATER TO DISPENSER

1. Pour bleach in dispenser.

2. Then pour in water which flushes bleach from dis-

penser so no bleach re- mains in dispenser to carry over to next load of wash.

POWDERED BLEACH must not be used in bleach dispenser. Add

powdered bleach to wash water, following directions on package.

Wrong

Right

To remove dispenser from agitator cap just pull up and off.

TO CLEAN DISPENSER:

Thoroughly rirse out_dispe_ser in warm water to eliminate buildup of

fabric softener. Lid can be snapped

off for easier cl.eaning. After clean- ing, snap lid firmly in place. Any

black, waxy residue can be removed by washing in hot soapy water. Use

only bar soap products. Laundry or dishwashing detergents are not suitable.

Page 5

Page 6

Laundry Aids and Uses

LAUNDR Y •

AID "_-° _";

,Oxygen-typ_

DETERGENTS

Phosphatetype

• Non:phosphate

FABRIC _,:::

SOFTENERS- - .

SOAKING AGENT

PRE-WASH PRODUCT .-

WATER _i_:_.

CONDITIONER

_O_ENE

Page 6

;,,...,: USE- ......

• Usewith detergent or soap for greasy soil whensoaking or washing. •

• Useto whiten clothes and to removestains and odorswhen soaking or washing.

• Follow directions on care label of garment.

• Follow directions on bleach package.

• Bleach is not a substitute for detergent. Always use

normalamount of detergent.

• Canbe used with detergents, soaps and water

conditioners.

• Most effective during last five minutes of wash.

• Use in warm soak or hot wasin.

• Safe for all washablefabrics but check care

instructions.

• Canbe used with detergents, soaps and water conditioners.

• Use when soaking or washing to removedirt and soil.

• Can be used on all types of fibers.

• Canbe used with bleachesand water conditioners.

• Use recommendedamounts suggested on detergent

packages.

• Can be used in any water.

• Pretreatstains and greasespots on fabric before loading in washer.

• Use soft water--install a mechanical softener or use a non-precipitating softening agent.

• Use hottest water fabric will permit.

• Dissolvedetergent in small amount of water before adding washload.

• At the end of the cycle wipe out tub with a damp cloth•

• Use in deep rinse to soften bath towels, diapers, etc. and to reducestatic electricity in synthetic

fibers.

• Add to rinse to minimizewrinkling of permanent press fabric.

• Help fabric repel lint.

• Use in soak cycle or overnight to remove tough dirt proteinand some stains.

• Use on fresh stains, lightly soiled areas, grease or oil stains on permanent press.

• See packagedirections.

• Use in soak and wash to remove soil or fabric

softener stain•

• Usewith bleach or water conditioners.

• Use in wash to reduce amountof detergent or soaprequired.

• Must be used with soap to prevent soapcurd, in hard water.

• Use in rinse to aid in removing soap• Use 1 cup of conditioner at start of rinse fill.

• Use with detergents, soaps and bleaches.

[_,WARNINGI

DO NOT USE WITH CHLORINIBLEACH. Can producepoisonousgasresultinginserious

personalinjury or death•

• Do notpour directly on fabric

• Do notuse in rinse cycle. BI_ must be rinsed. Donot use if there is iron in water. THIS WILL CAUSEBROWNSTAIN.

• DONOTUSEONWOOL,SIL. ORSPANDEX. Chlorinebleach willturnwoo'and silk yellow

and will damagethe fibers, rausing holes in fabric.

• Concentrated,chlorine bleac" will damagesome fibers,even cause holes.

• Do not use bleachwith pre-s_ products:_

• Do notuse in rinse.

• Slower, less effective

• If too little is usedwill cause fabric to become yellow or gray. Follow packa:=einstructions for

amount.

• Donot add fabric softeners. 3RAYISHGREASY STAINWILL RESULT•

• Donot use more than recomr amount or excessive suds will result.

• White steaks and powdery residue may

OCCUr.

• Bright colors may becomefa( or masked.

• Fabrics may becomestiff anc hard.

• Whites may becomegrayed.

• Stain removalis more difficul

• Flame retardant finishes may becomeineffective.

• Abrasionand linting may increase.

• Roughdeposits may coat the tub and interior

components.

• Do not use with detergentor ORFABRICSTAINWILL RES

• Do not use excessively

• Do not pour directly ontofab_ Somemay cause dark spots.

• See stain removal directions _age.

I,_WARNINGJ

• DO NOTUSEWITH CHLORIN BLEACH. Can produce poisonousfume resulting in serious

personal injury or death.

• Do notuse on non-colorfastfabrics, silk, wool, or acetate•

• Must be used in soft water o

to prevent soap curd.

• Precipitatingwater conditionc

soda, form insoluble particle_ which may be difficult to rinse out.

bleach. GREASYCURD

Add only to rinse.

with waterconditioner

such as washing

Page 7

Stain Removal

Remove stain before washing item. If you treat stain with a

flammable solution, wash item in a basin before machine

washing item.

For specific kinds of stains, follow the directions below. Use mildest treatment first. Avoid using hot water on un- identified stains; it may "set" the stain. Never iron a stain.

i_WARNING]

Never put highly flammable substances like gasoline, kerosene, naphtha, waxes, cooking oils, etc. into a washer or dryer. Never [Jutarticles that have been cleaned with such substances in a washer or dryer. ]Failure to comply with these warnings could result in a fire, explosion or bodily injury. All items with these suhstances on them should be thoroughly hand-washed with a detergent so that no trace of the flammable substance remains. The

articles can then be machine washed or dried.

MAN-MADE FABRICS, WASHABLE SILK, :_:_

WOOL AND NON-COLORFAST COTTONS :_,_

AirplaneGlue SpBngewith fingernailoolish removerto dissolve glue. Wash in warm water. For acetate,

AlcoholicBeverages Sponge immediately withcold water, thenwash in warm water. Removeold stains with

Bleed - - _. ..... Sponge with cold water, or soak in cold water with a laundry pro-soak product. Then wash

CandleWax - Removeexcesswax. Pressbetween blotters with moderately hot iron. Sponge with clean-

ChewingGum Hardenwith ice cube and remove excess. Sponge with cleaning fluid. Wash normally. ChlorineBleach Soak in 2 tablespoons sodium hypo-sulfite to 1 quart water. Or remove yellow with

Chocolate Soak in warm water with a pre-soak product. Wash in lukewarm detergent solution. Use

Coffee Soak in coo! water. Wash. Bleach remaining stain with oxygen bleach. CosmeticStains Pretreat before washing, f greasy, treat with a grease solvent. Wash in warm water with

Crayon .... Same as for candle wax.

Cream, Ice Cream Soak in (:oldwater, f grease spot remains, sponge with cleaning fluid.

Deodorant Sponge with white vinegar. For stubborn stains, saturate cotton with denatured alcohol.

DyeTransfer - 4Na_h. Bleach remaining stain with oxygen bleach.

Fabric SoftenerSpots Wet fabric, rub spots with mnldbar soap, r,nse. Repeat if necessary, do not use bleach Fresh Fruit, Wine --- Spongewith warm water. Wash. Bleach remaining stain with oxygen bleach.

Grass Soak in warm water with a pre-soak product. Wash. Bleach remaining stain with oxygen

Greaseand Tar Use a spot remover. Wash with detergent. See _.WARNING Ink Washable ink: Rub in detergent or glycerine, then wash in warm detergent water. Bleach

Lipstick Sponge with solvent. Wash in warm detergent solution. Bleach remaining stain with oxygen

Mildew (light) W_sh. Bleach remaining stain by soaking m an oxygen bleach solution. Wash in hot or

NailPolish - .....--'---Treatwith nail polish remover. For acetate, do not use fingernail polish remover containing

. - acetone because it will dissolve fabric.

Paint • Bdore washing, treat withturpentine or solvent, depending on type of paint. See

Scorch_''::1_::_'!' '- ° Wash. Bleach with mild oxygen bleach.

oo no[ use fingernail polish remover containing acetonebecause it will dissolve the fabric.

oxygen bleacn.

mg fluid. Wash. Bleachremaining stain with oxygen bleach.

commercialcolor remover. :{inse, then wash normally.

solvent to remove any grease spots. See .,',WARNING

alenty of detergent Bleach remaining stain with oxygen bleach. See ,&WARNING!

See _WARNING

.. Wash.

bleach.

remaining stain with oxygen bleach. Ball 3oint: Sponge with cleaning fluid or alcohot.Wash in warm water. Bleach wnthoxygen bleach. See _.WARNINGr

bleach. See _,WARNINGI

warm delergent water.

' i_WARNING 1

Sponge fresh stain with ammonia, old stain with white vinegar. Rinse. Soak in warm water with a pre-soak product. Follow with warm wash.

Neveruse oxalic acid or rust remover containing acid in or around washer. It will damage

porcelain surfaces. Instead, use a rust remover designed for water softeners or a laundry aid rust remover.

Pour boiling water throughstain. Bleach with oxygen bleach

COLORFAST COTTONS_ :;

Same procedure. Use hot water.

Same procedure. Use chlorine bleach. Wash in hot water.

Same procedure. Wash in tier water.

Bleach remaining stains. Sameprocedure except use chlorine

bleach.

Same procedure.

Sameprocedure.

Soak in warqnwater with a pro-soak or

detergent sdution. Bleach remaining

stains. Sameprocedure. Use chlorine bleach.

Sameprocedure. Use chlorine bleach

and hot waler wash. Same as for candle wax. If stain has

spread throughout load of clothes, wash with hot water, soap and 1 cup

baking soda. Orwash with detergent or soapand chlorine bleach•

Same procedure.

Wash. Bleach remaining stain.

Same procedure. Pour boiling water through stain.

Bleach remaining stain. Soak in war'n water with a pre-soak

product. Wash. Bleach remaining stain. Same procedure. Same procedure. Use hot water Bleach

remaining s!ain

Spongewitl solvent. Wash in hat detergent s,:lution. Bleach.

Wash. Bleach remaining stain by soak- ing in chlorine bleach solution. Wash in hot or warm detergent water.

Same procedure.. _

Same procedure. Wash in hot water.

Same procedure.

Wash. Bleach with chlorine bleach.

Same procedure. Use chlorine bleach.

Page 7

Page 8

Dryer

How

KNITS/ DELICATE

LOW HEAT

AIR FL

COOL DOWN

TOUCH - UP

30 60

OFF

USING THE DRYER

1. Check to be sure lint filter is clean and in place before each

load.

2. Place wash load indryer. Never dry more than one wash load at a time. Add a sheet of dryer

fabric softener if desired.

3. Close dryer door. Dryer will not operate unless door is closed.

4. Turn dryer knob to desired setting. The setting can be

changed any time during cycle.

5. To start dryer, push and hold Start button about two seconds.

The dryer wilL1always stop when door is opened. If door is opened during a cyt:I_, Stem button must be pushed in to re.start dryer. If the Cycle Se]lector is in the OFF

position when Start button is pushed, dryer will not start.

6. Cycle End Signal sounds when drying time is completed.

7. Remove dried load promptly to minimize wrinkling. If load is

removed before cycle is com- pleted, turn dryer Timer knob to

OFF.

8. Clean lint filter after each load.

AUTOMATIC

FABRIC

MORE DRY CARE

LESSDRY

COOL DOWN

OFF

lOO

MEDIUM HEAT

TIMED

HIGH HEAT

CYCLE SELECTIONS

AUTOMATIC FABRIC CARE This

cycle provides drying at medium heat. ]Drying time is determined

automatically. When items are dry, heat aatomatically shuts off and

load is tumbled for 7 minutes without heat to help reduce wrin-

kling. When using Automatic Fabric Care for the first time, set

dryer timer halfway between MORE DRY and LESS DRY. Experience will determine if future adjustments

are needed. This cycle works best with items of similar fabric, weight and construction.

TIMED This cycle provides up to

100 minutes of drying time at high heat. A cool down period is pro-

vided (luring the last 6 minutes of

the cycle to help reduce wrinkling.

TOUCH-UP Use this setting to

release wrinkles from dry clothing

which may have become creased

during storage or wearing. Best results are achieved by tumbling only a few items at a time with a

damp towel. Hang or fold items immediately after cycle ends.

KNITSIDELICATE This cycle pro- vides up to 50 minutes of drying

time at low heat. A 20 minute cool down period is provided at the end

of the cycle to help reduce wrin- kling.

START

14enmor'e

LA UNDR Y

CENTER

AIR FLUFF This setting provides up to 20 mim:tes of tumbling with- out heat. Use Air Fluff to freshen

pillows and blankets and dust draperies and clothing. Use this no heat setting to dry heat-sensitive

items such as plastics, foam rubber or similarly textured, rubber-like

materials and items made with feathers or down. To absorb excess moisture, add several dry bath

towels to load.

SAFETY FEATURES AND INSTRUCTIONS

SAFETY DO,OR SWITCH stops dryer automatically if door is opened during a cycle. Close door,

push and hold Start button about 2 seconds to restart. Cycle resumes

automatically from point where it stopped.

AUTOMATIC MOTOR PRO- TECTOR stogs motor when over-

heated from overload. It resets automatically after motor cools for

approximatel:, 30 minutes. Push and hold Start button about 2

seconds to resame cycle. Door must be closed.

AUTOMATIC TEMPERATURE HI-LIMIT SWITCH shuts off heat

in event of overheating.

I_,WARNING] Do not operate dryer

if lint filter is blocked, damaged or missing. Overheating, damage to

fabrics and fire hazard can occur.

Page 8

Page 9

Use

Washer and Water Level for each load.

WASH TEMPERATURE

COLD

HOT__ WARM

USING THE WASHER

1. Prepare and sort laundry as directed on page 4.

2. Measure correct amount of laundry aids and add to empty

tub. (Refer to pages 6 and 7 for laundry products and water

hardness information.)

3. If desired, add diluted liquid bleach asdirected in Bleach Dis-

penser section on page 5. Do not pour bleach directly onto wash

load.

4. Add wash load to tub.

5. Choose corttrol settings according to type of load and

amount of soil.

• WATER TEMPERATURE

Select desired wash/rinse

temperature combination. The washer will not fill if the knob

is pointing between 2 settings.

See page 10 for suggested settings.

• WATERLEVEL

Select water level that is best

for size of load washed. Water should cover top of wash load.

6. Push cycle selector knob in

and turn right (clockwise) to desired wash cycle and time.

For best results, fl311ow fabric

care labels for washing instructions.

7. Turn on hot and cold water

faucets.

Remember--Select Water Temperature O

WATERLEVEL SOAK/ COTTON

PREWASH HEAVY STURDY

MEDIUM

LOW_\ HIGH

8. Start washer by closing lid and

pulling out timer knob. Washer

will operate with the lid open. However, it will not go into spin cycle unless lid is closed. To

PREWASH

SOAK

MEDIUM

KNITS/ DELICATE

• SPIN ONLY PULL - START PUSH - STOP

SOIL

KNITS/DELICATE This cycle

provides 6 minutes of gentle agita- tion followed by a spray rinse in the first spin, a deep :5nse and 4 minutes of slow spin with a spray rinse.

OFF SOIL MEDIUIVl

LIGHT

)FF

MEDIUM

IGHT

stop washer or change cycle, push in Cycle Selector knob and turn it clockwise to desired

setting.

9. Add fabric softener, if desired,

to final rinse. Follow manufac- turer's directions on product label.

(If a fabric softener dispenser is available, follow directions on

page 5.)

10. After the last spin cycle, wait approximately 1to 2 minutes for

the safety lid lock to release.

SOAK This cycle can be used to treat heavily soiled or stained items that may require raore than one wash.

It provides 2 minutes of normal agitation followed by 12 minutes of soak, 2 minutes of normal agitation and 6 minutes of fast spin. Use recommended an_ounts of detergent and bleach or so_&ing agent for one wash cycle. (See package labels for amounts.) Cold water is used in this

cycle.

Remove wash load for drying.

NOTE: The ?;oak cycle should always be followed by a wash cycle using recommended amount of

CYCLE SELECTIONS

COTTON STURDY This cycle provides up to 18 minutes of normal

agitation, a spray rinse in the first spin followed by adeep rinse and 8 minutes of fast spin with a final spray rinse. Set selector according to amount of

soil in each load.

PERM PRESS This cycle pro- vides up to 12 minutes of normal

agitation followed by a 1minute cool down rinse to reduce wrinkling in the

detergent.

PREWASH The Prewash portion of the Soak cycle can be used alone to help remove protein-based stains such as milk, grass ancLblood or to loosen soils before washing. Prewash

provides 2 minute:; of normal agitation followed by 6 minutes of fast spin.

Use recommerded amount of

detergent for one wasfi cyc_le. _ater

temperature will be the same as wash

water temperature selected.

first spin, a deep rinse and 6 minutes of slow spin with a final spray rinse. The slower spin speed minimizes wrinkling during the final spin.

[ACAUTIONI Using hot water in

Prewash can set stains. See Stain Removal chart OrLpage 7.

Page 9

Page 10

Kenmore Laundry Center

Control Settings

Times for Timed Drying are approximate based on average size loads Actual time needed will vary depend-

Clothes dried in a dryer operating on a 208volt circuit in- stead of a 240 volt circuit will result in longer drying time.

ing on size of load, weight of fabrics, and household voltage. Man-made fibers (synthetics) such as polyester, nylon, and acrylics should be dried on low heat.

[_,WARNINGJ To prevent fire and serious personal in- jury, do not use heat to dry foam rubber, similarly tex- tured rubber-like materials, or pillows and clothing with

feathers 'down.

WASHER_

TYPE OF-LOAD

BabyClothes

• Plasticlineditems Diapers**

Delicate

MixedCottons

Bedspreads

Blankets

Cotton

Synthetic

Electric/Woolen

Cottonsand Linens

Colorfast/White -

Non-Colorfast

Curtains

Cotton

Synthetics

PermanentPress

Delicates,Lingerie

FoundationGarments*

*See WARNINGab_

Knits

Cotton/Blends

Woolens.....

Synthetics

Fiberglass

PermanentPress

Drapes

Dresses,sportswear

White shirts, blouses, work uniforms

Sheetsand pillowcases

Plastic showercurtain

QuiltedItems _

TennisShoes .....

Work Clothes--Derjjm Rugs'l large or 2 small

**Soak diapers in a solution of cool water and adeodorizer until ready to wash. Removeexcess water from diapers before washing by using + spin only cycle.

WASH TEMP. RINSE TEMP.

f Label states FLAME RETARDANT. DO

Warm Warm Hot Cold Warm Cold Warm Cold

Warm Cold Prewash if stained or neav_ysoiled

Warm Cold Warm Cold

Hot Cold CottonSturdy Warm Cold CottonSturdy

Prewash il heavily soiled. Warm Cold CottonSturdy

Warm Cold Knits/Delicate Warrr Cold PermPress Warm Cold Knits/Delicate

Warm Cold or Warm Knits/Delica[e

Warm Cold ., Knits/Delicate Cotton Sturdy 40d_O Warm Cold Knits/Delicate Knits/Delicate 30-40

Warm Cold Kmts/Delicate Warm Cold PermPress

Hot Cold PermPress Auto Fabric Care Warm Warm Knts/Delicate Air Flulf 15-:!0

Always consult labels beforewashinqor drying tennis shoes. Improper care can permanen!ly dama.c_some shoes. Hot or Warm Cold Cotton Sturdy Timed 50-60

FOLLOWLABEL INSTRUCTONS DONOT DRY RUBBER-BACKEDRUGS.

WASH CYCLE DRYER CYCLE DRI'ING TIME (Minutes)

NO] USE SOAP--CHLORINEBLEACHwill destroy ',someretardant finishes.

Knits/Delicate Air Zluff 15-i-:0 CottonSturdy Timed 50-1_:0

Knits/Delicate Knits/Delicate 30-40 PermPress Auto Fabric Care

FOLLOWLABEL INSTRUCTIONS

Knits/Delicate Auto Fabric Care

Dry partially--Remove_,hileeamp and dry flat or over double line.

CottonSturdy Timed 50-50 Knits/Delicate Knits/Delicate 40-!!0

IMPORTANT--FOLLOWLABELINSTRUCTIONS

Timed 50-EO Timed 50-EO

Cotton Sturdy 40-50

Knits/Delicate 20-:]0

Auto Fabric Care

Knits/Delicate 20-',]0

Knits!Delicate 30-,10

FOLLOWLABELINSTRUCTIONS

DONOT MA3HINE WASH ORDRY

Auto Fabric Care Auto Fabric Care

FOLLOWLABEL INSTRUCTIONS

USEAIR FLUFF FOR20 MINUTES.

DRYER •

Add dry towels to absorb moisture.

_,'r

Page 10

Page 11

Special Washer Features

SAFETY LID LOCK

Washer will fill and agitate while lid

is open. However, it will not go into spin cycle unless lid is closed. As a

safety precaution during spin in each

cycle, the lid will AUTOMATI- CALLY LOCK to help prevent chil-

dren from reaching into the wash tub. The lid will unlock approxi- mately 1 to 2 minutes after end of spin. If required, the lid may be

opened during spin cycle by pushing in Cycle Selector knob. Lid lock will

release after approximately 1 to 2 minutes.

Care of Special Fabrics

GLASS FIBER ITEMS

Some people are very sensitive to glass fibers and develop a skin rash

after contact with fibers. Do not wash glass fiber items in washer.

For best results, follow instructions on care label. Most labels today sug- gest "Hand Wash--Drip Dry."

Do not dry glass fiber items in dryer.

KNITS

Man-made acrylic, polyester, and nylon knits:

• Use warm water, coM rinse and Knits /Delicate cycle.

• Bleach with e_Lher chlorine or oxygen-type b_'h as needed,

following care label.

• Some man-made knits have a ten- dency to "pill" (small balls of fibers on surface of fabric). Turn

garments inside out before laundering or place them in mesh bag.

• Dry small loads. Follow manufac- turer's instructions.

• Allow garment to complete dry- ing cycle, including automatic cool down period before end of cycle.

• Remove items from dryer when tumbling stops to help prevent wrinkling.

COTTON KNITS

• Use hot or warm wash and warm or cold rinse, Cotton Sturdy

cycle.

SELF-CLEANING LINT FILTER

Washer lint filter does not require cleaning after each load. Lint col- lected during washing and rinsing is automatically flushed away during spin cycle. If washer is drained into sink or laundry tub, remove lint that

may have collected in drain or strainer.

* Check care label before using

bleach; add fabric softener to rinse, if desired.

• When drying small loads, add several dry bath towels.

• Remove from dryer while slightly damp.

• Reshape and finish drying on flat surface.

PLASTICS

Soft pliable plastics such as shower curtains, window curtains, mattress covers, tablecloths without back- ings, children's bibs, foam rubber,

etc. can be machine laundered. Stiff items such as place mats should be

wiped with damp cloth rather than placed in washer.

To wash:

• Select Knits/Delicate cycle.

• Use warm wash and warm or cold rinse.

• When washing shower curtains streaked with soap, do not add detergent to wash. Use water

conditioner instead.

To dry:

• Use Air Fluff for 20 minutes.

• Add one or two bath towels to ab- sorb moisture and help tumbling

action.

SHEER CURTAINS

Most sheer curtains are made from nylon or polyester fibers which re- quire special attention to prevent

permanently set wrinkles.

DYNAMIC

BALANCE SYSTEM

If wash load becomes:unbalanced, washer compensates-and reduces

spin speed to complete cycle. Items may be damper l:han normal at end of cycle. To spin clothes drier,

rearrange load, push Cycle Selector

knob in, turn to right to ÷ SPIN

ONLY, close lid and pull out Cycle Selectorknob.

To wash:

• Wash in small loads to allow cur- tains room Io move freely in

washer.

• Use of liquid detergent is sug-

gested.

• Use warm wash, cold rinse.

• Use Knits/Delicate cycle.

To dry:

• Use Knits/Delicate cycle.

• Tumble for 30 to 35 minutes.

• Remove immediately to avoid

wrinkling.

SLIPCOVERS

Many slipcovers now have a perma- nent press finish and should be laundered frequently in warm water

with a cold rinse.

To wash:

• Use Perm Pre_s cycle.

• Select warm wash, cold rinse.

To dry:

• Use Automatic Fabric Care heat setting/less dr€.

• Remove from dryer while still slightly damp.

• Place on furniture and smooth into shape so they dry smooth and

tight.

WOOLENS

Not all woolens are washable. Some woolens have a special finish or

fiber blend which makes it possible to machine wash and dry them. Gar- ments with this special finish will be

labeled as "Machine Wash and Dry." Follow garment manufac-

turer's recommendations on care labels.

Page 11

Page 12

Special Care for Special Things

In the following hints for better washing, an all-purpose detergent should be used unless stated otherwise. See Con- trol Setting Chart (page 10) for dryer timer settings.

Always consult garment labels and hang tags for manufac- turer's washing and drying instructions before machine

washing and drying.

[_kWARNING] Do not use heat to dry foam rubber or similarly textured rubber-like materials, or pillows and clothing with

feathers/down. Man-made fibers (synthetics) such as polyester, nylon, and acrylics must be dried on LOW heat.

Pretreat heavily soiled areas; brush on a little liquid detergent, or wet area

.Bedding- _ ; _ milk, cereal stains.

Delicates_dl_ssesQ- Wash separately•

fine cottonknit_ _

-- (112tsp. to gal.). Soak before washing with a pre-soak product and

Plasticitems

Electric/Woolen ;

Curtains,Draperies

and rub in detergent. Use Warm soak for oil, juice stains; Cold for egg,

Rinse at once, soak in diaper pail with solution of cold water and borax Warmwater.

Plastic lined pants, bibs, crib sheets should be dried separately. Shake out dust. Removestains. Pretreat heavily soiled areas with

detergent. Wash one large or two small blankets at a time. Follow manufacturer's recommendations.

F-ollowmanufacturer's directions. If badly sun-weakened, even hand washing will cause tearing. Besure

colors are fast and fabric is washable. Removehooks and non-washable trim. Use Warm soak if heavily soiled.

Hot

Warm

Hot

Wash with regular baby wash.

Warm

Cold

Cotton Sturdy Timed

Knits/Delicate Knits/Delicate

Cotton Sturdy Timed

Knits/Delicate

See page 11.

_ (High Heat)

Low Heat)

(High Heat)

Air Fluff

Dresses, blouses; skirts; slacks _

White"shirts and "

blouses, sheets and pillowcases." -

Work clothes

FoundationGarments

(SeeWarningab.ove)

Plastics .: .......

QuiltedMattressPads Rugs

Sheets,Pillowcases

Slipcovers

Sweaters,Synthetics [

Woolens, - "_"

Cashmeres • ,_

TableLinens

Towels_;,_ •]:;_.

Page 12

Requires regular washing. If required, use Warm soak. Turn slacks and dark items inside out to prevent whitening and frosting of

seamsand creases.

Pretreat collars and cuffs with liquid laundry detergent.

Pretreat heavily soiled areas by rubbing in liquid laundry detergent. Let stand 30 to 60 minutes. If clothes are heavily soiled use Warm SOAKfor grease and oil, Cold SOAKfor dust or blood-stained garments. Use 1/4 to

___ detergent in SOA_K,1/2 to 1 cup in WASH.

Frequent washing lengthens life, helps retain shape. Remove non- washabletrim. Close zippers, fasten hooks, ,,

Some plastics will tear if machine-washed. Place small items in mesh bag for washing. If shower curtains are soap-stained, add water softener to wash water; don't use detergent.

Follow label directions. ',Shakeout dirt. Air dry rubber-like or rubber-backed rugs Wash one large

or two small ru_s at a time. Follow label instructions• Use Warm Soak for pillowcases stained with hair oil.

Be sure colors are fast and fabric is washable. Mend tears; remove detachable trim and fasteners• Wash only one large or two small chair rovers at a time. Cotton covers may be Zightly starched.

Pretreat around neckline. Follow manufacturer's recommendations.

Needspecial care to avoid shrinkage.

Removestains. Soak if necessary. Use Hot wash for white and

color-fast, Warm for others.

Use Warm Soak with 1/2 cup bleach for stained tea towels.

N1anyare machine washable. However, because of its physical properties,

wool may shrink during washing. As a g,=neral_rule, if it can be hand washed, it can be "washed" by soaking in the water. A liquid detergent is preferred because it dissolves faster ira soak than granulated. Pre-treat

_voolens with liquid detergent. Never use chlorine bleach.

Shake out dirt, turn pockets inside out Soak clothes (seepage 6), then wash thoroughly.

Warm Warm

Hot

Warm

Hot

Warm

See "Woolens." :,age1_. ---

Hot or Warm Cold

See "Washing Woolens,

page 11.

Warm t Cold

Hot Cold

Cold Cold

Cold

Cold Knits!Delicate

Knits/Delicate

PermPress

Knits/Delicate

PermPress

Cotton Sturdy

Cotton Sturdy Knits/Delicate

Keep agitatbn to a minimum

Cotton Sturdy

See page 11.

Auto. Fabric

Care

__Med. Heat

Auto. Fabric

Care

_Med. Heat)

Auto. Fabric

Care

(Med. Heat)

Knits/Delicate

Low Heat)

Air Fluff

Auto. Fabric

Care

_Med. Heat)

Auto. Fabric

Care

(_Med. Heat)

Knits/Delicate

_Low Heat) "See page 11.

Timed

_Hiflh Heatl

Timed

_High Heat)

See page 11.

Timed

_High Heat)

Page 13

Drying Tips

CONSULT CARE

DRY PRACTICALLY

ANY FABRIC

Generally fabrics that can be washed in the Kenmore Laundry

Center can be dried in the Kenmore Laundry Center.

Washables not recommended for

dryer: loosely woven or hand-

knitted woolens and some rayons and silks. (Check care: label. See warnings below.) Be sure plastic buttons and buckles are heat-proof.

When using delicate and permanent press fabrics,-check for dryness

after minimum time suggested. If various types of fabrics are mixed in drying load, set controls for lighter weight fabrics and remove

when dry. Reset temperature for remaining fabrics.

LABELS BEFORE DRYING ARTICLES , I

• Remove and fold or hang clothes quickly to prevent wrinkling.

• Do not overload dryer. Clothes must have room to tumble and

billow.

• Clothes (except permanent press) should be removed while they feel slightly damp. If they are absolutely dry to touch, they are too dry; over-drying increases wrinkling and shrinkage, and

wastes heat.

• To test for dryness, take garment out of dryer and feel it in room

temperature air. Clothes will feel

damper in warm, moist air of dryer drum than they will in room

air.

• When using TIMED cycle, set

minimum time shown on Control Settings Chart (page 10).

AIR FLUFF

Use Air Fluff to air bedding, dust draperies and slipcovers, fluff decorative pillows, and freshen

clothes that have been stored in mothballs or in a "stale" closet.

Also use for saJfe drying of plastic

and extra-sensitive sheer fabrics.

• Place items in dryer.

• Set dryer timer to the last 20 minutes of Knits/Delicate cycle which provides no heat on Air

Fluff setting.

Foam ShaulderPads

GENERAL SUGGESTIONS FOR GOOD RESULTS

An average size washer load is usually a dryer load. Items that are

washed together can generally be

dried together. Consult care label

before drying.

&CAUTION] Remove all items flora garments and fabrics to be dried, such as'-'Tacial tissues,

matches, crayons, na,ils, safety pins or any metallic or hard objects which might damage clothes or ap-

pliance.

• (:lose zippers, empty pockets,

fasten hooks and eyes to prevent snagging.

• Put socks and other small items in

mesh bag for easier removal.

• Items to be ironed should be

removed while_slightly damp.

• Put damp dry_ items together in

one load.

• If drying sheer items, start with a cold drum.

• It' drying only a few items, add a bath towel or two to maintain

proper tumbling action.

• If desired, add a dryer fabric

softener sheet.

USE OF FABRIC

SOFTENER SHEETS

Over use, of fabric softener can cause buildup of softener in

clothing, giving a greasy feeling. Buildup can also form on lint screen

and restrict airflow. Softener build- up on lin_:screen can be removed by

washing in warm soapy water. Buildup in clothing can be removed by:

• Reconditioning load with water conditioner (follow package in- structions),

• Laundering several times without using fabric softener.

_.WARNING Fluorocarbon aero- sol spray or pump fabric softeners are not 1:o be used in this dryer. Damage resulting from use of this type of softener can be considered as misuse of dryer. Failure to follow this warning can cause serious per- sonal injury.

Feather or Foam Pillow

[_kWARNING] To prevent fire, do

not use heat to dry articles contain- ing plastic, foam rubber or similarly textured rubber--like materials, or pillows and clothing with feathers/

down.

USE THE DRYER

AS A VALET

The Kenmore Laundry Center is wonderful for steaming out wrinkles

and refreshing corduroy, woolens, and velveteen skirts, jackets, slacks

or blouses. Follow these directions:

• Place garment:; in dryer with one or two slightly dampened bath

towels.

• Select proper cycle for garments.

• Select 30 minutes of_eat a_d let clothes tumble. Steam from towels will "press" clothes.

• After 15-20 minutes (before dryer stops tumbling!, remove garments and fold or place on hangers.

Page 13

Page 14

Care and Storage

CLEANING WASHER

INSIDE TUB

• Remove clothes from washer as soon as cycle is completed to prevent

development of mildew.

• Often, when heavily soiled clothes

ihave been washed, a deposit of sand .or dirt may appear around tub after

,completion of cycle. This may be .easily removed by using a liquid cleanser and rinsing thoroughly with

water.

OUTSIDE CABINET

• Never use harsh, gritty or abrasive

cleaners on any surface of the Laundry Center.

• At end of each laundry day, push Cycle Selector in, wipe top and both

sides of washer lid and dryer door with a damp cloth. Turn off hot and

cold water to reduce pressure on water hoses.

• Occasionally clean entire cabinet with a damp cloth. Stains on lid, top or tub

can be removed with adiluted solution of chlorine bleach (1/2 cup to 1 quart

water). Rinse well with clear water.

• Spray cans of color-matched enamel are available from your SEARS Store

orService Center to touch up scratches on painted cabinet.

CLEANING DRYER

LINT FILTER

BEFORE OR AFTER DRYING EACH LOAD

Remove and clean lint filter located at the bottom of the door opening. Failure

to do so will result in longer drying times.

_kWARNING[ Lint filter must be in

place when dryer is operating.

Dryer door will not close if lint filter is not properly inserted.

Dryer Drum

I,_.WARNING[ Disconnect electrical

supply cord before doing any of the following cleaning or servicing

procedur_ on the Laundry Center.

Failure to disconnect can cause electrical shock or serious personal

injury.

[_,WARNING[ Do not use any type of

spray cleanser when cleaning dryer interior. Poisonous fumes or electrical

shock can occur.

EXHAUST SYSTEM AND INTERIOR

I,_WARNINGI The interior ofthe dryer

cabinet and exhaust duct can gather lint and dust over time, depending on the type of articles dried and amount of use. An excessive amount of lint build-up

could result in inefficient drying and possible fire hazard. These areas should be cleaned approximately every 18 months by qualified service personnel.

TO STORI- LAUNDRY CENTER IN THE COLD:

The unit cannot be operated'in freezing temperatures. Before storing appliance,

remove water from all parts of washer.

1. Turn off water supply faucets. Disconnect hoses from faucets and

drain.

2. Add 1 gallon of non-toxic RV antifreeze (available from hardware

or recreaticnal vehicle store) to washer tub.

3. Push in Cycle Selector knob, turn knob to the right to SPIN only and

pull out knob.

4. Let washer spin for 1or 2 minutes to let all water drain out. Some, but not

all, of the RV antifreeze will be

expelled.

5. Push in Cycle Selector knob, dry tub

interior, disconnect electrical plug and close lid.

Store appliance: in an upright position.

To remove anti freeze after storage, run washer through a complete cycle using

1/2 cup detergent. Do not add clothes

load.

Page 14

• If drum is stained from noncolorfast

fabrics, clean with a damp cloth and

mild liquid household cleanser. Wipe

away the cleanser residue before

drying the next load of clothes.

Page 15

Warranty and Maintenance Agreement

SEARS MAINTENANCE AGREEMENT

Kenmore Laundry Center is engineered, manufactured and tested for years of depend- able operation. Yet, any precision machine may require service from time to time. A

Sears Maintenance Agreement relieves you completely of undue inconvenience and un- expected repair bills. It

• Extends mechanical adjustment and service on a new Kenmore Laundry Center beyond the warranty period.

• Inc:[udes all parts and labor at no addi-

tional cost.

• Covers all service calls and necessary repairs any time foi'_he entire period of the

Maintenance Agreement.

• Provides a complete Prevention Mainte- nance check during the last month of the

MaJlntenance Agreement, at your request and convenience.., as listed.

• Complete operational check of switches and valves.

• Operation check of Timer settings.

• Check belts for wear and tension.

• Check all moving parts and oil leaks, and lubricate as required.

• Check electrical system.

• Check pump and hoses.

• Check operation of timer, door switch and thermostats.

• Check leveling and balance mechanisms,

• Check dispensers.

• Check elements and connections.

* Clean base and motor as needed, and check

drum seal.

• Inspect exhaust systems.

This unlimited coverage is available for only

pennies a day. Let your Sears Sales or Servi¢'e Technician explain all the benefits of a Sears Maintenance Agreement.

Se,,rs service Is nationwide.,. Your Kenmore Laundry Center takes on new

value when you discover that Sears has service units around the country using fully- equipped trucks and ftaffed by Sears-trained

technicians. These ale Service Professionals who back up all Sear:; warranties. The,;e pro-

fessionals use Sears approve_ methods for expert repairs to fulfill the pledge: "We

Service What We 3elL"

If you need SERVICE or PARTS for your Kenmore Laundry, Center

Be ready to give your Sears Service Center the model number, serial number, and date of purchase. The model and serial numbers of your Kenmore Laundry Center are found inside the dryer door.

Page 15

Page 16

Before Calling for Service, Check the Following Points

If Laundry Center does not start::

• Is plug disconnected from power

supply or is plug loose in outlet, not making good connection?

• Is house fuse blown orcircuit breaker

off?.

• Is washer Timer knob pulled out?

• Is lid closed if in spin cycle?

• Is dryer door closed?

• Is Timer set?

• Have you pressed Start button for

about two seconds?

• The internal motor protector will stop motor if it is ow_rheated, but will

automatically reset after motor cools.

Press Start button for two seconds to restart dryer.

If water does not enter:

• Are faucets tumext on?

• Are filter screens clogged? They are located at water wtlve ends of hoses.

• Are hot and cold hoses reversed? Hot water hose is identified.

• Is the Wash Ternperature selector pointing directly to Hot, Cold or

Warm? The washer will not fill with water if the selector is pointing

between 2 setting,;.

If water does not drain:

• Are there kinks in drain hose?

• Is drain system clogged or restricted?

• Is drain hose lower that 33" in standpipe? This can cause siphoning

and washer will continue to fill. See Installation Instructions for further

information.

• Is the lid closed? The washer will not spin out wash water unless the lid is

closed.

If water is leaking at hose connection:

• Disconnect hose from valve. Remove rubber washer at end of hose and

replace, with new washer. Reconnect

hose to valve. DO NOT overtighten.

I_kWARNINGI Disconnect electrical

supply cord before servicing laundry

center. Failure to disconnect can cause electrica]t shock or serious personal

injury.

If articles are spotted or not clean:

• Is there,iron inthe water? Iron remover or water softener may be needed.

• Is fabric softener dispenser cracked? Fabric softener applied directly to

article.s will cause stains which resemble oil or grease stains.

• Is washer overloaded? Check loading section of..this book.

If articles are still wet at end of spin cycle:-

• Is load unbala:aced? Unit is designed

to complete cycle with unbalanced

load which conld leave articles damp. Redistribute articles and repeat spin cycle.

• Is drain system clogged or restricted?

If articles are not

drying satisfactorily:

• Is lint filter clean?

• Are exhaust duct and vent hood free of obstruction or lint blockage?

• Is dryer set at,!_ir Fluff for 20 minutes which provides no heat? -

• Are there too :nany articles in dryer? Check loadin_; section of this booklet.

• Have installation instructions been followed?

I_WARNING] Do not use plastic

flexible duct to _xhaust dryer. Replace plastic duct with rigid or flexible metal duct. Excessive lint can build up inside duct work, creating a fire hazard and

restricting air flow. Restricted air flow

will increase dl_.¢ingtime.

If you still have a problem after checking these items, you can obtain service simply by contacting your nearest Sears

Service Center throughout the United States. When calling

your Sears Service Center, be ready to give the model number, serial number, and date of purchase of your appliance.

Optional Accessories for your Kenmore Laundry Center

available fr rn your nearest Sears Service Center.

• Fabric Softener Dispenser P/N 145836-000

• Drying Rack PIN 131155200

• Syphon Break P/N 0766660-000

• Drain Hose, 9 Ft. Long P/N 142337-000

• For additional accessories check Laundry Center Parts List or your local Sears Service Center.

P/N 131217900 6/93
