10-INCH RADIAL SAW

GUARD KIT

FOR YOUR

SAFETY:

READ ALL
INSTRUCTIONS
CAREFULLY

Sold by SEARS, ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

Part No. SP5623 Printed in USA

• assembly

• operating

• repair parts

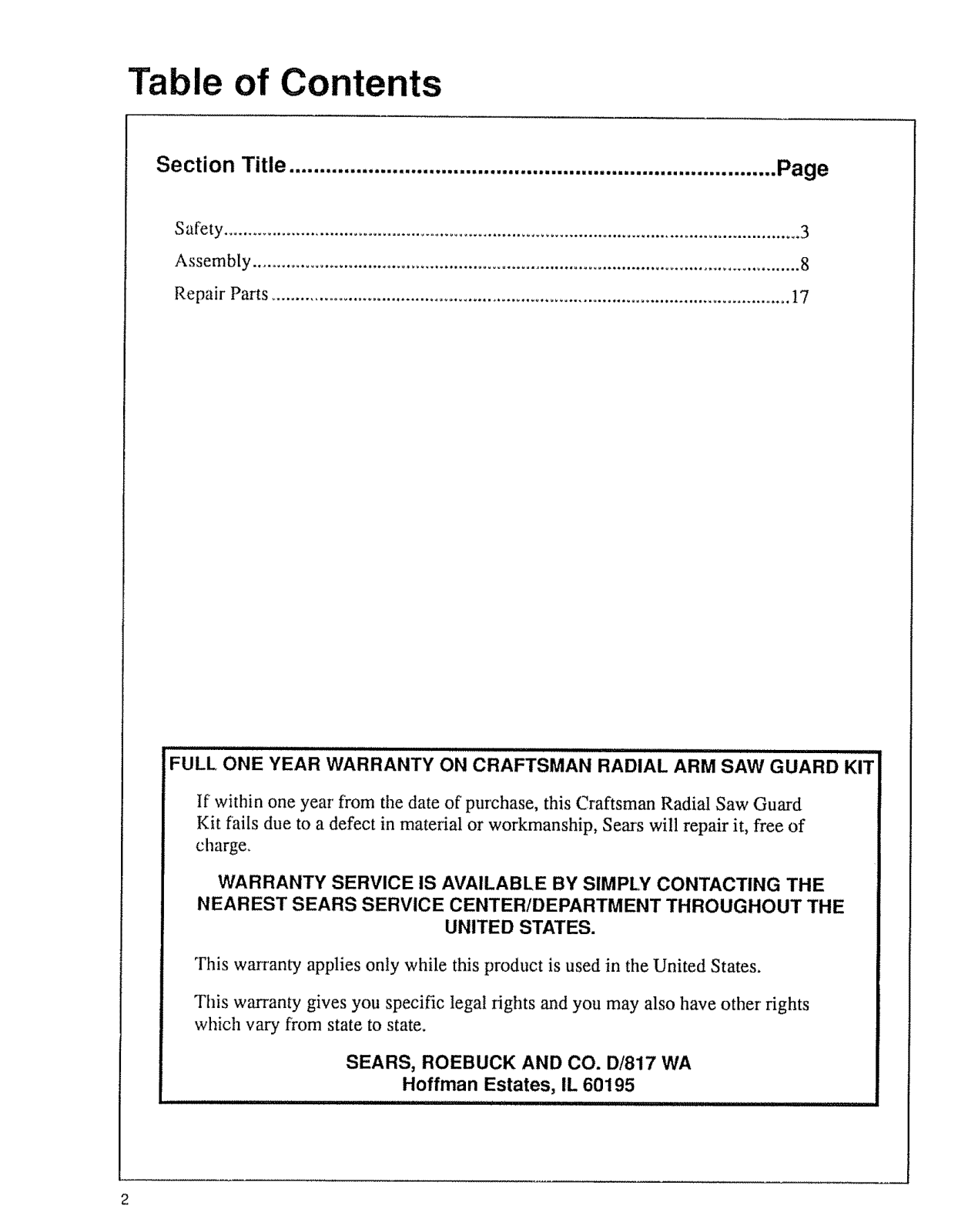

Table of Contents

Section Title ................................................................................ Page

Safety ........................................................................................................................ 3

Assembly .................................................................................................................. 8

Repair Parts ............................................................................................................ 17

iiillllllllllllllllll ii ii ............................

FULL ONE YEAR WARRANTY ON CRAFTSMAN RADIAL ARM SAW GUARD KIT

If within one year from the date of purchase, this Craftsman Radial Saw Guard
Kit fails due to a defect in material or workmanship, Sears will repair it, free of

charge.

WARRANTY SERVICE IS AVAILABLE BY SIMPLY CONTACTING THE

NEAREST SEARS SERVICE CENTER/DEPARTMENT THROUGHOUT THE

UNITED STATES.

This warranty applies only while this product is used in the United States.

This warranty gives you specific legal rights and you may also have other rights

which vary from state to state.

SEARS, ROEBUCK AND CO. D/817 WA

Hoffman Estates, IL 60195

iiiiii, i1,1 ii1,111 iiiii ,i ii i i i,iii1,1111,1,11,ii, i,,i

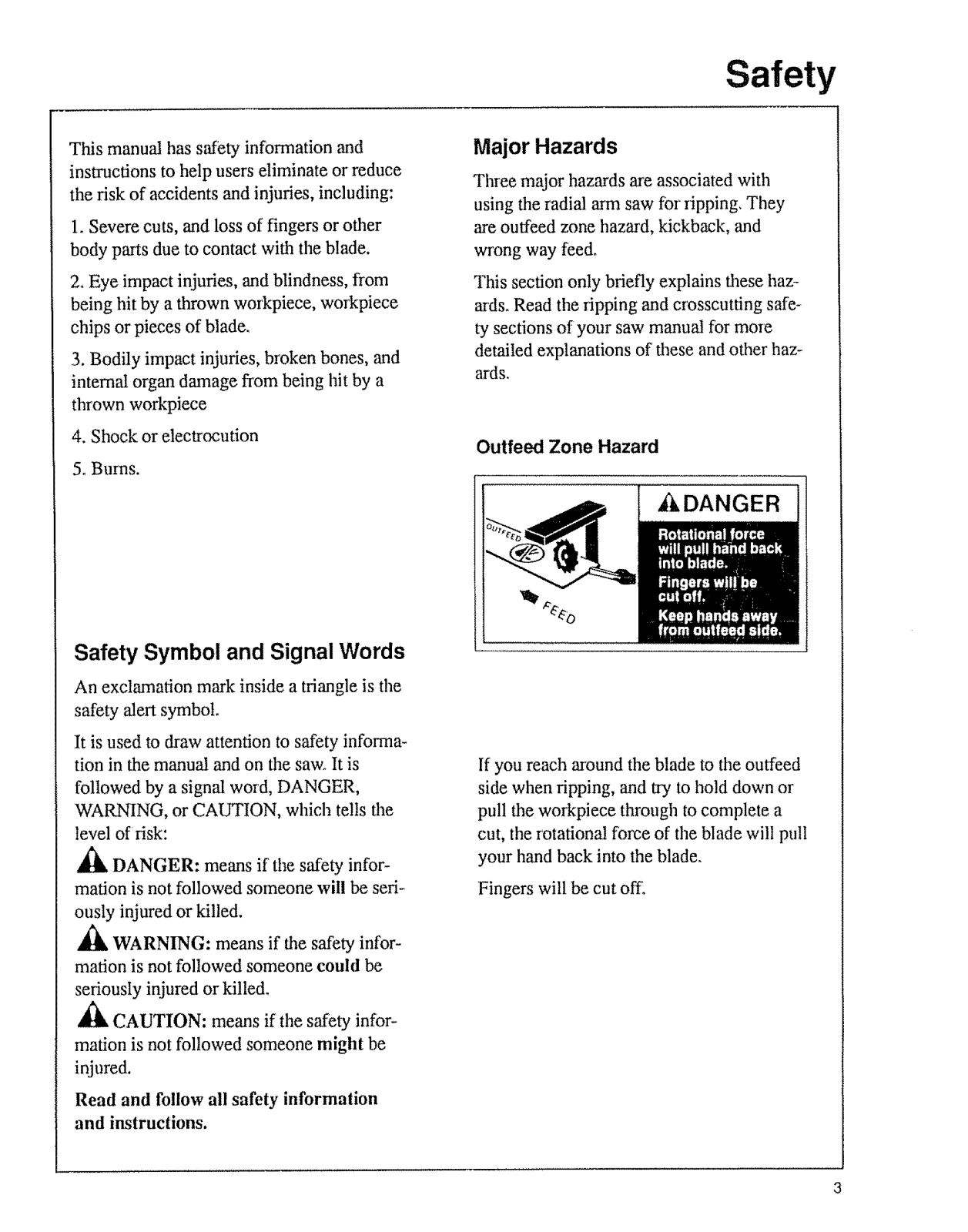

Safety

This manual has safety information and
ins_ctions to help users eliminate or reduce

the risk of accidents and injuries, including:

1. Severe cuts, and loss of fingers or other

body parts due to contact with the blade.

2. Eye impact injuries, and blindness, from
being hit by a thrown workpiece, workpiece
chips or pieces of blade,

3. Bodily impact injuries, broken bones, and
internal organ damage from being hit by a

thrown workpiece

4. Shock or electrocution

5. Bums.

Major Hazards

Three major hazards are associated with
using the radial arm saw for ripping, They

are ouffeed zone hazard, kickback, and
wrong way feed.

This section only briefly explains these haz-

ards. Read the ripping and crosscutting safe-
ty sections of your saw manual for more

detailed explanations of these and other haz-
ards.

Outfeed Zone Hazard

,i_t,DANGER

Safety Symbol and Signal Words

An exclamation mark inside a triangle is the

safety alert symbol.

It is used to draw attention to safety informa-

tion in the manual and on the saw_ It is
followed by a signal word, DANGER,

WARNING, or CAUTION, which tells the
level of risk:

,_ DANGER: means if the safety infor-

mation is not followed someone will be seri-
ously injured or killed.

WARNING: means if the safety infor-

mation is not followed someone could be
seriously injured or killed.

,,Ik

,_ CAUTION: means if the safety infor-
mation is not followed someone might be
injured.

Read and follow all safety information
and instructions.

If you reach around the blade to the outfeed
side when ripping, and try to hold down or
pull the workpiece through to complete a

cut, the rotational force of the blade will pull
your hand back into the blade.

Fingers will be cut off.

Safety

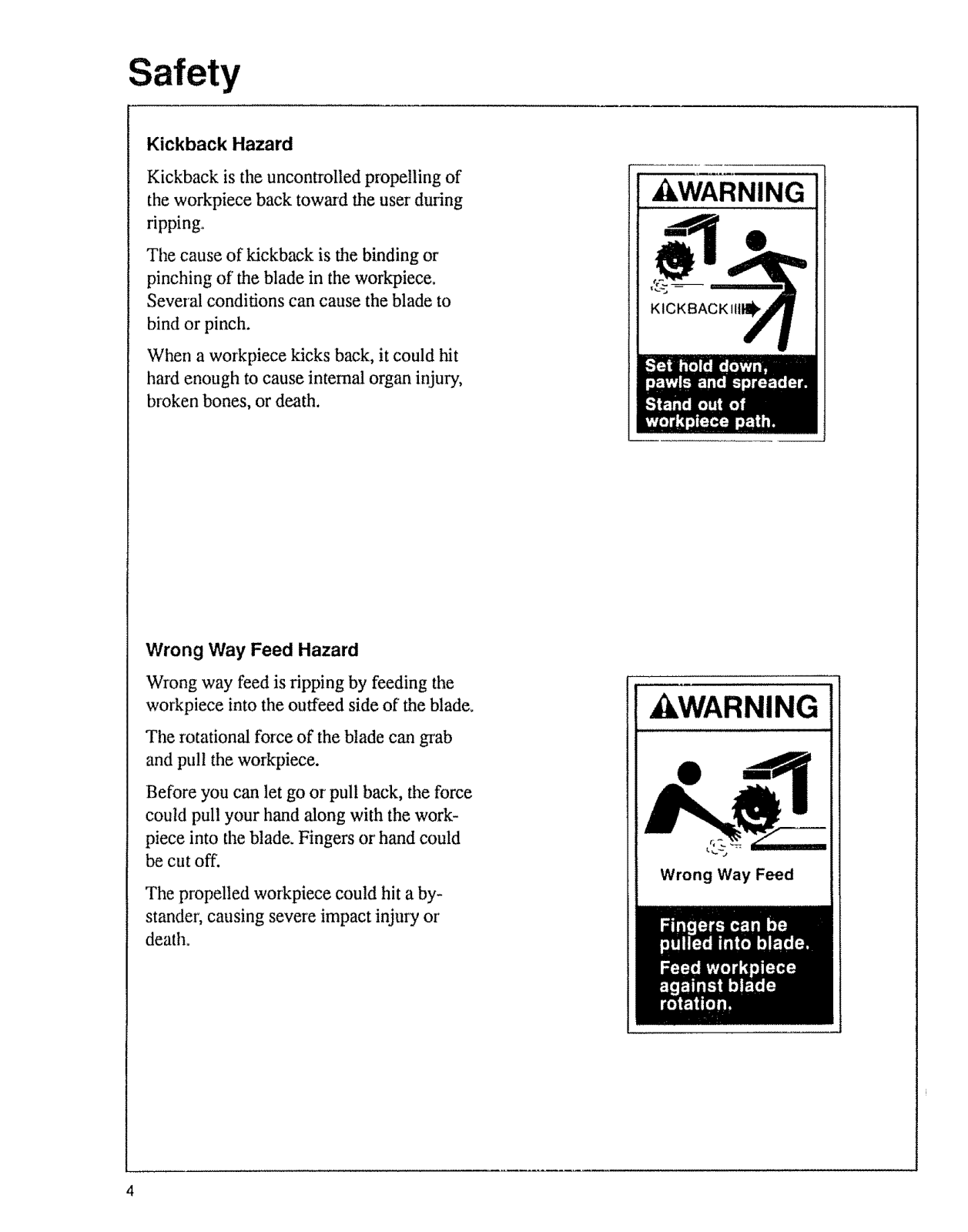

Kickback Hazard

Kickback is the uncontrolled p_opelling of

the workpiece back toward the user' during

ripping°
The cause of kickback is the binding or

pinching of the blade in the workpiece°
Several conditions can cause the blade to

bind or pinch.
When a workpiece kicks back, it could hit

hard enough to cause internal organ injury,
broken bones, or death.

kWARNING

KICKBACKII

Wrong Way Feed Hazard

Wrong way feed is ripping by feeding the
workpiece into the outfeed side of the blade.

The rotational force of the blade can grab

and pull the workpiece.

Before you can let go or pull back, the force
could pull your hand along with the work-
piece into the blade. Fingers or hand could

be cut off.

The propelled workpiece could hit a by-
stander, causing severe impact injury or

death_

kWARNING

Wrong Way Feed

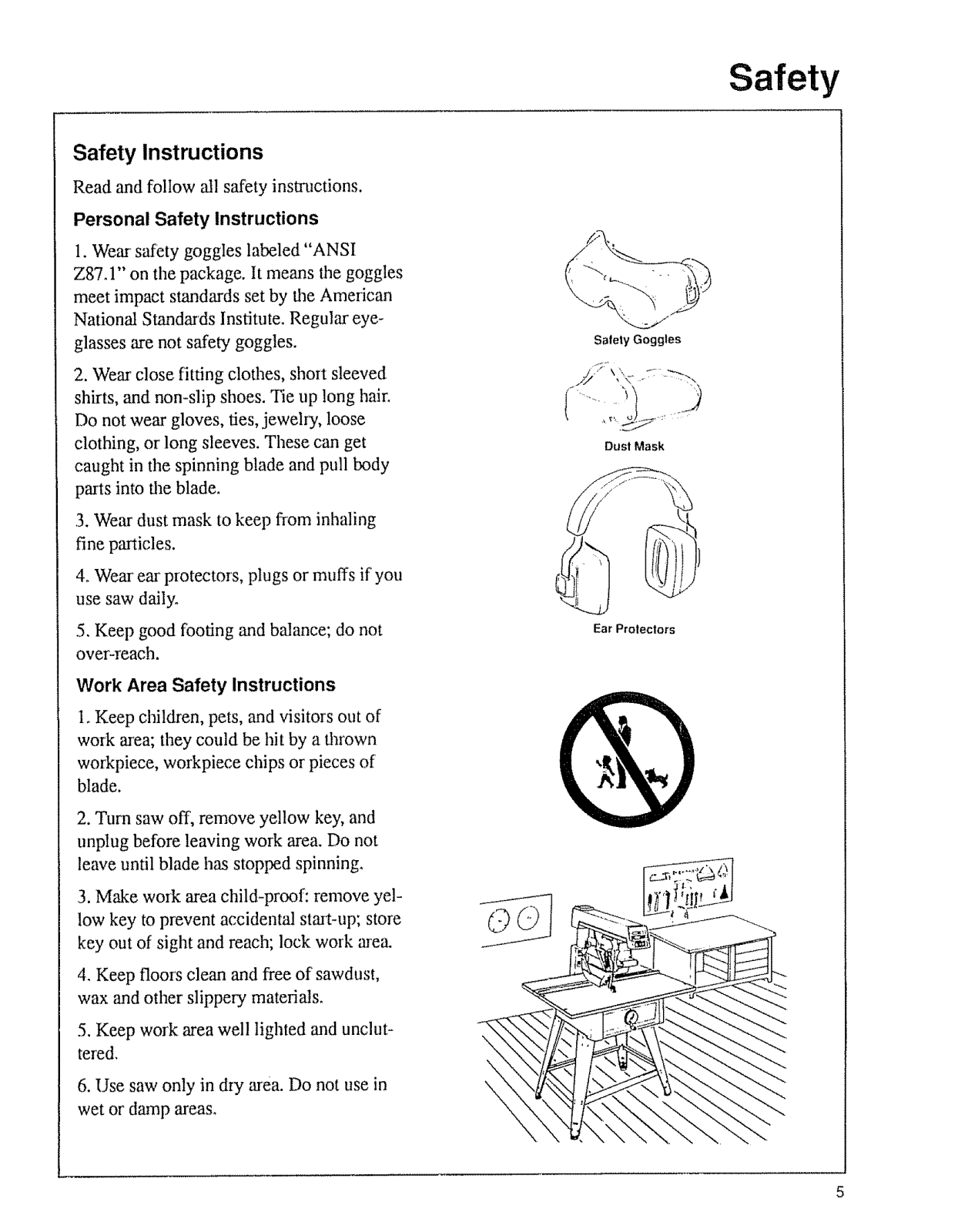

Safety Instructions

Read and follow all safety instructions,
Personal Safety Instructions

1. Wear"safety goggles labeled "ANSI

Z87.1" on the package, tt means the goggles
meet impact standards set by the American

National Standards Institute. Regular eye-
glasses are not safety goggles.

2. Wear close fitting clothes, short sleeved
shirts, and non-slip shoes. Tie up long hair.

Do not wear gloves, ties, .jewelry, loose
clothing, or long sleeves. These can get
caught in the spinning blade and pull body

parts into dae blade.

3. Wear dust mask to keep from inhaling
fine particles.

Safety

Dust Mask

4. Wear ear protectors, plugs or muffs if' you

use saw daily.

5. Keep good fboting and balance; do not
over-reach.

Work Area Safety Instructions

1. Keep children, pets, and visitors out of
work area; they could be tilt by a thrown

workpiece, workpiece chips or pieces of
blade.

2. Turn saw off, remove yellow key, and
unplug before leaving work area. Do not

leave until blade has stopped spinning.

3. Make work area child-proof: remove yel-
low key to prevent accidental start-up; store
key out of sight and reach; lock work area.

4. Keep floors clean and flee of sawdust,
wax and other slippery materials.

Ear Proleclors

5. Keep work area well lighted and unclut-
tered,

6. Use saw only in dry area. Do not use in
wet or damp areas.

\

Safety

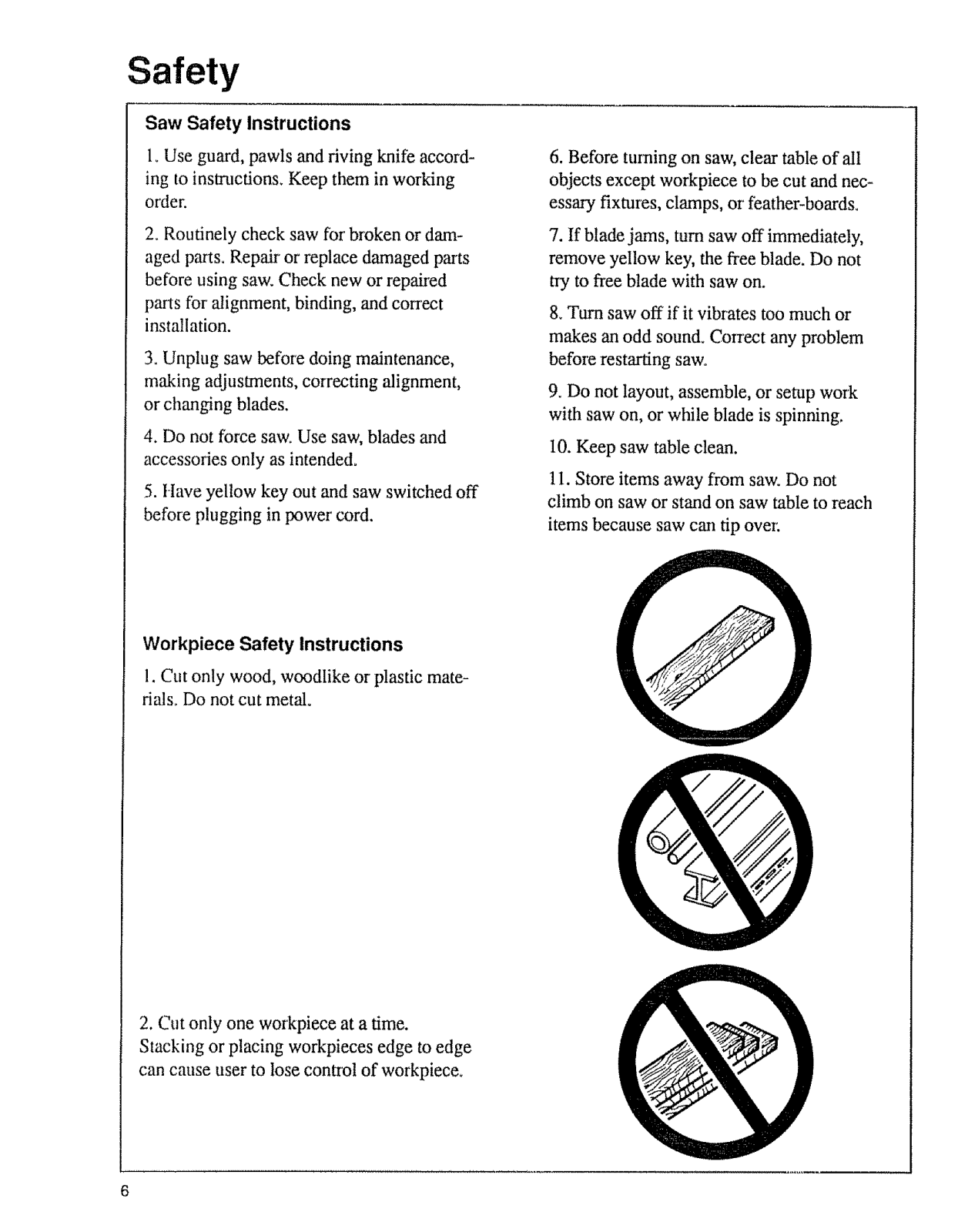

Saw Safety Instructions

1_Use guard, pawls and riving knife accord-

ing to instructions. Keep them in working
order.

2_Routinely check saw for broken or dam-
aged parts. Repair or replace damaged parts
before using saw. Check new or rep_ed

parts fbr alignment, binding, and correct
installation.

3. Unplug saw before doing maintenance,
making adjustments, correcting alignment,

or changing blades.

4. Do not force saw. Use saw, blades and
accessories only as intended.

5. Have yellow key out and saw switched off
before plugging in power cord.

6. Before turning on saw, clear table of all
objects except workpiece to be cut and nec-
essary fixtures, clamps, or feather-boardso

7. If blade jams, turn saw off immediately,
remove yellow key, the free blade. Do not

try to free blade with saw on.
8_Turn saw off if it vibrates too much or

makes an odd sound° CorT_t any problem
before restarting saw.

9. Do not layout, assemble, or setup work
with saw on, or while blade is spinning.

10. Keep saw table clean.

11. Store items away from saw. Do not

climb on saw or stand on saw table to reach
items because saw can tip over.

Workpiece Safety Instructions

!. Cut only wood, woodlike or plastic mate-

rials.. Do not cut met'_

2. Cut only one workpiece at a time.
Stacking or placing workpieces edge to edge
can cause user to lose control of workpieceo

3. Rip only workpieces longer than the
diameter of the blade. Do not rip workpieces

that are shorter than the diameter of the
blade being used.

4. Workpieces that extend beyond the saw
table can shift, twist, rise up from the table,

or fall as they ar'e cut or afterwards. Support
workpiece with table extensions the same
height as the saw table.

Safety

5. To prevent tipping, support outer ends of

extensions with sturdy legs or an outrigger.

6. Do not use another person to help support
workpieces or to aid by pushing or pulling
on workpieces, because these actions can

cause kickback. Use table extensions.

7. Use clamps or vice to hold workpiece. It's
safer than using your hands.

Blade Safety Instructions

1.Use only blades marked for at least 3450

rpmo

2. Use only 10" or smaller diameter blades.

3. Use blades for their recommended cutting

procedures.

4. Keep blade sharp and clean.

5. Do not overtighten blade nut because
blade collar could warp°

6o Do not turn saw on and off in rapid
sequence because blade can loosen.

7. Blade should stop within 15 seconds after
saw is switched off. If blade takes longer, the

saw needs repair. Contact Sears Service
Center.

Assembly

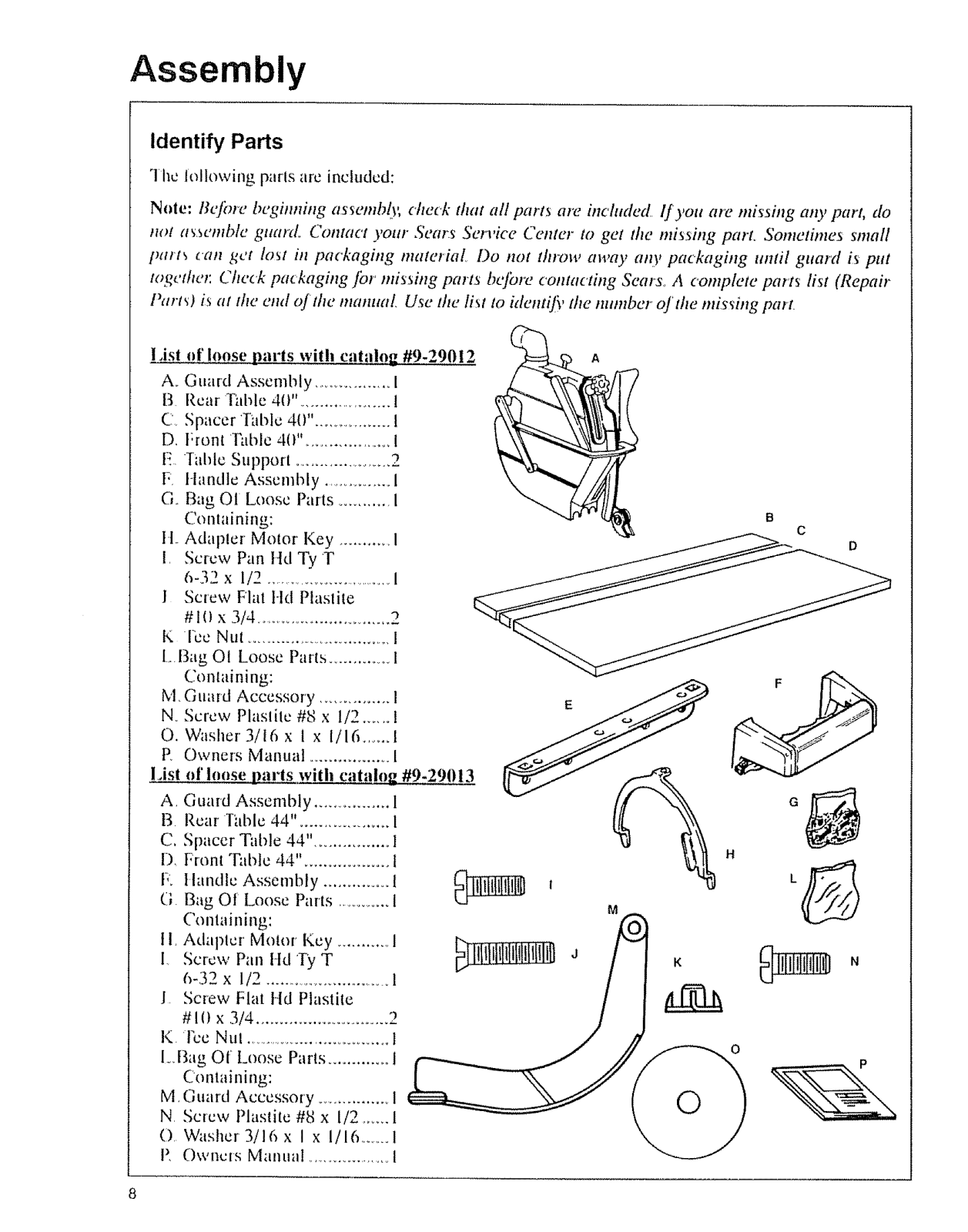

Identify Parts

3he h_!lowing paris are inchided:

Nole: B@nv beginning assembl3; check that all parts are included If you ate missing at O, part, do
m_t assemble guar_L _mtact your Sear_ Service Center to get the missing part. Sonlethnes snlall

parts can get lost in packaging material. Do not throw away any packaging until guar'd is put

toRethet: Check packaging for' missing palts bcjbre contacting Sears, A COnlplete parts list (Repair
Parts) is at the end oJ the nlanual. Use the list to identij], the nuntber of the missblg part.

IJst of hmse parts with catalog #9-29012

A_ Guard Assembly ................. I

B Rear Table 40" ......................I

C SpacerT_d_Ic 40". ..................1

D. Izront Fable 40" .....................I

E Tahte Supporl ........................2

I;. Handle Assembly ................ 1

G. Bag Ol Loose Parts ........... I

Conlaining:

II,.Adapter Motor Key ........... I

I Screw Pan lid Ty T

6-32 x 1/2 ............................... 1

l Screw Flal Hd Plaslite

#1() x 3/4 ............................... 2

K fi2e Nu| ................................. I

l. Bag Ol Loose Paris ................ 1

Conlaining:

M, Guard Accessory ................ I

No Screw Plaslile #8 x 1/2 ...... 1

O. Washer 3/t6 x I x 1116....... 1

P, Owners Manual ................. 1

lJst of hmse parts with catalog #9-29013

A, Guard Assembly ................. 1

B Rear T_tble 44" ................... 1

C, Spacer Table 44" ................. 1

I), Front Table 44" .................. l

I;. tlandte Assembly .............. 1

G Bag Ol Loose Parts ............ 1

Conlaining:

I1, Adapter Motor Key ............. 1

1 Screw Pan Hd Ty T

6-32 x I/2 .............................. t

l Screw Flat Hd Plastile

#1() x 3/4 .............................. 2

K Iixe Nut .....................................t

l_Bag Ol: l_oose Paris .............. 1

Containing:

M, Guard Accessory ................ I

N Sc_cw Plaslite #8 x 1/2 ...... 1

() Washer 3116 x I x 1/16 ....... 1

P, ()whets Mamml ......................t

!

d K _ N

B

C

Assembly

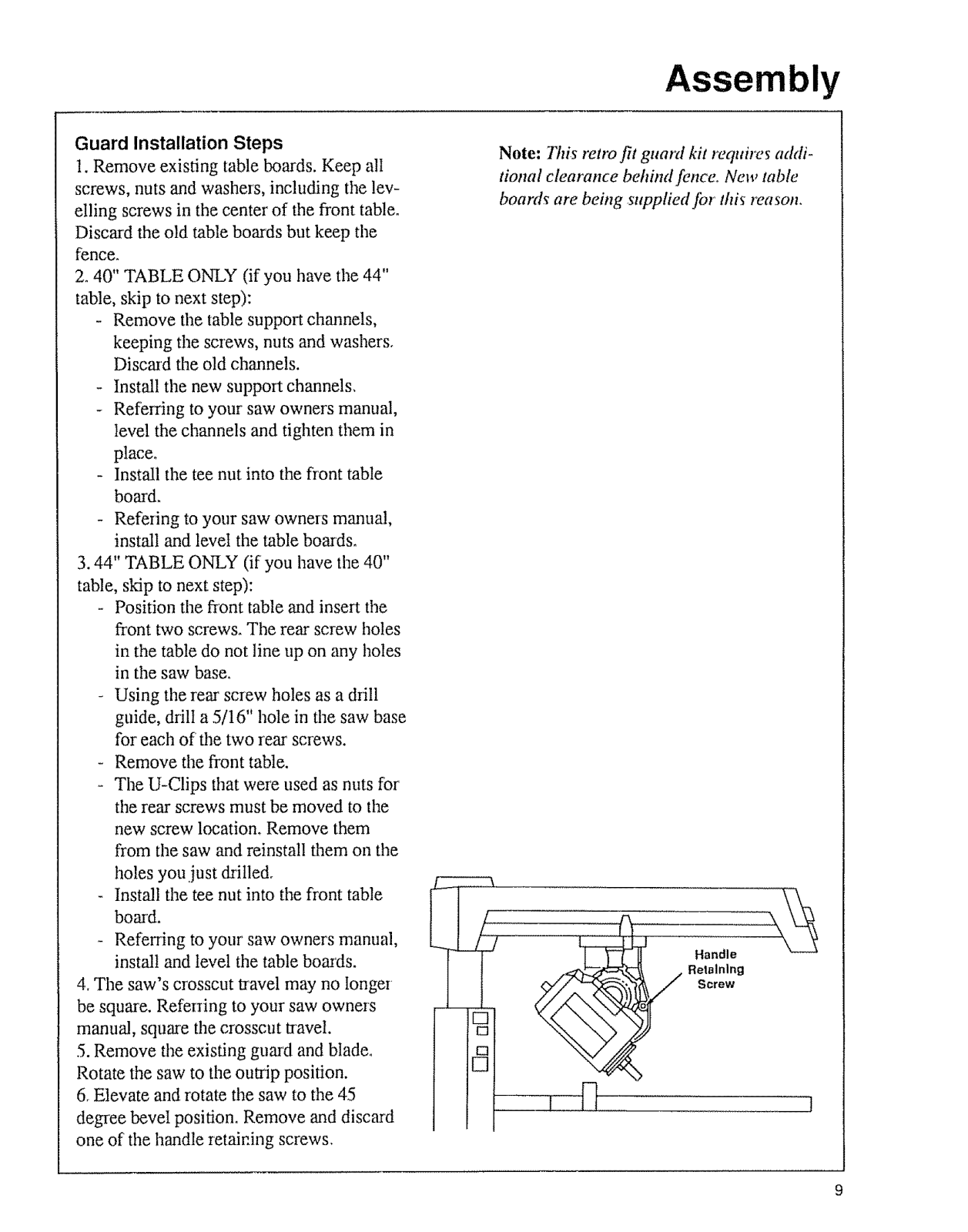

Guard Installation Steps

1. Remove existing table boards. Keep all

screws, nuts and washers, including the lev-
elling screws in the center of the front table.

Discard the old table boards but keep the
fence.

2o 40" TABLE ONLY (if you have the 44"
table, skip to next step):

- Remove the table support channels,
keeping the screws, nuts and washers°

Discard the old channels.

- Install the new support channels.

- Referring to your saw owners manual,

level the channels and tighten them in
place.

Install the tee nut into the front table
board.

Refering to your saw owners manua!,
install and level the table boards.

3.44" TABLE ONLY (if you have the 40"
table, skip to next step):

Position the flont table and insert the
front two screws. The rear screw holes

in the table do not line up on any holes
in the saw base,

Using the rear screw holes as a drill

guide, drill a .5/16" hole in the saw base
for each of the two rear screws.

Remove the front table.

The U-Clips that were used as nuts for

the rear screws must be moved to the
new screw location° Remove them
from the saw and reinstall them on the

holes you .just drilled,

Install the tee nut into the front table
board.

Referring to your saw owners manual,
install and level the table boards.

4, The saw's crosscut travel may no Ionger
be square. Referring to your saw owners
manual, square the crosscut tlavel.

.5. Remove the existing guard and blade.
Rotate the saw to the outrip position.

6, Elevate and rotate the saw to the 45
degree bevel position, Remove and discard

one of the handle retaining screws,

Note: This retro fit guard kit requires addi-

tional clearance behhM fence, New table
boards are being supplied for this reason,

Handle

Retaining

Screw

C

c

C

.... I [-]

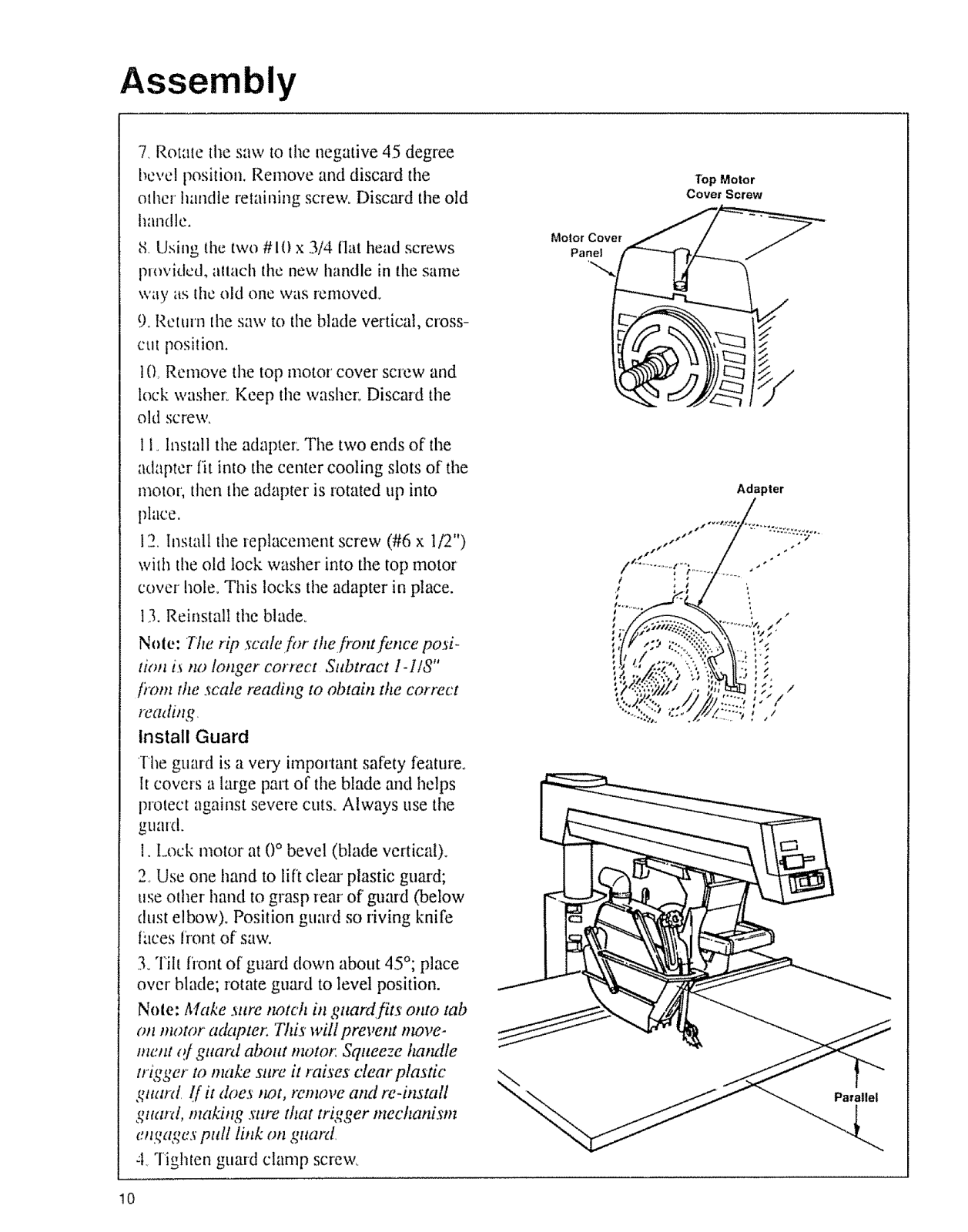

Assembly

7, Rotate the saw to the negative 45 degree
l_'cx,_c!position. Remove and discmd ttle

oflmr lmndle retaining screw, Discard tile old

handle,

8. Using the two #1(1 x 3/4 flat head screws
provided, altach the new h;mdle in tile same

way as the old one was renloved,

9o Return lhe saw to the blade vertical, cross-
cut position.

10, Remove the top motor cover screw and

lock washer: Keep the washer, Discard the

old screw,

11, Install the adapter: Tile two ends of' tile

adapter fh into tile center cooling slots of the
motor; then the adapter is rotated tip into

phlce.

12. Install the replacement screw (#6 x 1/2")

with the old lock washer into the top motor

cover hole. This locks tile adapter in place.

13, Reinstall the blade°

Top Motor

Cover Screw

Motor Cover

Panel

Note: Tim rip scale fi_r the fi'ont fence posi-
tirol i._no longer cotvect Subtract 1-1/8"

fiom the ._'cale reading to obtain the correct

reading,

Install Guard

The guard is a very important safety feature_

It covers a large part of tile blade and helps
protect against severe cuts, Always use the

gumd.

1.Lock motor at 0° bevel (blade vertical).

2, Use one hand to lift cleaa" plastic guard;

use od_er hand to grasp fear of guard (below

dust elbow). Position guard so riving knife

fuces front of saw.

3oTilt fiont of guard down about 45°; place
over' blade; rotate guard to level position,

Nole: Make .uae notch in guardfits onto tab

on motor adapter. This wUlprevent move-

merit o/guard about motor Squeeze handle
u'igger to make sure it raises clear plas-tic

guard l[ it &_es ,tot, remove and re-install
gtuud, makiltg sure that trigger mechanism

engages pull link on guard,

-'LTighten guard clamp screw,

Parallel

10

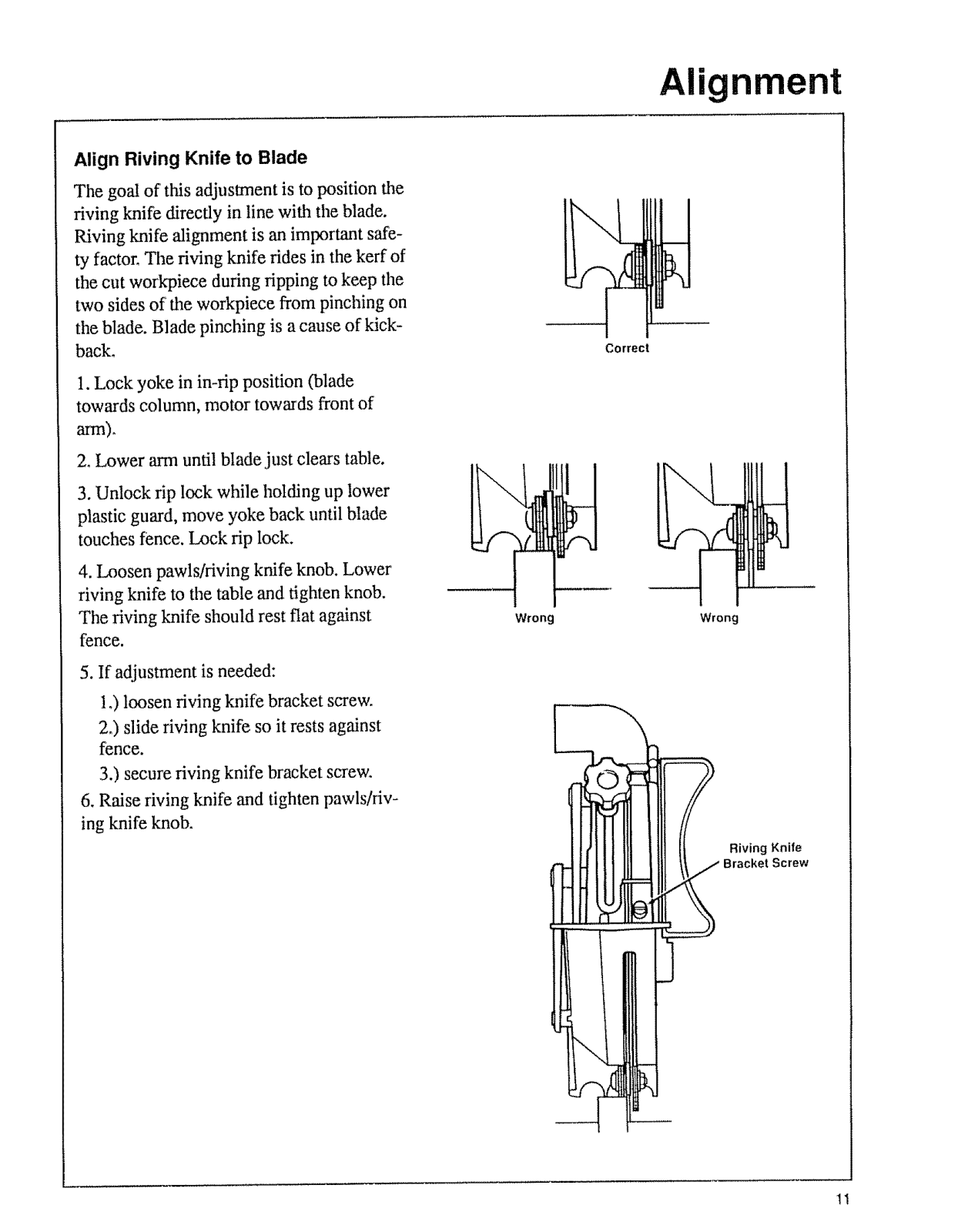

Align Riving Knife to Blade

The goa! of this adjustment is to position the
riving knife directly in line with the blade.

Riving knife alignment is an important safe-
ty factor, The riving knife rides in the kerf of

the cut work_iece during ripping to keep the
two sides of the workpiece from pinching on

the blade. Blade pinching is a cause of kick-
back,

1. Lock yoke in in-rip position (blade

towards column, motor towards front of
arm).

2. Lower arm until blade just clears table,

3. Unlock rip lock while holding up lower
plastic guard, move yoke back until blade

touches fence. Lock rip lock.

Alignment

Correct

4. Loosen pawls/riving knife knob. Lower
riving knife to the table and tighten knob.

The riving "knifeshould rest fiat against

fence,

5. If adjustment is needed:
1o)loosen riving knife bracket screw.

Z) slide riving knife so it rests against
fence.

3.) secure riving knife bracket screw,

6, Raise riving knife and tighten pawls/riv-
ing knife knob.

Wrong

Wrong

Riving Knife

Screw

11

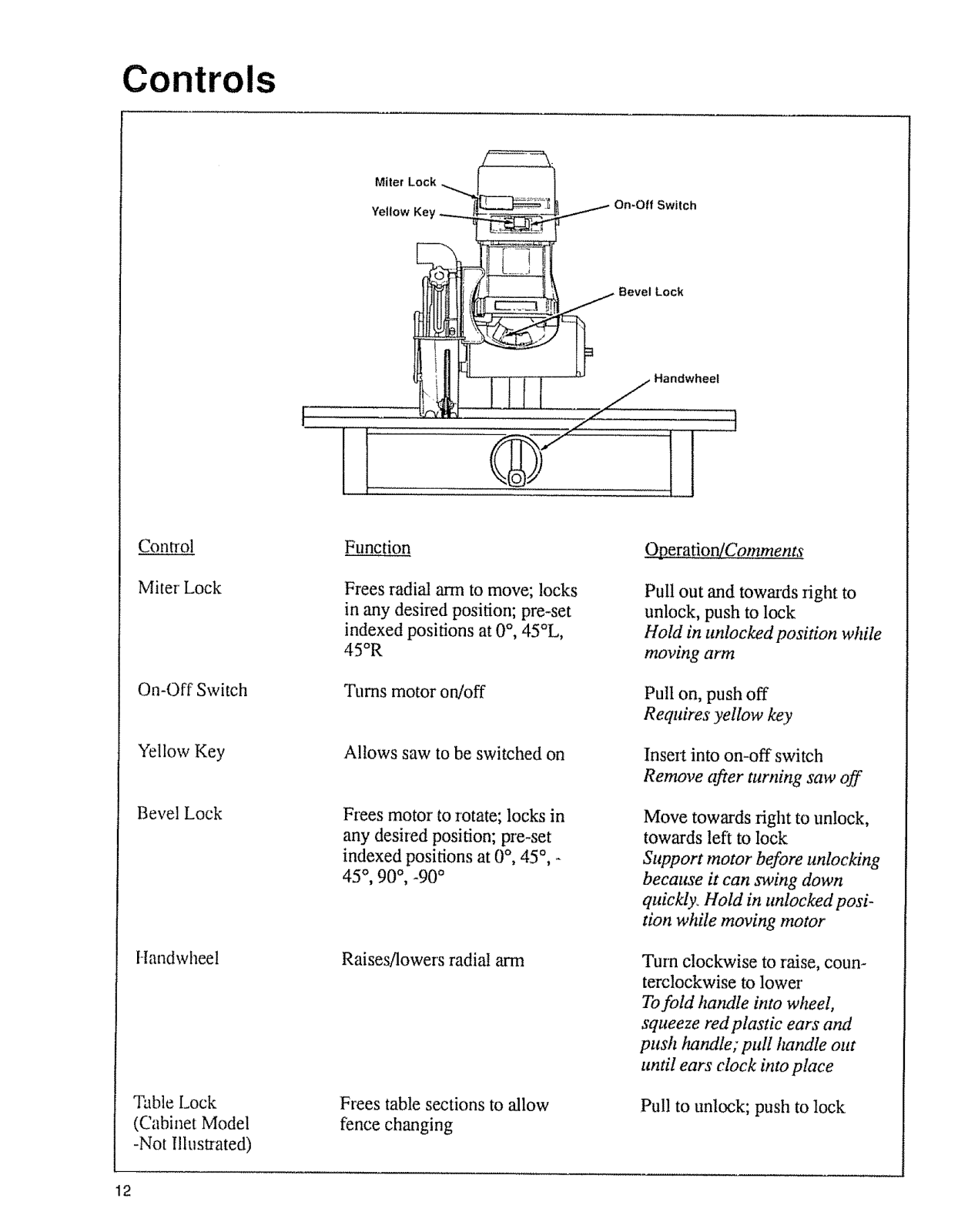

Controls

Miter Lock

Yellow Ke

Bevel Lock

dwheel

Miter Lock

On-Off Switch

Yellow Key

Bevel Lock

Handwheel

Function

Frees radial arm to move; locks

in any desired position; pro-set
indexed positions at 0°, 45°L,

45°R

Turns motor on!off

Allows saw to be switched on

Frees motor to rotate; locks in
any desired position; pre-set

indexed positions at 0°, 45°, -

45°, 90°, -90°

Raises/lowers radial arm

Operation/Comments

Pull out and towards right to
unlock, push to lock

Hold in unlocked position while
moving arm

Pull on, push off

Requires yellow key

Insert into on-off switch

Remove after turning saw off

Move towards right to unlock,
towards left to lock

Support motor before unlocking
because it can swing down

quickly. Hold in unlocked posi-
tion while moving motor

Turn clockwise to raise, coun-

terclockwise to lower'

To fold handle into wheel,
squeeze red plastic ear's and

push handle; pull handle out

until ears clock into place

%ble Lock
(Cabinet Model

-Not Illustrated)

12

Frees table sections to allow
fence changing

Pull to unlock; push to lock

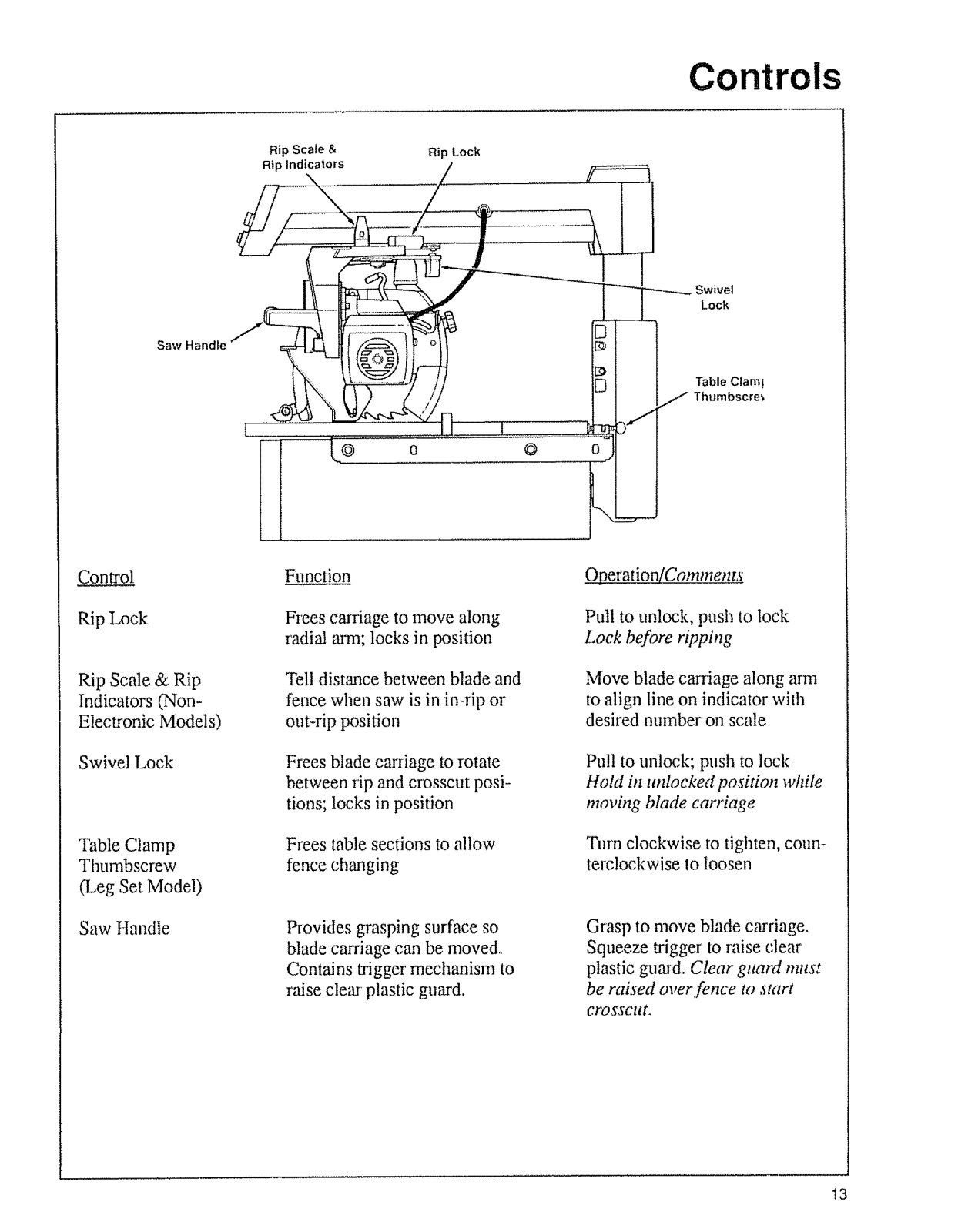

Rip Scale & Rip Lock

Rip lnd'_a,ors .__

Controls

Control Function

Rip Lock

Rip Scale & Rip
Indicators (Non-
Electronic Models)

Frees carriage to move along
radial tuna; locks in position

Tell distance between blade and

fence when saw is in in-rip or
out-rip position

_-._.,._ Swivel

Lock

l Table Clam[

11" Thumbscre_

t

0

Operation/Comments

Pull to unlock, push to lock

Lock before ripping

Move blade carriage along arm
to align line on indicator with

desired number on scale

Swivel Lock

Table Clamp
Thumbscrew

(Leg Set Model)

Saw Handle

Frees blade carriage to rotate
between rip and crosscut posi-

tions; locks in position
Frees table sections to allow

fence changing

Provides grasping surface so
blade carriage can be moved.
Contains trigger mechanism to

raise clear plastic guard,

Pull to unlock; push to lock

HoM in unlocked position while

moving blade carriage

Tuna clockwise to tighten, coun-

terclockwise to loosen

Grasp to move blade carriage,
Squeeze trigger to raise clear

plastic guard° Clear guard must

be raised over fence to start

crosscut.

13

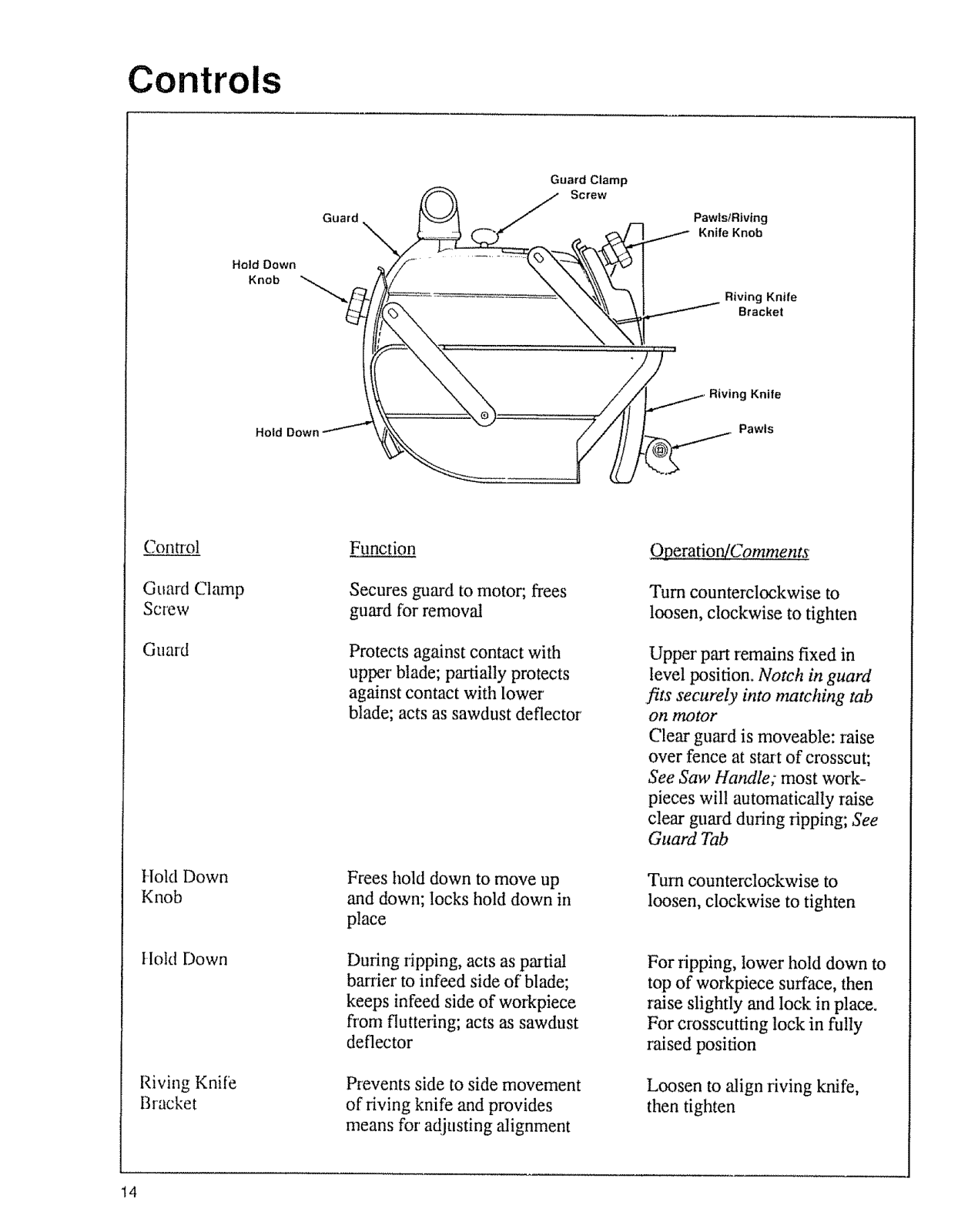

Controls

Control

Guard Clamp
Screw

Guard

llold Down
Knob

tlokt Down

Function

Secures guard to motor; frees
guard for removal

Protects against contact with
upper blade; partially protects

against contact with lower'
blade; acts as sawdust deflector'

Frees hold down to move up
and down; locks hold down in

place

During ripping, acts as partial
barrier' to infeed side of blade;

keeps infeed side of workpiece

from fluttering; acts as sawdust
deflector

Qoeration/Comm_nts

Turn counterclockwise to
loosen, clockwise to tighten

Upper part remains fixed in
level position. Notch in guard

fits securely into matching tab

on motor

Clear guard is moveable: raise
over fence at start of crosscut;

See Saw Handle; most work-

pieces will automatically raise

clear guard during ripping; See

Guard Tab

Turn counterclockwise to
loosen, clockwise to tighten

For ripping, lower hold down to
top of workpiece surface, then

raise slightly zmd lock in place.
For crosscutting lock in fully
raised position

Riving Knife
Bracket

14

Prevents side to side movement
of riving knife and provides
means for' adjusting alignment

Loosen to align riving knife,

then tighten

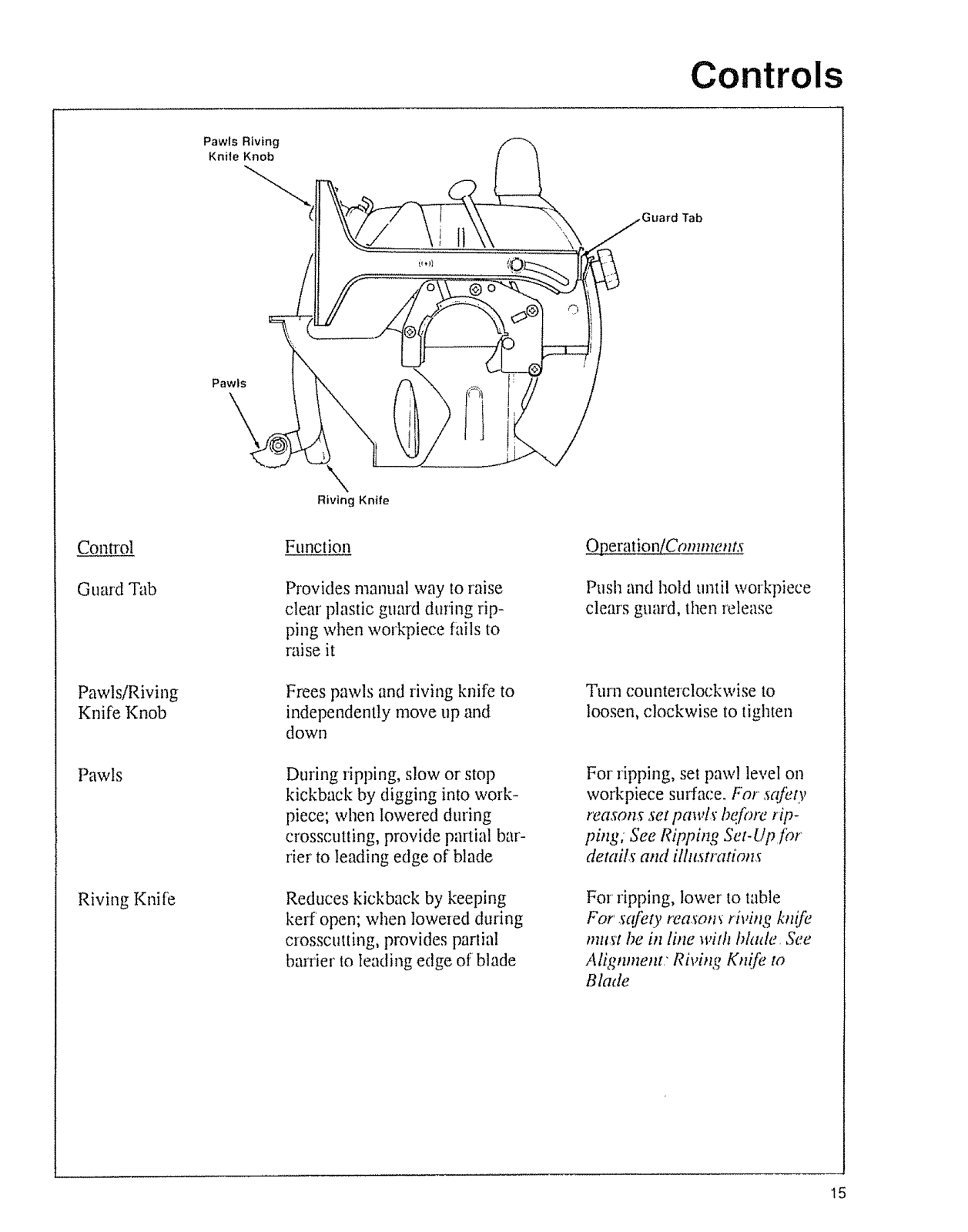

Pawls Riving

Knile Knob

Pawls

\

Controls

Riving Knife

Control

G u ard Tab

Pawls!Riving
Knife Knob

Pawls

Riving Knife

Function

Provides manual way to raise

clear plastic guard during rip-

ping when workq_iece fails to

raise it

Frees pawls and riving knife to
independently move up and

down

During ripping, slow or stop
kickback by digging into work-
piece; when lowered during

crosscutting, provide partial bar-

rier to leading edge of blade

Reduces kickback by keeping
kerr' open; when lowered during

crosscutting, provides partial

barrier to leading edge of blade

Operation[Comments

Push and hold until workpiece

clears guard, daen release

Turn countmclockwise to

loosen, clockwise to tighten

For ripping, set paw! level on
workpiece surface. For' safeo,

rea.wns set pau& b@)re rip-

ping; See Ripping Set-Up/or
details and ilhtstratim_

For ripping, lower to table

For scgeo, reasom riving knife
must be in line with hkMe. See

Aligmnent" Riving Knife to
Blade

15

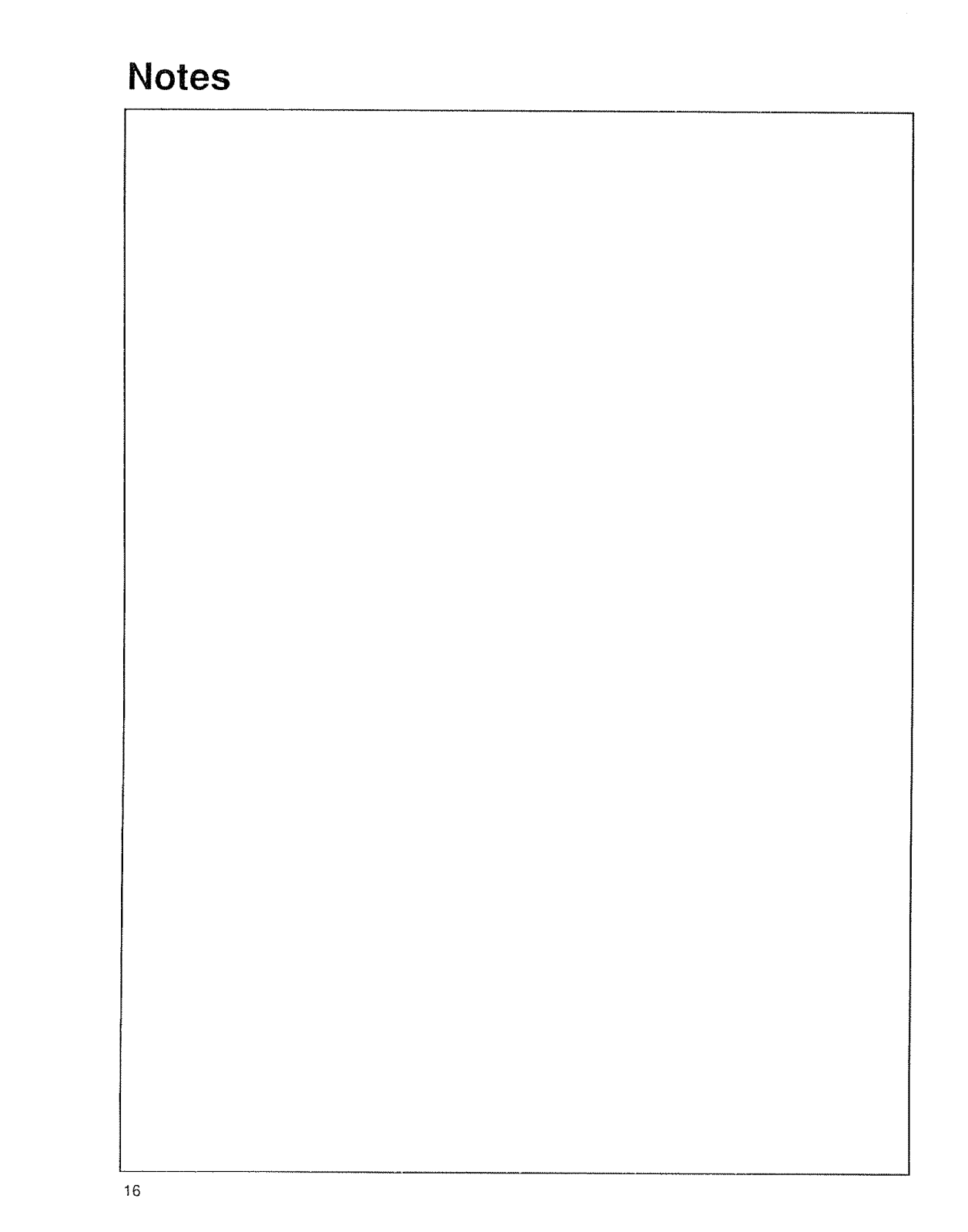

Notes

16

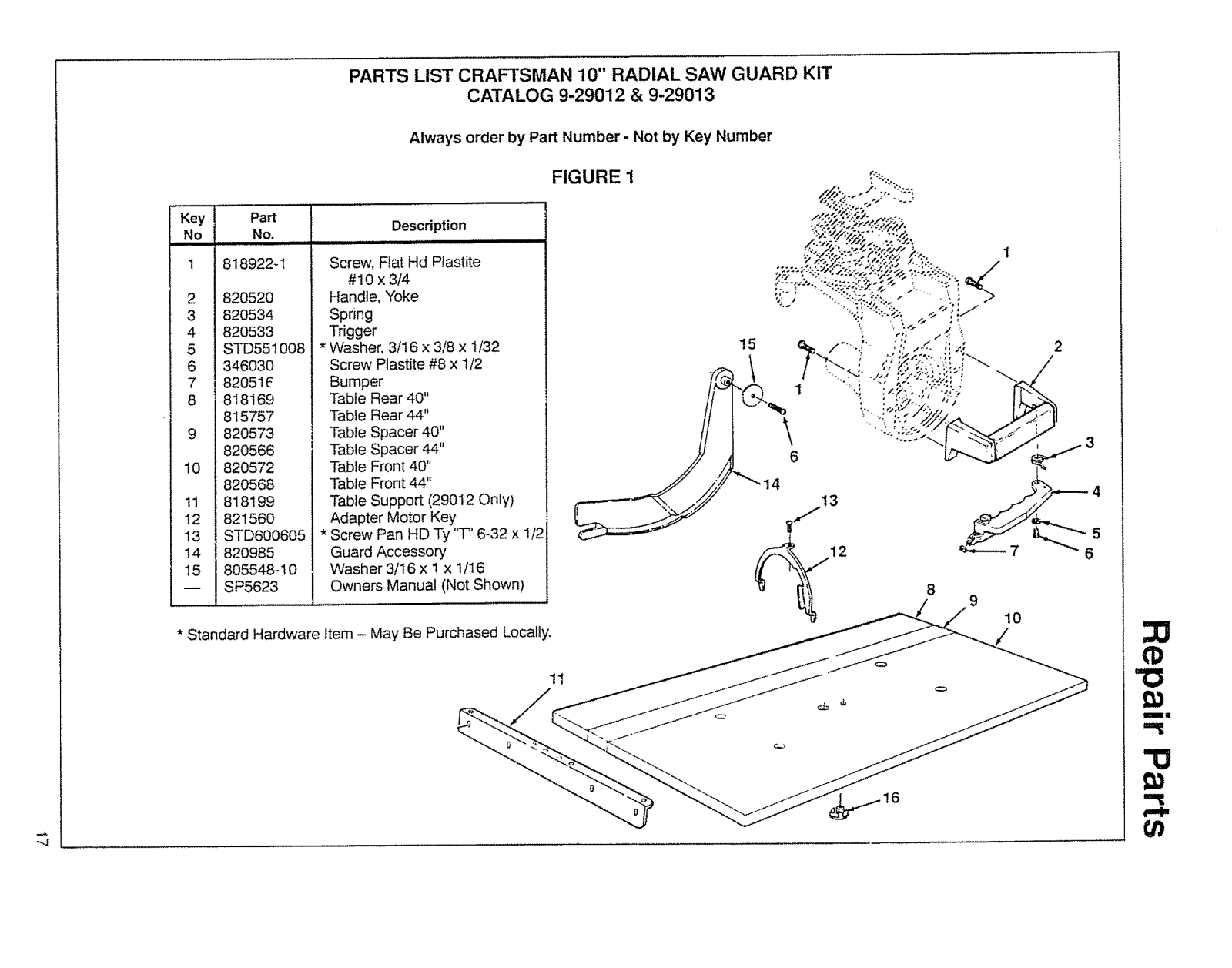

PARTS LIST CRAFTSMAN 10" RADIAL SAW GUARD KIT

CATALOG 9-29012 & 9-29013

Always order by Part Number - Not by Key Number

FIGURE 1

Key

No

!

2
3
4
5
6

7
8

9

t0

11
12
13
14
15

* Standard Hardware item - May Be Purchased Locally,

Part

No.

1

818922-1
820520

820534
820533
STD55t008

346030
82051€
818169

815757
820573
820566
820572
820568
818199
821560
STD600605
820985
805548-t0
SP5623

Description

n,n i

Screw, Flat Hd Ptastite

#10 x3/4

Handle, Yoke
Spring
Trigger

* Washer, 3/16 x 3/8 x 1/32

Screw Ptastite #8 x 1/2
Bumper

Table Rear 40"
Table Rear 44"

Table Spacer 40"
Table Spacer 44"
Table Front 40"

TabJe Front 44"
Table Support (29012 Only,_

Adapter Motor Key

* Screw Pan HD Ty 'T' 6-32 x 1/2

Guard Accessory
Washer 3/16x ! x 1/16

Owners Manual (Not Shown)

15

1

\

6

5

7

8

9

10

6

11

Ill

PARTS LIST CRAFTSMAN 10" RADIAL SAW GUARD KIT

CATALOG 9-29012 & 9-29013

Always order by Part Number - Not by Key Number

1

7 6

in

el=l=

U)

8

1

34

35

33

17

16

14

10

11

12

13

9

31

33

/

3O

24

28

2O

27

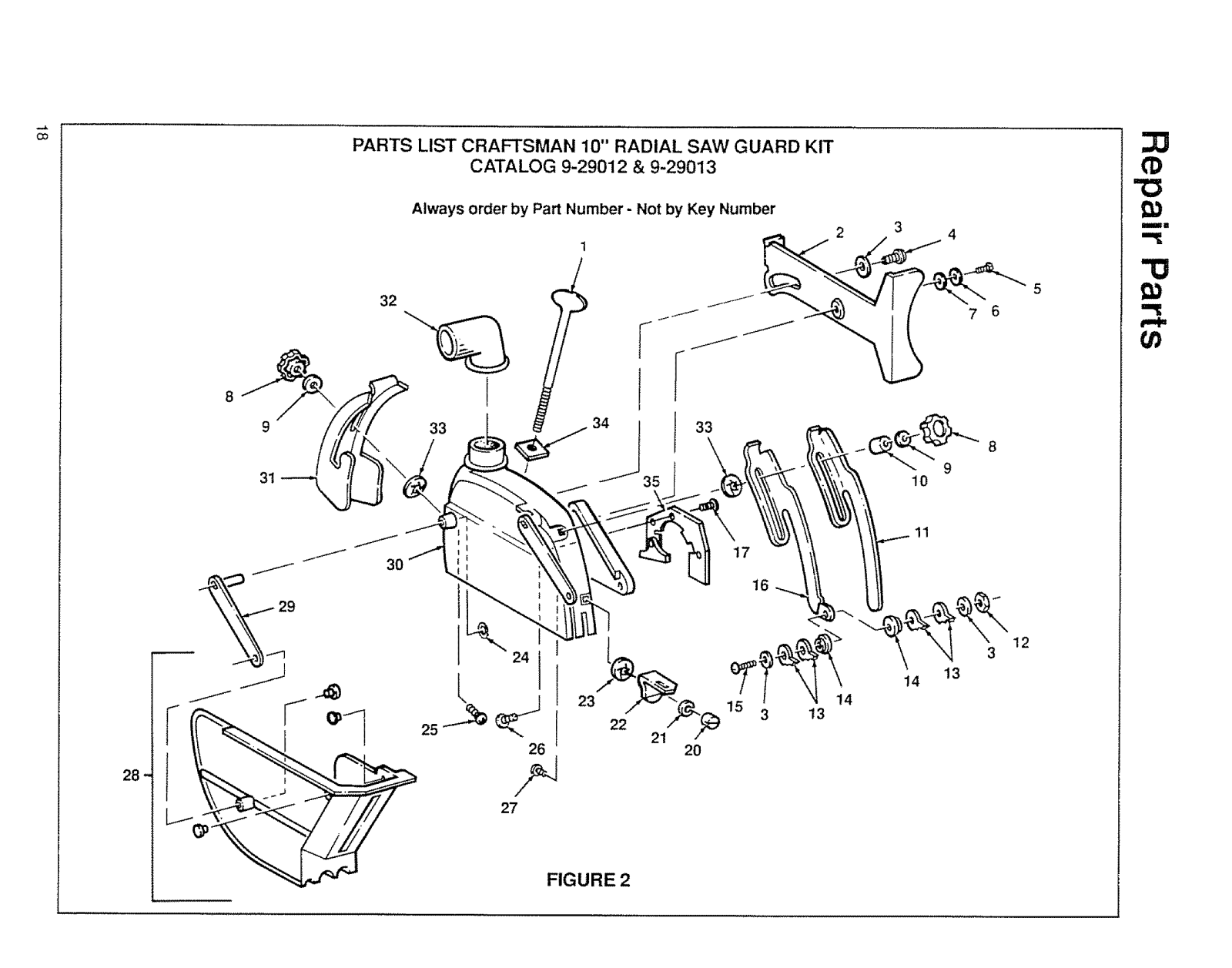

FIGURE 2

PARTS LIST CRAFTSMAN 10" RADIAL SAW GUARD KIT

CATALOG 9-29012 & 9-29013

Always order by Part Number - Not by Key Number

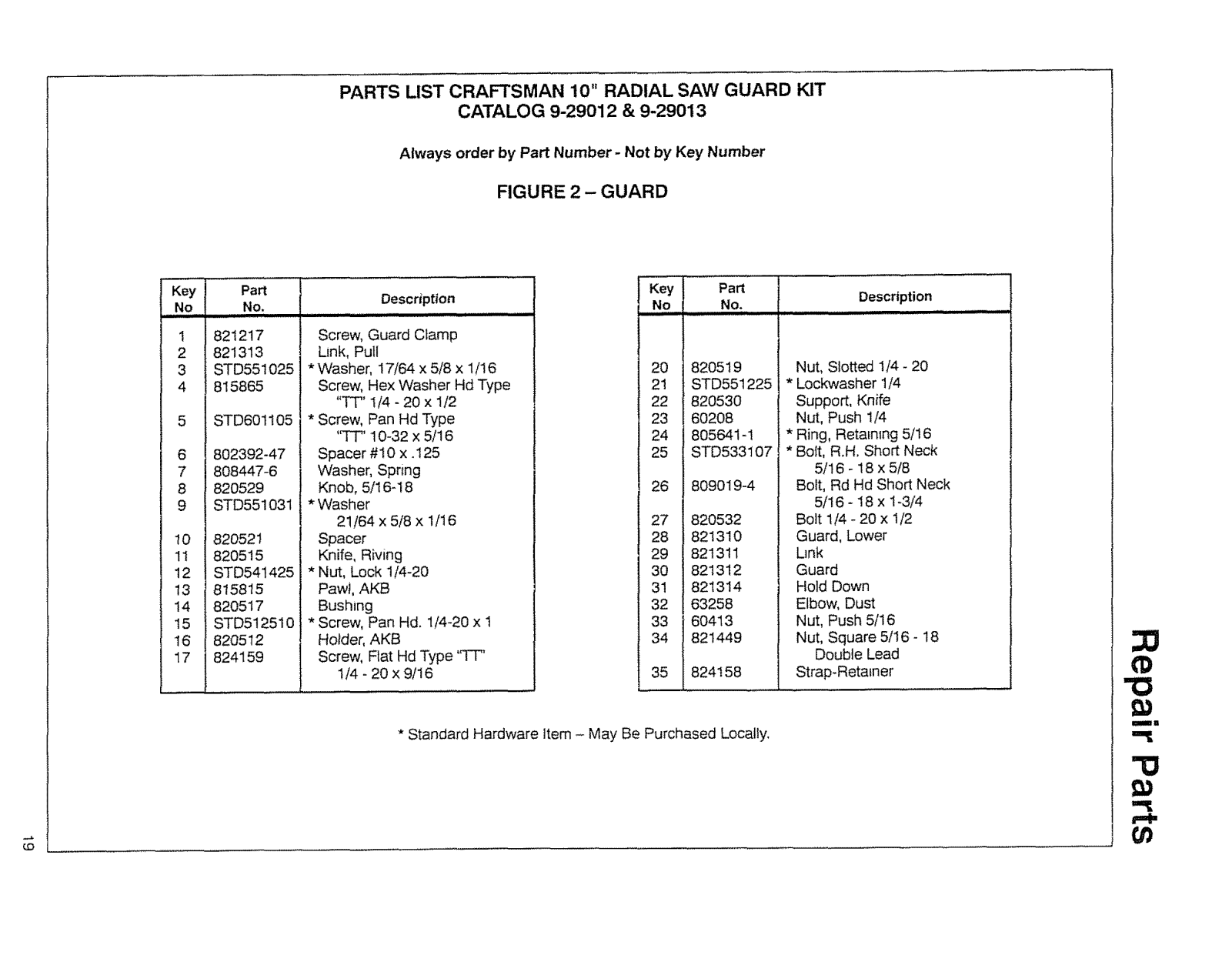

FIGURE 2 - GUARD

Key Pa_

No...... No.

1

821217

2

821313

3

STD551025

4

815865
STD601105

6

802392-47

7

808447-6
820529

8
9

STD551031

10

820521

1t

820515

12

STD541425

13

815815

14

820517

15

STD512510

16

820512

17

824159

Description

Screw, Guard Clamp
1Jnk,Pull

* Washer, 17/64 x 5/8 x 1/16

Screw, Hex Washer Hd Type

"Tq_' 1/4 - 20 x 1/2

* Screw, Pan Hd Type

'_' 10-32 x 5/16

Spacer #10 x .125

Washer, Sprtng

Knob, 5/16-18

* Washer

21/64 x 5/8 x 1/16

Spacer
Knife, Riving

* Nut, Lock 1/4-20

Paw_,AKB
Bushing

* Screw, Pan Hd. 1/4-20 x 1

Ho/der, AKB
Screw, Flat Hd Type 'q-F'

1/4 - 20 x 9/16

* Standard Hardware ;tern - May Be Purchased Locally,

No

2O

820519

21

STD551225
820530 J

22
23

60208
24
25

STD533107
26

27

820532
28

821310

29

821311

30

821312
31

821314 i

63258

32
33

60413
34

821449
35

824158

Part

No.

805641-1

809O19-4

t Description

in

Nut, Slotted 1/4 - 20

* Lockwasher 1/4

Support, Knife

Nut, Push 1/4

* Ring, Retaining 5/16
* Bott, R.H, Short Neck

5/16 - 18 x 5/8

Bolt, Rd Hd Short Neck

5/16 - 18 x 1_3/4

Bolt 1/4 - 20 x 1/2
Guard, Lower

Dnk
Guard
Hold Down
Elbow, Dust

Nut, Push 5/16
Nut, Square 5/16- 18

Double Lead

Strap-Retainer

iwnlllm ii

"U

c£)

f

(

I

owner's

manual

SERVICE

CATALOG NO.

9-29012

9-29013

10-1NCH RADIAL SAW

GUARD KIT

For the repair or replacement parts you need

Call 7 am -7 pro, 7 days a week

1-800-366-PART

(1-800-366-7278)

For in-home major brand repair service

Call 24 houls a day, 7 days a week

1-800-4-REPAIR

(1-800-473-7247)

The model number of your
drill press is found at the rear

of the head

When requesting service or
ordering parts, always pro-
vide lhe following informa-

lion:

• Product Type

• Model Number

• Part Number

• Part Description

\

Sold by SEARS,ROEBUCK AND CO., Chicago, IL 60684 U.S.A.

Part No, SP5623

For the location of a

Sears Repair Service Center in your area

Call 24 hours a day, 7 days a week

1-800-488-1222

For information on purchasing a Sears

Maintenance Agreement or to inquire

about an existing Agreement

Cal! 9 am - 5 pro, Monday-Saturday

1-800-827-6655

";'"' ,, • *£

If,t:;I',r/;$'!:/,t'I{_t_tl

America s Repair Spec_ahsls

\ j

Form No. SP5623-3 Printed in U,S,A, 5/96
