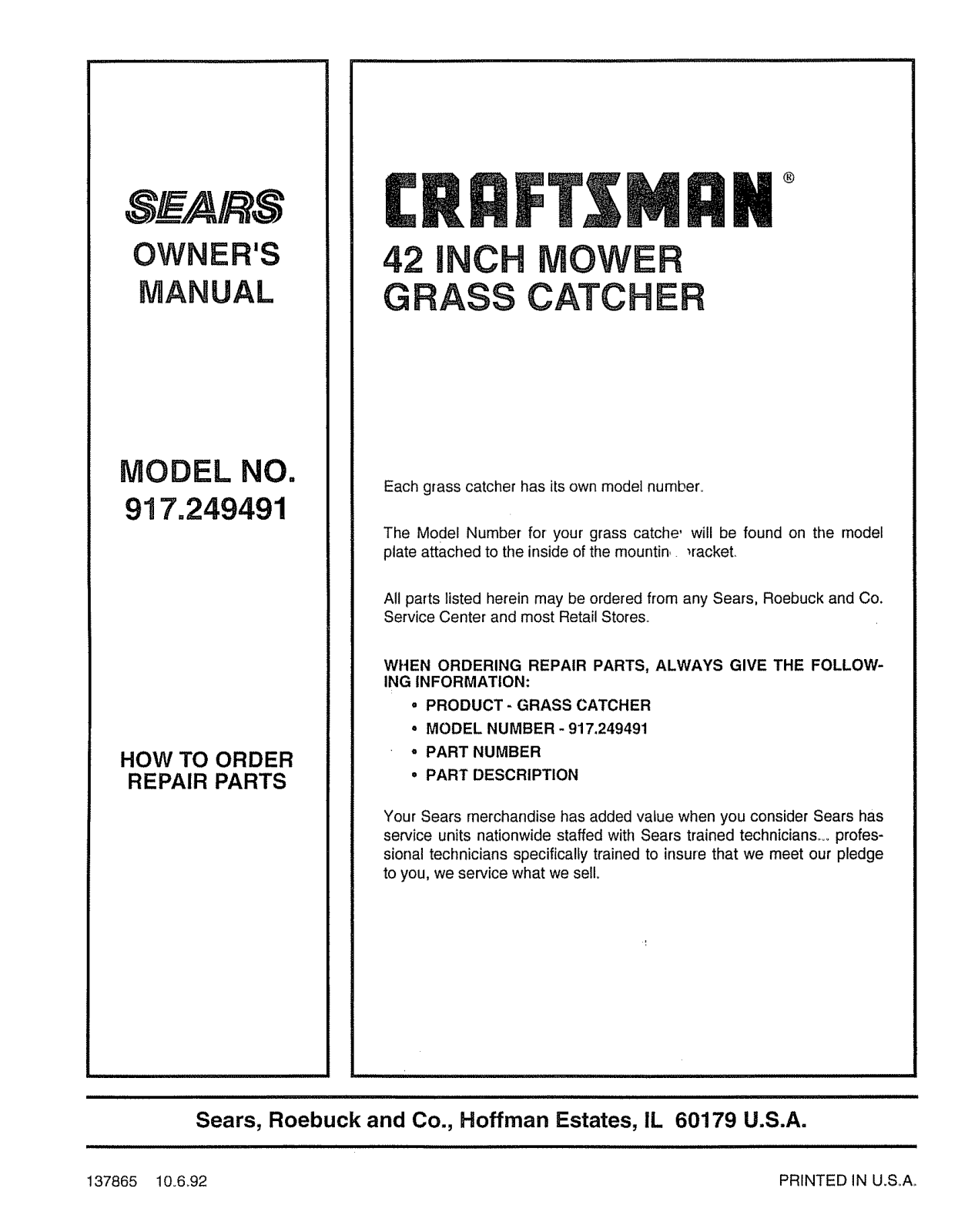

Page 1
OWNER'S
MANUAL
£nRFT [MRll°
Caution:
Read and follow
all Safety Rules
and Instructions
Before Operating
This Equipment
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
42 _NCHMOWER
GRASS CATCHER
• Assembly
• Operation
, Customer Responsibilities
• Repair Parts
Page 2

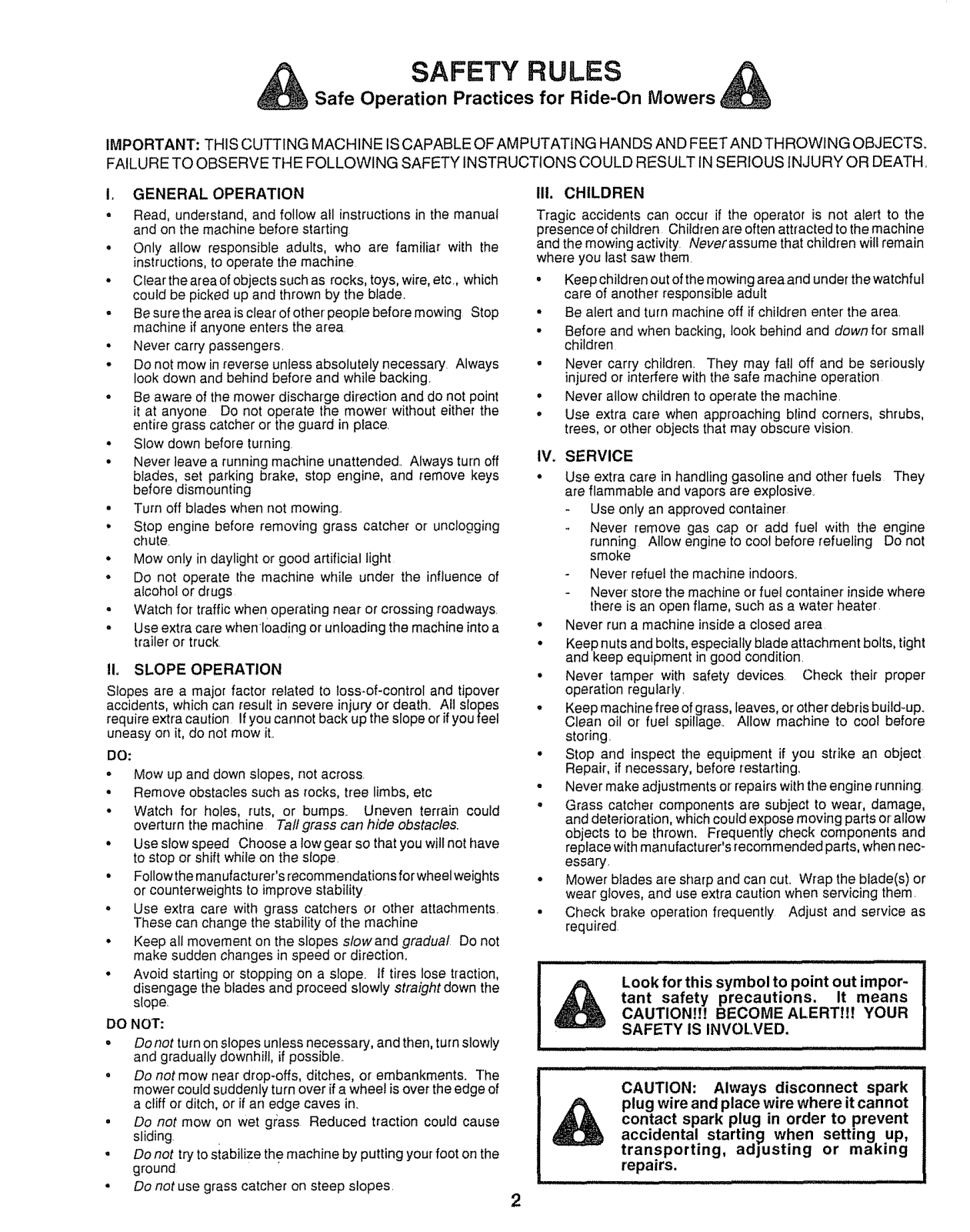

Safe Operation Practices for Ride-On Mowers
SAFETY RULES
IMPORTANT: THIS CUTTING MACHINE IS CAPABLE OFAMPUTATING HANDS AND FEET AND THROWING OBJECTS.
FAILURE TO OBSERVE THE FOLLOWING SAFETY INSTRUCTIONS COULD RESULT IN SERIOUS INJURY OR DEATH,
GENERAL OPERATION
Read, understand, and follow all instructions in the manual
and on the machine before starting
Only allow responsible adults, who are familiar with the
instructions, to operate the machine
Ctear the area of objects such as rocks, toys, wire, etc, which
could be picked up and thrown by the blade.
Be sure the area +sclear of other people before mowing Stop
machine ifanyone enters the area
Never carry passengers
DOnot mow in reverse unless absolutely necessary Always
look down and behind before and while backing.
Be aware of the mower discharge direction and do not point
it at anyone Do not operate the mower without either the
entire grass catcher or the guard in place
Slow down before turning
Never leave a running machine unattended Always turn off
blades, set parking brake, stop engine, and remove keys
before dismounting
Turn off blades when not mowing
Stop engine before removing grass catcher or unclogging
chute
Mow only in daylight or good artificial light
Do not operate the machine while under the influence of
alcohol or drugs
Watch for traffic when operating near or crossing roadways
Use extra care when Ioad!ng or unloading the machine into a
trailer or truck
IL SLOPE OPERATION
Slopes are a major factor related to loss+of-control and tipover
accidents, which can result in severe in ury or death. All slopes
requireextracaution Ifyoucannotbackuptheslopeor fyoufeel
uneasy on it, do not mow it
DO:
Mow up and down slopes, not across
Remove obstacles such as rocks, tree limbs, etc
Watch for holes, ruts, or bumps+ Uneven terrain could
overturn the machine Tafl grass can hide obstacles.
Use slew speed Choose a low gear so that you will not have
to stop or shift while on the slope
• Followthe manufacturer's recommendations for wheel weights
or counterweights to improve stability
Use extra care with grass catchers or other attachments
These can change the stability of the machine
Keep all movement on the slopes slowand gradual Do not
make sudden changes in speed or direction+
Avoid starting or stopping on a slope If tires lose traction,
disengage the blades and proceed slowly straight down the
slope
DO NOT:
Do not turn on slopes unless necessary, and then, turn slowly
end gradually downhill, if possible
Do not mow near drop-offs, ditches, or embankments. "['he
mower could suddenly turn over if a wheel is over the edge of
a cliff or ditch, or if an edge caves in.
Do not mow on wet g+:ass Reduced traction could cause
sliding
Do not try to siabilize the machine by putting your foot on the
ground
Do not use grass catcher on steep slopes
III. CHILDREN
Tragic accidents can occur if the operator is not alert to the
presence of children Children are often attracted to the machine
and the mowing activity Neverassume that children will remain
where you last saw them
Keep children out of the mowing area and under the watchful
care of another responsible adult
Be alert and turn machine off if children enter the area
Before and when backing, took behind and down for small
children
Never carry children. They may fall off and be seriously
injured or interfere with the safe machine operation
• Never allow children to operate the machine
Use extra care when approaching blind corners, shrubs,
trees, or other objects that may obscure vision
IV. SERVICE
• Use extra care in handling gasoline and other fuels They
are flammable and vapors are explosive
Use only an approved container
Never remove gas cap or add fuel with the engine
running Allow engine to cool before refueling Do not
smoke
Never refuel the machine indoors,
Never store the machine or fuel container inside where
there is an open flame, such as a water heater
Never run a machine inside a closed area
Keep nuts and bolts, especially blade attachment bolts, tight
and keep equipment in good condition
. Never tamper with safety devices Check their proper
operation regularly
• Keep machine free of grass, leaves, or other debris build-up+
Clean oil or fuel spillage Allow machine to cool before
storing
Stop and inspect the equipment if you strike an object
Repair, if necessary, before restarting,
Never make adjustments or repairs with the engine running
Grass catche+ components are subject to wear, damage,
and deterioration, which could expose moving parts or allow
objects to be thrown. Frequently check components and
replace with manufacturer s recommended parts, when nec-
essary
Mower blades are sharp and can cuL Wrap the blade(s) or
wear gloves, and use extra caution when servicing them
Check brake operation frequently Adjust and service as
required
tant safety precautions. It means
CAUTION!!! BECOME ALERT!If YOUR
I _ Lookforthissymboltopointoutimpor- I
SAFETY IS INVOLVED.
CAUTION: Always disconnect spark
plug wire and place wire where it cannot
contact spark plug in order to prevent
accidental starting when setting up,
transporting, adjusting or making
repairs.
2
Page 3

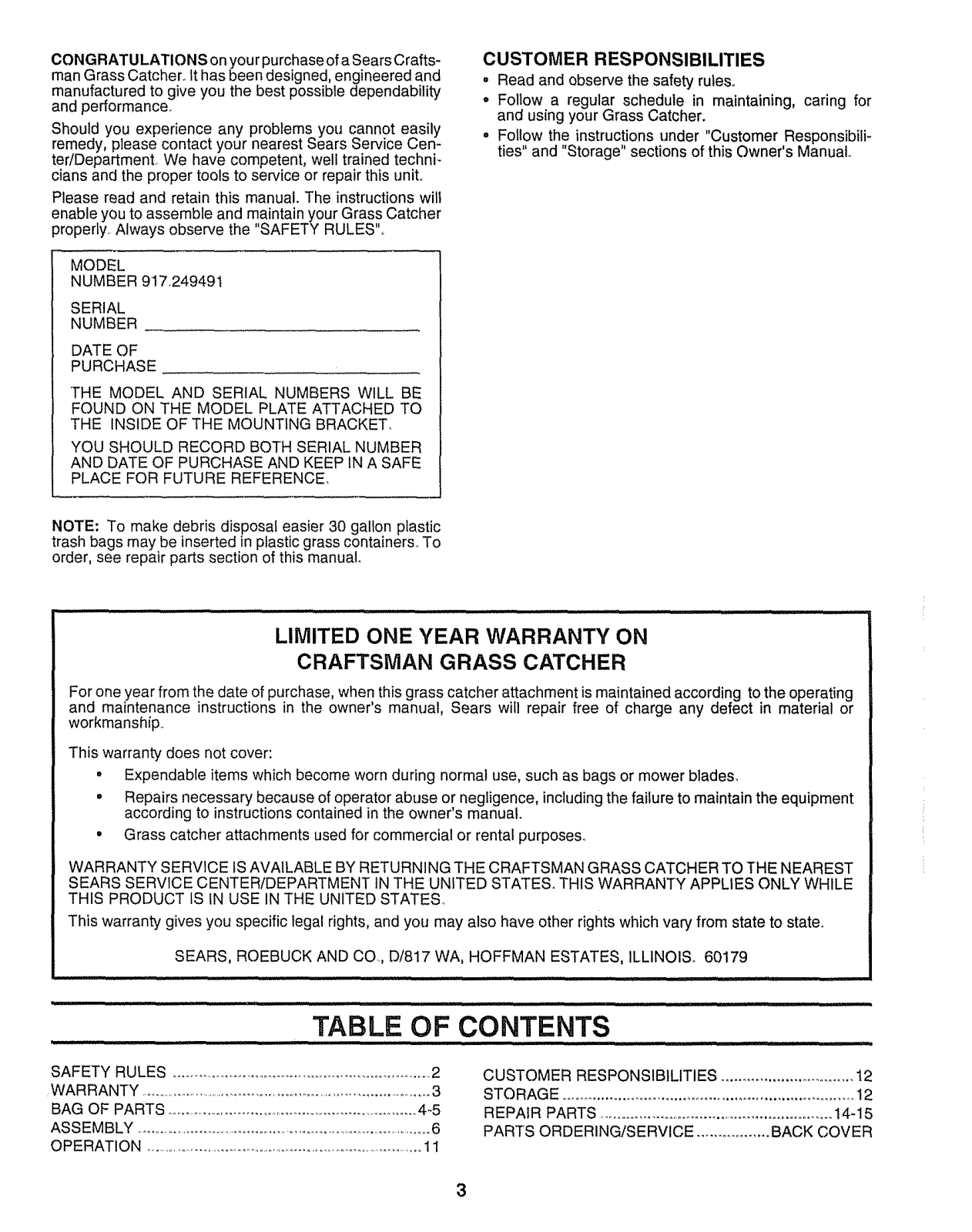

CONGRATULATIONS on your purchase of a Sears Crafts-
man Grass Catcher. it has been designed, engineered and
manufactured to give you the best possible dependability
and performance.
Should you experience any problems you cannot easily
remedy, please contact your nearest Sears Service Cen-
ter/Department We have competent, well trained techni-
cians and the proper tools to service or repair this uniL
Please read and retain this manual. The instructions will
enable you to assemble and maintain your Grass Catcher
properly Always observe the SAFETY RULES,
MODEL
NUMBER 917.249491
SERIAL
NUMBER
DATE OF
PURCHASE
THE MODEL AND SERIAL NUMBERS WILL BE
FOUND ON THE MODEL PLATE ATTACHED TO
THE INSIDE OF THE MOUNTING BRACKET.
YOU SHOULD RECORD BOTH SERIAL NUMBER
AND DATE OF PURCHASE AND KEEPIN A SAFE
PLACE FOR FUTURE REFERENCE,
CUSTOMER RESPONSIBILITIES
= Read and observe the safety ruleSo
o Follow a regular schedule in maintaining, caring for
and using your Grass Catcher.
. Follow the instructions under "Customer Responsibili-
ties" and "Storage" sections of this Owner's Manual
NOTE: To make debris disposal easier 30 gallon plastic
trash bags may be inserted in plastic grass containers. To
order, see repair parts section of this manual
LIMITED ONE YEAR WARRANTY ON
CRAFTSMAN GRASS CATCHER
For one year from the date of purchase, when this grass catcher attachment is maintained according to the operating
and maintenance instructions in the owner's manual, Sears will repair free of charge any defect in material or
workmanship
This warranty does not cover:
• Expendable items which become worn during normal use, such as bags or mower blades,
• Repairs necessary because of operator abuse or negligence, including the failure to maintain the equipment
according to instructions contained in the owner's manual.
• Grass catcher attachments used for commercial or rental purposes.
WARRANTY SERVICE iS AVAILABLE BY RETURNING THE CRAFTSMAN GRASS CATCHER TO THE NEAREST
SEARS SERVICE CENTER/DEPARTMENT IN THE UNITED STATES. THIS WARRANTY APPLIES ONLY WHILE
THIS PRODUCT IS IN USE IN THE UNITED STATES
This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.
SEARS, ROEBUCK AND CO, D/817 WA, HOFFMAN ESTATES, ILLINOIS. 60179
i,i
TABLE OF CONTENTS
SAFETY RULES ...................................................................2
WARRANTY .............................................................................3
BAG OF PARTS ...................................................................4-5
ASSEMBLY ..............................................................................6
OPERATION ...............................................................................11
CUSTOMER RESPONSIBILITIES ............................... 12
STORAGE ...................................................................... 12

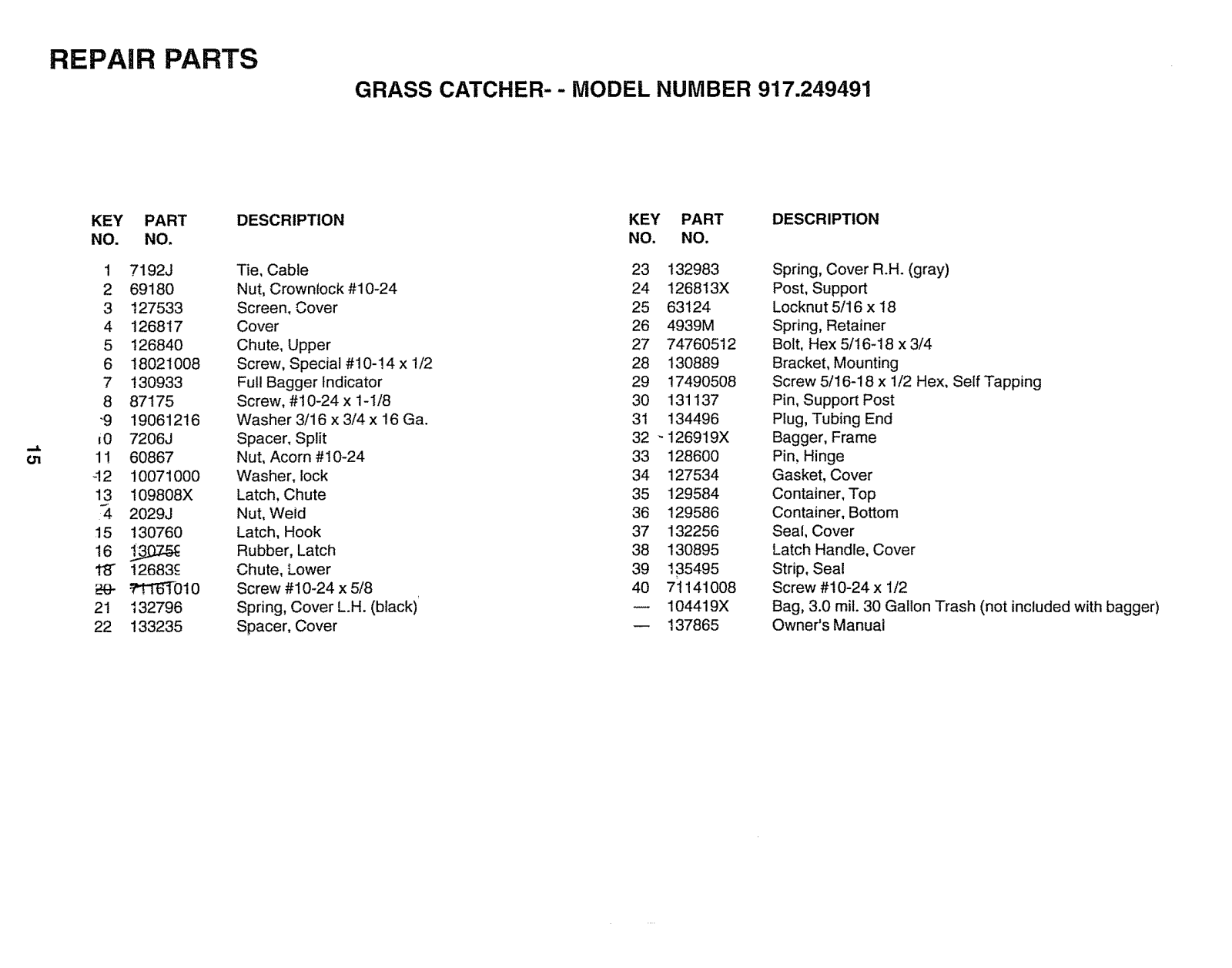

REPAIR PARTS ............................................................ 14-16
PARTS ORDERING/SERVICE ................. BACK COVER
Page 4

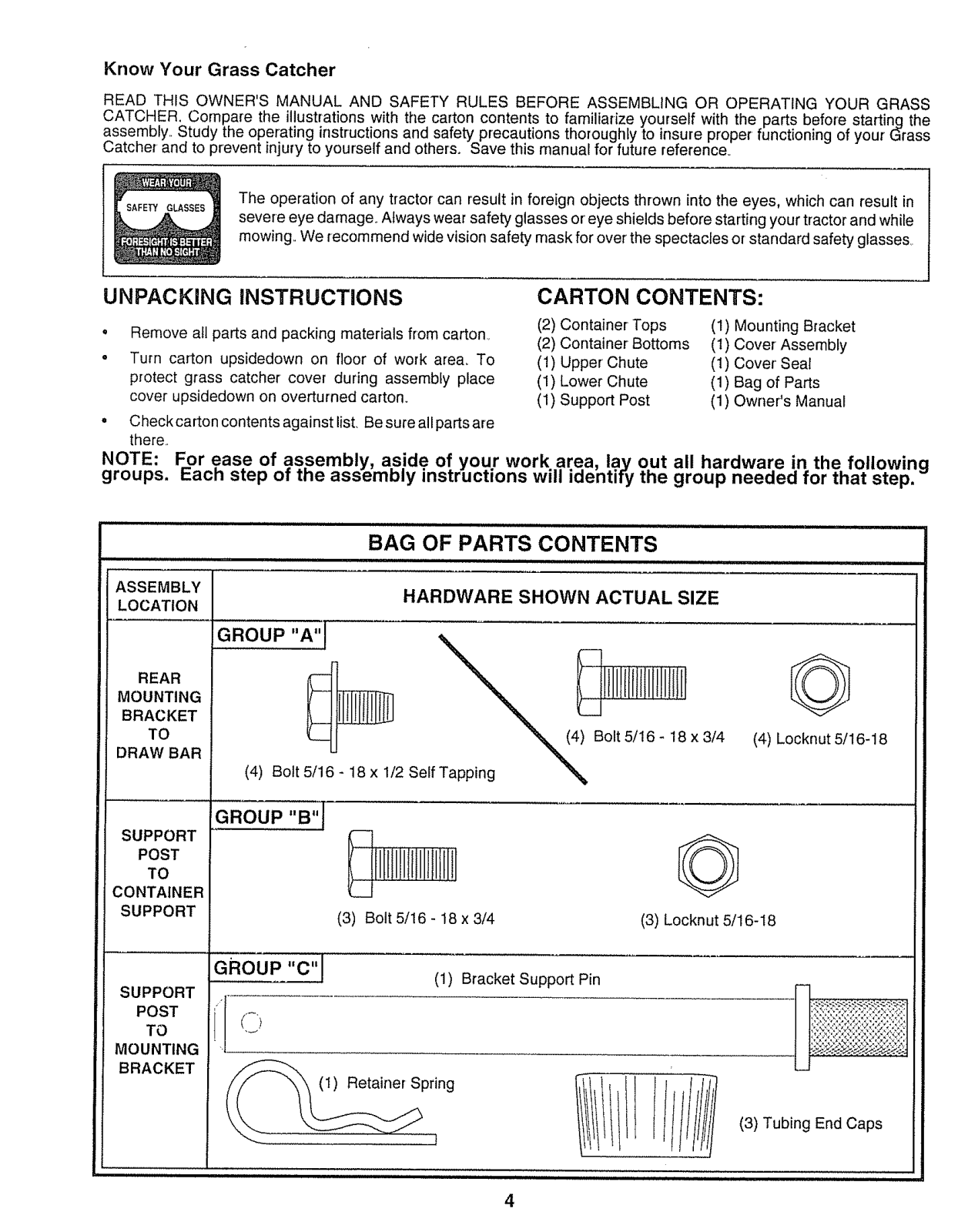

Know Your Grass Catcher
READ THIS OWNER'S MANUAL AND SAFETY RULES BEFORE ASSEMBLING OR OPERATING YOUR GRASS
CATCHER. Compare the illustrations with the carton contents to familiarize yourself with the parts before starting the
assembly. Study the operating instructions and safety precautions thoroughly to insure proper functioning of your Grass
Catcher and to prevent injury to yourself and others. Save this manual for future reference.
The operation of any tractor can result in foreign objects thrown into the eyes, which can result in
severe eye damage. Always wear safety glasses or'eye shields before starting your tractor and while
mowing. We recommend wide vision safety mask for over the spectacles or standard safety glasses
UNPACKING INSTRUCTIONS CARTON CONTENTS:
, Remove all parts and packing materials from carton
Turn carton upsidedown on floor of work are& To
protect grass catcher cover during assembly place
cover upsidedown on overturned carton.
= Check carton contents against list, Be sure allparts are
there.
NOTE: For ease of assembly aside of. your work.area, !ay out all hardware i.n the. following
groups. _-acn step of the assembly instructions wilJ iaent ry me group neeaea for mat step.
(2) Container Tops
(2) Container Bottoms
(1) Upper Chute
(1) Lower Chute
(1) Support Post
(1) Mounting Bracket
(1) Cover Assembly
(1) Cover Seal
(1) Bag of Parts
(1) Owner's Manual
BAG OF PARTS CONTENTS
ASSEMBLY HARDWARE SHOWN ACTUAL SIZE
LOCATION
REAR
MOUNTING
BRACKET
TO
DRAW BAR
"X 4/Bolt5/16-18x3/4
(4) Bolt 5/16 _18x 1/2 Self Tapping "_
©
(4) Locknut 5/16-18
SUPPORT
POST
TO
CONTAINER
SUPPORT
SUPPORT
POST
TO
MOUNTING
BRACKET
GROUP "B" i
11111111t111111111111
(3) Bolt 5/16 - 18 x 3/4
(1) Bracket Support Pin
(1) Retainer Spring
t
4
(3) Locknut 5/16-18
(3) Tubing End Caps
Page 5
LOWER
CHUTE
ASSEMBLY
TO
MOWER
DECK

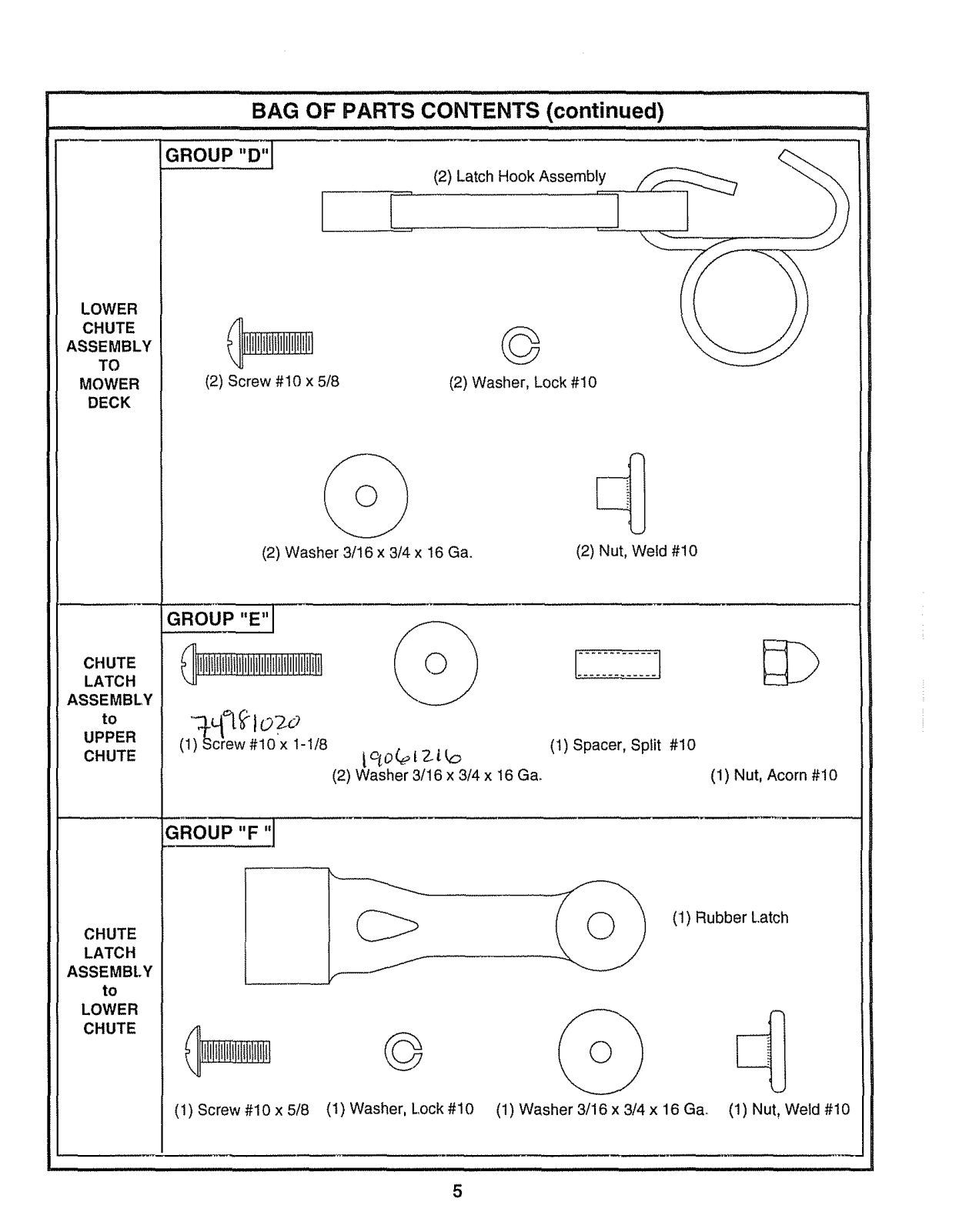

BAG OF PARTS CONTENTS (continued)
_ROUP "D"[
(2) Screw #10 x 5/8
(2) Latch ly
[
©
(2) Washer, Lock #10
CHUTE
LATCH
ASSEMBLY
to
UPPER
CHUTE
CHUTE
LATCH
ASSEMBLY
to
LOWER
CHUTE
(2) Washer 3/16 x 3/4 x 16 Ga.
GROUP"E"[
-4q%1o o
(I)Screw #I0'× 1-118
GROUP "F "1
(2) Washer 3/16 x 3/4 x 16 Ga.
(2) Nut, Weld #10
(t) Spacer, Split #10
(1) Nut, Acorn #10
(1) Rubber Latch
(1) Screw #10 x 5/6
©
(1) Washer, Lock #10 (1) Washer 3/16 x 3/4 x 16 Ga. (1) Nut, Weld #10
5
Page 6

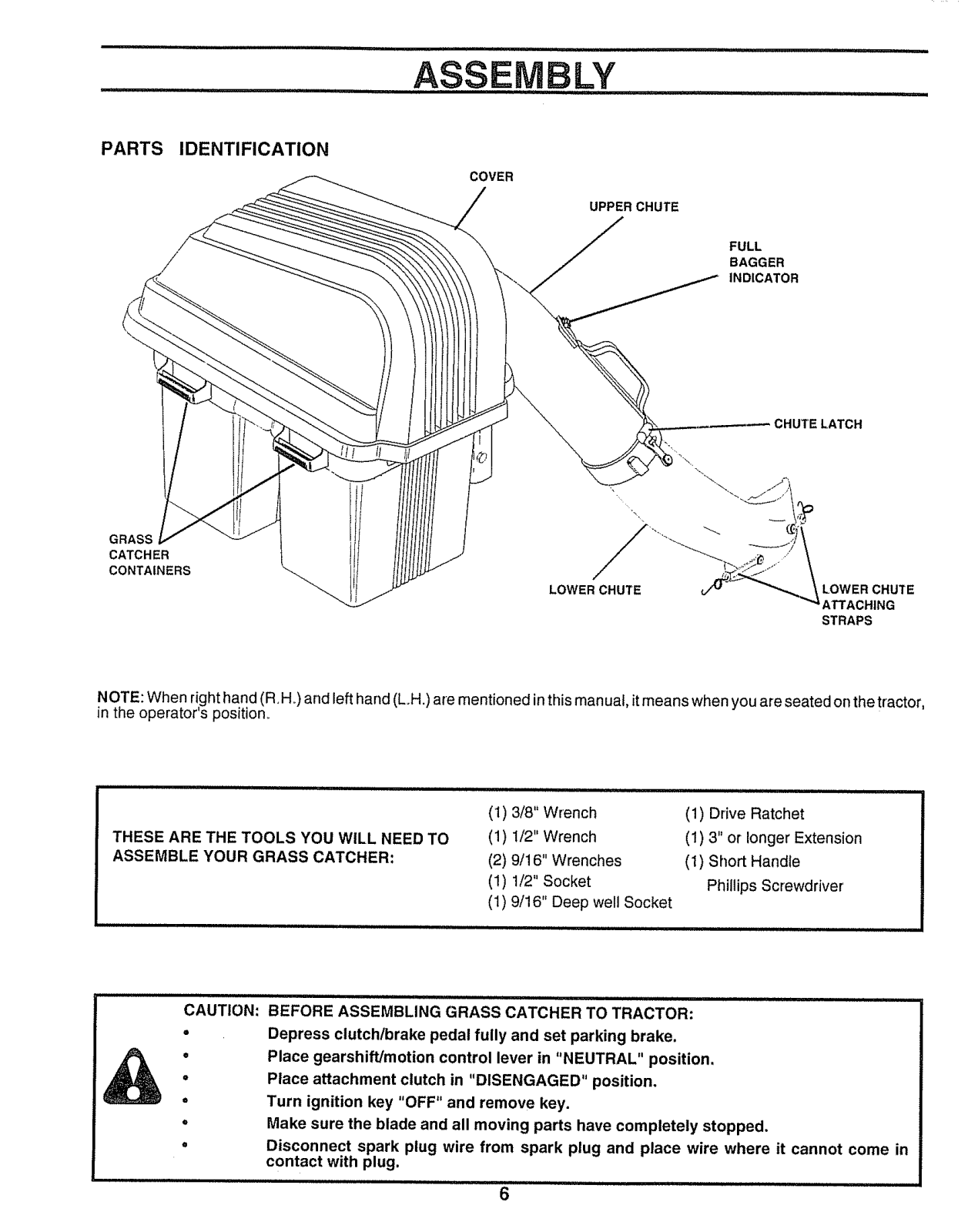

PARTS IDENTIFICATION
GRASS
CATCHER
CONTAINERS
ASSEMBLY
COVER
LOWER CHUTE _ "_'_ LOWER CHU'_ E
UPPER CHUTE
FULL
BAGGER
INDICATOR
CHUTELATCH
%,
\
ATTACHING
STRAPS
NOTE: When righthand (R H.) and left hand (L.H.) are mentioned inthis man ua, tmeans when you are seated onthe tractor,
in the operator's position_
THESE ARE THE TOOLS YOU WILL NEED TO
ASSEMBLE YOUR GRASS CATCHER:
(1) 3/8" Wrench
(1) 1/2" Wrench
(2) 9/16" Wrenches
(1) 1/2" Socket
(1) Drive Ratchet
(1) 3" or longer Extension
(1) Short Handle
Phillips Screwdriver'
(1) 9/16" Deep well Socket
CAUTION: BEFORE ASSEMBLING GRASS CATCHER TO TRACTOR:
• Depress clutch/brake pedal fully and set parking brake.
• Place gearshift/motion control lever in "NEUTRAL" position.
° Place attachment clutch in "DISENGAGED" position,
• Turn ignition key "OFF" and remove key.
• Make sure the blade and all moving parts have completely stopped,
• Disconnect spark plug wire from spark plug and place wire where it cannot come in
contact with plug,
6
Page 7
REAR MOUNTING BRACKET
1
(See Figs. 1 & 2)
Use Hardware - - GROUP "A"
Only one set of hardware in GROUP "B" will be used to
mount the rear mounting bracket. To determine which set
is correct for your tractor, check to see if there are (2) two
upper corner ribs on each side of drawbar, tf your tractor
has the upper corner ribs, use the (4) four self tapping bolts
If your tractor does not have the corner ribs, use the set of
(4) four bolts and Iocknuts
SELF TAPPING BOLTS
• Assemble the mounting bracket, lanced tabs towards
bottom, using the four formed holes on the drawbar
NOTE: Start the self tapping bolts into holes on the
drawbar at least two full turns and remove. This will make it
much it much easier to fasten the bolts once the mounting
bracket is in place
= Install the four bolts as shown and tighten securely
UPPER CORNER
UPPER CORNER
RIBS
RIBS
BLY
COVER SEAL (See Fig. 3)
No hardware required
Align mark on seal with mark at cover opening
Work seal into opening so cover sits between flanges
of seal
ALIGNMENT
MARKS
COVER SEAL
Fig. 3
SUPPORT POST (See Fig. 4)
Use Hardware - - GROUP "B"
SELF
TAPPING
BOLTS Fig. 1
BOLTS AND LOCKNI, JTS
= Assemble the mounting bracket, lanced tabs towards
bottom, using the four smaller inside holes on the
drawbar,
• Install the four bolts and Iocknuts as shown and tighten
securely
BOLTS
LOCKNUTS
loaded and locked to the cover. Handle
cover assembly carefully so as not to
I_ CAUTION: Container support is spring I
• Rotate cover assembly onto its side as shown.
• Assemble support post to container support with the
three (3) hex bolts and Iocknuts. Tighten securely_
HEX BOLTS
SUPPORT
POST
unlatch the cover from the container
support.
/• / •
/
/
LOCKNUTS
LANCED TABS TOWARD BOTTOM
Fig. 2
Fig. 4
7

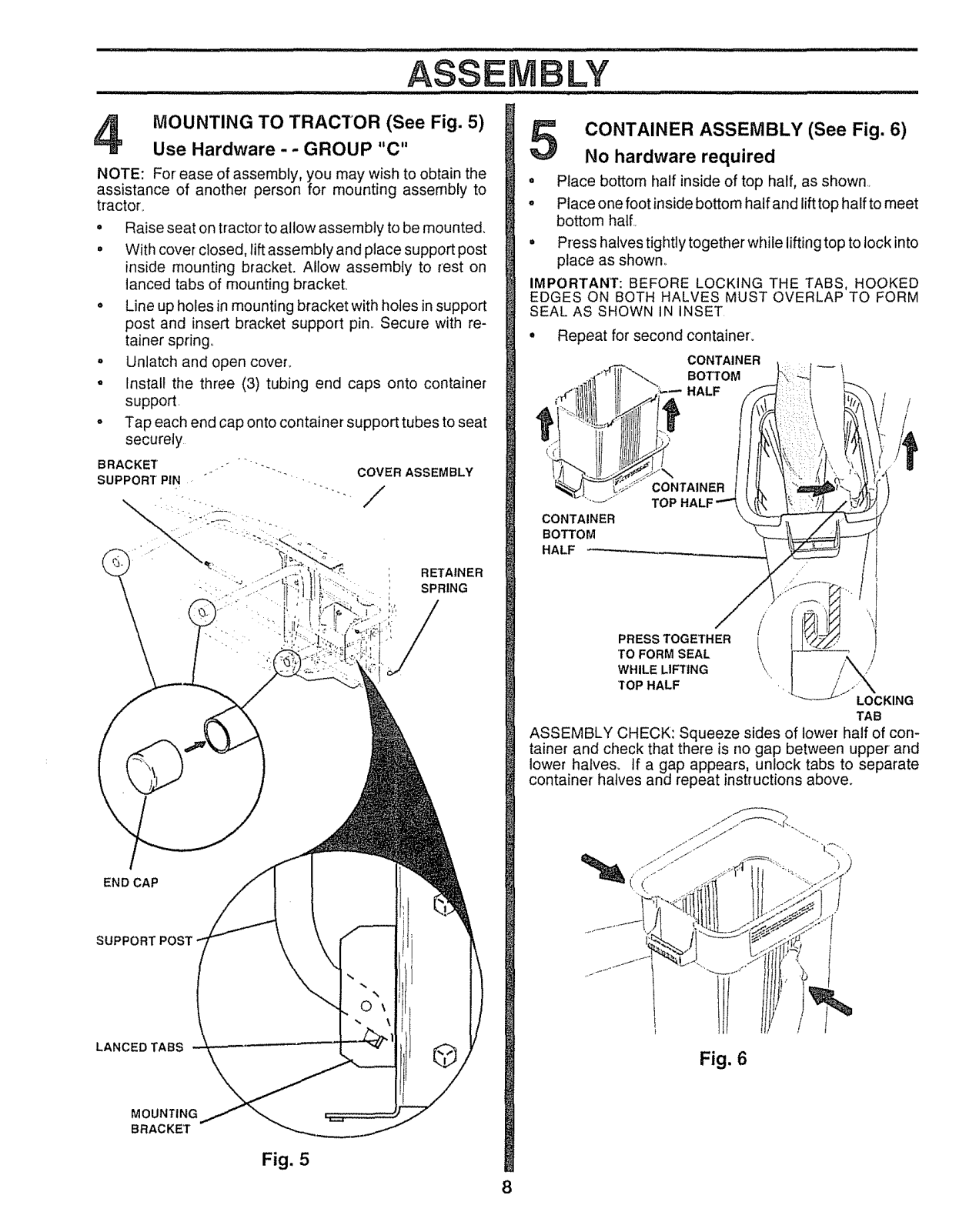

Page 8
ASSEMBLY
MOUNTING TO TRACTOR (See Fig. 5)
Use Hardware - - GROUP "C"
NOTE: For ease of assembly, you may wish to obtain the
assistance of another person for mounting assembly to
tractor
Raise seat on tractorto allow assembly to be mounted.
With cover closed, lift assembly and place support post
inside mounting bracket. Allow assembly to rest on
lanced tabs of mounting bracket.
Line up holes in mounting bracket with holes in support
post and insert bracket support pin Secure with re-
tainer spring
Unlatch and open cover.
Install the three (3) tubing end caps onto container
support
Tap each end cap onto container support tubes to seat
securely
COVER ASSEMBLY
RETAINER
SPRING
CONTAINER ASSEMBLY (See Fig. 6)
No hardware required
• Place bottom half inside of top half, as shown
o Place one foot inside bottom half and lift top half to meet
bottom half
= Press halves tightly together while lifting top to lock into
place as shown
IMPORTANT: BEFORE LOCKING THE TABS, HOOKED
EDGES ON BOTH HALVES MUST OVERLAP TO FORM
SEAL AS SHOWN IN INSET
° Repeat for second container.
CONTAINER
BOTTOM
HALF
END CAP
SUPPOR"
LANCED TABS
PRESSTOGETHER
TO FORM SEAL
WHILE LIFTING
TOP HALF
TAB
ASSEMBLY CHECK: Squeeze sides of lower half of corr-
tainer and check that there is no gap between upper and
lower halve& If a gap appears, unlock tabs to separate
container halves and repeat instructions above.
f_
i _ _
,_- f,
Fig. 6
MOUNTING
BRACKET
Fig. 5
8

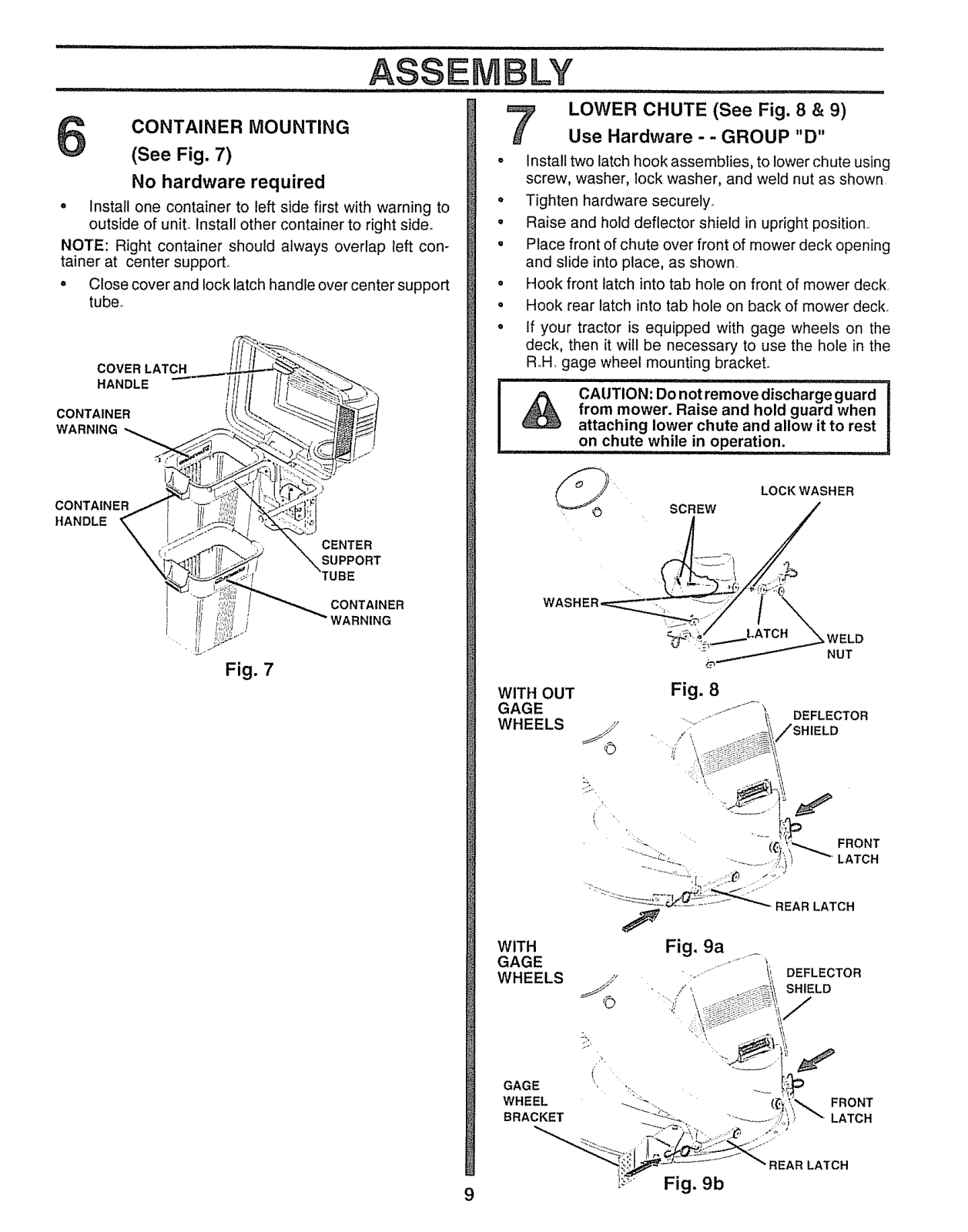

Page 9
ASSEMBLY
CONTAINER MOUNTING
6
(See Fig. 7)
No hardware required
• Install one container to left side first with warning to
outside of unit. Install other container to right side.
NOTE: Right container should always overlap left con-
tainer at center support.
• Close cover and lock latch handle over center support
tube.
COVERLATCH
HANDLE
LOWER CHUTE (See Fig. 8 & 9)
7
• Install two latch hook assemblies, to lower chute using
° Tighten hardware securely_
• Raise and hold deflector shield in upright position
° Place front of chute over front of mower deck opening
= Hook front latch into tab hole on front of mower deck
• Hook rear latch into tab hole on back of mower deck.
• If your tractor is equipped with gage wheels on the
Use Hardware-- GROUP "D"
screw, washer, lock washer, and weld nut as shown
and slide into place, as shown
deck, then it will be necessary to use the hole in the
R.H. gage wheel mounting bracket•
CONTAINER
CONTAINER
HANDLE _ CENTER
SUPPORT
CONTAINER
Fig. 7
from mower. Raise and hold guard when
attaching lower chute and allow it to rest
CAUTION: Donot remove discharge guard I
on chute while in operation.
LOCK WASHER
SCREW
3
WITH OUT Fig. 8
GAGE fJ"_
WHEELS ......•_ DEFLECTOR
©
9
WITH
GAGE
WHEELS
Fig. 9a
DEFLECTOR
" " SHIELD

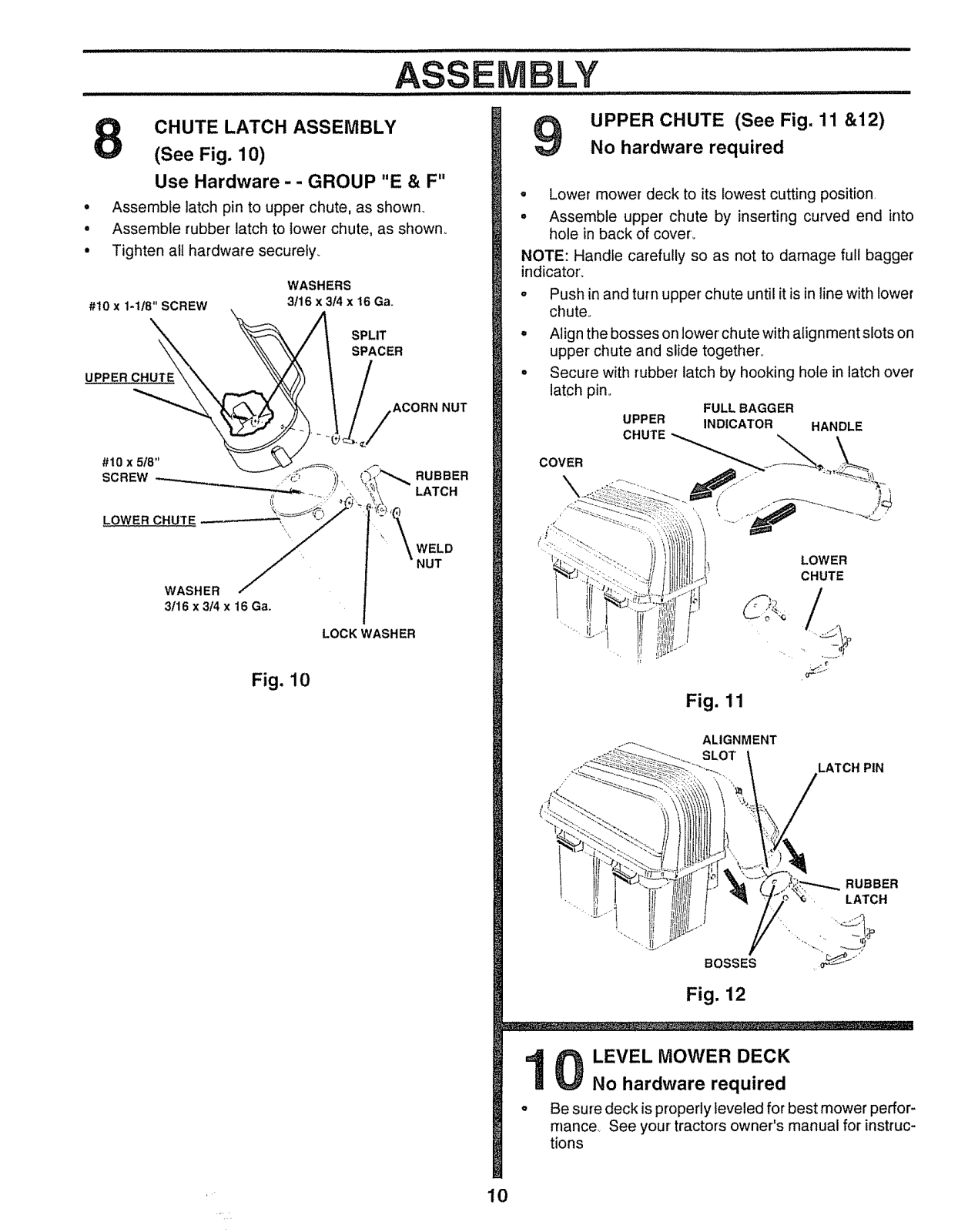

Page 10
CHUTE LATCH ASSEMBLY
(See Fig. 10)
Use Hardware - - GROUP "E & F"
o
Assemble latch pin to upper chute, as shown.
e
Assemble rubber latch to lower chute, as shown..
Tighten all hardware securely.
WASHERS
#10 x 1-1/8" SCREW
UPPER CHUTE
3/16 x 3/4 x 16 Ca.
SPLIT
SPACER
I/ACORN NUT
ASSEMBLY
• Lower mower deck to its lowest cutting position
, Assemble upper chute by inserting curved end into
hole in back of cover,
NOTE: Handle carefully so as not to damage full bagger
indicator_
• Push in and turn upper chute until itis in line with lower
chute.
a
Align the bosses on lower chute with alignment slots on
upper chute and slide together.
o
Secure with rubber latch by hooking hole in latch over
latch pin.
UPPER CHUTE (See Fig. 11 &12)
No hardware required
FULL BAGGER
UPPER INDICATOR HANDLE
#10 x 5/8"
SCREW
LOWERCHUTE.-----------
WASHER /
3/16x3/4x16 Ca.
Fig. 10
RUBBER
LATCH
WELD
LOCK WASHER
o_J
Fig. 11
ALIGNMENT
SLOT
LATCH PIN
Fig. 12
LEVEL MOWER DECK
No hardware required
. Be sure deck is properly leveled for best mower perfor-
mance See your tractors owner's manual for instruc-
tions
10
Page 11
OPERATION
TIPS FOR IMPROVED BAGGING
OPERATION:
Follow the mower operation instructions in your tractor
owner's manual
When operating your grass catcher on a lawn where grass
and leaf bagging equipment has not been used, you are
picking up thatch and debris that has accumulated for long
periods of time. The amount collected and the total time of
operation may be greater than you will experience with
regular use of your grass catcher_
Always run throttle at full speed when bagging°
Select a gear low enough to give good mower cutting
performance, good quality cut and good bagging per-
formance
NOTE: It may be necessary to overlap width of cut to suit
your conditions
• If grass is extremely tall, it should be mowed twice. The
first time relatively high, the second time to desired
height
° Use left hand side of mower for trimming.
° Plastic trash bags can be inserted insidegrass catcher
containers for ease of debris disposal. To remove the
plastic trash bags when full:
a. Raise seat. Unlatch and raise cover.
b. Remove one container at a time by grasping con-
tainer handles and pulling toward the rear, off ofthe
tube rails_
c. With the container resting on the ground, close and
secure the top of the plastic lawn bag.
d. Tip the container on its side and slide the filled bag
from the container.
e. Install a new plastic lawn bag with the edges of the
bag draped over upper lip of the Container (for
replacement bags refer to REPLACEMENT
PARTS)_
f. Repeat for other container.
g. Reinstall containers making sure right container
overlaps left container at center support.
h. Close cover and secure latch over center support
tube.
@
Avoid cutting wet grass or in the morning while the dew
is still heavy. Grass clippings collected under these
conditions tend to be sticky and adhere to the walls of
the flow path causing clogging.
Your bagger isequipped with a full bagger indicator. As
the bags become full, movement of the wheel will slow
down and/or stop, indicatingthat the bags are full or the
chutes have become clogged. Care should be taken
not to damage the parts and that the wheel spins freely
at the beginning of each use
If the grass catcher fails to pick up cut grass or leaves,
it is an indication that clogging has occurred in the
_YsStemor that the grass catcher containers are full.
ually this is indicated by the stopped movement of
the full bagger indicator.
a. Disengage blades, shift into neutral, engage the
parking brake and stop the engine.
- Raise seal Unlatch and raise cover.
- Slide out containers and dispose of clippings.
- Replace containers, close cover, and latch.
b,
Unlatch chutes and check for clogging
Remove all debris in chutes.
Reassemble and latch chutes
C.
Check to insure full bagger indicator has not be-
come clogged.
- The air passage hole must be clear of debris
Gently insert a small twig or wire into passage-
way to clear_
CAUTION
• Do not operate mower with grass catcher
partially installed.
• Disengage blades and stop engine before
leaving tractor seat to empty containers,
unclogging chutes, etc.
o Close cover before starting.
o Disengage mower when crossing drive-
ways or gravel surfaces and other areas
where thrown objects could be a hazard.
° Do not attempt to vacuum up cans or other
potentially hazardous projectiles,
11
Page 12

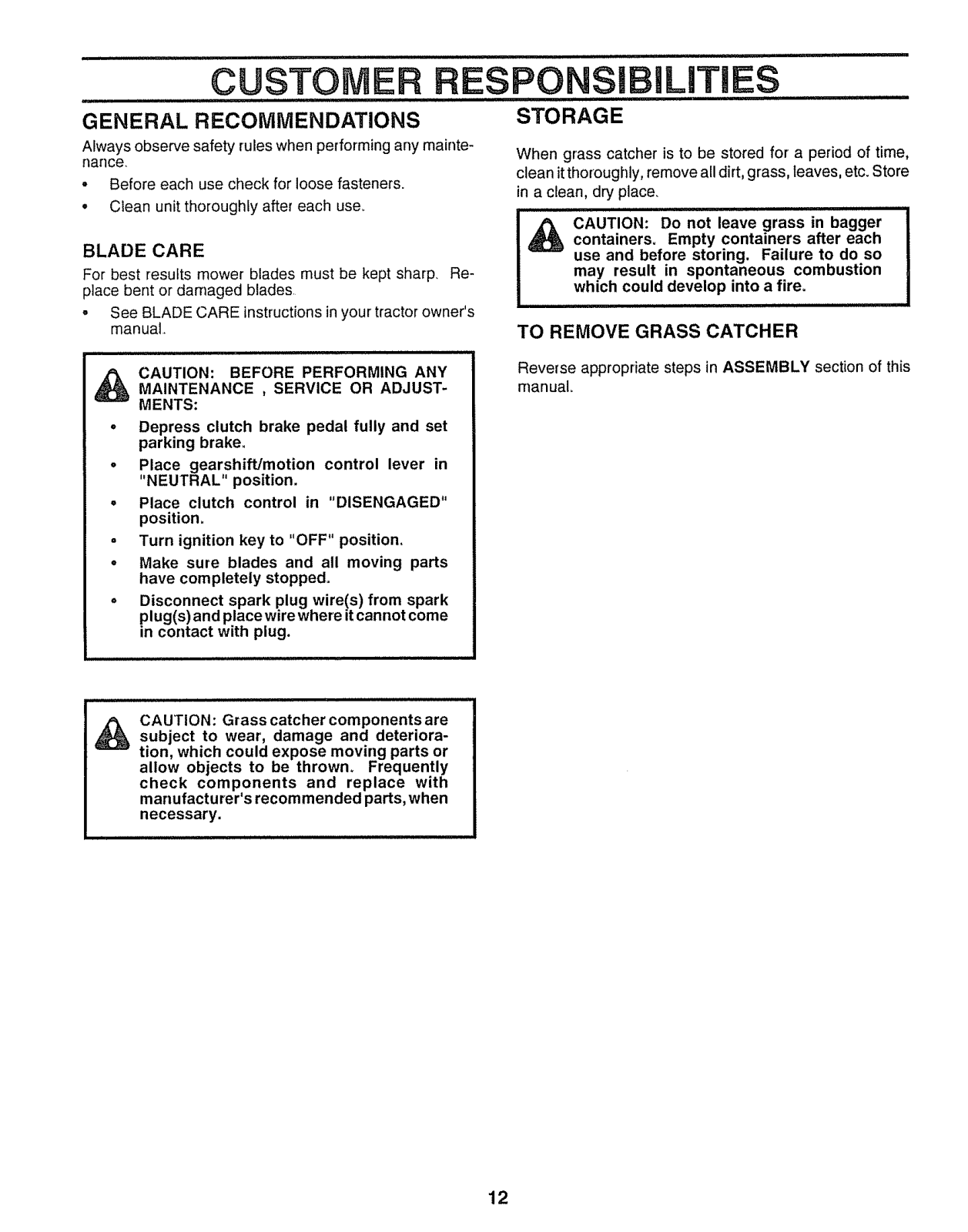

CUSTOME RESPONSiBiLiTiES
GENERAL RECOMMENDATIONS STORAGE
Always observe safety rules when performing any mainte-
nance,
° Before each use check for loose fasteners.
• Clean unit thoroughly after each use.
BLADE CARE
For best results mower blades must be kept sharp, Re-
place bent or damaged blades
o See BLADE CARE instructions in your tractor owner's
manual.
CAUTION: BEFORE PERFORMING ANY
MAINTENANCE , SERVICE OR ADJUST-
MENTS:
• Depress clutch brake pedal fully and set
parking brake.
o Place gearshift/motion control lever in
"NEUTRAL" position.
° Place clutch control in "DISENGAGED"
position.
Turn ignition key to "OFF" position,
• Make sure blades and all moving parts
have completely stopped.
o Disconnect spark plug wire(s) from spark
plug(s) and place wire where it cannot come
in contact with plug.
When grass catcher is to be stored for a period of time,
clean it thoroughly, remove all dirt, grass, leaves, etc. Store
in a clean, dry place,
containers, Empty containers after each
use and before storing. Failure to do so
I& CAUTION: Do not leave grass in bagger
may result in spontaneous combustion
which could develop into a fire.
TO REMOVE GRASS CATCHER
Reverse appropriate steps in ASSEMBLY section of this
manual
CAUTION: Grass catcher components aresubject to wear, damage and deteriora-
tion, which could expose moving parts or
allow objects to be thrown. Frequently
check components and replace with
manufacturer's recommended parts, when
necessary.
12
Page 13
13
Page 14
REPAIR PARTS
GRASS CATCHER- - MODEL NUMBER 917.249491
4_
2
/
1
2O
2
2
3
4
\
\
2O
35
6
7
8 9
10
31
31
26
27
/
27
/
31
26 25
Page 15
REPAIR PARTS
GRASS CATCHER- - MODEL NUMBER 917.249491
KEY PART
NO. NO,
1 7192J
2 69180
3 127533
4 126817
5 126840
6 18021008
7 130933
8 87175
"9 19061216
.,,&
f0 7206J
11 60867
42 10071000
13 109808X
4 2029J
15 130760
16 i3_
1"8" 12683_
_'T6T010
21 132796
22 133235
DESCRIPTION
Tie, Cable
Nut, Crownlock #10-24
Screen, Cover
Cover
Chute, Upper
Screw, Special #10-!4 x 1/2
Full Bagger Indicator
Screw, #10-24 x 1-1/8
Washer 3/16 x 3/4 x 16 Ga,
Spacer, Split
Nut, Acorn #10-24
Washer, lock
Latch, Chute
Nut, Weld
Latch, Hook
Rubber, Latch
Chute, Lower
Screw #10-24 x 5/8
Spring, Cover L.H. (black)
Spacer. Cover
KEY PART DESCRIPTION
NO. NO.
23 132983
24 126813X
25 63124
26 4939M
27 74760512
28 130889
29 17490508
30 131137
31 134496
32 -126919X
33 128600
34 127534
35 129584
36 129586
37 132256
38 130895
39 135495
40 71141008
-- 104419X
-- 137865
Spring, Cover Roll. (gray)
Post, Support
Locknut 5/16 x 18
Spring, Retainer
Bolt, Hex 5/16-18 x 3/4
Bracket, Mounting
Screw 5/16-18 x 1/2 Hex, Self Tapping
Pin, Support Post
Plug, Tubing End
Bagger, Frame
Pin, Hinge
Gasket, Cover
Container, Top
Container, Bottom
Seal, Cover
Latch Handle, Cover
Strip, Seal
Screw #10-24 x 1/2
Bag, 3.0 miL 30 Gallon Trash (not included with bagger)
Owner's Manual
Page 16
S _AI S
®
OWNER'S
MANUAL
MODEL NO.
917.249491
HOW TO ORDER
REPAIR PARTS
42 iNCH MOWER
GRASS CATCHER
Each grass catcher has its own model number.
The Model Number for your grass catche' will be found on the model
plate attached to the inside of the mountin, _rackeL
All parts listed herein may be ordered from any Sears, Roebuck and Co.
Service Center and most Retail Stores.
WHEN ORDERING REPAIR PARTS, ALWAYS GIVE THE FOLLOW-
ING INFORMATION:
= PRODUCT- GRASS CATCHER
• MODEL NUMBER - 917.249491
• PART NUMBER
• PART DESCRIPTION
Your Sears merchandise has added value when you consider Sears has
service units nationwide staffed with Sears trained technician&_, profes-
sional technicians specifically trained to insure that we meet our pledge
to you, we service what we sell.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
137865 10.&92 PRINTED IN U.S_A,.
Loading...
