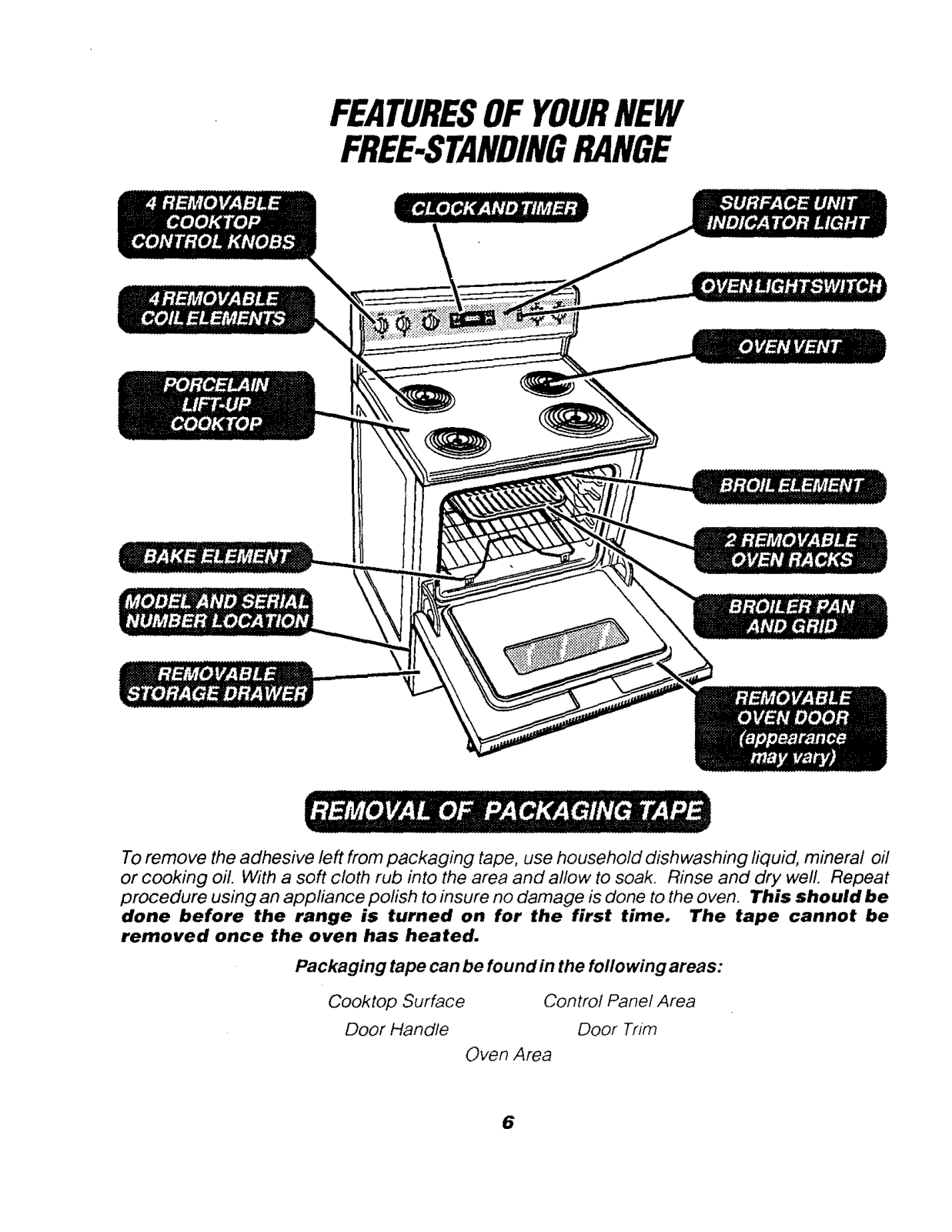

Specifications and Main Features

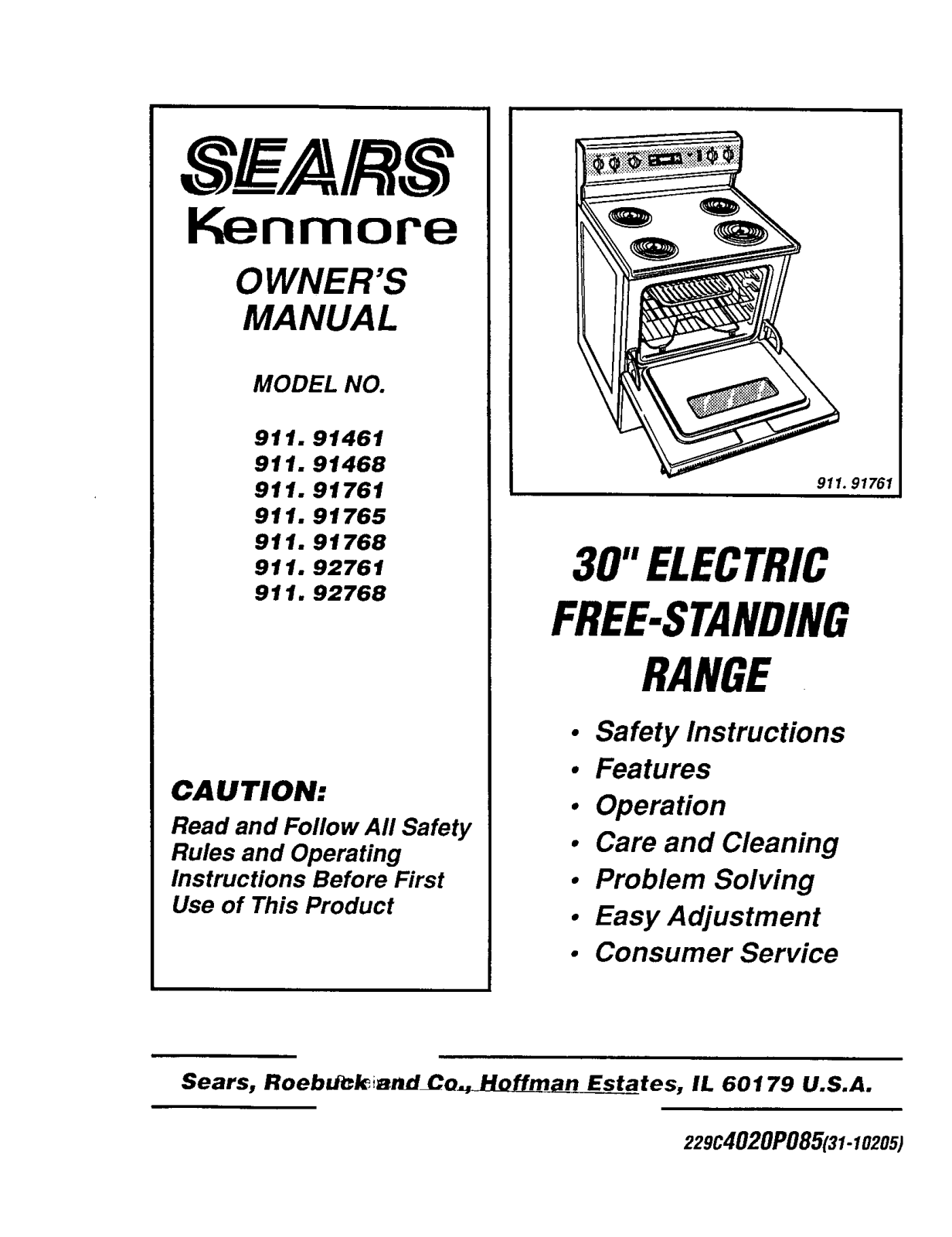

- Model No: 911.91461, 911.91468, 911.91761, 911.91765, 911.91768, 911.92761
- Type: Range single free standing 30’’ electric

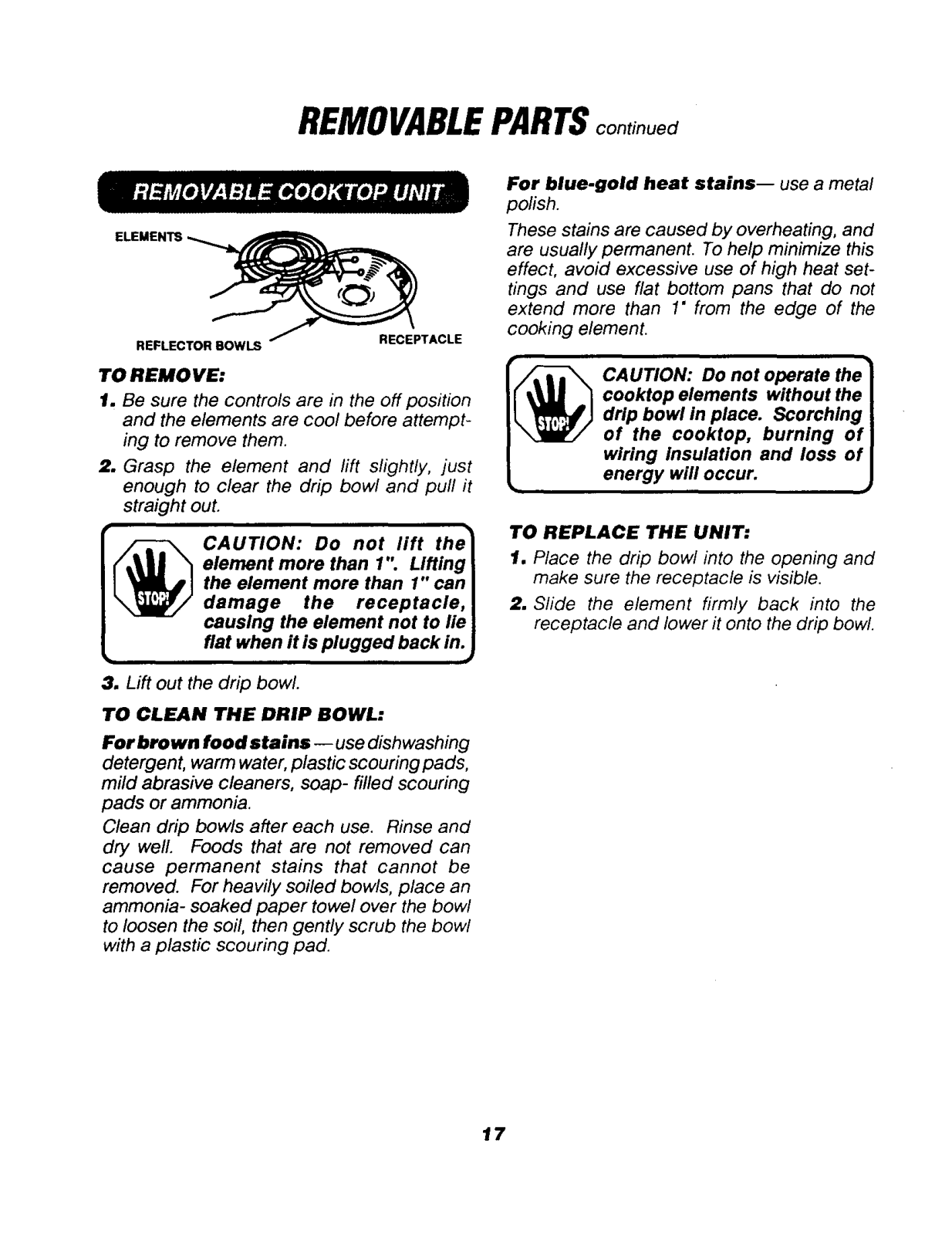

- Surface Units: Removable cooktop surface units

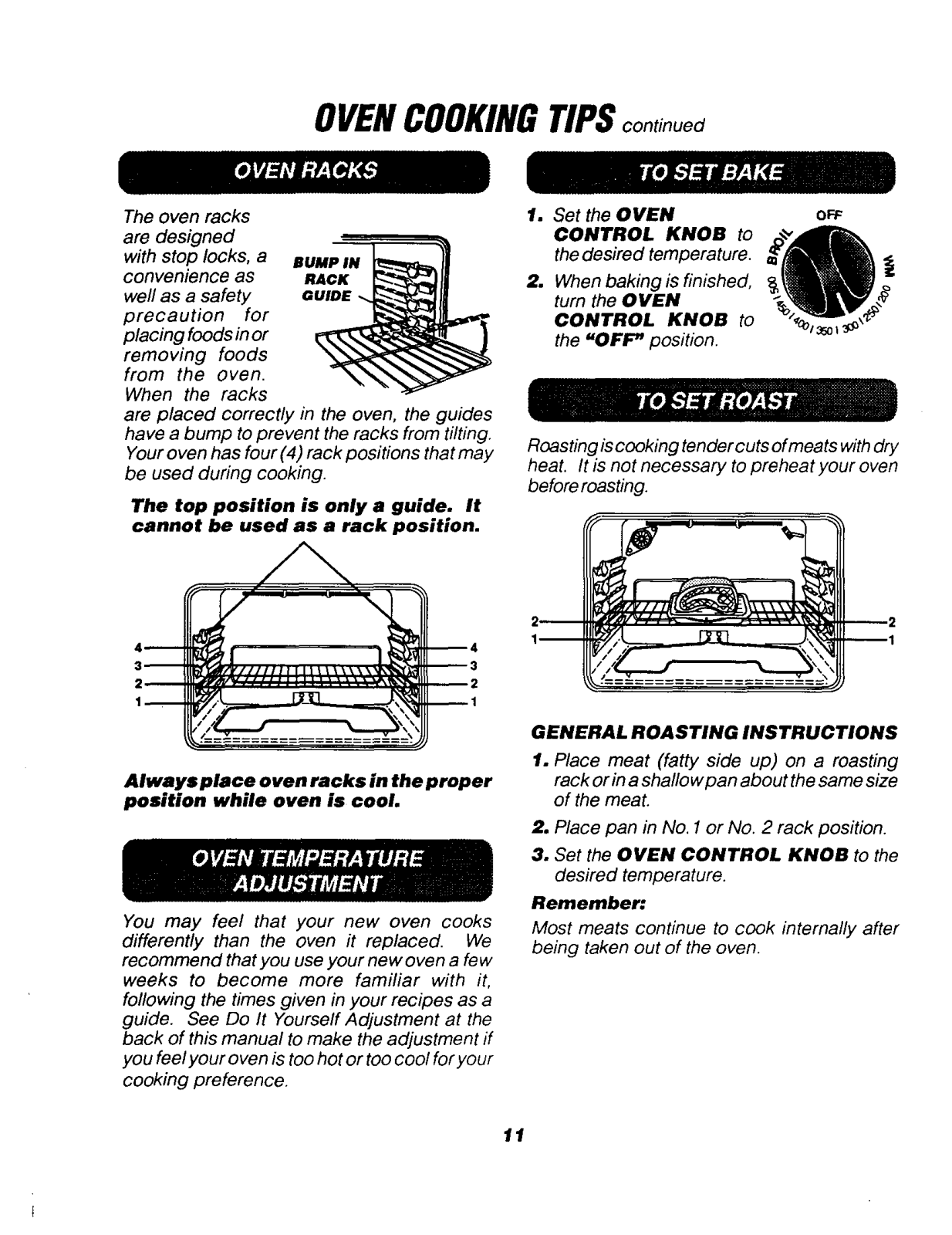

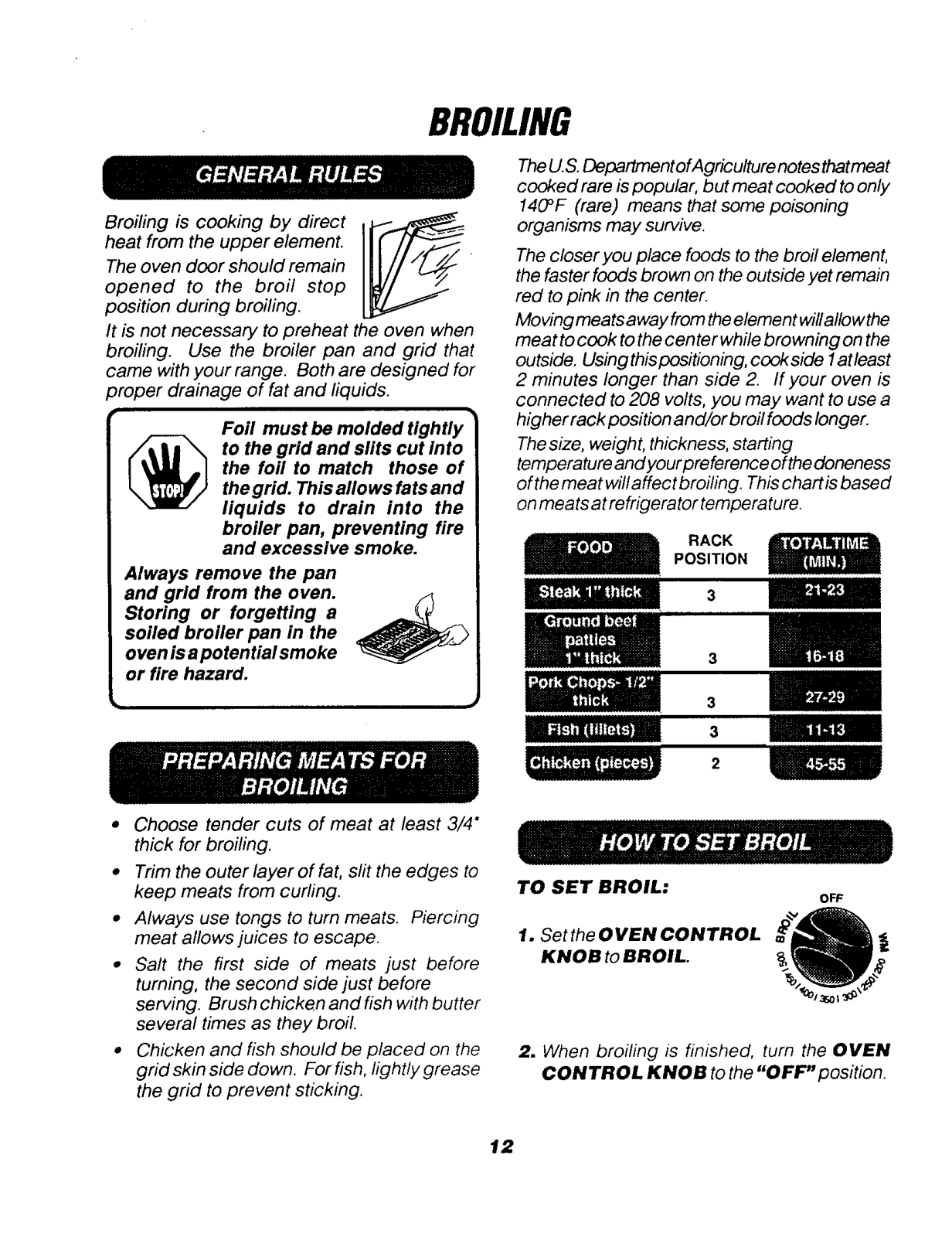

- Oven: Baking and broiling elements and lift out racks in oven
- Oven Light: Equipped with a light switch for easy visibility
- Timer: Up to 9 hours and 45 minutes with a settable timer
- Oven Temperature Sensor: Regulating Oven Temperature
- Cooktop Control Knobs: Limiting Tob Temperature

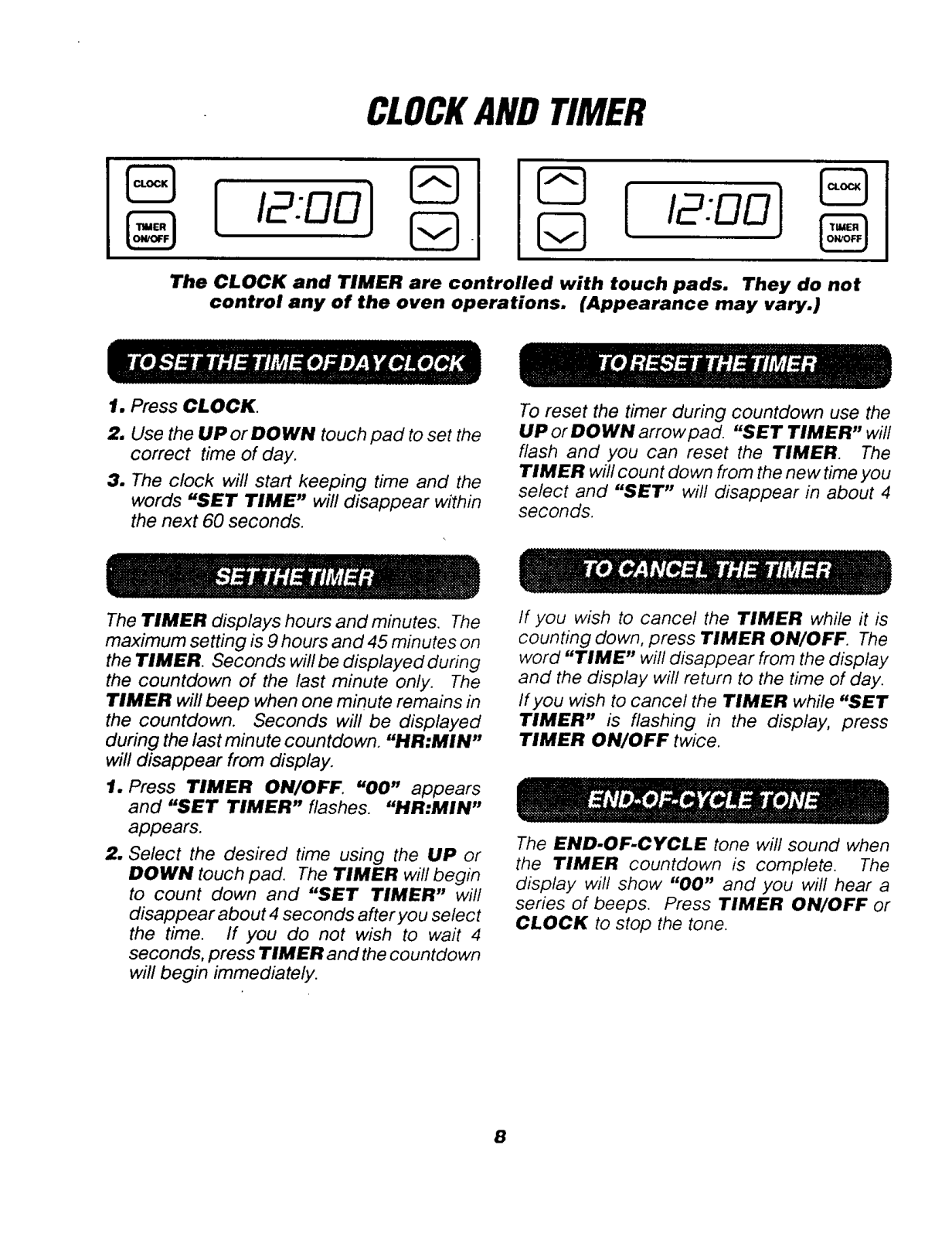

- Clock: Digital clock with a touchpad

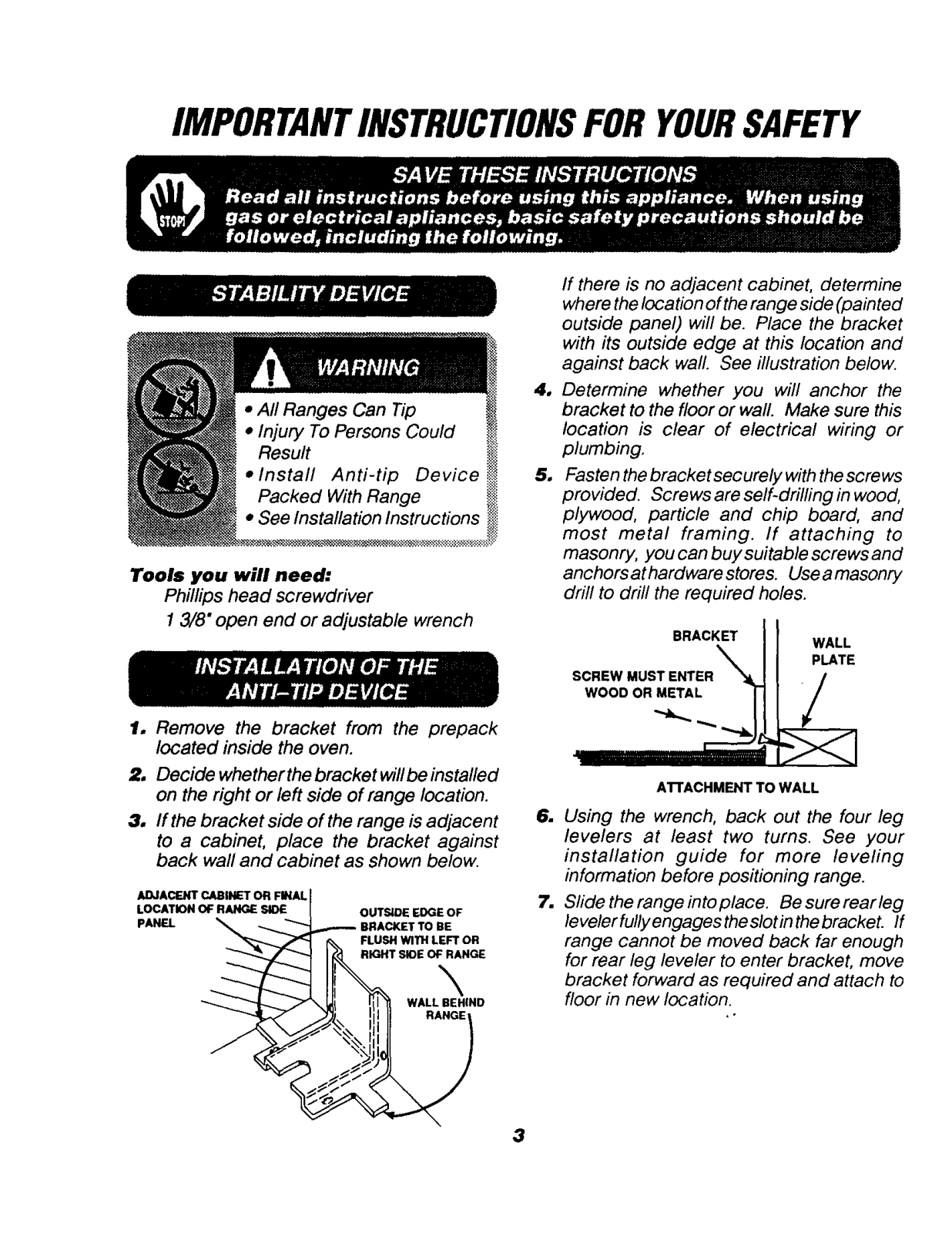

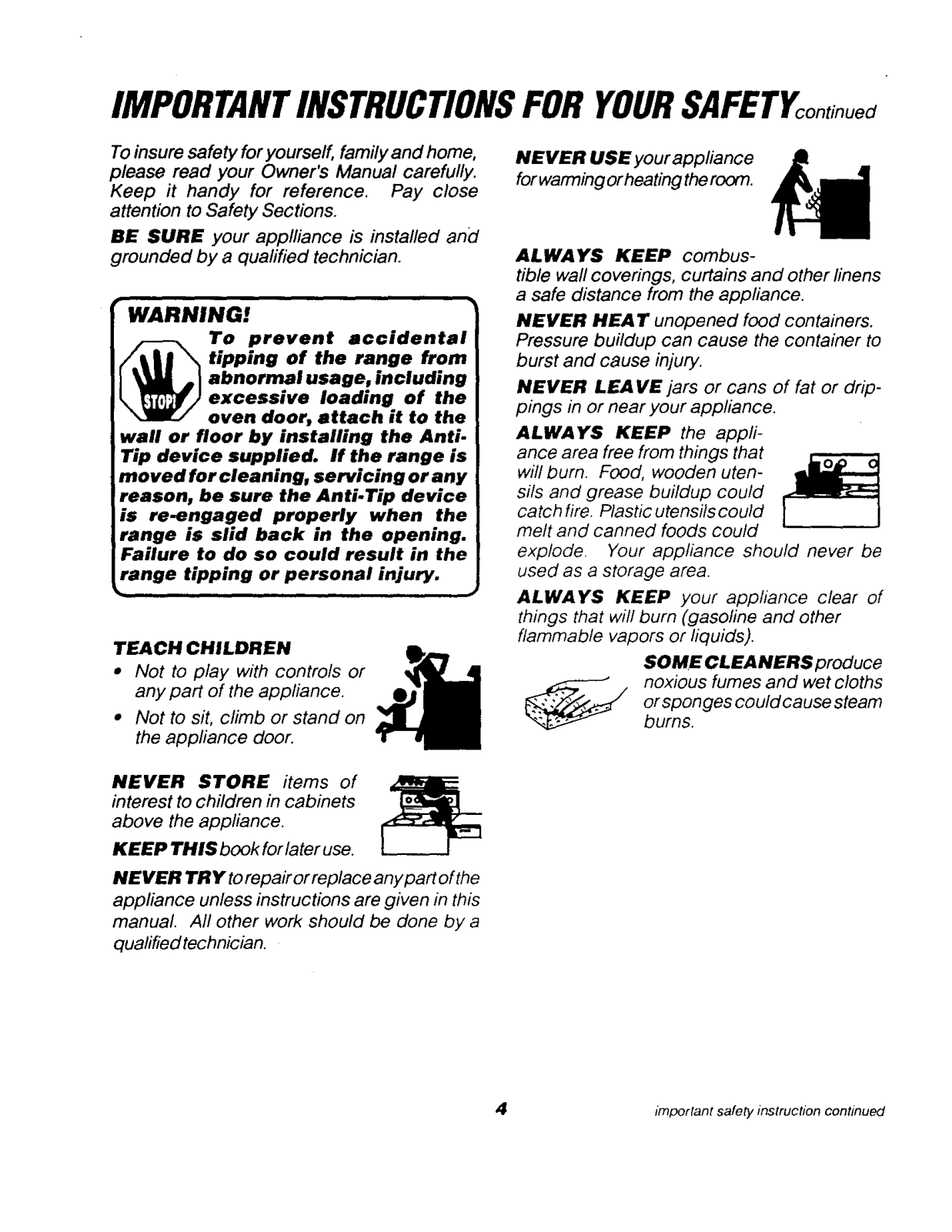

- Anti-Tip Device: Ward robe range designed with an anti tilt safety device so that when fixing to the wall it should not tip

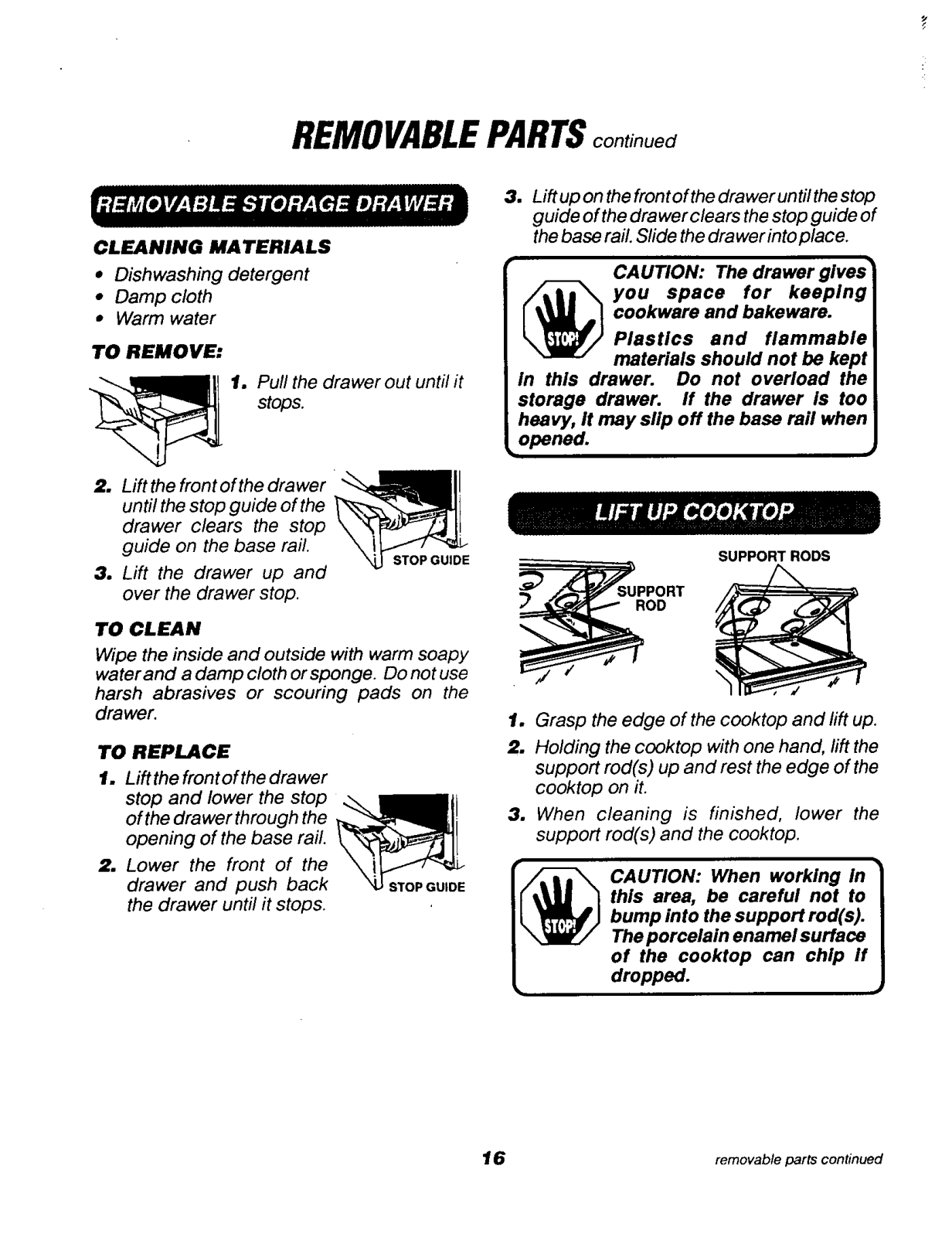

- Storage Drawer: For Easily Storing Cooking and baking utensils.

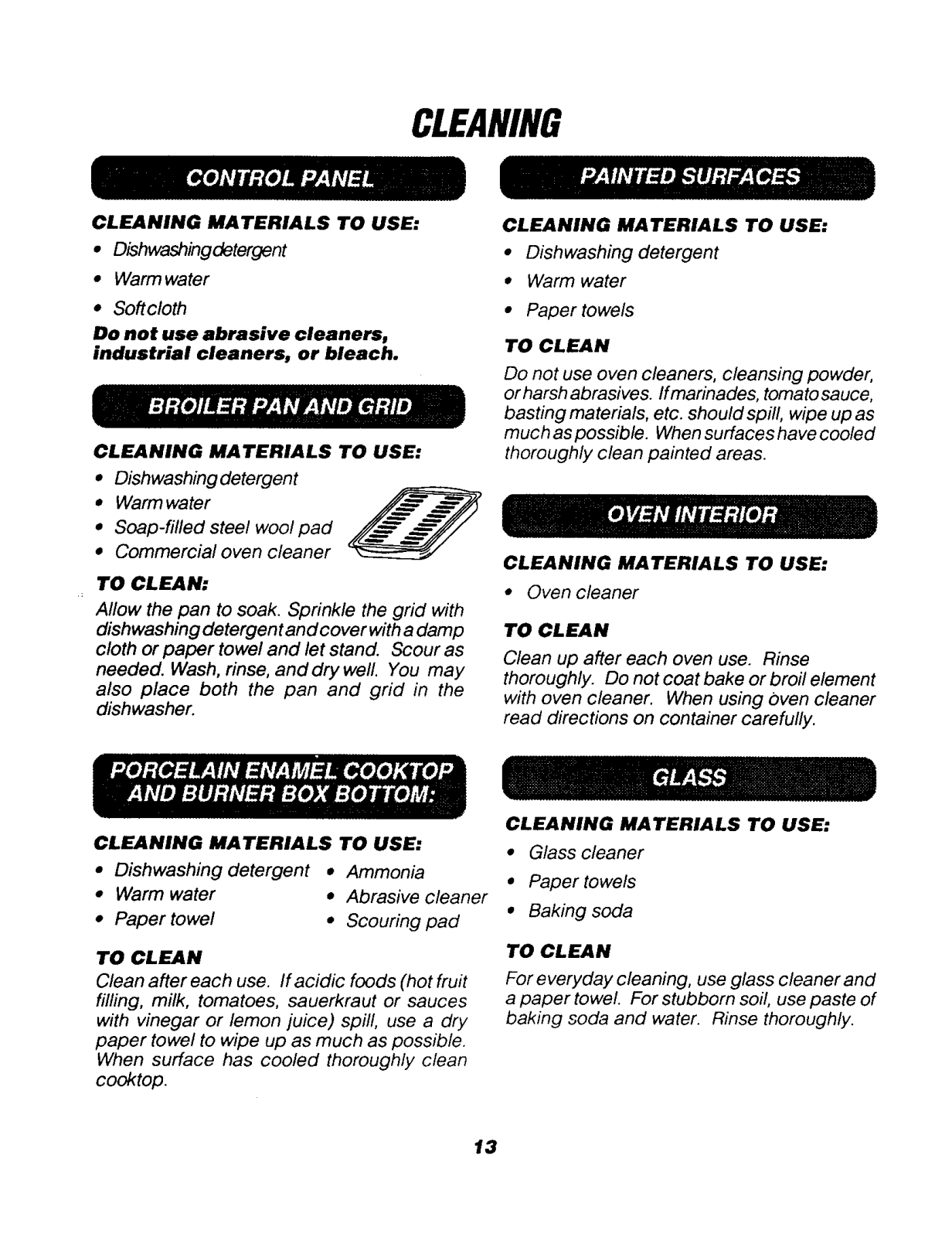

- Cleaning: Removable control panel, broiler pan, oven rack and storage drawer are provided for easy cleaning.

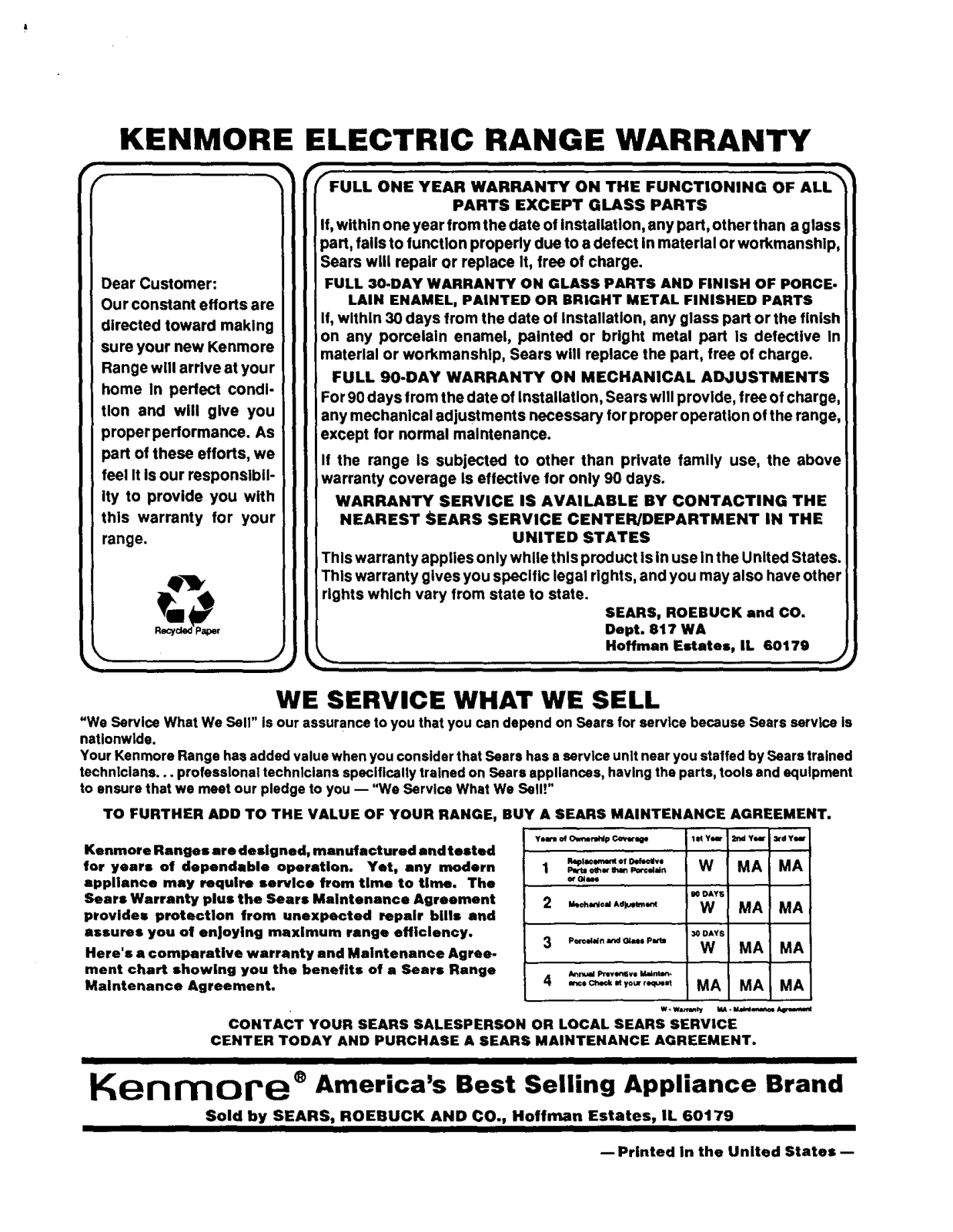

- Warranty: Warranty repair services provides for period of 1 year on all functioning parts excluding glass parts.
Frequently Asked Questions

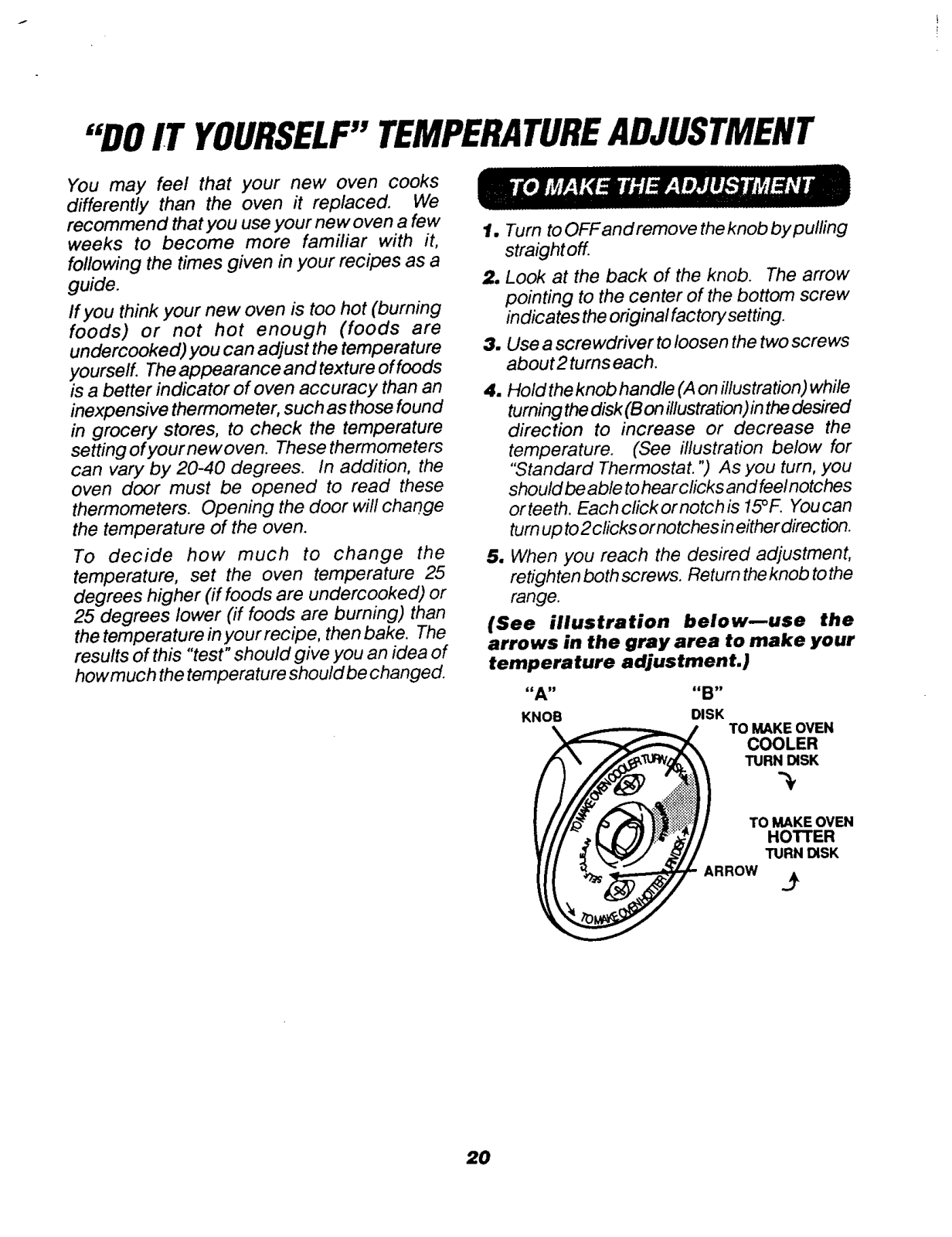

- Q: What should I do if the oven seems to be too hot or too cold?
A: The manual has a temperature adjustment feature that allows you to do this.
- Q: How do I properly clean the cooktop?
A: Dishwashing detergent and warm water should work well, but make sure stains don’t set by cleaning up spills immediately after use.

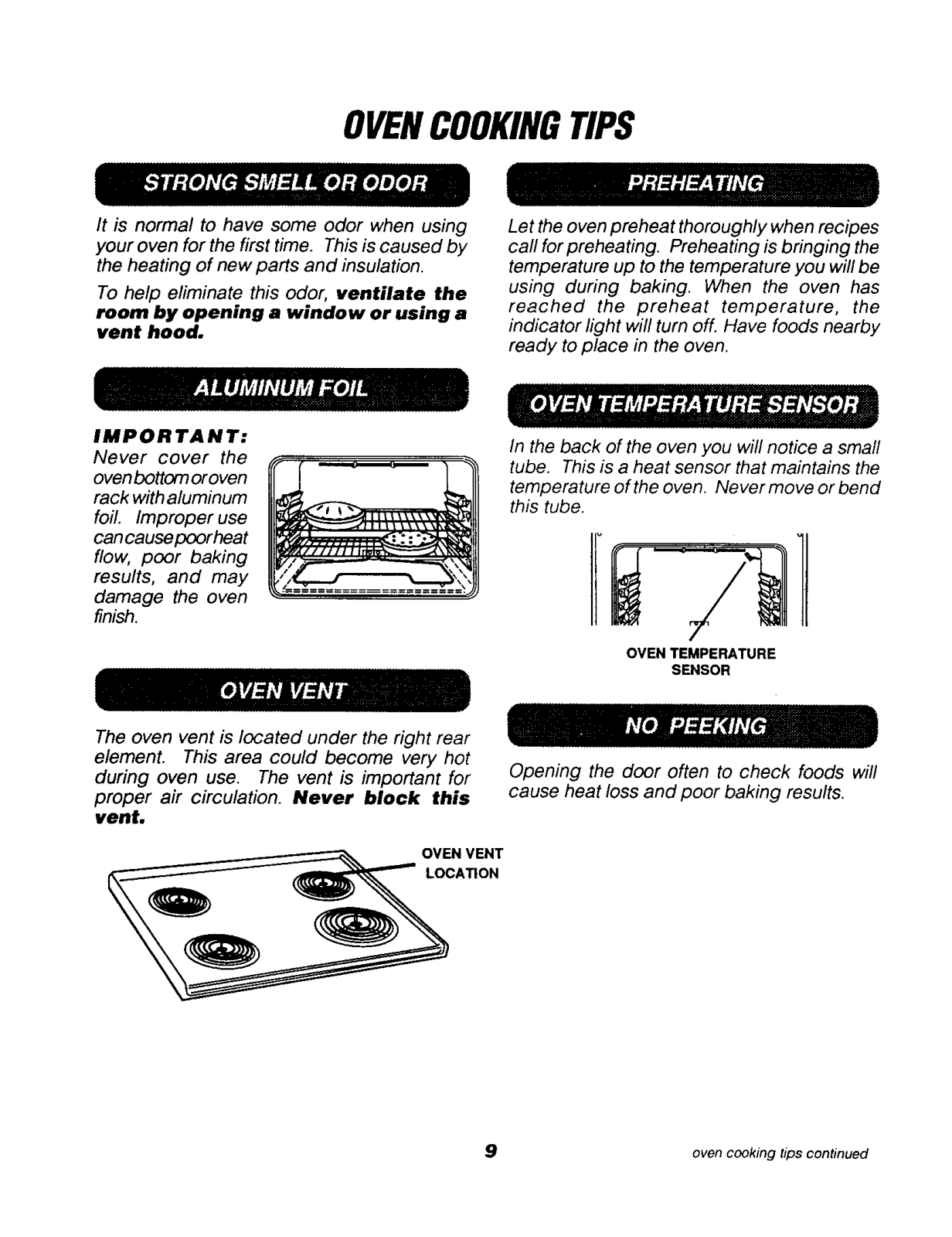

- Q: Is it permissible to place aluminum foil on the oven bottom?
A: No, it is advised not to use aluminum foil on the bottom or the rack of the stove as it can inhibit airflow and cause damage to the inner oven aesthetics.
- Q: Where do I start in order to adjust the oven timer?
A: Turn on the TIMER ON/OFF button, and using the UP or DOWN touch pad set the desired time to be counted down.

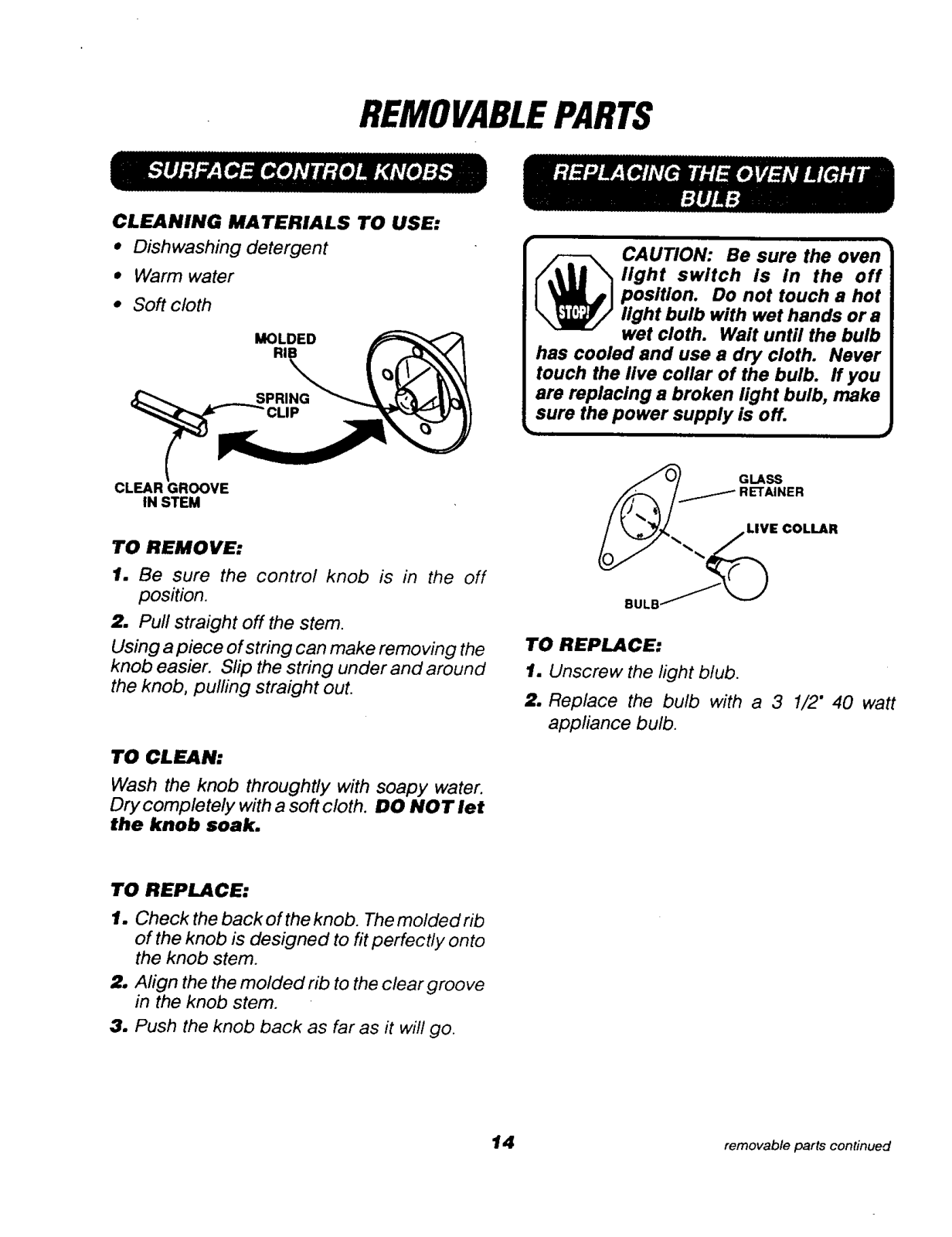

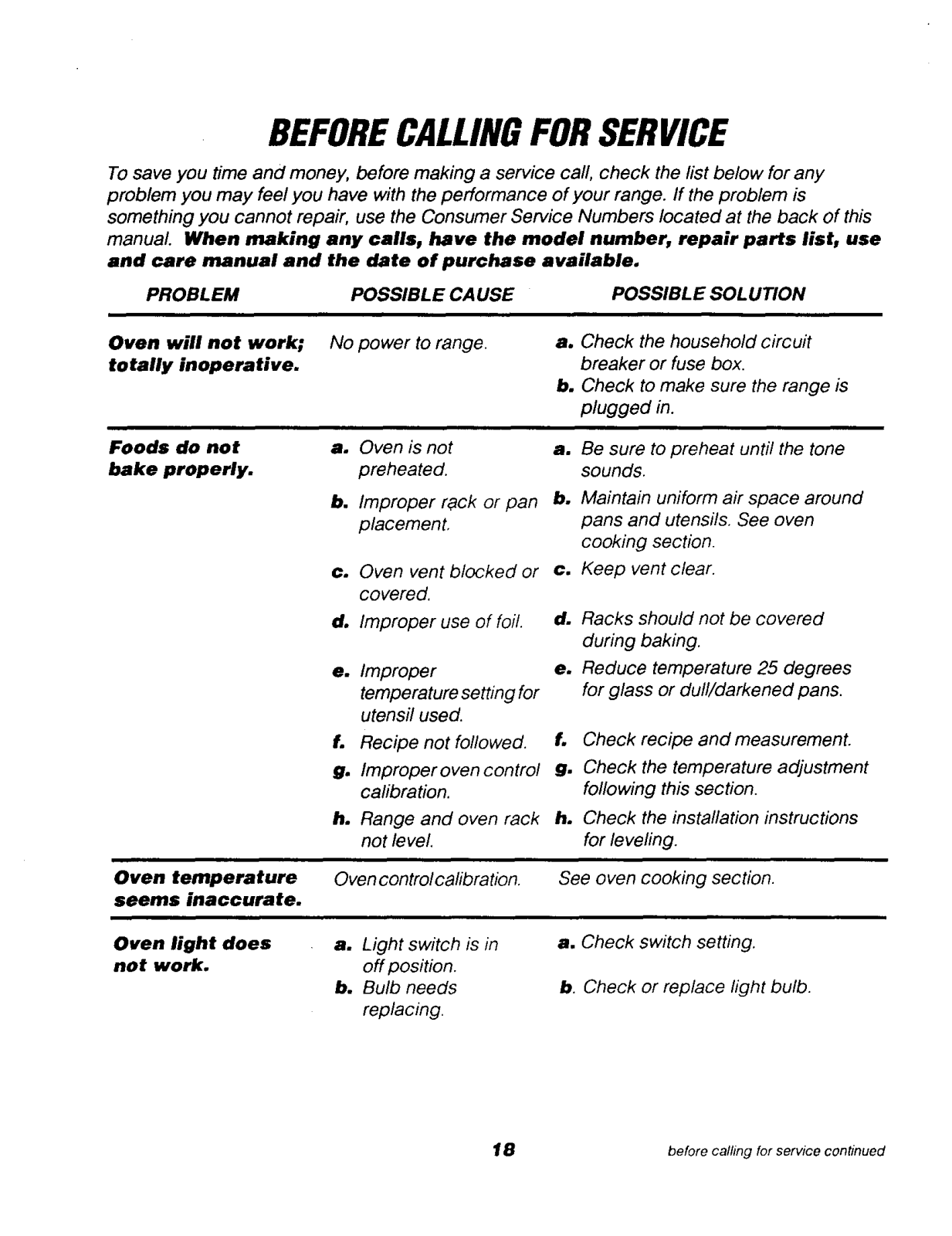

- Q: What steps can I take if the oven light has not been operating?
A: Verify that the light switch is turned ON or replace the bulb if it seems necessary.
User Manual
Page 1
Page 2
Page 3
Page 4
Page 5
Page 6
Page 7
Page 8
Page 9
Page 10
Page 11
Page 12
Page 13
Page 14
Page 15
Page 16
Page 17
Page 18
Page 19
Page 20
Page 21
Page 22
