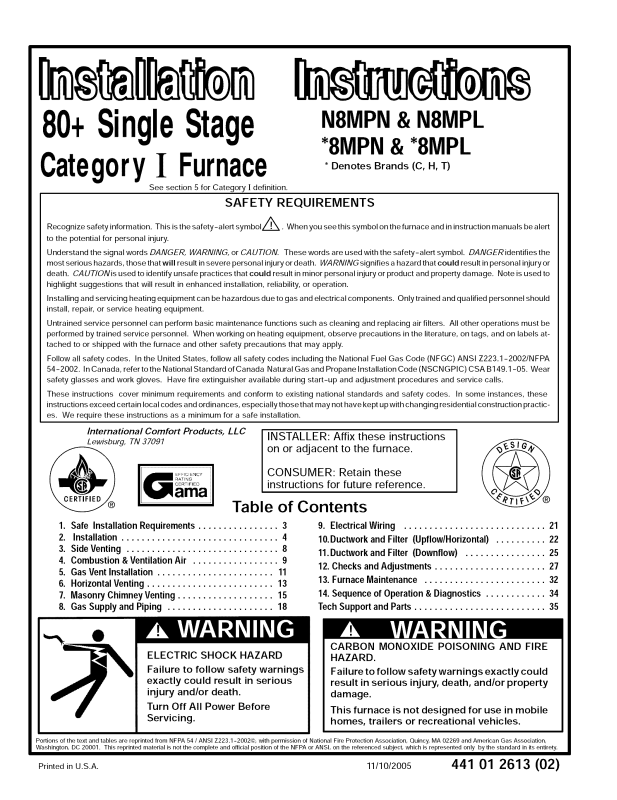

80+SingleStage

N8MPN& N8MPL

*8MPN& *8MPL

CategoryI Furnace

See section 5 for Category [ definition.

* Denotes Brands (C, H, T)

SAFETY REQUIREMENTS

Recognize safety information. This is the safety-alert symbolZl._. When you see this symbol on the furnace and in instruction manuals be alert to the potential for personal injury.

Understand the signal words DANGER, WARNING, or CA UTION. These words are used with the safety-alert symbol. DANGER identifies the most serious hazards, those that will result in severe personal injury or death. WARNINGsignifiesahazardthatcouldresultinpersonalinjuryor

death. CAUTIONis used to identify unsafe practices that could result in minor personal injury or product and property damage. Note is used to highlight suggestions that will result in enhanced installation, reliability, or operation.

Installing and servicing heating equipment can be hazardous due to gas and electrical components. Only trained and qualified personnel should install, repair, or service heating equipment.

Untrained service personnel can perform basic maintenance functions such as cleaning and replacing air filters. All other operations must be performed by trained service personnel. When working on heating equipment, observe precautions in the literature, on tags, and on labels at-

tached to or shipped with the furnace and other safety precautions that may apply. Follow all safety codes. In the United States, follow all safety codes including the National Fuel Gas Code (NFGC) ANSI Z223.1-2002/NFPA

54-2002. In Canada, refer to the National Standard of Canada Natural Gas and Propane Installation Code (NSCNGPIC) CSA B149.1-05. Wear safety glasses and work gloves. Have fire extinguisher available during start-up and adjustment procedures and service calls.

These instructions cover minimum requirements and conform to existing national standards and safety codes. In some instances, these instructions exceed certain local codes and ordinances, especially those that may not have kept up with changing residential construction practic- es. We require these instructions as a minimum for a safe installation.

International Comfort Products, LLC Lewisburg, TN 37097

INSTALLER: Affix these instructions on or adjacent to the furnace.

CONSUMER: Retain these instructions for future reference.

Table of Contents

1. Safe Installation Requirements ................ 3

2. Installation ............................... 4

3. Side Venting .............................. 8

4. Combustion & Ventilation Air ................. 9

5. Gas Vent Installation ....................... 11

6. Horizontal Venting ......................... 13

7. Masonry Chimney Venting ................... 15

8. Gas Supply and Piping ..................... 18

ELECTRIC SHOCK HAZARD Failure to follow safety warnings

exactly could result in serious

injury and/or death.

Turn Off All Power Before

Servicing.

Portions of the text and tables are reprinted from NFPA 54 / ANSI Z223,1-2002©, with permission of National Fire Protection Association, Quincy, MA 02269 and American Gas Association, Washington, DC 20001. This reprinted material is not the complete and official position of the NFPA or ANSI, on the referenced subject, which is represented only by the standard in its entirety,

PrintedinU.S.A. 11/10/2005 441 01 2613 (02)

9. ElectricalWiring ............................ 21

10.DuctworkandFilter (Upflow/Horizontal) .......... 22

11.DuctworkandFilter (Downflow) ................ 25

12.ChecksandAdjustments...................... 27

13.FurnaceMaintenance ........................ 32

14.Sequence of Operation& Diagnostics............ 34

TechSupportand Parts.......................... 35

CARBON MONOXIDE POISONING AND FIRE HAZARD.

Failure to follow safety warnings exactly could result in serious injury, death, and/or property damage.

This furnace is not designed for use in mobile homes, trailers or recreational vehicles.

START-UP CHECK SHEET

(Keep this page for future reference)

Recommended, but not required,

Dealer Name:

Address:

City, State(Province), Zip or Postal Code:

Phone: Owner Name:

Address:

City, State(Province), Zip or Postal Code:

Model Number:

Serial Number:

Type of Gas:

Blower Motor H.P,:

Supply Voltage:

Limit Opens at...(°F) or(°C).

Natural: _1 LP: _1

Business Card Here

Manual Gas Shut-Off Upstream of Furnace/Drip- Leg?

Drip-Leg Upstream of Gas Valve?

Blower Speed Checked? YES _1

All Electrical Connections Tight?

Gas Valve turned ON? YES _1

Measured Line Pressure When Firing Unit:

Calculated Firing Rate:(See Checks and Adjustments

Section).

YES_I NO_I

NO [_I

YEs_I NO[31

NO[_I

Limit Closes at,,,(°F)___or(°C)

Which blower speed tap is used? (Heating) (Cooling).

Temperature of Supply Air: (°F)___or(°C)

Temperature of Return Air: (°F) or(°C)__

Rise (Supply Temp.-Return Temp.): (°F) or(°C)__

Filter Type and Size:

Fan "Time ON" Setting:.

Fan "Time OFF" Setting:

Dealer Comments:

Measured Manifold Pressure:

Thermostat OK? YES _1

Subbase Level? YES _1

Anticipator Set? YES _1

Breaker On? YES _1

Date of Installation:

Date of Start-Up:

NOE_

NOE_I

NO E_ Set At?:

NoE_I

441 01 261302

1. Safe Installation Requirements

FIRE, EXPLOSION, AND ASPHIXIATION HAZARD Improper adjustment, alteration, service,

maintance or installation could cause death, personal injury, and/or property damage.

Installation or repairs made by unqualified persons could result in hazards to you and others. Installation MUST conform with local codes or, in

the absence of local codes, with codes of all governmental authorities having jurisdiction.

The information contained in this manual is intended for use by a qualified service agency that

is experienced in such work, is familiar with all precautions and safety procedures required in such work, and is equipped with the proper tools

and test instruments.

NOTE: This furnace is design-certified by the CSA International (formerly AGA and CGA) for installation in the United States and Canada. Refer to the appropriate codes, along with this manual, for proper installation.

Use only the Type of gas approved for this furnace (see Rating Plate on unit). Overfiring will result in failure of heat exchanger and cause dangerous operation. (Furnaces can be converted to LP gas with approved kit.)

• Install this furnace only in a location and position as speci- fied in "2. Installation"of these instructions.

• Provide adequate combustion and ventilation air to the fur- nace as specified in "4. Combustion and Ventilation Air" of

these instructions. Combustion products must be discharged outdoors. Con-

nect this furnace to an approved vent system only, as spe- cified in "5. Gas Vent lnstallation, 6. Horizontal Venting and

7. Masonry Chimney Venting"of these instructions.

Never test for gas leaks with an open flame. Use a com- mercially available soap solution made specifically for the detection of leaks to check all connections, as specified in "8. Gas Supply and Piping, Final Check"of these instruc-

tions. Always install furnace to operate within the furnace's in-

tended temperature-rise range with a duct system which has an external static pressure within the allowable range, as specified in "Technical Support Manual" of these in- structions. See furnace rating plate.

• When a furnace is installed so that supply ducts carry air circulated by the furnace to areas outside the space con-

taining the furnace, the return air shall also be handled by a duct(s) sealed to the furnace casing and terminating out- side the space containing the furnace.

• A gas-fired furnace for installation in a residential garage must be installed as specified in "2. Installation"of these

instructions.

• This furnace is not to be used for temporary heating of buildings or structures under construction.

See "2. Installation, Item 10'_

• This furnace is NOT approved for installation in mo- bile homes, trailers or recreation vehicles.

• Seal around supply and return air ducts.

• Install correct filter type and size.

• Unit MUST be installed so electrical components are pro- tected from direct contact with water.

Safety Rules

Your unit is built to provide many years of safe and dependable service providing it is properly installed and maintained. However,

abuse and/or improper use can shorten the life of the unit and create hazards for you, the owner.

A. The U.S. Consumer Product Safety Commission encourages

installation of carbon monoxide alarms. There can be various sources of carbon monoxide in a building or dwelling. The

sources could be gas-fired clothes dryers, gas cooking stoves, water heaters, furnaces, gas-fired fireplaces, wood fireplaces.

Carbon monoxide can cause serious bodily injury and/or death. Carbon monoxide or "CO" is a colorless and odorless

gas produced when fuel is not burned completely or when the flame does not receive sufficient oxygen.

Therefore, to help alert people of potentially dangerous ca rbon monoxide levels, you should have a commercially available carbon monoxide alarm that is listed by a nationally recog-

nized testing agency in accordance with Underwriters Labora- tories Inc. Standard for Single and Multiple Station Carbon

Monoxide Alarms, ANSI/UL 2034 or the CSA 6.19-01 Resi- dential Carbon Alarming Devices installed and maintained in

the building or dwelling concurrently with the gas- fired furnace installation (see Note below). The alarm should be installed as

recommended by the alarm manufacturer's installation in- structions.

B. There can be numerous sources of fire or smoke in a building

or dwelling. Fire or smoke can cause serious bodily injury, death, and/or property damage. Therefore, in order to alert people of potentially da ngerous fire or smoke, you should have

fire extinguisher and smoke alarms listed by Underwriters Lab- oratories installed and maintained in the building or dwelling

(see Note below).

Note: The manufacturer of your furnace does not test any alarms

and makes no representations regarding any brand or type of alarms.

C. To ensure safe and efficient operation of your unit, you should

do the following:

1. Thoroughly read this manual and labels on the unit. This will help you understand how your unit operates and the haz- ards involved with gas and electricity.

2. Do not use this unit if any part has been under water. Im- mediately call a qualified service agency to inspect the unit and to replace any part of the control system and any gas control

which has been under water.

3. Never obstruct the vent grilles, or any ducts that provide air to the unit. Air must be provided for proper combustion and ventilation of flue gases.

441 01 2613 02 [_

Frozen Water Pipe Hazard Ifyourfurnace remains off for an extended time, the pipes in your

home could freeze and burst, resulting in serious water damage.

If the structure will be unattended during cold weather you should take these precautions.

FROZEN AND BURST WATER PIPE HAZARD

Failure to protect against the risk of freezing could

result in property damage. Do not leave your home unattended for long periods

during freezing weather without turning off water

Turn off the water supply to the structure and drain the water lines if possible and add an antifreeze for potable water to drain traps and toilet tanks. Open faucets in appropriate

areas.

-or-

supply and draining water pipes or otherwise

)rotecting against the risk of frozen pipes and

resultant damage.

Your furnace is designed solely to provide a safe and comfortable living environment. The furnace is NOT designed to ensure that

water pipes will not freeze. It is equipped with several safety de- vices that are designed to turn the furnace off and prevent it from

restarting in the event of various potentially unsafe conditions.

Have someone check the structure frequently during cold weather to make sure it is warm enough to prevent pipes from freezing. Instruct them on a service agency to call to provide service, if required.

-or-

3. Install a reliable remote sensing device that will notify some- body of freezing conditions within the home.

2. Installation

4. Install the vent pipes as short as practical. (See 5. Gas Vent Installation section).

CARBON MONOXIDE POISONING HAZARD.

Failure to properly vent this furnace or other appliances could result in death or personal injury.

If this furnace is replacing a previously common- vented furnace, it may be necessary to resize the

existing vent system to prevent oversizing problems for the other remaining appliances(s). See Venting and Combustion Air Check in the 5. Gas

Vent Installation section of this instruction.

Location and Clearances

If furnace is a replacement, it is usually best to install the furnace where the old one was. Choose the location or evaluate the exist-

ing location based upon the minimum clearance and furnace di- mensions (Figure 1 or Figure 2).

CARBON MONOXIDE POISONING HAZARD. Failure to follow safety warnings could result in

death or personal injury. Do NOT operate furnace in a corrosive

atmosphere containing chlorine, fluorine or any other damaging chemicals which could harm the furnace and vent system, and permit spillage of

combustion products into an occupied space. Refer to 4. Combustion & Ventilation Air section,

Contaminated Combustion Air for combustion air evaluation and remedy.

Installation Requirements

1. Install furnace level.

2. This furnace is NOT to be used for temporary heat of buildings or structures under construction.

3. Install furnace as centralized as practical with respect to the heat distribution system.

5. Do NOT install furnace directly on carpeting, tile or other com- bustible material other than wood flooring.

6. Maintain clearance for fire safety and servicing. A front clear- ance of 24" is minimum for access to the burner, controls and

filter. See clearance requirements in Figure 1 or Figure 2.

7. Use a raised base if the floor is damp or wet at times.

8. Residential garage installations require:

• Burners and ignition sources installed at least 18" (457 mm) above the floor.

• Furnace must be located or physically protected from possible damage by a vehicle.

If the furnace is to be suspended from the floor joists in a base- ment or a crawl space or the rafters in an attic, it is necessary to use steel pipe straps or an angle iron frame to attach the fur-

nace. These straps should be attached to the furnace bottom side with sheet metal screws and to the rafters or joists with bolts. The preferred method is to use an angle iron frame bolted to the rafters or joists.

10. This furnace may be used for construction heat provided that:

• The furnace is permanently installed with all electrical wiring, piping, venting and ducting installed according to these installation instructions. A return air duct is pro- vided, sealed to the furnace casing, and terminated out- side the space containing the furnace. This prevents a negative pressure condition as created by the circulating

air blower, causing a flame rollout and/or drawing com- bustion products into the structure.

• The furnace is controlled by a thermostat. It may not be "hot wired" to provide heat continuously to the structure

without thermostatic control.

• Clean outside air is provided for combustion. This is to minimize the corrosive effects of adhesives, sealers and

other construction materials. It also prevents the entrain- ment of drywall dust into combustion air, which ca n ca use fouling and plugging of furnace components.

• The temperature of the return air to the furnace is main- tained between 55 ° F (13 ° C) and 80 ° F (27° C), with no

evening setback or shutdown. The use of the furnace while the structure is under construction is deemed to be

intermittent operation per our installation instructions.

441 01 261302

The air temperature rise is within the rated rise range on the furnace rating plate, and the firing rate has been setto

the rating plate value.

The filters used to clean the circulating air during the construction process must be either changed or thor- oughly cleaned prior to occupancy.

Dimensions and Clearances (N8MPN/L)

61/2

LEFT SIDE

_-,__-- 33/4

21/4

• Plugged starting hole to cut side

13114_1_o_ '°pening

17/8 _ 21314

I 265/8

I 47/8 11/2

"24" Min.

-- B--

FRONT

• The furnace, ductwork and filters are cleaned as neces- sary to remove drywall dust and construction debris from

all HVAC system components after construction is com- pleted.

• Verify proper furnace operating conditions including igni- tion, gas input rate, air temperature rise, and venting ac- cording to these installation instructions.

MINIMUM CLEARANCES TO COMBUSTIBLE

MATERIALS FOR ALL FURNACES

REAR 0 FRONT (combustion air openings 3"

in furnace and structure)

Required For Service *24"

ALL SIDES Of SUPPLY PLENUM 1" SIDES 0 VENT

Single-Wall Vent 6" Type B-1 Double-Wall Vent 1"

TOP OF FURNACE 1"

"30" clearancerecommendedfor furnaceremovaL

Horizontalposition:Linecontactispermissibleonlybetweenlines

formedby intersectionsof topandtwo sidesof furnacejacket, and buildingjoists, studsor framing.

I 281/2 --

-- 33/4 I,,_ I 18112-

F-_

/1 RIGHT SIDE

C__ BOTTOM

Drawing is representative, but some models may vary

I_ 41116

DIMENSIONAL INFORMATION

Furnace Cabinet Bottom

Model A B C D

N8MPN/L05OB12 151/2 13/8 125i8

NSMPN/L075B12 14 N8MPN/LO75F16

N8MPN100F14 19118 175/8 21/8 143/4

N8MPN/L1OOF20

N8MPN/L1OOJ22 N8MPN/L125J20 22314 21114 115116 183/4

NSMPN/L125J22

DIMENSIONS IN INCHES

ReturnAir

Opening

1_ 13t/4/

11124,10 213,4

265/8

Plugged starting holetocut

sideductopening

NOTE: Evaporator "A" coil drain pan dimensions may vary from furnace duct opening size. Always consult evaporator specifications for duct size requirements.

Furnace is designed for bottom return or side return.

Return air through back of furnace is NOT allowed.

25-23-44al

441 O1 261302 [_

TOP

5113

LEFT SIDE

• Plugged starting I hole to cut side

Dimensions and Clearances (*8MPN/L Models)

"24"Min.

-- 3314

5f__ _ _1

7/8

38 FRONT

--A_

-- B --

MINIMUM CLEARANCES TO COMBUSTIBLE

MATERIALS FOR ALL UNITS

REAR 0 FRONT (combustion air openings 3"

in furnace and structure)

Required For Service *24"

ALL SIDES Of SUPPLY PLENUM 1" SIDES 0 VENT

Single-Wall Vent 6" Type B-1 Double Wall Vent 1"

TOP OF FURNACE 1"

"30" clearancerecommendedfor furnaceremoval.

Horizontalposition:Linecontactispermissibleonlybetweenlines

formedby intersectionsof topandtwo sidesof furnacejacket, and buildingjoists, studsor framing.

28112

131/4 _¢t opening

21814

17/8/ 26518

47/ 11/2

Drawing is representative some models may vary

I_ 41116

DIMENSIONS IN INCHES

DIMENSIONAL INFORMATION

Furnace I Cabinet I Top Bottom I ReturnAir

*8MPN/LOSOB12 6 1318 12518 H

*8MPN/LO75B12

Mode, I;I 2 _4 F C D I Opening

*8MPN/L075F16

*8MPN100F14 1911817518 73/4 21/8 14314I J

*8MPN/L10OF20 *8MPN/LIOOJ20

*8MPN/L125J208MPN150J20223/4211/4 91/2 115116 183/4 J

* Denotes Brand

Installation Positions

This furnace can be installed in an upflow, horizontal (either left or right) or downflow airflow position. DO NOT install this furnace on

its back. For the upflow position, the return air ductwork can be at- tached to either the left or right side panel and/or the bottom. For horizontal and downflow positions, the return air ductwork must be

attached to the bottom. The return air ductwork must never be at- tached to the back of the furnace.

2--

RIGHT SIDE

L 1

/41I

29,1121

11751

11/2

NOTE: Evaporator "A" coil drain pan dimensions may vary from furnace duct opening size. Always consult evaporator specifications for duct size requirements.

Furnace is designed for bottom return or side return.

Return air through back of furnace is NOT allowed.

47/8 l 13/4

13114

265/_

Plugged starting hole to cut side duct opening

Furnace Installation

Inspect the rating plate to be certain the model number begins with "N8MP" or "*8MP". This identifies the unit as a multi-position fur-

nace and can be Installed in a Upflow, Horizontal Right, Horizontal Left or Downflow position.

Dentoes Brand (C, H, T)

Upflow

No modifications are required for upflow installation. (See Figure 3)

17/8

441 O1 261302

iiiiiiiiiiiiiiiii_!!!!!!!!:!i:iil¸;i¸ii¸ii¸ii¸ii¸ii¸ii¸ii¸i¸ii¸ii¸ii¸iiiiliiiiii;;;iiiiiiii;i;il;i;i;i;iiii_ilili;i;i;i;;i;i;il;i;iiiii¸i;iiiii!!!

i!i!i!i!i!i!i!i!i!i!i! i i i i i ii i ! i ! i!! i!i!!i!iiii! iiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiiii i i i i i T p,ca,Up.ow,nsta.at,on

SUPPLY

AIR

RETURN N

The horizontal furnaces may be installed directly on combustible wood flooring or supports, however, it is recommended for further

fire protection cement board or sheet metal is placed between the furnace and the combustible wood floor and extend 12" beyond the front of the furnace louver door. (This is a recommendation

only, not a requirement). This furnace MUST NOT be installed directly on carpeting, tile or

other combustible material other than wood flooring or supports.

Downflow

GAS SUPPLY

25-23-17

Horizontal

If you purchased a multi-position furnace, it can be installed hori- zontally in an attic, basement, crawl space, alcove, or suspended

from a ceiling in a basement or utility room in either a right or left airflow position. (see Figure 4)

Horizontally installed furnaces may be vented out the top of the unit or out the side facing up. See"Side venting" for instructions to

rotate the vent to the side. The minimum clearances to combustibles MUST be maintained

between the furnace and adjacent construction, as shown in Figure 1 and Figure 2. ONLY the corner of the cabinet is allowed

to contact the rafters as shown in Figure 4. All other clearances MUST be observed as shown in Figure 1 and Figure 2.

Typical Horizontal Installation

SUPPLY

GAS SUPPLY

OPTIONAL VENT LOCATION

If the furnace is to be suspended from the floor joists in a basement or crawl space or the rafters in an attic, it is necessary to use steel

pipe straps or an angle iron frame to attach the furnace. These straps should be attached to the furnace bottom side with sheet

metal screws and to the rafters or joists with bolts. The preferred method is to use an angle iron frame bolted to the rafters or joists.

If the furnace is to be installed at ground level in a crawl space, con- sult local codes. A concrete pad 1" to 2" thick is recommended.

Twenty four inches (24") is required between the front of the fur- nace and adjacent construction or other appliances. This should

be maintained for service clearance. Keep all insulating materials clear from Iouvered door. Insulating

materials may be combustible.

441 01 2613 02

25- 23-18a

FIRE HAZARD. Failure to install unit on noncombustible subbase

could result in death, personal injury and/or property

damage. Place furnace on noncombustible subbase on

downflow applications, unless installing on noncombustible flooring.

If you purchased a Multi-position furnace (N8MP or *8MP) it may be installed in a downflow configuration, (see Figure 5). The mini-

mum clearances to combustion construction MUST be maintained between the furnace and adjacent construction, as shown in Figure 1 and Figure 2.

In addition to clearances in Figure 1 and Figure 2, clearance for the vent pipe must be considered.

A subbase for combustible floors MUST be used when the furnace is installed as a downflow on combustible material. See 11. "Duct-

work and Filter" (Downflow Section). The outlet flange must be

bent flat for downflow installation. When installing a four-position furnace in the downflow position

(not the *8DNL furnace), the logo is to be repositioned so that it is rightside-up as follows:

T8MPN/L

1. Find the door hardware kit that is stored in the furnace and save it.

2. Carefully remove logo from the outside of burner compartment door and save it.

3. Carefully remove two small plug buttons from outside of blow- er compartment door and save them.

4. Remove two thumbscrews from blower compartment door.

5. Install two thumbscrews in holes at other end of blower compartment door from where thumbscrews were removed.

6. Install new strip of rubber gasket on inside of blower compart- ment door on edge that does not already have a gasket.

7. Install logo retainer pins into holes in blower compartment door from which plug buttons were removed.

8. Install plug buttons into holes in burner compartment door from which logo was removed.

9. Install blower compartment door on furnace with bevel edge and logo at top.

10. Install burner compartment door on furnace with bevel edge at bottom.

N8MPN/L, C81VlPN/L, H8MPN/L 1, Carefully remove logo from burner compartment door and

save it.

2. Turn the logo rightside-up, and install the logo retainer pins into holes in burner compartment door.

3. Newlabelsforrightside-upapplicationonoutsideofblower compartmentdoormaybepurchasedinakitfromyourdistrib- utortocoverupside-downlabels.

DownflowVenting:ThecombustionventerMUSTberotatedto ventoutthesideforalldownflowinstallations,(seeFigure5).Bot- tomventingisnotpermitted.See"Sideventing"forinstructionsto

rotatetheventtotheside.Inadditiontorotatingtheventtotheside aVentPipeShield(NAHAOO2VC)isrequiredtoshieldthehot ventpipe.

BURN HAZARD. Vent pipe is HOT and could cause personal injury.

Hot vent pipe is in reach of small children when installed in downflow position.

Install vent pipe shield NAHA002VC.

kinking of the pressure switch hose, trim the hose to remove ex- cess length.

Note: When drilling new holes make sure metal shavings do not fall on or in components, as this can shorten the life of the furnace.

Typical Downflow Installation

RETURN

AIR

See side venting

Pressure Switch Relocation

If the furnace is installed in the u pflow position, the pressure switch will remain in the same position as installed by the factory unless

the inducer is rotated. If the furnace is installed in an orientation that places the pressure switch below the pressure tap on the in-

ducer housing, then the switch MUST be relocated. In order to re- locate the switch, locate 2 mounting holes or drill above the inducer pressure tap. When drilling the 2 holes make sure to keep the switch and tubing far enough away from the burners or hot sur-

faces as to not melt the hose, switch, or wires. To prevent possible

3. Side Venting

This furnace is shipped from the factory with the venter assembly in an upflow configurations (top vent). The venter assembly can

easily be rotated to a side vent configurations for use in upflow, horizontal-flow, or downflow application.

When using a side vent configuration (side outlet instead of top outlet), it may be necessary to relocate the pressure switch to the alternate position on the opposite side of the top panel. Two screw

holes are provided at the alternate position. Route the pressure switch tubing so the tubing is not kinked and not touching the hot collector box, venter housing, or motor. It may be necessary to

shorten the length of the tubing to properly route the tubing and eliminate kinks.

Combustible floor

base outlet flange

adapter

Vent Shield

Kit MUST BE OPPOSITE

SUPPLY

VENT DISCHARGE SIDE

AIR 25-23-19

Furnace with Screws

Rotating the Venter Assembly

If gas and electrical power have already been connected to unit shut off gas and remove power from unit. Unscrew screws on burner compartment door and remove burner compartment

door. (see Figure 6).

Disconnect power leads to the venter motor and hose to pres- sure switch. Remove three (3) or four (4) screws which secure

the venter to the collector box, (see Figure 7).

Cut webbing with a pair of snips holding the vent plate to the cabinet on either the left or right side of unit depending on right

or left venting as desired. Discard vent plate, (see Figure 6).

Replace venter gasket (part # 1013540, if needed) to venter assembly with adhesive in the same location as the old one.

Clip the wire tie for the venter wires, if needed.

Rotate venter assembly 90 ° right or left from original location depending on venting configurations.

Screws (2)

25-23-45

Venter Gasket

Main Line Entry

25-23-52c 25-23-52b

441 01 2613 02

7. Tighten the three (3) or four (4) screws that secure the venter assembly to the collector box. Do tighten screws enough to

compress venter gasket.

8. Replace power leads to venter motor and reconnect hose to pressure switch.

4. Combustion & Ventilation Air

CARBON MONOXIDE POISONING HAZARD.

Failure to provide adequate combustion and

ventilation air could result in death or personal

injury. Use methods described here to provide

combustion and ventilation air.

NOTE: Unused open vent hole must be covered. A Vent Cover is supplied with Vent Pipe Shield Kit NAHAOO2VC. A 55/16" diameter

Vent Cover is available separately from your distributor, or one can be fabricated with sheet metal for all side vent installations.

• Cleaning solvents (such as perchloroethylene).

• Printing inks, paint removers, varnishes, etc.

• Hydrochloric acid.

• Sulfuric Acid.

• Solvent cements and glues.

• Antistatic fabric softeners for clothes dryers.

• Masonry acid washing materials.

Outdoor Combustion Air Method

Furnaces require ventilation openings to provide sufficient air for proper combustion and ventilation of flue gases. All duct or open-

ings for supplying combustion and ventilation air must comply with the gas codes, or in the absence of local codes, the applicable na-

tional codes.

Combustion and ventilation air must be supplied in accordance with one of the following:

1. Section 8.3, Air for Combustion and Ventilation, of the National Fuel Gas Code, (NFGC), ANSI Z223.1-2002/NFPA 54-2002

in the U.S.,

2. Sections 7.2, 7.3, 7.5, 7.6, 7.7, and 7.8 of National Standard of Canada, Natural Gas and Propane Installation Code (NSCNGPIC), CSA B149.1-05 in Canada,

3. Applicable provisions of the local building code.

When the installation is complete, check that all appliances have adequate combustion air and are venting properly. See Venting

And Combustion Air Check in %. Gas Vent Installation "Section in this manual.

Contaminated Combustion Air

Installations in certain areas or types of structures could cause ex- cessive exposure to contaminated air having chemicals or halo-

gens that will result in safety and performance related problems and may harm the furnace. These instances must use only out-

door air for combustion.

The following areas or types of structures may contain or have ex- posure to the substances listed below. The installation must be

evaluated carefully as it may be necessary to provide outdoor air for combustion.

• Commercial buildings.

• Buildings with indoor pools.

• Furnaces installed in laundry rooms.

• Furnaces installed in hobby or craft rooms.

• Furnaces installed near chemical storage areas.

• Permanent wave solutions for hair.

• Chlorinated waxes and cleaners.

• Chlorine based swimming pool chemicals.

• Water softening chemicals.

• De-icing salts or chemicals.

• Carbon tetrachloride.

• Halo_erants.

441 01 2613 02

A space having less than 50 cubic feet per 1,000 BTUH input rating for all gas appliances installed in the space requires outdoor air for

combustion and ventilation.

Air Openings andConnecting Ducts

1. Total input rating for all gas appliances in the space MUST be considered when determining free area of openings.

2. Connect ducts or openings directly to the outdoors.

3. When screens are used to cover openings, the openings MUST be no smaller than 1/4" mesh.

4. The minimum dimension of air ducts MUST NOT be less than

3 '_ .

When sizing a grille, louver or screen use the free area of open- ing. If free area is NOT stamped or marked on grill or louver,

assume a 20% free area for wood and 60% for metal. Screens shall have a mesh size not smaller than 1/4".

Requirements

1. Provide the space with sufficient air for proper combustion and

ventilation of flue gases using horizontal or vertical ducts or openings.

Figure 8 illustrates how to provide combustion and ventilation air when two permanent openings, one inlet and one outlet, are used.

a. One opening MUST commence within 12" of the floor

and the second opening MUST commence within 12" of the ceiling.

b. Size openings and ducts per Table 1. c. Horizontal duct openings require 1 square inch of free

area per 2,000 BTUH (1,100 mm /kW) of combined input for all gas appliances in the space (see Table 1).

d. Vertical duct openings or openings directly communicat-

ing with the outdoors require 1 square inch of free area per 4,000 BTUH (550 mm /kW) for combined input of all gas appliances in the space (see Table 1).

When one permanent outdoor opening is used, the opening requires:

a. 1 sq. in of free area per 3,000 BTUH (700 mm2/kW) for

combined input of all gas appliances in the space (see Table 1) and

b. not less than the sum of the areas of all vent connectors in

the _space.

Outside Air (This is ONLY a guide. SubJect to codes of country having jurisdiction.)

ThisinstallationNOTapprovedinCanada

GasVent

, GableV_/)

(1)

Soffit Vent

G Vent_j_.Gable ba_ventilated Attic'_

I Top Above Insulation_

I 1 €_:;;_l TM

I/ SoffitVen,

I_ utletAir(1) Outlet/1_

II _. Air(1)

Vent

Inlet

Air(1)

MinimumOne Inlet and OneOutlet AirSupply is Required

May be in andCombination Shown

Inlet Air Opening Must beWithin12"(300mm)offloor OutletAir OpeningMustbeWithin12"(300mm)ofceiling

(1) 1 SquareInch (6cm2) per4000 BTUH (2) 1 Square Inch(6cm2) per2000 BTUH

The opening shall commence within 12" of the top of the enclo- b. sure. Appliances shall have clearances of at least 1" from the sides

and back and 6" from the front. The opening shall directly commu- c. nicate with the outdoors or shall communicate through a vertical or

horizontal duct to the outdoors or spaces (crawl or attic) that freely communicate with the outdoors.

4. Combination of Indoor and Outdoor Air shall have:

a. Indoor openings that comply with the Indoor Combus-

tion Air Method below and

F...... NG_

_,, _ r-_ Inlet

-- Air (2) Inlet

Outdoor openings located as required in the Outdoor Combustion air Method above and

Outdoor openings sized as follows.

1) Calculate the Ratio of all Indoor Space volume divid- ed by required volume for Indoor Combustion Air Meth- od. Outdoor openings sized as follows.

2) Outdoor opening size reduction Factor is I minus the Ratio in 1) above.

3) Minimum size of Outdoor openings shall be the size required in Outdoor Combustion Air Method above multiplied by reduction Factor.

Air (1)

........ Air(2)

FreeArea

BTUH MinimumFree Area Required for EachOpeningor Ductto Outdoors

Input TwoHorizontalDucts SingleOpening TwoVerticalDuctsor Openings RoundDuct

Rating (sq.inJ2,000 BTUH) (sq.in./3,000BTUH) (sq.inJ4,000BTUH) (sq. in./4,000

50,000 25 sq, in. 16.7sq. in. 12,5sq. in. 4" 75,000 37,5sq. in. 25 sq, in, 18.75sq. in. 5"

100,000 50sq. in. 33.3sq. in. 25 sq. in, 6" 125,000 62,50 sq. in. 41,7sq. in. 31.25sq, in. 7"

150,000 75 sq, in. 50 sq, in, 37,5 sq. in. 7"

EXAMPLE: Determining Free Area

Furnace Water Heater Total Input 100,000 + 30,000 (130,000 + 4,000) 32.5 Sq. In. Vertical

Furnace Water Heater Total Input 100,000 + 30,000 (130,000 + 2,000) 65 Sq. In. Horizontal

BTUH)

Indoor Combustion Air

Standard and Known-Air-Infiltration Rate Methods

Indoor air is permitted for combustion and ventilation, if the Standard or Known-air-lnfiltration Rate Method is used,

CARBON MONOXIDE POISONING HAZARD. Failure to supply adequate combustion air could

result in death or personal injury. Most homes will require additional air from outdoors

for combustion and ventilation. A space with at least 50 cubic feet per 1,OOOBTUH input rating or homes

with tight construction may need outdoor air to

supplement air infiltration for proper combustion and ventilation of flue gases.

441 O1 261302

The Standard Method may be used, if the space has no less vol- ume than 50 cubic feet per 1,000 BTUH of the maximum input rat-

ings for all gas appliances installed in the space. The standard method permits indoor air to be used for combustion and ventila-

tion air. The Known Air Infiltration Rate Method shall be used if the in-

filtration rate is known to be less than 0.40 air changes per hour

MINIMUMSPACEVOLUMEFOR100%COMBUSTION

OtherThan Fan-Assisted Total

.............................................................. (1,OOO'sBtuh)

ACH

0.60

0.50

0.40

0.30

0.20

0.10

0.00

NP = Not Permitted Table 2 Minimum Space Volumes were determined by using the

following equations from the National Fuel Gas Code ANSI Z223.1/NFPA 54-2002, 8.3.3.2:

1. For other than fan-assisted appliances such as a draft hood-equipped water heater,

Volume other = ACH 1000 Btu / hr

2. For fan-assisted appliances such as this furnace,

Volume fan = ACH 1000Btu / hr

If:

[ other= combined input of all other than fan-assisted

appliances in Btu/hr

[fan = combined input of all fan-assisted appliances in Btu/hr

ACH = air changes per hour (ACH shall not exceed 0.60.)

The following requirements apply to the Standard Method and to the Known Air Infiltration Rate Method.

• Adjoining rooms can be considered part of a space, if there

are no closable doors between rooms.

• An attic or crawl space may be considered a space that freely

communicates with the outdoors provided there are adequate

ventilation openings directly to outdoors. Openings MUST re-

1,050 1,260

1,575 2,100

3,150

6,300

21 ft3 ( I other )

15ft3 ( Iran )

1,400 1,680

2,100 2,800

4,200 8,400

1,750 2,100

2,625 3,500

5,250

10,500

(ACH) and equal to or greater than 0.10 ACH. Infiltration rates greater than 0.60 ACH shall not be used. The minimum required

volume of the space varies with the number of ACH and shall be determined per Table 2 or Equations 1 and 2. Determine the minimum required volume for each appliance in the space, and add the volumes together to get the total minimum required vol- ume for the space.

ANDVENTILATIONAIRFROMINDOORS(ft 3)

Fan-assistedTotal

(1,000'sBtuh)

1,250 1,500

1,875 2,500

3,750

7,500

main open and NOT have any means of being closed off. Ven- tilation openings to outdoors MUST be at least 1 square inch

of free area per 4,000 BTUH of total input rating for all gas ap- pliances in the space.

In spaces that use the Indoor Combustion Air Method, in- filtration should be adequate to provide air for combustion, ventilation and dilution of flue gases. However, in buildings

with unusually tight construction, additional air MUST be pro-

vided using the methods described in section titled Outdoor

Combustion Air Method:

Unusually tight construction is defined as Construction with:

1. Walls and ceilings exposed to the outdoors have a con-

2. Doors and openable windows are weather stripped and

3. Other openings are caulked or sealed. These include

75 I

1,875 2,250

2,813 3,750

5,625

11,250

tinuous, sealed vapor barrier. Openings are gasketed or sealed and

joints around window and door frames, between sole

plates and floors, between wall-ceiling joints, between wall panels, at penetrations for plumbing, electrical and gas lines, etc.

100

2,500 3,000

3,750 5,000

7,500

15,000

125 I 180

3,125 3,750 3,750 4,500

4,688 5,625 6,250 7,500

9,375 11,250

18250 22,500

NP NP

Ventilation Air

Some provincial codes and local municipalities require ventilation or make-up air be brought into the conditioned space as replace-

ment air. Whichever method is used, the mixed return air tempera- ture across the heat exchanger MUST not fall below 60 ° continuously, or 55 ° on an intermittent basis so that flue gases will

not condense excessively in the heat exchanger. Excessive con- densation will shorten the life of the heat exchanger and possibly void your warranty.

5. Gas Vent Installation

CARBON MONOXIDE POISONING, FIRE AND EXPLOSION HAZARD.

Failure to properly vent this furnace could result in death, personal injury and/or property damage.

Read and follow all instructions in this section.

Install the vent in compliance with codes of the country having ju- risdiction, local codes or ordinances and these instructions.

441 O1 2613 02

This Category [ furnace is fan-assisted.

Category ] furnace definition: A central furnace which operates with a non-positive vent static pressure and with a flue loss not less than 17 percent. These furnaces are approved for common-

venting and multi-story venting with other fan-assisted or draft hood-equipped appliances in accordance with the NFGC or

NSCNGPIC

Category I Safe Venting Requirements

Category ] furnace vent installations shall be in accordance with Parts 10 and 13 of the National Fuel Gas Code (NFGC), ANSI

Z223.1-2002/NFPA54-2002;and/orSection7andAppendixCof theCSAB149.1-05,NationalStandardofCanada,NaturalGas

andPropaneInstallationCode;thelocalbuildingcodes;furnace andventmanufacturer'sinstructions.

NOTE: The following instructions comply with the ANSI Z223.1/NFPA 54 National Fuel Gas Code and CSA B149.1 Natu-

ral Gas and Propane Installation code, based on the input rate on the furnace rating plate.

If a Category ] vent passes through an attic, any concealed space or floor, use ONLY Type B or Type L double wall vent pipe. If vent pipe passes through interior wall, use Type B vent pipe with ventilated thimble ONLY.

2. Do NOT vent furnace into any chimney serving an open fire- place or solid fuel burning appliance.

3. Use the same diameter Category ] connector or pipe as per- mitted by:

the National Fuel Gas Code Code (NFGC) ANSI Z223.1-2002 / NFPA 54-2002 sections 10 and 13 vent-

ing requirements in the United States

the National Standard of Canada Natural Gas and Pro- pane Installation Code (NSCNGPIC) CSA B149.1-05

section 7 and appendix C venting requirements in Cana- da.

4, Push the vent connector onto the furnace flue collar of the

venter assembly until it touches the bead (at least 5/8" overlap) and fasten with at least two field-supplied, corrosion-resist-

ant, sheet metal screws located at least 140 ° apart.

5. Keep vertical Category [ vent pipe or vent connector runs as short and direct as possible.

6. Vertical outdoor runs of Type-B or ANY single wall vent pipe below the roof line are NOT permitted.

7. Slopeallhorizontalrunsupfromfurnacetotheventterminal a minimum of 1/4" per foot (21 mm/m).

8. Rigidly support all horizontal portions of theventing system ev- ery 6' or less using proper clamps and metal straps to prevent

sagging and ensure there is no movement after installation.

9. Check existing gas vent or chimney to ensure they meet clear- ances and local codes. See Figure 1

10. The furnace MUST be connected to a factory built chimney or vent complying with a recognized standard, or a masonry or concrete chimney lined with a lining material acceptable to the authority having jurisdiction. Venting into an unlined ma- sonry chimney or concrete chimney is prohibited. See the

6. Masonry Chimney Venting section in these instruc- tions.

11. Fan-assisted combustion system Category ] furnaces shall not be vented into single-wall metal vents.

12. Category ] furnaces must be vented vertically or nearly verti- cally, unless equipped with a listed mechanical venter.

13. Vent connectors serving Category I furnaces shall not be con- nected into any portion of mechanical draft systems operating under positive pressure.

Venting and Combustion Air Check

NOTE: When an existing Category I furnace is removed or re- placed, the original venting system may no longer be sized to prop-

erly vent the attached appliances, and to make sure there is adequate combustion air for all appliances, MAKE THE FOL-

LOWING CHECK.

/2N

CARBON MONOXIDE POISONING HAZARD

Failure to follow the steps outlined below for each

appliance connected to the venting system being placed

into operation, could result in carbon monoxide poisoning or death:

The following steps shall be followed for each appliance connected to the venting system being placed into

operation, while all other appliances connected to the venting system are not in operation:

1.Seal any unused openings in the venting system.

2.Inspect the venting system for proper size and horizontal pitch, as required in the National Fuel Gas Code, ANSI

Z223,1/NFPA 54 or CSA B149.1, Natural Gas and Propane Installation Code and these instructions. Deter-

mine that there is no blockage or restriction, leakage, cor- rosion and other deficiencies which could cause an unsafe

condition.

3.As far as practical, close all building doors and windows and all doors between the space in which the appliance(s)

connected to the venting system are located and other spaces of the building.

4.Close fireplace dampers.

5.Turn on clothes dryers and any appliance not connected to

the venting system. Turn on any exhaust fans, such as

range hoods and bathroom exhausts, so they are operating at maximum speed. Do not operate a summer

exhaust fan.

6. Follow the lighting instructions. Place the appliance being inspected into operation. Adjust the thermostat so appliance is operating continuously.

7.Test for spillage from draft hood equipped appliances at

the draft hood relief opening after 5 minutes of main burner

operation. Use the flame of a match or candle. (Figure 9)

8.If improper venting is observed, during any of the above

tests, the venting system must be corrected in accordance with the National Fuel Gas Code, ANSI Z223,1/NFPA 54

and/or CSA B149, 1, Natural Gas and Propane Installation

Code.

9.After it has been determined that each appliance con- nected to the venting system properly vents when tested

as outlined above, return doors, windows, exhaust fans, fireplace dampers and any other gas-fired burning

appliance to their previous conditions of use.

Vent Check

Vent Pipe _1 I A/ Draft Hood

Typical Gas Water Heater

NOTE: If fame pu s towar s ra , this indicates sufficient infiltration air.

II d dft hoJd

Venting to Existing Masonry Chimney

Dedicated venting of one fan assisted furnace into any ma- sonry chimney is restricted. A chimney must first be lined with either Type B vent sized in accordance with NFGC tables 13.1 or

441 01 261302

13.2 or a listed, metal lining system. (See Section 7 Masonry Chimney Venting of these instructions.)

Listed, corrugated metallic chimney liner systems in masonry chimneys shall be sized by using NFGC tables per 13.1.7 for dedi- cated venting and per 13.2.19 for common venting with the maxi- mum capacity reduced by 20% (0.80 X maximum capacity) and

the minimum capacity as shown in the applicable table. In Canada, use the NSCNGPIC, appendix C, section 10. Corrugated metal

vent systems installed with bends or offsets require additional re- duction of 5% of the vent capacity for each bend up to 45° and 10% of the vent capacity for each bend from 45 ° up to 90 ° .

NOTE: Two (2) 45° elbows are equivalent to one (1) 90° elbow.

6. Horizontal Venting

Category I Furnaces With External Power Venters

In order to maintain a Category ] classification of fan-assisted fur- naces when vented horizontally with sidewall termination, a power venter is REQUIRED to maintain a negative pressure in the vent- ing system.

In the U.S.: Per the NFGC, a listed power venter may be used, when approved by the authority having jurisdiction.

In Canada: Only power venters approved by the appliance manufacturer and where allowed by the authority having jurisdic- tion may be used

Please consult the Fields Controls Co. or Tjernlund Products, Inc. for power venters certified for use with our furnaces.

Combined Venting into a Masonry Chimney

Venting into a masonry or concrete chimney is only permitted as outlined in the NFGC or NSCNGPIC venting tables. Follow

all safe venting requirements.

Note: See section "7. Masonry Chimney Venting".

Vent Termination

Venting Through a Non-Combustible and Combustible Wall

Consult External Power Venter manufacturer instructions.

Select the power venter to match the Btuh input of the furnace be- ing vented. Follow all of the Power Venter manufacturer's installa-

tion requirements included with the power venter for:

• venting installation,

• vent terminal location,

• preventing blockage by snow,

• protecting building materials from degradation by flue gases,

• see Figure 10 for required vent termination. NOTE: It is the responsibility of the installer to properly terminate

the vent and provide adequate shielding. This is essential in order to avoid water/ice damage to building, shrubs and walkways.

441 01 2613 02 [_

iiiiiiiiiiiiiiiiiiiiiiiiiiiii i i! ii ii ! i ! !i ! ii i i i i i i i i i i i

Other than Direct Vent Termination Clearance

Item

Clearance above grade, veranda, porch, deck, balcony, or 12" (30cm) # anticipated snow level

Clearance to a window or door that may be opened

Clearance to a permanently closed window

Vertical clearance to a ventilated soffit located above the ter- minal within a horizontal distance of 2' (61cm) from the cent-

edine of the terminal

Clearance to an unventilated soffit

Clearance to an outside corner

Clearance to an inside corner

Clearance to each side ofthe centedine extended above elec- trical meter or gas service regulator assembly

Clearance to service regulator vent outlet

Clearance to non-mechanical air supply inlet to building or the combustion air inlet to any other appliance

Clearance Descriptions Canadian Installation (1)

IVIVENTTERMINAL AIRSUPPLVINLET

6" (15 cm) for appliances _< 10,000 BTUH (3kW), 12" (30 cm) for appliances > 10,000 Btuh (3kW) and _<100,000 Btuh

(30 kW), 36" (91 cm) for appliances > 100,000 Bluh (30 kW)

3' (91 cm) within 15' (4.5 m) above the meter/regulator assembly

3' (91 cm)

6" (15 cm) forappliances_<10,000BTUH(3kW),12" (30 cm)forappliances> 10,000Btuh(3kW) and _<100,000Btuh

AREA WHERE TERMINAL IS NOT PERMITED

U.S. Installation (2)

12" (30 cm)

4' (1.2 m) below or to the side of the opening. 1' (30 cm) above the opening.

3' (91 cm) within 15' (4.5 m) above the meter/regulator assembly

4' (1.2 m) below or to the side of opening: 1' (30 cm) above opening,

(30 kW),36" (91cm)forappliances> 100,000Btuh(30 kW)

Clearanceto amechanicalair supplyinlet

Clearanceundera veranda,porch,deck,or balcony

Clearance to each side of the centedine extended above or * below vent terminal of the furnace to a dryer or water heater

vent, or other appliance's direct vent intake or exhaust.

Clearance from a plumbing vent stack 3' (91 cm)

Clearance above a paved sidewalk or paved driveway located 7' (2.13 m) on public properly.

(I.) InaccordancewiththecurrentCSAB149.1,NaturalGasandPropanelnstaHationCode (2.) In accordance with the current ANSI Z223.11NFPA 54, Nafional Fuel Gas Code

# 18" (46 cm) above roof surface + Permitted only if veranda, porch, deck, or balcony is fully open on a minimum of two sides beneath the floor.

For clearances not specified in ANSI Z223.1/NFPA 54 or CSA B149.1, clearances shall be in accordance with local installation codes and the requirements of the gas supplier and the manufacture's installation instructions.

A vent shall not terminate directly above a sidewalk or paved driveway that is located between two single family dwellings and serves both dwellings.

Notes:

1. The vent for this appliance shall not terminate a. Over public walkways; or b. Near soffit vents or crawl space vents or other areas where condensate or vapor could create a nusiance or hazard or property damage; or

c. Where condensate vapor could cause damage or could be detrimental to the operafion of regulators, relief valves, or other equipment.

2. When locating vent terminations, consideration must be given to prevailing winds, location, and other conditions which may cause recirculation of the combusfiob products of adjacent vents.

Recirculafion can cause poor combustion, inlet condensate problems, and accelerated corrosion of the heat exchangers.

6' (1.83m) 12" (30cm) +

3' (91 cm) above if within 10' (3m) horizontally

3'(01cm) 7'(2.13m)

441 O1 261302

7. Masonry Chimney Venting

Chimney Inspection

All masonry chimney construction must conform to Standard ANSI/NFPA 211-2003 and to any state or local codes applicable. The chimney must be in good condition and a complete chimney

inspection must be conducted prior to furnace installation. If the in- spection reveals damage or abnormal conditions, make neces- sary repairs or seek expert help. See Figure 11 "The Chimney

Inspection Chart". Measure inside area of tile-liner and exact height of chimney from the top of the chimney to the highest ap- pliance flue collar or drafthood outlet.

Connector Type

To reduce flue gas heat loss and the chance of condensate prob- lems, the vent connector must be double-wall Type B vent.

Venting Restrictions for Chimney Types

Interior Chimney - has no sides exposed to the outdoors below the roofline. All installations can be single furnace or common vented with another draft hood equipped Category ] appliance.

Exterior Chimney - has one or more sides exposed to the out- doors below the roof line. All installations with a 99% Winter De-

sign Temperature* below 17°F must be common vented only with a draft hood equipped Category I appliance. * The 99% Winter Design Dry-Bulb (db) temperatures are found in the

1993 ASHRAE Fundamentals Handbook, Chapter 24, Table 1 (United States) and 2 (Ca nada), or use the 99.6% heating db temperatures found

in the 1997 or 2001 ASHRAE Fundamentals Handbook, Climatic Design Information chapter, Table 1A (United States) and 2A (Canada).

CARBON MONOXIDE POISONING, FIRE AND EXPLOSION HAZARD.

Failure to properly vent this furnace could result in

death, personal injury and/or property damage. These furnaces are CSA (formerly AGA and CGA)

design-certified for venting into exterior clay tile-lined masonry chimneys with a factory accessory Chimney Adapter Kit. Refer to the furnace rating plate for correct kit usage. The Chimney Adapter Kits are for use with ONLY

furnaces having a Chimney Adapter Kit number marked on the furnace rating plate.

Ira claytile-lined masonry chimney is being used and it is exposed to the outdoors below the roof line, relining might be required.

Chimneys shall conform to the Standard for Chimneys, Fire- places, Vents, and Solid Fuel Burning Appliances ANSI/NFPA

211-2003 in the United States and to a Provincial or Territorial Building Code in Canada (in its absence, the National Building

Code of Canada) and must be in good condition.

U.S.A.- Refer to Sections 13.1.9 or 13.2.20 of the NFGC or the au- thority having jurisdiction to determine whether relining isrequired. If relining is required, use a properly sized listed metal liner,

Type-B vent, or a listed alternative venting design. NOTE: See the NFGC, 13.1.9 and 13.2.20 regarding alternative

venting design and the exception, which cover installations such as the Chimney Adapter Kits NAHAOOIDH and NAHAOO2DH.

The Chimney Adapter Kits are listed alternative venting designs for these furnaces. See the kit instructions for complete details.

Canada (and U.S.A.)-This furnace is permitted to be vented into a clay tile-lined masonry chimney that is exposed to the outdoors

below the roof line, provided:

1. Vent connector is Type-B double-wall, and

2. This furnace is common vented with at least 1 draft hood- equipped appliance, and

3. The combined appliance input rating is less than the maxi- mum capacity given in Table A, and

4. The input rating of each space-heating appliance is greater than the minimum input rating given in Table B for Masonry Chimneys for the local 99% Winter Design Temperature.

Chimneys having internal areas greater than 38 square inches require furnace input ratings greater than the input ratings of these furnaces. See footnote at bottom of Table B,

and

5. The authority having jurisdiction approves.

If all of these conditions cannot be met, an alternative venting de- sign shall be used, such as the listed chimney adapter kit with a furnace listed for use with the kit, a listed chimney-lining system,

or a Type-B vent.

These furnaces are CSA design-certified for use in exterior clay tile-lined masonry chimneys with a factory accessory Chimney Adapter Kit. Refer to the furnace rating plate for correct kit usage.

The Chimney Adapter Kits are listed alternative venting designs and are for use with ONLY furnaces having a Chimney Adapter Kit number marked on the furnace rating plate.

441 01 2613 02 [_

CHIMNEY INSPECTION CHART

ForadditionalrequirementsrefertotheNationalFuelGasCodeNFPA541ANSIZ223.1-2002andANSIINFPA211-2003Chimneys,Fireplaces,Vents,andSolidFuel Burnin9 Appliancesin theU.S.A. orto the CanadianInstallationCodeCSA B149.1-05 inCanada.

Rebuild I

Reline

andtile debris?

Removemortar 1_

.._

tile m.isalignment, Yes

mg sections,

_10 No adapter venting NotSuitable

ins[ruc_lons Tor w

/,%-\ opp,cotion/

Oondonsoto ",,<u,ob,,y

of chimney?

/ w,. i T Line chimney with properly

sll • ed,,stedfle,ib,o eta,

Install chimney stz

V [ liner or Type-g vent per NFGC or

_,,,_.. I I mstructlons. NSCNGPIC Vent Sizing Tables

j Tu_ I Not Suitable andlinerorventmanufacturer's

Chimney ! _ IsChimney to _ t,l_.[. _ PartCofchimney

exposed to outdoors _ _ h_ a_i_t_H t,-,= _'_ Ir I .,.,.,/" adapter venting _le

belowroofline? Yes "_ "_fur'na;e_ _ _ instructions for |

\ / I -,,<u,,ab,,y

adapter per

No V 1 V _ ia_;PutcetloPnesr'

_] 441 01 261302

Exterior Masonry Chimney,

FAN+NAT Installations with

Type-B Double-Wall Vent Connectors

Table A-

Combined Appliance

Maximum Input Rating in

Thousands of Btu per Hr

VENT

HEIGHT

(FT)

8 10 15

20 30

INTERNAL AREA OF CHIMNEY

(SQ IN,)

12 19 28 38 74 119 178 257

80 130 193 279 84 138 207 299

NR 152 233 334 NR NR 250 368

NR NR NR 404

Table B-

Minimum Allowable Input Rating of

Space-Heating Appliance in

Thousands of Btu per Hr

VENT INTERNAL AREA OF CHIMNEY

HEIGHT (SQ IN.)

(FT) 12 19 28 38

Local 99% Winter Design Temperature: 17 to 26 ° F*

[o 8

o 10

2O 30

'- 10

15 2O

o 10

_ is

20 30

-11 ° F or

lower

* The 99% Winter Design Dry-Bulb (db) temperatures are found in the

1993 ASHRAE Fundamentals Handbook, Chapter 24, Table I (United States) and 2 (Canada), or use the 99.6% heating db

temperaturesfound in the 1997 or 2001 ASHRAE Fundamentals

Handbook, Climatic Design Information chapter, Table 1A (United States) and 2A (Canada).

Inspections before the sale and at the time of installation will deter- mine the acceptability of the chimney or the need for repair and/or

(re)lining. Refer to the Chimney Inspection Chart to perform a chimney in_._..pection.

441 01 2613 02

0 55 99 141

52 74 111 154

NR 90 125 169 NR NR 167 212

NR NR 212 258 NR NR NR 362

Local 99% Winter Design Temperature: 5 to 16° F*

NR 78 121 166 NR 94 135 182

NR 111 149 198 NR NR 193 247

NR NR NR 293 NR NR NR 377

Local 99% Winter Design Temperature: -10 to 4° F*

NR NR 145 196 NR NR 159 213

NR NR 175 231 NR NR NR 283

NR NR NR 333 NR NR NR NR

Local 99% Winter Design Temperature: -11 ° F or

lower*

Not recommended for any vent configuration

If the inspection of a previously used tile-lined chimney:

a. Shows signs of vent gas condensation, the chimney should

be relined in accordance with local codes and the authority having jurisdiction. The chimney should be relined with a listed metal liner, Type-B vent, or a listed chimney adapter kit to reduce condensation. If a condensate drain is required

by local code, refer to the NFGC, Section 10.9 for additional information on condensate drains.

b. Indicates the chimney exceeds the maximum permissible

size in the tables, the chimney should be rebuilt or relined to conform to the requirements of the equipment being installed and the authority having jurisdiction.

A chimney without a clay tile liner, which is otherwise in good con- dition, shall be rebuilt to conform to ANSI/N FPA 211 or be lined with

a UL listed (ULC listed in Canada) metal liner or UL listed Type-B vent. Relining with a listed metal liner or Type-B vent is consid-

ered to be a vent-in-a-chase. If a metal liner or Type-B vent is used to line a chimney, no other

appliance shall be vented into the annular space between the chimney and the metal liner.

APPLIANCE APPLICATION REQUIREMENTS

Appliance operation has a significant impact on the performance of the venting system. If the appliances are sized, installed, ad-

justed, and operated properly, the venting system and/or the ap-

pliances should not suffer from condensation and corrosion. The venting system and all appliances shall be installed in accordance with applicable listings, standards, and codes.

The furnace should be sized to provide 100 percent of the design heating load requirement plus any margin that occurs because of

furnace model size capacity increments. Heating load estimates can be made using approved methods available from Air Condi-

tioning Contractors of America (Manual J); American Society of Heating, Refrigerating, and Air-Conditioning Engineers; or other approved engineering methods. Excessive oversizing of the fur-

nace could cause the furnace and/or vent to fail prematurely. When a metal vent or metal liner is used, the vent or liner must be in

good condition and be installed in accordance with the vent or liner manufacturer's instructions.

To prevent condensation in the furnace and vent system, the fol- lowing precautions must be observed:

1. The return-air temperature must be at least 60°F db except for brief periods of time during warm-up from setback at no lower than 55°F db or during initial start-up from a standby

condition.

2. Adjust the gas input rate per the installation instructions. Low gas input rate causes low vent gas temperatures, ca us- ing condensation and corrosion in the furnace and/or vent- ing system. Derating is permitted only for altitudes above

2000'1

3. Adjust the air temperature rise to the midpoint of the rise range or slightly above. Low air temperature rise can ca use

low vent gas temperature and potential for condensation problems.

4. Set the thermostat heat anticipator or cycle rate to reduce short cycling.

Air for combustion must not be contaminated by halogen com- pounds which include chlorides, fluorides, bromides, and iodides. These compounds are found in many common home products

such as detergent, paint, glue, aerosol spray, bleach, cleaning sol- vent, salt, and air freshener, and can cause corrosion of furnaces

and vents. Avoid using such products in the combustion-air sup- ply. Furnace use during construction of the building could cause

the furnace to be exposed to halogen compounds, causing prema- ture failure of the furnace or ventincj_stem due to corrosion.

+ 39 hidden pages
