CAUTION

Read all precautions and instructions in this manual before using this equipment. Save this manual for future reference.

Serial Number Decal

Model No. 831.297190 Serial No.

The serial number is found in the location shown below. Write the serial number in the space above for future reference.

USER'S MANUAL

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179

Page 2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

MAINTENANCE AND TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

LIMITED WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

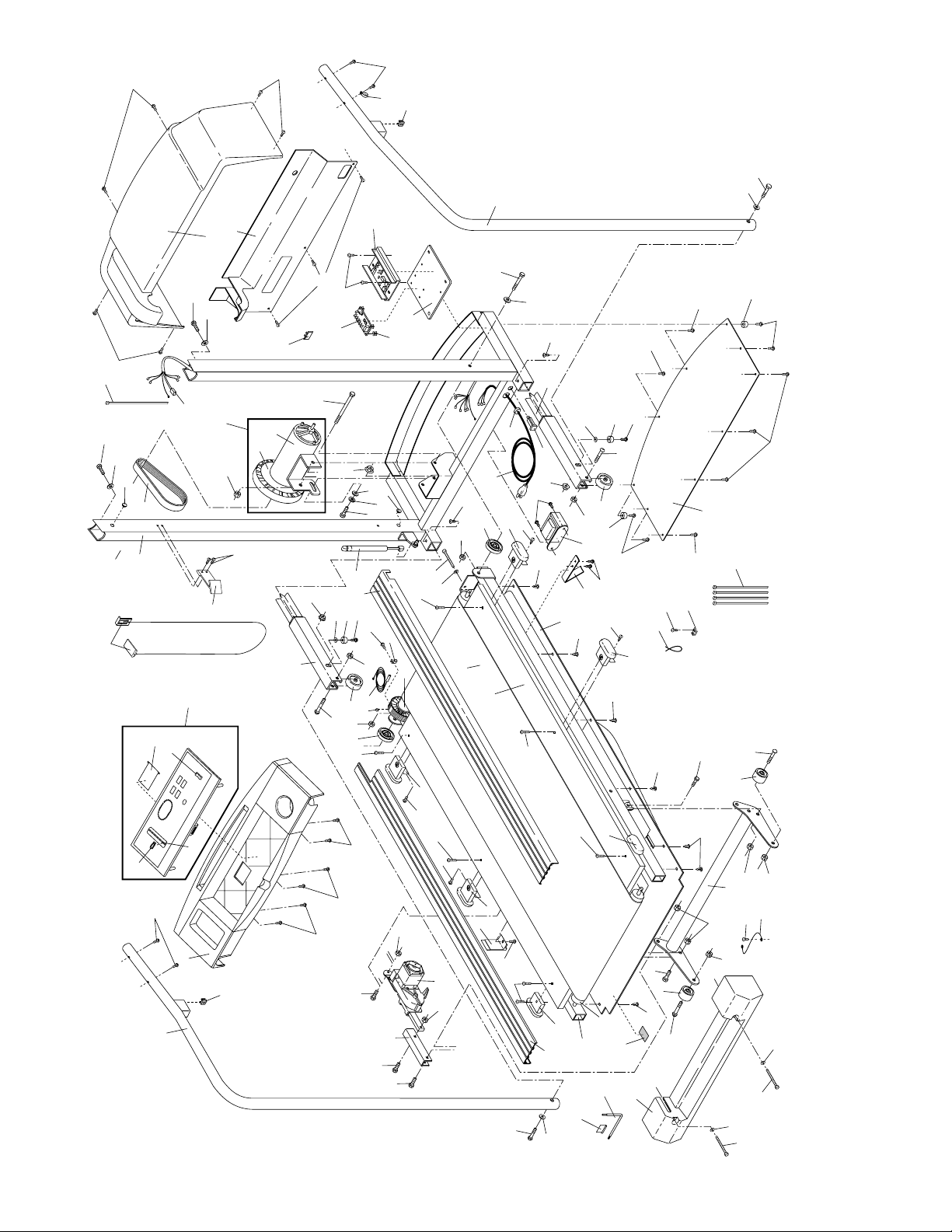

Note: An EXPLODED DRAWING and PART LIST are attached to the center of this manual. Please save them for future reference.

1. It is the responsibility of the owner to ensure that all users of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described in this manual.

3. Place the treadmill on a level surface, with at least eight feet of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from moisture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 250 pounds.

8. Never allow more than one person on the treadmill at a time.

9. Wear appropriate exercise clothing when using the treadmill. Do not wear loose clothing that could become caught in the treadmill. Athletic support clothes are recommended for both men and women. Always wear athletic shoes. Never use the treadmill with bare feet, wearing only stockings, or in sandals.

10. When connecting the power cord (see page 7), plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be on the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

12. Keep the power cord and the surge protector away from heated surfaces.

WARNING:

To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

Page 3

13. Never move the walking belt while the power is turned off. Do not operate the treadmill if the power cord or plug is damaged, or if the treadmill is not working properly. (See BEFORE YOU BEGIN on page 4 if the treadmill is not working properly.)

14. Never start the treadmill while you are standing on the walking belt. Always hold the handrails while using the treadmill.

15. The treadmill is capable of high speeds. Adjust the speed in small increments to avoid sudden jumps in speed.

16. To reduce the possibility of the treadmill overheating, do not operate the treadmill continuously for longer than 1 hour.

17. Never leave the treadmill unattended while it is running. Always remove the key when the treadmill is not in use.

18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

ASSEMBLY on page 5, and HOW TO MOVE THE TREADMILL on page 10.) You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make sure that the storage latch is fully closed.

20. Inspect and tighten all parts of the treadmill regularly.

21. Never insert any object into any opening.

22. Always unplug the power cord before performing the maintenance and adjustment procedures described in this manual. Never remove the motor hood unless instructed to do so by an authorized service representative. Servicing other than the procedures in this manual should be performed by an authorized service representative only.

23. This treadmill is intended for in-home use only. Do not use this treadmill in any commercial, rental, or institutional setting.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. SEARS assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

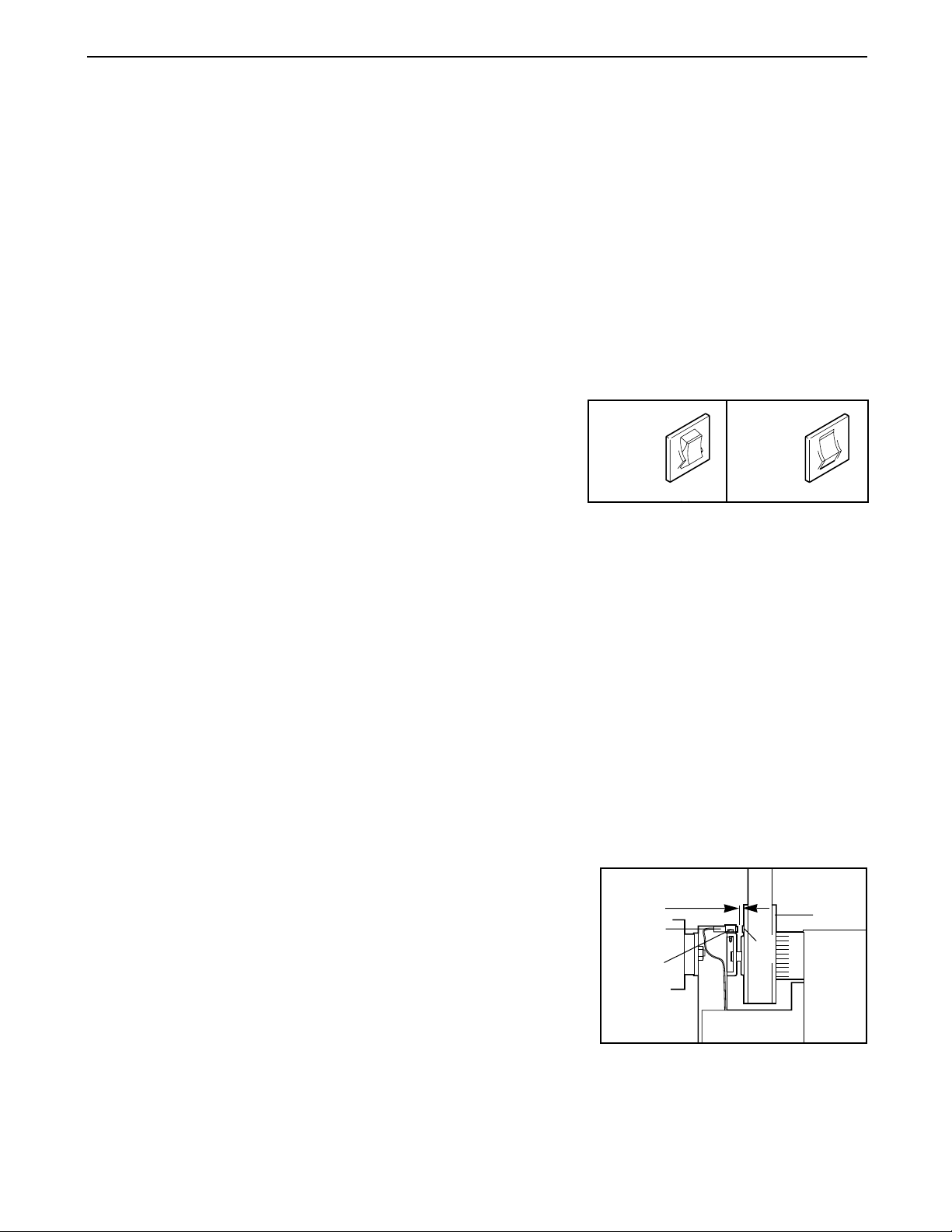

The decal shown below has been placed on your treadmill. If the decal is missing, or if it is not legible, please call our toll-free HELPLINE to order a free replacement decal (see the back cover of this manual). Apply the decal in the location shown.

Page 4

Congratulations for purchasing the new SEARS

LIFESTYLER EXPANSE 850 treadmill. The EXPANSE 850 treadmill combines advanced technology with innovative design to let you enjoy an excellent form of cardiovascular exercise in the convenience and privacy of your home. And when you’re not exercising, the unique EXPANSE 850 can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before using the treadmill. If you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays). To help us assist you, please note the product model number and serial number before calling. The model number of the treadmill is 831.297190. The serial number can be found on a decal attached to the treadmill (see the front cover of this manual for the location).

Before reading further, please review the drawing below and familiarize yourself with the parts that are labeled.

BEFORE YOU BEGIN

Handrail

Console

Storage Latch

Key/Clip

Circuit

Breaker

Incline Leg

Walking Belt

Hood

Cushioned Walking Platform

Front Wheel

Foot Rails

Power Cord

Rear Roller Adjustment Bolts

Water Bottle

Holder (Bottle

not included)

Towel Rack

Accessory Tray

RIGHT SIDELEFT SIDE

Page 5

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the small parts used in assembly. Assembly requires the included allen wrench and your own phillips screw-

driver , adjustable wrench , and scissors .

1. With the help of a second person, carefully lay the treadmill on its right side as shown (refer to the drawing on page 4 to identify the right side).

Insert the Extension Legs (41) into the treadmill. Make sure that the Extension Legs are turned so the Base Pads (36) are on the indicated side. Attach each Extension Leg with an Extension Leg Screw (34).

With the help of a second person, carefully raise the treadmill to the upright position so the Extension Legs (41) are resting flat on the floor.

2. Refer to HOW TO LOWER THE TREADMILL FOR USE on page 11. Follow the instructions in step 2 to lower the treadmill.

Position the Left Handrail (2) on the left Upright (14). The lower end of the Left Handrail should be on the outside of the Extension Leg (41) as shown. Thread a Handrail Bolt (15) with a Handrail Washer (16) into the left Upright and the Left Handrail. Do not tighten the Handrail Bolt yet.

Attach the lower end of the Left Handrail (2) to the Extension Leg (41) with a 3 1/2” Handrail Bolt (89), a 3/8” Washer (61), and a Flange Nut (57). Do not tighten the

Handrail Bolt yet.

Handrail Washer (16)–2

Extension Leg Screw (34)–2

3 1/2" Handrail Bolt (89)–2

3/8" Washer (61)–2

Flange Nut (57)–2

1/2" Screw (13)–2

Handrail Bolt (15)–2

3/4" Screw (91)–4

Page 6

3. With the help of a second person, hold the Console Base

(6) and the Right Handrail (32) near the right Upright (14) as shown. Insert the Wire Harness (26) down into the right Upright; bend the Wire Harness, if necessary. Next, route the Wire Harness through the bracket on the Right Handrail and insert the bracket into the right Upright.

Make sure that the Wire Harness is not pinched.

Refer to the inset drawing. Slide the Strain Relief Clip (88) onto the Wire Harness (26). Make sure that there is no slack in the Wire Harness between the Strain Relief Clip and the Console Base (6). Insert a 3/4” Screw (91) into the Strain Relief Clip and into the indicated hole in the Right Handrail (32). Tighten the Screw into the Console Base.

IMPORTANT: The Strain Relief Clip (88) must be

attached as instructed.

4. Attach the Console Base (6) to the Left and Right

Handrails (2, 32) with three 3/4” Screws (91).

5. Thread a Handrail Bolt (15) with a Handrail Washer (16)

into the right Upright (14) and the Right Handrail (32). Do

not tighten the Handrail Bolt yet.

Attach the lower end of the Right Handrail (32) to the Extension Leg (41) with a 3 1/2” Handrail Bolt (89), a 3/8” Washer (61), and a Flange Nut (57).

Tighten all parts used in this step and in step 2.

6. Attach the Storage Latch (12) to the left Upright (14) with

two 1/2” Screws (13). Be careful not to overtighten the Screws.

7. Remove the backing from the Adhesive Clip (74). Press

the Adhesive Clip onto the base of the Uprights (14) in the indicated location. Press the Allen Wrench (73) into the Adhesive Clip.

8. Make sure that all parts are tightened before you use

the treadmill. To protect the floor or carpet, place a mat under the treadmill.

Bracket

Page 7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETMWALKING BELT

Your treadmill features a walking belt coated with PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other substances to the walking belt or the walking platform. Such substances will deteriorate the walking belt and cause excessive wear.

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated electronic equipment, can be seriously damaged by sudden voltage changes in your home’s power. Voltage surges, spikes, and noise interference can result from weather conditions or from other appliances being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge suppressor with your treadmill (see drawing 1 at the right).

Surge suppressors are sold at most hardware stores and department stores. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

This product must be grounded. If it should malfunction or break down, grounding provides a path of least resistance for electric current to reduce the risk of electric shock. This product is equipped with a cord having an equipment-grounding conductor and a grounding plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate outlet that is properly installed and grounded in accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit, and has a grounding plug that looks like the plug illustrated in drawing 1 below. A temporary adapter that looks like the adapter illustrated in drawing 2 may be used to connect the surge suppressor to a 2-pole receptacle as shown in drawing 2 if a properly grounded outlet is not available.

The temporary adapter should be used only until a properly grounded outlet (drawing 1) can be installed by a qualified electrician.

The green-colored rigid ear, lug, or the like extending from the adapter must be connected to a permanent ground such as a properly grounded outlet box cover. Whenever the adapter is used it must be held in place by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified electrician to determine if the outlet box cover is grounded before using an adapter.

DANGER:Improper connection

of the equipment-grounding conductor can result in an increased risk of electric shock. Check with a qualified electrician or serviceman if you are in doubt as to whether the product is properly grounded. Do not modify the plug provided with the product—if it will not fit the outlet, have a proper outlet installed by a qualified electrician.

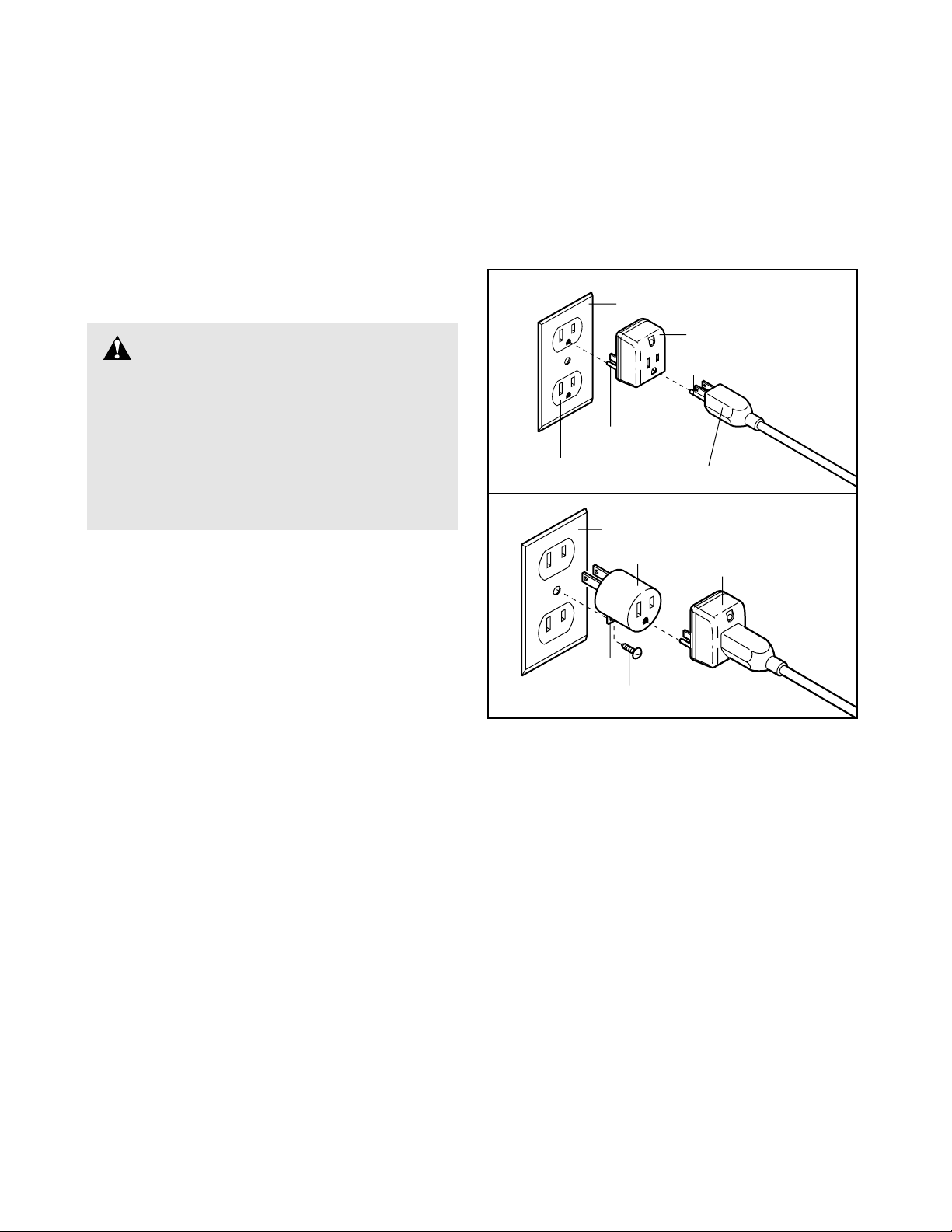

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

Page 8

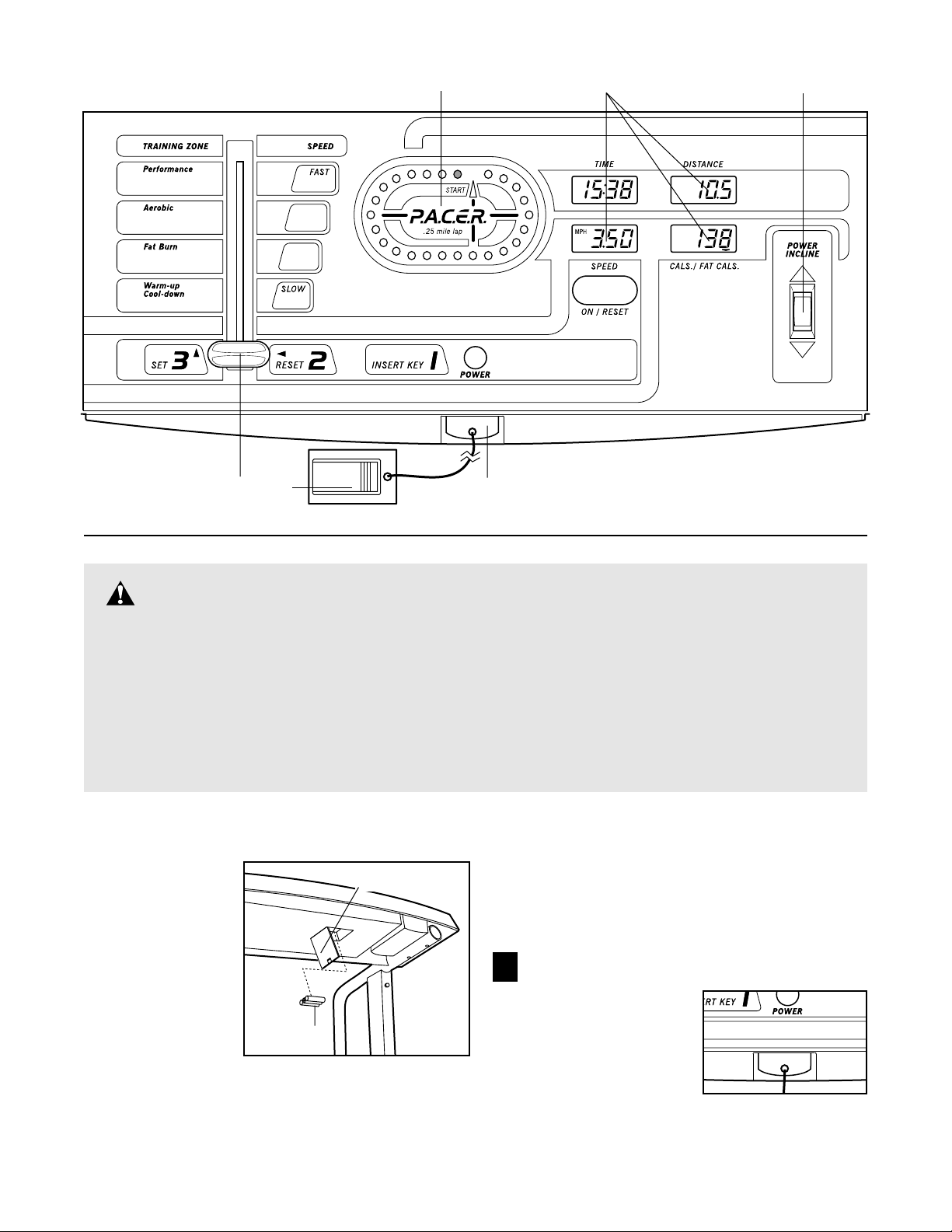

DIAGRAM OF THE CONSOLE

Clip

Key

Speed Control

Monitor Displays

LED Track

CAUTION:Before operating the con-

sole, read the following precautions.

• Do not stand on the walking belt when turning on the power.

• Always wear the clip (see the drawing above) while operating the treadmill. When the key is removed from the console, the walking belt will stop.

• Adjust the speed in small increments.

• The training zones marked around the speed control are general guidelines only. See pages 14 and 15 for more information.

• To reduce the possibility of electric shock, keep the console dry. Avoid spilling liquids on the console. Use only a sealed water bottle.

BATTERY INSTALLATION

The console requires three

"AA" batteries

(not included). Alkaline batteries are recommended. To install batteries, open the battery cover as shown. Press the batteries into the battery compartment, with the negative ends of the batteries (marked “–”) touching the springs. Close the battery cover.

STEP BY STEP CONSOLE OPERATION

Step onto the foot rails of the treadmill. Find the clip attached to the key (see the drawing above), and slide the clip onto the waistband of your clothing. Follow the steps below and on page 9 to operate the console.

Insert the key fully into the power switch.

When the key is inserted, the first indicator in the LED track will light. The four displays will not turn on until the ON/RESET button is pressed or the walking belt is started. Note: If you just installed batteries, the displays will already be on.

Batteries

Battery Cover

Incline Control

Note: If there is a thin sheet of clear plastic on the console, remove it.

Page 9

Reset the speed control.

Slide the speed control down to the RESET position. Note: Each

time the walking belt is stopped, the speed control must be moved to the RESET position before the walking belt can be restarted.

Start the walking belt.

After you have moved the speed control to the RESET position, slide it slowly upward until the walking belt begins to move at slow speed. Carefully step onto the walking belt and begin exercising. Change the speed of the walking belt as desired by sliding the speed control.

To stop the walking belt, step onto the foot rails and slide the speed control to the RESET position.

Change the incline of the treadmill, if desired.

To increase or decrease the incline, hold down the top or bottom of the incline control.

Important: Change the incline of the treadmill only with the incline control. Do not place objects under the treadmill to change the incline.

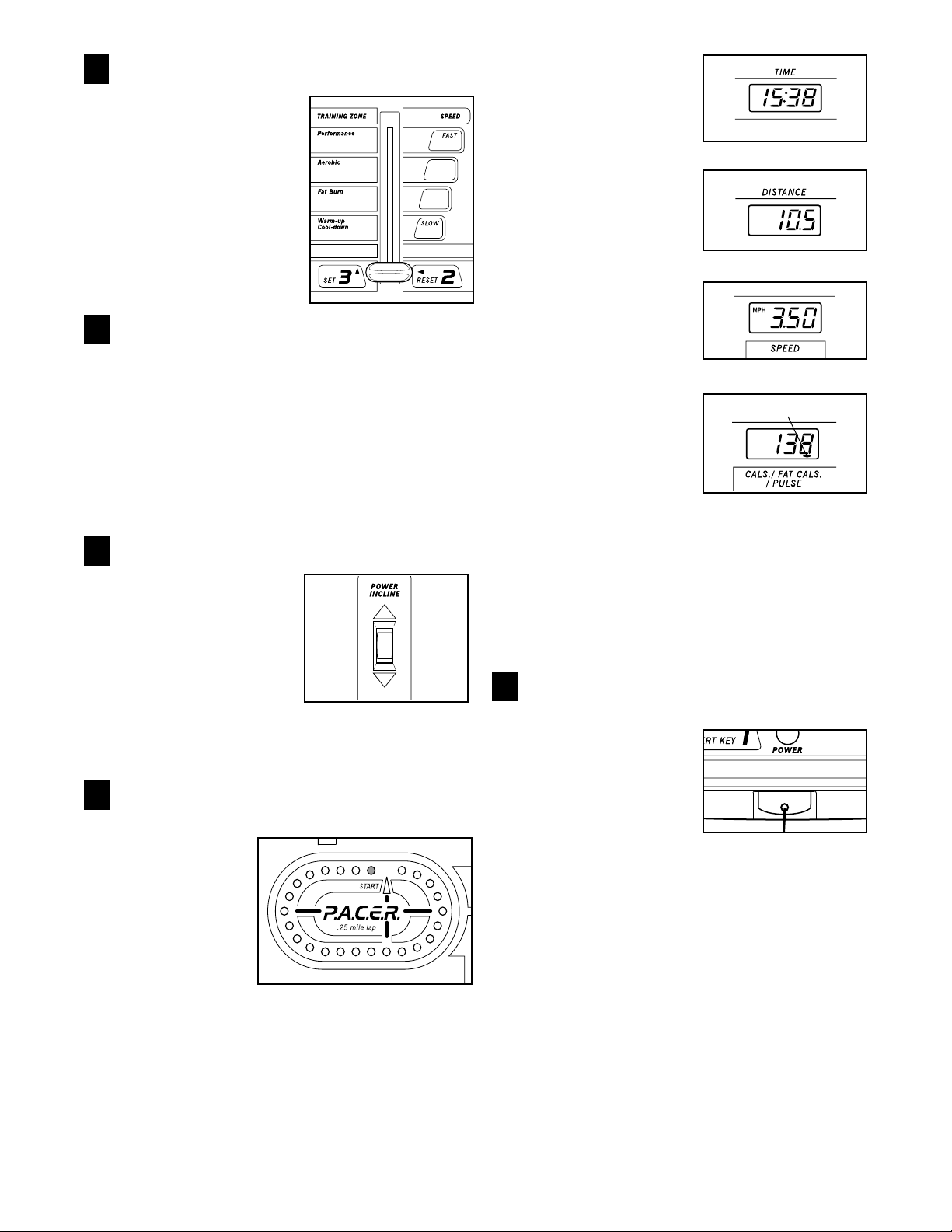

Follow your progress with the LED track and the four monitor displays.

The LED Track—The

LED track in the center of the console represent a distance of 1/4 mile. As you exercise, the indicators around the track will light one at a time until you have completed 1/4 mile. The first indicator above the word START will then light and another lap will begin.

The TIME display— This display shows the total time that you have walked or run on the treadmill.

The DISTANCE display—This display

shows the total distance that you have walked or run, in miles.

The SPEED display— This display shows the speed of the walking belt, in miles per hour.

The CALORIES/ FAT CALORIES display—This display

shows the approximate numbers of calories and fat calories you have burned. (See FAT BURNING on page 14.) Every seven seconds, the display will change from one number to the other. Arrows in the display will indicate which number is currently shown.

Note: The displays can be reset by pressing the ON/RESET button.

When you are finished exercising, stop the walking belt and remove the key.

Step onto the foot rails, stop the walking belt, and remove the key from the console. Store the key in a secure place. After the

key is removed, the displays will remain on for about five minutes.

Note: Any time that the walking belt is stopped and no console buttons are pressed for five minutes, the displays will automatically turn off.

Arrow

Page 10

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE

Unplug the power cord. Caution: You must be able to safely lift 45 pounds (20 kg) in order to raise, lower, or move the treadmill.

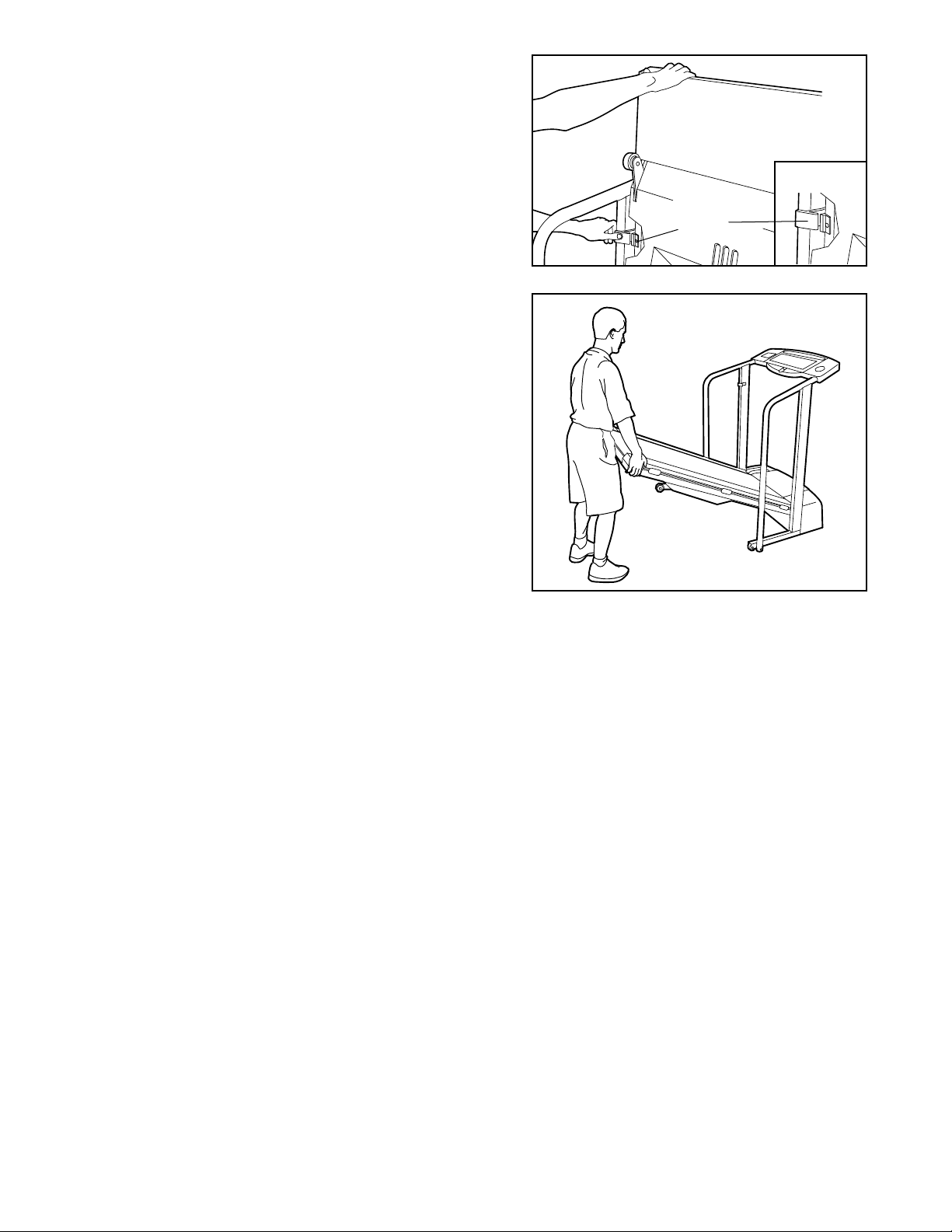

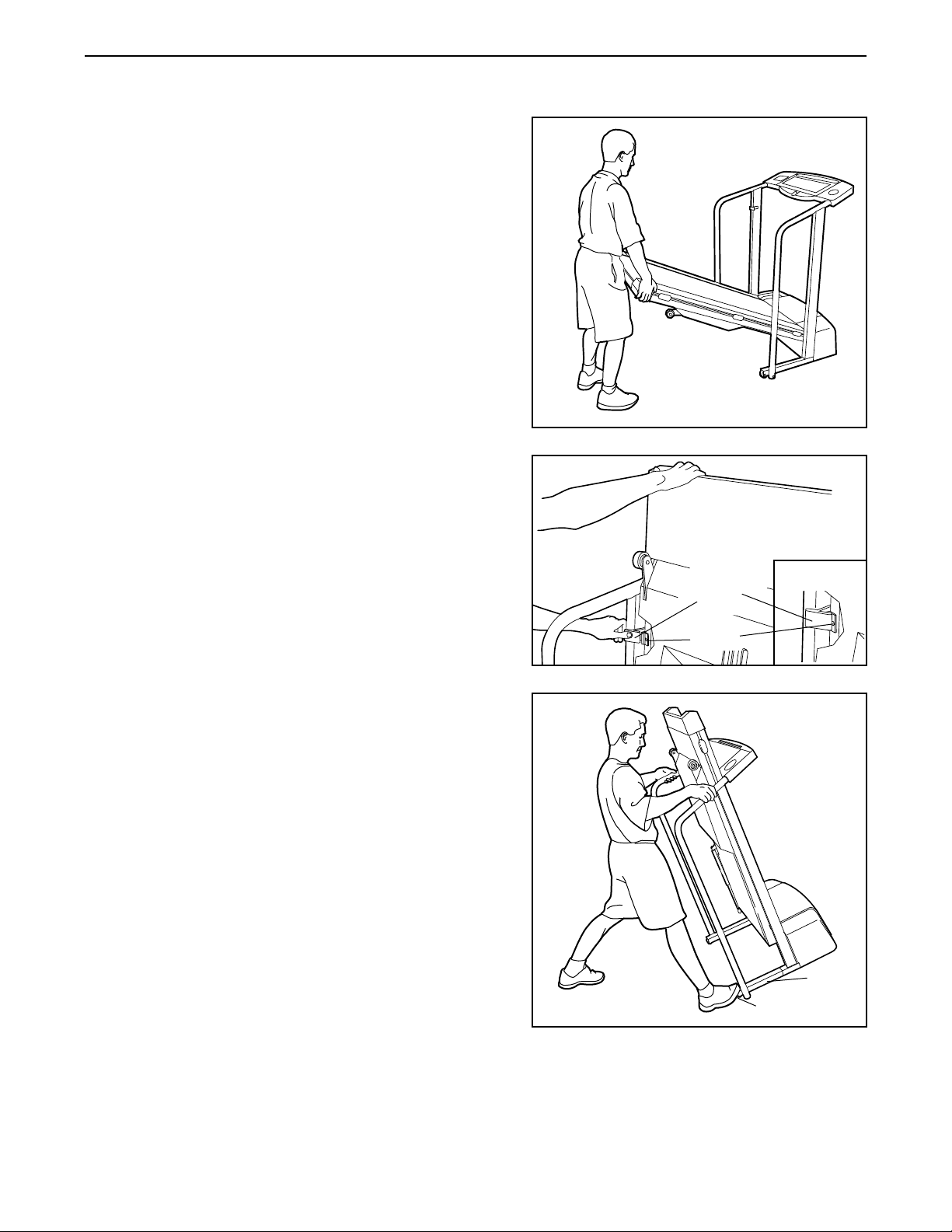

1. Hold the treadmill with your hands in the locations shown at the right. Caution: To decrease the possibility of in-

jury, bend your legs and keep your back straight. As you raise the treadmill, make sure to lift with your legs rather than your back. Raise the treadmill about halfway

to the vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Raise the treadmill until the storage latch closes over the catch. Make sure that the storage latch

is fully engaged over the catch.

To protect the floor or carpet from damage, place a mat under the treadmill. Keep the treadmill out of direct sunlight. Do not leave the treadmill in the storage position in temperatures above 85° Fahrenheit.

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the storage position as described above. Make sure that the stor-

age latch is closed fully over the catch.

1. Hold the handrails and place one foot on the base as

shown.

2. Tilt the treadmill back until it rolls freely on the front wheels.

Carefully move the treadmill to the desired location. Never

move the treadmill without tipping it back, or the base pads may come off. To reduce the risk of injury, use extreme caution while moving the treadmill. Do not attempt to move the treadmill over an uneven surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

Base

Front Wheels

Catch

Closed

Storage Latch

Page 11

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as

shown. Using your left thumb, press the storage latch and hold it. Pivot the treadmill until the frame and foot rail are past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the

treadmill to the floor. Caution: To decrease the possibil-

ity of injury, bend your legs and keep your back straight.

Opened

Storage Latch

Page 12

MAINTENANCE AND TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. If further assistance is needed, call our toll-free HELPLINE at 1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).

PROBLEM: The power does not turn on SOLUTION: a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor

is plugged into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically rated for 120 volts AC and 15 amps.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the con-

sole. (See step 1 on page 8.)

c. Check the circuit breaker located on the treadmill

near the power cord. If the switch protrudes as shown, the circuit breaker has tripped. To reset the circuit breaker, wait for five minutes and then press the switch back in.

PROBLEM: The power turns off during use SOLUTION: a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If

the circuit breaker has tripped, wait for five minutes and then press the switch back in. b. Make sure that the power cord is plugged in. c. Remove the key from the console. Reinsert the key fully into the console. (See step 1 on page 8.) d. If the treadmill still will not run, please call our toll-free HELPLINE.

PROBLEM: The displays of the console do not function properly SOLUTION: a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are

the result of drained batteries. b. Remove the six screws from the hood. Carefully re-

move the hood. Locate the Reed Switch (86) and the

Magnet (87) on the left side of the Pulley (85). Turn

the Pulley until the Magnet is aligned with the Reed

Switch. Make sure that the gap between the

Magnet and the Reed Switch is about 1/8”. If nec-

essary, loosen the Screw (35) and move the Reed

Switch slightly. Retighten the Screw. Re-attach the

hood, and run the treadmill for a few minutes to check

for a correct speed reading.

Tripped

Tripped Reset

86 35

Top

View

1/8”

Reset

Page 13

PROBLEM: The walking belt slows when walked on SOLUTION: a. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge sup-

pressor (TVSS). The surge suppressor must have a UL suppressed voltage rating of 400 volts or

less and a minimum surge dissipation of 450 joules. The surge suppressor must be electrically

rated for 120 volts AC and 15 amps. b. If the walking belt is overtightened, treadmill perfor-

mance may decrease and the walking belt may be

permanently damaged. Remove the key and UN-

PLUG THE POWER CORD. Using the allen wrench,

turn both rear roller adjustment bolts counterclock-

wise, 1/4 of a turn. When the walking belt is properly

tightened, you should be able to lift each side of the

walking belt 3 to 4 inches off the walking platform.

The center of the walking belt should just touch the

walking platform. Be careful to keep the walking belt

centered. Plug in the power cord, insert the key and

run the treadmill for a few minutes. Repeat until the

walking belt is properly tightened. c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

PROBLEM: The walking belt is off-center when walked on SOLUTION: a. If the walking belt has shifted to the left, first remove

the key and UNPLUG THE POWER CORD. Using

the allen wrench, turn the left rear roller adjustment

bolt clockwise, and the right bolt counterclockwise,

1/4 of a turn each. Be careful not to overtighten the

walking belt. Plug in the power cord, insert the key

and run the treadmill for a few minutes. Repeat until

the walking belt is centered.

b. If the walking belt has shifted to the right, first remove

the key and UNPLUG THE POWER CORD. Using

the allen wrench, turn the left rear roller adjustment

bolt counterclockwise, and the right bolt clockwise,

1/4 of a turn each. Be careful not to overtighten the

walking belt. Plug in the power cord, insert the key

and run the treadmill for a few minutes. Repeat until

the walking belt is centered.

PROBLEM: The walking belt slips when walked on SOLUTION: a. If the walking belt slips when walked on, first remove

the key and UNPLUG THE POWER CORD. Using

the allen wrench, turn both rear roller adjustment

bolts clockwise, 1/4 of a turn. When the walking belt

is correctly tightened, you should be able to lift each

side of the walking belt 3 to 4 inches off the walking

platform. The center of the walking belt should just

touch the walking platform. Be careful to keep the

walking belt centered. Plug in the power cord, insert

the key and run the treadmill for a few minutes.

Repeat until the walking belt is properly tightened.

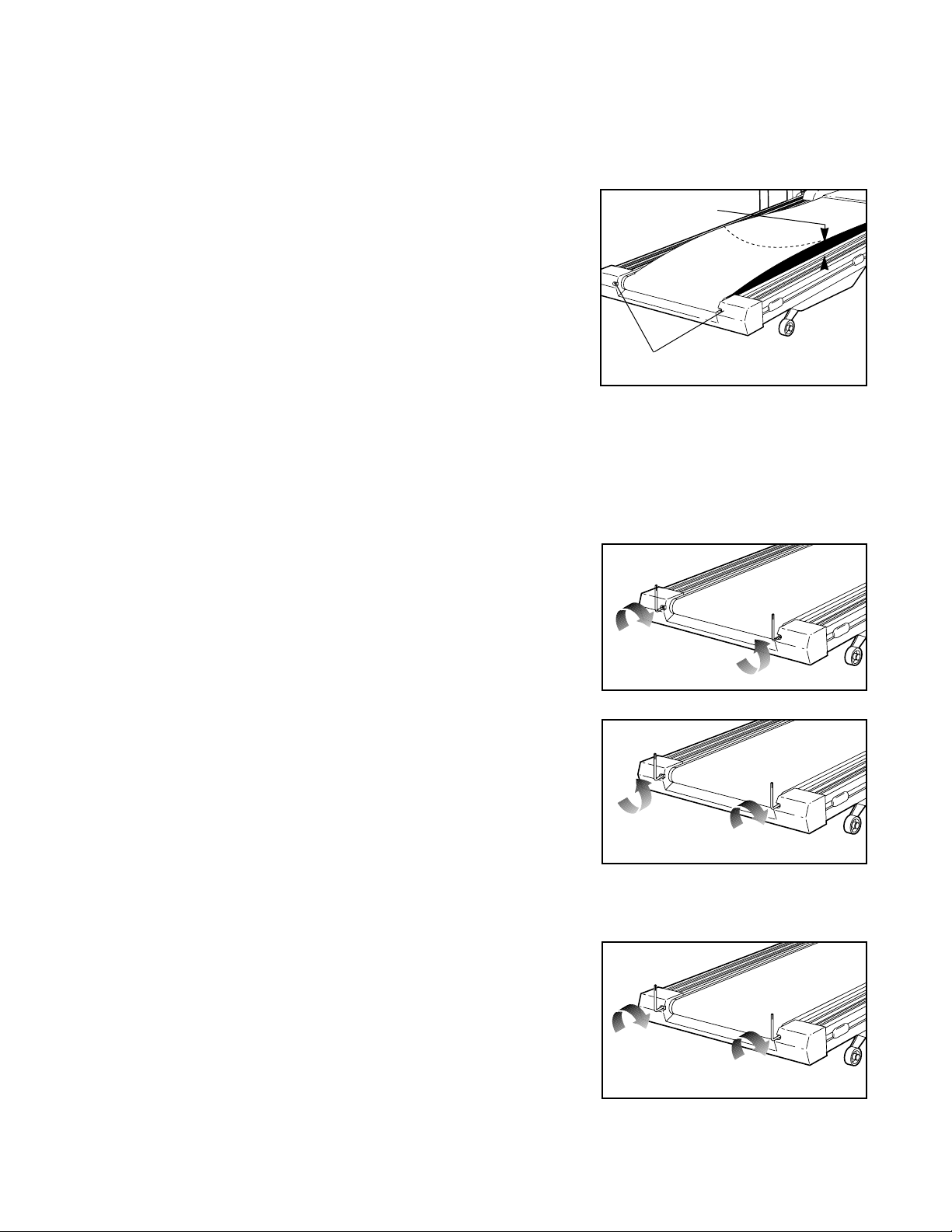

Rear Roller Adjustment Bolts

3”–4”

Page 14

CONDITIONING GUIDELINES

The following guidelines will help you to plan your exercise program. Remember—these are general guidelines only. For more detailed exercise information, obtain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your cardiovascular system, the key to achieving the desired results is to exercise with the proper intensity. The proper intensity level can be found by using your heart rate as a guide. The chart below shows recommended heart rates for fat burning and aerobic exercise.

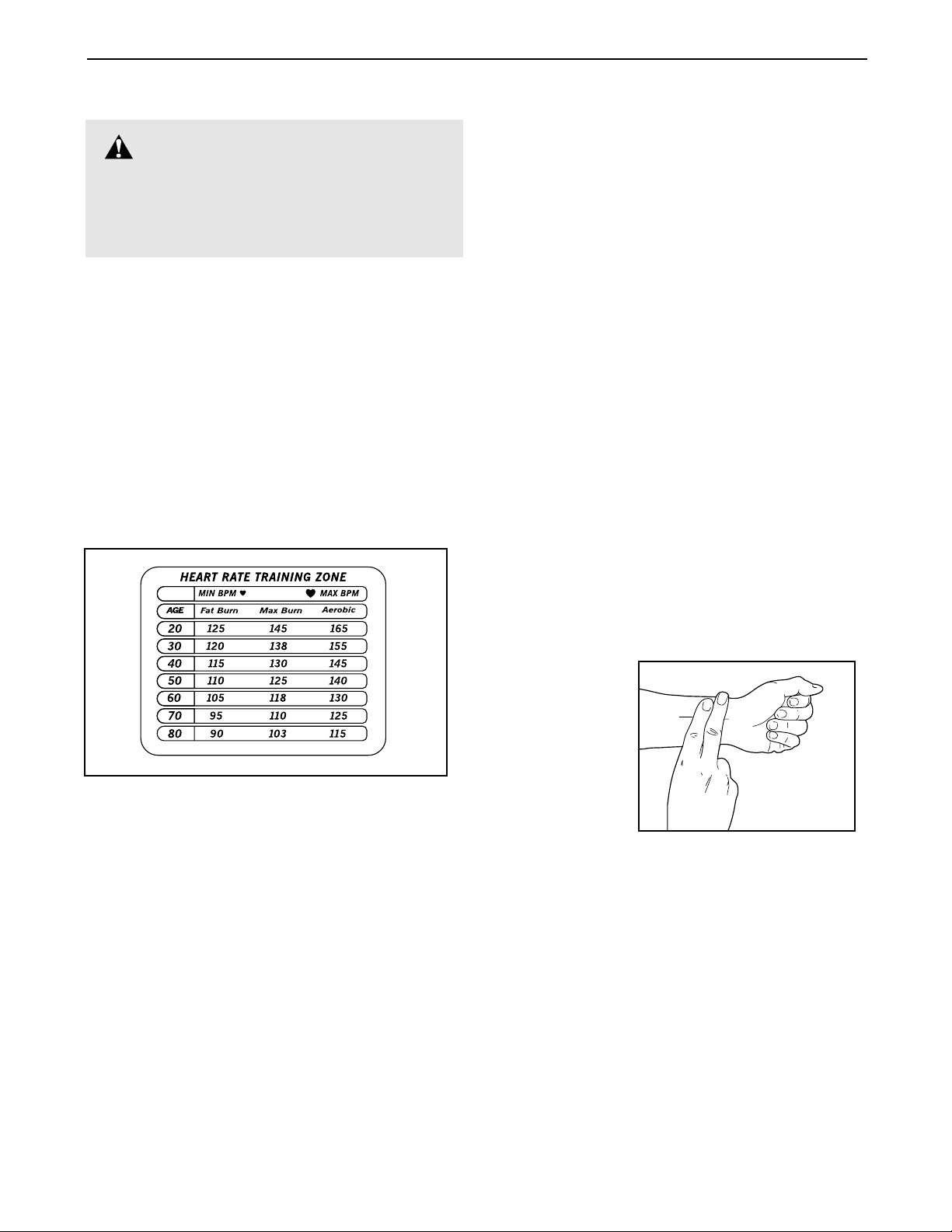

To find the proper heart rate for you, first find your age on the left side of the chart (ages are rounded off to the nearest ten years). Next, find the three numbers to the right of your age. The three numbers are your “training zone.” The lower two numbers are recommended heart rates for fat burning; the higher number is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively low intensity level for a sustained period of time. During the first few minutes of exercise, your body uses easily accessible carbohydrate calories for energy. Only after the first few minutes does your body begin to use stored fat calories for energy. If your goal is to burn fat, adjust the speed and incline of the treadmill until your heart rate is near one of the lower two numbers in your

training zone. It may also be helpful to set the speed control on the console to FAT BURN to help you maintain the proper intensity level. (See page 9.)

Aerobic Exercise

If your goal is to strengthen your cardiovascular system, your exercise must be “aerobic.” Aerobic exercise is activity that requires large amounts of oxygen for prolonged periods of time. This increases the demand on the heart to pump blood to the muscles, and on the lungs to oxygenate the blood. For aerobic exercise, adjust the speed and incline of the treadmill until your heart rate is near the higher number in your training zone. It may also be helpful to set the speed control on the console to AEROBIC to help you maintain the proper intensity level. (See page 9.)

High Performance Athletic Conditioning

If your goal is high performance athletic conditioning, set the speed control on the console to PERFORMANCE to help you maintain the proper intensity level. (See page 9.) Note: During the first few weeks of your exercise program, keep your heart rate near the low end of your training zone.

HOW TO MEASURE YOUR HEART RATE

To measure your heart rate, stop exercising and place two fingers on your wrist as shown. Take a six-second heartbeat count, and multiply the result by ten to find your heart rate. (A six-second count is used because your heart rate drops quickly when you stop exercising.) If your heart rate is too high or too low, adjust the speed or incline of the treadmill accordingly.

WORKOUT GUIDELINES

Each workout should include the following three parts:

Warming Up

Start each workout with 5 to 10 minutes of stretching and light exercise. A proper warm-up increases your body temperature, heart rate, and circulation in preparation for exercise.

WARNING:Before beginning

this or any exercise program, consult your physician. This is especially important for individuals over the age of 35 or individuals with pre-existing health problems.

Page 15

Training Zone Exercise

After warming up, increase the intensity of your exercise until your heart rate is in your training zone for 20 to 60 minutes. (During the first few weeks of your exercise program, do not keep your heart rate in your training zone for longer than 20 minutes.)

Cooling Down

Finish each workout with 5 to 10 minutes of stretching to cool down. This will increase the flexibility of your

muscles and will help to prevent post-exercise problems.

Exercise Frequency

To maintain or improve your condition, complete three workouts each week, with at least one day of rest between workouts. After a few months of regular exercise, you may complete up to five workouts each week if desired. The key to success is to make exercise a regular and enjoyable part of your everyday life.

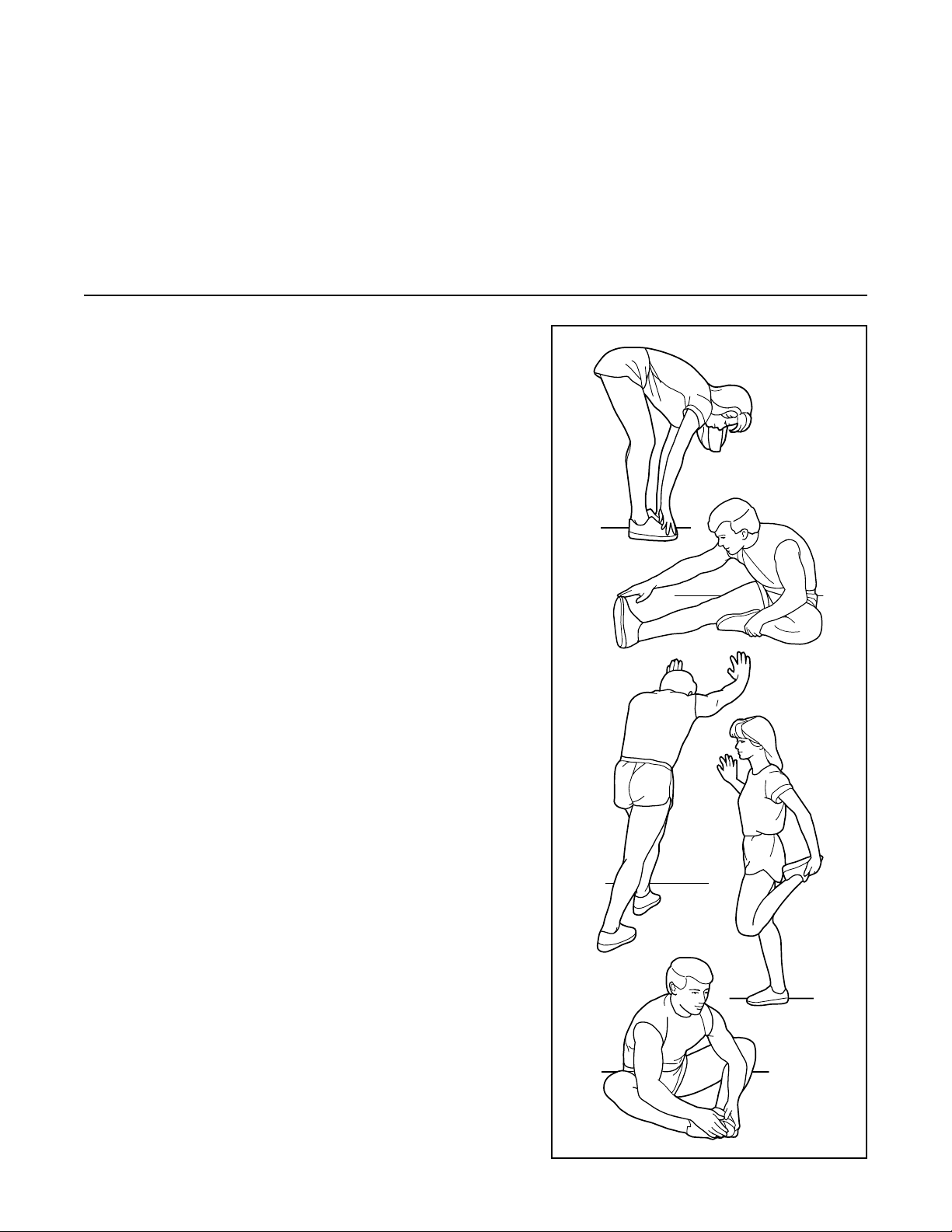

SUGGESTED STRETCHES

The correct form for several basic stretches is described below. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward from your hips. Allow your back and shoulders to relax as you reach down toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Hamstrings, back of knees and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot toward you and rest it against the inner thigh of your extended leg. Reach toward your toes as far as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Hamstrings, lower back and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your hands against a wall. Keep your back leg straight and your back foot flat on the floor. Bend your front leg, lean forward and move your hips toward the wall. Hold for 15 counts, then relax. Repeat 3 times for each leg. To cause further stretching of the achilles tendons, bend your back leg as well. Stretches: Calves, achilles tendons and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and grasp one foot with your other hand. Bring your heel as close to your buttocks as possible. Hold for 15 counts, then relax. Repeat 3 times for each leg. Stretches: Quadriceps and hip muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward. Pull your feet toward your groin area as far as possible. Hold for 15 counts, then relax. Repeat 3 times. Stretches: Quadriceps and hip muscles.

Page 16

PART LIST—Model No. 831.297190 R0897A

Key No. Part No. Qty. Description

1 119038 1 Key/Clip 2 139120 1 Left Handrail 3 125708 2 Cage Nut 4 031108 1 Incline Control 5 100691 4 Rear Isolator Screw 6 139109 1 Console Base 7 131161 1 Speed Control Knob 8 128093 1 Speed Potentiometer

9 135048 1 Battery Cover 10 119487 1 Incline Motor 11* 140696 1 Console Assembly 12 137944 1 Storage Latch 13 013576 13 1/2” Screw 14 138560 1 Upright/Base 15 013505 2 Handrail Bolt 16 014063 7 Handrail Washer 17 118016 1 Motor Belt 18 012149 1 Motor Swivel Nut 19* 139794 1 Motor/Pulley/Flywheel/Fan 20 126747 1 Pulley/Flywheel/Fan 21 139792 1 Motor 22 013547 4 Motor Tension Bolt/Incline Bolt 23 122812 1 Motor Tension Washer 24 014117 1 Motor Tension Star Washer 25 107503 1 Motor Swivel Bolt 26 140698 1 Wire Harness 27 013162 2 Ground Wire Screw 28 140699 1 Hood 29 138746 1 Hood Shield 30 013300 10 Screw 31 138141 1 Latch Decal 32 139122 1 Right Handrail 33 013581 2 Frame Pivot Bolt 34 013484 2 Extension Leg Screw 35 133867 29 Electronics Screw 36 126650 4 Base Pad 37 013307 2 Wheel Bolt 38 132314 2 Wheel 39 012056 3 Wheel Nut/Base Pivot Nut 40 137857 1 Controller 41 139153 2 Extension Leg 42 109382 1 Circuit Breaker 43 124695 1 Power Cord Grommet 44 124669 1 Power Cord 45 129542 2 Upright Spacer 46 139761 4 Isolator 47 138853 10 Belly Pan Fastener 48 130993 1 Choke 49 120867 1 Motor Locknut 50 109265 2 Belt Guide

Key No. Part No. Qty. Description

51 140702 1 Belly Pan 52 116926 1 Releasable Tie 53 116927 6 Cable Tie Clamp 54 138664 1 Motor Belly Pan 55 132383 1 11 1/2” Cable Tie 56 016057 4 8” Cable Tie 57 136012 2 Flange Nut 58 133584 1 Lift Board 59 138809 1 Electronics Plate 60 125819 4 Plastic Stand-Off 61 014132 2 3/8” Washer 62 139763 2 Solid Isolator 63 119425 9 Incline Nut 64 117806 2 Incline Wheel Bolt 65 137731 2 Incline Wheel 66 100427 2 Incline Wheel Nut 67 138863 2 Upright Plug 68 114261 1 Ground Wire 69 138741 1 Incline Leg 70 126130 2 Base Plug 71 105444 2 Rear Roller Adj. Bolt 72 138738 1 Rear Roller Endcap 73 128457 1 Allen Wrench 74 016028 1 Adhesive Clip 75 140703 1 Left Foot Rail 76 140704 1 Rear Roller 77 128272 4 Platform Screw 78 138732 1 Latch Catch 79 140705 1 Walking Platform 80 140766 1 Walking Belt 81 112609 1 Front Roller Adjustment Bolt 82 139767 1 Shock 83 140767 1 Right Foot Rail 84 131090 1 Sensor Clip 85 140768 1 Front Roller/Pulley 86 138680 1 Reed Switch 87 100498 1 Magnet 88 115872 1 Strain Relief Clip 89 124614 2 3 1/2” Handrail Bolt 90 NSP 1 Frame 91 134594 4 3/4” Screw 92 140558 1 Incline Extension

# 103823 1 14” White Wire, Male/Female # 102246 1 8” White Wire, 2 Female # 112083 1 8” Blue Wire, 2 Female # 118204 1 8” Blue Wire, Male/Female # 118201 1 8” Red Wire, Male/Female # 138782 1 User’s Manual

* Includes all parts shown in the box # These parts are not illustrated

Page 17

EXPLODED DRAWING—Model No. 831.297190 R0897A

11*

19*

Page 18

The model number and serial number of your SEARS

LIFESTYLER EXPANSE 850 treadmill are listed on a decal attached to the treadmill. See the front cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or special order when you visit your nearest SEARS Service Center. To request service or to order parts by telephone, call the toll-free numbers listed at the left.

When requesting help or service, or ordering parts, please be prepared to provide the following information:

• The NAME OF THE PRODUCT (SEARS®LIFESTYLER EXPANSE 850 treadmill)

• The MODEL NUMBER OF THE PRODUCT (831.297190)

• The PART NUMBER OF THE PART (see the EXPLODED DRAWING and PART LIST included in this manual)

• The DESCRIPTION OF THE PART (see the EXPLODED DRAWING and PART LIST included in this manual).

Model No. 831.297190

QUESTIONS?

If you find that:

• you need help assembling or operating the SEARS

LIFESTYLER EXPANSE 850

• a part is missing

• you need to schedule repair service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm Central Time (excluding holidays)

REPLACEMENT PARTS

If parts become worn and need to be replaced, call the following toll-free number

1-800-FON-PART (1-800-366-7278)

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.

This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental purposes.

This warranty gives you specific legal rights, and you may also have other rights which vary from state to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
