USER'S MANUAL

CAUTION

Read all precautions and instruc­tions in this manual before using
this equipment. Save this manual
for future reference.

Serial Number
Decal

Model No. 831.297140
Serial No.

The serial number is found in the location
shown below. Write the serial number in
the space above for future reference.

2

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .2

BEFORE YOU BEGIN . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

ASSEMBLY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

OPERATION AND ADJUSTMENT . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .7

HOW TO FOLD AND MOVE THE TREADMILL . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

TROUBLE-SHOOTING . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12

CONDITIONING GUIDELINES . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .14

ORDERING REPLACEMENT PARTS . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

FULL 90 DAY WARRANTY . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .Back Cover

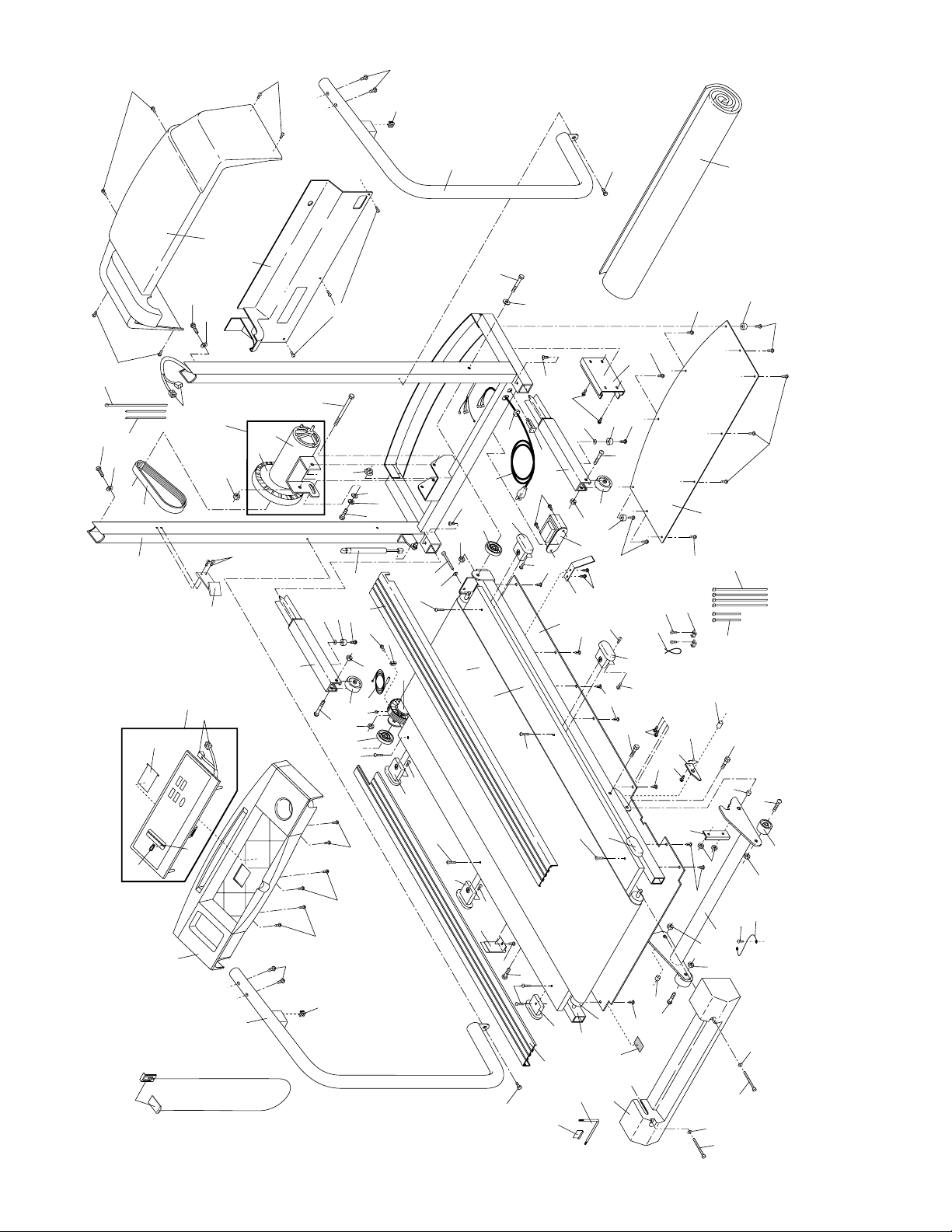

Note: An EXPLODED DRAWING and a PART LIST are attached to the center of this manual. Save the
EXPLODED DRAWING and PART LIST for future reference.

1. It is the responsibility of the owner to ensure
that all users of this treadmill are adequately
informed of all warnings and precautions.

2. Use the treadmill only as described.

3. Place the treadmill on a level surface, with 8
feet of clearance behind it. Do not place the
treadmill on a surface that blocks any air
openings. To protect the floor or carpet from
damage, place the mat under the treadmill.

4. Keep the treadmill indoors, away from mois­ture and dust. Do not put the treadmill in a
garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol
products are used or where oxygen is being
administered.

6. Keep children under the age of 12 and pets
away from the treadmill at all times.

7. The treadmill should be used only by persons
weighing 250 pounds or less.

8. Never allow more than one person on the
treadmill at a time.

9. Wear appropriate exercise clothing when
using the treadmill. Do not wear loose cloth­ing that could become caught in the treadmill.
Athletic support clothes are recommended for
both men and women. Always wear athletic
shoes. Never use the treadmill with bare feet,
wearing only stockings, or in sandals.

10. When connecting the power cord (see page 7),
plug the power cord into a surge suppressor
(not included) and plug the surge suppressor
into a grounded circuit capable of carrying 15
or more amps. No other appliance should be
on the same circuit. Do not use an extension
cord.

11. Use only a single-outlet surge suppressor
that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppres­sor must have a UL suppressed voltage rating
of 400 volts or less and a minimum surge dis­sipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and
15 amps.

12. Keep the power cord and the surge suppres­sor away from heated surfaces.

WARNING:To reduce the risk of burns, fire, electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

IMPORTANT PRECAUTIONS

3

13. Never move the walking belt while the power
is turned off. Do not operate the treadmill if
the power cord or plug is damaged, or if the
treadmill is not working properly. (See BE­FORE YOU BEGIN on page 4 if the treadmill
is not working properly.)

14. Never start the treadmill while you are
standing on the walking belt. Always hold
the handrails while using the treadmill.

15. The treadmill is capable of high speeds.
Adjust the speed in small increments to
avoid sudden jumps in speed.

16. To reduce the possibility of the treadmill

overheating, do not operate the treadmill
continuously for longer than 1 hour.

17. Never leave the treadmill unattended while

it is running. Always remove the key when
the treadmill is not in use.

18. Do not attempt to raise, lower, or move the

treadmill until it is properly assembled. (See

ASSEMBLY on pages 5 and 6, and HOW TO
MOVE THE TREADMILL on page 10.) You
must be able to safely lift 45 pounds (20 kg)
to raise, lower, or move the treadmill.

19. When folding or moving the treadmill, make
sure that the storage latch is fully closed.

20. Inspect and tighten all parts of the treadmill
every three months.

21. Never insert any object into any opening.

22. Always unplug the power cord before per­forming the maintenance and adjustment
procedures described in this manual. Never
remove the motor hood unless instructed to
do so by an authorized service representa­tive. Servicing other than the procedures in
this manual should be performed by an au­thorized service representative only.

23. This treadmill is intended for in-home use
only. Do not use this treadmill in any com­mercial, rental, or institutional setting.

WARNING:Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems.
Read all instructions before using. SEARS assumes no responsibility for personal injury or property
damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decal shown below has been placed on your treadmill. If the decal is missing, or if it is not legible,
please call our toll-free HELPLINE to order a free replacement decal (see the back cover of this manual).
Apply the decal in the location shown.

4

Thank you for selecting the LIFESTYLER®EXPANSE
600 treadmill. The EXPANSE 600 treadmill combines
advanced technology with innovative design to let you
enjoy an excellent form of cardiovascular exercise in
the convenience and privacy of your home. And when
you’re not exercising, the unique EXPANSE 600 can
be folded up, requiring less than half the floor space of
other treadmills.

For your benefit, read this manual carefully before
using the treadmill. If you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Monday through Saturday, 7 a.m. until 7 p.m. Central
Time (excluding holidays). To help us assist you,
please note the product model number and serial num­ber before calling. The model number of the treadmill
is 831.297140. The serial number can be found on a
decal attached to the treadmill (see the front cover of
this manual for the location).

Before reading further, please review the drawing
below and familiarize yourself with the parts that are
labeled.

BEFORE YOU BEGIN

Handrail

Upright

Storage Latch

Key/Clip

Circuit

Breaker

Walking Belt

Cushioned Walking Platform

for maximum exercise comfort

Foot Rail

Power

Cord

BACK

RIGHT SIDE

Rear Roller
Adjustment Bolt

Water Bottle Holder

(Water Bottle is not

included)

Towel Rack

Accessory Tray

Incline Leg

Treadmill Mat

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Refer to the drawings below to identify the parts
used in assembly. Assembly requires the following tools: The included allen wrench and your own

phillips screwdriver and adjustable wrench .

1. With the help of a second person, carefully lay the
treadmill on its right side. Insert one of the Extension
Legs (41) into the treadmill as shown. Make sure that the
Base Pad (36) is on the bottom of the Extension Leg.
Attach the Extension Leg with an Extension Leg Screw
(34). Be sure to push on the head of the Extension Leg
Screw while tightening it.

Attach the other Extension Leg (41) as described above.
With the help of a second person, carefully raise the

treadmill to the upright position so the Extension Legs
(41) are resting flat on the floor.

2. Refer to HOW TO LOWER THE TREADMILL FOR USE
on page 11. Follow the instructions in step 2 to lower the
treadmill.

Position one of the Handrails (2) on the left Upright (14)
as shown. Thread a Handrail Bolt (15) with a Handrail
Washer (16) into the left Upright and the Handrail. Do not
tighten the Handrail Bolt yet. Tighten a Handrail Screw
(32) into the lower end of the Handrail. Be sure to push
on the head of the Handrail Screw while tightening it.
Next, tighten the Handrail Bolt (15).

15

16

14

32

2

2

Handrail Washer (16)–2

Handrail Bolt (15)–2

Base Screw/Latch Screw (13)–6

Extension Leg Screw (34)–2

Handrail Screw (32)–2

34

34

41

36

41

36

1

5

3. With the help of a second person, hold the Console Base
(6) and the other Handrail (2) near the right Upright (14)
as shown. Note: It may be helpful to rest the other side of
the Console Base on the left Handrail.

Connect the Console Wire Harness (88) to the two plugs
on the Upright Wire Harness (26). Refer to the upper
inset drawing. Locate the 7 1/2” Wire Ties (10) on the
Console Wire Harness (88) and the Upright Wire Harness
(26). Slide the Wire Ties against the plugs as shown.
Insert the 11 1/2” Wire Tie (55) through the holes in the
Wire Ties. Close and tighten the 11 1/2” Wire Tie.

Refer to the lower inset drawing. Insert the Wire
Harnesses (26, 88) into the Right Upright (14). Note: If
necessary, bend the Wire Harnesses into an “s” shape.

Route the Console Wire Harness (88) through the notch
in the bracket on the right Handrail (2) as shown. Insert
the bracket into the right Upright (14). Make sure that the

Console Wire Harness is not pinched.

4. Thread a Handrail Bolt (15) with a Handrail Washer (16)
into the right Upright (14) and the right Handrail (2). Do
not tighten the Handrail Bolt yet. Tighten a Handrail
Screw (32) into the lower end of the Handrail. Be sure to
push on the head of the Handrail Screw while tightening
it. Next, tighten the Handrail Bolt (15).

Place the Console Base (6) on the left and right Handrails
(2). Attach the Console Base with four Console Screws
(13).

5. Attach the Storage Latch (12) to the left Upright (14) with

two Latch Screws (13). Be careful not to overtighten the
Latch Screws.

6. Remove the backing from the Adhesive Clip (74). Press

the Adhesive Clip onto the Upright Base (14) in the indi­cated location. Press the Allen Wrench (73) into the
Adhesive Clip.

To protect the floor or carpet, place the Treadmill Mat (92)
under the treadmill.

7. Make sure that all parts are tightened before you use

the treadmill.

13

6

13

15

16

14

2

32

4

13

12

14

5

73

74

14

92

6

2

14

3

6

26

10

10

55

88

88

26

26

88

14

2

6

7

OPERATION AND ADJUSTMENT

THE PERFORMANT LUBETMWALKING BELT

Your treadmill features a walking belt coated with
PERFORMANT LUBETM, a high-performance lubricant.

IMPORTANT: Never apply silicone spray or other
substances to the walking belt or the walking plat­form. Such substances will deteriorate the walking
belt and cause excessive wear.

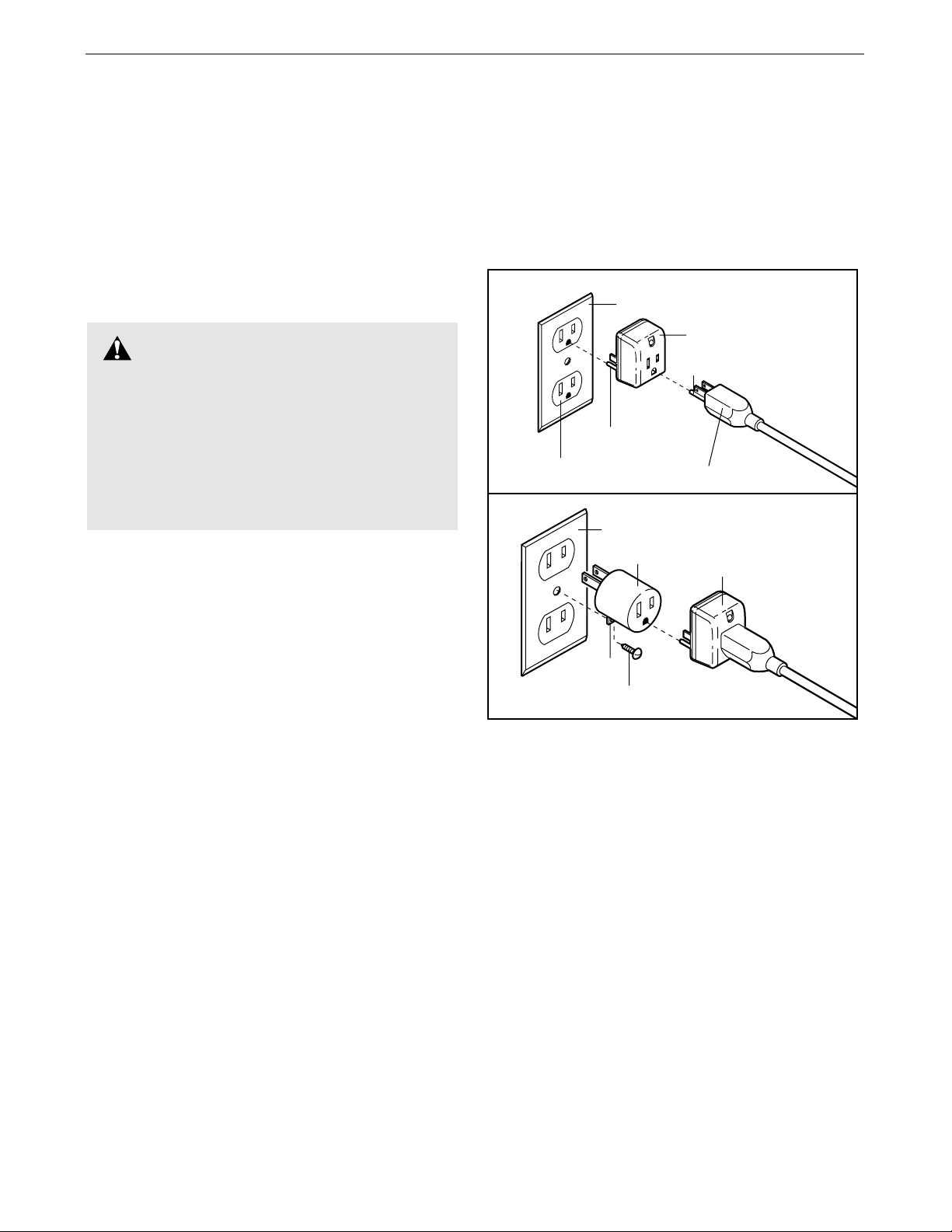

HOW TO PLUG IN THE POWER CORD

Your treadmill, like any other type of sophisticated
electronic equipment, can be seriously damaged by
sudden voltage changes in your home’s power.
Voltage surges, spikes, and noise interference can
result from weather conditions or from other appliances
being turned on or off. To decrease the possibility of

your treadmill being damaged, always use a surge
suppressor with your treadmill (see drawing 1 at
the right).

Surge suppressors are sold at most hardware stores
and department stores. Use only a single-outlet surge
suppressor that is UL 1449 listed as a transient voltage
surge suppressor (TVSS). The surge suppressor must
have a UL suppressed voltage rating of 400 volts or
less and a minimum surge dissipation of 450 joules.
The surge suppressor must be electrically rated for
120 volts AC and 15 amps.

This product must be grounded. If it should malfunc­tion or break down, grounding provides a path of least
resistance for electric current to reduce the risk of elec­tric shock. This product is equipped with a cord having
an equipment-grounding conductor and a grounding
plug. Plug the power cord into a surge suppressor,

and plug the surge suppressor into an appropriate
outlet that is properly installed and grounded in
accordance with all local codes and ordinances.

This product is for use on a nominal 120-volt circuit,
and has a grounding plug that looks like the plug illus­trated in drawing 1 below. A temporary adapter that
looks like the adapter illustrated in drawing 2 may be
used to connect the surge suppressor to a 2-pole
receptacle as shown in drawing 2 if a properly
grounded outlet is not available.

The temporary adapter should be used only until a
properly grounded outlet (drawing 1) can be installed
by a qualified electrician.

The green-colored rigid ear, lug, or the like extending
from the adapter must be connected to a permanent
ground such as a properly grounded outlet box cover.
Whenever the adapter is used it must be held in place
by a metal screw. Some 2-pole receptacle outlet box

covers are not grounded. Contact a qualified elec­trician to determine if the outlet box cover is
grounded before using an adapter.

DANGER:Improper connection

of the equipment-grounding conductor can
result in an increased risk of electric shock.
Check with a qualified electrician or service­man if you are in doubt as to whether the
product is properly grounded. Do not modify
the plug provided with the product—if it will
not fit the outlet, have a proper outlet
installed by a qualified electrician.

1

2

Grounded Outlet Box

Grounded Outlet Box

Grounding Plug

Surge Suppressor

Surge Suppressor

Grounding Pin

Adapter

Lug

Metal Screw

Grounded Outlet

Grounding Pin

CAUTION:Before operating the

console, read the following precautions.

• Do not stand on the walking belt when turning
on the power.

• Always wear the clip (see the drawing above)
while using the treadmill. When the key is re­moved from the console, the walking belt will
stop.

• Adjust the speed in small increments.

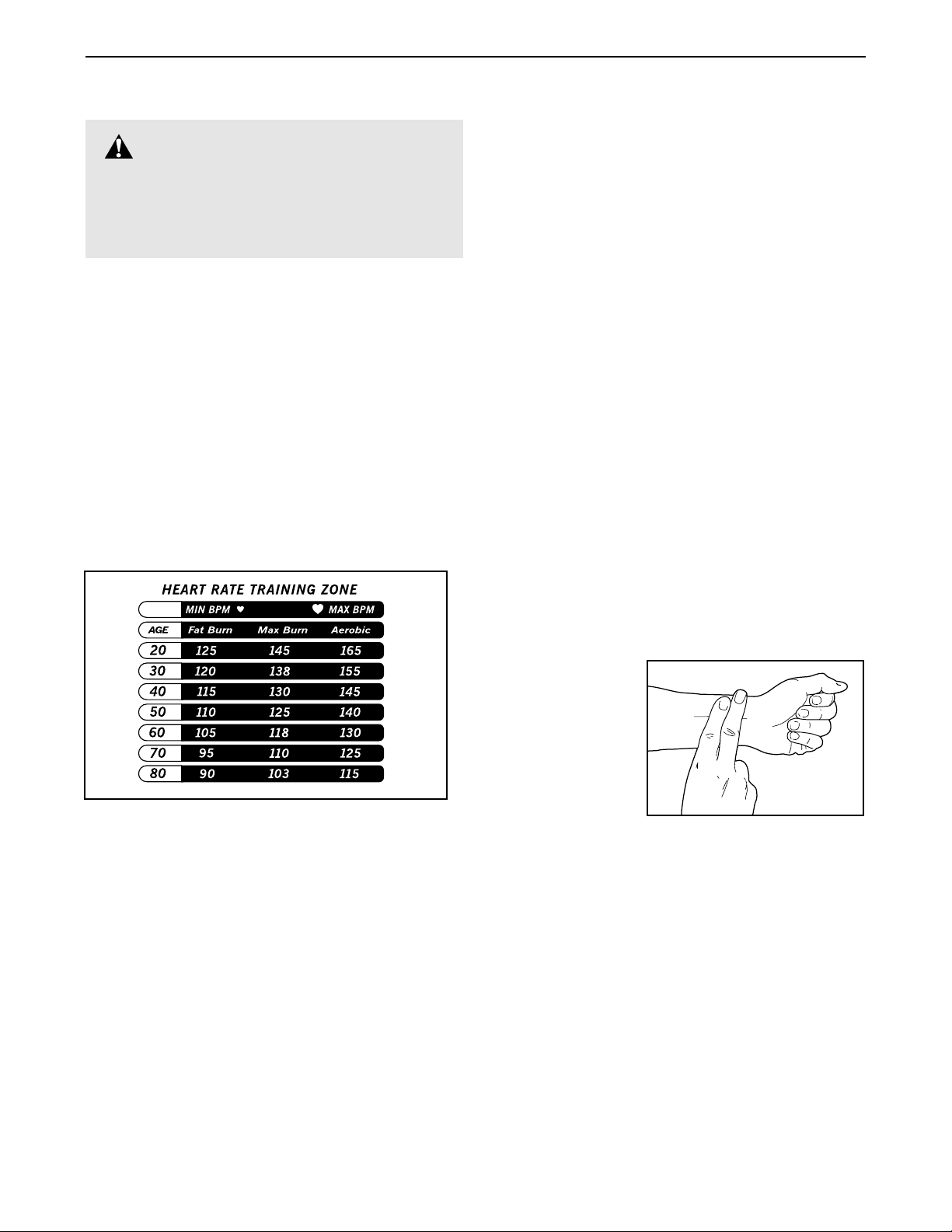

• The training zones marked beside the speed
control are general guidelines only. See page
14 for more information.

• To reduce the possibility of electric shock,
keep the console dry. Avoid spilling liquids on
the console. Use only a sealable water bottle.

BATTERY INSTALLATION

The console requires three "AA" batteries (not
included). Alkaline batteries are recommended.
To install batteries, open the battery cover under the
console as shown below. Press three batteries into the
battery com­partment.

Make sure
that the neg­ative (–)
ends of the
batteries are
touching the
springs.

Close the
battery cover.

STEP BY STEP CONSOLE OPERATION

If there is a thin sheet of clear film on the face of the
console, remove it.

Before operating the console, make sure that the power
cord is properly plugged in. (See HOW TO PLUG IN
THE POWER CORD on page 7.)

Next, step onto the foot rails of the treadmill. Find the
clip attached to the key (see the drawing above), and
slide the clip onto the waistband of your clothing.

Follow the steps on page 9 to operate the console.

DIAGRAM OF THE CONSOLE

Clip

Key

Speed Control

Monitor Displays

8

Batteries

Battery
Cover

9

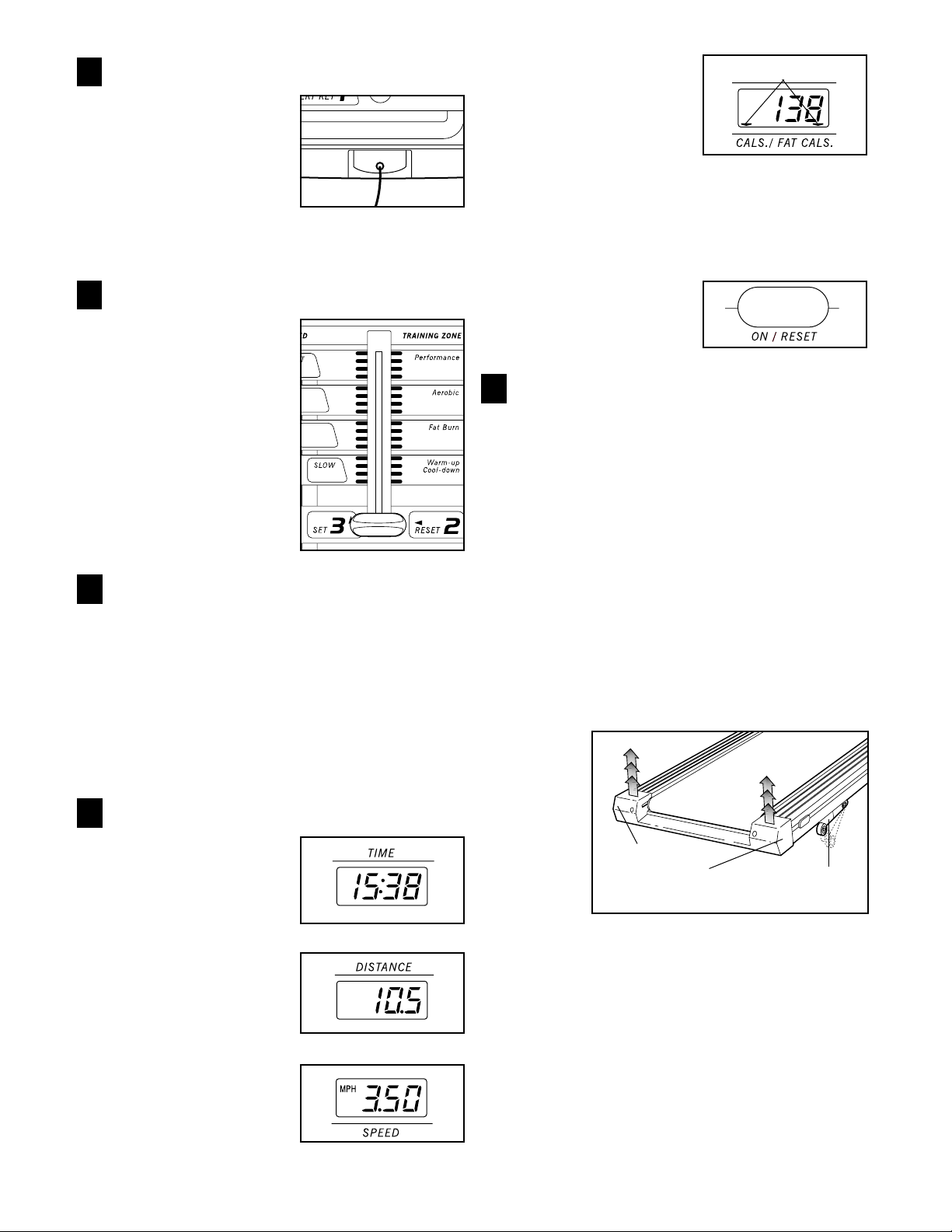

Insert the key fully into the power switch.

Inserting the key will
not turn on the dis­plays. The displays will
turn on when the
ON/RESET button is
pressed or when the
walking belt is started.
Note: If you just in­stalled batteries, the displays will already be on.

Reset the speed control.

Slide the speed control
down to the RESET
position. Note: Each

time the walking belt is
stopped, the speed
control must be moved
to the RESET position
before the walking belt
can be restarted.

Start the walking belt.

After you have moved the speed control to the
RESET position, slowly slide it upward until the
walking belt begins to move at slow speed.
Carefully step onto the walking belt and begin exer­cising. Change the speed of the walking belt as de­sired by sliding the speed control.

To stop the walking belt, step onto the foot rails and
slide the speed control to the RESET position.

Follow your progress with the monitor displays.

TIME display—This

display shows the total

time that you have

walked or run on the

treadmill.

DISTANCE display—

This display shows the

total distance that you

have walked or run, in

miles.

SPEED display—This

display shows the speed

of the walking belt, in

miles per hour.

CALORIES/FAT CAL­ORIES display—This

display shows the ap­proximate numbers of
calories and fat calories
you have burned. (See
FAT BURNING on page
14 for an explanation of fat calories.) Every seven
seconds, the display will change from one number
to the other. Arrows in the display will indicate
which number is currently shown.

The displays can be
reset, if desired, by
pressing the ON/RESET
button.

When you are finished exercising, stop the
walking belt and remove the key.

Step onto the foot rails, stop the walking belt, and
remove the key from the console. Store the key in a
secure place. After the key is removed, the dis-

plays will turn off after about five minutes.

Note: Any time that the walking belt is stopped
and no console buttons are pressed for five
minutes, the displays will automatically turn off
in order to conserve the batteries.

HOW TO CHANGE THE INCLINE OF THE TREADMILL

The incline of the treadmill can be changed by raising
or lowering the back end. Before changing the in-

cline, remove the key and unplug the power cord.

Hold the
rear roller
endcap
with both
hands.
When the
back end
of the
treadmill is
in the low­est posi­tion, the incline is about 10%. Raise the back end until it
clicks into position. (Note: It may be necessary to shake
the treadmill lightly so that it clicks into position.) The in­cline will then be about 5%. Raise the back end again
until it clicks into position. The incline will then be about
3%. To lower the back end, first raise it past the highest
position, and then lower it. CAUTION: Before exercis-

ing, push on the back of the treadmill to make sure
that the incline legs are locked in position. Do not
place objects under the treadmill to change the in­cline; change the incline only as described above.

1

3

4

5

2

Incline
Leg

Hold the Rear
Roller Endcap
in these locations

Arrows

10

HOW TO FOLD AND MOVE THE TREADMILL

HOW TO FOLD THE TREADMILL FOR STORAGE
Before folding the treadmill, unplug the power cord. Caution:

You must be able to safely lift 45 pounds (20 kg) in order
to raise, lower, or move the treadmill.

1. Hold the treadmill with your hands in the locations shown
at the right. To decrease the possibility of injury, bend

your legs and keep your back straight. As you raise
the treadmill, make sure to lift with your legs rather
than your back. Raise the treadmill about halfway to the

vertical position.

2. Move your right hand to the position shown and hold the

treadmill firmly. Raise the treadmill until the storage latch
closes over the catch. Make sure that the storage latch

is fully engaged over the catch.

To protect the floor or carpet from damage, place a
mat under the treadmill. Keep the treadmill out of
direct sunlight. Do not leave the treadmill in the stor­age position in temperatures above 85° Fahrenheit.

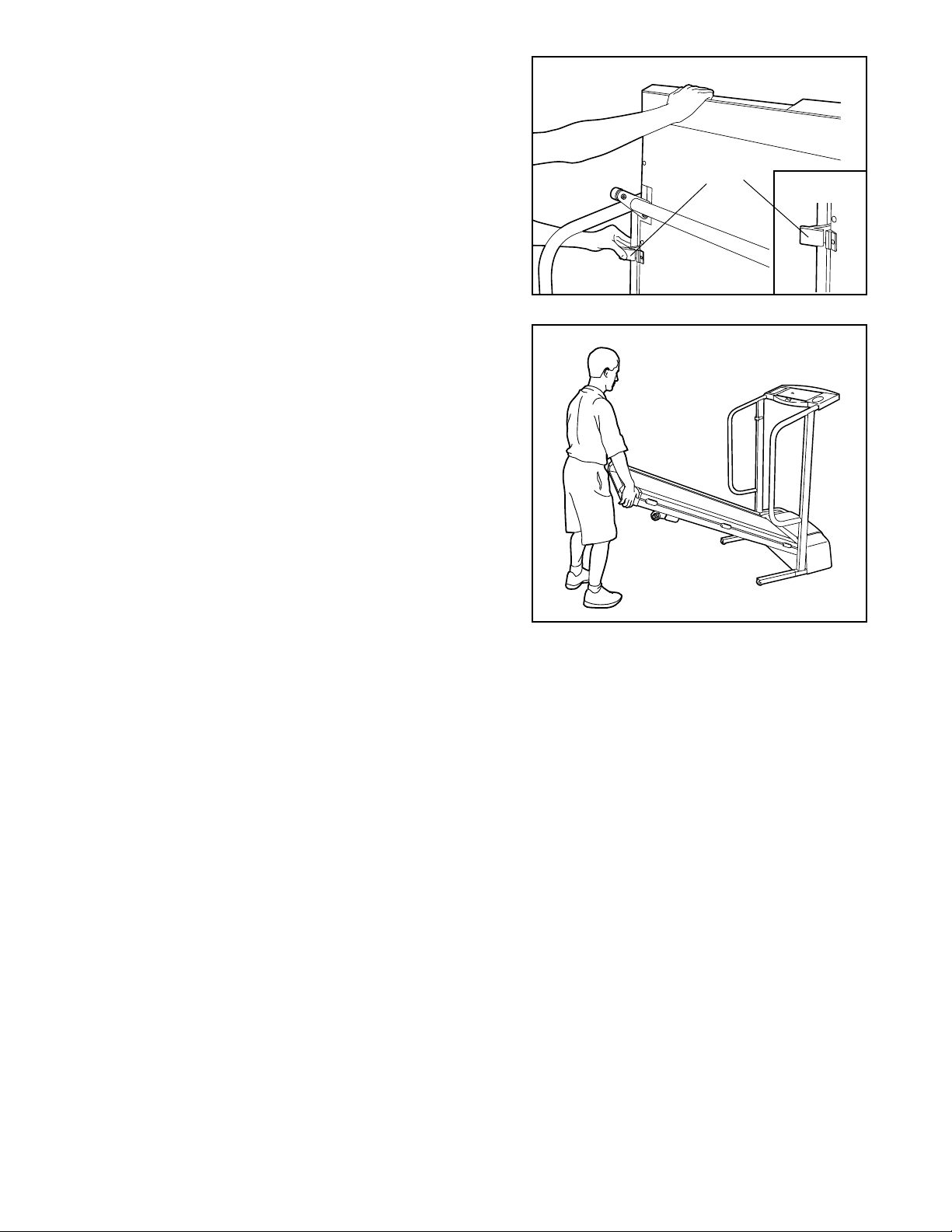

HOW TO MOVE THE TREADMILL

Before moving the treadmill, convert the treadmill to the stor­age position as described above. Make sure that the stor-

age latch is closed fully over the catch.

1. Hold the upper ends of the handrails. Place one foot on

the base as shown.

2. Tilt the treadmill back until it rolls freely on the front

wheels. Carefully move the treadmill to the desired loca­tion. Never move the treadmill without tipping it back,

or the base pads may come off. To reduce the risk of
injury, use extreme caution while moving the tread­mill. Do not move the treadmill over an uneven
surface.

3. Place one foot on the base, and carefully lower the tread-

mill until it is resting in the storage position.

Base

Front Wheels

Storage

Latch

Catch

Engaged

11

HOW TO LOWER THE TREADMILL FOR USE

1. Hold the upper end of the treadmill with your right hand as

shown. Using your left thumb, press the storage latch and
hold it. Pivot the treadmill until the frame and foot rail are
past the storage latch.

2. Hold the treadmill firmly with both hands, and lower the
treadmill to the floor. To decrease the possibility of in-

jury, bend your legs and keep your back straight.

Storage
Latch

Unlatched

12

TROUBLE-SHOOTING

Most treadmill problems can be solved by following the simple steps below. Find the symptom that
applies, and follow the steps listed. If further assistance is needed, call our toll-free HELPLINE at
1-800-736-6879, Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays).

1. SYMPTOM: THE POWER DOES NOT TURN ON

a. Make sure that the power cord is plugged into a surge suppressor, and that the surge suppressor is plugged

into a properly grounded outlet (see page 7). Use only a single-outlet surge suppressor that is UL 1449
listed as a transient voltage surge suppressor (TVSS). The surge suppressor must have a UL suppressed
voltage rating of 400 volts or less and a minimum surge dissipation of 450 joules. The surge suppressor
must be electrically rated for 120 volts AC and 15 amps.

b. After the power cord has been plugged in, make sure that the key is fully inserted into the console. See step

1 on page 9.

c. Check the circuit breaker located on the treadmill near the

power cord. If the switch protrudes as shown, the circuit
breaker has tripped. To reset the circuit breaker, wait for five
minutes and then press the switch back in.

2. SYMPTOM: THE POWER TURNS OFF DURING USE

a. Check the circuit breaker located on the treadmill frame near the power cord (see 1. c. above). If the circuit

breaker has tripped, wait for five minutes and then press the switch back in.
b. Make sure that the power cord is plugged in.
c. Remove the key from the console. Reinsert the key fully into the console. See step 1 on page 9.
d. If the treadmill still will not run, please call our toll-free HELPLINE.

3. SYMPTOM: THE DISPLAYS OF THE CONSOLE DO NOT FUNCTION PROPERLY

a. Check the batteries in the console. See BATTERY INSTALLATION on page 8. Most problems are the result

of drained batteries.
b. Remove the six screws from the hood. Carefully remove the

hood. Locate the Reed Switch (86) and the Magnet (87) on the

left side of the Pulley (85). Turn the Pulley until the Magnet is

aligned with the Reed Switch. Make sure that the gap between

the Magnet and the Reed Switch is about 1/8”. If necessary,

loosen the Screw (35) and move the Reed Switch slightly.

Retighten the Screw. Re-attach the hood, and run the treadmill

for a few minutes to check for a correct speed reading.

Tripped

Tripped

Reset

c

87

86
35

Top

View

1/8”

85

Reset

4. SYMPTOM: THE WALKING BELT SLOWS WHEN WALKED ON

a. Use only a UL-listed surge protector, rated at 15 amps, with a 14-gauge cord of five feet or less in length.

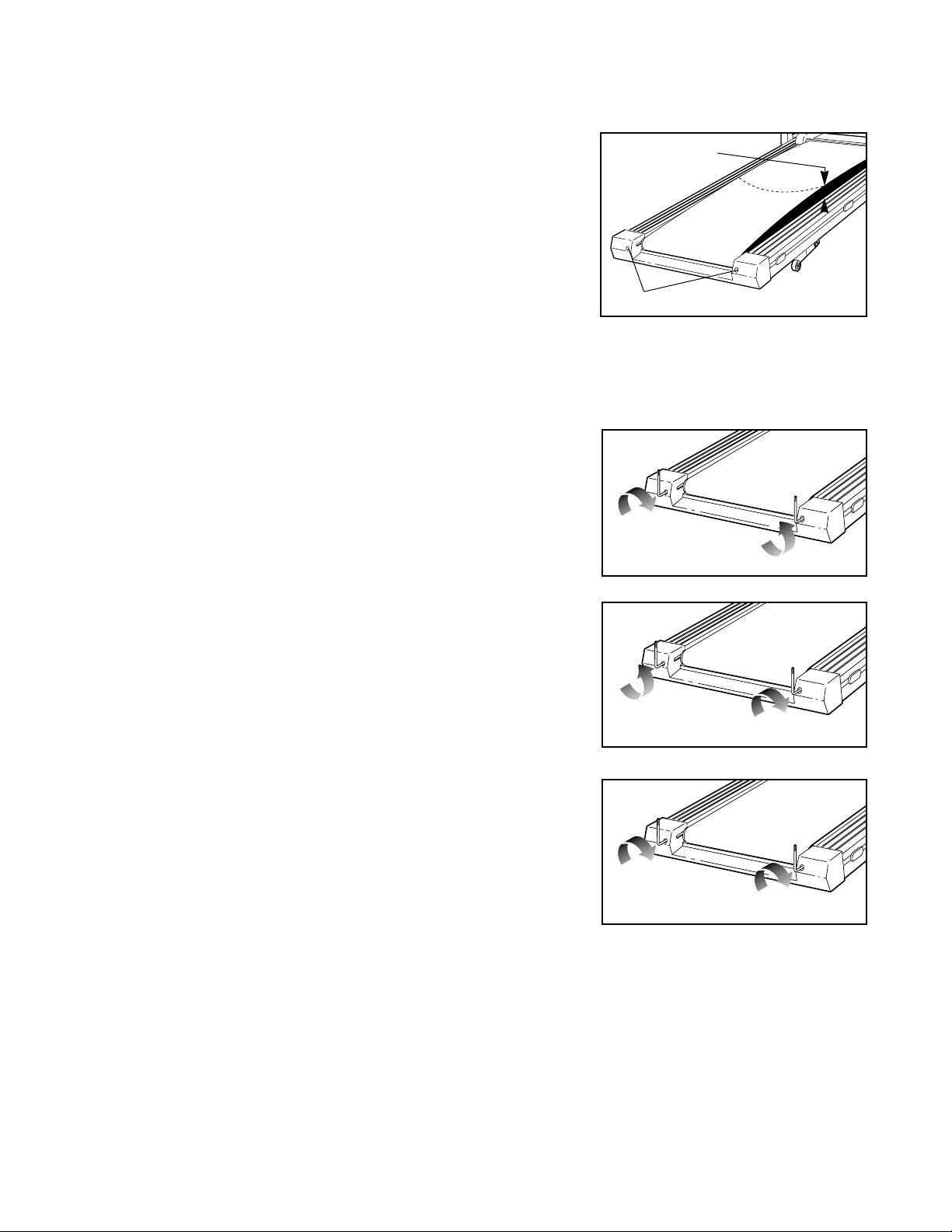

b. If the walking belt is overtightened, treadmill performance may

decrease and the walking belt may be permanently damaged.

Remove the key and UNPLUG THE POWER CORD. Using the

allen wrench, turn both rear roller adjustment bolts counterclock-

wise, 1/4 of a turn. When the walking belt is properly tightened,

you should be able to lift each side of the walking belt 2 to 3

inches off the walking platform. Be careful to keep the walking

belt centered. Plug in the power cord, insert the key and run the

treadmill for a few minutes. Repeat until the walking belt is prop-

erly tightened.
c. If the walking belt still slows when walked on, please call our toll-free HELPLINE.

5. SYMPTOM: THE WALKING BELT IS OFF-CENTER WHEN WALKED ON

a. If the walking belt has shifted to the left, first remove the key and

UNPLUG THE POWER CORD. Using the allen wrench, turn the

left rear roller adjustment bolt clockwise, and the right bolt coun-

terclockwise, 1/4 of a turn each. Be careful not to overtighten the

walking belt. Plug in the power cord, insert the key and run the

treadmill for a few minutes. Repeat until the walking belt is cen-

tered.

b. If the walking belt has shifted to the right, first remove the key

and UNPLUG THE POWER CORD. Using the allen wrench,

turn the left rear roller adjustment bolt counterclockwise, and the

right bolt clockwise, 1/4 of a turn each. Be careful not to over-

tighten the walking belt. Plug in the power cord, insert the key

and run the treadmill for a few minutes. Repeat until the walking

belt is centered.

c. If the walking belt slips when walked on, first remove the key

and UNPLUG THE POWER CORD. Using the allen wrench,

turn both rear roller adjustment bolts clockwise, 1/4 of a turn.

When the walking belt is correctly tightened, you should be able

to lift each side of the walking belt 2 to 3 inches off the walking

platform. Be careful to keep the walking belt centered. Plug in

the power cord, insert the key and run the treadmill for a few

minutes. Repeat until the walking belt is properly tightened.

6. SYMPTOM: THE INCLINE SYSTEM STICKS

a. Raise the treadmill to the storage position. See HOW TO FOLD THE TREADMILL FOR STORAGE on page

10. Pivot the incline leg several times to break in the incline system.

b

c

a

Rear Roller Adjustment Bolts

2”–3”

b

13

14

CONDITIONING GUIDELINES

The following guidelines will help you to plan your ex­ercise program. Remember—these are general guide­lines only. For more detailed exercise information, ob­tain a reputable book or consult your physician.

EXERCISE INTENSITY

Whether your goal is to burn fat or to strengthen your
cardiovascular system, the key to achieving the de­sired results is to exercise with the proper intensity.
The proper intensity level can be found by using your
heart rate as a guide. The chart below shows recom­mended heart rates for fat burning and aerobic exer­cise. (This chart is also found on the console.)

To find the proper heart rate for you, first find your age
on the left side of the chart (ages are rounded off to
the nearest ten years). Next, find the three numbers to
the right of your age. The three numbers are your
“training zone.” The lower two numbers are recom­mended heart rates for fat burning; the higher number
is the recommended heart rate for aerobic exercise.

Fat Burning

To burn fat effectively, you must exercise at a relatively
low intensity level for a sustained period of time. During
the first few minutes of exercise, your body uses easily
accessible carbohydrate calories for energy. Only after
the first few minutes does your body begin to use
stored fat calories for energy. If your goal is to burn fat,
adjust the speed and incline of the treadmill until your
heart rate is near one of the lower two numbers in your

training zone. It may also be helpful to set the speed
control on the console to FAT BURN to help you main­tain the proper intensity level. (See page 9.)

Aerobic Exercise

If your goal is to strengthen your cardiovascular sys­tem, your exercise must be “aerobic.” Aerobic exercise
is activity that requires large amounts of oxygen for
prolonged periods of time. This increases the demand
on the heart to pump blood to the muscles, and on the
lungs to oxygenate the blood. For aerobic exercise,
adjust the speed and incline of the treadmill until your
heart rate is near the highest number in your training
zone. It may also be helpful to set the speed control on
the console to AEROBIC to help you maintain the
proper intensity level. (See page 9.)

High Performance Athletic Conditioning

If your goal is high performance athletic conditioning,
set the speed control on the console to PERFOR­MANCE to help you maintain the proper intensity level.
(See page 9.) Note: During the first few weeks of your
exercise program, keep your heart rate near the low
end of your training zone.

HOW TO MEASURE YOUR HEART RATE

To measure your
heart rate, stop ex­ercising and place
two fingers on
your wrist as
shown. Take a six­second heartbeat
count, and multiply
the result by ten to
find your heart
rate. (A six-second count is used because your heart
rate drops quickly when you stop exercising.) If your
heart rate is too high or too low, adjust the speed or in­cline of the treadmill accordingly.

WORKOUT GUIDELINES

A well-rounded workout includes the following three
important parts:

A Warm-up

Start each workout with 5 to 10 minutes of stretching
and light exercise (see SUGGESTED STRETCHES on
page 15). A proper warm-up increases your body
temperature, heart rate, and circulation in preparation
for exercise.

WARNING:Before beginning

this or any exercise program, consult your
physician. This is especially important for in­dividuals over the age of 35 or individuals
with pre-existing health problems.

Training Zone Exercise

After warming up, increase the intensity of your exer­cise until your pulse is in your training zone for 20 to
60 minutes. (During the first few weeks of your exer­cise program, do not keep your pulse in your training
zone for longer than 20 minutes.) Breathe regularly
and deeply as you exercise—never hold your breath.

A Cool-down

Finish each workout with 5 to 10 minutes of stretching

to cool down. This will increase the flexibility of your
muscles and will help to prevent post-exercise problems.

Exercise Frequency

To maintain or improve your condition, complete three
workouts each week, with at least one day of rest be­tween workouts. After a few months, you may com­plete up to five workouts each week if desired.

The key to success is to make exercise a regular and
enjoyable part of your everyday life.

SUGGESTED STRETCHES

The correct form for several basic stretches is shown in the
drawings below. Move slowly as you stretch—never bounce.

1. Toe Touch Stretch

Stand with your knees bent slightly and slowly bend forward
from your hips. Allow your back and shoulders to relax as you
reach down toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times. Stretches: Hamstrings,
back of knees, and back.

2. Hamstring Stretch

Sit with one leg extended. Bring the sole of the opposite foot
toward you and rest it against the inner thigh of your extended
leg. Reach toward your toes as far as possible. Hold for 15
counts, then relax. Repeat 3 times for each leg. Stretches:
Hamstrings, lower back, and groin.

3. Calf/Achilles Stretch

With one leg in front of the other, reach forward and place your
hands against a wall. Keep your back leg straight and your
back foot flat on the floor. Bend your front leg, lean forward and
move your hips toward the wall. Hold for 15 counts, then relax.
Repeat 3 times for each leg. To cause further stretching of the
achilles tendons, bend your back leg as well. Stretches:
Calves, achilles tendons, and ankles.

4. Quadriceps Stretch

With one hand against a wall for balance, reach back and
grasp one foot with your other hand. Bring your heel as close
to your buttocks as possible. Hold for 15 counts, then relax.
Repeat 3 times for both legs. Stretches: Quadriceps and hip
muscles.

5. Inner Thigh Stretch

Sit with the soles of your feet together and your knees outward.
Pull your feet toward your groin area as far as possible. Hold
for 15 counts, then relax. Repeat 3 times. Stretches:
Quadriceps and hip muscles.

1

2

3

4

5

15

PART LIST—Model No. 831.297140 R0198A

Key No. Qty. Description

1 1 Key/Clip
2 1 Handrail
3 2 Cage Nut
4 1 Ratchet Screw
5 4 Rear Isolator Screw
6 1 Console Base
7 1 Speed Control Knob
8 1 Speed Potentiometer

9 1 Battery Cover
10 2 7 1/2” Cable Tie
11* 1 Console Assembly
12 1 Storage Latch
13 7 Base Screw/Latch Screw
14 1 Upright Base
15 2 Handrail Bolt
16 16 Washer
17 1 Motor Belt
18 1 Motor Swivel Nut
19* 1 Motor/Pulley/Flywheel/Fan
20 1 Pulley/Flywheel/Fan
21 1 Motor
22 3 Motor Tension Bolt
23 1 Motor Tension Washer
24 1 Motor Tension Star Washer
25 1 Motor Swivel Bolt
26 1 Upright Wire Harness
27 2 Ground Wire Screw
28 1 Hood
29 1 Hood Shield
30 4 Screw
31 1 Latch Decal
32 2 Handrail Screw
33 2 Frame Pivot Bolt
34 2 Extension Leg Screw
35 29 Electronics Screw
36 4 Base Pad
37 2 Wheel Bolt
38 2 Wheel
39 7 Wheel Nut
40 1 Controller
41 2 Extension Leg
42 1 Circuit Breaker
43 1 Power Cord Grommet
44 1 Power Cord
45 2 Upright Spacer
46 4 Isolator
47 16 Belly Pan Fastener
48 1 Choke
49 1 Motor Locknut

Key No. Qty. Description

50 2 Belt Guide
51 1 Belly Pan
52 1 Releasable Tie
53 2 Cable Tie Clamp
54 1 Motor Belly Pan
55 1 11 1/2” Cable Tie
56 4 8” Cable Tie
57 1 Incline Leg Spacer (long)
58 1 Incline Leg Bolt
59 2 Ratchet Screw
60 1 Ratchet Spring
61 1 Ratchet
62 2 Solid Isolator
63 2 Incline Leg Spacer
64 2 Incline Wheel Bolt
65 2 Incline Wheel
66 2 Incline Wheel Nut
67 1 Incline Leg Plate
68 1 Ground Wire
69 1 Incline Leg
70 2 Upright Pivot Washer
71 2 Rear Roller Adj. Bolt
72 1 Rear Roller Endcap
73 1 Allen Wrench
74 1 Adhesive Clip
75 1 Left Foot Rail
76 1 Rear Roller
77 4 Platform Screw
78 1 Latch Catch
79 1 Walking Platform
80 1 Walking Belt
81 1 Front Roller Adjustment Bolt
82 1 Shock
83 1 Right Foot Rail
84 1 Sensor Clip
85 1 Front Roller/Pulley
86 1 Reed Switch
87 1 Magnet
88 1 Console Wire Harness
89 1 Frame
90 6 Console Screw
91 2 Hood Screw
92 1 Treadmill Mat
93 2 4” Cable Tie

# 1 14” Wire Harness
# 1 9” Black Wire, Male/Female

# 1 User’s Manual
* Includes all parts shown in the box
# These parts are not illustrated

EXPLODED DRAWING—Model No. 831.297140 R0198A

35

35

35

35

1

13

3

2

6

7

8

9

88

11*

90

90

90

41

12

13

15

16

17

18

19*

26

30

15

16

25

21

20

22

23

24

82

36

30

35

84

37

39

86

38

87

85

45

77

77

16

81

14

28

91

30

13

35

29

3

2

32

33

35

34

36

35

37

38

39

36

35

35

35

54

35

35

35

40

56

27

53

52

46

48

35

47

46

45

34

41

42

43

44

47

51

47

79

80

58

59

47

4

61

60

57

77

83

46

77

46

5

74

75

32

73

72

71

16

31

71

16

64

62

27

68

66

63

66

69

65

47

39

67

22

64

39

47

76

63

62

78

13

36

22

70

49

35

5

55

39

39

10

16

16

89

92

35

50

93

Part No. 144019 H00150-C R0198A Printed in USA © 1998 Sears, Roebuck and Co.

The model number and serial number of your LIFESTYLER

®

EXPANSE 600 treadmill are listed on a decal attached to the frame.
See the front cover of this manual to find the location of the decal.

All replacement parts are available for immediate purchase or
special order when you visit your nearest SEARS Service Center.
To request service or to order parts by telephone, call the toll-free
numbers listed at the left.

When requesting help or service, or ordering parts, please be
prepared to provide the following information:

• The NAME OF THE PRODUCT (LIFESTYLER®EXPANSE 600
treadmill)

• The MODEL NUMBER OF THE PRODUCT (831.297140)

• The KEY NUMBER AND DESCRIPTION OF THE PART (see the
EXPLODED DRAWING and PART LIST included in this manual)

Model No. 831.297140

QUESTIONS?

If you find that:

• you need help assembling or
operating the LIFESTYLER

®

EXPANSE 600 TL treadmill

• a part is missing

• or you need to schedule repair
service

call our toll-free HELPLINE

1-800-736-6879

Monday–Saturday, 7 am–7 pm
Central Time (excluding holidays)

REPLACEMENT
PARTS

If parts become worn and need
to be replaced, call the following
toll-free number

1-800-FON-PART
(1-800-366-7278)

FULL 90 DAY WARRANTY

For 90 days from the date of purchase, if failure occurs due to defect in material or workmanship in this
SEARS TREADMILL EXERCISER, contact the nearest SEARS Service Center throughout the United
States and SEARS will repair or replace the TREADMILL EXERCISER, free of charge.

This warranty does not apply when the TREADMILL EXERCISER is used commercially or for rental pur­poses.

This warranty gives you specific legal rights, and you may also have other rights which vary from state
to state.

SEARS, ROEBUCK AND CO., DEPT. 817WA, HOFFMAN ESTATES, IL 60179
