Sears 831.29074 User Manual
SKIER PLUS
SEARS
Model No. 831.290740
Serial No.
Write the serial number in the space
above for reference.
Sedal
Number
Decal
_'- X I_ RC I S E
EO u I P I_I ENT
|olII I| I lel _ |I
HELPLINEI
USER'S MANUAL
1-800-736-6879
cAuTION
Read all precautions and instruc-
tions In this manual before using
this equipment. Save this manual
for future reference.
SEARS, ROEBUCK AND CO., HOFFMAN ESTATES, IL 60179
TABZ K)i = ; 3 NTENTS
IMPORTANT PRECAUTIONS ............................................................. 2
BEFORE YOU BEGIN ................................................................. .8
ASSEMBLY .......................................................................... .4

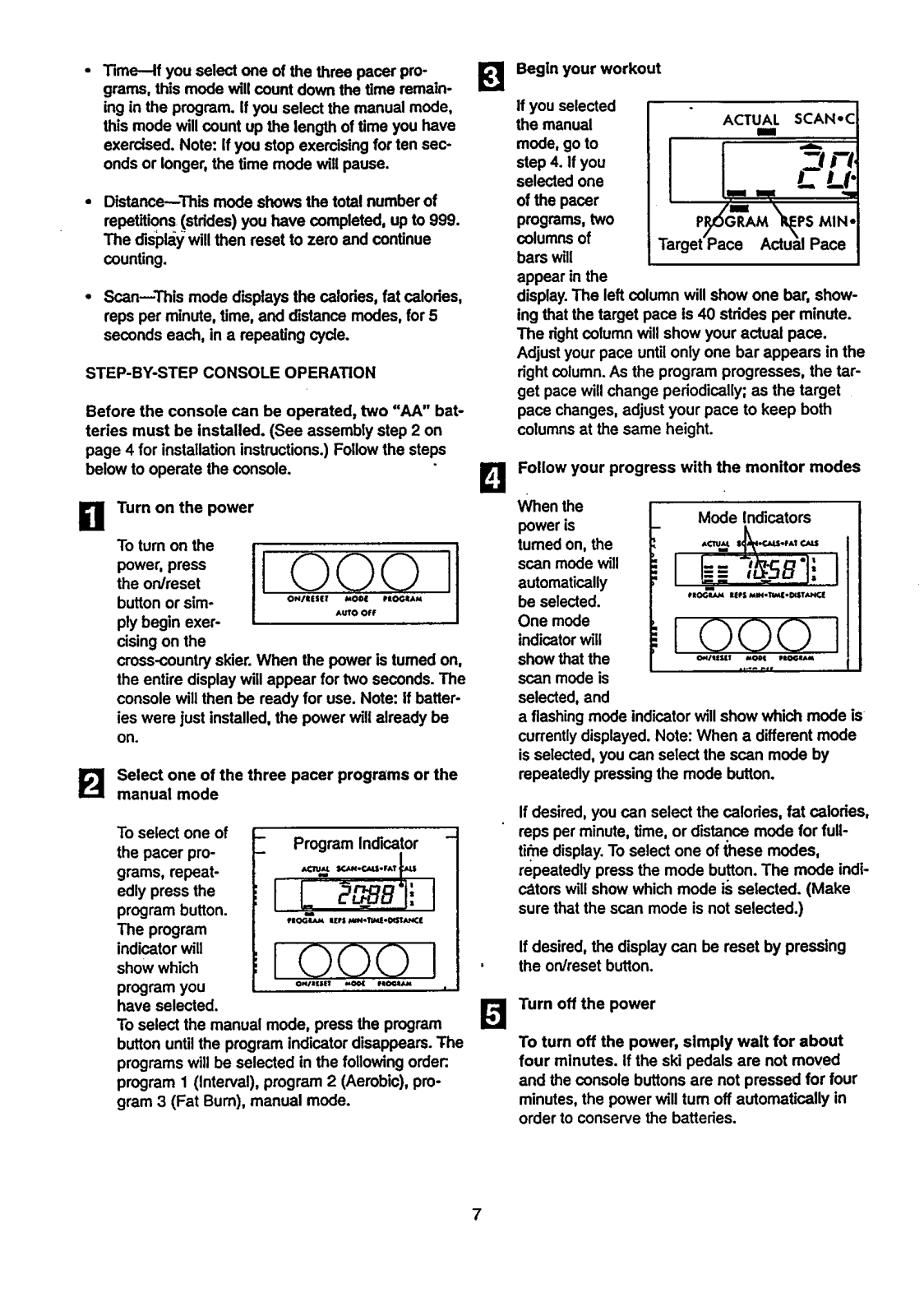

HOW TO USE THE ARC SKIER PLUS ..................................................... .5
MAINTENANCE AND TROUBLE-SHOOTING ................................................. 8

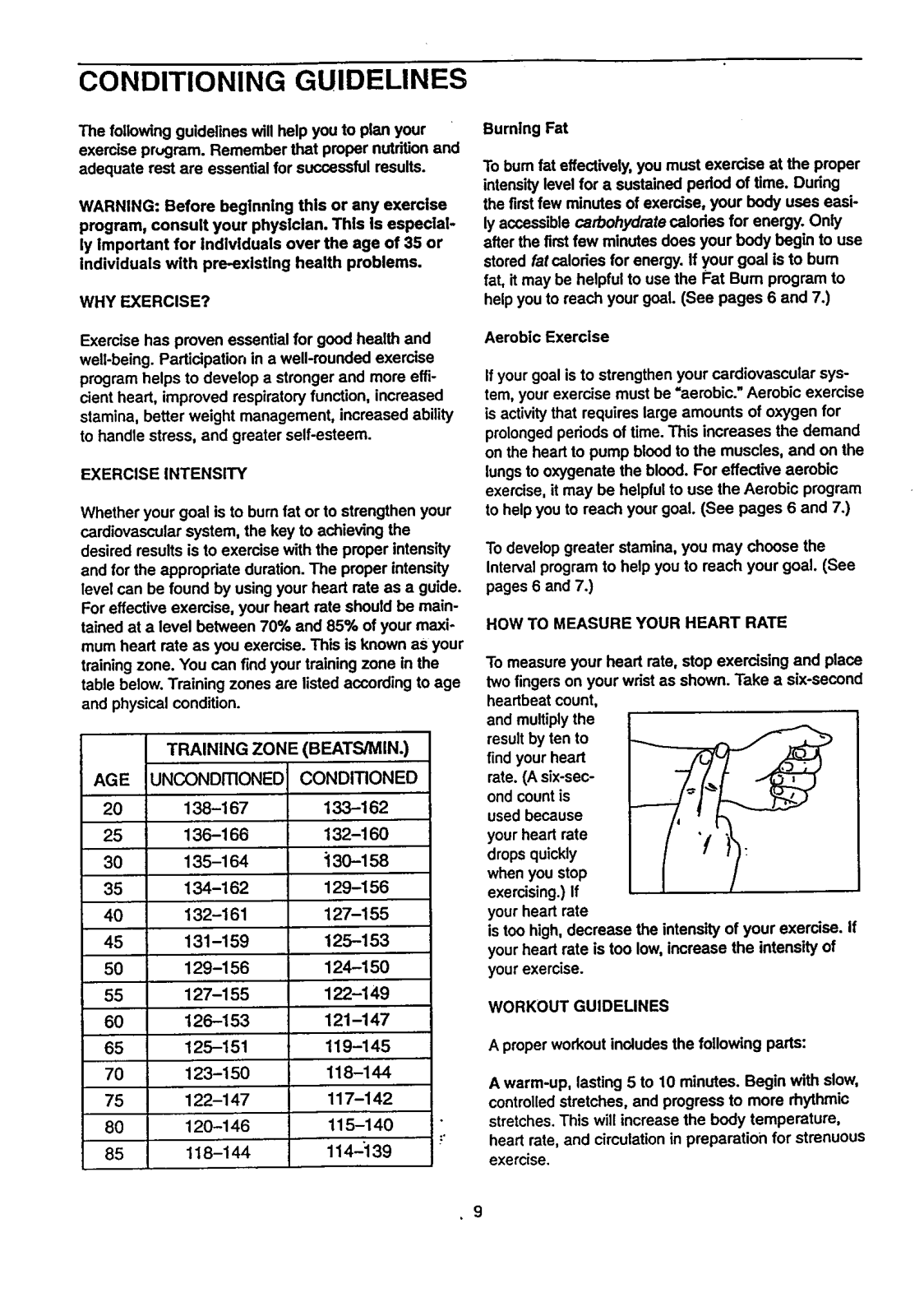

CONDITIONING GUIDELINES . .._ ........................................................ 9
PART LIST ........................... .".............................................. 10
EXPLODED DRAWING ........................................................ ......... 11
ORDERING REPLACEMENT PARTS ............................................... Back Cover
FULL 90 DAY WARRANTY ........................................................ Back Cover
2
BEFORE YOU BEGIN
Thank you for selecting the Innovative WESLO °
ARC SKIER PLUS cross-country skier. Cross-country
skiing is one of the most effectiveexercises for increas-
ing cardiovascular fitness, buildingendurance, and ton-
ing the muscles. The ARC SKIER PLUS features ultra-
smooth skiing pedals, ergonomic curved ski roils, upper
body arms, and adjustable resistance to let you enjoy
this dynamic exercise in the convenience of your home.
For your benefit, read this manual carefully before
you use the ARC SKIER PLUS. If you have additional
questions, please call our toll-free HELPLINE at 1-800-
Console
736-6879, Monday through Saturday, 7 a.m. until 7
p.m. Central "rime (excluding holidays). To help us
assist you, please note the product model number and
serial number before calling. The model number is
831.290740. The serial number can be found on a
decal attached to the cross-country skier (see the front
cover of this manual for the location).
Before reading further, please review the drawing
below and familiarize yourself with the pads that are
labeled.
_"_\\ / tWaerBON_tett_eBoHttlder
_ not included)
=__ Upper Body Arms
Resistance Knob
BACK
_/_ --Lock Pin
• Storage Hole
Updght
Lock Knob
: FRONT
Ski Rails
RIGHT SIDE
3
ASSEMBLY
For your convenience, the ARC SKIER PLUS is shipped assembled in the stowaway position. Follow the instruc-
tionsbelow to set up the ARC SKIER PLUS. No tools are required.
1. Raise the Upright (26) to the position shown. Slide
the M10 Washer (18) onto the Lock Knob (30). Insert
the Lock Knob into the indicated bracket and tighten
the Lock Knob Into the lower end of the UpdghL
3O
2. The Console (27) requires two "AA"batteries (not
included).Alkaline batteries are recommended.
To installbatteries, first slide up the Battery Cover
(46). Carefully remove the battery clip from the
Console (27). Insert two batteries into the battery
clip. Make sure that the negative (-) ends of the
batteries are touching the springs. Insert the bat-
tery clip intothe Console and close the Battery
Cover.
Battery Clip
3. Before using the cross-countryskier, the included all-
icon oil shouldbe applied. Apply a few drops of sili-
con all to the Ski Rails (1) where the Ski Pedal
Wheels (23) make contact.
1---Apply Silicon Oil
Make sure that all pads are securely tightened. The use of the remaining parts will be explained in the following
section.
4
