Sears 831.159231 User Manual
TM i ¸
C R O S S TR A ININ G S Y TE M
0 WNER 'S MAN UAL
SE_/AJRS
Model No. 831.159231
Serial No.
Theserial number can be found in the
IotaS'onshownbelow. Write theserial
number in the space above,
Serial Number Decal
CAUTIONh
Read all safety
precautions and
instructions in this
owner's manual before
using this equipment.
Save this owner's
manual in a safe place
for future reference.
PATENT PENDING
SEARS, ROEBUCK AND CO., NOFFMAN ESTATES, IL 60179
TABLE OE CONTENTS
IMPORTANT SAFETY PRECAUTIONS ................................................ 2
BEFORE YOU BEGIN .... . ......................................................... 3
ASSEMBLY, .... ,_.,_,.. .......................................................... 4
OPERATION AND ADJUSTMENT, <_.: .7
MAINTENANCE AND TROUBLE-SHOOTING 9
PART LIST , :.,, ...' .......... ,. .................................................. 10
EXPLODED DRAWING ............................................................. 11

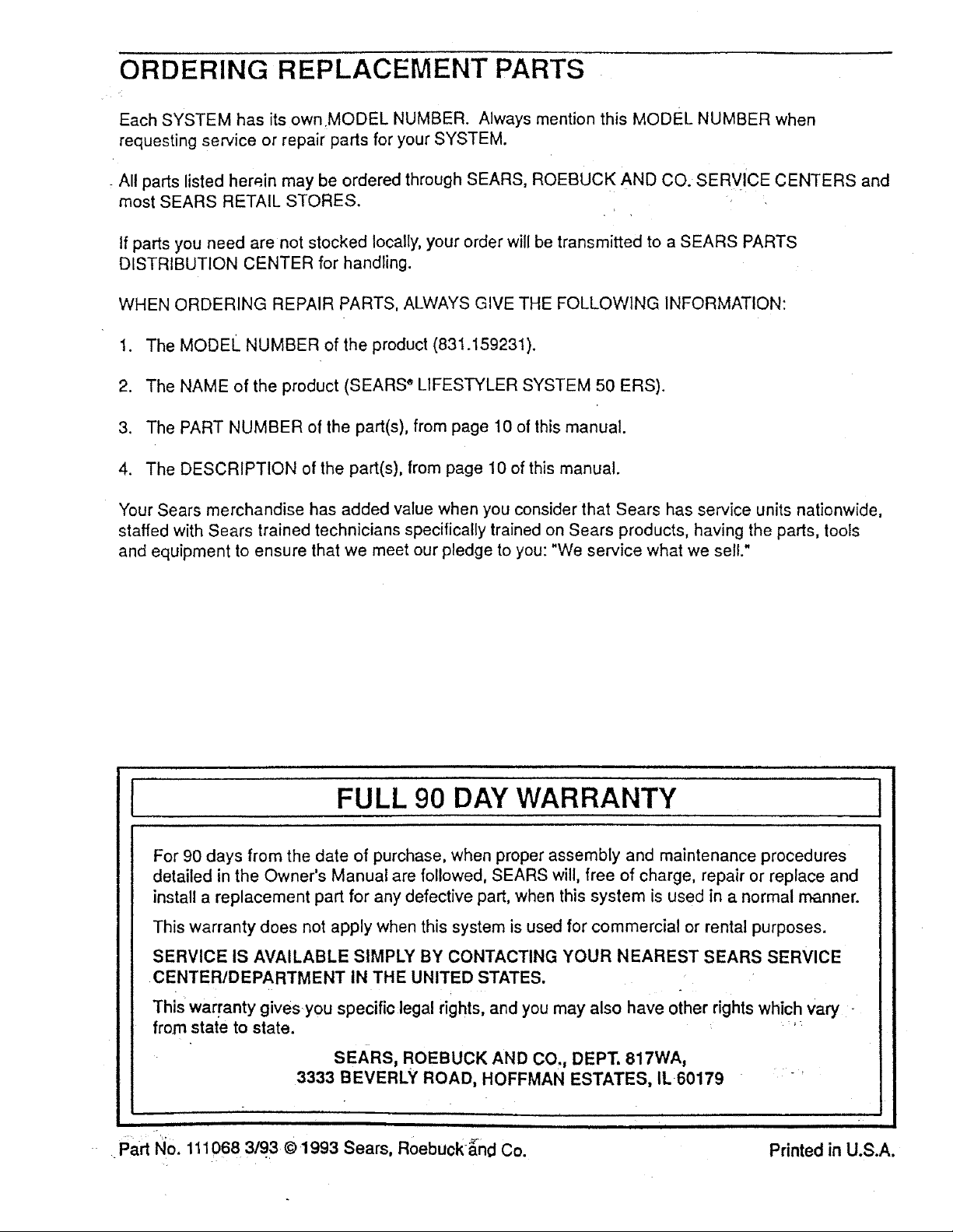

ORDERING REPLACEMENT PARTS .......................................... Back Cover
LIMITED WARRANTY ....................................................... Back Cover
IMPORTANT SAFETY PRECAUTIONS
WARNING: To reduce the risk of serious Injury, read the following Important safety precautions
before using this equipment.
1. Read all instructions in this owner's manual and in the accompanying literature before using
this equipment. Use this equipment only as described.
2. Inspect and tighten all parts each time this equipment is used. Replace any worn parts
immediately.
3. Always wear athletic shoes for foot protection. Keep your hands away from moving parts
other than the designated handles. Keep small children away from this equipment at all
times.
4. Always stand on the foot plate when performing any exercise that could cause this equip-
ment to tip.
5. To prevent damage to this equipment, do not put any tension on this equipment while
changing the weight. Never use more than one cable at a time.
6. Always remove the lat bar and chain when not in use (see OPERATION AND ADJUSTMENT).
7. Never release the butterfly arms, lat bar, ab arm or leg lever while they are under tension.
8. When using the stepper, never set the resistance so high that you must push or pull against
the stepper handlebar in order to press the pedals down. Exercising in this manner could
result in heart risk.
9. The resistance cylinders become very hot during use. Allow the cylinders to cool before
touching them. The floor beneath the cylinders should be covered In case of slight oil
leakage. This is a normal condition for hydraulic cylinders.
10. When exercislng on the stepper, keep y0tJrfeet on the pedals at all times: If you lift your feet
off the pedals, the pedals may become separated from the resistance cylinders, causing
serious injury. "
WARNING: Before beginning this or any exercise program, consult your physician. This is
especially Important for persons over the age of 35 or persons with pre-existing health
problems. Read all instructions before using this equipment. SEARS assumes no responsibility
•for personal injury or property damage sustained by or through the use of this equipment.
BEFORE YOU BEGIN
Congratulations for seiecting the SEARS ® LIFESTYLER SYSTEM 50 ERS cross training system. The
unique LIFESTYLER SYSTEM 50 ERS is a total body conditioning system, offering both weight
traihing and aerobic exercises. M0v_ng from station to station on the LIFESTYLER SYSTEM 50 ERS is
quick and easy, and the digital hand control allows you to change weight with the touch of a button.
Whether you want to build dramatic muscle size and strength, shape and tone your body, increase your
endurance and flexibility or develop your heart and lur_s, the LIFESTY'LER SYSTEM 50 ERS will help
you to achieve your goals in the privacy and comfort of your home.
This manual is provided to help you understand the assembly, adjustment and operation of the system.
For your safety and benefit, read thls manual carefully before using the system. If you have
additional questions, please call our Customer Service Department toll-free at 1-800-999-3756,
Monday through Friday, 6 a.m. until 6 p.m. Mountain Time (excluding holidays). To help us assist you,
please note your product model number and serial number before calling. The model number is listed
on the front cover of this manual. The serial number can be found on a decal attached to the system
(see the front cover of this manual).
Before reading further, please review the drawing below and familiarize yourself with the parts that are
labeled.
Upper Cable
Lat Bar
Cable Hook
Butterfly Arm
Backrest;
Seat
Hand Control
Pedal
Leg Lever
Frame
I
Ab Arm
Side Shield
Ab Seat
Lower Cable
control St_
Chain
Foot Plate •
ASSEMBLY
Place all parts in a cleared area and remove the packing materials. Do not dispose of the packing
materials until assembly is completed. Read all steps carefully before beginning. See the PART I.D.
CHART accompanying this manual for a drawing of each small part used In assembly and for a
list of the tools needed. The assistance of a second person is recommended.
Press the four 2" x 2" Outer Caps (13) onto the
Stabilizer (2). Turn the Stabilizer so the indicated
bracket is on top. Insert the four 3/8" x 2 1/2" Carriage
Bolts (87) up through the Stabilizer as shown.
Place the Frame (1) over the two indicated 3/8" x
2 1/2" Carriage Bolts (87) as shown. Finger tighten
two 3/8" Nuts (89) with 3/8" Lock Washers (88) onto
the Carriage Bolts.
.
Remove the 3/8" x 3/4" Bolt (35), the Cable Hook "(48),
the extra washer (A), and the 3/8" Nylock Nut (6)
which secure the Lower Cable (76) to the Frame (1)
as shown in the inset. Do not release the Cable until
completing this assembly step. The 3/8" x 3/4" Bolt
(35) and the 3/8" Nylock Nut (6) will be used in
assembly step 3 below. The Cable Hook will be used
later. The extra washer should be discarded.
Lower Cable (76) under the Pulley. Attach the Pulley
to the Stabilizer (2) with a 3/8" x 1 3/4" Bolt (18) and
3/8" Nylock Nut (6) as shown. Do not overtighten the
Nut. The Pulley should turn freely.
, , ' ,,
;. @-89 13-t_
" J_"88
13 Bracket_.._!/. "_,
............. 87
' I
2 i
/ 7e', %
-
.
Attach the Foot Plate (34) to the Frame (1) with the
two 3/8" x 3/4" Bolts (35) and two 3/8" Nylock Nuts (6).
.
Press the Backrest Post (63) at the lower end of the
Backrest (36) into the Frame (1) as shown. Attach the
upper end of the Backrest to the Frame with the 1/4" x
2 1/2" Bolt (37) and a 1/4" Lock Washer (7).
