Sears 758.14451 User Manual

for Future Reference

8EARS

owner's

manual

Model No.

758.144510

7 Gallon

®

QUIETCOMFORT

WHOLE HOUSE

FOR YOUR

HUMiDiFiER

SAFETY

7 Gallon Output

READ ALL

INSTRUCTIONS

CAREFULLY

J

Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.

PartNo.SP6054 Printedin Canada

, Operating Instructions

• Parts List

Seam, Roebuck and Co., D/817 VAI Hoffman Estates, tL 60179

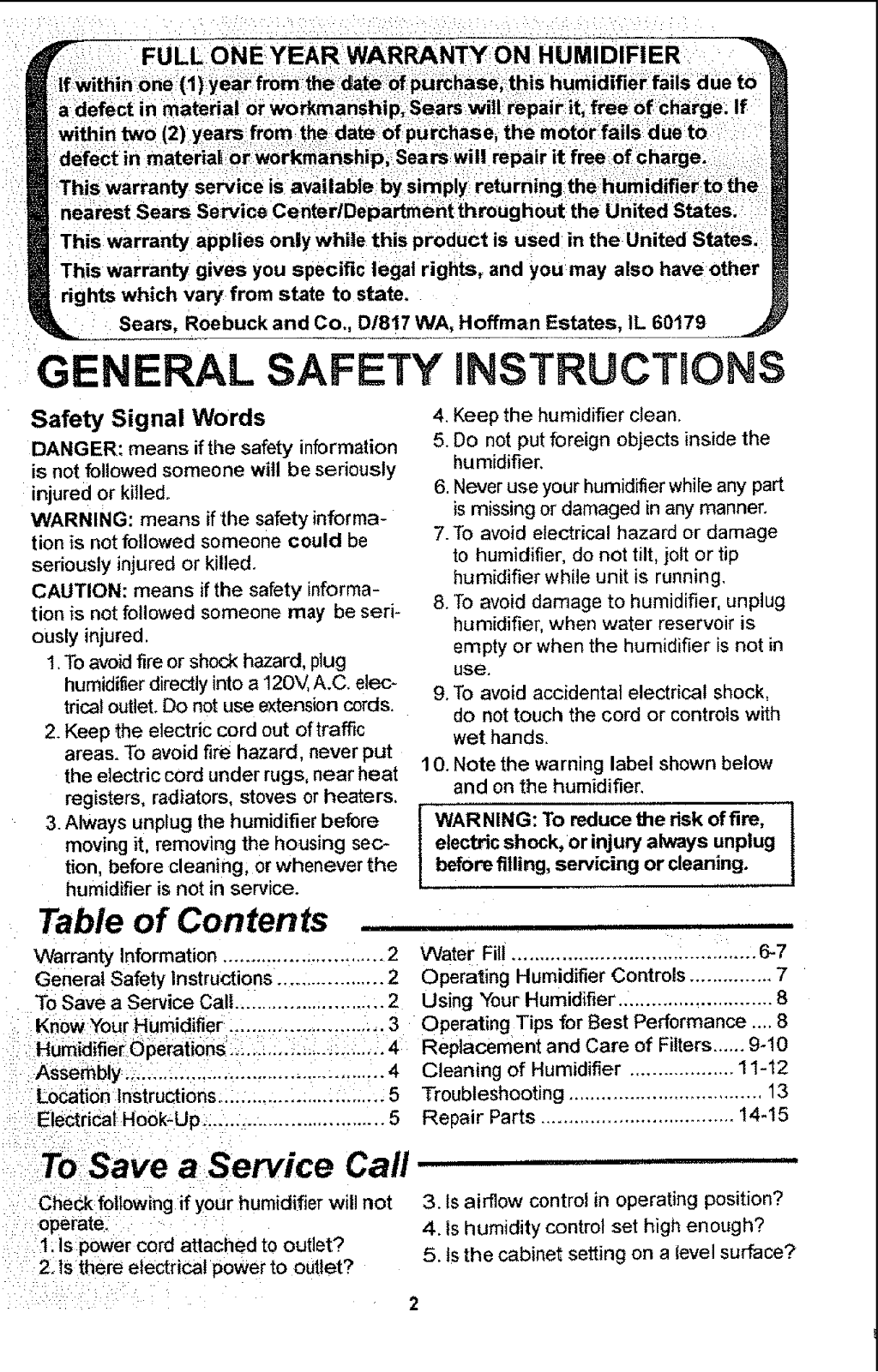

GENERAL SAFETY iNSTRUCTiONS

Safety Signal Words 4

DANGER: means ifthe safety information 5.
is not followed someone wilt be seriously
injured or killed, 6.

WARNING: means ifthe safety informa-

tion is not followed someone could be
seriously injured or killed,
CAUTION: means ifthe safety informa-

tion is net followed someone may be seri-

ously injured.

1,To avoid fire or shock hazard, plug

humidifier directly into a 120V,A.C. elec-

trical outlet. Do not use extension cords.

2. Keep the electric cord out of traffic
areas. To avoid fire hazard, never put

the electric cord under rugs, near heat

registers, radiators, stoves orheaters.

3. Always unplug the humidifier before
moving it, removing the housing sec-

tion, before cleaning, or whenever the
humidifier is not in service.

Keep the humidifier clean,
Do not put foreign objects inside the

humidifier,
Never use your humidifierwhile any part

ismissing or damaged in any manner.

7.To avoid electrical hazard or damage
to humidifier, do not tilt, jolt or tip
humidifier while unit is running,

8. To avoid damage to humidifier, unplug
humidifier, when water reservoir is
empty or when the humidifier is not in

use,

9. To avoid accidental electrical shock,
do not touch the cord or controls with
wet hands.

10. Note the warning label shown below

and on the humidifier,

WARNING: To reduce the risk of fire,
electric shock, or injury always unplug

before filling, servicing or cleaning.

Table of Contents

Warranty Information ............................. 2 Water Fill ............................................ 6-7

General Safety Instructions .................. 2 Operating Humidifier Controls ............... 7

To Save a Service Call .......................... 2 Using Your Humidifier ............................ 8

Know Your Humidifier ............................ 3 Operating Tips for Best Performance ....8

Humidifier Operations ............................ 4 Replacement and Care of Filters ...... 9-10

Assembly ............................................... 4 Cleaning of Humidifier ................... 11-t2

Location Instructions ............................... 5 Troubleshooting .................................. 13

Electrical Hook-Up ................................. 5 Repair Parts ................................... 14-15

HH

To Save a Service Call

Check following if your humidifierwill not
.operate.

1.Is power cord attached to outlet?

2. is there electrical power to outlet?

3. ls airflow control in operating position?

4. ts humidity control set high enough?

5. Is the cabinet setting on a tevel surface?

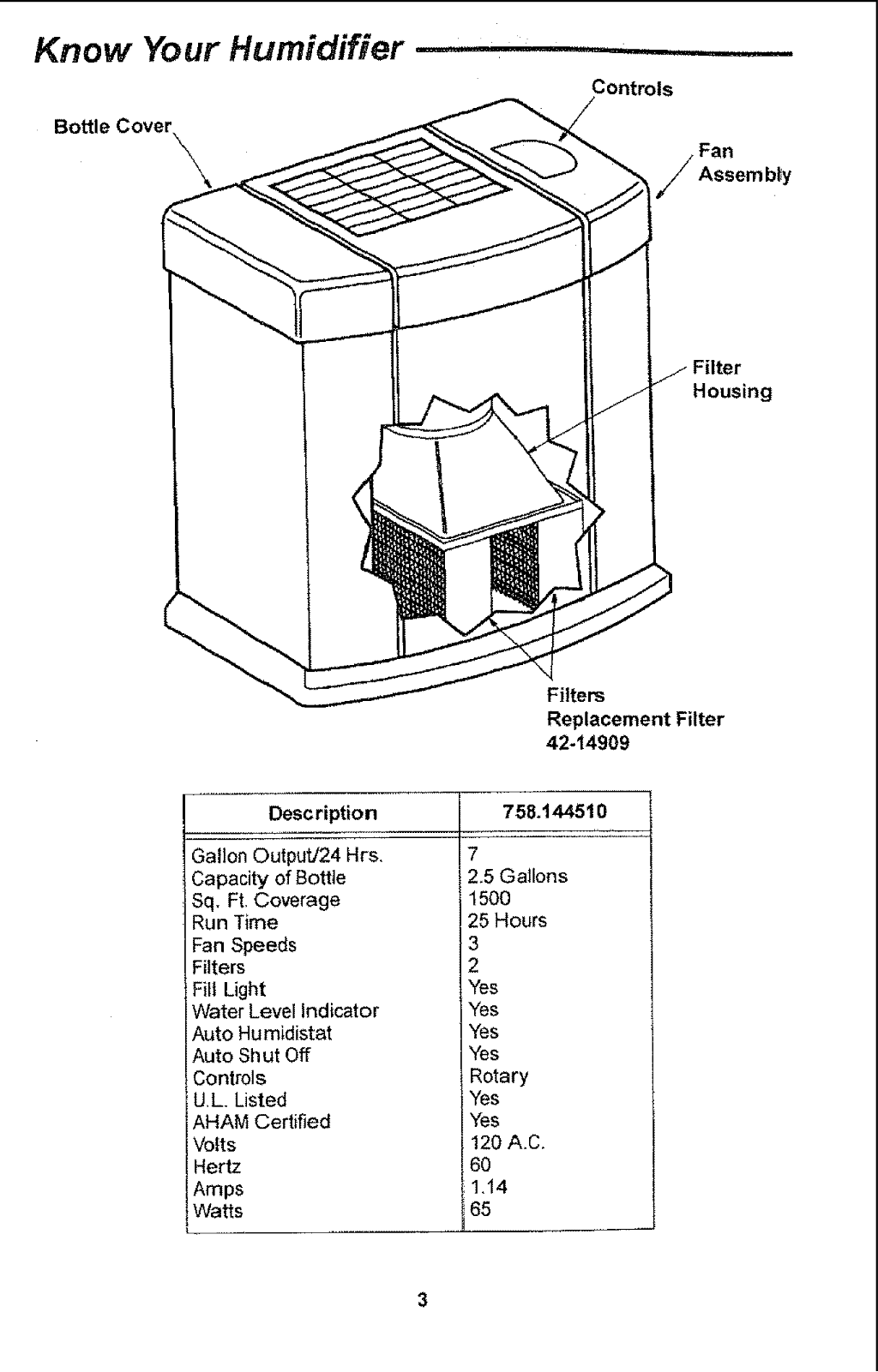

Know Your Humidifier .....

Controls

Fan

Assem b_y

Housing

Filters
Replacement Filter

42-14909

Description 758.t 44510

Gallon Output/24 Hrs,
Capacity of Bottle
Sq. Ft, Coverage

Run Time
Fan Speeds

Filters

Fill Light

Water Level Indicator

Auto Humidistat
Auto Shut Off

Controls
U.L. Listed
AHAM Certified
Volts
Hertz

Amps
Watts

7

2,5 Gallons
t 500

25 Hours

3

2
Yes
Yes
Yes

Yes

Rotary

Yes
Yes

120 A.C.

6O

1.14

65

water intothe air_
Afterwate:r S added to the bottle the ill- .:. _ o

er : i iJryA r _nters

t s beg n to soak up:the water and Thmu-h the

becom e totally saturated in approxi- Rear

mately 30 minutes. Air is drawn in from _,
the rear of the humidifier, then passes: 1_
through the filters by means of a circula- _.
tion fan. As air passes through the filters, _Jk..

moisture is absorbed intothe air and then :

released through the top of the humidifier.
This moist air is released inthe form of

vapor. No water droplets willenter the

home. All evaporation into the air takes

place in the humidifier, which means that

the residue left by evaporating water isnot

passed into the home, but remains in the

filter.

CAUTION: Use only 42-14900 EPA I
Registered Bacteriostat available

from SEARS Retail store. Under no
circumstances should you use water

treatment products designed for
Roto belt or Ultrasonic humidifiers.

CAUTION: Keep your humidifier
clean. While humidifiers do not

cause colds, some studies suggest
that dirty humidifiers can cause cold-

like symptoms in some people. To
avoid this, we recommend you clean
your humidifier weekly with Humidi-

tier Cleaner 42-14713 and use Bacte-
riostat 42-14900. These are available

at your local Sears store.

Assembly

Your new Sears Kenmore humidifier Js
completely assembled for you to use

Follow the instructionsofthis owner's

manual for proper usage,

i i i_ i i iHumidified Air is

.':_'_,::: Then Released

_i_. i i i Through the Top

, T

,t % t

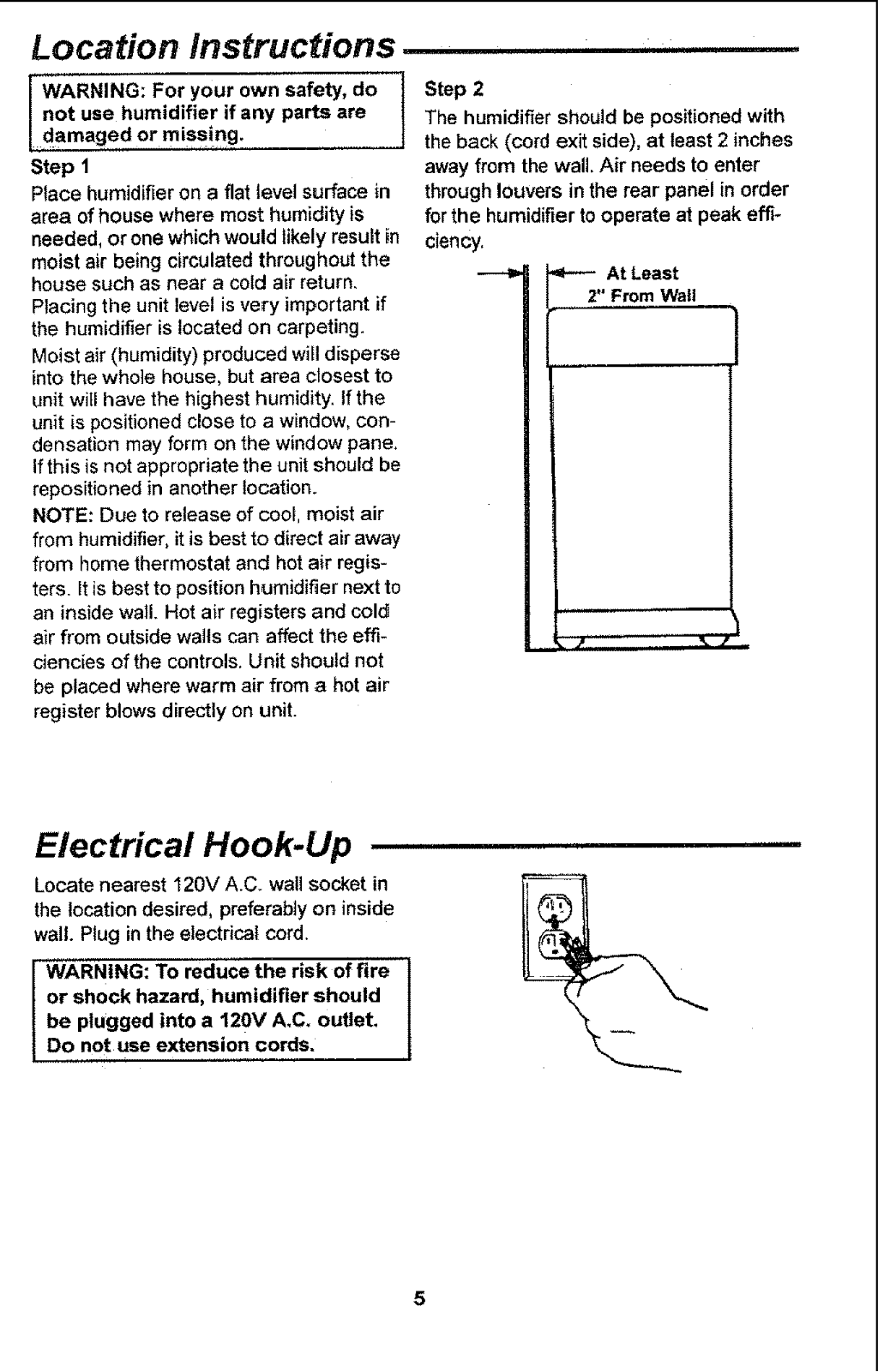

Location Instructions

i iiii i ii iii

WARNING: For your own safety, do
not use humidifier if any parts are

damagedormiss!n .

Step 1
Place humidifier on a flat level surface in
area of house where most humidity is

needed, or one which would likely result in

moist air being circulated throughout the
house such as near a cold air return.

Placing the unit level is very important if

the humidifier is located on carpeting.

Moist air (humidity) produced wiil disperse
intothe whole house, but area closest to

unit will have the highest humidity. Ifthe
unit is positioned close to a window, con-

densation may form on _he window pane,

Ifthis isnot appropriate the unit should be
repositioned in another location.

NOTE: Due to release of coot, moist air
from humidifier, it is best to direct air away

from home thermostat and hot air regis-
ters. tt is best to position humidifier next to
an inside wall. Hot air registers and cold

air from outside wails can affect the effi-
ciencies of the controls. Unit should not

be placed where warm air from a hot air
register blows directly on unit.

Step 2
The humidifier should be positioned with

the back (cord exit side), at teast 2 inches
away from the wall. Air needs to enter
through louvers in the rear panel in order
forthe humidifier tooperate at peak effi-

ciency.

At Least

2" From Wall

• J,...:..:: "-,. i _

Electrical Hook-Up

Locate nearest _20V A.C. wall socket in

the location desired, preferably on inside

wall. Plug inthe electrical cord.

or shock hazard, humidifier should
be plugged into a 120V A.C. outlet.

WARNING: To reduce the risk of fire
Do not use extension cords.
