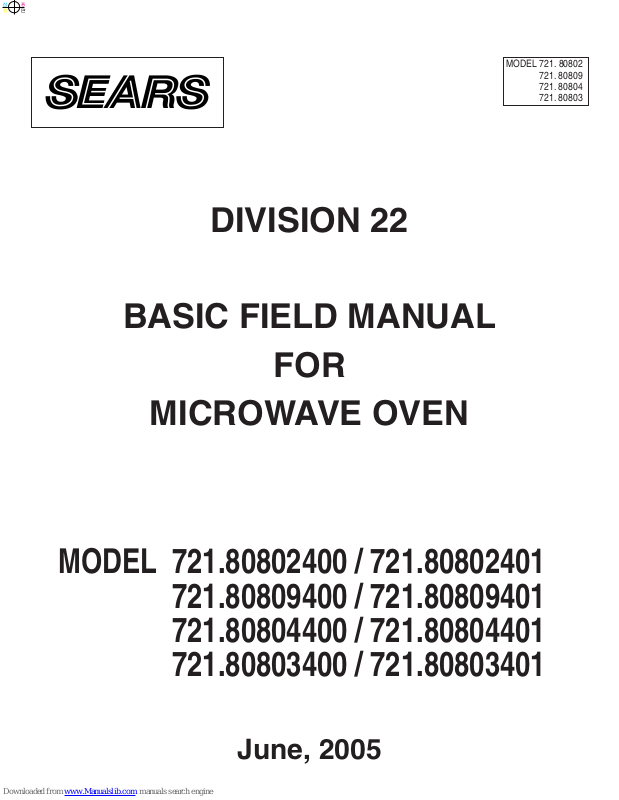

DIVISION 22
BASIC FIELD MANUAL
FOR
MICROWAVE OVEN
MODEL 721.80802400 / 721.80802401
721.80809400 / 721.80809401
721.80804400 / 721.80804401
721.80803400 / 721.80803401
June, 2005
MODEL 721. 80802
721. 80809
721. 80804
721. 80803
Page 2
CAUTION
WARNING TO SERVICE TECHNICIANS
PRECAUTIONS TO BE OBSERVED BEFORE AND
DURING SERVICING TO AVOID POSSIBLE EXPOSURE
TO EXCESSIVE MICROWAVE ENERGY
a. Do not operate or allow the oven to be operated with the door open.
b. Make the following safety checks on all ovens to be serviced before activating the
magnetron or other microwave source, and make repairs as necessary; (1) Interlock
operation, (2) proper door closing, (3) seal and sealing surfaces (arcing, wear, and
other damage), (4) damage to or loosening of hinges and latches, (5) evidence of
dropping or abuse.
c. Before turning on microwave power for any service test or inspection within the
microwave generating compartments, check the magnetron, wave guide or
transmission line, and cavity for proper alignment, integrity, and connections.
d. Any defective or misadjusted components in the interlock, monitor, door seal, and
microwave generation and transmission systems shall be repaired, replaced, or
adjusted by procedures described in this manual before the oven is released to the
owner.
e. A Microwave leakage check to verify compliance with the Federal performance
standard should be performed on each oven prior to release to the owner.
• Proper operation of the microwave ovens requires that the magnetron be assembled to the
wave guide and cavity. Never operate the magnetron unless it is properly installed.
• Be sure that the magnetron gasket is properly installed around the dome of the tube whenever
installing the magnetron.
• Routine service safety procedures should be exercised at all times.
• Untrained personnel should not attempt service without a thorough review of the test
procedures and safety information contained in this manual.
Page 3
TABLE OF CONTENTS
(Page)
SAFETY PRECAUTIONS .............................................................................................................. Inside front page
SPECIFICATIONS ............................................................................................................................................... 1-1
CAUTIONS .......................................................................................................................................................... 2-1
INSTALLATIONS ................................................................................................................................................. 3-1
OPERATING INS ................................................................................................................................................. 4-1
CONTROL PANEL ....................................................................................................................................... 4-1
CONTROL PANEL INSTRUCTIONS ........................................................................................................... 4-2
OVERALL CIRCUIT DIAGRAM ........................................................................................................................... 5-1
SCHEMATIC DIAGRAM (I) .......................................................................................................................... 5-1
SCHEMATIC DIAGRAM (II) ......................................................................................................................... 5-2
MATRIX CIRCUIT FOR TOUCH KEY BOARD ............................................................................................ 5-3
GENERAL INFORMATION FOR SERVICE ........................................................................................................ 6-1
GENERAL PRECAUTIONS IN USE ............................................................................................................ 6-1
TRIAL OPERATION ..................................................................................................................................... 6-1
FEATURES AND SPECIFICATIONS FEATURES ...................................................................................... 6-1
SERVICE INFORMATION ................................................................................................................................... 7-1
PRECAUTIONS AND REPAIR SERVICE TIPS ........................................................................................... 7-1
MICROWAVE LEAKAGE TEST ................................................................................................................... 7-2
POWER OUTPUT MEASUREMENT ........................................................................................................... 7-3
DISASSEMBLY INSTRUCTIONS ................................................................................................................ 7-4
INTERLOCK SYSTEM ............................................................................................................................... 7-12
INTERLOCK CONTINUITY TEST .............................................................................................................. 7-14
TEST AND CHECKOUT PROCEDURES AND TROUBLE SHOOTING ................................................... 7-15
A. TEST PROCEDURES .................................................................................................................... 7-15
B. CHECKOUT PROCEDURES ......................................................................................................... 7-19
C. TROUBLE SHOOTING .................................................................................................................. 7-22
EXPLODED VIEW ............................................................................................................................................... 8-1
FOREWORD
Read this Manual carefully. Failure to adhere to or observe the information in this Manual may result in exposing yourself to
the Microwave Energy normally contained within the oven cavity.
MODEL 721. 80802
721. 80809
721. 80804
721. 80803
Page 4
1-1
Rated Power Consumption
1700W maximum (Microwave oven+Cook top lamps+Ventilation fan)
Microwave Output 1150W (IEC 60705)
Frequency 2,450 MHz ± 50 MHz
Power Supply 120 VAC, 60 Hz
Rated Current 15.5 Amp. (Microwave oven+Cook top lamps+Ventilation fan)
Magnetron Cooling Forced Air Cooling
Rectification Rectification Voltage Double Half-Wave
Door Sealing Choke System
Safety Devices Magnetron Thermostat: Open at 145 °C ±5 °C
Close at 60 °C ±5 °C
Oven Thermostat: Open at 110 °C ±5 °C
Close at 0 °C ±5 °C
Fuse(20A)
Primary Interlock Switch
Secondary Interlock Switch
Interlock Monitor Switch
Magnetron 2M282J (Toshiba)
Cook top Lamp 120 V, 20 W (Halogen)
Cavity Lamp 120 V, 20 W (Halogen)
Timer Digital, up to 99 min. (in each cooking stage)
Tray Tempered Safety Glass
Overall Dimensions 29
15
/16”(W)x167/16”(H)x153/8”(D)
Oven Cavity Size 23
1
/2”(W)x10”(H)x141/2”(D)
Effective Capacity of Oven Cavity 2.0 Cu.ft.
Accessories Owner ’s Manual & Cooking Guide, Installation Manual,
Exhaust Adapter, Exhaust Damper, Mounting Kit and Filter,
Rotating Ring Assembly, Glass Tray, Metal Rack, Guide Tray.
SWITCH CHART
SPECIFICATIONS
NOTE: Use the above switch chart with circuit diagram on page 5-1.
PRIMARY SECONDARY INTERLOCK
INTERLOCK INTERLOCK MONITOR
SWITCH SWITCH SWITCH
COM COM COM
NO NO NC
OPEN OPEN CLOSE
CLOSE CLOSE OPEN
SWITCH MODE
CONDITIONS
DOOR OPEN
DOOR CLOSED
Page 5
2-1
CAUTIONS
• DO NOT operate on a 2-wire extension cord during
repair and use.
• NEVER TOUCH any oven components or wiring during
operation.
• BEFORE TOUCHING any parts of the oven, always
remove the power plug from the outlet.
•
Remove your watches whenever working close to or
replacing the Magnetron.
• DO NOT touch any parts of the control panel circuit. A
resulting static electric discharge may damage this
P.C.B.
• NEVER operate the oven with no load.
• NEVER injure the door seal and front plate of the oven
cavity.
• NEVER put iron tools on the magnetron.
• NEVER put anything into the latch hole and the interlock
switches area.
• Proper operation of the microwave oven requires that
the magnetron be assembled to the waveguide and
cavity. Never operate the magnetron unless it is
properly installed.
• Be sure that the magnetron gasket is properly
installed around the dome of the tube whenever
installing the magnetron.
Unlike other appliances, the microwave oven is
high-voltage and high-current equipment.
Though it is free from danger in ordinary use,
extreme care should be taken during repair.
THE OVEN IS TO BE SERVICED ONLY
BY PROPERLY QUALIFIED SERVICE
PERSONNEL.
MICROWAVE RADIATION
Personnel should not be exposed to the
microwave energy which may radiate from the
magnetron or other microwave generating
device if it is improperly used or connection.
All input and output microwave connections,
waveguide, flange, and gasket must be secure
never operate the device without a microwave
energy absorbing load attached.
Never look into an open waveguide or antenna
while the device is energized.
Gasket
ANTENNA
COOLING FIN
MAGNETRON
CHASSIS GROUND
FILAMENT
TERMINALS
MAGNETRON
Page 6
3-1
INSTALLATIONS

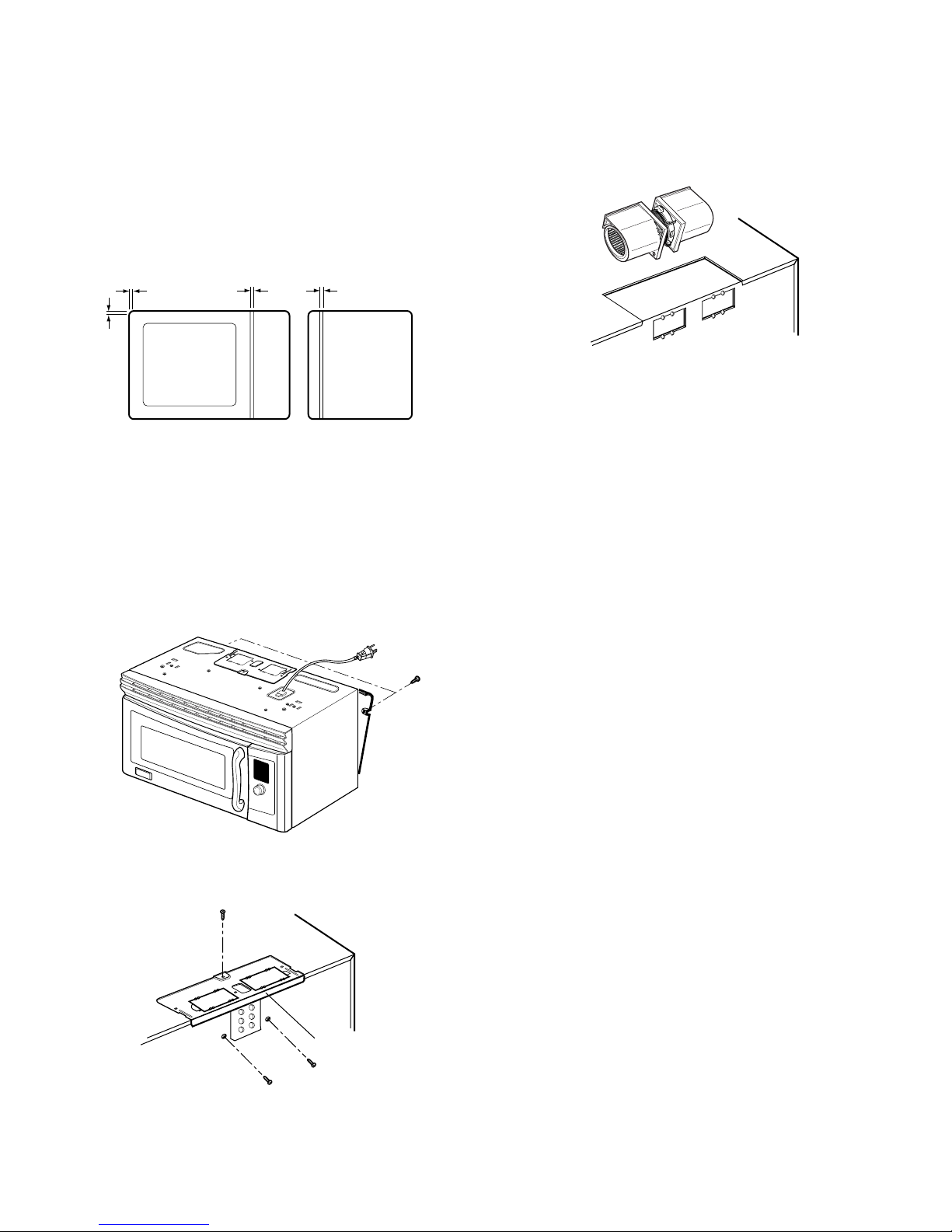

PRECAUTIONS ON INSTALLATION
A. Plug the power supply cord into a 120V AC, 60Hz,
single-phase power source with a capacity of
at least 20 amperes.
B. Avoid placing the unit in a location where there is
direct heat or splashing water.
C. Install the unit on the mounting plate firmly.
D. Place the unit as far away as possible from TV,
radio, etc. to prevent interference.
GROUNDING INSTRUCTIONS
For personal safety, this appliance must be fully
grounded at all times.
In the event of an electrical short circuit, grounding
reduces the risk of electrical shock.
The plug must be plugged into an outlet that is
properly installed and grounded.
BEFORE YOU BEGIN, READ THE FOLLOWING INSTRUCTIONS COMPLETELY AND CAREFULLY.
WARNING
Improper use of the grounding plug can result in a
risk of electric shock.
Do not, under any circumstances, cut or remove the
third ground prong from the power cord plug.
CAUTION
This unit is equipped with a 3-prong plug for your
safety. If the wall outlet is a grounded 3-hole type,
the unit will be grounded automatically.
Plug with Ground
Prong
Properly Polarized
and Grounded
Outlet
Page 7
CONTROL PANEL
4-1
OPERATING INSTRUCTIONS
MAIN MENU
Cook
Reheat
Defrost
Soften & Melt
Favorites
Options
1
2
3
5
6
8
10
4
7
9
11
Page 8
CONTROL PANEL INSTRUCTIONS
4-2
1. Display Screen shows the time of day and Cook Mode
when the microwave oven is not in use. During
programming, it displays function menus for you to
choose from, servings and weights for you to enter,
preparation instructions, and cooking time/power
settings for you to select. During a cooking cycle, it
counts down the remaining time and prompts you to stir,
turn food, etc., as necessary.
2. Touch DIAL Control. Use this dial to select oven
functions, such as quantities of food and cooking
times/powers.
3. START. Touch this pad to start a function. If you open
the door after the oven beings to cook, retouch start.
4. STOP/CLEAR. Touch this pad to stop and cancel any
oven function.
5. MANUAL COOK. Touch this pad for manual control of
cook time and power level. The Stop/Clear pad can also
be used to cancel.
6. POPCORN. Touch this pad to pop popcorn with the
sensor feature. The oven’s sensor will tell the oven how
long to cook depending on the amount of humidity it
detects from the popcorn.
7. ADD 30 SECOND. Touch this pad to cook for 30
seconds at 100% cook power, or to add extra seconds
at the set cook power to your cooking cycle.
8. CLOCK. Touch this pad to enter the time of day.
9. KITCHEN TIMER. Touch this pad to set the Kitchen
Timer.
10. VENT. Touch this pad to display the hood vent fan
speed settings. Turn dial to set the fan speed and
Press.
11. LIGHT.Touch this pad to display the dark and bright
settings.
Page 9
OVERALL CIRCUIT DIAGRAM
SCHEMATIC DIAGRAM (I) *Check the Model No.
5-1
Page 10
SCHEMATIC DIAGRAM (II) *Check the Model No. (ADD Noise filter)
BN
H.V.DIODE
THERMOSTAT
M.G.T
THERMOSTAT
OVEN
SECONDARY
SWITCH
H.V.
BK
O.L
PRIMARY
SWITCH
RD
RD
RS.
RC.
F.M
T.T.M
BN
MONITOR
SWITCH
RD
TRANSFORMER
H.V.
WH
V.M
CAPACITOR
C.L
S.M
HIGH
C
CONDENSER
BL
THERMISTOR
ABSOLUTE
HUMIDITY
SENSOR
YL
BK
RD
RD
RD
BK
RD
RD
BK
BL
BL
BK
BK
BK
BN
RD
BL
WH
WH
WH
WH
WH
YL
YL
YL
PK
BL
1
2
3
1
2
3
5
CN1
CN4
RY2
POWER
RELAY
123456
123456
12
12
6
7
TAP
3
TAP
2
1
TAP
4
YL RD BK BNBL WH BKRDWH
7 PIN CONNECTOR(CN1) 3 PIN CONNECTOR(CN4)
CONTROL MODULE
WIRE COLORS
3 PIN(CN7)
CONNECTOR
(FOR SENSOR)
PK BL
CN7
321
RY15
3 TAP
POWER
RELAY
SCR1
VENT
FAN
5 LVL
RY11
FAN
MOTOR
RELAY
RY6
VENT
FAN
ON/OFF
RELAY
SCR2
C/TOP
LAMP
5 LVL
RY14
C/TOP
LAMP
ON/OFF
RELAY
RY1
MAIN
RELAY
L.V.
TRANSFORMER
F
FA
MAGNETRON
5-2
Page 11
5-3
MATRIX CIRCUIT FOR TOUCH KEY BOARD
Start
Enter Popcorn Clock Light
Add 30
Stop/
Clear
Manual
Cook
Vent
N.C
N.C
Kitchen
Timer
6
7
5
1
2
3
4
Page 12
6-1
GENERAL PRECAUTIONS IN USE
A. Never operate the unit when it is empty. Operating
the oven with no load may shorten the life of the
magnetron.Whenever cooking dry foods (dried
fish,bread,etc.)or a small amount of food, be sure to
put a glass of water into the cooking
compartment.The glass turntable may become hot
after operating,be careful when touching it.
B. Aluminum foil should be avoided because it will
disrupt cooking and may cause arcing.However,
small pieces may be used to cover some parts of
food to slow the cooking.Any aluminum foil used
should never be closer than 2.5 cm to any side wall
of the oven.
TRIAL OPERATION
After installation, the following sequences and results
should be checked carefully.
A. Put a container filled with water (about 1 liter) into
the oven, and close the door tightly.
B. Set cooking time for 10 minutes.
C. Press DIAL to start.
Make sure the cavity light comes on. The unit will
begin cooking and the display window will show the
time counting down by seconds.
D. After about 5 minutes, make sure the primary
interlock switch, the secondary interlock switch and
the interlock monitor switch operate properly by
opening and closing the door several times. Press
the DIAL key each time the door is closed.
E. Continue operating the unit. For long beep sound
signal is heard when the time is up. The unit will
shut off automatically.
F. Confirm the water is hot.
G. Finally, measure the output power according to
“POWER OUTPUT MEASUREMENT” on
page 7-3.
FEATURES AND SPECIFICATIONS
FEATURES
A. The safety systems incorporated in this model are:
(1) Primary interlock switch
(2) Secondary interlock switch
(3) Interlock monitor switch
(4) Choke system
(5) Oven cavity thermostat
(Note: This thermostat located on the oven
cavity will open and stop the unit from operation
only if a high temperature is reached,such as, a
fire created by overcooking food.)
B. Any one of 10 power output levels ranging 0W to
1150W can be selected by the touch control and
electronic computer system.
GENERAL INFORMATION FOR SERVICE
Page 13
PRELIMINARY
A. SINCE NEARLY 4000 VOLTS EXISTS IN SOME
CIRCUITS OF THIS UNIT REPAIRS SHOULD BE
CARRIED OUT WITH GREAT CARE.
The filament leads of magnetron carry High
Voltage with respect to ground. Extreme caution
must be exercised. Never plug the unit into a
power source to determine which component is
defective in high voltage section.
B. TO AVOID POSSIBLE EXPOSURE TO
MICROWAVE ENERGY LEAKAGE, THE
FOLLOWING PRECAUTIONS MUST BE TAKEN
BEFORE SERVICING.
(1) Before the power is applied:
(a) Make sure the primary interlock switch, the
secondary interlock switch and the interlock
monitor switch operate properly by opening
and closing the door several by opening and
closing the door several times.
(b) Make sure the perforated screen and the
dielectric choke of the door are correctly and
firmly mounted.
(2) After power is applied:
(a) Make sure the interlock switch mechanism
is operating properly by opening and closing
the door.
(b) Check microwave energy leakage must be below
the limit of 5 mW/cm
2
.
(All service adjustments should be made for
minimum microwave energy leakage
readings).
(3) Do not operate the unit until it is completely
repaired, if any of the following conditions exist.
The unit must not be operated.
(a) The door does not close firmly.
(b) The hinge is broken.
(c) The door seal is damaged.
(d) The door is bent or warped, or there is any
other visible damage on the unit that may
cause microwave energy leakage.
NOTE: Always keep the seal clean.
(e) Make sure that there are no defective parts
in the interlock mechanism.
(f) Make sure that there are no detective parts
in the microwave generating and transmission
assembly (especially waveguide).
(4) The following items should be checked after the
unit is repaired:
(a) The interlock monitor switch is connected
correctly and firmly.
(b) The magnetron gasket is properly positioned
and mounted.
(c) The waveguide and the oven cavity are intact.
(no microwave energy leakage)
(d) The door can be properly closed and the
safety switches work properly.
(e) The unit must stop when the door is opened or
the time is up.
The unit must not be operated with any of the above
components removed or by-passed.
7-1
PRECAUTIONS AND REPAIR SERVICE TIPS
SERVICE INFORMATION
Page 14
7-2
CAUTIONS
• Be sure to check microwave leakage prior to
servicing the oven if the oven is operative prior to
servicing.
• The service personnel should inform the
manufacture importer, or assembler of any certified
oven unit found to have a microwave emission level
in excess of 5 mW/cm2and should repair any unit
found to have excessive emission levels at no cost to
the owner and should ascertain the cause of the
excessive leakage. The service personnel should
instruct the owner not to use the unit until the oven has
been brought into compliance.
•
If the oven operates with the door open, the service
personnel should;
- Tell the user not to operate the oven
- Contact the manufacturer and CDRH (Center for
Devices and Radiological Health) immediately.
NOTE: Address on CDRH
Office of Compliance (HFZ-312)
Center for Devices and Radiological Health
1390 Piccard Drive Rockville, Maryland 20850
•
The service personnel should check all surface and
vent openings for microwave emission testing.
•
Check for microwave energy leakage after every
servicing. The power density of the microwave
radiation leakage emitted by the microwave oven
should not exceed 1mW/cm.sq. And always start
measuring of an unknown field to assure safety for
operating personnel from radiation leakage.
NOTE: The standard is 5mW/cm.sq. while in the
customer’s home. 1mW/cm.sq. stated here is
manufacturer’s own voluntary standard for units in
customer’s home.
EQUIPMENT
• TESTER (VOLTS-DC, AC, Ohmmeter)
• Microwave survey meter
- Holaday HI-1500
HI-1501
- Narda 8100
8200
• 600 cc non conductive material beaker (glass or
plastic), inside diameter: approx. 8.5 cm (3
1
/2 in.)
• Glass thermometer: 100°C or 212°F (1 deg scale)
MEASURING MICROWAVE ENERGY
LEAKAGE
• Pour 275±15cc of 20±5°C(68±9°F) water in a beaker
which is graduated to 600 cc, and place the beaker
on the oven.
• Set the energy leakage monitor to 2,450 MHz and
use it following the manufacturer's recommended
test procedure to assure correct result.
• When measuring the leakage, always use the 2-inch
(5cm) spacer supplied with the probe.
• Operate the oven at its maximum output.
• Measure the microwave radiation using and
electromagnetic radiation monitor by holding the
probe perpendicular to the surface being measured.
Move probe along shaded area.
Probe scanning speed
Less than 2.5 cm/sec. ( 1 in/sec)
MICROWAVE LEAKAGE TEST
Page 15
MEASUREMENT WITH THE OUTER CASE
REMOVED
(1) When you replace the magnetron, measure for
microwave energy leakage before the outer case
is installed and after all necessary components
are replaced or adjusted. Special care should be
taken in measuring the following parts.
- Around the magnetron
- The waveguide
WARNING: AVOID CONTACTING ANY HIGH
VOLTAGE PARTS.
MEASUREMENT WITH A FULLY
ASSEMBLED OVEN
(1) After all components, including the outer
panels, are fully assembled, measure for
microwave energy leakage around the door
viewing window, the exhaust opening and air
inlet openings.
(2) Microwave energy leakage must not exceed the
values prescribed below.
NOTES:
Leakage with the outer panels removed - less
than 5 mW/cm
2
.
Leakage for a fully assembled oven (“Before the
latch switch (primary) is interrupted”) with the door
in a slightly opened position - less than 1 mW/cm
2
.
NOTE WHEN MEASURING
(1) Do not exceed meter full scale deflection.
(2) The test probe must be removed no faster than
1 inch/sec (2.5cm/sec) along the shaded area,
otherwise a false reading may result.
(3) The test probe must be held with the grip portion
of the handle. A false reading may result if the
operator’s hand is between the handle and the
probe.
(4) When testing near a corner of the door, keep
the probe perpendicular to the surface making
sure the probe horizontally along the oven
surface, this may possibly cause probe damage.
RECORD KEEPING AND NOTIFICATION
AFTER MEASUREMENT
(1) After adjustment and repair of any microwave
energy interruption or microwave energy blocking
device, record the measured values for future
reference. Also enter the information on the
service invoice.
(2) Should the microwave energy leakage not be
more than 1 mW/cm2after determining that all
parts are in good condition, functioning properly
and genuine replacement parts which are listed in
this manual have been used.
(3) At least once a year, have the electromagnetic
energy leakage monitor checked for calibration
by its manufacturer.
(1) Microwave power output measurement is made
with the microwave oven supplied at its rated voltage and
operated at its maximum microwave power setting with a
load of (1000±5) g of potable water.
(2) The water is contained in a cylindrical borosilicate
glass vessel having a maximum material thickness
of 1/8” (3 mm) and an outside diameter of approximately
7.6” (190mm).
(3) The oven and the empty vessel are at ambient
Temperature(T0) prior to the start of the test.
(4) The initial temperature (T1) of the water is
(10±1)°C (50°F) It is measured immediately before the
water is added to the vessel. After addition of the water to
the vessel, the load is immediately placed on the center
of the turntable which is in the lowest position and the
microwave power switched on.
(5) The time t for the temperature of the water to rise
by a value T of (10±1)°K is measured, where t is the
time in seconds and T is the temperature rise.
The initial and final water temperatures are selected so
that the maximum difference between the final water
temperature and the ambient temperature is 5°K.
(6) The microwave power output P in watts is calculated
from the following formula :
4,187 Mw(T2 –T1)+0.55Mc(T2 –T0)
t
is measured while the microwave generator is
operating at full power. Magnetron filament heat-up
time is not included. (about 5 sec)
(7) The water is stirred to equalize temperature
throughout the vessel, prior to measuring the final
water temperature.
(8) Stirring devices and measuring instruments are
selected in order to minimize addition or removal of
heat.
7-3
WATER LOAD
GLASS TRAY
P =
POWER OUTPUT MEASUREMENT
Where
P is the microwave power output, in watts:
Mw is the mass of the water, in grams:
Mc is the mass of the container, in grams:
T0 is the ambient temperature, in °C:
T1 is the initial temperature of the water, in °C:
T2 is the final temperature of the water, in °C:
t
is the heating time in seconds, excluding the magnetron filament heat- up time.
Page 16
IMPORTANT NOTES:
UNIT MUST BE DISCONNECTED FROM ELECTRICAL OUTLET WHEN MAKING REPAIRS, REPLACEMENTS, ADJUSTMENTS AND CONTINUITY CHECKS.
WHEN RECONNECTING THE WIRE LEADS TO
ANY PART, MAKE SURE THE WIRING CONNECTIONS AND LEAD COLORS ARE CORRECTLY
MATCHED ACCORDING TO THE OVERALL CIRCUIT DIAGRAM. (ESPECIALLY SWITCHES AND
HIGH VOLTAGE CIRCUIT.)
A. REMOVING POWER AND CONTROL

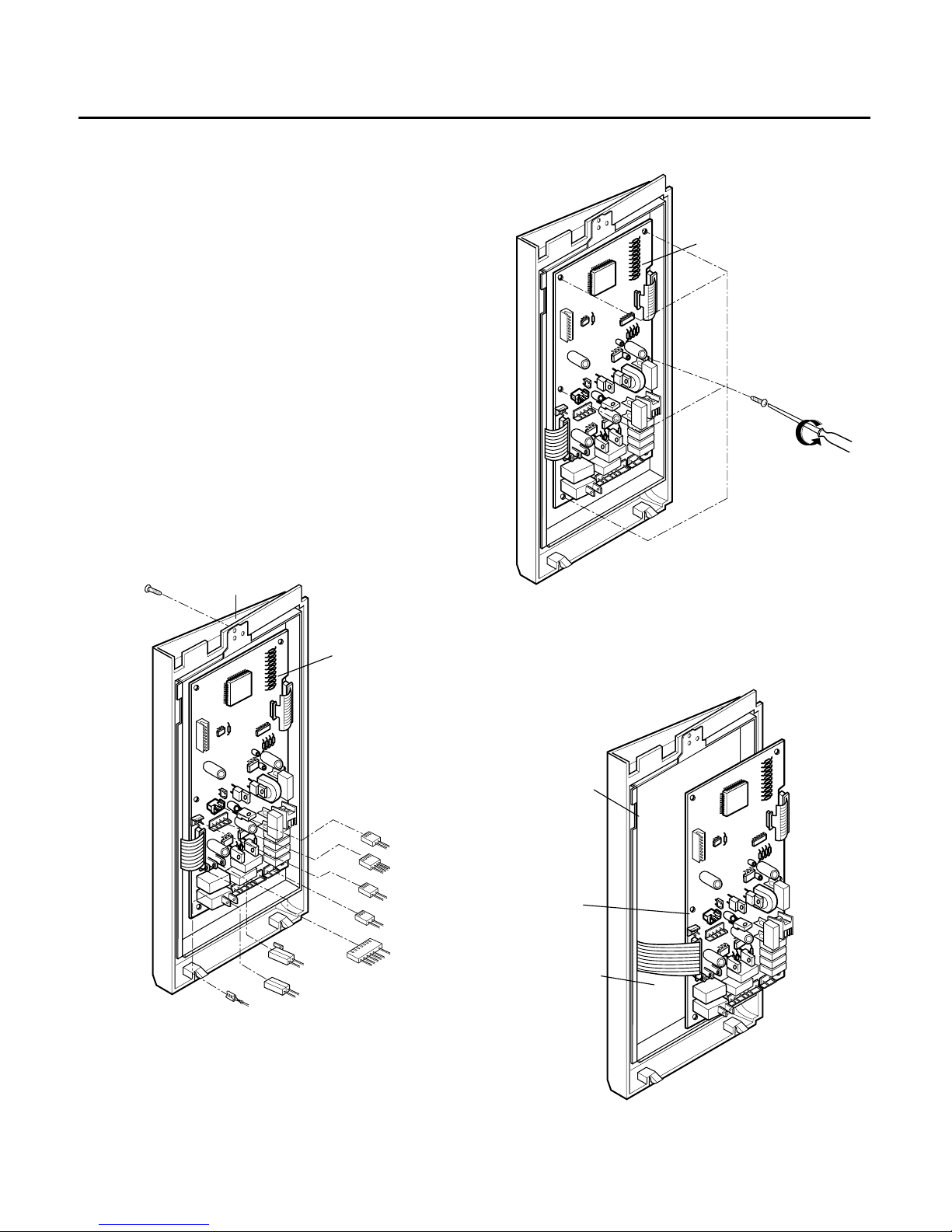

CIRCUIT BOARD (Figures 1, 2 and 3)
(1) Remove a screw securing the control panel
assembly to the oven cavity.
(2) Remove the control panel with pushing it upward.
(3) Remove the connectors, and sensor, wire leads,
from the circuit board.
(4) Remove 3 screws securing the circuit board.
(5) Remove the FPC connector from the terminal
socket following “HOW TO REMOVE THE FPC
CONNECTOR” on the next page.
(6) Remove the circuit board from the control bracket
carefully.
7-4
Circuit Board
Figure 2
DISASSEMBLY INSTRUCTIONS
Control Panel
Screw
Figure 1
Circuit Board
(CN4)
(CN7)
(CN3)
(CN2)
(CN1)
(RY2)
(RY15)
(RY15)
Control Bracket
Circuit Board
FPC Connector(CN6)
Figure 3
Page 17
7-5

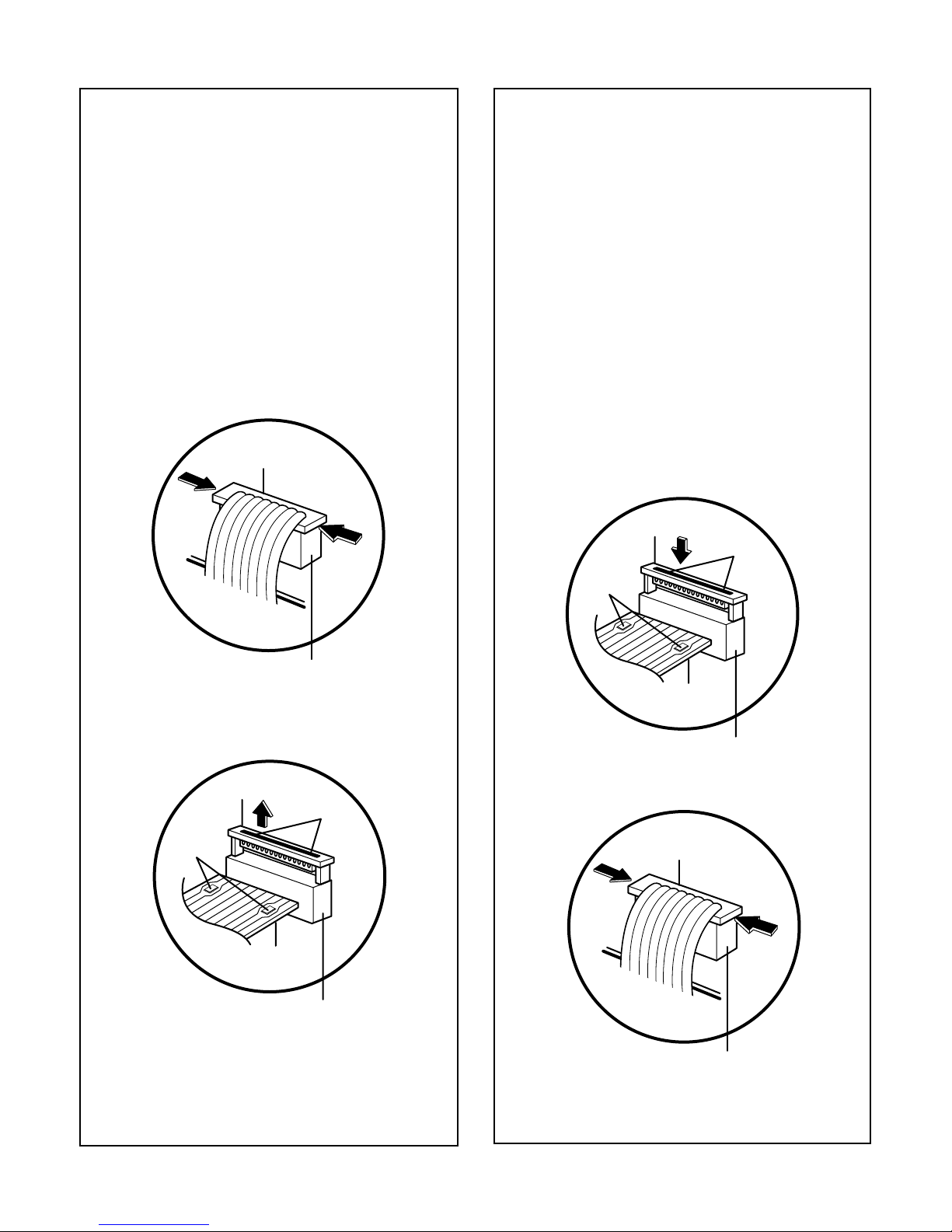

HOW TO REMOVE THE F.P.C. CONNECTOR
Follow the steps below as illustrated in Figures 4
and 5 to remove the F.P.C. connector.
(1) Hold the edges of the plastic fastener with
thumb and forefinger.
(Figure 4)
(2) Lift up the lever of the plastic fastener from
the terminal socket by lightly pressing the
lever end with forefinger.
(Figure 5)
(3) Remove the F.P.C. connector from the
terminal socket.
HOW TO INSERT THE F.P.C. CONNECTOR
Follow the steps below as illustrated in Figures 6
and 7 to insert the F.P.C. connector.
(1) Insert the F.P.C. connector into the terminal
socket securely with the fingers.
(2) Hold the plastic fastener with thumb and
forefinger of the other hand, and push it
slowly into the terminal socket. (Figure 6)
NOTE: When reconnecting the F.P.C
connector make sure that the holes
on the F.P.C. connector are properly
engaged with the hooks on the plastic
fastener
(3) Lock the level of the plastic fastener into the
hook of the terminal socket securely by
releasing the fingers.
(Figure 7)
Terminal
socket
Terminal
socket
F.P.C.
Connector
F.P.C.
Connector
Plastic fastener
Holes
Hook
Plastic fastener
Plastic
fastener
Terminal
socket
F.P.C.
Connector
Terminal
socket
F.P.C.
Connector
Plastic fastener
Holes
Hook
Figure 4
Figure 7
Figure 6
Figure 5
Page 18

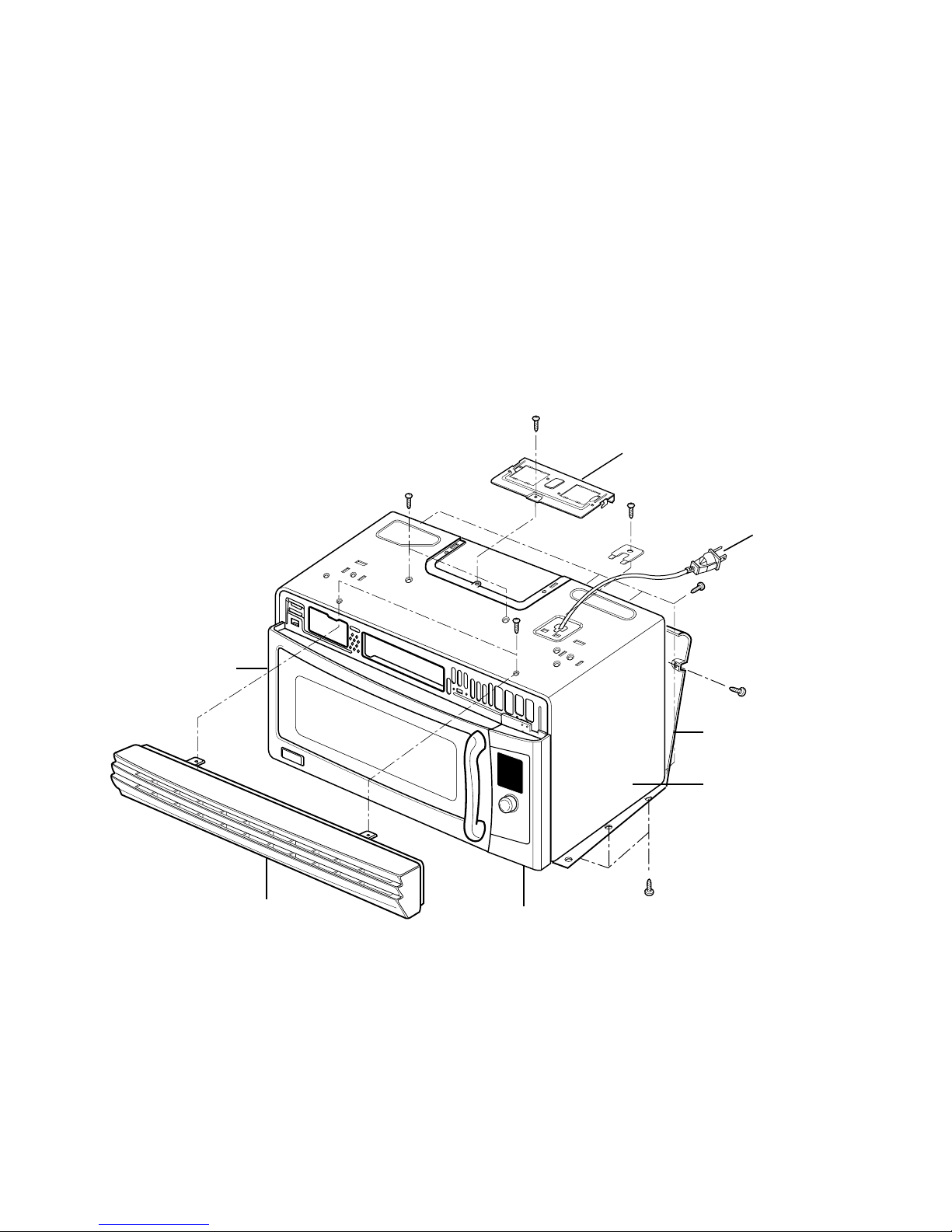

B. REMOVING THE OUT CASE(Figure 8)
(1) Remove the vent grille by removing two screws
securing it to the out case.
(2) Remove two screws securing it to the air duct.
(3) Remove the mounting plate by turning the screws
(1 or 2 screws) securing it to the out case.
(4) Remove two screws on the left central edge and
two screws on the right central edge of Base plate.
Remove the Mount, All from the out case by
removing one screw securing it to the out case.
(5) Remove four screws of the rear cavity.
(6) Remove the outcase with disconnecting power
cord connector.
V ille
Door
Mount, All
Mounting
Plate
Out Case
Controller
Power code
ent Gr
Figure 8
7-6
Page 19
7-7

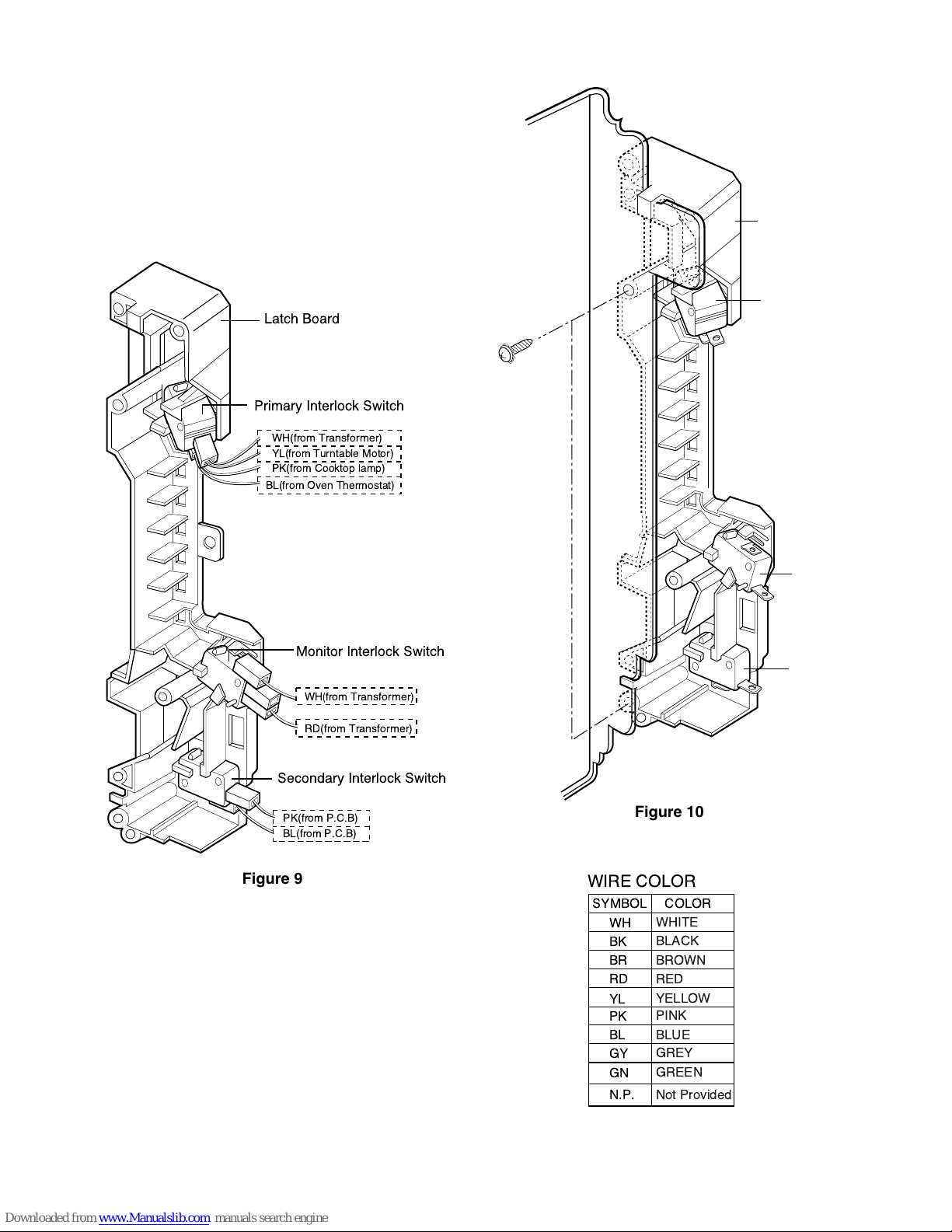

C REMOVING THE DOOR INTERLOCK
SWITCHES (Figures 9,10)
(1) Disconnect the wire leads from the interlock
switches.
(2) Remove two screws securing the Latch Board.
(3) Make necessary replacements and check
microwave energy leakage according to
“ADJUSTMENT PROCEDURES” on page 7-12.
Latch Board
Secondary
Interlock Switch
Interlock
Monitor Switch
Interlock Switch
Primary
Latch Board
WH
(from Transformer)
YL(from Turntable Motor)
PK(from Cooktop lamp)
BL(from Oven Thermostat)
Secondary Interlock Switch
Monitor Interlock Switch
Primary Interlock Switch
PK(from P.C.B)
BL(from P.C.B)
WH(from Transformer)
RD(
from Transformer)
Figure 9
Figure 10
WIRE COLOR
SYMBOL COLOR
WH
BK
BR
RD
BL
PK
GY
N.P.
WHITE
BLACK
BROWN
RED
YL
YELLOW
BLUE
PINK
GREY
GN
GREEN
Not Provided
Page 20
7-8
Figure 12
Mount, All
Figure 11

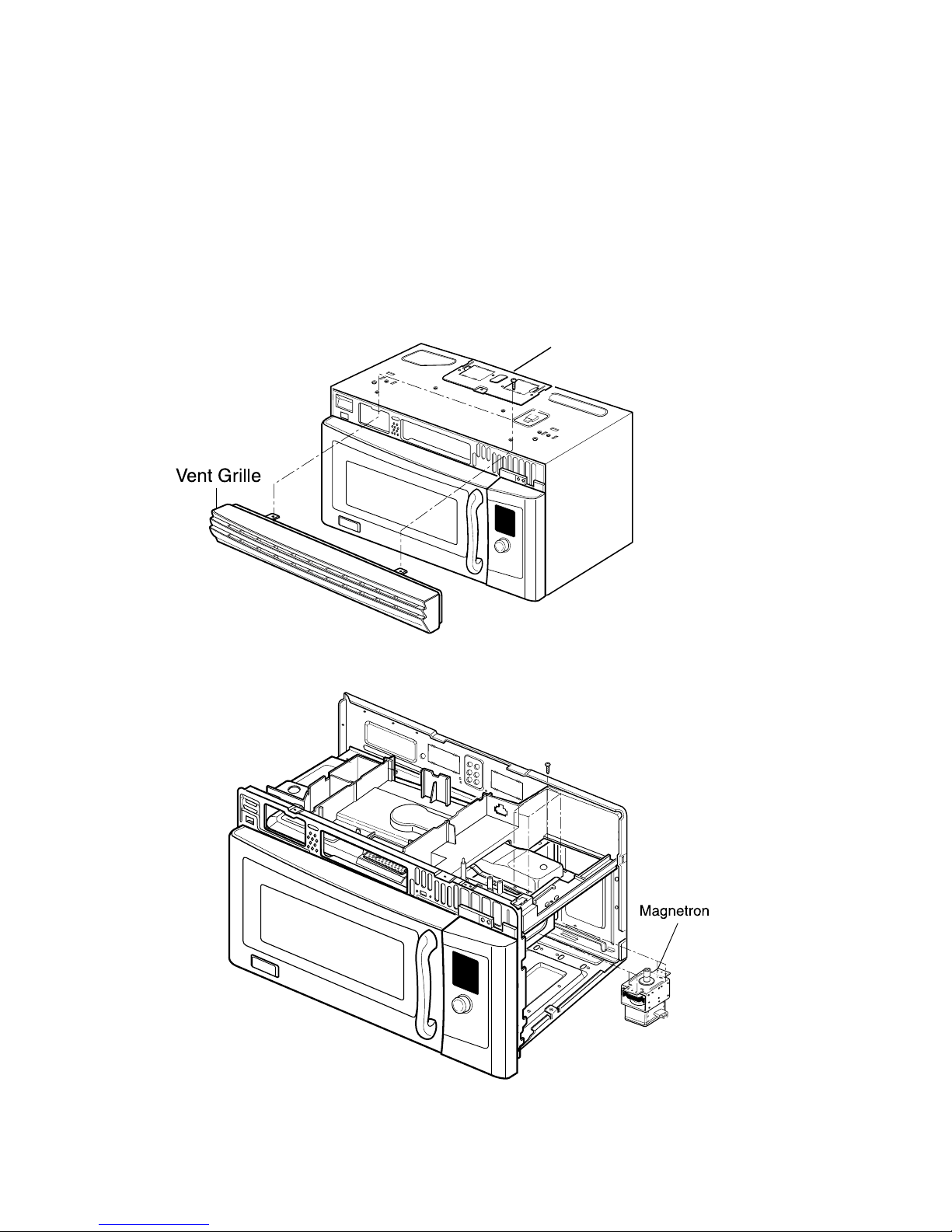

D. REMOVING MAGNETRON
(Figures 11 Through 12)
(1) Remove the vent grille by loosening two screws.
(Figure 11)
(2) Remove the outcase. See page 7-6.
(3) Remove four tap tite screws securing the
magnetron to the wave guide.
(4) Remove the magnetron VERY CAREFULLY.
NOTES:
• When removing the magnetron, make sure that its
dome does not hit any adjacent parts, or it may be
damaged.
• When replacing the magnetron, be sure to install the
magnetron gasket in the correct position and be sure
that the gasket is in good condition.
• After replacing the magnetron, check for microwave
energy leakage with a survey meter Check
microwave energy leakage must be below the limit
of 5 mW/cm
2
. (All service adjustments should be
made for minimum microwave energy leakage
readings.)
Page 21

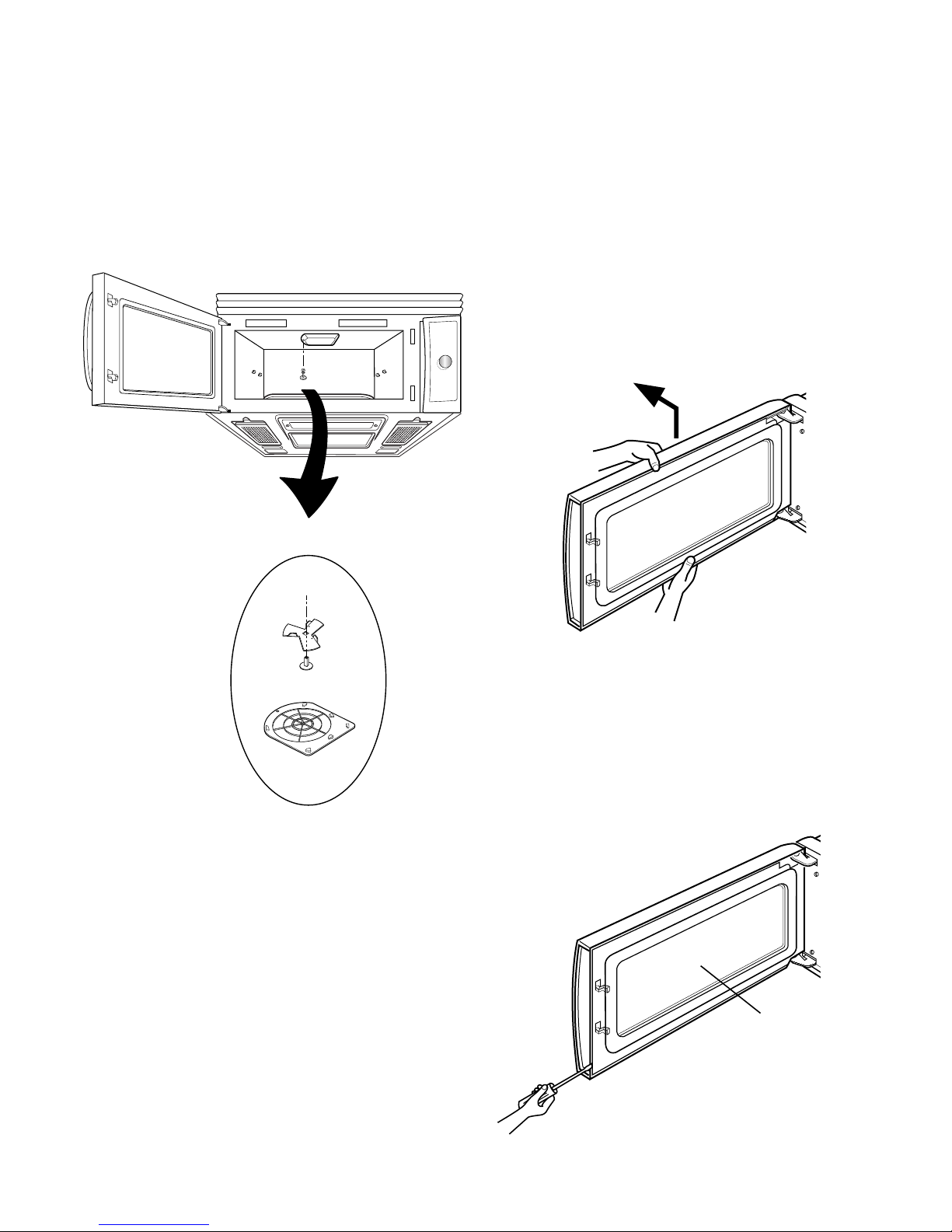

F. REMOVING DOOR (Figure 15)
(1) Remove the vent grille by two screws securing it to
the outcase loosening.
(2) Lift up and draw the door.

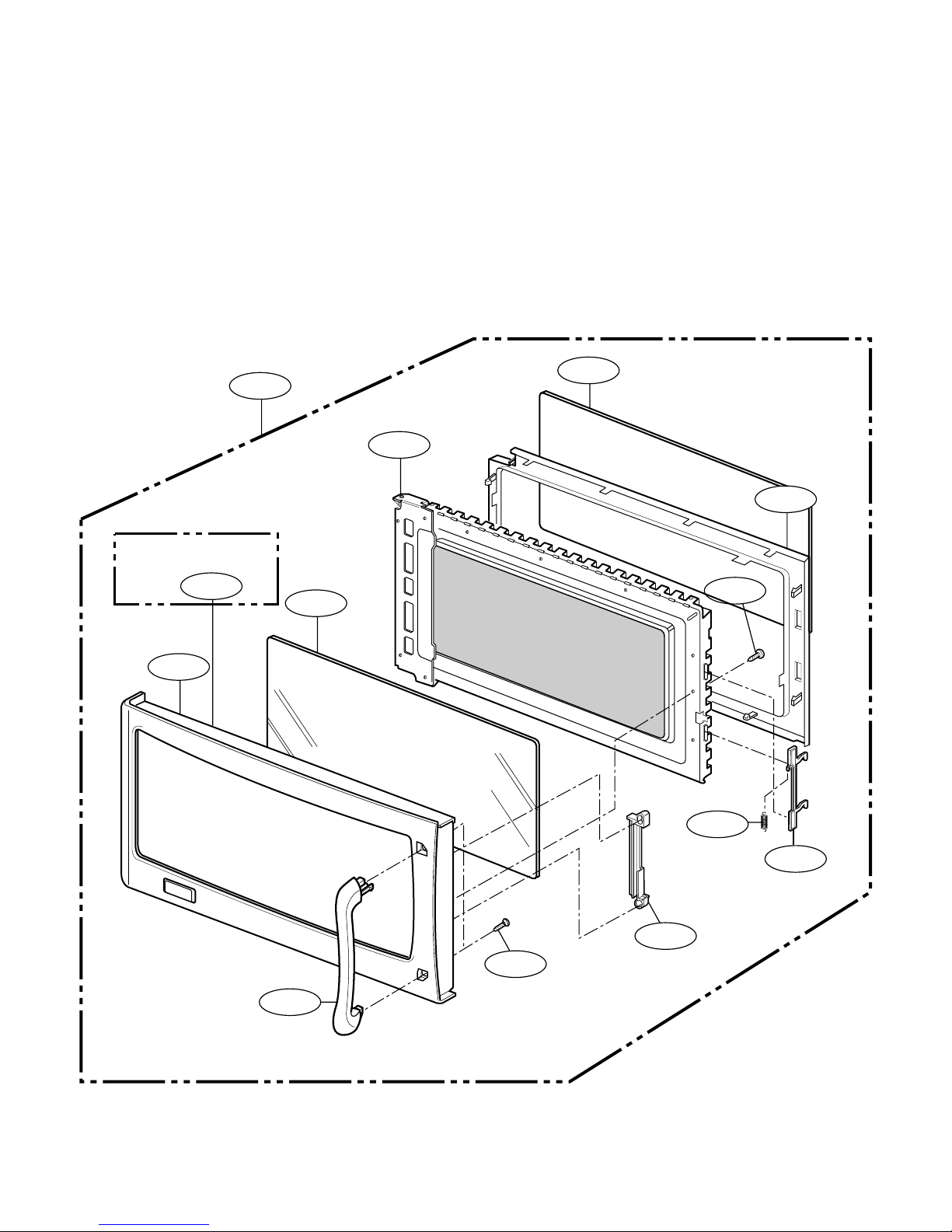

G. DISASSEMBLING DOOR (Figure 16)
(1) Remove the dielectric choke by using knife
blade or small screw driver, etc.
(2) Remove two screws securing it to the door handle.
CAUTION: Be careful not to damage door seal
plate with the screwdriver.
NOTES:
• After replacing the door, be sure to check that the
primary interlock switch, the secondary interlock
switch and the interlock monitor switch is in good
operating normally.
• After replacing the door, check for microwave energy
leakage with a survey meter. Microwave energy
leakage must be below the limit of 5mW/cm2. (With a
275 ml water load)
7-9
Door Screen
Figure 16
Figure 15
E. REMOVING STIRRER FAN
(Figures 13 and 14)
(1) Remove one rivet ASS'Y securing it to the oven
upper plate by using knife blade.
(2) Pull out the stirrer fan cover.
(3) Remove two rivets ASS'Y securiting it to the oven
upper plate by using knife blade.
(4) Remove the stirrer fan.
Figure 14
Figure 13
Page 22
H. ASSEMBLING DOOR
(1) When mounting the door assembly to the oven
assembly, be sure to adjust the door assembly
parallel to the chassis. Also adjust so the door has no
play between the inner door surface and oven frame
assembly. If the door assembly is not mounted
properly, microwaves may leak from the clearance
between the door and the oven.
I. REMOVING THE VENTILATION MOTOR
(1) Remove the mounting plate by loosening
mounting plate screws (1 or 2 screws)
securing it to the back plate.
(See Figure 17)
(2) Remove MOUNT ALL loosening one screw
loosening one screw securing the ventilation Motor
and back plate. (See Figure 18-a)
(3) Carefully pull the ventilation motor ASS'Y out of
the microwave oven. (See Figure 18-b)
7-10
Mount , All
Figure 17
Figure 18-a
Figure 18-b
Space
Page 23

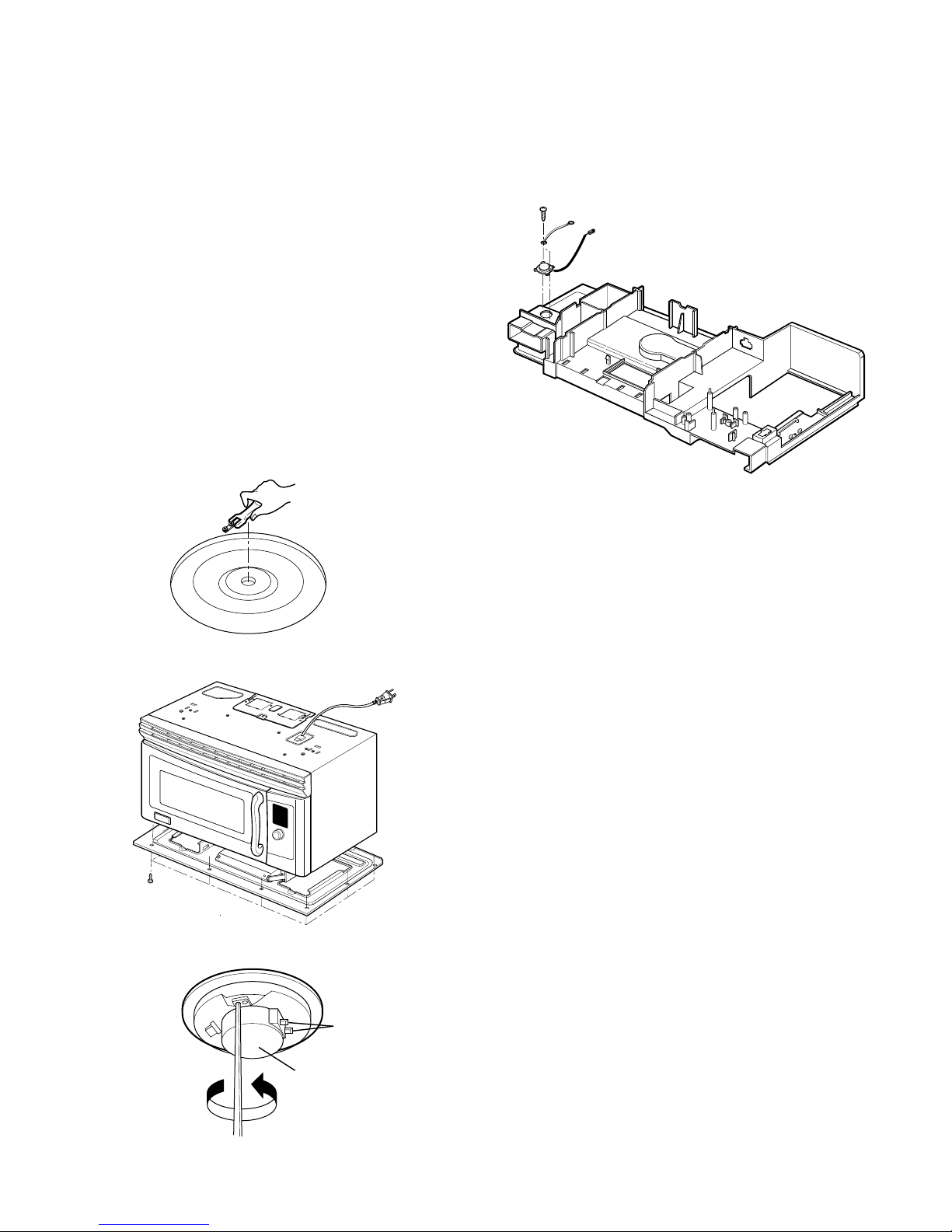

J. REMOVING THE TURNTABLE MOTOR
(1) Remove the glass tray and rotating ring.
(2) Remove the turntable shaft VERY CAREFULLY
with a hand. (Figure 19)
(3) Remove the base plate by removing 8 screws
securing it to the oven cavity. (Figure 20)
(4) Disconnect the leadwire from the turntable motor
terminals.
(5) Remove the 1 screws securing the turntable motor
to the oven cavity ASS'Y. (Figure 21)
NOTES:
•
Remove the leadwire from the turntable motor
VERY CAREFULLY.
•
Be sure to grasp the connector not the wires when
removing.
K. REPLACING THE HUMIDITY SENSOR
(1) Remove the sensor by removing two screws
securing it to the air duct. (See Figure 22)
(2) Mount the new humidity sensor to the air duct.
Wire Leads
Turntable Motor
Figure 21
Figure 19
Figure 22
Figure 20
7-11
Page 24
7-12
ADJUSTMENT PROCEDURES
To avoid possible exposure to microwave energy
leakage, adjust the door latches and interlock
switches, using the following procedure.
The Interlock Monitor and Primary Interlock Switch act
as the final safety switch protecting the user from
microwave energy. The terminals between “COM” and
“NC” of the Interlock Monitor must close when the door
is opened. After adjusting the Interlock Monitor Switch,
make sure that it is correctly connected.
Mounting of the primary/monitor/secondary switches to
the latch board.

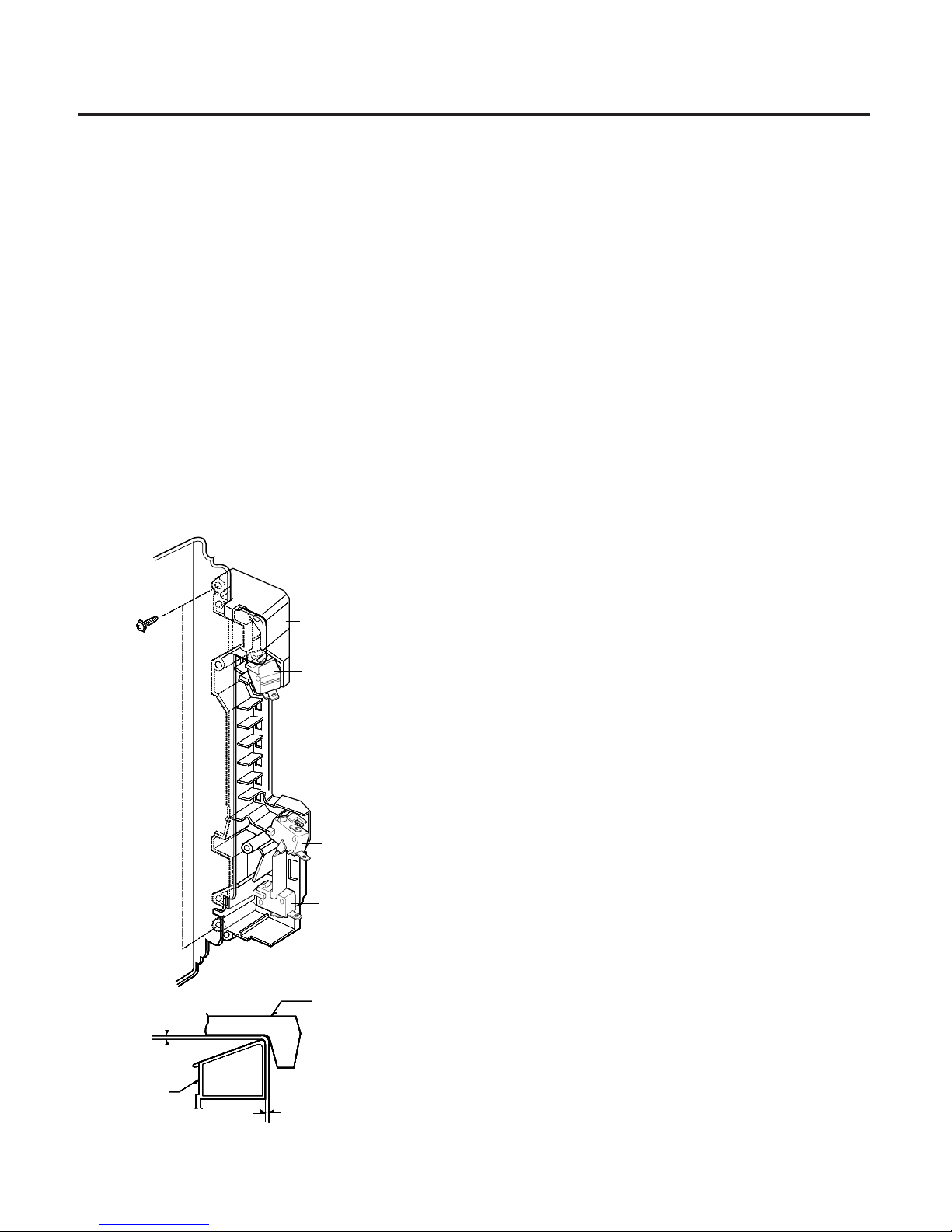

CHECK THE DOOR LATCH AND SWITCH
CLOSING.
NOTE:
The outer cover of the microwave oven is
removed.
(1) Set the microwave oven on its side so that you can
see the latch board and the switches, as shown in
Figure 23-a.
(2) Close the door tightly and check gaps A and B to
be sure they are no more than 1/64” (0.5 mm).
See Figure 23-b for close-up view of gaps A and B
(door latches). If all gaps are less than 1/64”
(0.5 mm), adjustment of the latch board may not
be necessary. Go to Steps 5 and 6 to check the
sequence of the switches.
NOTE:
To correct sequence of the Primary Interlock
Switch, Secondary Interlock Switch and the
Interlock Monitor Switch is very important.
If any gap is larger than 1/64” (0.5 mm), you will
need to adjust the latch board”. Go to step 3
and follow all steps in order.
ADJUST THE LATCH AND SWITCH CLOSING
(3) Loosen the two screws holding the plastic latch
board as shown.
(4) With the oven door closed tightly, move the latch
board upward toward the top of the oven and/or
away from the door latch until the gaps are less
than 1/64” (0.5 mm).
Hold the latch board tightly in this position until you
check the sequence of the switches in steps 5
and 6.
Interlock
Monitor Switch
LATCH
LATCH BOARD
0-1/64"
0-1/64"
Latch Board
Primary
Interlock Switch
Secondary
Interlock Switch
Figure 23-a
Figure 23-b
INTERLOCK SYSTEM
INTERLOCK MECHANISM
The door lock mechanism is a device which has been specially designed to eliminate completely microwave
activity when the door is opened during cooking and thus to prevent the danger resulting from the microwave
leakage.
Page 25
7-13
TEST THE LATCH AND SWITCH SEQUENCE
(5) Open the oven door slowly. Watch the door latch,
the Secondary Switch. Release Rod and Lever
on the switches to make sure they are zero to the
body of the switches in the following sequence:
- Primary Interlock Switch
- Secondary Interlock Switch
- Interlock Monitor Switch
Adjust the latch board until the switches operate in
this sequence. See Steps 3 and 4.
(6) Close the oven door slowly and be sure it is tightly
closed. Watch the three switches to make sure
they are zero to the body of the switches in the
following sequence:
- Interlock Monitor Switch
- Primary Interlock Switch
- Secondary Interlock Switch
NOTE: The Interlock Monitor Switch is an added
safety check on the Primary and
Secondary Interlock Switches. If the
Primary and Secondary Interlock Switches
allow the oven to operate with the door
open, the Monitor Switch will blow the
fuse.
(7) When you achieve the proper sequence of
switches in Steps 5 and 6, tighten the latch board
screws at that point.
TEST THE MICROWAVE ENERGY LEAKAGE
Make sure the microwave energy leakage is below the
limit of 1mW/cm2 (with a 275 ml water load) and
5mW/cm2 (with a 275 ml water load without the
cabinet) when measured with a survey meter.
Page 26
7-14
A. PRIMARY INTERLOCK SWITCH TEST
When the door is opened slowly,an audible click
should be heard at the same time or successively
at intervals and the latches should activate the
switches with an audible click
If the latches do not activate the switches when the
door is closed,the switches should be a adjusted
in accordance with the adjustment procedure.
Disconnect the wire lead from the primary switch.
Connect the ohmmeter leads to the common
(COM)and normally open (NO)terminal of the
switch.The meter should indicate an open circuit
in the door open condition.
When the door is closed,the meter should indicate
a closed circuit.
When the primary switch operation is abnormal,
make the necessary adjustment or replace the
switch only with the same type of switch.
B.S ECONDARY INTERLOCK SWITCH TEST
Disconnect the wire lead from the secondary
switch.
Connect the ohmmeter leads to the common
(COM)and normally open (NO)terminals of the
switch.The meter should indicate a open circuit in
the door open condition.When the door is closed,
meter should indicate an closed circuit.When the
secondary switch operation is abnormal,make the
necessary adjustment or replace the switch only
with the same type of switch.
C. MONITOR SWITCH TEST
Disconnect the wire lead from the monitor switch.
Connect the ohmmeter leads to the common
(COM)and normally closed (NC)terminals of the
switch.The meter should indicate closed circuit in
the door open condition.When the door is closed,
meter should indicate an open circuit.When the
monitor switch operation is abnormal,replace with
the same type of switch.
NOTE: After repairing the door or the interlock
system, it is necessary to do this continuity
test before operating the oven.

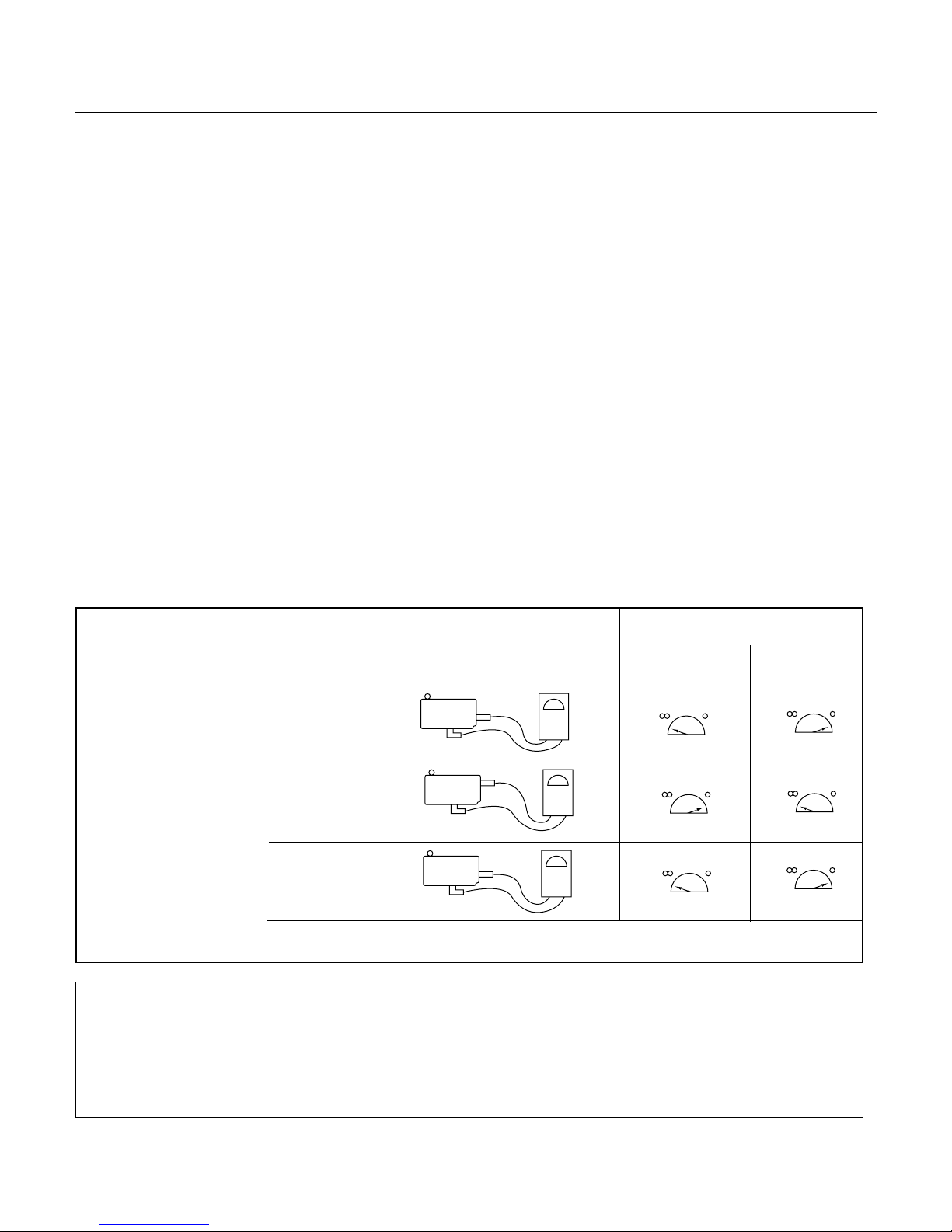

INTERLOCK CONTINUITY TEST
COMPONENTS TEST PROCEDURE RESULTS
SWITCHES Check for continuity of the Door Door
(Wire leads removed) switch with an Ohm-meter open closed
Primary
Switch
Monitor
Switch
Secondary
Switch
NOTE : After checking for the continuity of switches,make sure that they are
connected correctly.
WARNING : FOR CONTINUED PROTECTION AGAINST EXCESSIVE RADIATION
EMISSION, REPLACE ONLY WITH IDENTICAL REPLACEMENT PARTS.
TYPE NO.SZM-V16-FA-63 OR VP-533A-OF OR V-5230Q FOR PRIMARY SWITCH
TYPE NO.SZM-V16-FA-62 OR VP-532A-OF OR V-5220Q FOR MONITOR SWITCH
TYPE NO.SZM-V16-FA-63 OR VP-533A-OF OR V-5230Q FOR SECONDARY SWITCH
NO
COM
NC
COM
NO
COM
Page 27
7-15
TEST AND CHECKOUT PRECEDURES AND TROUBLESHOOTING
CAUTIONS
1. DISCONNECT THE POWER SUPPLY CORD FROM THE OUTLET WHENEVER REMOVING THE OUTER CASE
FROM THE UNIT.PROCEED WITH THE TEST ONLY AFTER DISCHARGING THE HIGH VOLTAGE CAPACITOR
AND REMOVING THE LEAD WIRES FROM THE PRIMARY WINDING OF THE HIGH VOLTAGE TRANSFORMER.
2. ALL OPERATIONAL CHECKS WITH MICROWAVE ENERGY MUST BE DONE WITH A LOAD (1 LITER OF
WATER IN CONTAINER)IN THE OVEN.

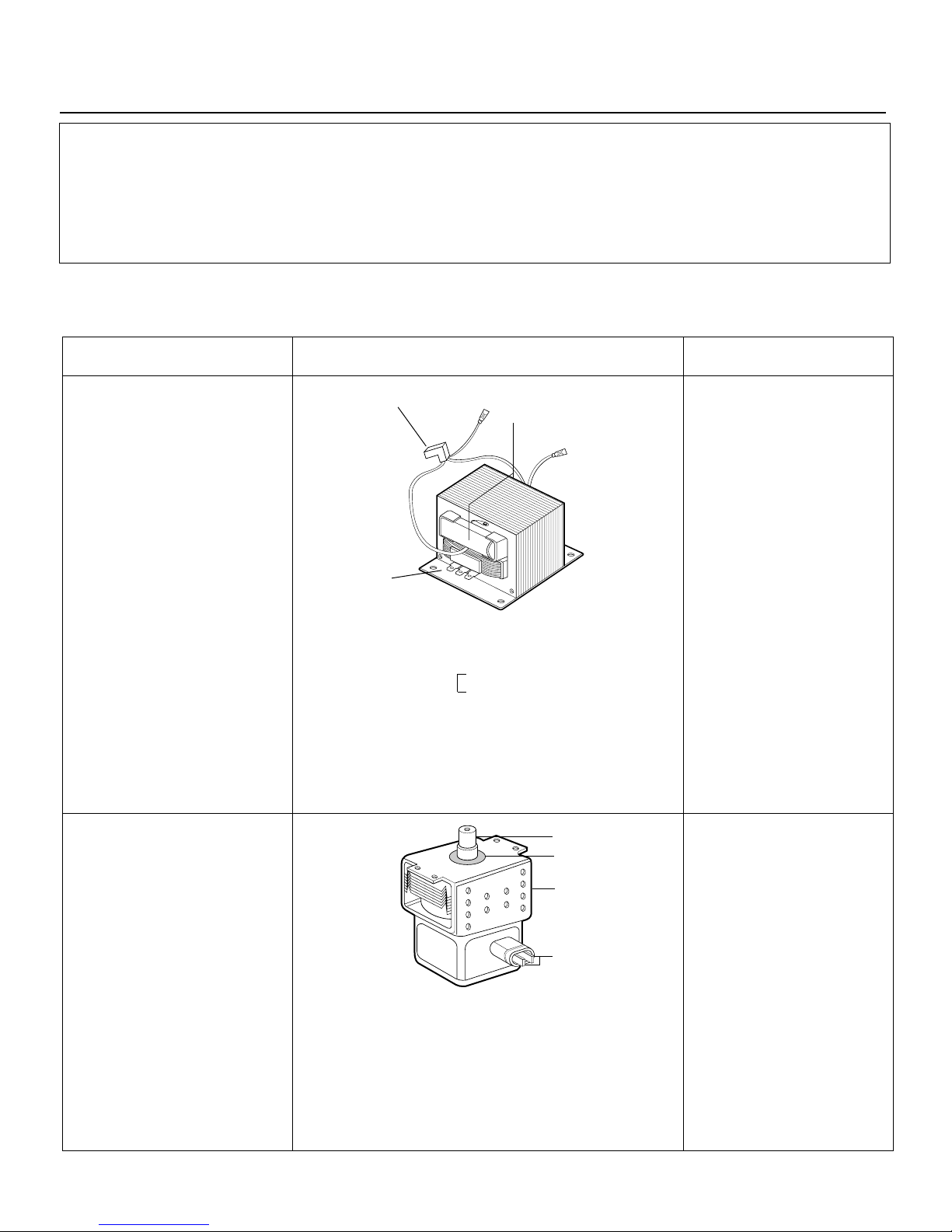

A. TEST PROCEDURES
TRANSFORMER
MAGNETRON
1. Remove wire leads.
2. Measure resistance. (ohm meter scale: Rx1)
• Primary winding High
Low
• Secondary winding
• Filament winding
3. Measure resistance. (ohm meter scale: Rx1000)
• Primary winding to ground
• Filament winding to ground
1. Remove wire leads. Install the magnetron seal in
the correct position. Check that the seal is in
good condition.
2. Measure resistance. (ohm meter scale: Rx1)
• Filament terminal
3. Measure resistance. (ohm meter scale: Rx1000)
• Filament to chassis
Normal: Less than 1 ohm
Normal: Infinite
COMPONENTS TEST RESULTS
SECONDARY
WINDING
PRIMARY
WINDING
FILAMENT
WINDING
Approx. 0.2 to 0.5 ohms
Approx. 0.2 to 0.5 ohms
Approx. 50 to 120 ohms
0 ohm
Normal: Infinite
Normal: Infinite
Filament
Antenna
Gasket
Chassis
Page 28
7-16
COMPONENTS TEST RESULTS
Normal:
Momently indicates
several ohm, and then
gradually returns to infinite
Normal: Infinite.
Normal:Continuity.
Abnormal: Infinite.
Normal: Infinite.
Abnormal: Continuity.
1. Remove wire leads.
2. Measure resistance. (ohm meter scale: Rx1000)
• Terminal to terminal
• Terminal to case
1. Measure continuity. Forward.
(ohm meter scale: Rx1000)
2. Measure continuity. Reverse.
(ohm meter scale: Rx1000)

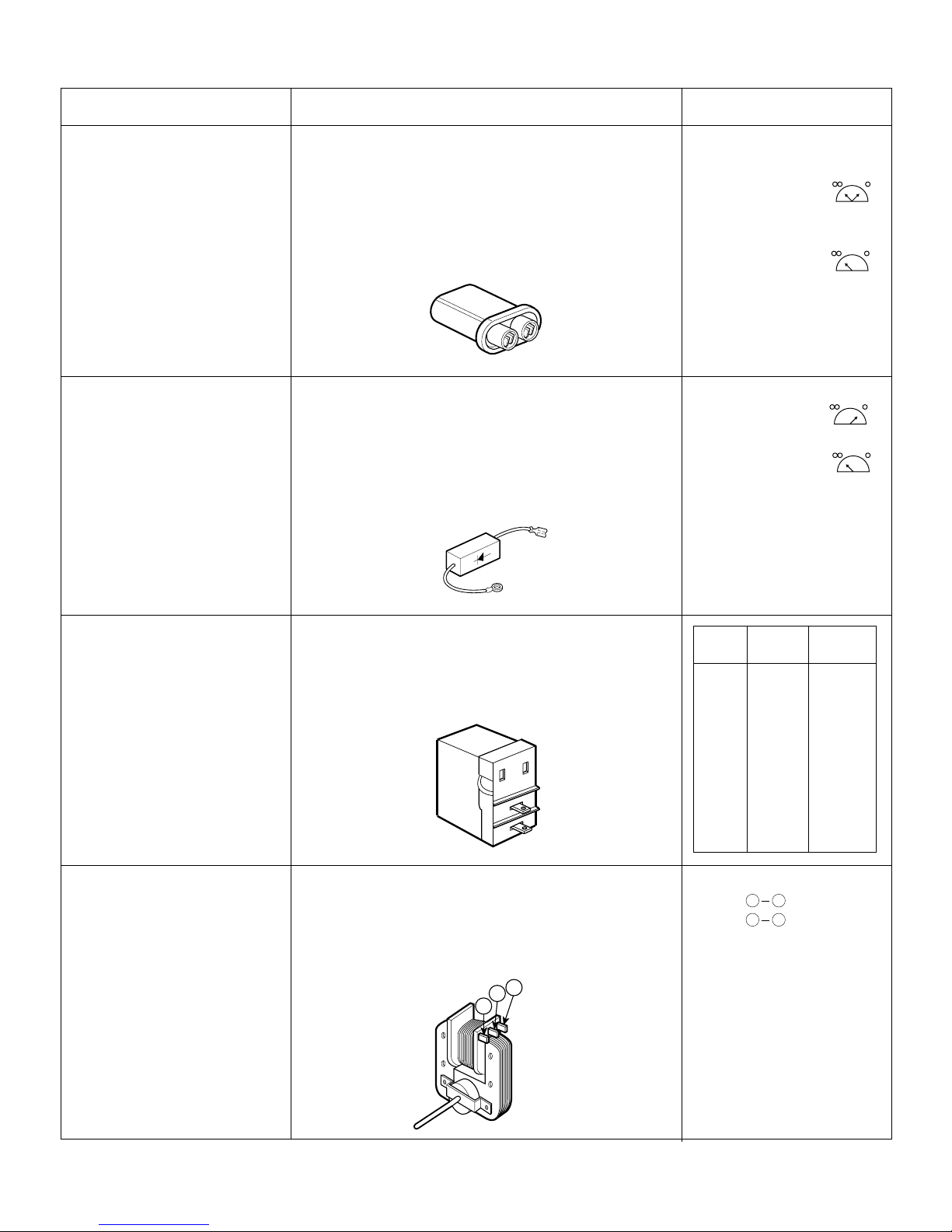

CAPACITOR
DIODE
Some inexpensive ohm
meters may indicate infinite
resistance in both directions.
1. Measure continuity.
(ohm meter scale: Rx1)
2. Remove the lead wires and operate oven at
power level 1 through power level 10.
RELAY 7
1. Remove wire leads.
2. Measure resistance.
(ohm meter scale: Rx1)
Normal: Approximately
Terminal : 35 to 50 ohms
Terminal : 5 to 15 ohms
Abnormal:
Infinite or several.
A
B
C
FAN MOTOR
A C
A B
Power
Level
Open
Close
1
2
3
4
5
6
7
8
9
10
4 Sec
6 Sec
8 Sec
10 Sec
12 Sec
14 Sec
16 Sec
18 Sec
20 Sec
22 Sec
18 Sec
16 Sec
14 Sec
12 Sec
10 Sec
8 Sec
6 Sec
4 Sec
2 Sec
0 Sec
Page 29
7-17
COMPONENTS TEST RESULTS
Normal:
Approximately 20 to 40 ohms
Abnormal:Infinite
Normal: Approximately
2.0 to 3.0 Kohms
Abnormal:
Infinite or several.
Normal:
Approximately
BK-RD: 6.0 Kohms
RD-WH: 3.0 Kohms
BK-WH: 3.0 Kohms
Abnormal:
Infinite or approx. 0 ohm
1.Remove lead wires.
2.Measure resistance.
(ohm meter scale:Rx1)
1. Remove wire leads.
2. Measure resistance.
(ohm meter scale: Rx1000)

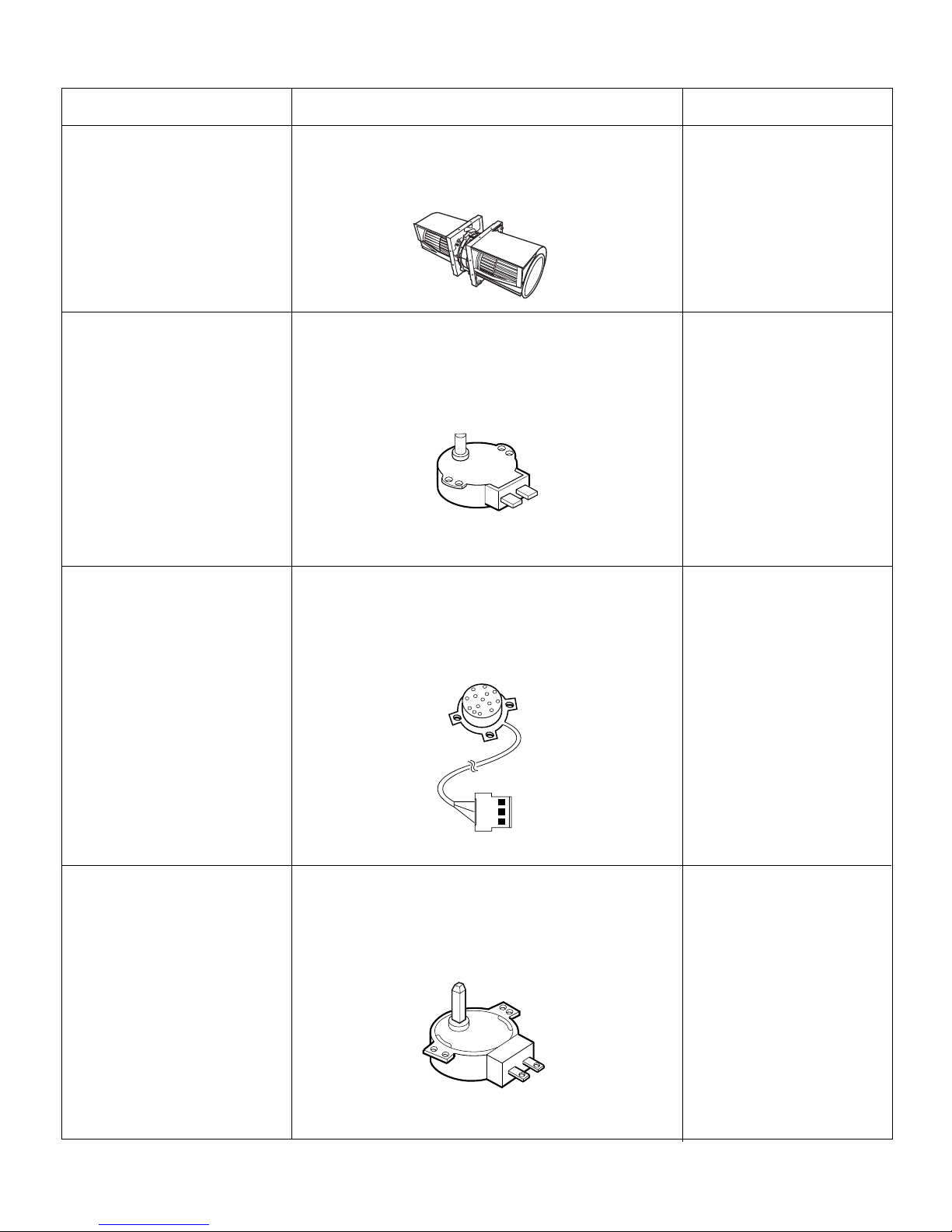

VENTILATION MOTOR
TURNTABLE MOTOR
1. Disconnect sensor connector from micom
computer board.
2. Measure resistance terminal to terminal (ohm
meter scale: R X 1000)
RD
BK
WH
1
2
3
ABSOLUTE HUMIDITY
SENSOR
1.Remove lead wires.
2.Measure resistance.
(ohm meter scale:Rx1000)
Normal:
Approximately 120 to 135 ohms
Abnormal:Infinite
STIRRER MOTOR
Page 30
Start
Enter Popcorn Clock Light
Add 30
Stop/
Clear
Manual
Cook
Vent
N.C
N.C
Kitchen
Timer
6
7
5
1
2
3
4
Measure the resistance between terminal
pins of connector KEY CONNECTOR.
NOTE:
When reconnecting the FPC connector,
make sure that the holes on the FPC
connector are properly engaged with hooks
on the plastic fastener.

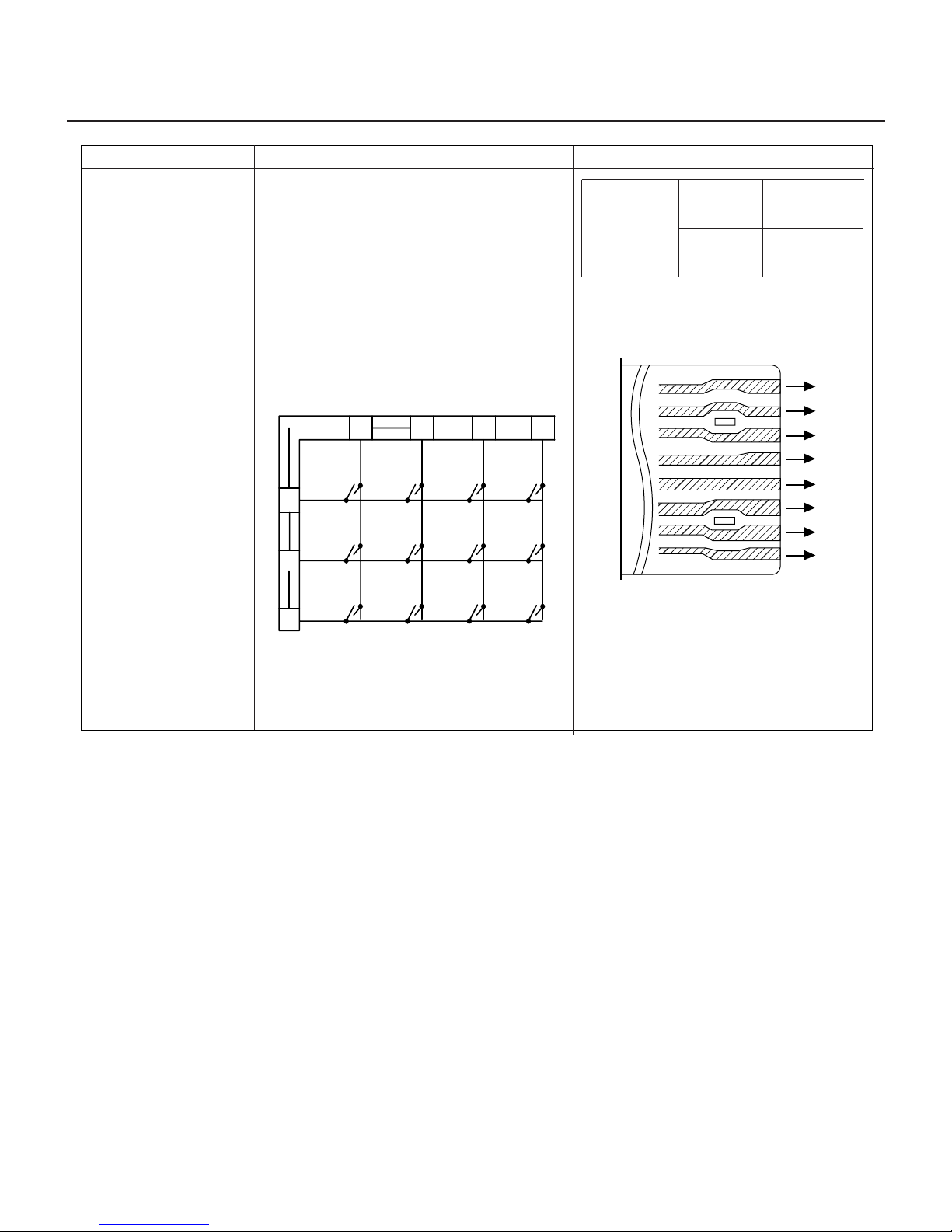

MATRIX CIRCUIT FOR
TOUCH KEY BOARD
CONNECTOR(KEY CON)
NOTES:
• A MICROWAVE ENERGY TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS SERVICED FOR
ANY REASON.
• MAKE SURE THE WIRE LEADS ARE IN THE CORRECT POSITION.
• WHEN REMOVING THE WIRE LEADS FROM THE PARTS,BE SURE TO GRASP THE CONNECTOR,NOT
THE WIRES.
7-18
COMPONENTS TEST PROCEDURES RESULTS
TOUCH KEY BOARD
Resistance
value
When When not
touched touched
Less than More than
400 ohms 1 mega ohm
1
2
3
4
5
6
7
8
FPC CONNECTOR
Top
KEY MATRIX
Page 31
7-19
B. CHECKOUT PROCEDURES
(1) CHECKOUT PROCEDURES FOR FUSE BLOWING
CAUTION: REPLACE BLOWN FUSE WITH 20 AMPERE FUSE.
NOTES:
• If the fuse is blown by an improper switch operation,replace all switches and the fuse at the same time.
After replacing the defective switches with new ones,make sure that they are correctly connected.
• Check for microwave energy leakage according to INTERLOCK ADJUSTMENT PROCEDURES on page
7-12 when the primary interlock,secondary interlock switches and/or the interlock monitor switches are
adjusted or replaced.
Fuse blows immediately after
the door is closed.
Fuse blows immediately after
the door is opened.
Fuse blows when the door is closed and START
key is touched.
Improper operation of the primary interlock,secondary
interlock switches and/or the interlock monitor switch.
Malfunction of the high voltage transformer;the high
voltage capacitor including the diode,the magnetron,
the blower motor or the circuit board.
PROBLEMS CAUSES
Page 32
7-20
(2)CHECKOUT PROCEDURES FOR RELAY.
-PROBLEM (A)-
FAN motor turns on without touching START key
when the door is closed.
-PROBLEM (B)-
FAN motor turns on When the door is closed and
START key is touched.
GOOD
Remove the mate connector of I/O
CON from the circuit board.
Does the unit still operate?
Defective
Wire Assembly
Replace the
circuit board
Replace
Wire Assembly
NO
NO
YES
YES
-PROBLEM (A)--
Oven lamp turns on without touching START key
when the door is closed.
GOOD
Remove the mate connector of I/O
CON from the circuit board.
Does the unit still operate?
Defective
Wire Assembly
Replace the
circuit board
Replace
Wire Assembly
NO
NO
YES
YES
GOOD
Measure the voltage at pin NO.
1,6 of CN1
Voltage reading:120 V AC
Replace the
circuit board
Defective
FAN motor
YES
NO
NO
YES
Replace
FAN motor.
-PROBLEM (B)-
Oven lamp turns on When the door is closed and
START key is touched.
GOOD
Measure the voltage at pin NO.
1,4 of CN1
Voltage reading:120 V AC
Replace the
circuit board
Defective
Oven lamp
YES
NO
NO
YES
Replace
Oven lamp
Page 33
7-21
(3) CHECKOUT PROCEDURES FOR CIRCUIT
BOARD
The following symptoms indicate a defective circuit
board.
1) Check the input current.If the input current is more
than 20A,check the magnetron and wiring.If the
input current is less than 0.5 A,there is no input to
the H.V.T.
2) The start function fails to operate but the high
voltage Systems,the interlock switches,the door
sensing and the relay check good.
3) The unit with a normal relay continuously operates.
4) The buzzer does not sound or continues to sound.
5) Some segments of one or more digits do not light
up,or they continue to light up,or segments light
when they should not.
6) Wrong figures appear.
7) The figures of all digits.
8) The clock does not keep time properly.
NOTE: A MICROWAVE ENERGY LEAKAGE TEST MUST ALWAYS BE PERFORMED WHEN THE UNIT IS
SERVICED FOR ANY REASON.
Page 34
7-22

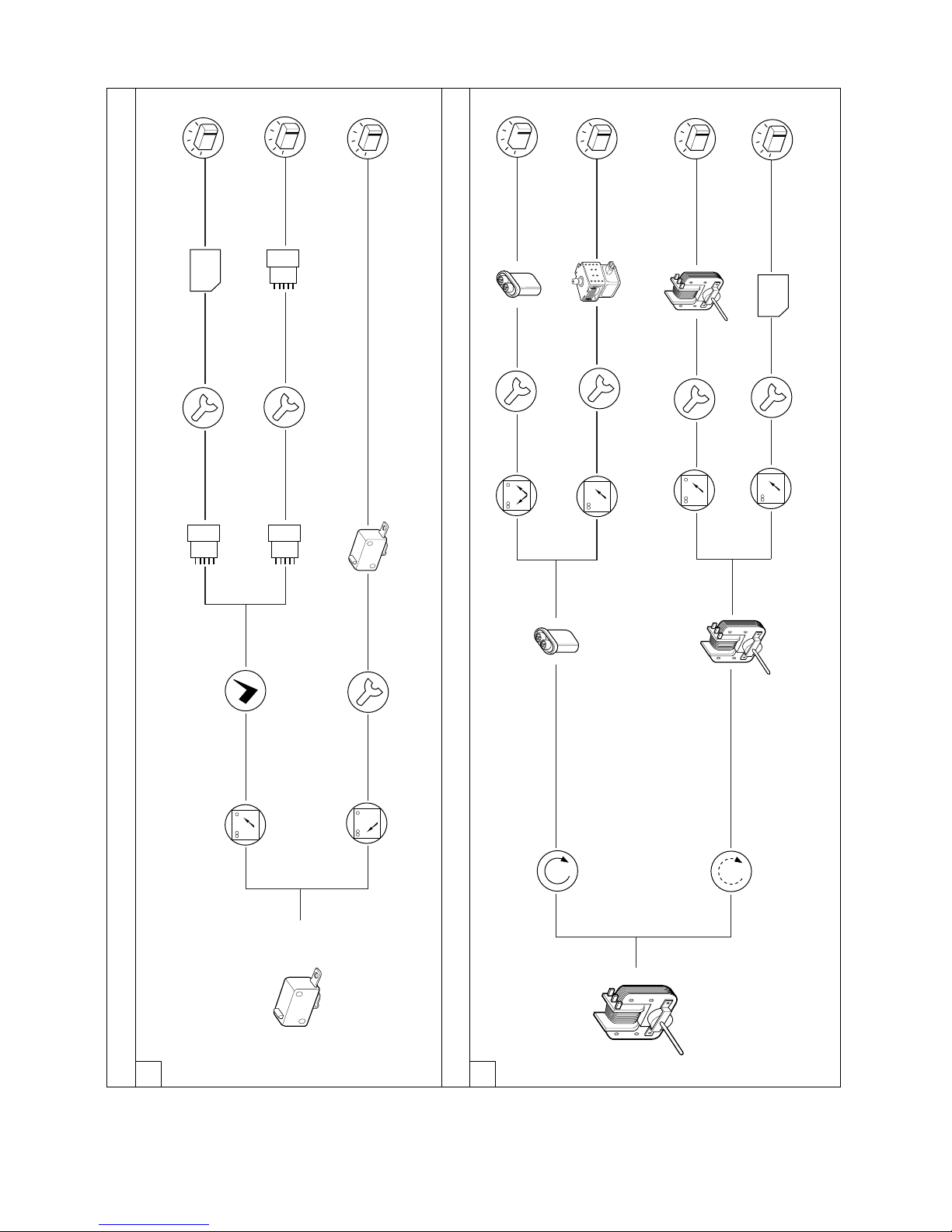

C. TROUBLE SHOOTING
Before following this troubleshooting read TRIAL OPERATION on page 6- 1.
• DISPLAY Problems, A thru C
• HELP UP Problems, D thru E • BUZZER Problems, F

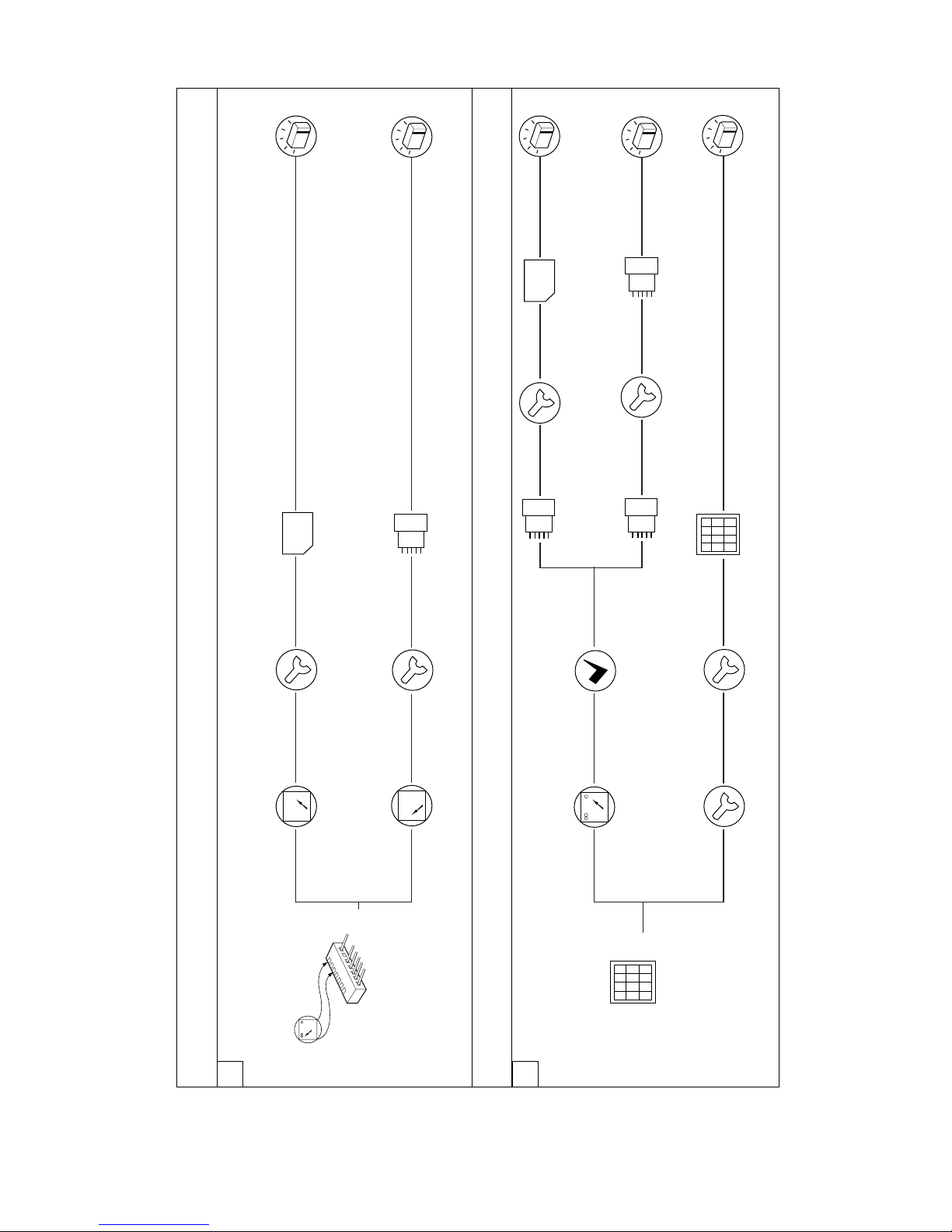

PROBLEM - A: “PLEASE SET TIME OF DAY” does not appear in display window when power supply cord is
plugged into wall outlet.
PROBLEM - B: Display does not show correct numbers and/ or
correct indications when programmed.
Check: 1. POWER SUPPLY
2. FUSE (See “CHECKOUT PROCEDURES FOR FUSE BLOWING: on page 7- 19)
3. OVEN CAVITY THERMOSTAT
1
1
Measure voltage between pin 1
and pin 3 of connector CN1.
Runs
Runs
0
120
0
120
120V
Replace
circuit board
Normal
circuit board
Normal
resistance
Voltage
incorrect
Correct
connections
Runs
Runs
Runs
Measure resistance of touch
key board after removing
connector S1.
(See page 7-5 and 7-18)
Normal
resistance
Resistance
incorrect
Replace touch
key board.
Normal touch
key board
Poor
contact
Correct
seating
Contact
ok
Replace
circuit board
Normal
circuit board
Normal
contact
Check contact
of connector S1
BL
WH
Page 35
7-23

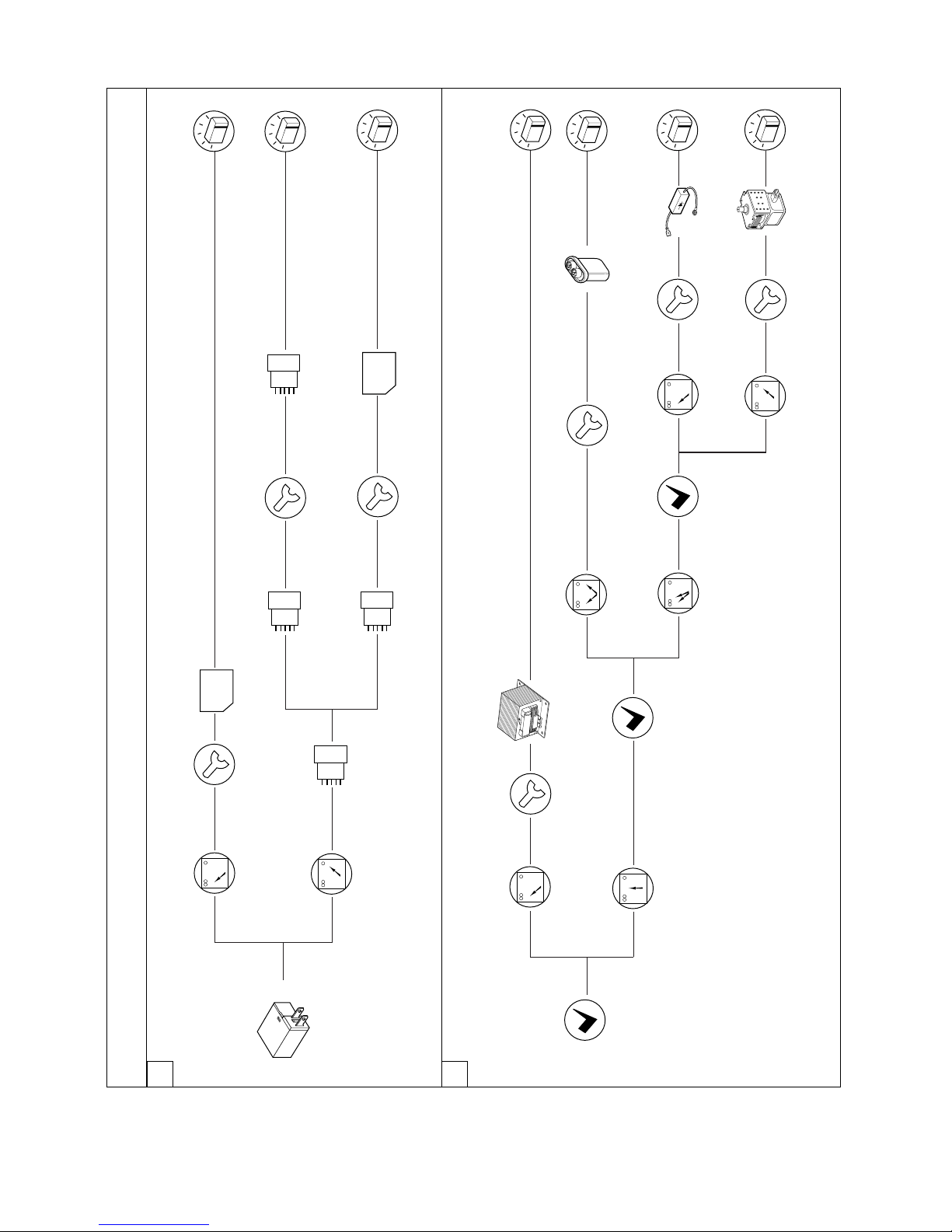

PROBLEM - C: Display does not start countdown when START key is touched.
Check: 1. TOUCH KEY BOARD (START KEY FUNCTION)
Check: 1. AIR VENTS
PROBLEM - D: Unit operation seems to be normal but
no heating is produced in oven load.
1
1
Check continuity of connector
CN1 between Pin 11(PK) and
pin 12(BL) when the door is
closed
Continuity
OK
Check contact of
connector S1
Contact
OK
Replace
Circuit board
Correct
Correct
seating
Normal
circuit board
Normal
contact
Poor
Normal Secondary
switch
No
continuity
Adjust or replace door
sensing switch.
Runs
Runs
Runs
Check operation of fan
motor when START key
is touched.
Measure resistance
of H.V.capacitor
(see page 7-16)
Resistance
incorrect
Measure resistance
of fan motor
Terminal A~C: 35 to 50 ohms
Terminal A~B: 5 to 15 ohms
Resistance
incorrect
Replace
fan motor
Normal
circuit board
Replace
Normal
fan motor
circuit board
Normal
resistance
Replace H.V.C.
Normal H.V.C.
Normal
magnetron
Replace
Normal
operation
No
operation
Runs
Runs
Runs
Runs
33
Normal
resistance
33
Page 36
7-24

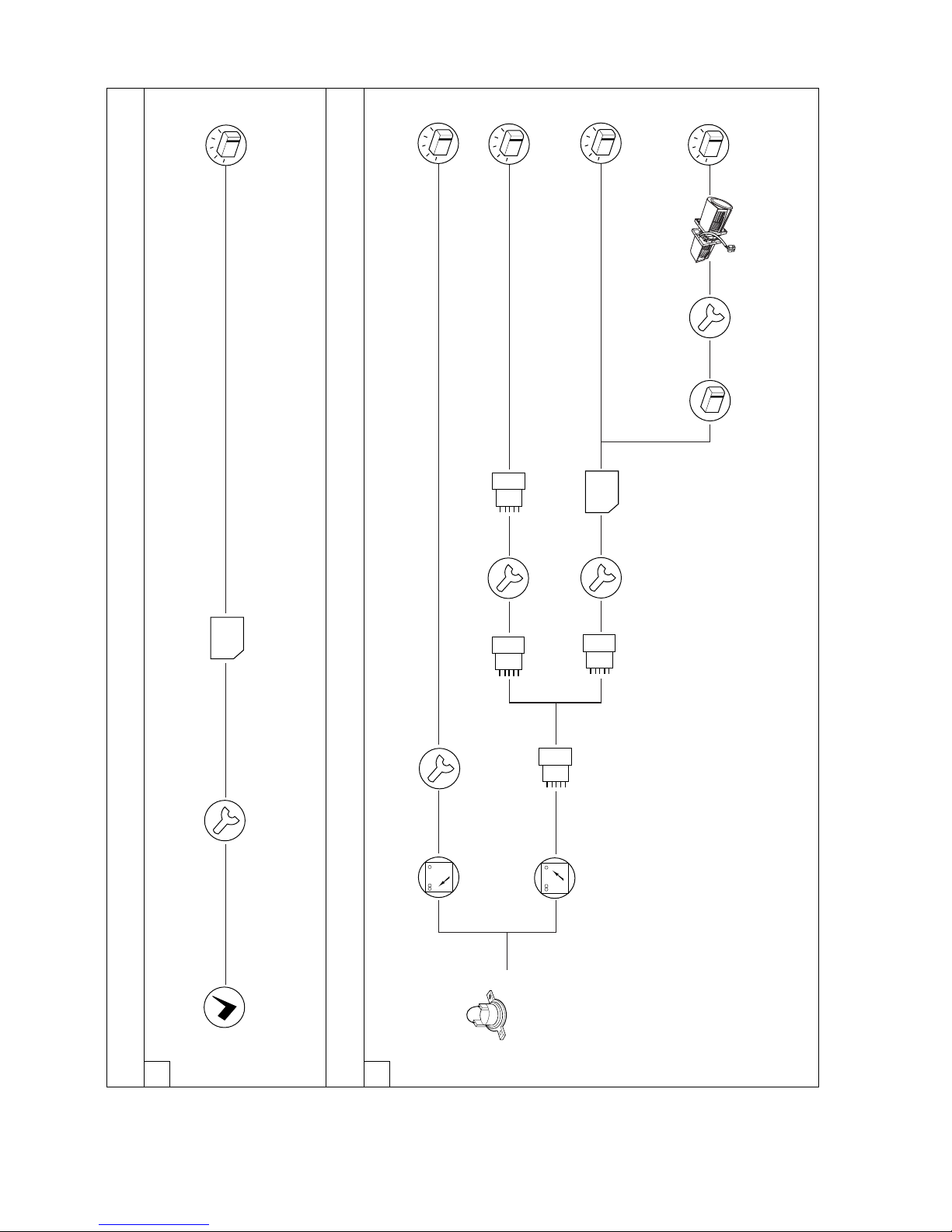

PROBLEM - E: Unit does not heat up even if display counts down when
START key is touched for HIGH POWER cooking.
Check: 1. PRIMARY AND SECONDARY INTERLOCK SWITCHES
2. THERMOSTAT
1
2
Runs
Runs
Runs
Contact
OK
NO
continuity
Replace
circuit board
Normal
circuit board
Poor contact
Replace
circuit board
Normal
circuit board
Contact OK
Normal
contact
Correct
seating
Check contact of
connector
Check the contact of
relay 7 (see page 7-16)
Resistance
incorrect
Check the continuity of
H.V.C. (see page 7-16)
Normal H.V.T.
Resistance
incorrect
Normal H.V.C.
Abnormal
Replace H.V.D.
Normal
Magnetron
Replace
Magnetron
Normal
Normal
H.V.D.
Check the
continuity of H.V.D.
(see page 7-16)
Replace H.V.C.
Normal
resistance
Replace H.V.T.
Normal
resistance
Runs
Runs
Runs
Runs
Measure resistance of
H.V.Transformer
(see page 7-15)
Page 37
7-25
PROBLEM - F: No buzzing when touching the key, between
stages or at end of cooking
1
Normal
circuit board
Check normal
operation
circuit board
Replace
circuit board
Runs
PROBLEM - G: Ventilation fan does not operate when VENT ON/OFF key is touched.
1
Runs
Runs
Runs
Contact
OK
NO
contact
Replace
magnetron thermostat
and oven thermostat
Poor contact
Replace
circuit board
Normal
circuit board
Contact OK
Normal
contact
Correct
seating
Check contact
of connector
(see page 7-5)
Runs
Replace
ventilation
motor ASS Y
NO runs
Normal
ventilation
motor ASS Y
Check the contact of
magnetron thermostat
and oven thermostat
Check: 1. POWER SUPPLY
2. FUSE
Page 38
EXPLODED VIEW
DOOR PARTS
Model: 721.80802400 / 721.80802401
721.80809400 / 721.80809401
721.80804400 / 721.80804401
721.80803400 / 721.80803401
8-1
1005
1381
FOR 721.80803 ONLY
1382
1008
1000
1002
1004
W171
1007
1006
1011
W109
1009
#EV#
Page 39
8-2

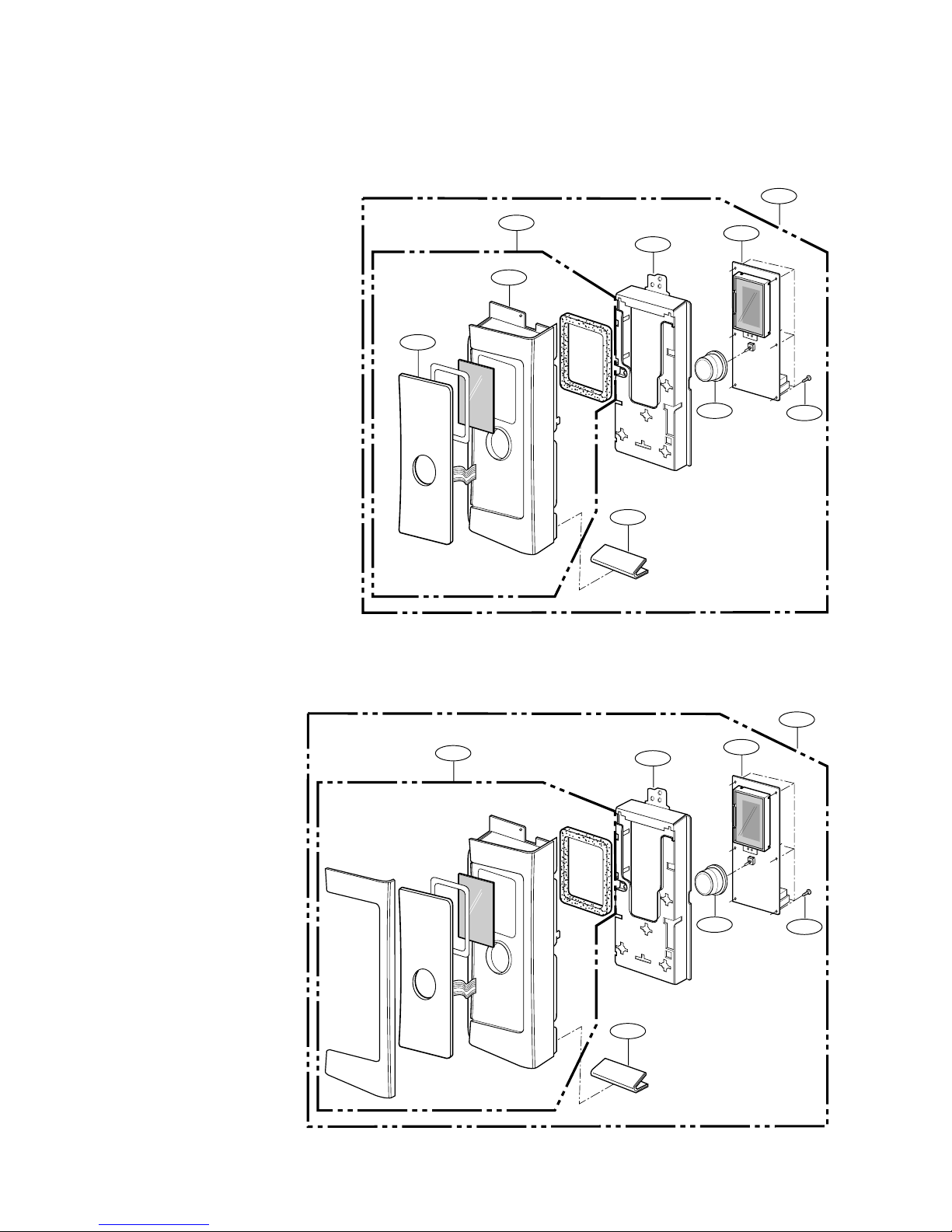

CONTROLLER PARTS
2000
2002
2381
2008
2006
2004
W130
2400
*07
2381
2008
2006
2004
W130
2400
*07
#EV#
For Model: 721.80802
721.80809
721.80804
For Model: 721.80803
Page 40
8-3

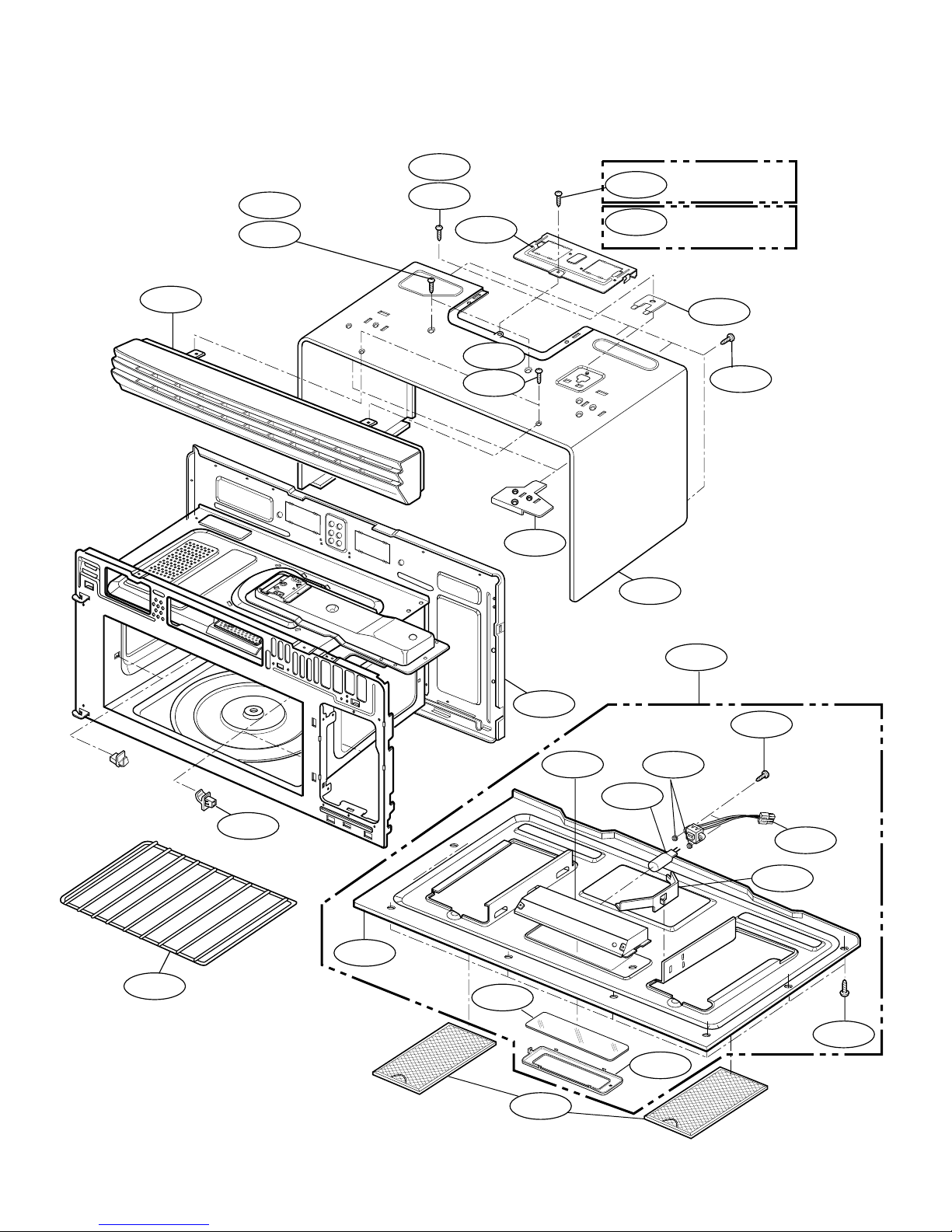

OVEN CAVITY PARTS
W138
W142
3024
W138
W142
3010
W138
W142
3031
W109
W138
W142
3001
3029
3003
3032
3045
W178
W202
3005
3037
W121
3025
3011
3026
3036
6000
3018
FOR 721.80802
721.80804
FOR 721.80803
721.80809
6001
#EV#
Page 41
8-4

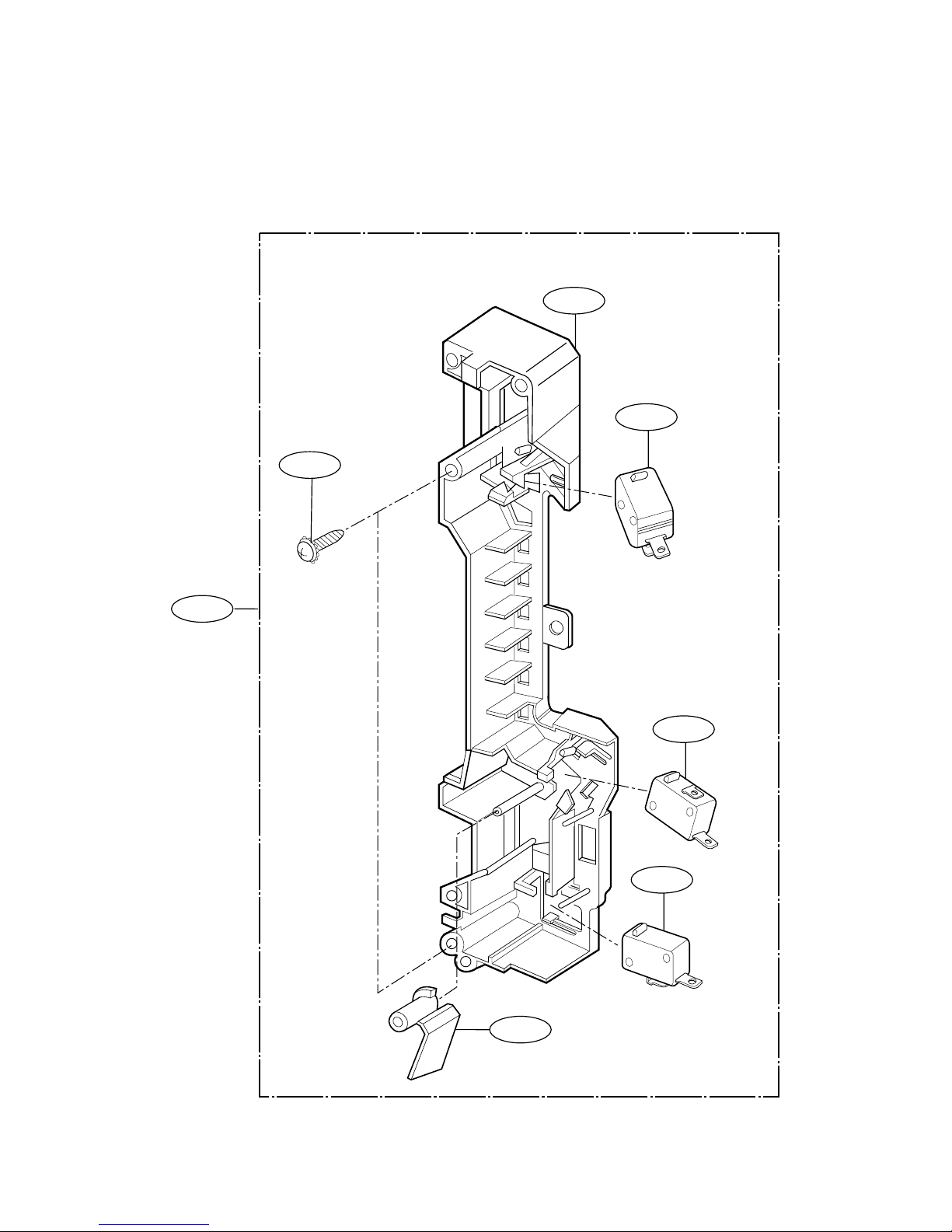

LATCH BOARD PARTS
4000
W102
4001
4002
4003
4002
4004
#EV#
Page 42
8-5

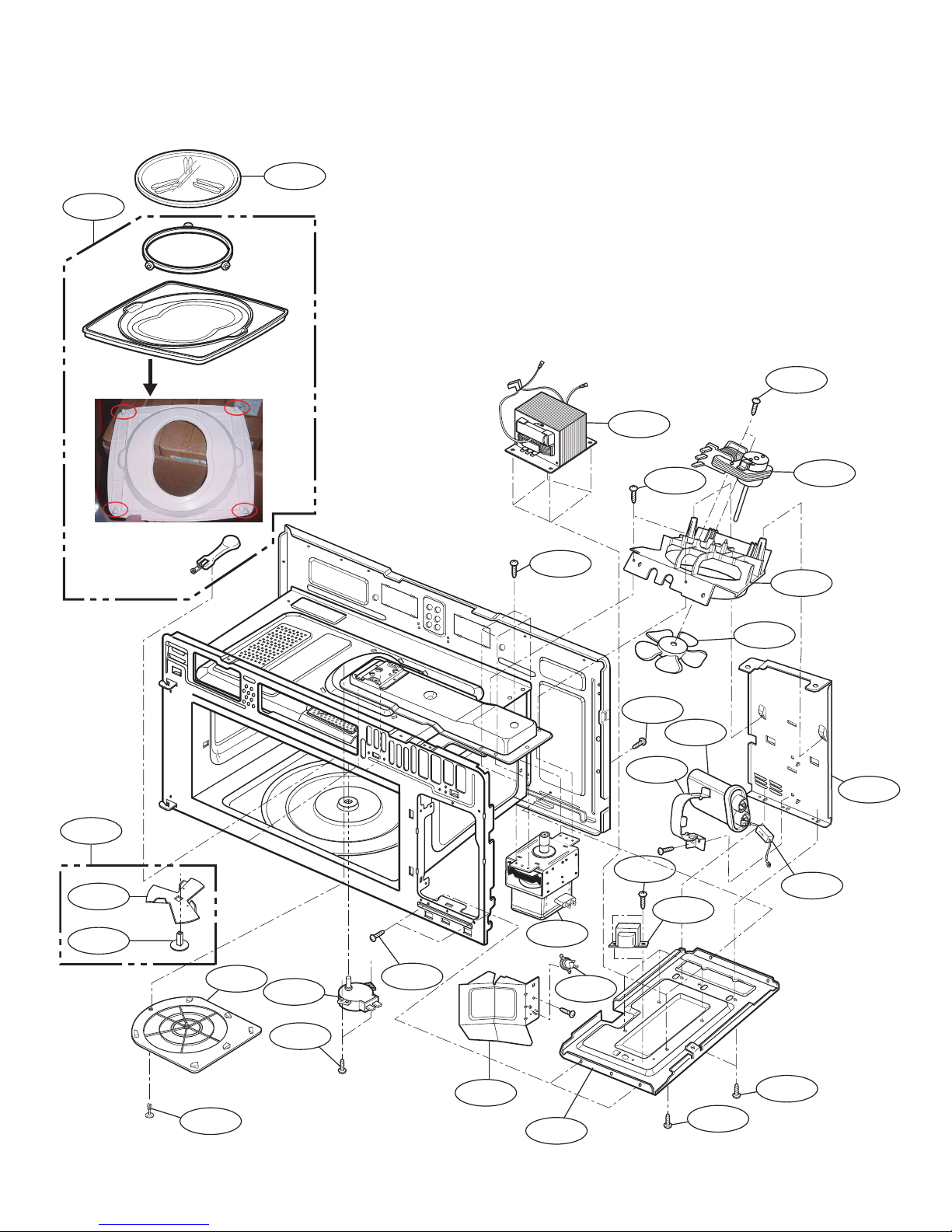

INTERIOR PARTS (I)
3002
3381
5058
5043
3004
5044
W105
3009
W109
3007
5035
W109
W109
W109
5412
5009
5023
5018
5049
5002
5000
W109
5007
5003
5012
W110
W109
5008
W101
Back
5024
#EV#
Page 43
#EV#
W150
W150
5027
5011
5016
3027
W144
5707
W109
5001
5017
5010
5014
5029
5006
5037
5056
W144
5015
5045
* Check the
Model No.
* Check the
Model No.
3033
Check the rating label of Model and order
SVC parts according to the Model No.
8-6

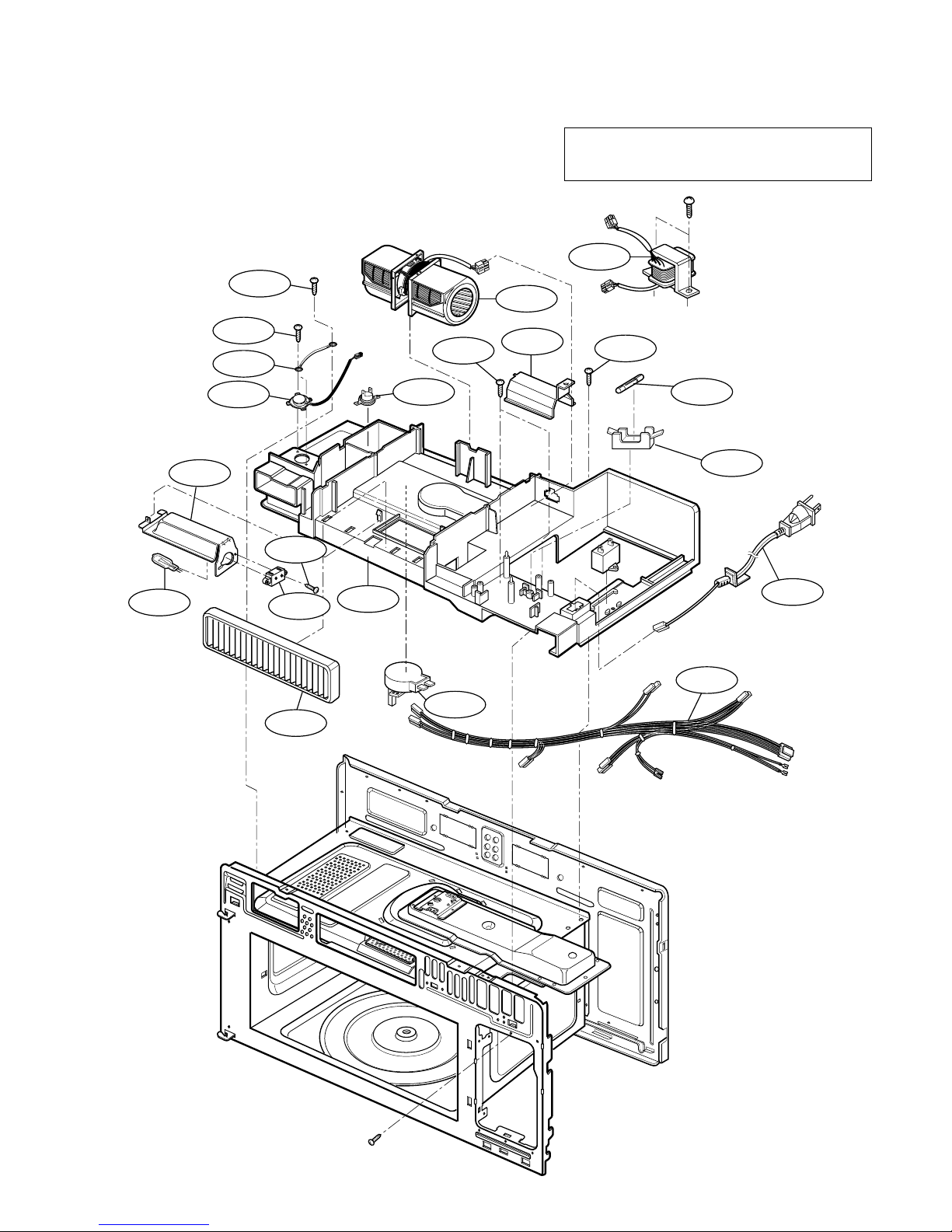

INTERIOR PARTS (II - I)
Model: 721.80802400
721.80809400
721.80804400
721.80803300
Page 44
#EV#
W150
W150
5027
5011
5016
3027
5707
W109
5001
5041
5010
5014
5029
5006
5037
5056
W144
5015
5045
* Check the
Model No.
* Check the
Model No.
W144
W144
3033
8-7
Check the rating label of Model and order
SVC parts according to the Model No.

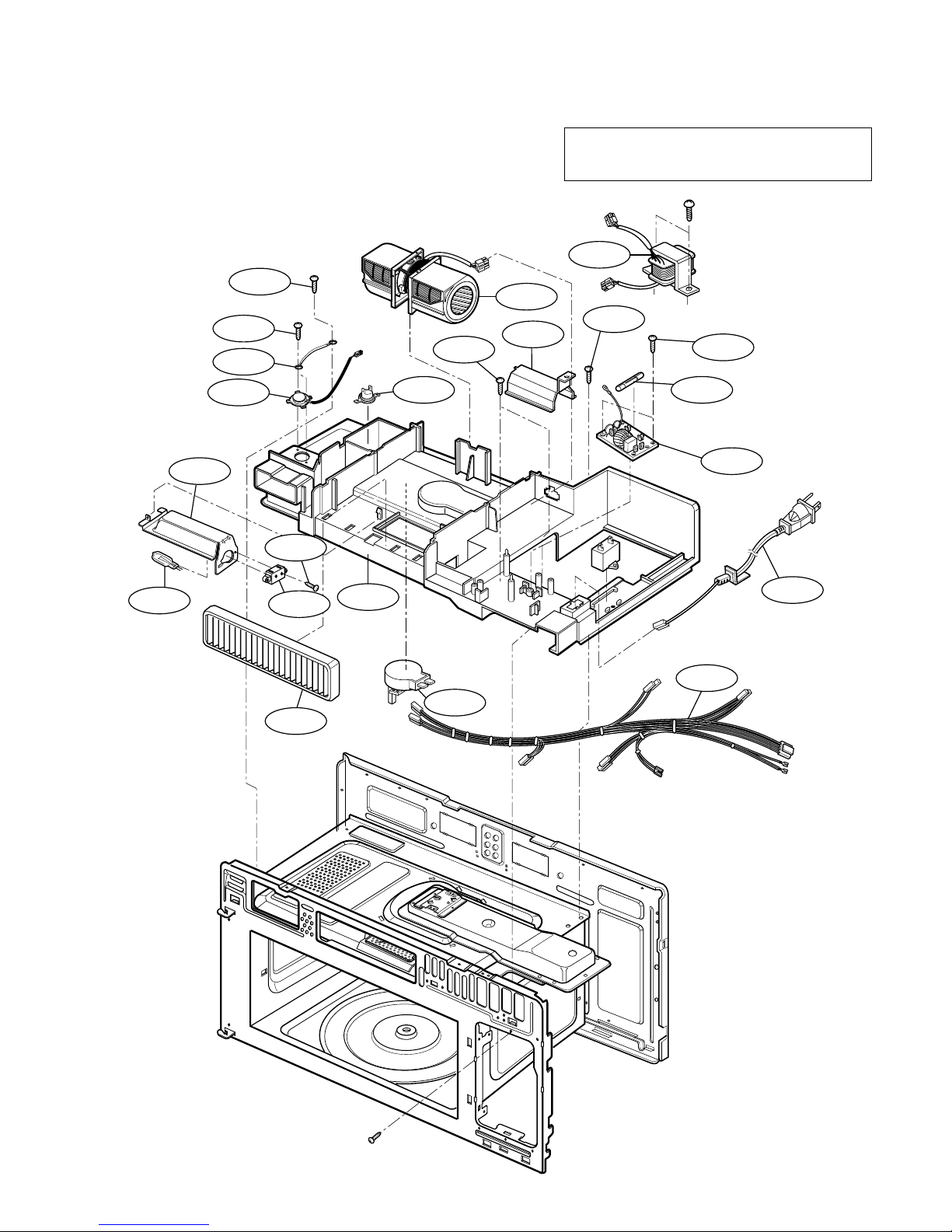

INTERIOR PARTS (II - II)
Model: 721.80802401
721.80809401
721.80804401
721.80803401
Page 45
8-8

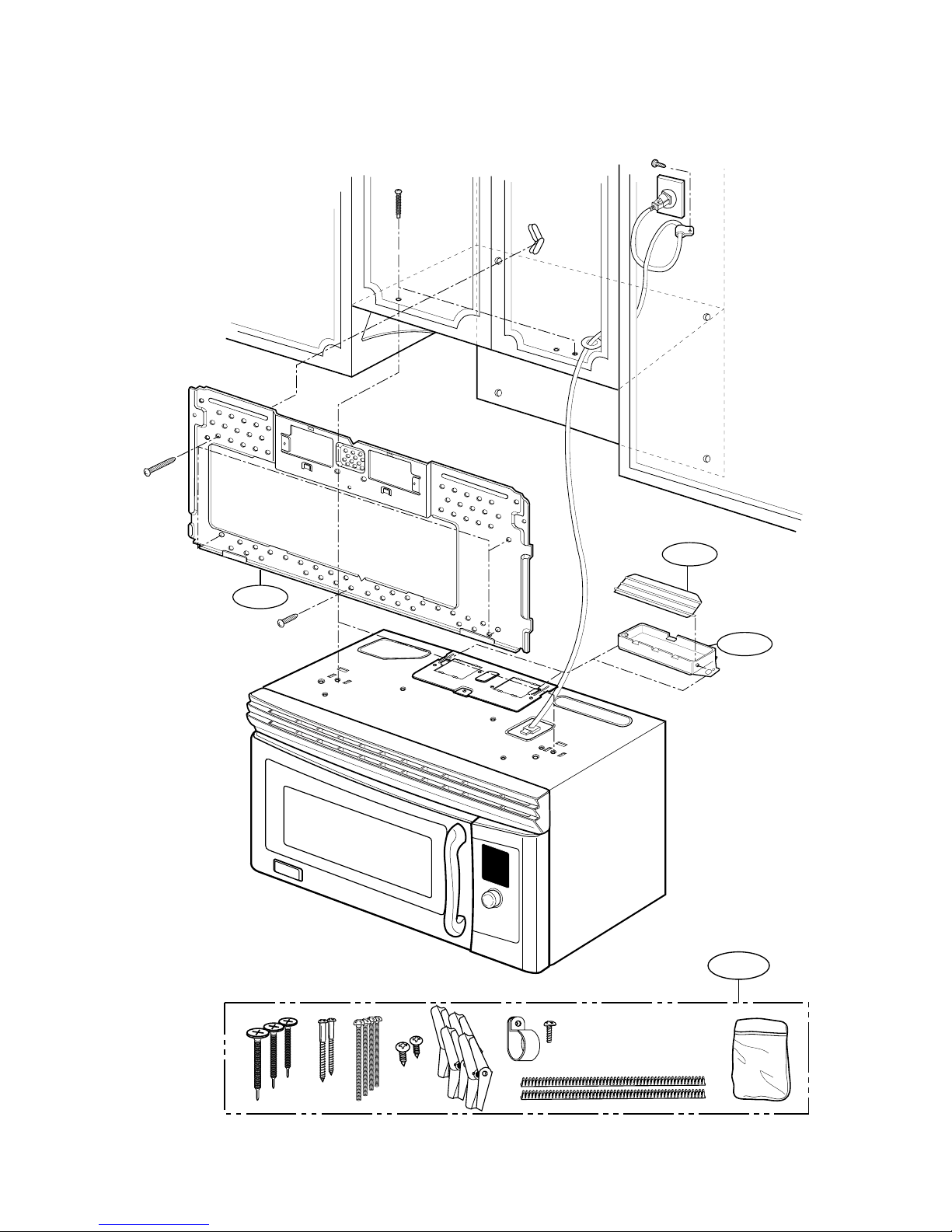

INSTALLATION PARTS
6008
6011
6010
6009
VINYL
BAG
#EV#
Page 46
P/NO : 3828W5S4602 Printed in Korea
Loading...
