Sears 631.29739 User Manual

SEARS

Model No. 631.297390

Serial No.

Theserial numberis found in thelocation shown below.Writethe serial number in

the spaceabovefor future reference.

EQUIPMENT

[e] I#

HELPLINE!

1-800-736-6879

_tLCAUTION

Read all precautions and instruc-

tions in this manual before using

this equipment. Save this manual for future reference.

USER'S MANUAL

SEARS, ROEBUCK AND CO., HOFFMAN ESTATES_ IL 60179

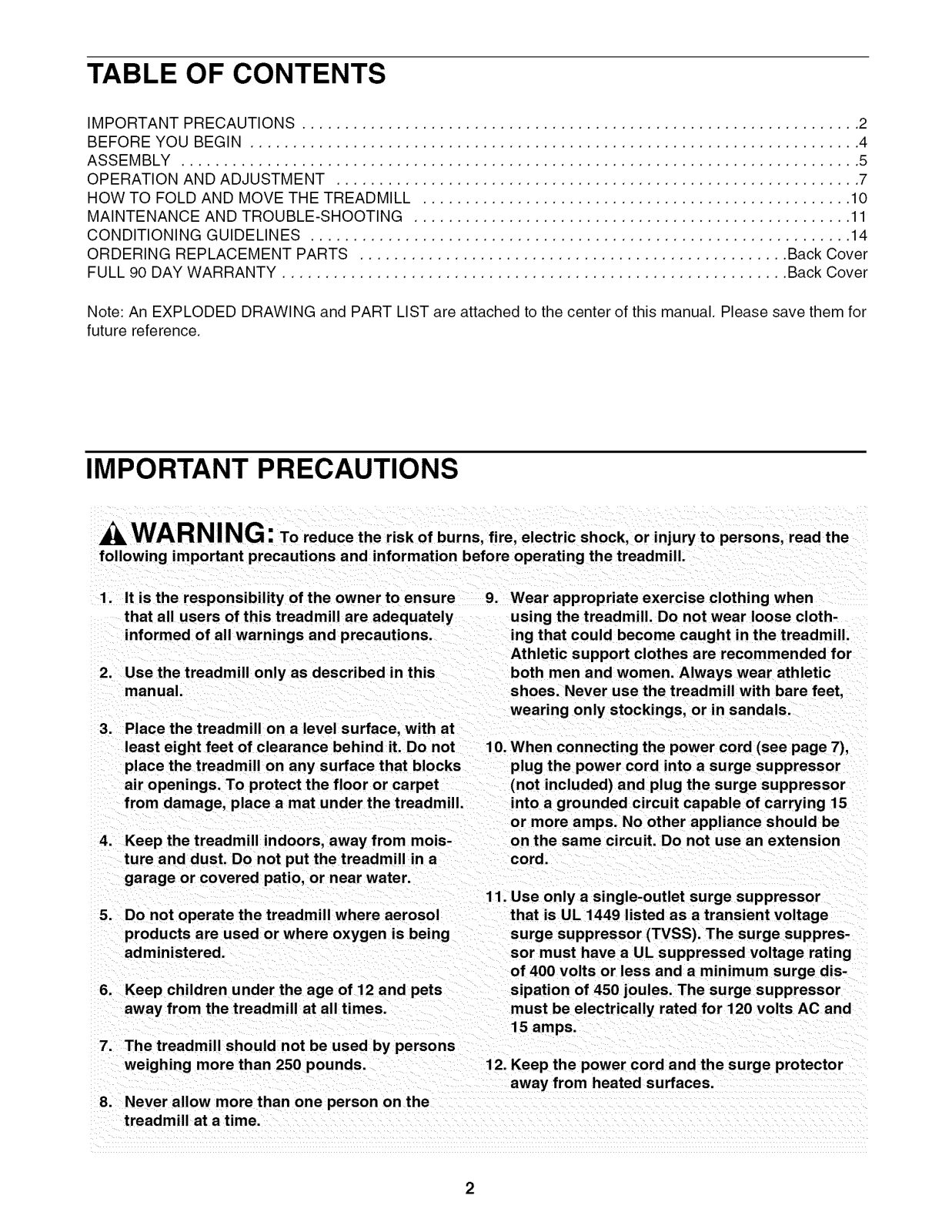

TABLE OF CONTENTS

IMPORTANT PRECAUTIONS ................................................................. 2

BEFORE YOU BEGIN ....................................................................... 4

ASSEMBLY ............................................................................... 5

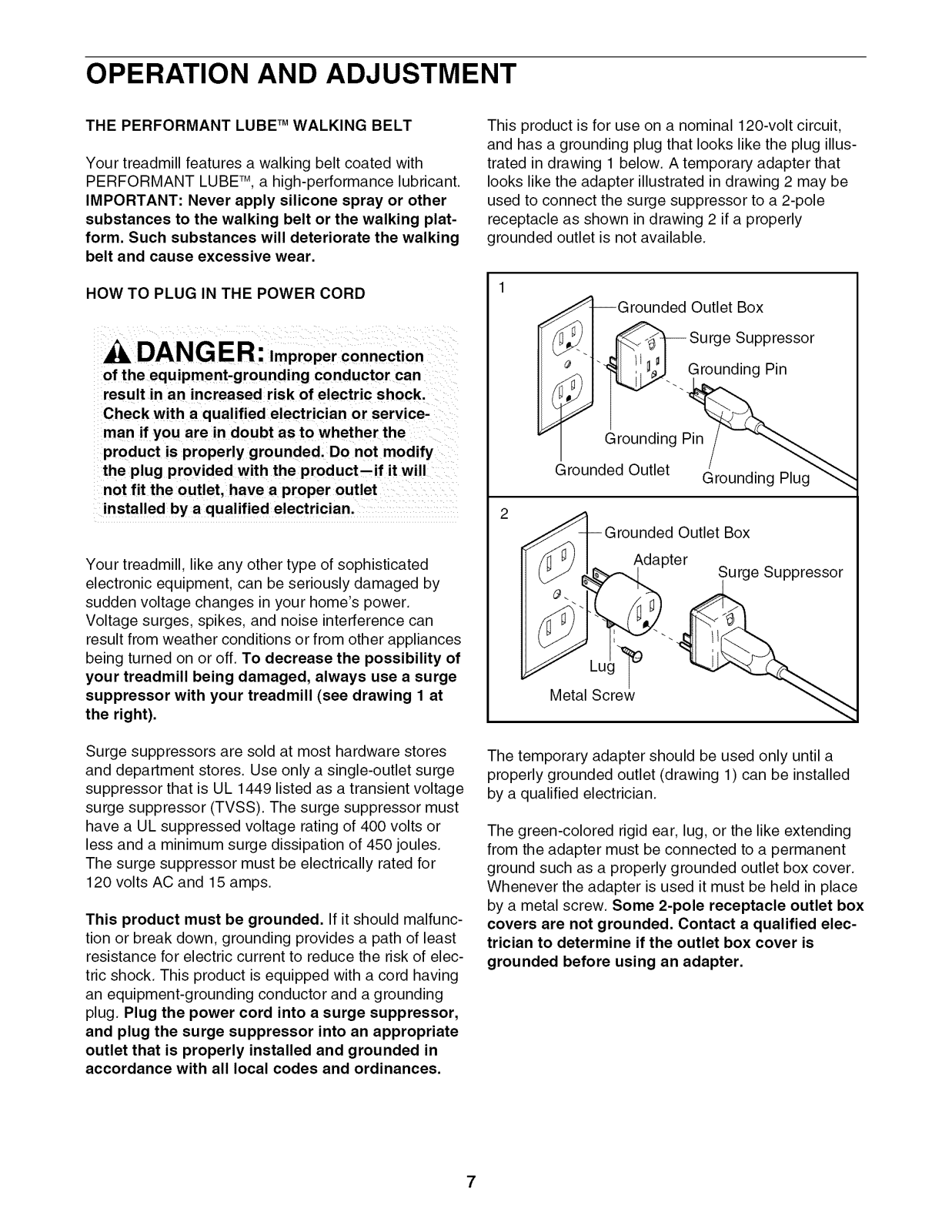

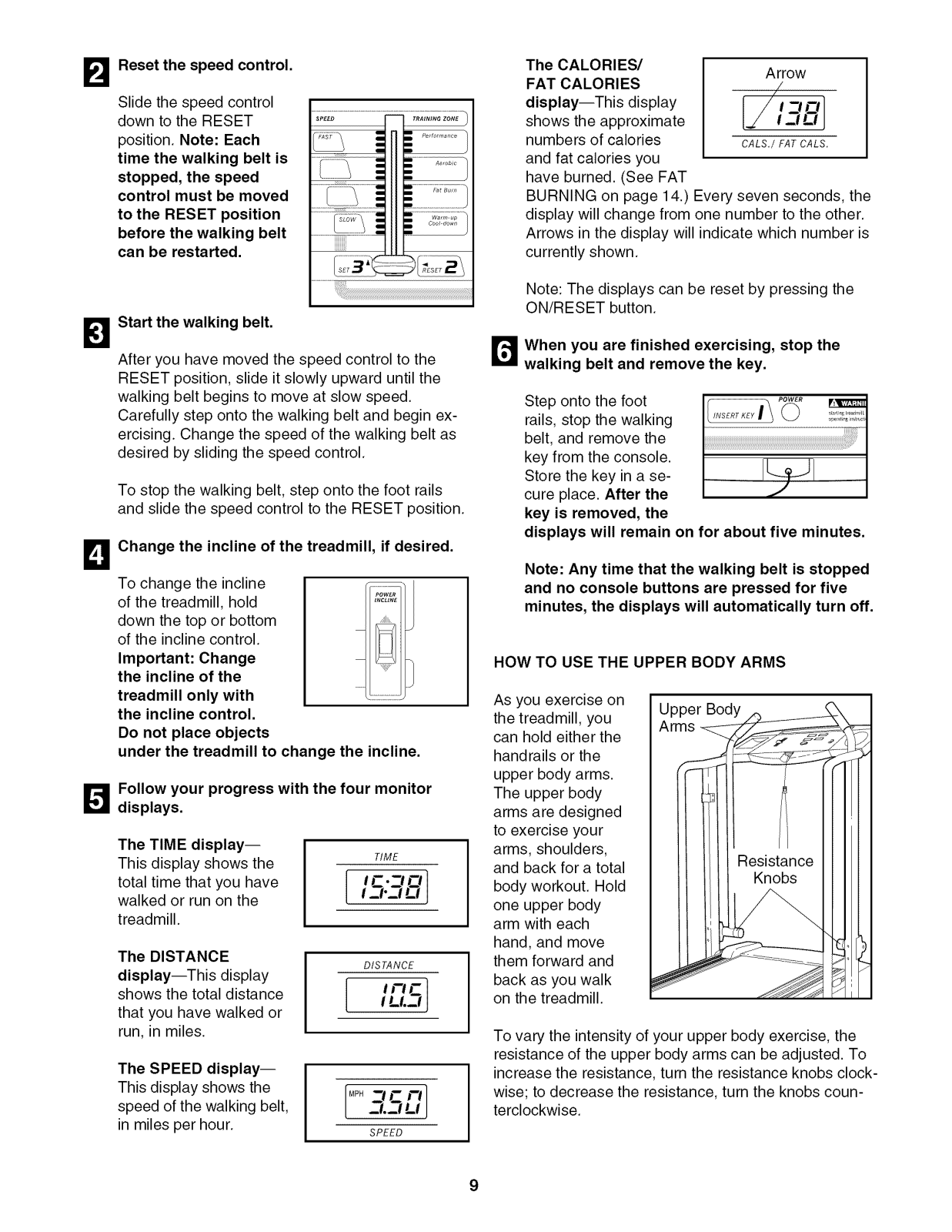

OPERATION AND ADJUSTMENT ............................................................. 7

HOW TO FOLD AND MOVE THE TREADMILL .................................................. 10

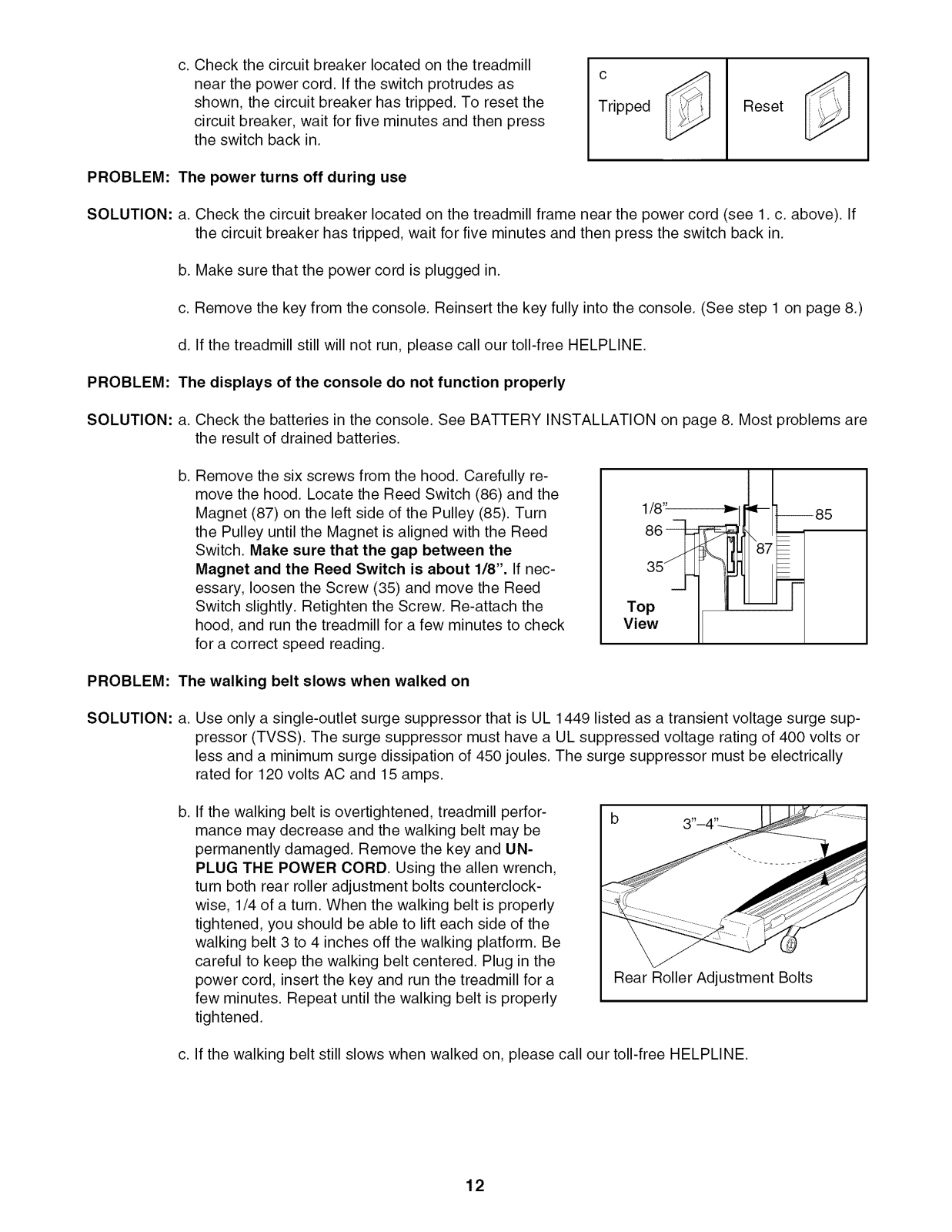

MAINTENANCE AND TROUBLE-SHOOTING ................................................... 11

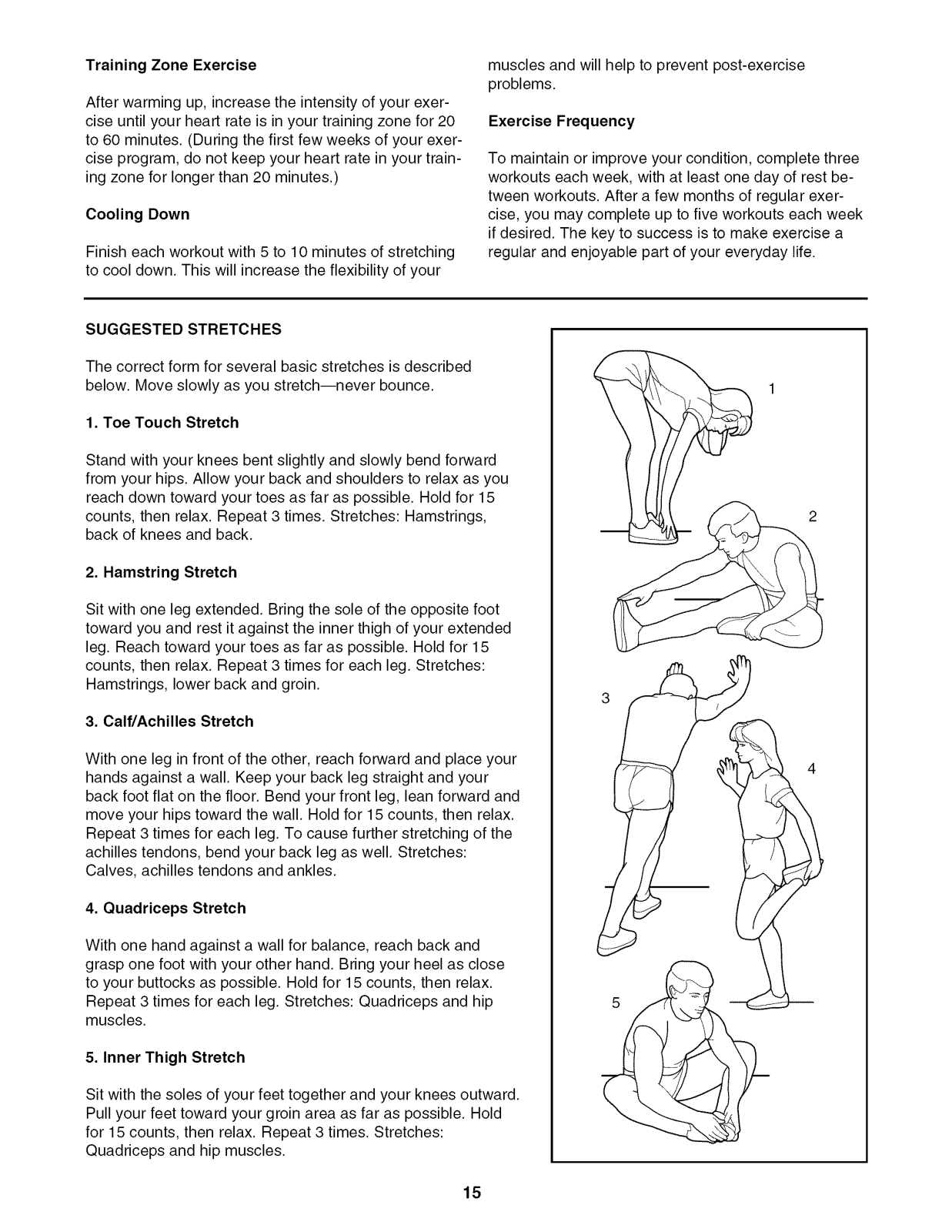

CONDITIONING GUIDELINES ............................................................... 14

ORDERING REPLACEMENT PARTS .................................................. Back Cover

FULL 90 DAY WARRANTY ........................................................... Back Cover

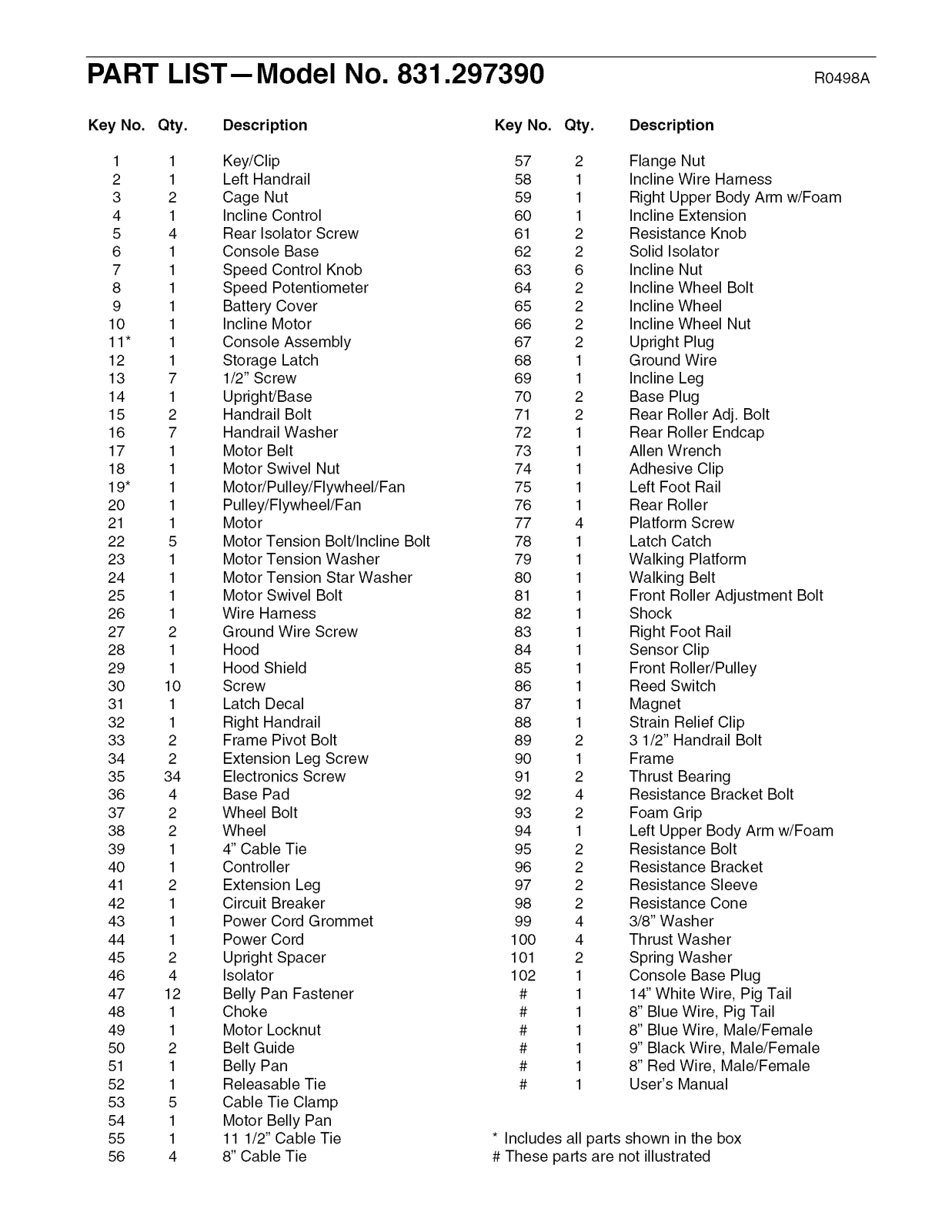

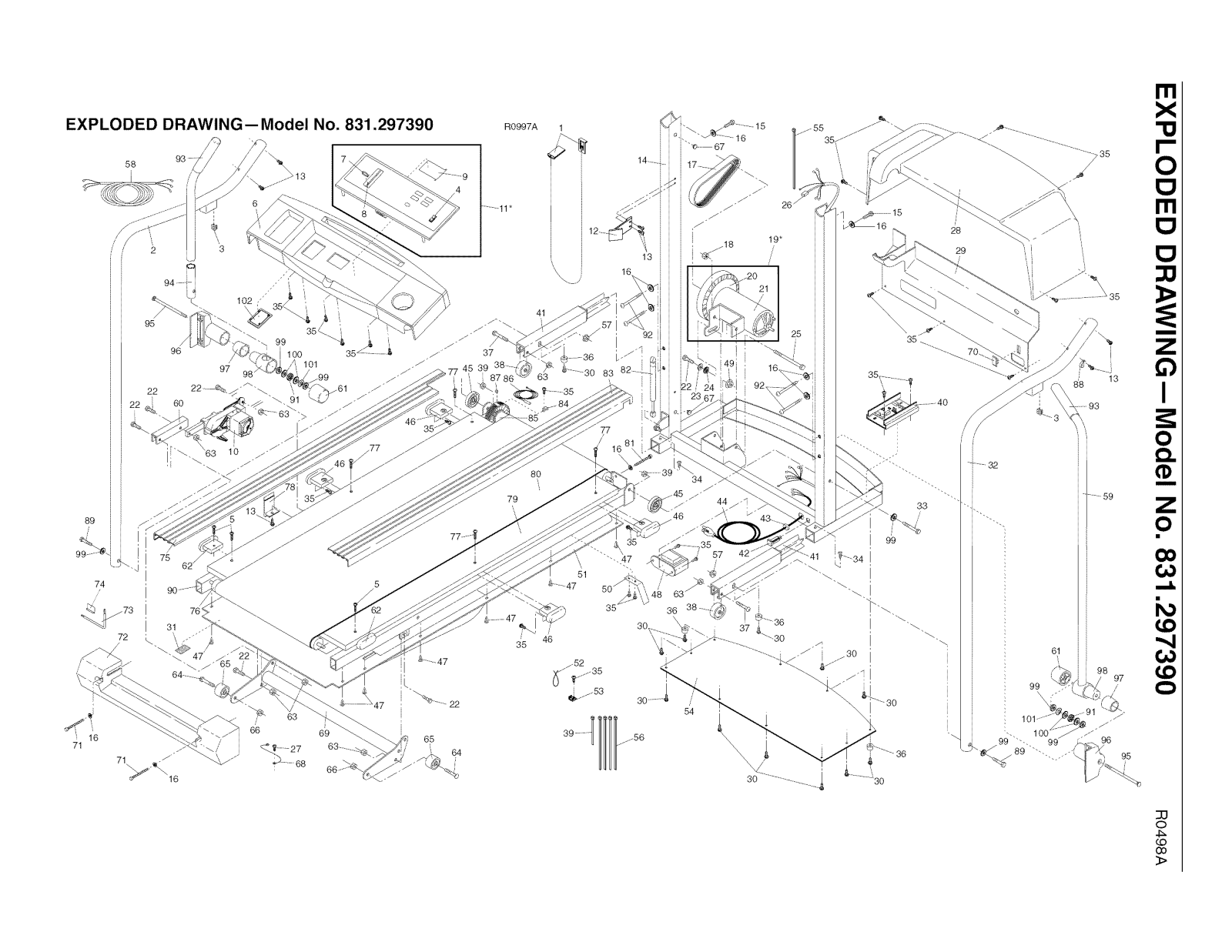

Note: An EXPLODED DRAWING and PART LIST are attached to the center of this manual. Please save them for future reference.

IMPORTANT PRECAUTIONS

A, WARNING: To reduce the risk of burns, fire. electric shock, or injury to persons, read the

following important precautions and information before operating the treadmill.

1. It is the responsibility of the owner to ensure

that all use rs of this treadmill are adequately informed of all warnings and precautions.

2. Use the treadmill only as described in this manual.

3. Place the treadmill on a level surface, with at

least eight feet of clearance behind it. Do not place the treadmill on any surface that blocks air openings. To protect the floor or carpet from damage, place a mat under the treadmill.

4. Keep the treadmill indoors, away from mois- ture and dust. Do not put the treadmill in a garage or covered patio, or near water.

5. Do not operate the treadmill where aerosol products are used or where oxygen is being

administered.

6. Keep children under the age of 12 and pets away from the treadmill at all times.

7. The treadmill should not be used by persons weighing more than 250 pounds.

8. Never allow more than one person on the treadmill at a time.

9. Wear appropriate exercise clothing when using the treadmill. Do not wear loose cloth- ing that could become caught in the treadm ill. Athletic support clothes are recommended for both men and women. Always wear athletic

shoes. Never use the treadmill with bare feet. wearing only stockings, or in sandals.

10. When connecting the power cord (see page 7),

plug the power cord into a surge suppressor (not included) and plug the surge suppressor into a grounded circuit capable of carrying 15 or more amps. No other appliance should be

on the same circuit. Do not use an extension cord.

11. Use only a single-outlet surge suppressor that is UL 1449 listed as a transient voltage surge suppressor (TVSS). The surge suppres- sor must have a UL suppressed voltage rating of 400 volts or less and a minimum surge dis- sipation of 450 joules. The surge suppressor

must be electrically rated for 120 volts AC and

15 amps.

12. Keep the power cord and the surge protector away from heated surfaces.

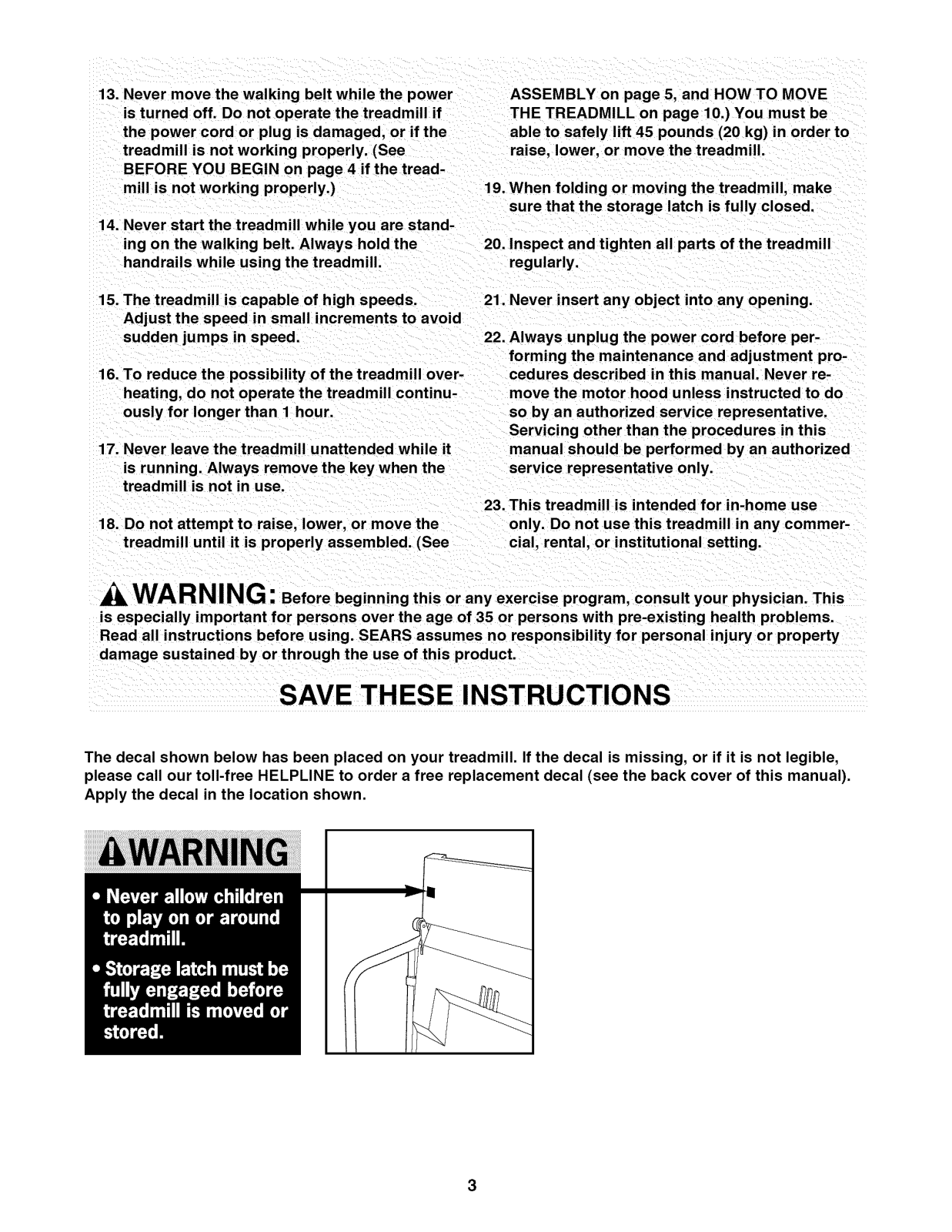

13.Nevermovethewalkingbeltwhilethepower isturnedoff.Donotoperatethetreadmillil thepowercordor plugisdamaged,orifthe treadmillisnotworkingproperly.(See

ASSEMBLYonpage5,andHOWTOMOVE THETREADMILLonpage10.)Youmustbe abletosafelylift45pounds(20kg)inorderto

raise,lower,or movethetreadmill.

BEFOREYOUBEGINon page4 ifthetread- millis notworkingproperly.)

19.Whenfoldingormovingthetreadmill,make surethatthestoragelatchisfully closed.

14.Neverstartthetreadmillwhileyouarestand- ingonthewalkingbelt.Alwaysholdthe handrailswhileusingthetreadmill.

20.Inspectandtightenall partsofthetreadmill regularly.

15.Thetreadmilliscapableofhighspeeds. 21.Neverinsertanyobjectintoanyopening. Adjustthespeedinsmallincrementsto avoid suddenjumpsinspeed. 22.Alwaysunplugthe powercordbeforeper-

formingthemaintenanceandadjustmentpro-

16.Toreducethe possibilityofthetreadmillover- ceduresdescribedinthis manual.Neverre- heating,donotoperatethetreadmillcontinu- ouslyfor longerthan1hour.

17.Neverleavethetreadmillunattendedwhileit isrunning.Alwaysremovethekeywhenthe

move the motor hood unless instructed to do

so by an authorized service representative. Servicing other than the procedures in this

manual should be performed by an authorized

service representative only.

treadmillis notin use.

23. This treadmill is intended for in-home use

18. Do not attempt to raise, lower, or move the treadmill until it is properly assembled. (See

only. Do not use this treadmill in any commer- cial. rental, or institutional setting.

WARNING: Before beginning this or any exercise program, consult your physician. This

is especially important for persons over the age of 35 or persons with pre-existing health problems. Read all instructions before using. SEARS assumes no responsibility for personal injury or property damage sustained by or through the use of this product.

SAVE THESE INSTRUCTIONS

The decal shown below has been placed on your treadmill. If the decal is missing, or if it is not legible, please call our toll-free HELPLINE to order a free replacement decal (see the back cover of this manual). Apply the decal in the location shown.

BEFORE YOU BEGIN

Congratulations for purchasing the new PROFORM ® CROSSWALK GT treadmill. The CROSSWALK GT

treadmill combines advanced technology with innova- tive design to let you enjoy an excellent form of cardio- vascular exercise in the convenience and privacy of your home. And when you're not exercising, the unique CROSSWALK GT can be folded up, requiring less than half the floor space of other treadmills.

For your benefit, read this manual carefully before using the treadmill. If you have additional questions,

please call our toll-free HELPLINE at 1-800-736-6879,

Upper Body Arm

Accessory Tray

Handrail

Storage Latch

Monday through Saturday, 7 a.m. until 7 p.m. Central Time (excluding holidays). To help us assist you, please note the product model number and serial num- ber before calling. The model number of the treadmill

is 831.297390. The serial number can be found on a decal attached to the treadmill (see the front cover of

this manual for the location).

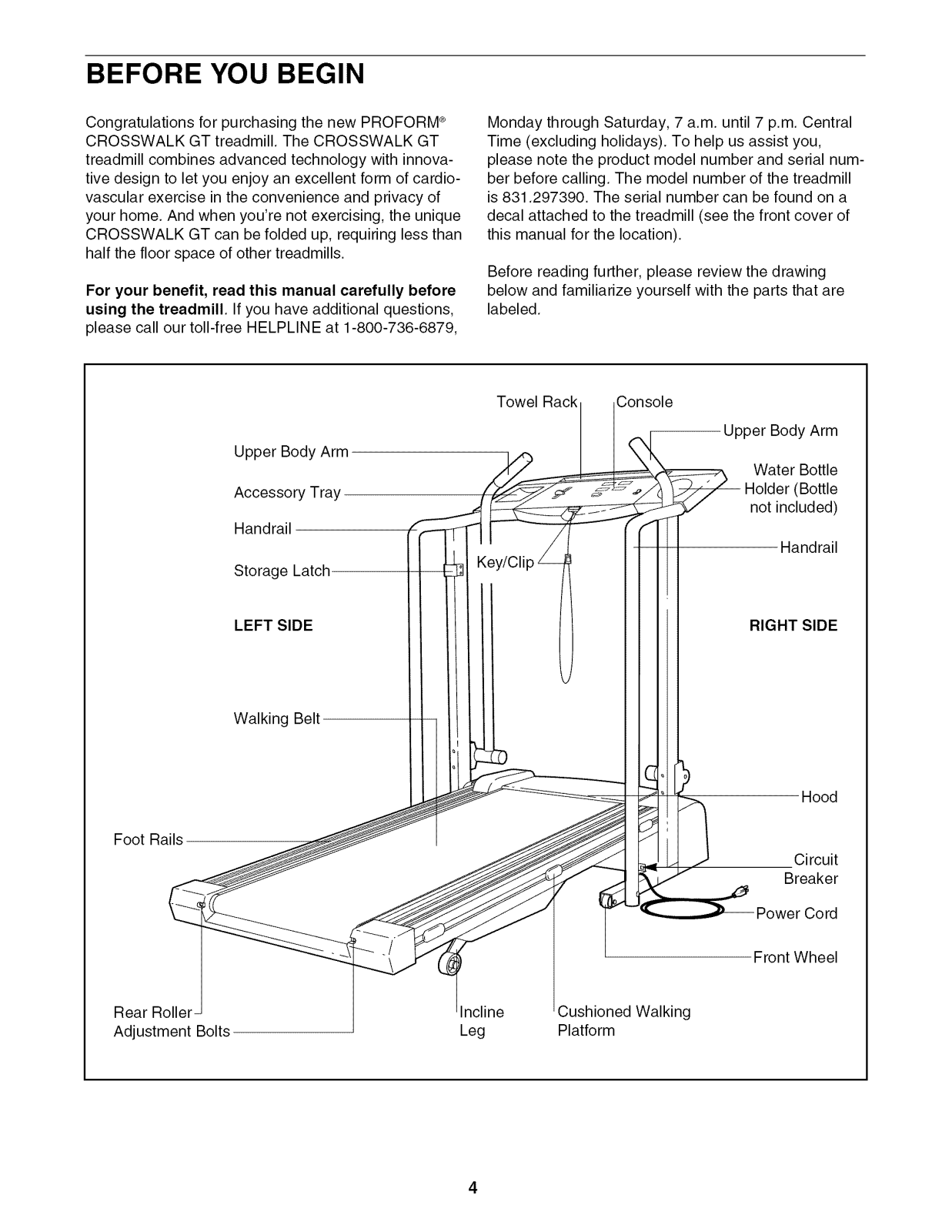

Before reading further, please review the drawing below and familiarize yourself with the parts that are

labeled.

Towel Rack Console

Upper Body Arm

Water Bottle

Holder (Bottle

not included)

Handrail

Key/Clip

Foot Rails

Rear Rollel Adjustment Bolts

LEFT SIDE

Walking Belt

ncline

Leg

RIGHT SIDE

Hood

Circuit

Breaker

Front Wheel

Cushioned Walking Platform

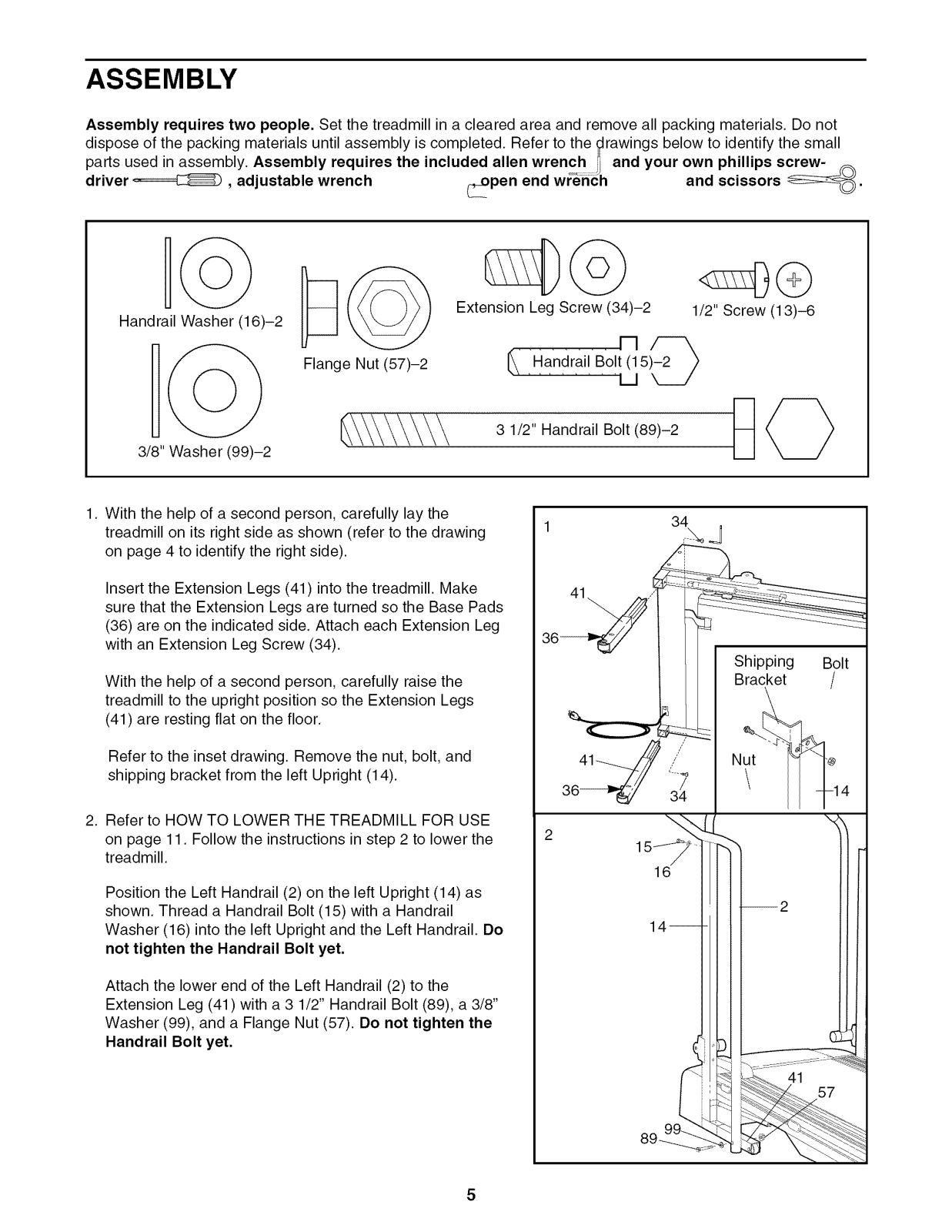

ASSEMBLY

Assembly requires two people. Set the treadmill in a cleared area and remove all packing materials. Do not

dispose of the packing materials until assembly is completed. Refer to the _rawings below to identify the small parts used in assembly. Assembly requires the included allen wrenc h _ and your own phillips screw-

driver , adjustable wrench _pen end w_'_rlch and scissors :_.

Handrail Washer (16)-2

Flange Nut (57)-2

__ 31/2" Handrail Bolt (89)-2

3/8" Washer (99)-2

1. With the help of a second person, carefully lay the treadmill on its right side as shown (refer to the drawing on page 4 to identify the right side).

Insert the Extension Legs (41) into the treadmill. Make

sure that the Extension Legs are turned so the Base Pads

(36) are on the indicated side. Attach each Extension Leg

with an Extension Leg Screw (34).

With the help of a second person, carefully raise the treadmill to the upright position so the Extension Legs

(41) are resting flat on the floor.

Refer to the inset drawing. Remove the nut, bolt, and

shipping bracket from the left Upright (14).

Extension Leg Screw (34)-2

_. Handrai! B°!tS 5_

1/2" Screw (13)-6

Shipping Bracket

Nut

Bolt

2. Refer to HOW TO LOWER THE TREADMILL FOR USE on page 11. Follow the instructions in step 2 to lower the

treadmill.

Position the Left Handrail (2) on the left Upright (14) as shown. Thread a Handrail Bolt (15) with a Handrail Washer (16) into the left Upright and the Left Handrail. Do

not tighten the Handrail Bolt yet,

Attach the lower end of the Left Handrail (2) to the

Extension Leg (41) with a 3 1/2" Handrail Bolt (89), a 3/8" Washer (99), and a Flange Nut (57). Do not tighten the

Handrail Bolt yet,

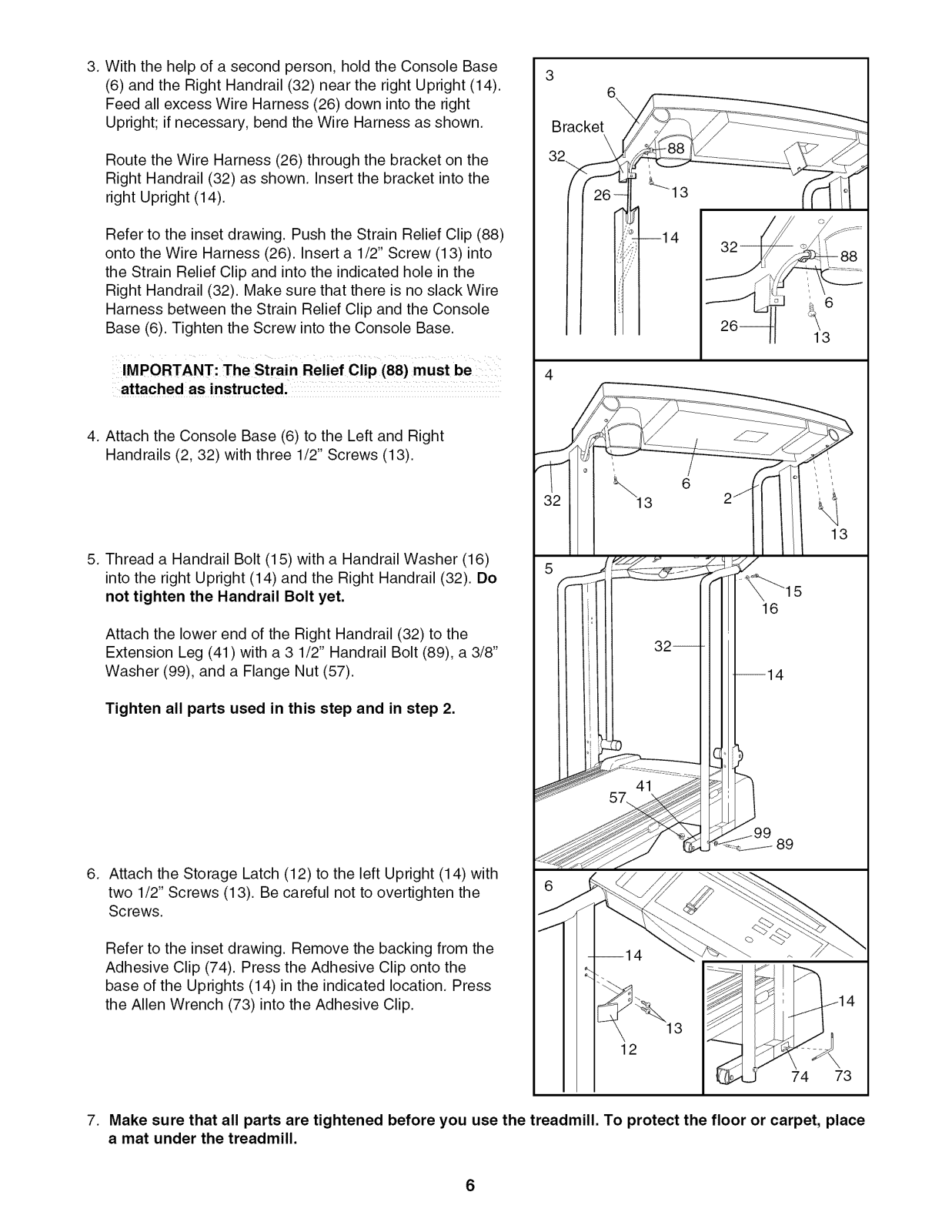

3.Withthehelpofasecondperson,holdtheConsoleBase (6)andtheRightHandrail(32)neartherightUpright(14). FeedallexcessWireHarness(26)downintotheright Upright;ifnecessary,bendtheWireHarnessasshown.

RoutetheWireHarness(26)throughthebracketonthe RightHandrail(32)asshown.Insertthebracketintothe rightUpright(14).

Refertotheinsetdrawing.PushtheStrainReliefClip(88)

ontotheWireHarness(26).Inserta1/2"Screw(13)into theStrainReliefClipandintotheindicatedholeinthe

RightHandrail(32).MakesurethatthereisnoslackWire HarnessbetweentheStrainReliefClipandtheConsole Base(6).TightentheScrewintotheConsoleBase.

IMPORTANT: The Strain Relief Clip (88) must be

attached as instructed,

4. Attach the Console Base (6) to the Left and Right Handrails (2, 32) with three 1/2" Screws (13).

5. Thread a Handrail Bolt (15) with a Handrail Washer (16) into the right Upright (14) and the Right Handrail (32). Do not tighten the Handrail Bolt yet,

Attach the lower end of the Right Handrail (32) to the

Extension Leg (41) with a 3 1/2" Handrail Bolt (89), a 3/8"

Washer (99), and a Flange Nut (57).

Tighten all parts used in this step and in step 2

6. Attach the Storage Latch (12) to the left Upright (14) with

two 1/2" Screws (13). Be careful not to overtighten the

Screws.

Refer to the inset drawing. Remove the backing from the

Adhesive Clip (74). Press the Adhesive Clip onto the

base of the Uprights (14) in the indicated location. Press

the Allen Wrench (73) into the Adhesive Clip.

74 73

7 Make sure that all parts are tightened before you use the treadmill To protect the floor or carpet, place

a mat under the treadmill

+ 12 hidden pages
