Sears 47002 User Manual
OWNER’S
MANUAL
Model No.
47002
CAUTION:
Read and Follow All Safety
Rules and Operating Instructions
Before Every Use of this Product.
Sears Canada Inc., 222 Jarvis St., Toronto, Ontario, Canada M5B 2B8
6/2 AMP
MANUAL
BATTERY CHARGER
Table Of Contents
Warranty .................................................................. 1
Important Safety Instructions ................................. 2
Parts......................................................................... 3
Before Using Your Battery Charger ........................ 4

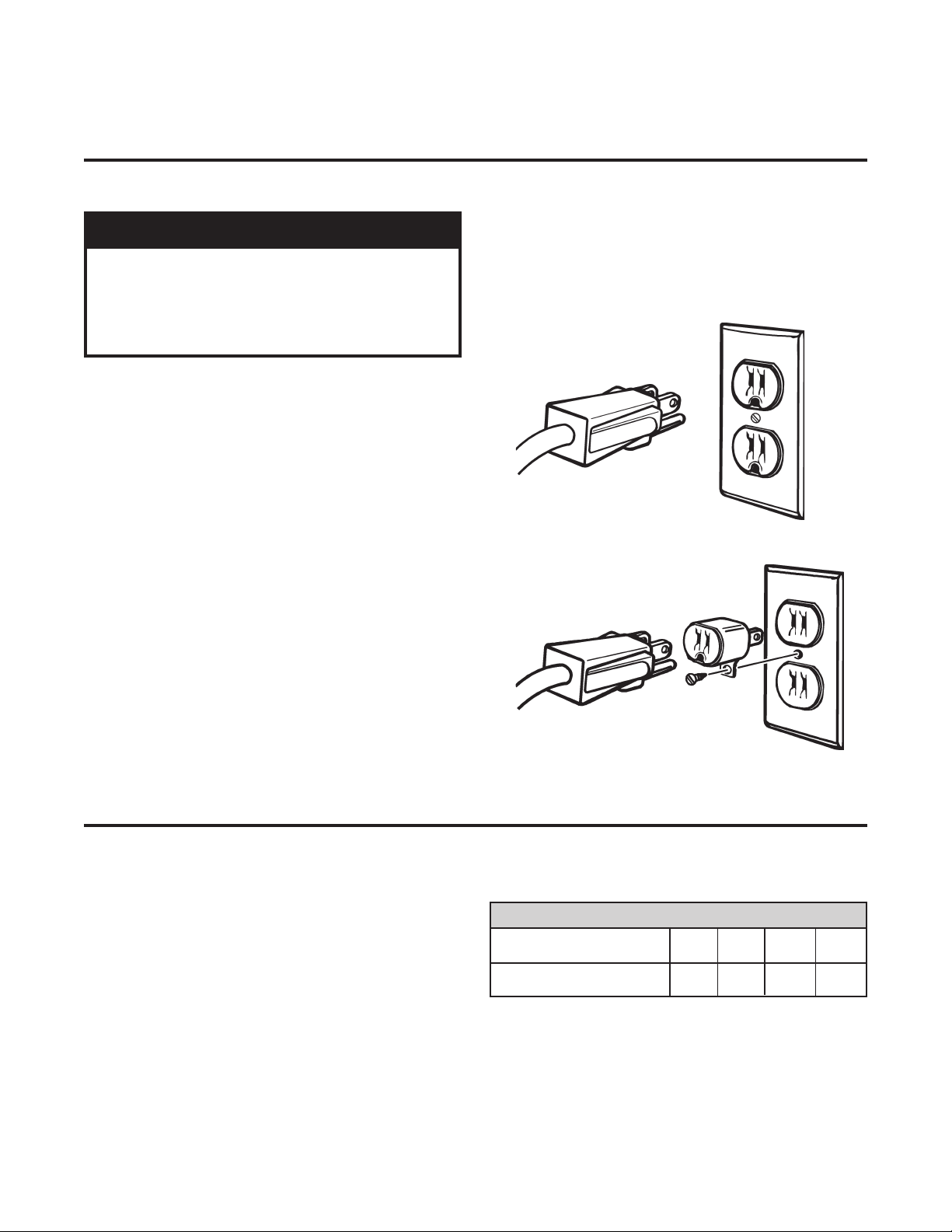

Plugging it in .......................................................... 4
Using an extension cord ........................................ 4
Preparing your battery to be charged ................... 5
Please read this Owner's Manual before using your Battery Charger
The Sears model 47002, Manual Battery Charger, offers a wide range of features to accommodate the needs
for home or light commercial use. This manual will show you how to use your charger safely and effectively.
Please read and follow these instructions and precautions carefully.
Using Your Battery Charger .................................... 6
Setting the controls ................................................ 6
Charging your battery ............................................ 6
Calculating charge time ......................................... 9
Maintenance and care ......................................... 10
Troubleshooting .................................................... 11
Warranty
FULL TWO-YEAR WARRANTY
If, within two years from the date of purchase this battery charger fails due to a defect in materials or workmanship, simply RETURN IT TO THE NEAREST SEARS STORE IN CANADA, and Sears will replace it, free
of charge.
This warranty gives you specific legal rights, and you may also have other rights which vary from province to
province.
Sears Canada, Inc.
Toronto, Ontario, M5B 2B8
1
Sears 002 - Sch 548 11/2/95
Important Safety Instructions
– SAVE THESE INSTRUCTIONS –
w
! WARNING
L
To reduce the risk of explosion, explosive gases, or injury while
using your battery charger, follow the precautions listed below:
• Read all instructions and cautions printed on
the battery charger, battery, and vehicle or
equipment using battery.
• Use charger only on lead-acid type recharge-
able batteries, such as those used in cars,
trucks, trac-tors, airplanes, vans, RV’s, trolling
motors, etc. This charger is not intended to
supply power to a low voltage electrical
system other than in an automotive application.
• Use only attachments recommended or sold
by manufacturer. The use of attachments not
recommended by the manufacturer may result
in fire, electric shock, or injury.
Help us help you
Remember:
•Place charger as far away from battery being
charged as the charger cables will permit.
•Do not expose charger to rain or snow.
•Never charge a frozen battery. If battery fluid (electro-
lyte) becomes frozen, bring battery into a warm area
to thaw before you begin charging.
•Never allow battery acid to drip on charger when
reading specific gravity or filling battery.
•Never set a battery on top of the charger.
•Never place charger directly above battery being
charged. The gases from the battery will corrode
and damage the charger.
•Never use charger for charging dry-cell batteries that
are commonly used with home appliances. These
batteries may burst and cause personal injury.
• Do not disassemble charger. Take it to a
qualified service professional if service or
repair is required. Incorrect assembly may
result in fire or electrical shock.
• To reduce risk of electrical shock, unplug the
charger from the outlet before attempting any
maintenance or cleaning.
• Always charge battery in a well ventilated
area.
•Never touch the battery clamps together when the
charger is energized.
•Never operate charger if it has received a hard blow,
been dropped, or otherwise damaged. Take it to a
qualified professional for inspection and repair.
•Be sure to position the charger power cord to
prevent it from being stepped on, tripped over, or
damaged.
•Never pull out the plug by the cord when unplug-
ging the charger. Pulling on the cord may cause
damage to the cord or the plug.
•Do not operate the charger if it has a damaged
power cord or plug. Have the cord replaced.
Personal Safety Precautions
For your own personal safety, please follow the following precautions:
•Wear complete eye and clothing protection when
working with lead-acid batteries.
•Be sure that someone is within range of your voice
to come to your aid if needed while you work with or
are near a lead-acid battery.
•Have plenty of fresh water and soap nearby for use
in case battery acid contacts your eyes, skin, or clothing. If this happens, wash immediately with soap and
water. Then get medical attention.
•Avoid touching your eyes while working with a
battery. Acid particles (corrosion) may get into your
eyes. If this occurs, flush eyes immediately with
running cold water for at least 10 minutes. Then
immediately get medical attention.
Sears 002 - Sch 548 11/2/95
•Remove all personal metal items from your body,
such as rings, bracelets, necklaces, and watches
while working with a lead-acid battery. A battery can
produce a short circuit current high enough to weld
a ring (or the like) to metal, causing a severe burn.
•Take care not to drop any metal tool or metal object
onto the battery. This may spark or short circuit the
battery or another electrical device that may cause
an explosion.
•Always operate your battery charger in an open, well
ventilated area.
•Never smoke or allow a spark or flame in the vicinity
of the battery or engine. Batteries generate explosive
gases.
•Neutralize any acid spills thoroughly with baking
soda before attempting to clean up.
2
Parts
This section shows an illustration of your battery charger. Use it to become familiar with where all the parts are
located, and what they look like.
Replacement Parts List Sears 47002
Description Part Number
Item
1
Cover 3799001402
2
Heatsink/Diode Assembly 2299000825
3
Base 3799001382
AC Power Cord 90026058
4
Transformer 93026433
5
Output Cable 3899000016
6
7
Circuit Breaker (12A) 3999000044
8
50A Clamp (1) 2299000248
Sleeving Red (2) required 0399000007
Sleeving Black (2) required 0399000008
Meter 5399100090
9
Switch SPDT 0499000032
10
11
Front Panel 3799001392
12
Decal 0899000530
13
Handle 3599000240
14
Screw 8-18 x 3/8" (4) 5181806256
15
Owner's Manual and Parts List (Not Shown) 0000000548
Wiring diagram
Sears 002 - Sch 548 11/2/95
