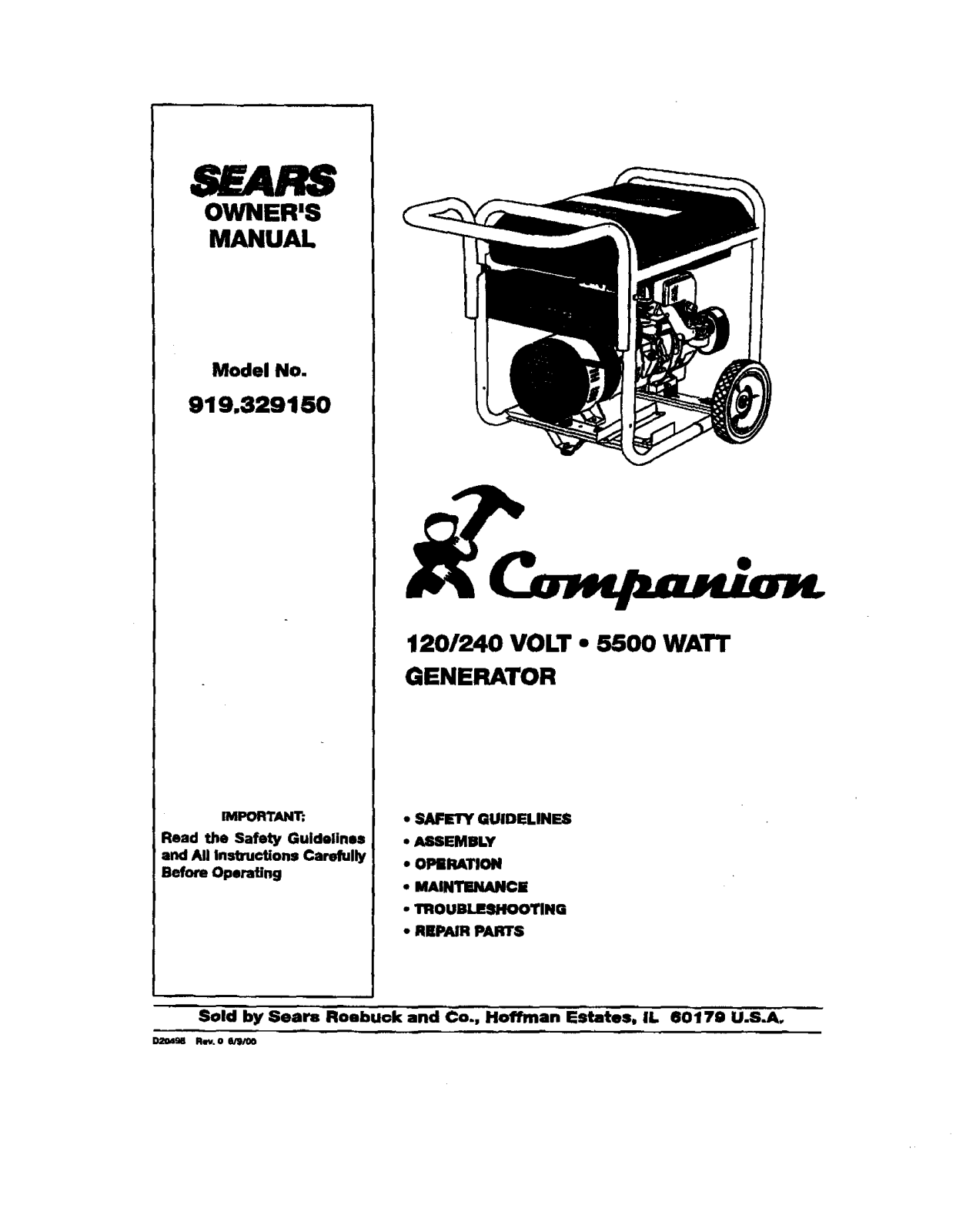

- Model No: 919,329150
- Power: 5500 Watts
- Voltage: 120/240 Volt
- Horse Power: 10 HP
- Fuel Capacity: 7 Gallon
- Oil Capacity: 26 Oz.
- Engine Type: 4-cycle gasoline engine

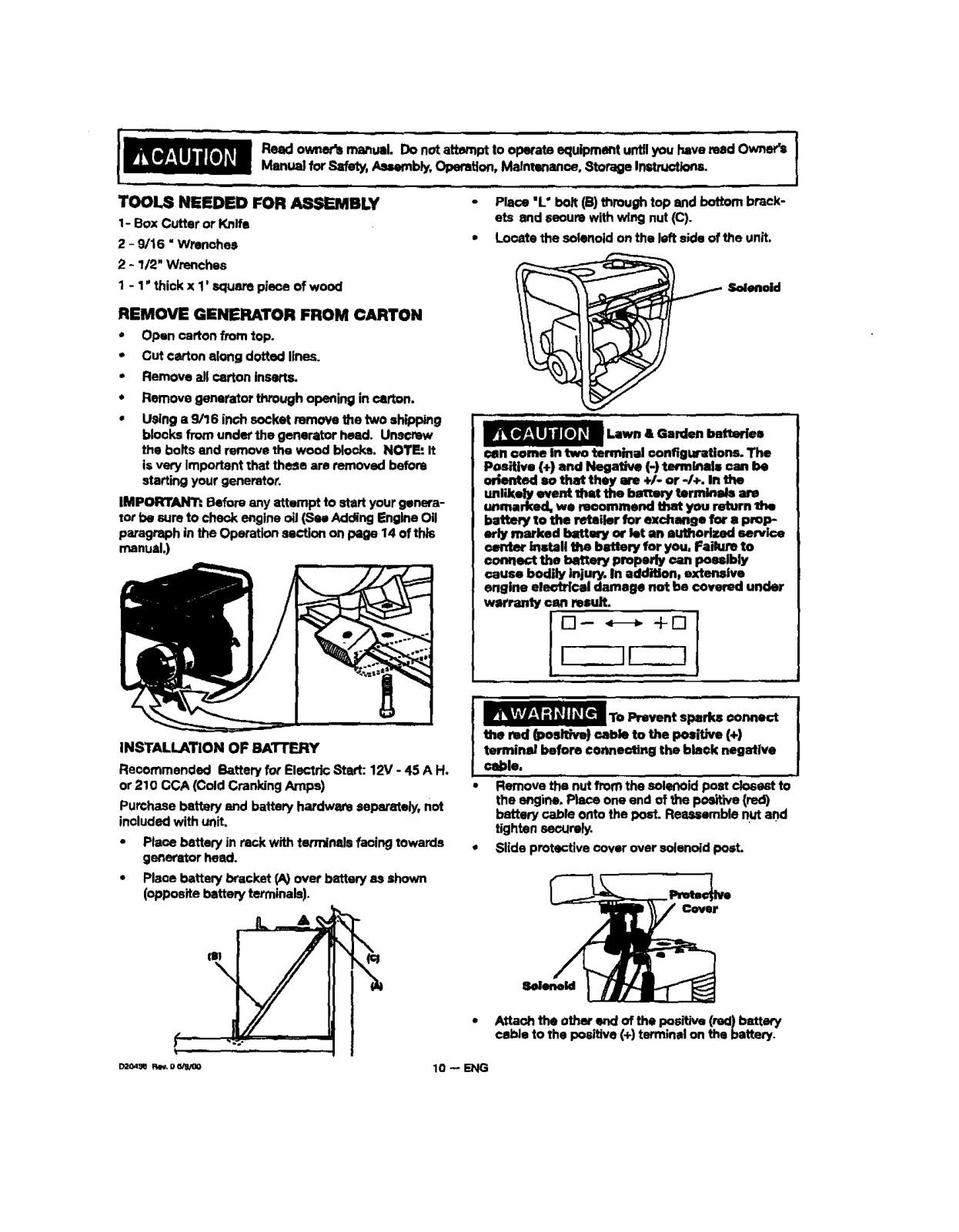

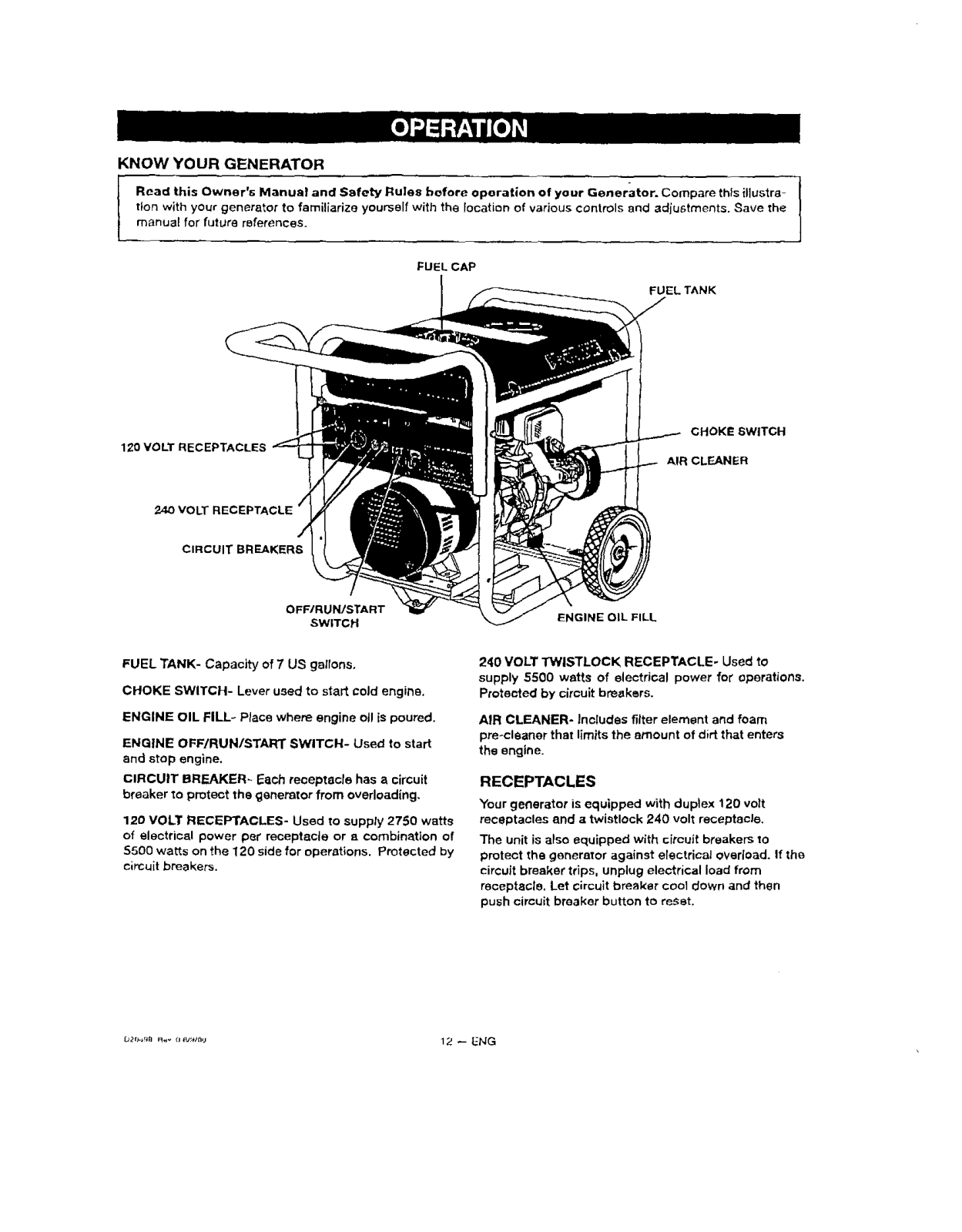

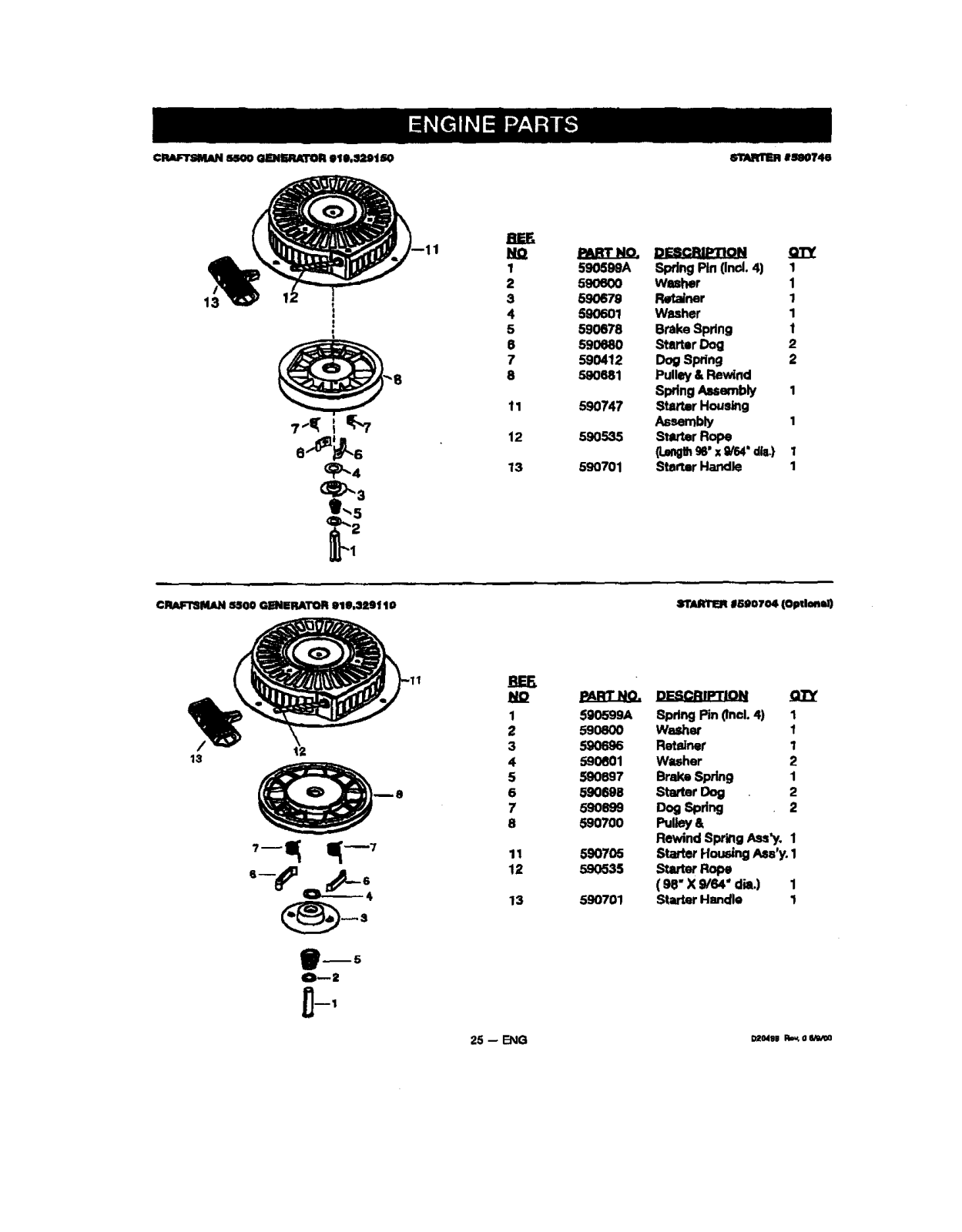

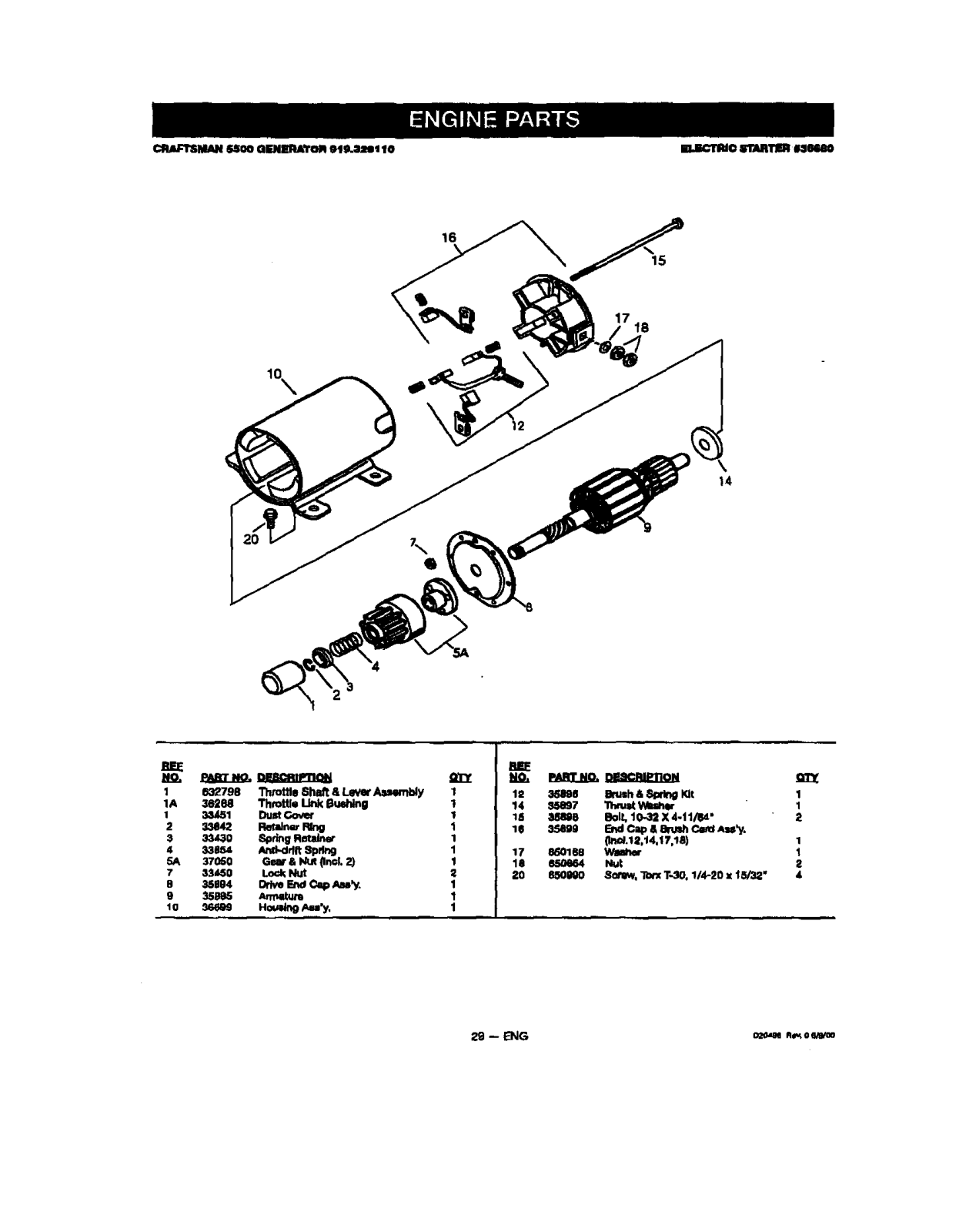

- Starting System: Electric Start and Recoil Start options

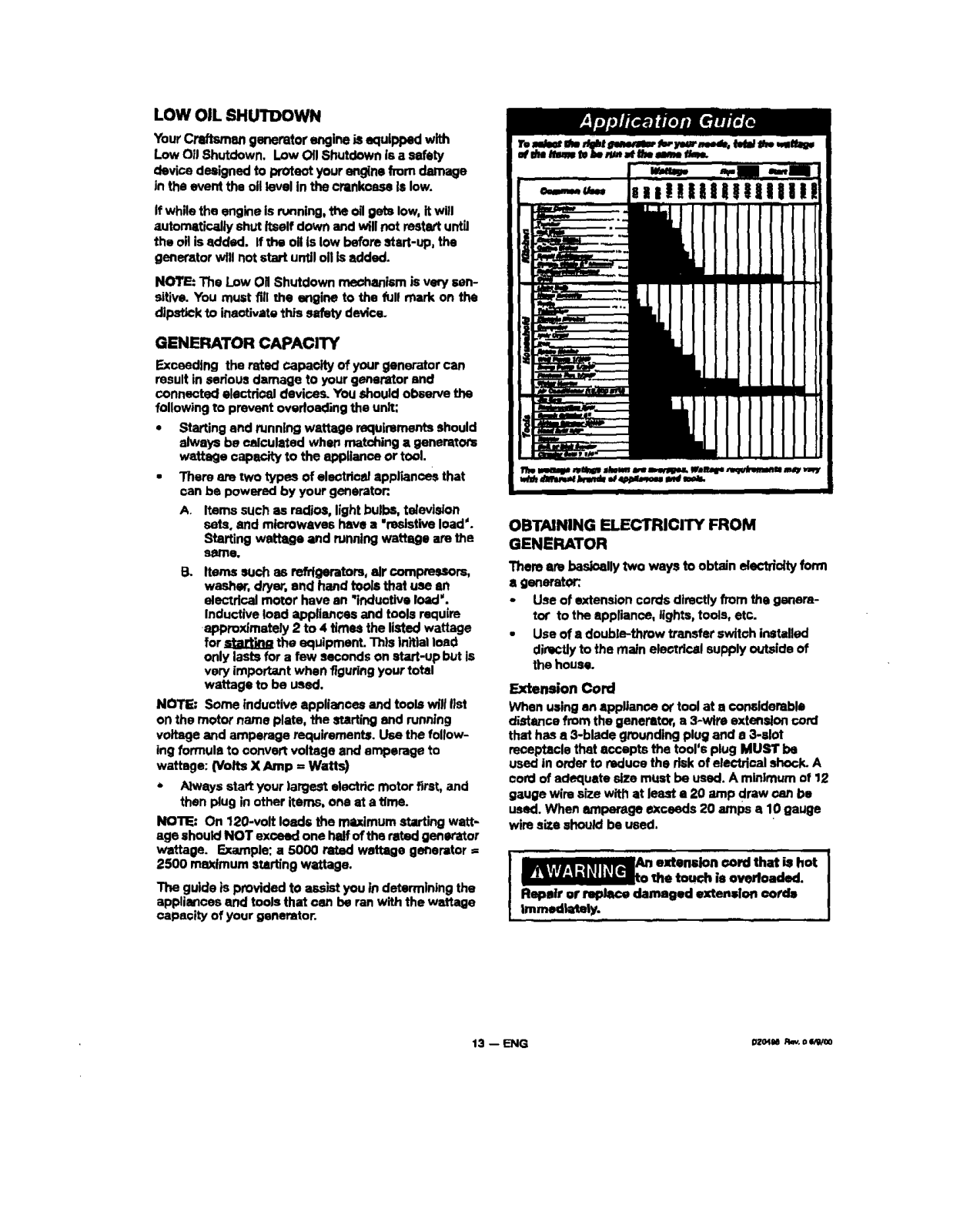

- Low Oil Shutdown: This feature will prevent the unit from running out of oil.
- Weight: Manual does not make any mention of weight.
- Dimensions: Manual does not make any mention of dimensions.

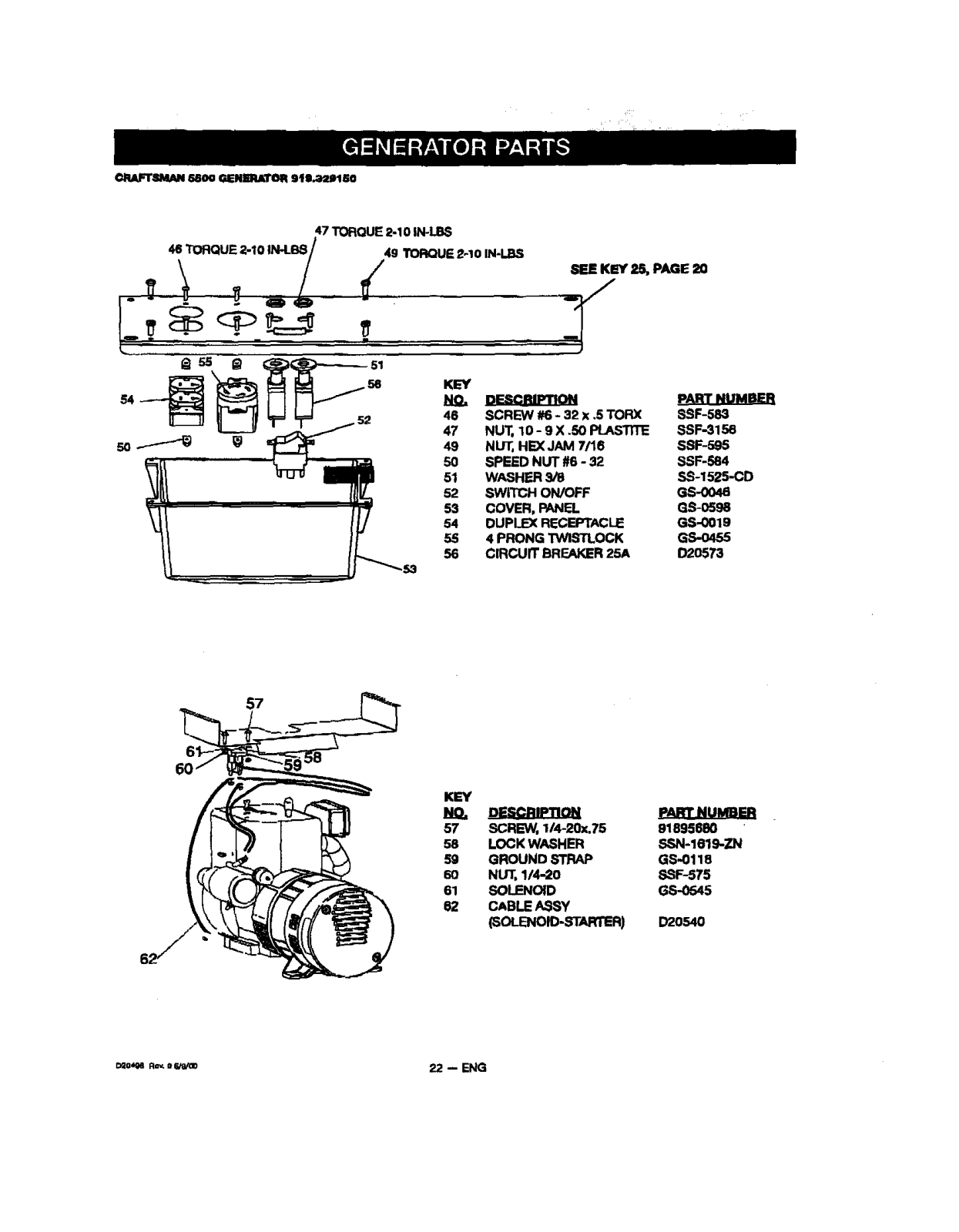

- Manual Reset Circuit Breakers: reset breakers are included in the circuit in order to protect the generator from an overload.
- 120 Volt Receptacles: A total of two outlets, each rated at 2750 watts.
- 240 Volt Twistlock Receptacle: This receptacle delivers a power of 5500 watts

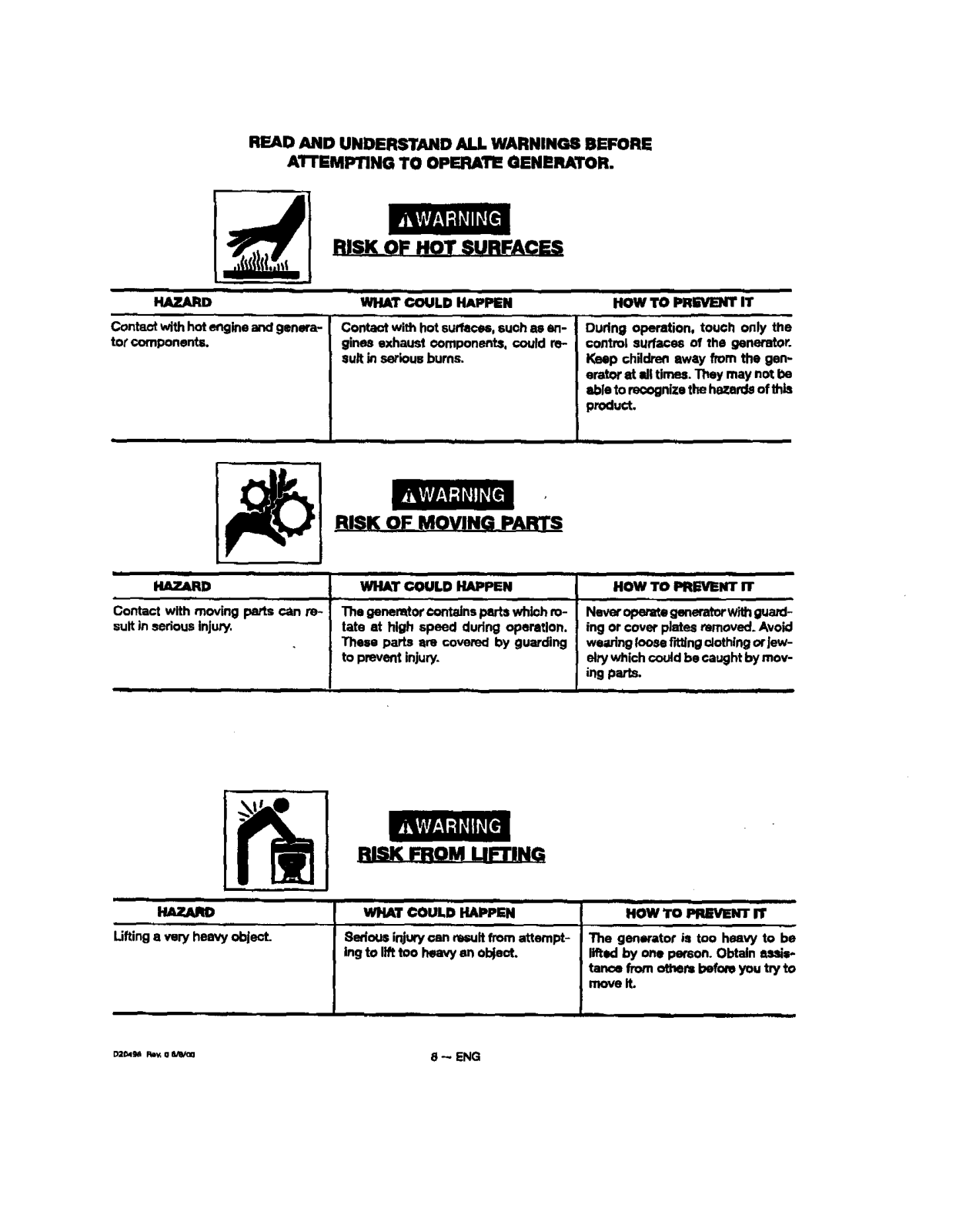

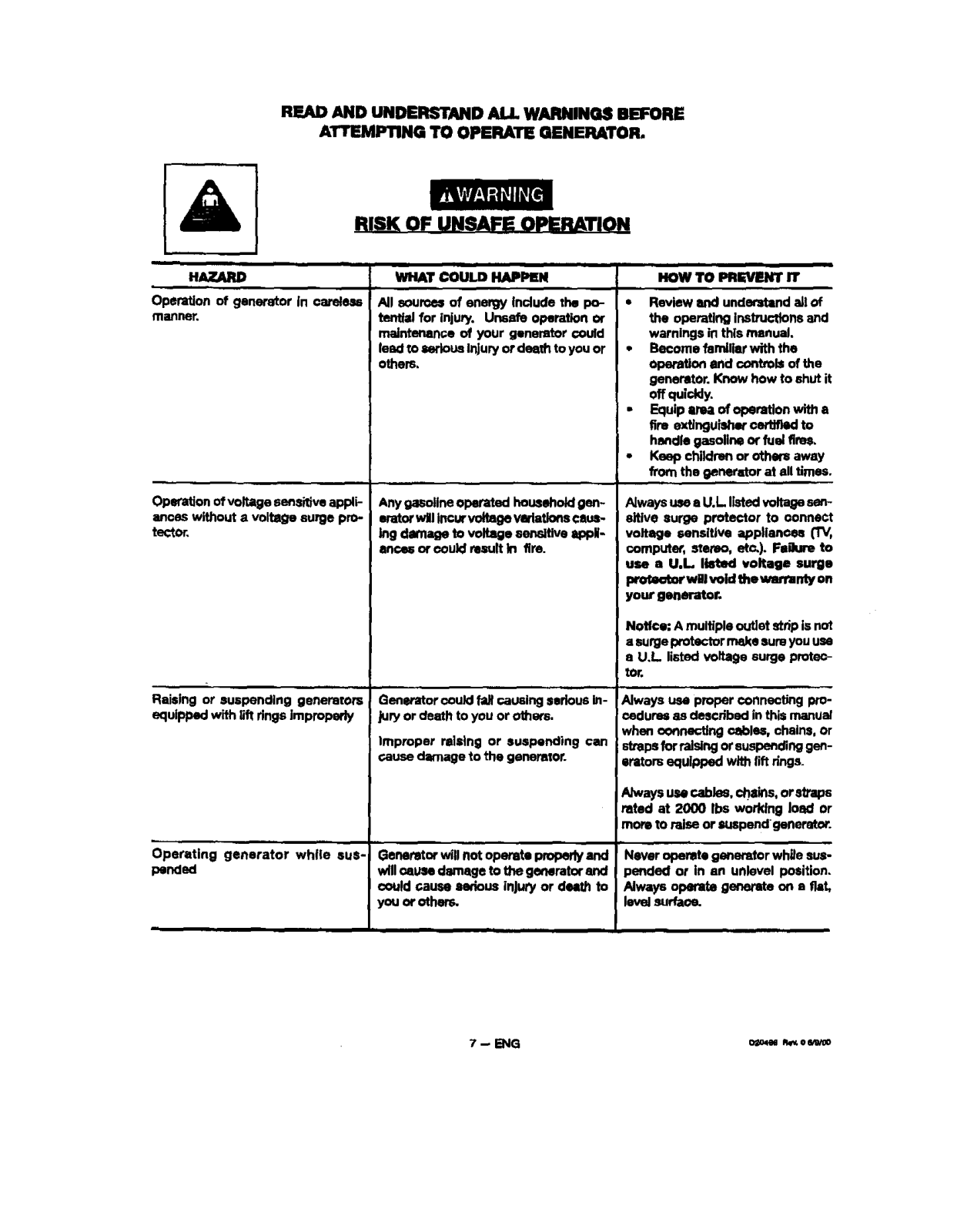

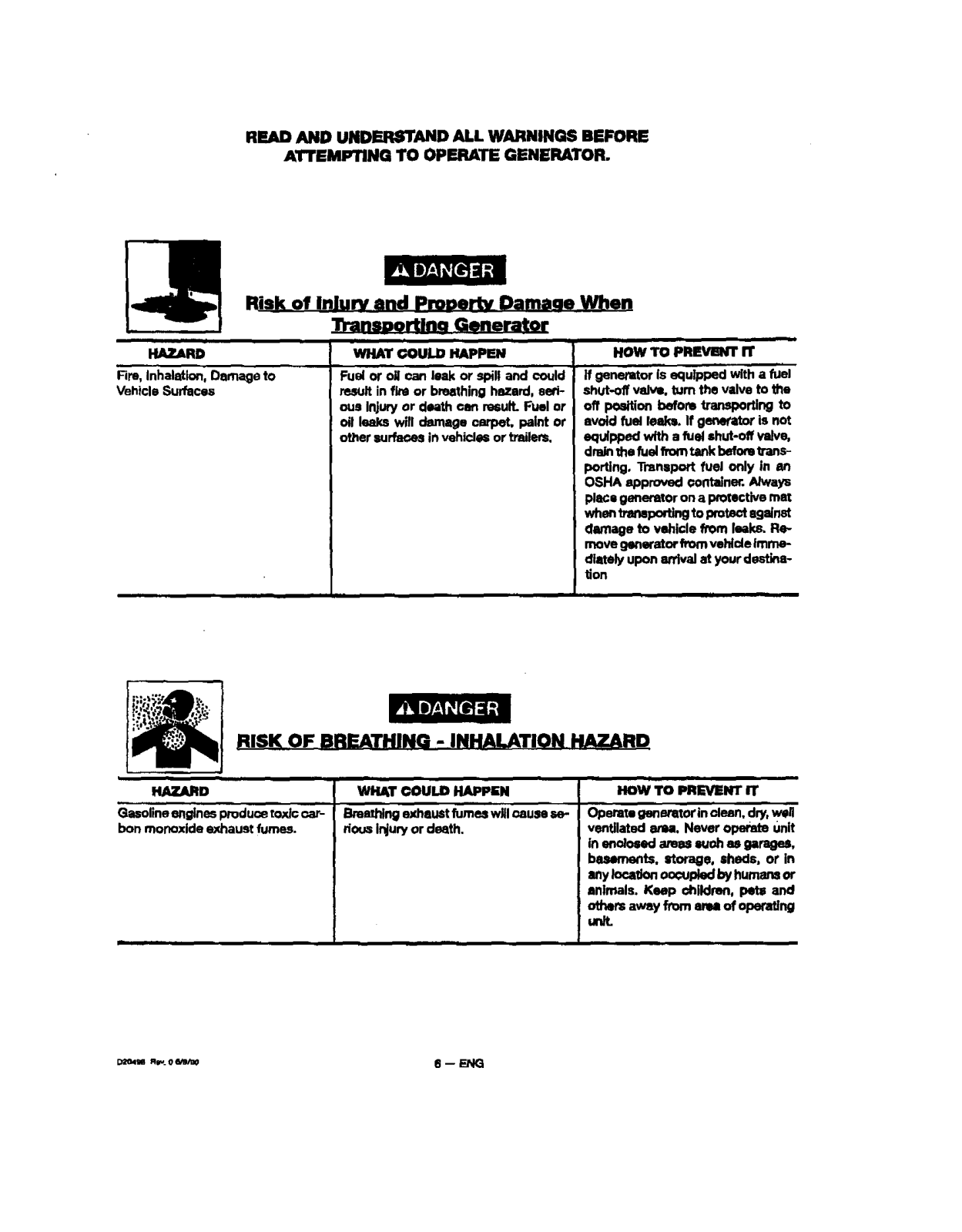

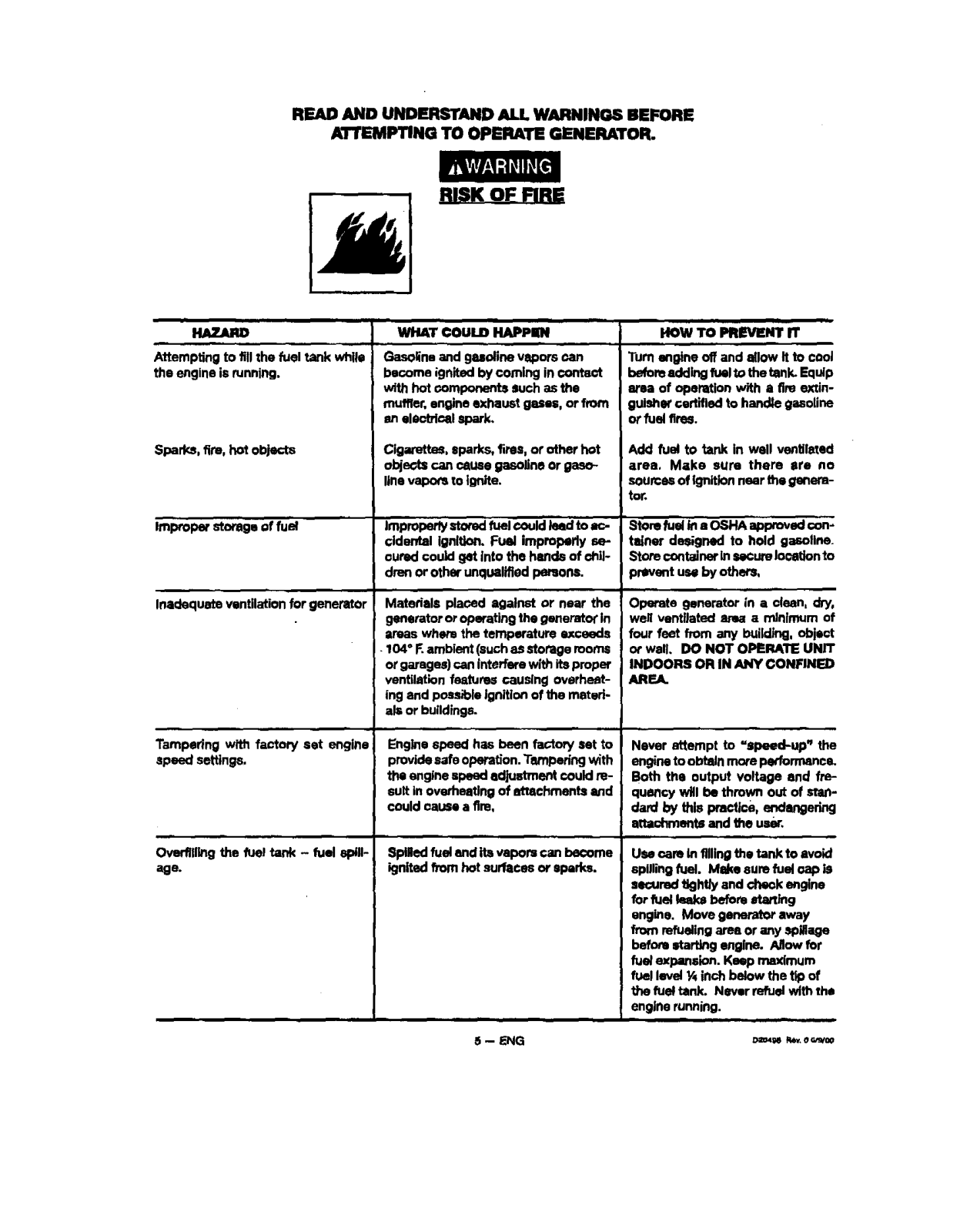

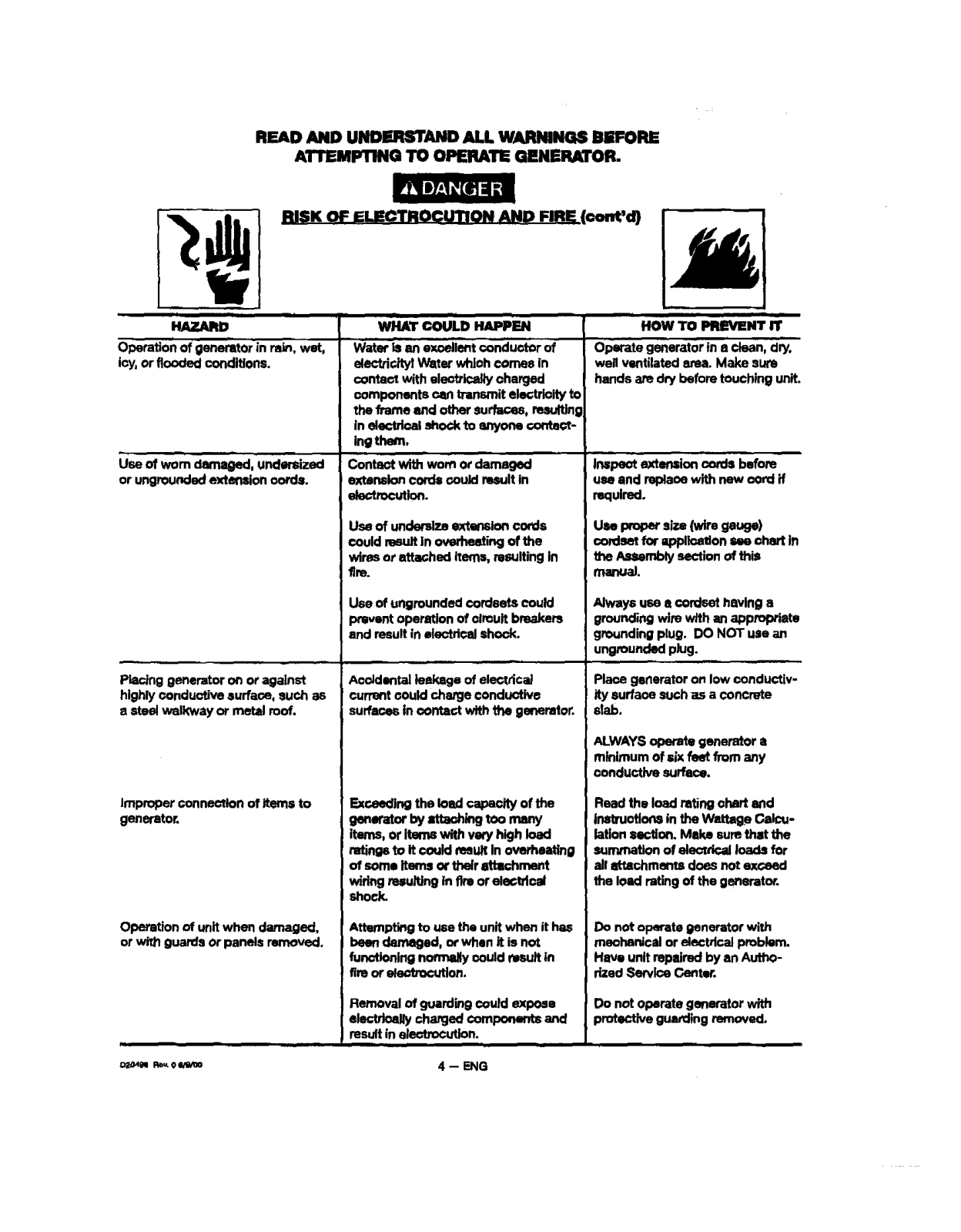

- Safety Features: Safety warnings associated with the performance of the generator, maintenance also include various warnings.

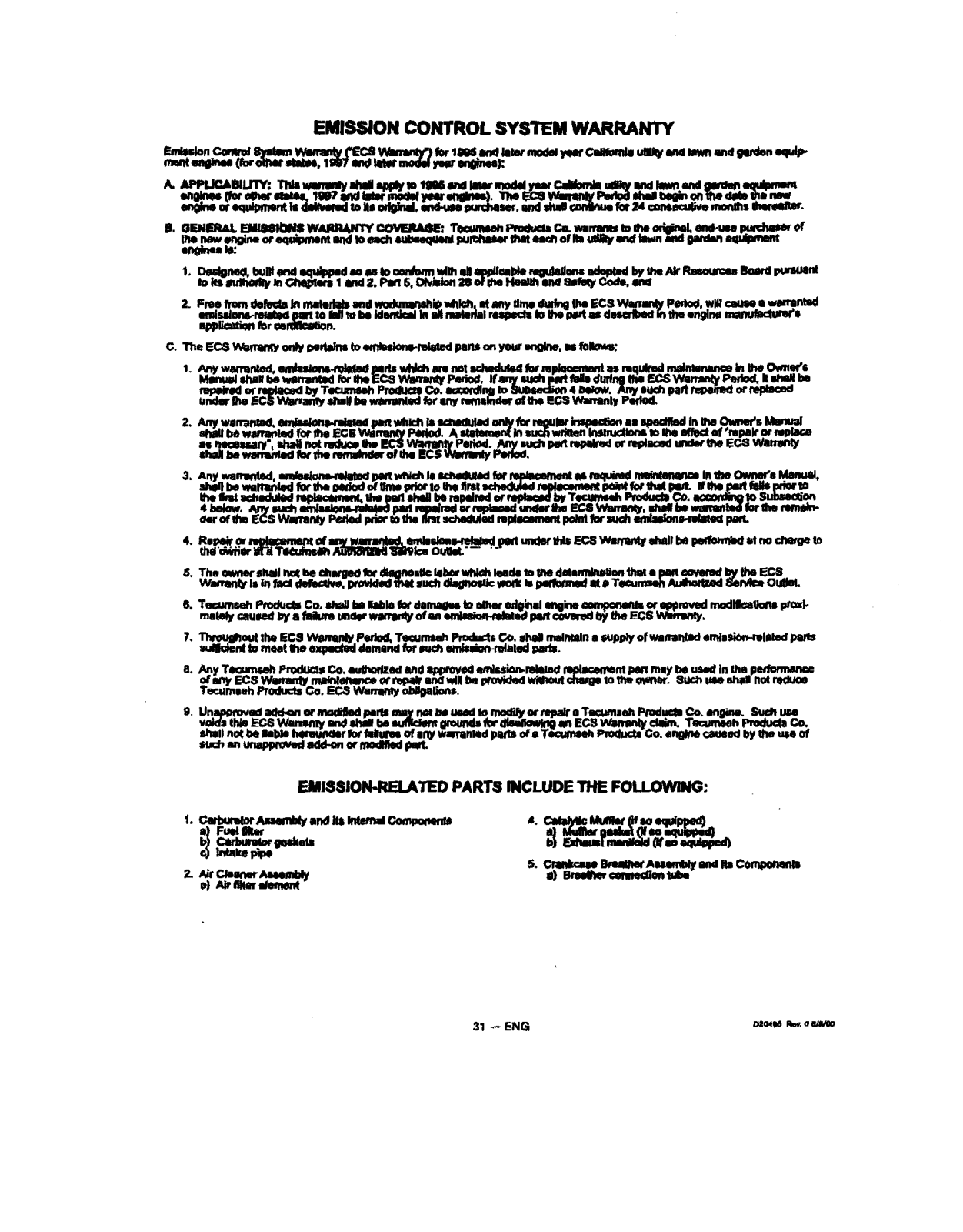

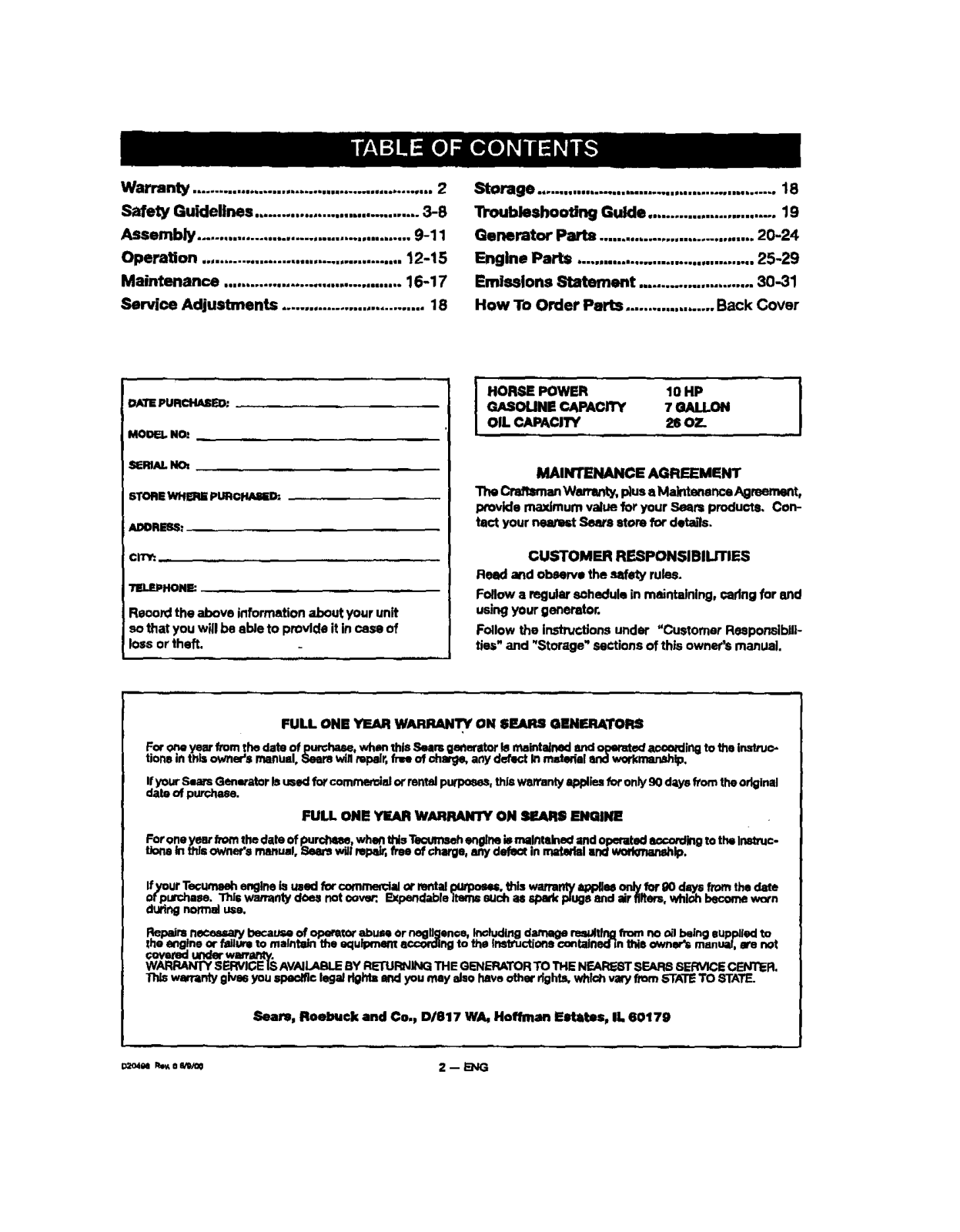

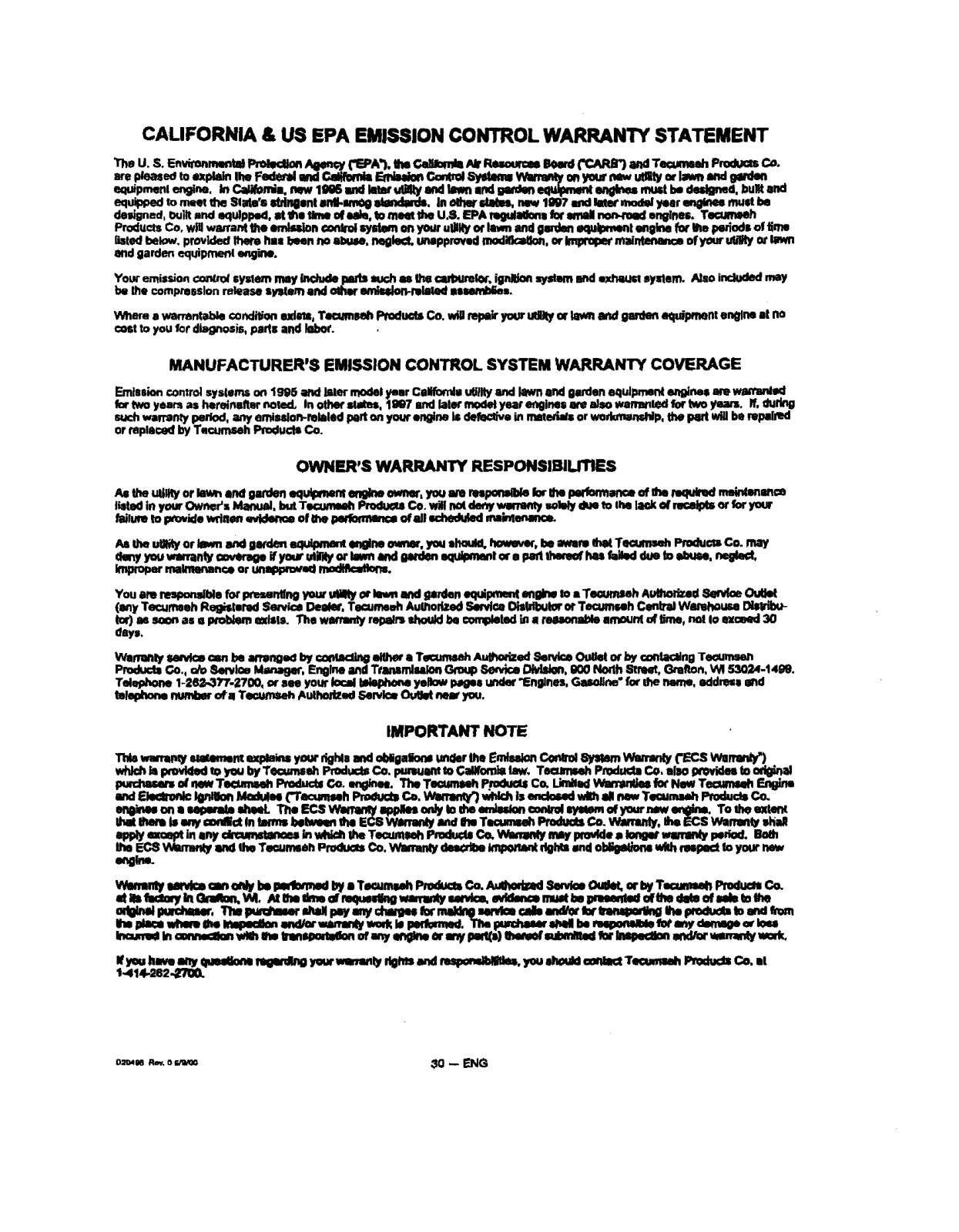

- Warranty: Every component associated with the generator and engine comes with a full one year warranty on parts and material.

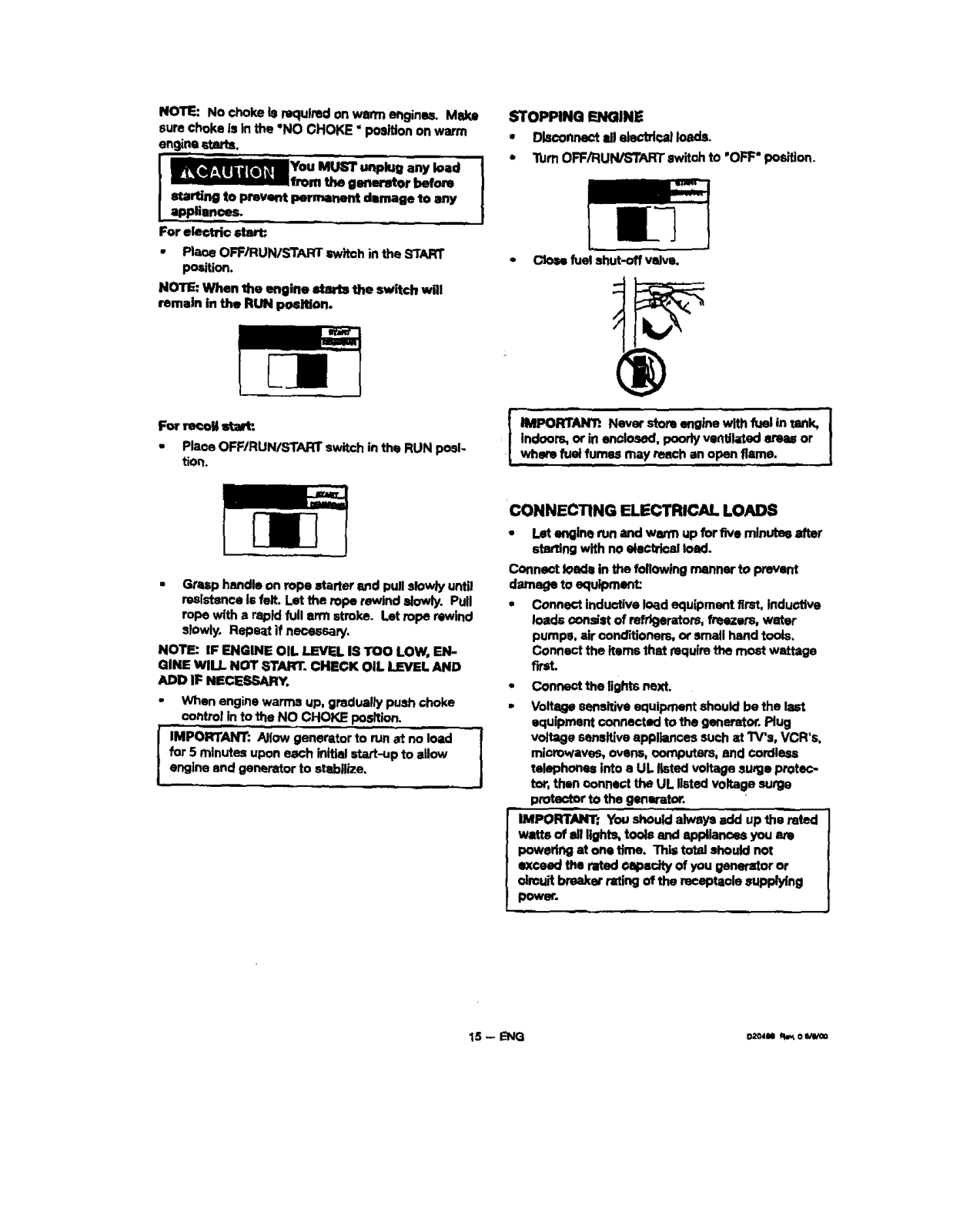

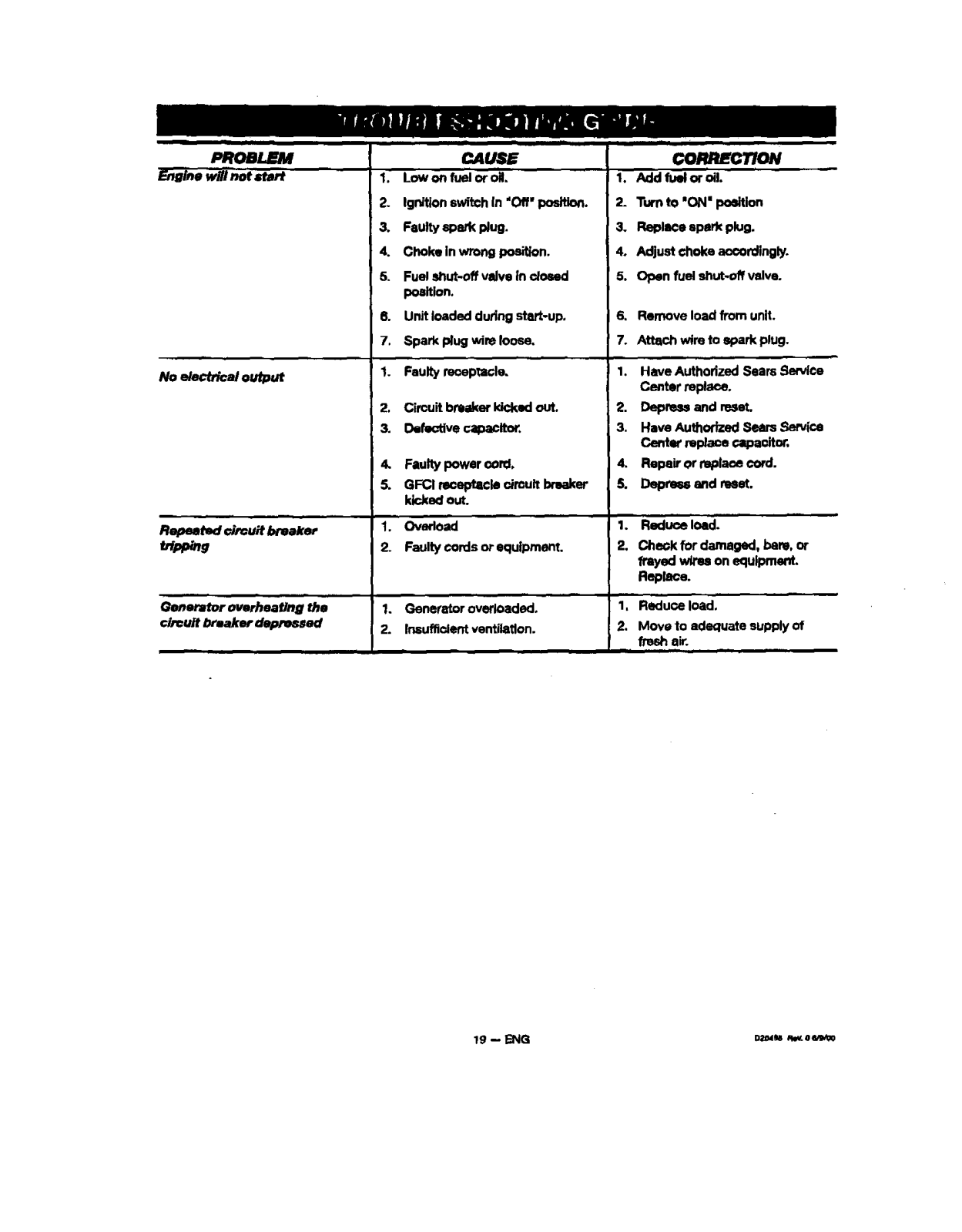

Q: What should I do if the generator won’t start?
A: Look whether the ignition switch is “switched on’ or insert fuel or oil if necessary, Chill Choke is in the proper position, ensure the fuel shut off valve is turned on.
Q: What do I have to do to ensure that the generator does not overheat?
A: Make sure you are within the rated load capacity of the generator, and there is enough room for air to circulate.

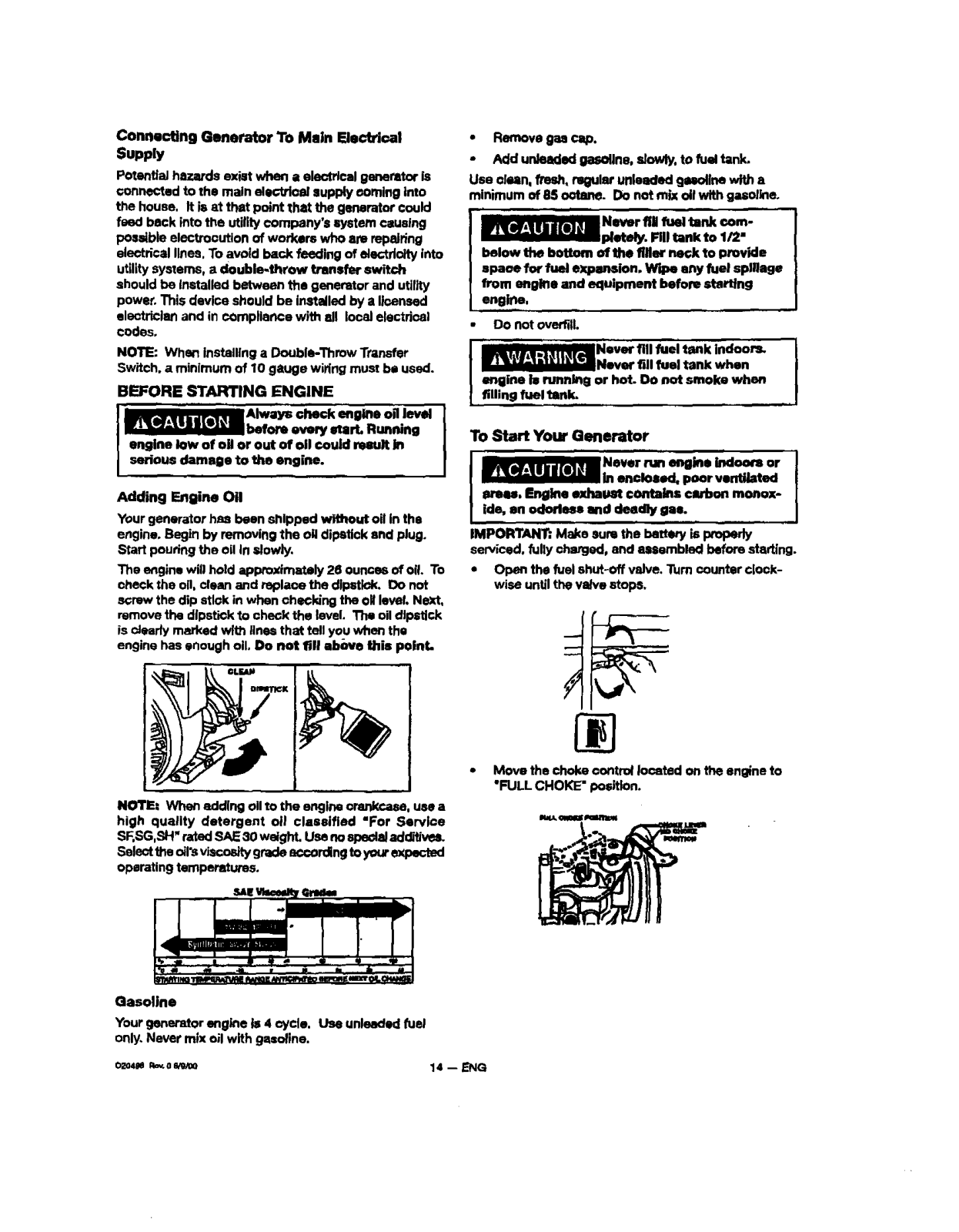

Q: What kind of oil do I use in the generator?
A: SAE 30 weight detergent oil classified as 'For Service SF, SG or SH' is recommended.

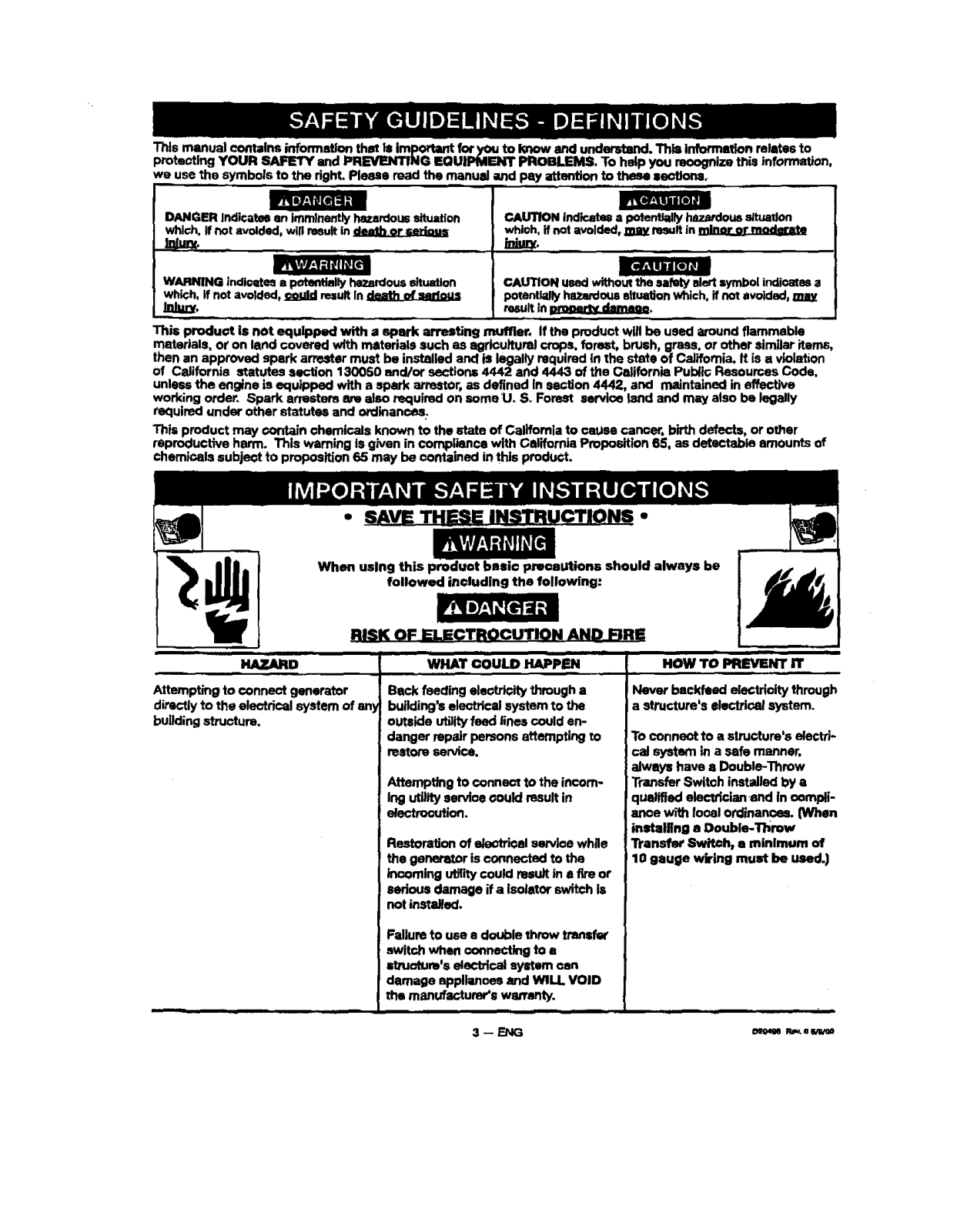

Q: Is it possible to back feed a generator to the home's electrical system?
A: This should not be done. Generators should not be connected through a structure’s electric’s power receptacles. A qualified electrician should always use a double throw transfer switch.

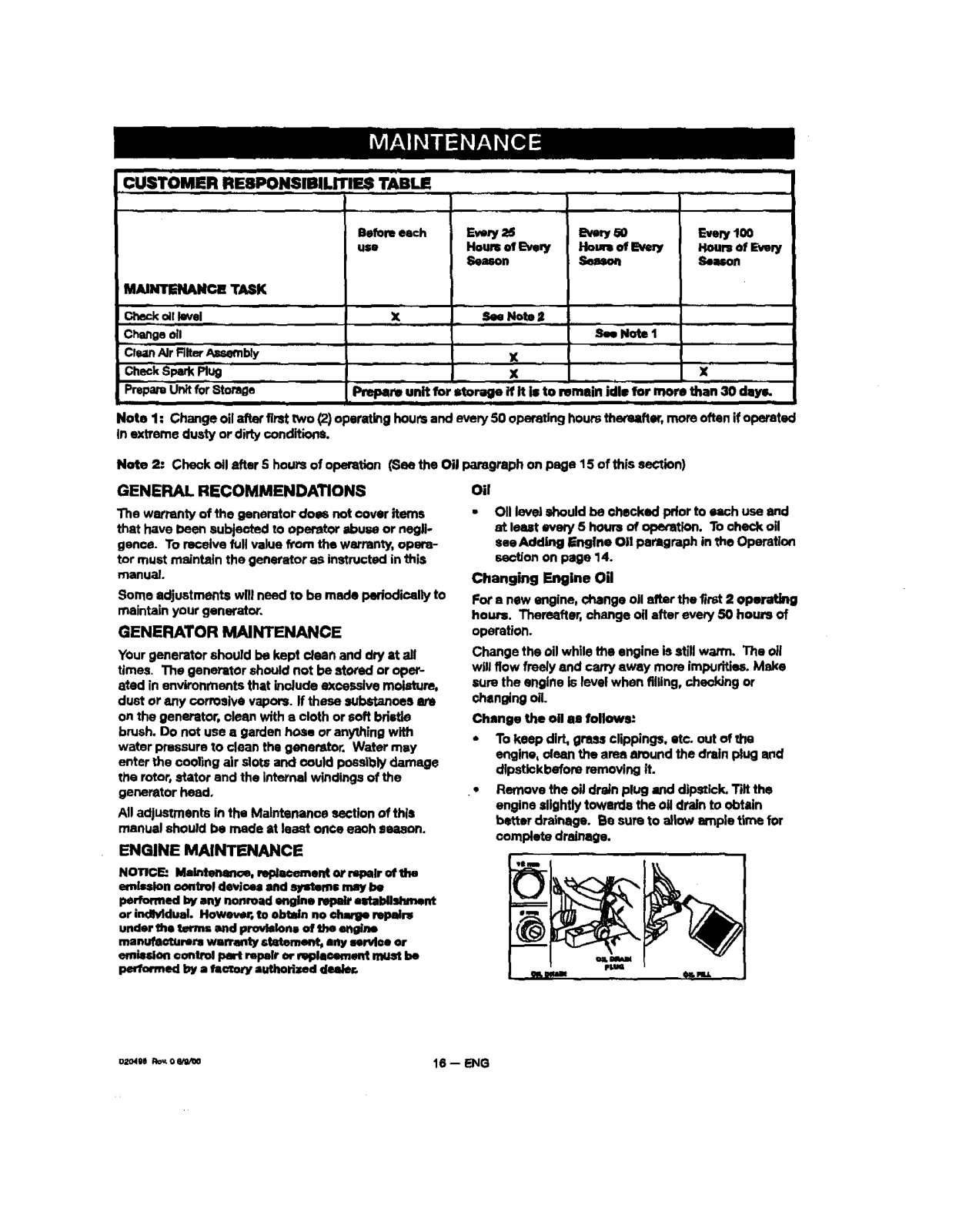

Q: What is the recommended frequency for oil level inspection?
A: The oil level has to be inspected prior to utilizing the equipment and after at least 5 hour intervals of usage.
Q: Was the circuit breaker tripped, what should I do?
A: Disconnect the loads from the electrical reassurance, allow the circuit breaker to cool and then press the button to reset the circuit breaker.
