Sears 14175 User Manual
SEARS
Owner's
Manual
Model Nos.
14171
14172
14174
14175
Model and Serial
Number Plate
AUTOMATIC DISHWASHER
CAUTION: Read and follow all Safety
Rules and Operating Instructions
before first use of this product.
Sears, Roebuck and Co., Hoffman Estates, IL 60179 U.S.A.
165D3592P060
SR5559-1
5,12 CG
Printed in U.S.A.

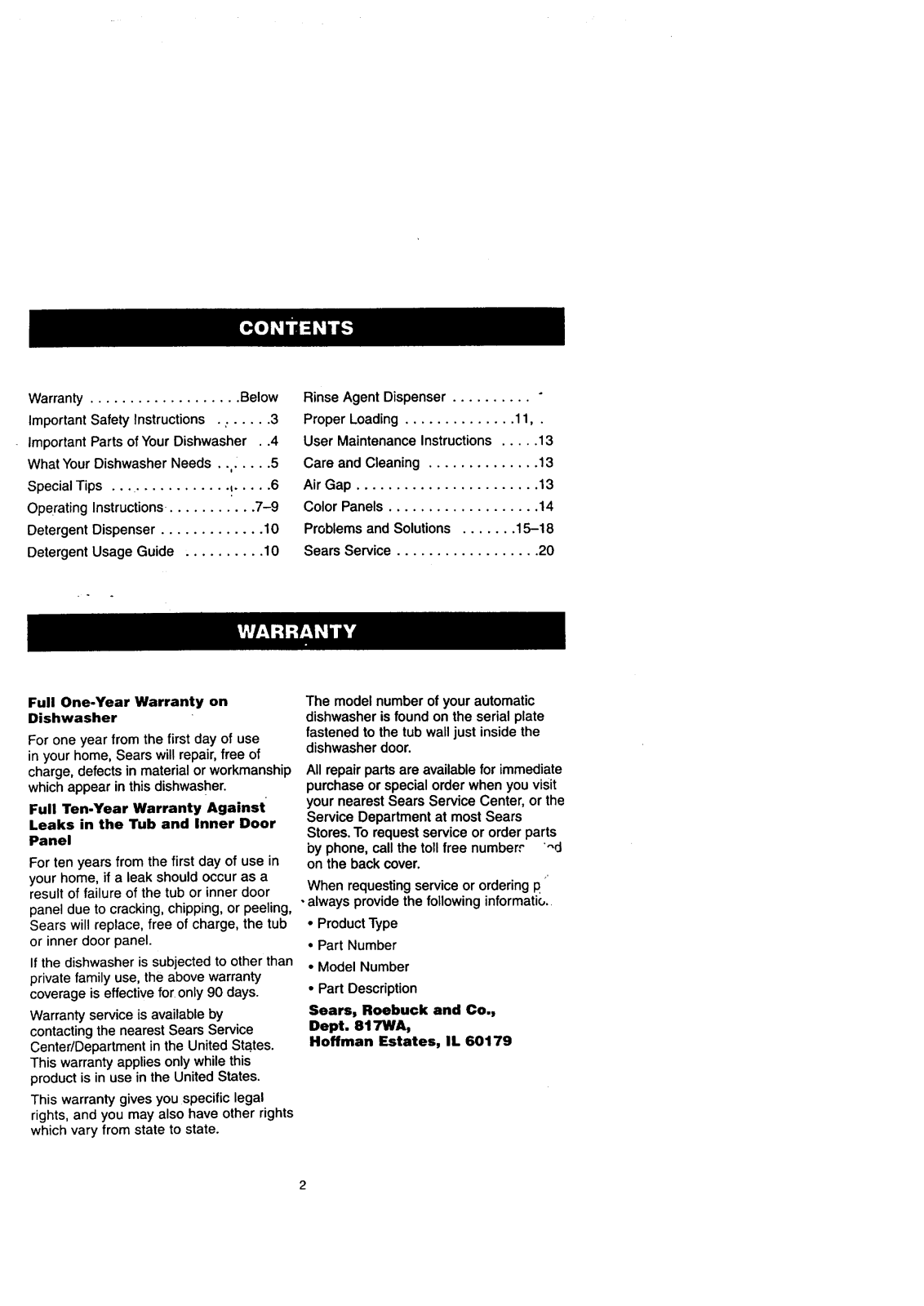

Warranty ................... Below
Important Safety Instructions .. ..... 3
Important Parts of Your Dishwasher . .4
What Your Dishwasher Needs . .,. .... 5
Special Tips ................ _..... 6

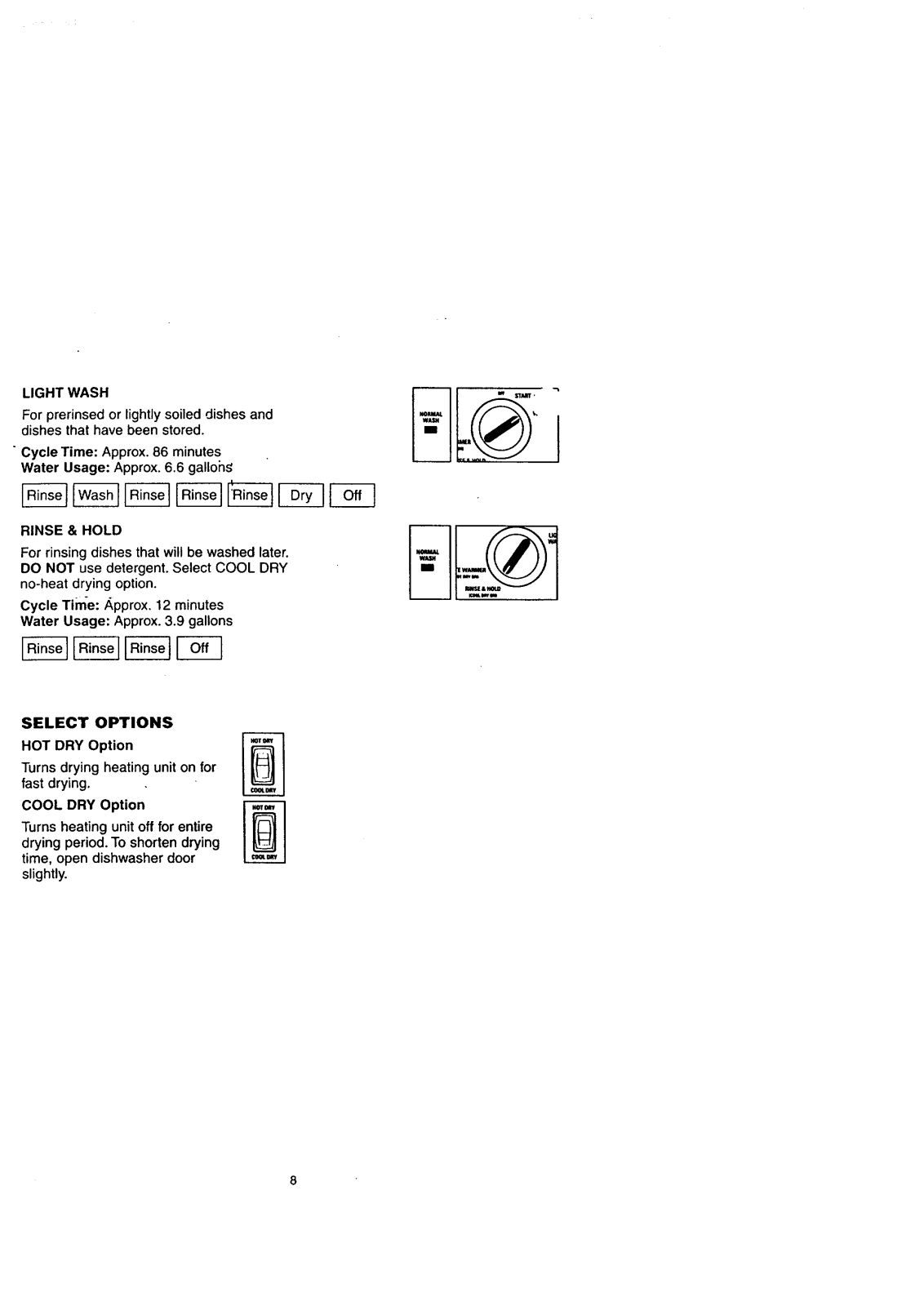

OPerating Instructions. .......... 7-9
Detergent Dispenser ............. 10
Detergent Usage Guide .......... 10
Rinse Agent Dispenser .......... "
Proper Loading .............. 11, .
User Maintenance Instructions ..... 13
Care and Cleaning .............. 13
Air Gap ....................... 13
Color Panels ................... 14

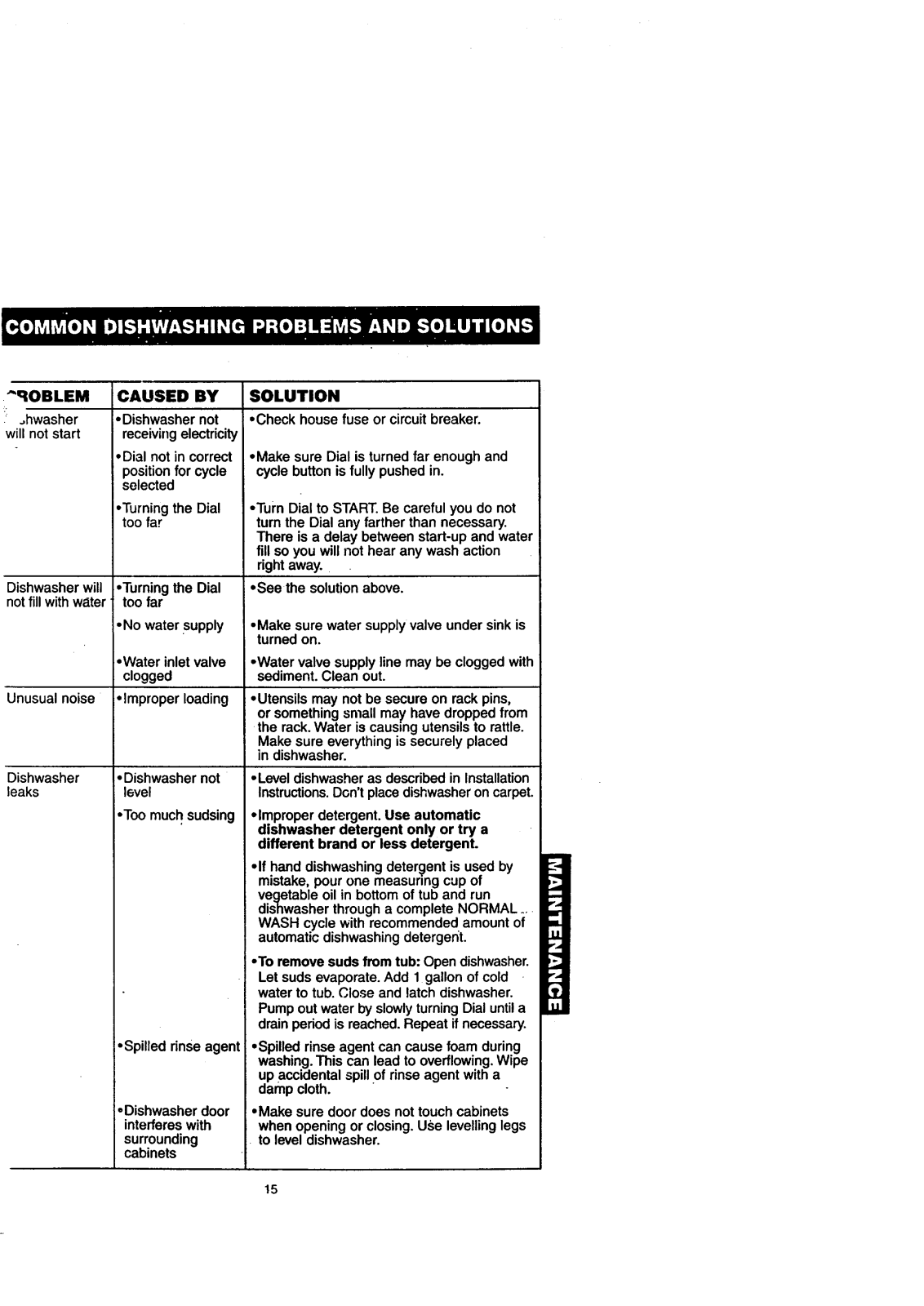

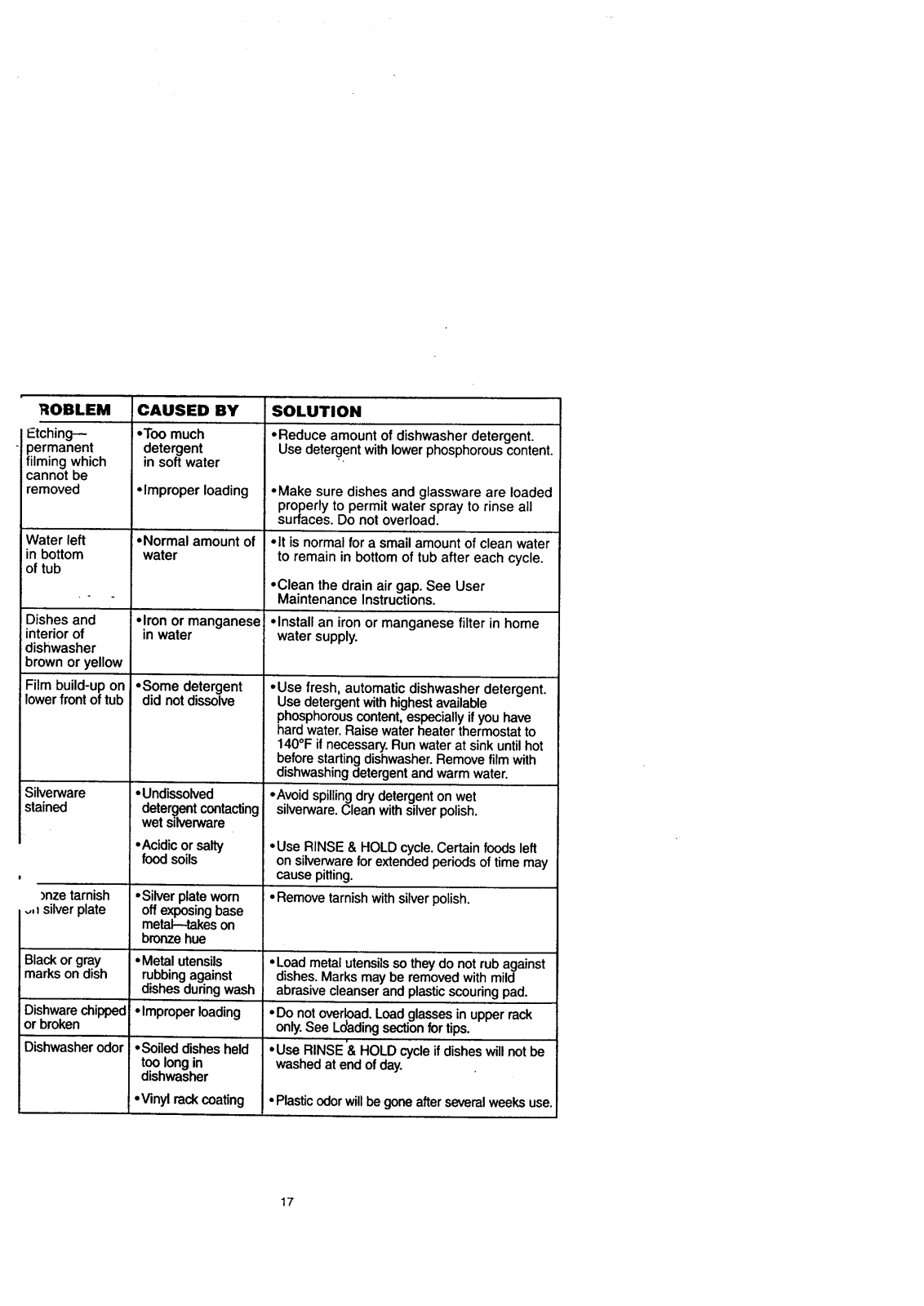

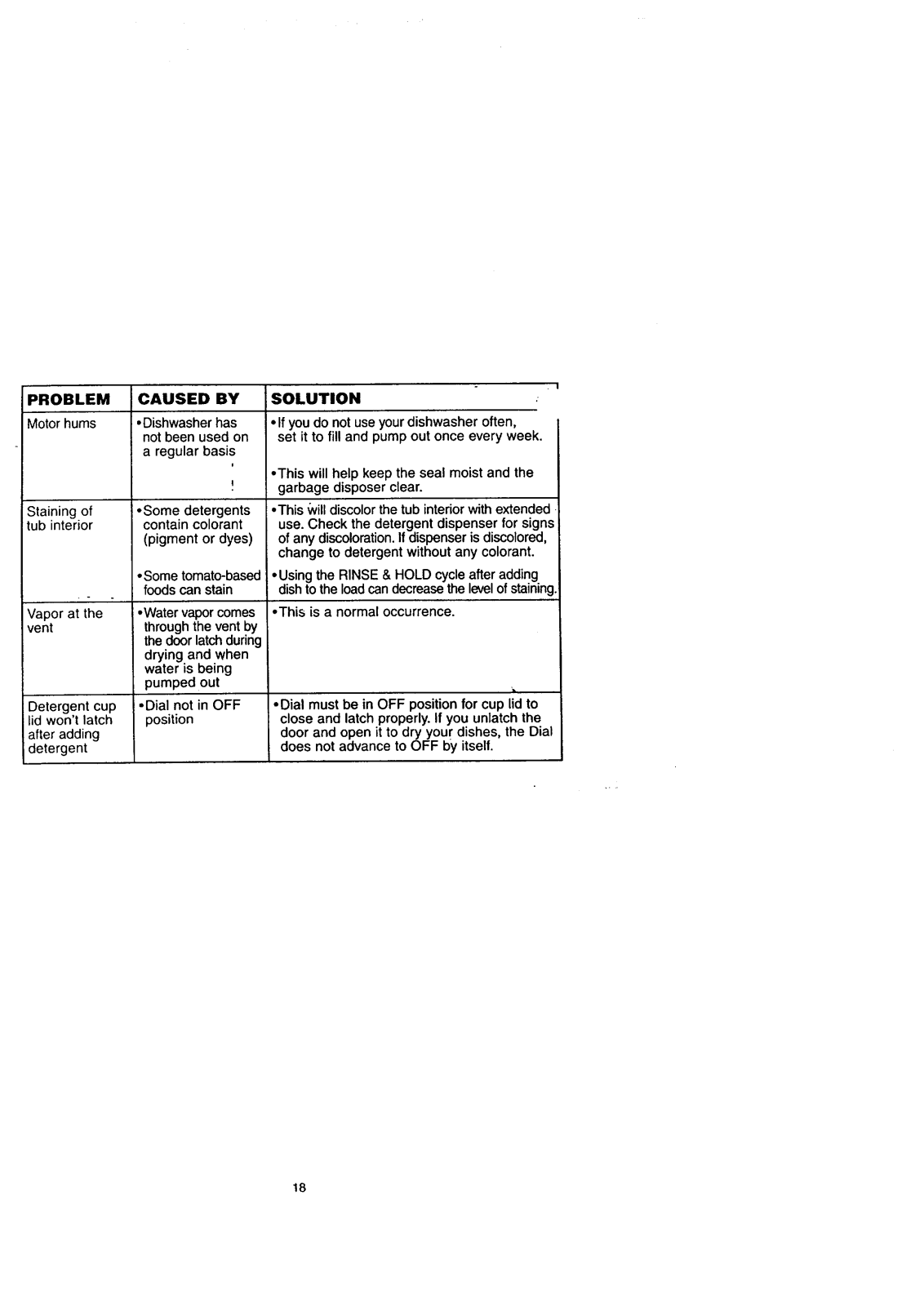

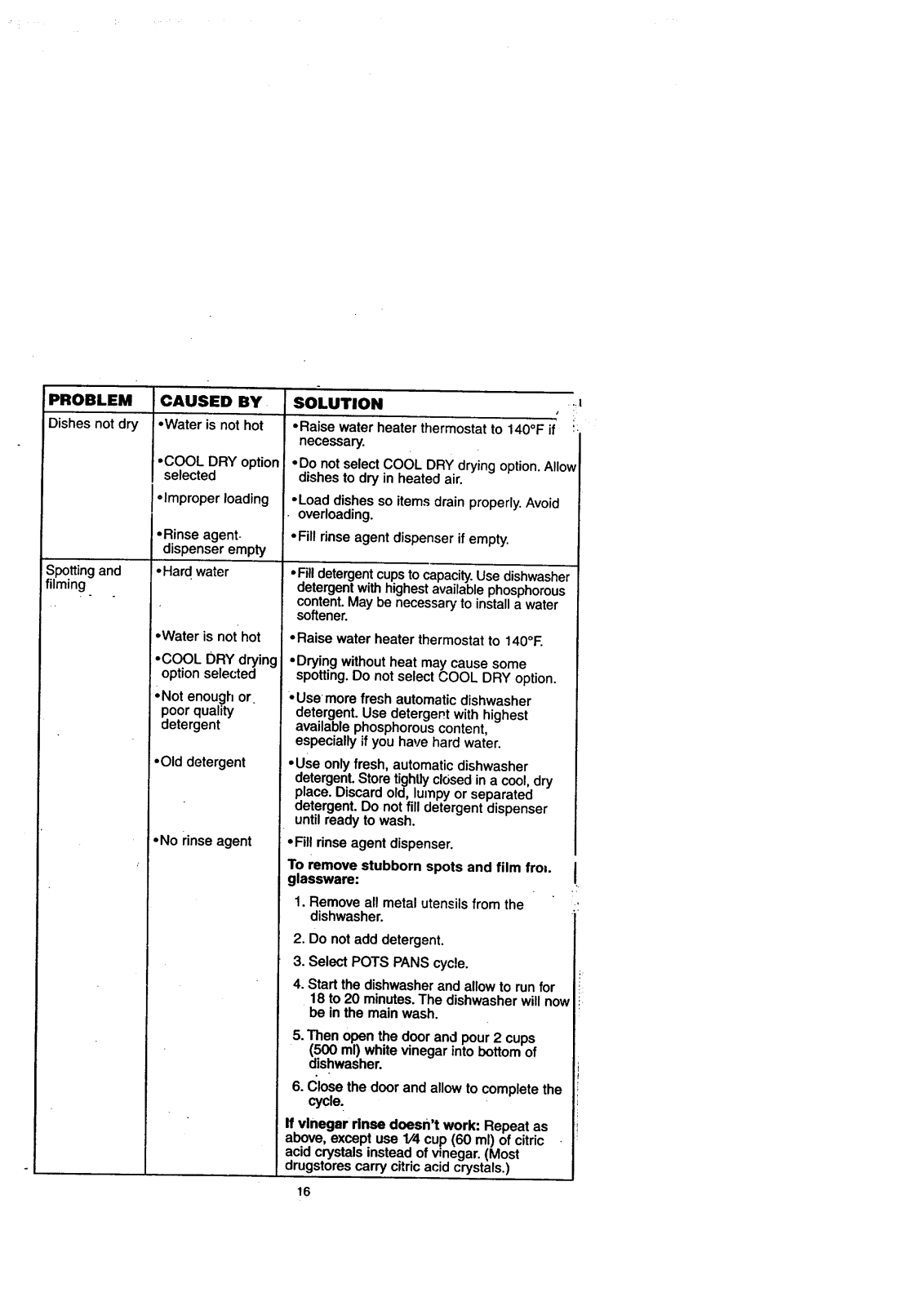

Problems and Solutions ....... 15-18
Sears Service .................. 20
Full One.Year Warranty on
Dishwasher
For one year from the first day of use
in your home, Sears will repair, free of
charge, defects in material or workmanship
which appear in this dishwasher.
Full Ten-Year Warranty Against
Leaks in the Tub and Inner Door
Panel
For ten years from the first day of use in
your home, if a leak should occur as a
result of failure of the tub or inner door
panel due to cracking, chipping, or peeling,
Sears will replace, free of charge, the tub
or inner door panel.
If the dishwasher is subjected to other than
private family use, the above warranty
coverage is effective for only 90 days.
Warranty service is available by
contacting the nearest Sears Service
Center/Department in the United Sta.tes.
This warranty applies only while this
product is in use in the United States.
This warranty gives you specific legal
rights, and you may also have other rights
which vary from state to state.
The model number of your automatic
dishwasher is found on the serial plate
fastened to the tub wall just inside the
dishwasher door.
All repair parts are available for immediate
purchase or special order when you visit
your nearest Sears Service Center, or the
Service Department at most Sears
Stores. To request service or order parts
by phone, call the toll free number." "d
on the back cover.
When requesting service or ordering p.
• always provide the following informatk,.
• Product Type
• Part Number
• Model Number
• Part Description
Sears, Roebuck and Co.,
Dept. 817WA,
Hoffman Estates, IL 60179

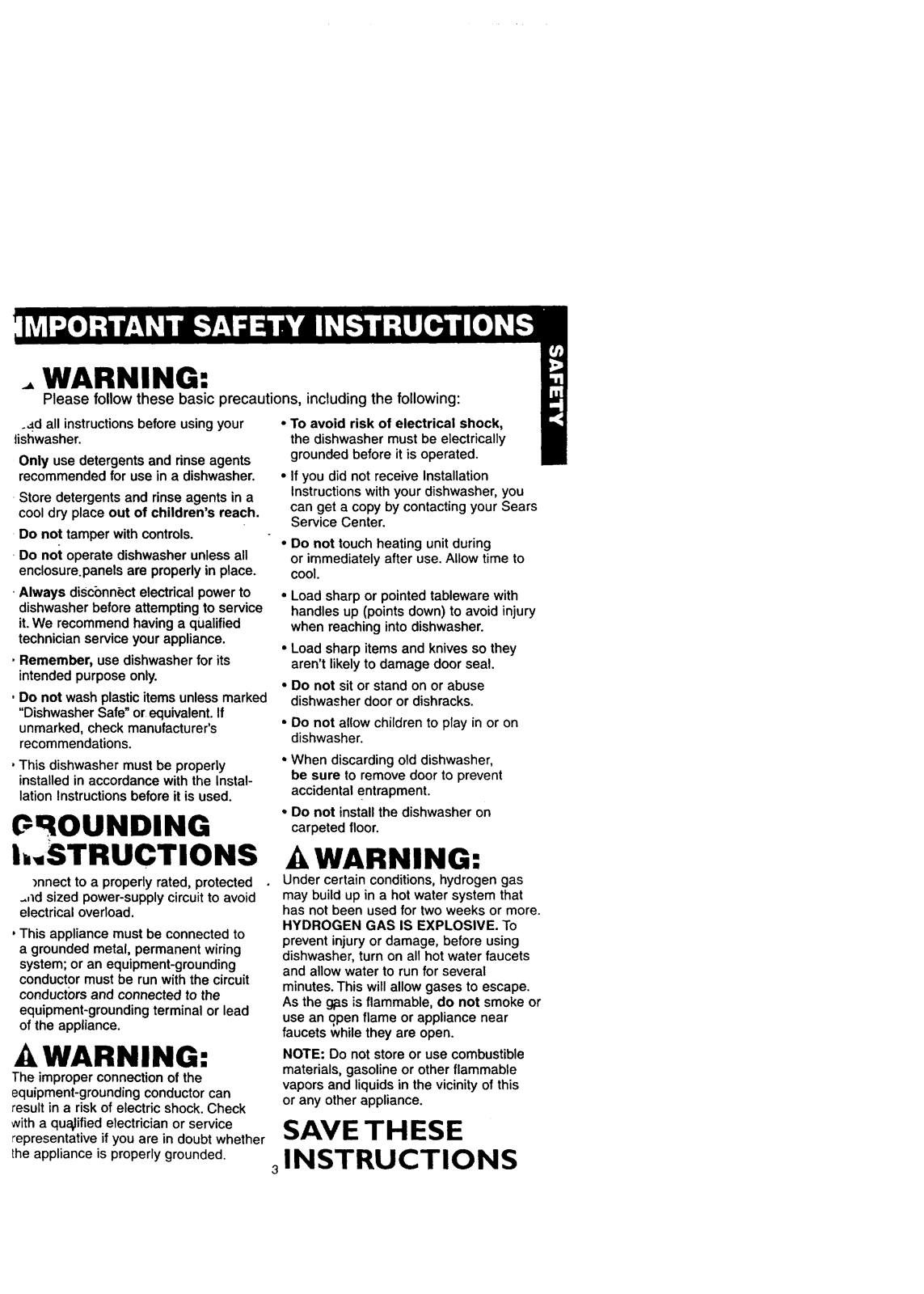

WARNING:
Please follow these basic precautions, including the following:
.rid all instructions before using your
lishwasher.
Only use detergents and rinse agents
recommended for use in a dishwasher.
r Store detergents and rinse agents in a
cool dry place out of children's reach.
Do not tamper with controls.
•Do not operate dishwasher unless all
enclosure.panels are properly in place.
Always disconnect electrical power to
dishwasher before attempting to service
it. We recommend having a qualified
technician service your appliance.
• Remember, use dishwasher for its
intended purpose only.
, Do not wash plastic items unless marked
"Dishwasher Safe" or equivalent. If
unmarked, check manufacturer's
recommendations.
, This dishwasher must be properly
installed in accordance with the Instal-
lation Instructions before it is used.
L qOUNDING
I,.STRUCTIONS
)nnect to a properly rated, protected °
.nd sized power-supply circuit to avoid
electrical overload.
, This appliance must be connected to
a grounded metal, permanent wiring
system; or an equipment-grounding
conductor must be run with the circuit
conductors and connected to the
equipment-grounding terminal or lead
of the appliance.
A WARNING:
The improper connection of the
equipment-grounding conductor can
result in a risk of electric shock. Check
with a qualified electrician or service
representative if you are in doubt whether
the appliance is properly grounded.
• To avoid risk of electrical shock,
the dishwasher must be electrically
grounded before it is operated.
• If you did not receive Installation
Instructions with your dishwasher, you
can get a copy by contacting your Sears
Service Center.
• Do not touch heating unit during
or immediately after use. Allow time to
cool.
• Load sharp or pointed tableware with
handles up (points down) to avoid injury
when reaching into dishwasher.
• Load sharp items and knives so they
aren't likely to damage door seal.
• Do not sit or stand on or abuse
dishwasher door or dishracks.
• Do not allow children to play in or on
dishwasher.
• When discarding old dishwasher,
be sure to remove door to prevent
accidental entrapment.
° Do not install the dishwasher on
carpeted floor.
A WARNING:
Under certain conditions, hydrogen gas
may build up in a hot water system that
has not been used for two weeks or more.
HYDROGEN GAS IS EXPLOSIVE. To
prevent injury or damage, before using
dishwasher, turn on all hot water faucets
and allow water to run for several
minutes. This will allow gases to escape.
As the gps is flammable, do not smoke or
use an open flame or appliance near
faucets while they are open.
NOTE: Do not store or use combustible
materials, gasoline or other flammable
vapors and liquids in the vicinity of this
or any other appliance.
SAVE THESE
3INSTRUCTIONS

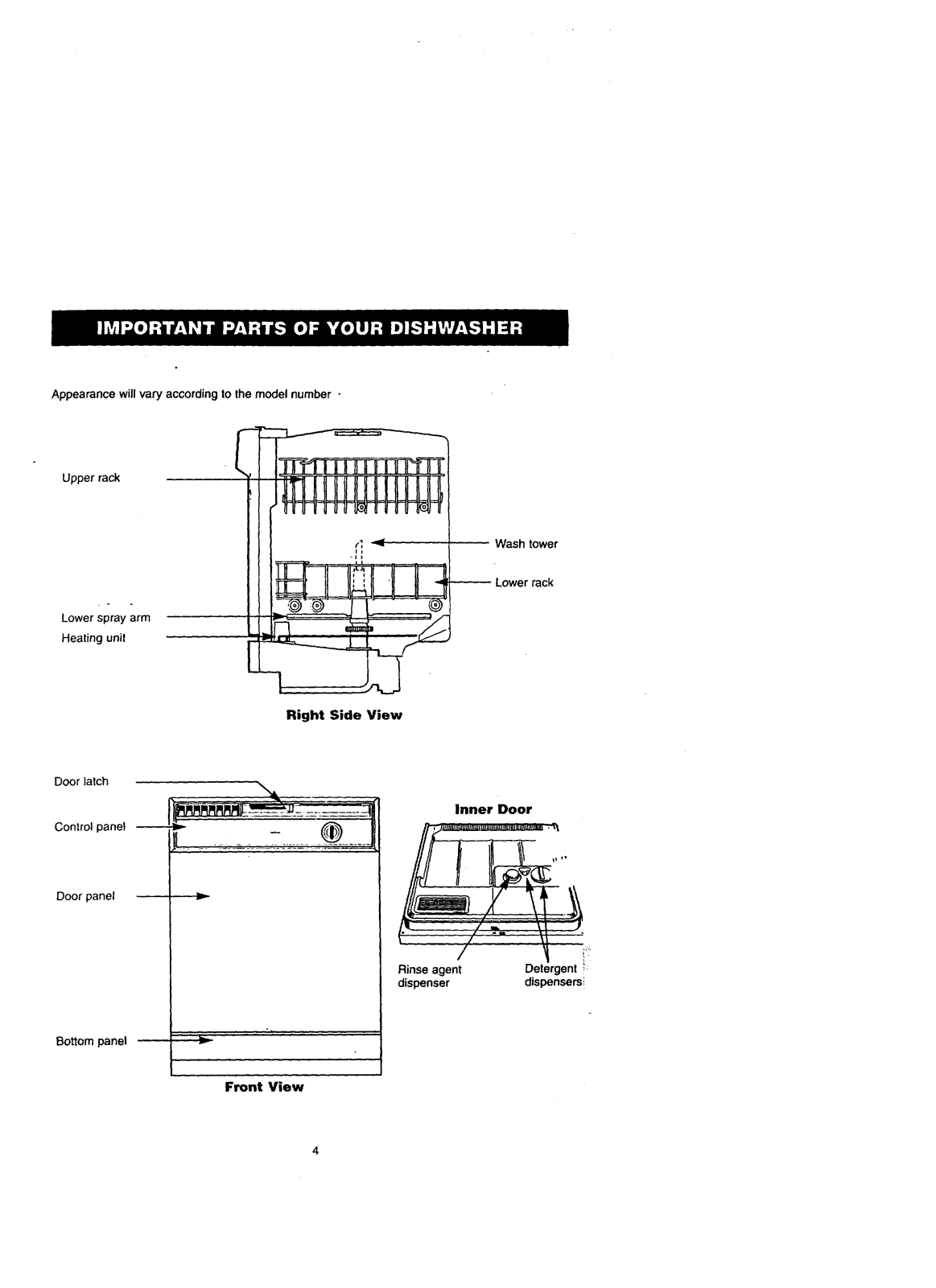

Appearance will vary according to the model number -
Upper rack
Lower spray arm
Heating unit
Right Side View
Door latch
Control panel
Wash tower
Lower rack
Inner Door
Door panel
Bottom panel
Rinse agent Detergent _:
dispenser dispensers!
I
Front View

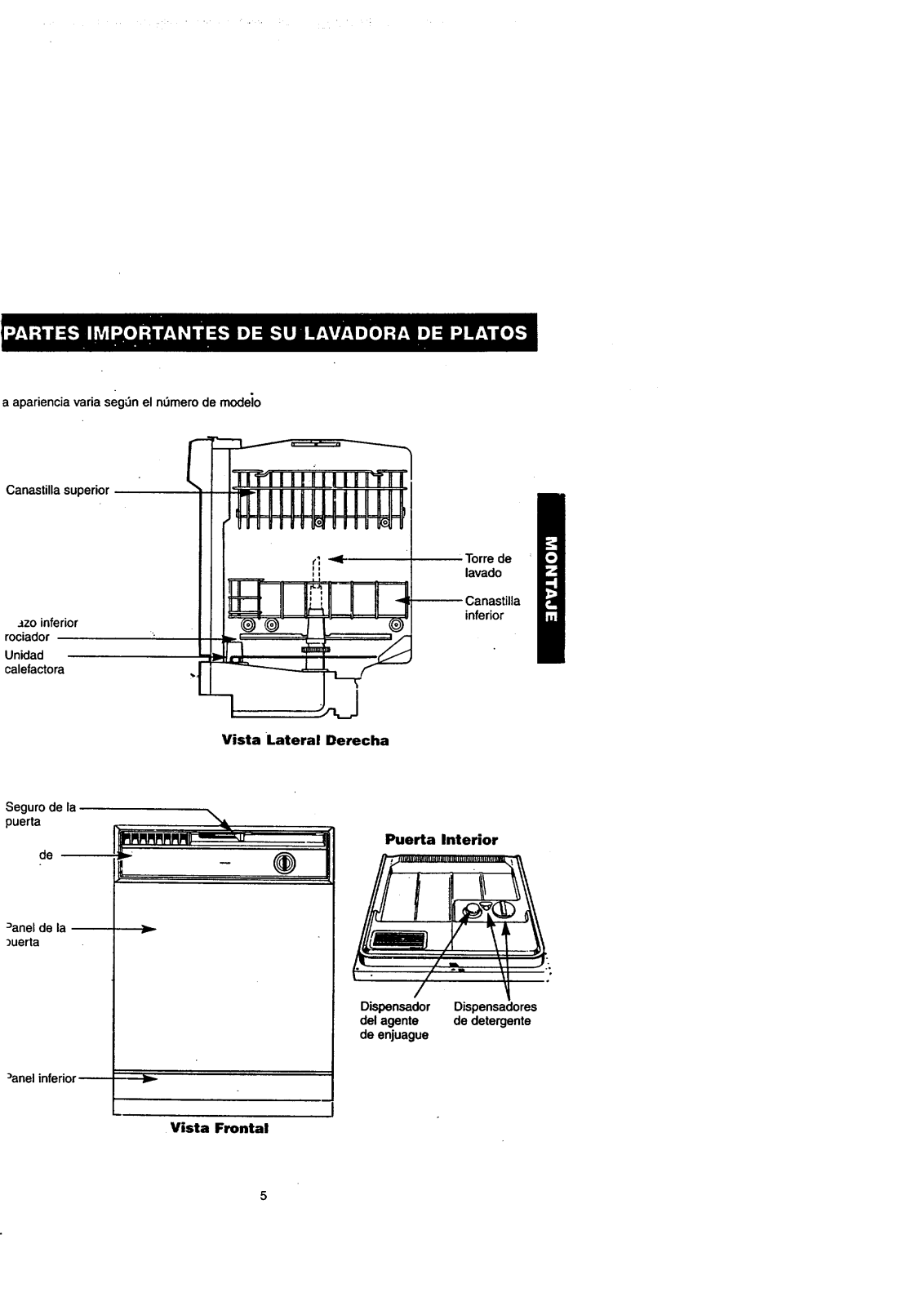

aaparienciavariaseg_nel m_merode modeio
Canastilla superior
de
lavado
._zoinferior
rociador
Unidad
calefactora
Seguro de la
puerta
de
_anel de la
)uerta
I h_RiqRRl.l.n
I .
inferior
Vista Lateral Derecha
Puerta Interior
- @
/
Dispensador Dispensadores
del agente de detergente
de enjuague
)anel inferior
Vista Frontal

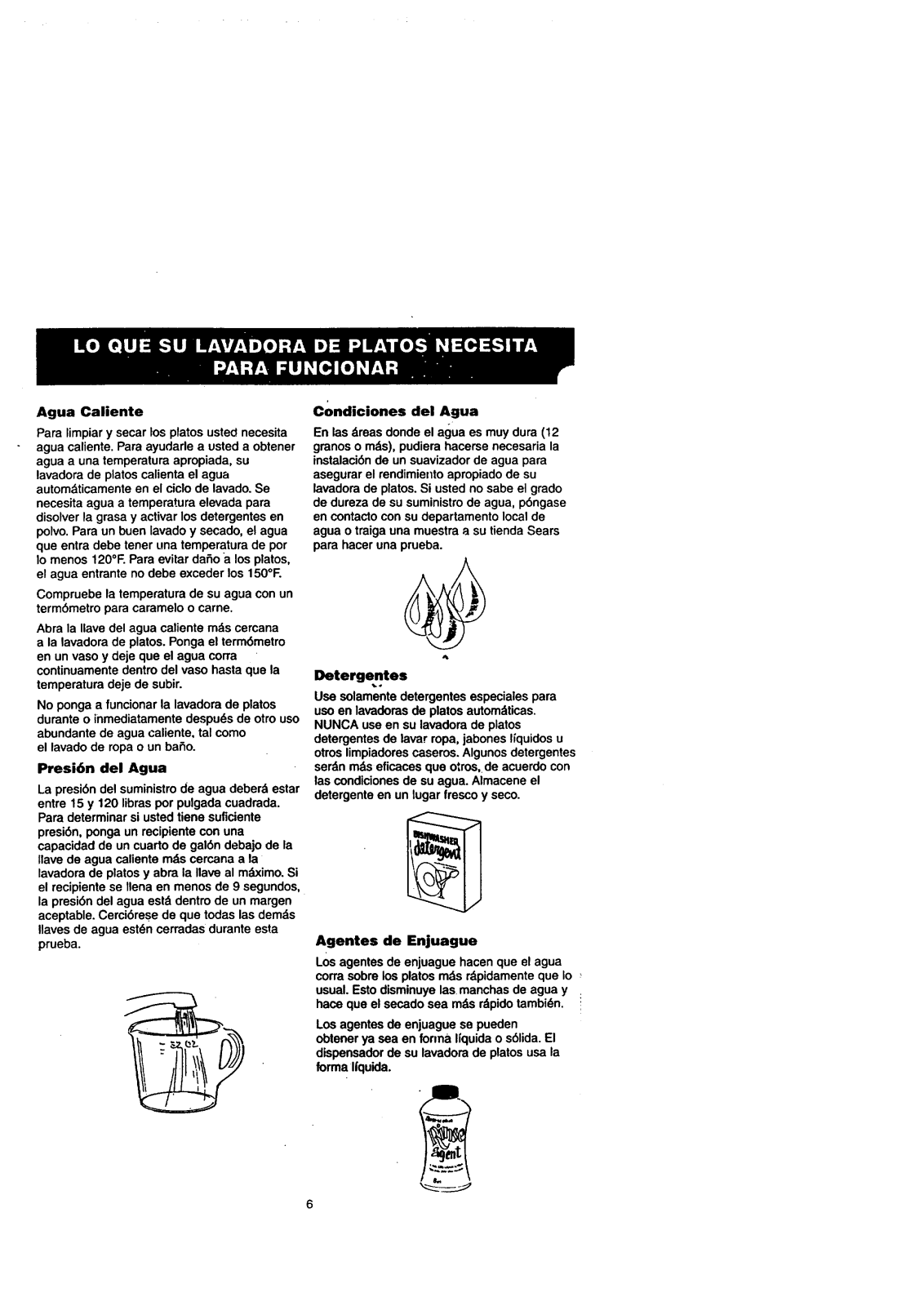

Agua Caliente
Para limpiar y secar los platos usted necesita
agua caliente. Para ayudarle a usted a obtener
agua a una temperatura apropiada, su
lavadora de platos calienta el agua
autom&ticamente en el ciclo de lavado. Se
necesita agua a temperatura elevada para
disolver la grasa y activar los detergentes en
polvo. Para un buen lavado y secado, el agua
que entra debe tener una temperatura de por
Io menos 120°E Para evitar dafio a los platos,
el agua entrante no dabs exceder los 150°F.
Compruebe la temperatura de su agua con un
term6metro para caramelo o came.
Abra la Ilave del agua caliente m;_s cercana
a la lavadora de platos. Ponga el term6metro
en un vaso y deje que el agua corra
continuamente dentro del vaso hasta qua la
temperatura deje de subir.
No ponga a funcionar la lavadora de platos
durante o inmediatamente despu_s de otro uso
abundante de agua caliente, tal como
el lavado de ropa o un bafio.
Presi6n del Agua
La presibndel suministrodeagua deber_ estar
entre15 y 120 librasporpulgadacuadrada.
Para determinarsiustedtienesuficiente
presi6n,pongaunrecipienteconuna
capacidadde un cuartode gal6ndebajode la
Ilave de agua calientemds cercanaa la
lavadorade platosyabra la Ilaveal mdximo.Si
el recipientese llenaen menosde 9segundos,
la presi6ndelaguaestd dentrode un margen
aceptable.Cerci6resede que todas lasdemds
Ilavesdeagua estdncerradasduranteesta
prueba.
C0ndiciones del Agua
En las dreas donde el agua es muy dura (12
granos o mds), pudiera hacerse necesaria la
instalaci6n de un suavizador de agua para
asegurar el rendimiento apropiado de su
lavadora de platos. Si usted no sabe el grado
de dureza de su suministro de agua, p6ngase
en contacto con su departamento local de
agua o traiga una muestra a su tienda Sears
para hacer una prueba.
Detergentes
Use solamente detergentes especiales para
uso en lavadoras de platos autom_ticas.
NUNCA use en su lavadora de platos
detergentes de lavar ropa, jabones liquidos u
otros limpiadores caseros. Algunos detergentes
serdn mds eficaces qua otros,de acuerdo con
las condiciones de su agua. Almacene el
detergente en un lugar fresco y seco.
Agentes de Enjuague
LOSagentesdeenjuaguehacenque el agua
corrasobrelosplatosmdsrdpidamentequeIo ,
usual.Estodisminuyelas manchasdeaguay
hace qua el secadosea m&srdpidotambidn.
Los agentesdeenjuaguese pueden
obtenerya sea en forlnaliquidaos61ida.El
dispensadordesu lavadorade platosusala
forma I|quida.
