Page 1
9 0 0 1 : 2 0 0 8
9001:2008
ISO
ISO
CERTIFIED COMPANY
APPLICATIONS

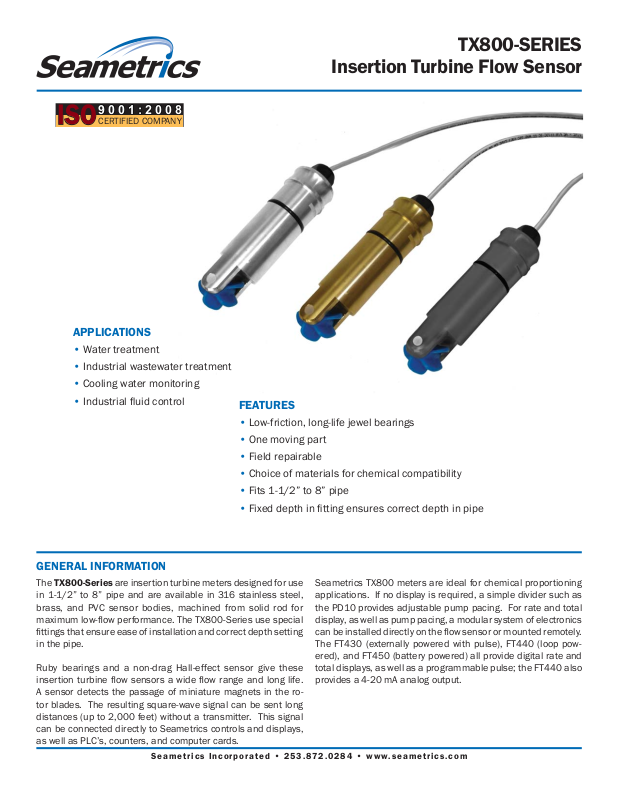

TX800-SERIES
Insertion Turbine Flow Sensor
• Water treatment
• Industrial wastewater treatment
• Cooling water monitoring
• Industrial fl uid control
FEATURES
• Low-friction, long-life jewel bearings
• One moving part
• Field repairable
• Choice of materials for chemical compatibility
• Fits 1-1/2” to 8” pipe
• Fixed depth in fi tting ensures correct depth in pipe
GENERAL INFORMATION
The TX800-Series are insertion turbine meters designed for use
in 1-1/2” to 8” pipe and are available in 316 stainless steel,
brass, and PVC sensor bodies, machined from solid rod for
maximum low-fl ow performance. The TX800-Series use special
fi ttings that ensure ease of installation and correct depth setting
in the pipe.
Ruby bearings and a non-drag Hall-effect sensor give these
insertion turbine fl ow sensors a wide fl ow range and long life.
A sensor detects the passage of miniature magnets in the rotor blades. The resulting square-wave signal can be sent long
distances (up to 2,000 feet) without a transmitter. This signal
can be connected directly to Seametrics controls and displays,
as well as PLC’s, counters, and computer cards.
Seametrics Incorporated • 253.872.0284 • www.seametrics.com
Seametrics TX800 meters are ideal for chemical proportioning
applications. If no display is required, a simple divider such as
the PD10 provides adjustable pump pacing. For rate and total
display, as well as pump pacing, a modular system of electronics
can be installed directly on the fl ow sensor or mounted remotely.
The FT430 (externally powered with pulse), FT440 (loop powered), and FT450 (battery powered) all provide digital rate and
total displays, as well as a programmable pulse; the FT440 also
provides a 4-20 mA analog output.
Page 2
FEATURES
TX800-SERIES
Insertion Turbine Flow Sensor
Cable-seal strain relief
U-clip insertion point
EPDM or Viton O-ring
Choice of fi tting
materials/styles
Threaded jewel bearings
for easy fi eld repair
Turbine machined from solid rod
Choice of rotor/shaft materials for
chemical compatibility and durability.
Optional electronics available
Fixed depth in fi tting ensures cor-
rect depth placement in pipe
SPECIFICATIONS*
Power Source Low Power Micropowered (-04 Option)
Supply Voltage/Current 6-40 Vdc/< 2 mA 3.1-16 Vdc/60 μA @ 3.6 Vdc
Sensor
Materials Sensor Body
Rotor
Shaft Nickel-bound tungsten
Bearings
O-Ring
Maximum
Pressure
High Pressure
Temperature
Flow Range
Calibrated Accuracy
Output Transistor
Maximum Current Sinking
Cable
Regulatory
*Specifi cations subject to change • Please consult our website for current data (www.seametrics.com).
Kynar is a registered trademark of Arkema, Inc., Viton is a registered trademark of DuPont Corporation.
Seametrics Incorporated • 253.872.0284 • www.seametrics.com
Digital Magnetoresistive Giant Magetoresistance (GMR)
PVC, brass or stainless steel
PVDF (Kynar®)
carbide
Ruby jewel
EPDM (Viton® optional)
Brass 316 SS
200 psi (14 bar) 200 psi (14 bar)
Not Available 400 psi (28 bar)
200° F (93° C) 200° F (93° C)
0.5 to 30 ft./sec. (0.15 - 9.14 meter/sec)
+/- 2.5% of full scale
150mA (Low power version only)
22 AWG, 3 Con, 18’ (6m); 2000’ (610m) max run
PVC
(See Pressure vs. Temp. Chart)
175 psi (12 bar) at 75°
Not Available
130° F (55° C)
Page 3
TX800-SERIES
50
100
150
200
60˚ 70˚ 80˚ 90˚ 100˚ 110˚ 120˚ 130˚ 140˚
P.S.I.
Insertion Turbine Flow Sensor

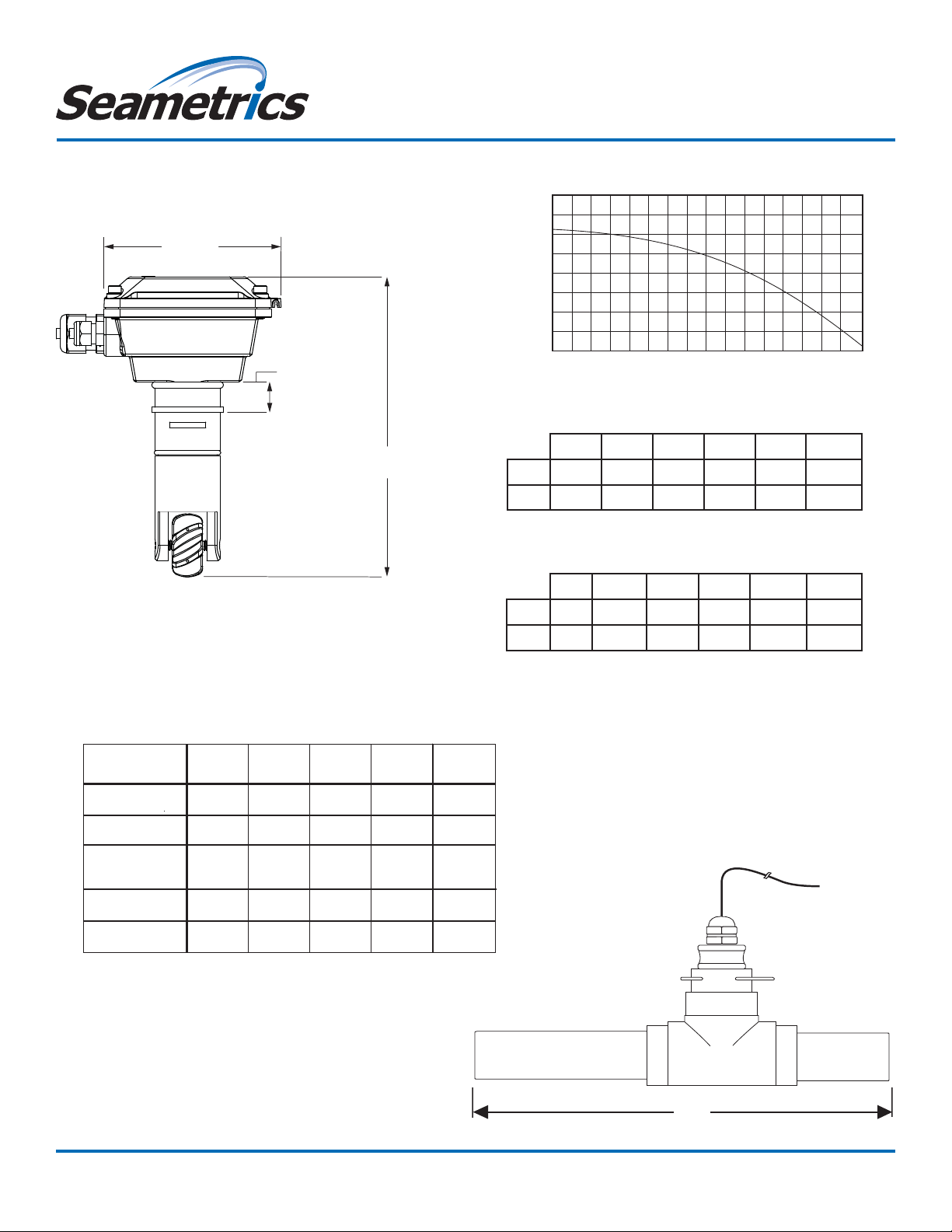

DIMENSIONS
NOTE: Top Housing Optional
4.33”
(11.0cm)
TOP OF TEE
0.75”
(1.9cm)
TX81x = 7.3” (18.5)
TX82x = 8.3” (21.1)
PRESSURE VS. TEMPERATURE (PVC)
˚Fahrenheit
FLOW RANGE (in Gallons Per Minute)
1½” 2” 3” 4” 6” 8”
Min 2.8 5 11.5 19.8 45 78
Max 190 314 691 1190 2700 4680
FLOW RANGE (in Liters Per Minute)
1½” 2” 3” 4” 6” 8”
Min 10.60 18.93 43.53 74.95 170.34 295.26
Max 719.23 1188.62 2615.72 4504.64 10220.61 17715.73
AVAILABLE FITTINGS
Bronze
PVC
Stainless
Steel
Carbon Steel
Ductile Iron
Tee Saddle Weld Braze
1-1/2"-4"
1-1/2"-2"
1-1/2"-2"
304SS 316SS
1-1/2"-2"
xxx
Seametrics Incorporated • 253.872.0284 • www.seametrics.com
3"-8"
3"-8"
x
x
3"-8"
x
x
3"-8"
3"-8"
Sweat
Tee
3"-8" 1-1/2"-4"
x
x
x
x
x
x
x
PVC TEE FITTING
20”
50.8 cm
Page 4
HOW TO ORDER
Description Size Sensor Material Options
Sensor Only. 1½” - 3” = TX810
Sensor Only
Description Size Sensor Material Options
Blind 4-20 mA analog transmitter (AO55) mounted on
AO55
FT430
the sensor.
Mounted
on Sensor
Description Size Sensor Material Options
Rate & total indicator with
pulse, externally powered
(FT430) mounted on the
sensor.
Mounted
on Sensor
4” - 8” = TX820
1½” - 3” = TX812
4” - 8” = TX822
1½” - 3” = TX813
4” - 8” = TX823
Brass = B
316 Stainless Steel = S
PVC = P
Brass = B
316 Stainless Steel = S
PVC = P
Brass = B
316 Stainless Steel = S
PVC = P
TX800-SERIES
Insertion Turbine Flow Sensor
Micropower Pickup = -04
LMI Pump Connector = -06
Seametrics Control Connector = -07
*Immersible = -40
Viton® O-Ring = -60
Roytronic® Series A Pump 5-pin Connector = -106
**High Pressure (Stainless Only) = -HP
LMI Pump Connector = -06
Viton® O-Ring = -60
Roytronic® Series A Pump 5-pin Connector = -106
**High Pressure (Stainless Only) = -HP
Tamper Evident Kit = -32
Viton® O-Ring = -60
Nonresettable T otal = -64
Hinged Display Cover= -126
**High Pressure (Stainless Only) = -HP
Description Size Sensor Material Options
DL76
Mounted
on Sensor
Data logger (DL76) mounted
on the sensor.
1½” - 3” = TX816
4” - 8” = TX826
Brass = B
316 Stainless Steel = S
PVC = P
Description Size Sensor Material Options
FT450
Mounted
on Sensor
Rate & total indicator with
pulse, battery powered
(FT450) mounted on the
sensor.
1½” - 3” = TX817
4” - 8” = TX827
Brass = B
316 Stainless Steel = S
PVC = P
Description Size Sensor Material Options
Pulse Divider (PD10)
mounted on the sensor.
1½” - 3” = TX818
4” - 8” = TX828
Brass = B
316 Stainless Steel = S
PVC = P
PD10
Mounted
on Sensor
Description Size Sensor Material Options
Rate & total indicator with
pulse & 4-20 mA output,
loop powered (FT440)
FT440
* Immersible to maximum of 3 ft (1m), up to 2 weeks
**Requires appropriate fi tting.
Roytronic is a registered trademark of Milton Roy Company. Viton is a registered trademark of DuPont Corporation.
mounted on the sensor.
Mounted
on Sensor
1½” - 3” = TX819
4” - 8” = TX829
Brass = B
316 Stainless Steel = S
PVC = P
Tamper Evident Kit = -32
Viton® O-Ring = -60
**High Pressure (Stainless Only) = -HP
Tamper Evident Kit = -32
Viton® O-Ring = -60
Nonresettable T otal = -64
Hinged Display Cover= -126
**High Pressure (Stainless Only) = -HP
LMI Pump Connector = -06
10 Ft. Cable for LMI Connector = -37
Viton® O-Ring = -60
Roytronic® Series A Pump 5-pin Connector = -106
**High Pressure (Stainless Only) = -HP
Tamper Evident Kit = -32
Viton® O-Ring = -60
Nonresettable T otal = -64
Hinged Display Cover= -126
**High Pressure (Stainless Only) = -HP
CONTACT YOUR SUPPLIER
Seametrics Incorporated • 19026 72nd Avenue South • Kent, Washington 98032 • USA
(P) 253.872.0284 • (F) 253.872.0285 • 1.800.975.8153 • www.seametrics.com
LT-65650031r2.0-20151015
10/15/15
