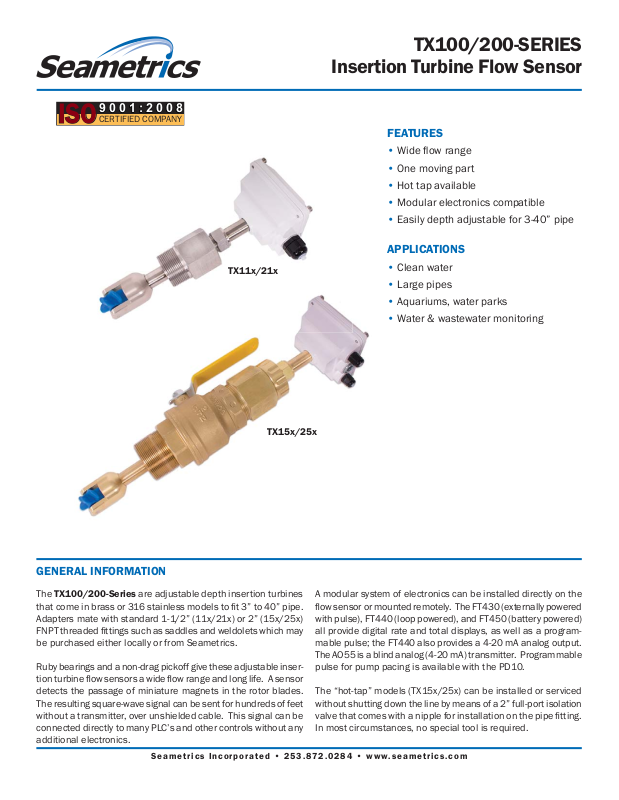

TX11x/21x

TX100/200-SERIES

Insertion Turbine Flow Sensor

FEATURES

• Wide ﬂ ow range

• One moving part

• Hot tap available

• Modular electronics compatible

• Easily depth adjustable for 3-40” pipe

APPLICATIONS

• Clean water

• Large pipes

• Aquariums, water parks

• Water & wastewater monitoring

TX15x/25x

TX15x/25

GENERAL INFORMATION

The TX100/200-Series are adjustable depth insertion turbines that come in brass or 316 stainless models to ﬁ t 3” to 40” pipe. Adapters mate with standard 1-1/2” (11x/21x) or 2” (15x/25x) FNPT threaded ﬁ ttings such as saddles and weldolets which may be purchased either locally or from Seametrics.

Ruby bearings and a non-drag pickoff give these adjustable insertion turbine ﬂ ow sensors a wide ﬂ ow range and long life. A sensor detects the passage of miniature magnets in the rotor blades. The resulting square-wave signal can be sent for hundreds of feet without a transmitter, over unshielded cable. This signal can be connected directly to many PLC’s and other controls without any additional electronics.

Seametrics Incorporated • 253.872.0284 • www.seametrics.com

A modular system of electronics can be installed directly on the ﬂ ow sensor or mounted remotely. The FT430 (externally powered with pulse), FT440 (loop powered), and FT450 (battery powered) all provide digital rate and total displays, as well as a programmable pulse; the FT440 also provides a 4-20 mA analog output. The AO55 is a blind analog (4-20 mA) transmitter. Programmable pulse for pump pacing is available with the PD10.

The “hot-tap” models (TX15x/25x) can be installed or serviced without shutting down the line by means of a 2” full-port isolation valve that comes with a nipple for installation on the pipe ﬁ tting. In most circumstances, no special tool is required.

Page 2

FEATURES

Optional modular electronics

Rugged cast aluminum housing

TX100/200-SERIES

Insertion Turbine Flow Sensor

Compression nut for easy adjustment, secure locking

Adapter mates with 1-1/2” FNPT threaded ﬁ tting

Rotor

SPECIFICATIONS*

Power Source

Supply Voltage/Current

Sensor Type Output Sinking Current

Pipe Size

Materials Housing Sensor Body Rotor Shaft/Bearings Isolation Valve

Fitting Size Required

Flow Range

Accuracy

Maximum Temperature

Maximum Pressure

Insertion Force

Cable

Regulatory

Rotor housing

Removable jewel bearings

3/4” diameter tubing for low insertion force

2” adapter removes to mount hot-tap machine

Full-port 2” ball valve for sensor removal

Adapter mates with 2” FNPT threaded ﬁ tting

TX15x/25xTX11x/21x

Low Power Micropowered (-04 Option)

6-40 Vdc/< 2 mA 3.1-16 Vdc/60 μA @ 3.6 Vdc

Digital Magnetoresistive Giant Magnetoresistance (GMR) Current Sinking Pulse Voltage Output 150 mA max 2 mA max

TX11x/15x TX21x/25x

3” - 12” (75 - 300mm) 12” - 40” (300 - 1000mm)

Cast aluminum Brass or 316 SS PVDF standard Nickel-bound tungsten carbide/Ruby

TX11x/21x TX15x/25x None Bronze (316SS optional) 1-1/2” FNPT 2” FNPT

0.5 - 30 feet/sec (0.15 - 9.14 meter/sec)

+/-1.5% of full scale

200˚ F (93˚ C)

200 psi (14 bar)

0.44 x pressure in pipe

#22 AWG 3-con, 18’ (6m); 2,000’ (610m) maximum cable run

Locking collar

*Speciﬁ cations subject to change. Please consult our website for the most current data (www.seametrics.com).

Seametrics Incorporated • 253.872.0284 • www.seametrics.com

Page 3

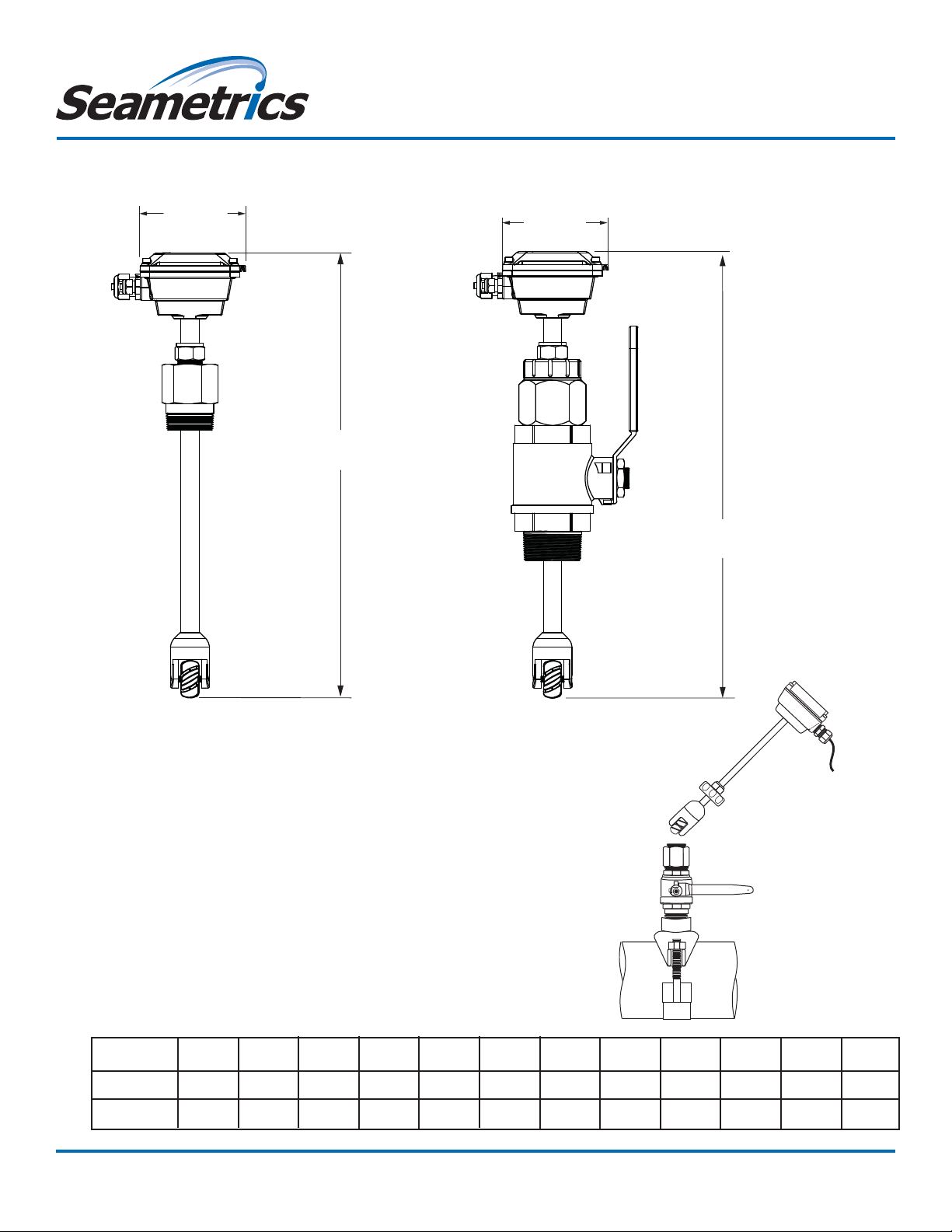

DIMENSIONS

TX100/200-SERIES

Insertion Turbine Flow Sensor

4.33”

(11.0cm)

4.33”

(110cm)

TX11x = 11.2” (28.4cm) TX21x = 16.2” (41.1cm)

TX15x = 18.2” (46.2cm) TX25x = 22.2” (56.4cm)

HOT TAP INSTALLATION

Insertion and removal under pressure is possible due to the 2” full-port isolation valve, which comes with a nipple for installation on the pipe ﬁ tting. If it is necessary to do the initial installation under pressure, any standard hot tap drilling machine with 2” NPT adapter, such as a Transmate or a Mueller, can be used. Ordinarily, it is not necessary to use an installation tool, since the smalldiameter tube can be controlled by hand at all but the highest pressures.

HOT TAP REMOVAL

FLOW RANGE (Gallons Per Minute)

Pipe Size 3” 4” 6” 8” 10” 12” 16” 18” 24” 30” 36” 40”

Min. 11.5 19.8 45 78 123 176 313 396 704 1,100 1,585 1,960 Max. 691 1,190 2,700 4,680 7,370 10,470 16,520 20,900 37,600 62,505 87,410 117,500

Approximations based on Schedule 40 pipe.

Seametrics Incorporated • 253.872.0284 • www.seametrics.com

Page 4

TX100/200-SERIES

Insertion Turbine Flow Sensor

HOW TO ORDER

Description Size Material Options (110/210) Options (150/250)

Sensor Only. 3” - 12” = TX110

12” - 40” = TX210

Hot Tap

3” - 12” = TX150 12” - 40” = TX250

Sensor Only

Description Size Material Options (112/212) Options (152/252)

Blind 4-20 mA analog transmitter (AO55) mounted on the sensor.

3” - 12” = TX112 12” - 40” = TX212

Hot Tap

3” - 12” = TX152 12” - 40” = TX252

on Sensor

AO55 Mounted

Description Size Material Options (113/213) Options (153/253)

Rate & total indicator with pulse, externally powered (FT430) mounted on

on Sensor

the sensor.

3” - 12” = TX113 12” - 40” = TX213

Hot Tap

3” - 12” = TX153 12” - 40” = TX253

FT430 Mounted

Brass = B 316 SS = S

Brass = B 316 SS= S

Brass Adapter Fitting 2” NPT = -02 SS Adapter Fitting 2” NPT = -02 Bidirectional = -03 Micropower Pickup = -04 Standard Power, LMI 4-pin Connector = -06 Stnd Power, Seametrics Ctrl Connector = -07

Brass Adapter Fitting 2” NPT = -02 SS Adapter Fitting 2” NPT = -02 Bidirectional = -03 Standard Power, LMI 4-pin Connector = -06 Brass Adapter 1 ½” BSP = -23 Stnd Power, Seametrics Ctrl Connector = -07

Brass Adapter Fitting 2” NPT = -02 SS Adapter Fitting 2” NPT = -02 Bidirectional = -03 Brass Adapter 1 ½” BSP = -23 SS Adapter 1 ½” BSP = -24 Tamper Evident Kit = -32 Old Style Adapter 1 ½” NPT = -35

Brass Adapter 1 ½” BSP = -23 SS Adapter 1 ½” BSP = -24 Old Style Adapter 1 ½” NPT = -35 *Immersible = -40 12” Extension (200 Series Only) = -72 Roytronic® Series-A 5-Pin Connector = -106

SS Adapter 1 ½” BSP = -24 Old Style Adapter 1 ½” NPT = -35 12” Extension (200 Series Only) = -72 Roytronic® Series-A 5-Pin Connector = -106

Non-resettable Total = -64 12” Extension (200 Series Only) = -72 Hinged Display Cover = -126

Bidirectional = -03 Micropower Pickup = -04 Standard Power, LMI 4-pin Connector = -06 Standard Power, Seametrics Control Connector = -07 316 SS Valve Assembly = -08 No Valve Assembly = -09 *Immersible = -40 12” Extension (200 Series Only) = -72 Roytronic® Series-A 5-Pin Connector = -106

Bidirectional = -03 Standard Power, LMI 4-pin Connector = -06 Stnd Power, Seametrics Ctrl Connector = -07 316 SS Valve Assembly = -08 No Valve Assembly = -09 12” Extension (200 Series Only) = -72 Roytronic® Series-A 5-Pin Connector = -106

Bidirectional = -03 316 SS Valve Assembly = -08 No Valve Assembly = -09 Tamper Evident Kit = -32 Old Style Adapter = -35 Non-resettable Total = -64 12” Extension (200 Series Only) = -72 Hinged Display Cover = -126

Description Size Material Options (116/216) Options (156/256)

Data logger (DL76) mounted on the sensor.

on Sensor

3” - 12” = TX116 12” - 40” = TX216

Hot Tap

3” - 12” = TX156 12” - 40” = TX256

Brass = B 316 SS = S

Brass Adapter Fitting 2” NPT = -02 SS Adapter Fitting 2” NPT = -02 Bidirectional = -03 Brass Adapter 1 ½” BSP = -23

SS Adapter 1 ½” BSP = -24 Tamper Evident Kit = -32 Old Style Adapter 1 ½” NPT = -35 12” Extension (200 Series Only) = -72

Bidirectional = -03 316 SS Valve Assembly = -08 No Valve Assembly = -09 Tamper Evident Kit = -32 12” Extension (200 Series Only) = -72

DL76 Mounted

Description Size Material Options (117/217) Options (157/257)

Rate & total indicator with pulse, battery powered (FT450) mounted on

on Sensor

the sensor.

FT450 Mounted

3” - 12” = TX117 12” - 40” = TX217

Hot Tap

3” - 12” = TX157 12” - 40” = TX257

Brass = B 316 SS= S

Non-resettable Total = -64 12” Extension (200 Series Only) = -72 Hinged Display Cover = -126

Description Size Material Options (118/218) Options (158/258)

Pulse Divider (PD10) mounted on the sensor.

on Sensor

3” - 12” = TX118 12” - 40” = TX218

Hot Tap

3” - 12” = TX158 12” - 40” = TX258

Brass = B 316 SS = S

Brass Adapter Fitting 2” NPT = -02 SS Adapter Fitting 2” NPT = -02 Bidirectional = -03 LMI Pump 4-pin Connector = -06 Brass Adapter 1 ½” BSP = -23 SS Adapter 1 ½” BSP = -24

Old Style Adapter 1 ½” NPT = -35 10 Ft. Cable for LMI Connector = -37 12” Extension (200 Series Only) = -72 Roytronic® Series-A 5-Pin Connector = -106

Bidirectional = -03 LMI Pump 4-pin Connector = -06 316 SS Valve Assembly = -08 No Valve Assembly = -09 10’ Cable for LMI Adapter = -37 12” Extension (200 Series Only) = -72 Roytronic® Series-A 5-Pin Connector = -106

PD10 Mounted

Description Size Material Options (119/219) Options (159/259)

Rate & total indicator with pulse & 4-20 mA output, loop powered (FT440)

on Sensor

mounted on the sensor.

FT440 Mounted

* Immersible to maximum of 3 ft (1m), up to 2 weeks • Roytronic is a registered trademark of Milton Roy Company

3” - 12” = TX119 12” - 40” = TX219

Hot Tap

3” - 12” = TX159 12” - 40” = TX259

Brass = B 316 SS= S

Non-resettable Total = -64 12” Extension (200 Series Only) = -72 Hinged Display Cover = -126
