Seametrics FT420 Data sheet

FT400-SERIES
Rate/Total Indicator
FEATURES
Simple Setup
Battery (FT415) or Loop Powered (FT420)
Remote or Flow Sensor Mounted Indicator
Rugged Metallic Housing
Non-volatile Memory
APPLICATIONS
Water Treatment
Water Utility
Industrial Chemical Handling
FT420
GENERAL INFORMATION
The FT400-Series flow computers are microcontroller-based indicator/transmitters that display flow rate and total and provide output signals. The FT415 is battery-powered and provides a scalable pulse output. The FT420 is powered by external DC voltage and has both pulse and 4-20 mA analog outputs. When the FT420 is being used in the 4-20 mA mode, it is a “two-wire” or “loop-powered” device, meaning that the 4-20 mA output signal doubles as its power supply.
The addition of a dual-relay output board (FT420 only) allows for certain applications requiring contact output isolation (e.g., certain metering pumps and water treatment controls). Dual solid state relays provide exactly the same pulse out­put as the standard unit, and each can signal one external device. A non-resettable total is also available. The FT420 can be ordered in a plastic enclosure with a 115 Vac power supply for use with mechanical meters, or with a built-in 115 Vac/12-24 Vdc dual power supply for magmeters.
FT415
Both the FT415 and the FT420 can be factory-mounted on the meter (-M) or remotely wall mounted with the brackets provided (-W). The FT420 is also available as a panel mount (-P) with an open back for easy installation in the user’s own electrical enclosure. Most FT400’s can be converted from wall-to-meter or meter-to-wall mount configurations after installation if needed.
Housings for the -W and -M models are rugged cast alu­minum, potted and gasketed for maximum environmental protection. A membrane keypad allows settings to be changed without removing the cover. (Password protection, a standard feature, can be used to prevent settings from being changed.)
FEATURES
FT400-SERIES
Rate/Total Indicator
Display
Electronics Module
Setup Keys**
Cover Screws
Lower Housing
Strain Relief
Wall-Mount Brackets
**Includes password protection for tamper prevention when needed
SPECIFICATIONS*
Power
Display Rate
Total
Outputs Current Sinking Pulse
Analog
Pulse Output Range
Input
Input Range
K-Factor Range
Flow Alarm Output Range
Operating Temperature
Environmental
Regulatory
*Specifications subject to change • Please consult our website for current data (www.seametrics.com).
FT415 FT420
Lithium "C", 3.6 Vdc, replaceable, 3-5 year life
6-digit autorange, 1/2" character height
8-digit, 5/16" character height
Scaled Pulse output (0.1 sec duration 6.1 Hz max) (or High Alarm output or Low Alarm output on FT420 only)
Sensor pass-through Pulse output (unscaled)
None
0.1 - 9999999.9 units/pulse
Micropower GMR Sensor (square wave)
1.0 - 150 pulses/second
.001 - 99999.999
.01 - 999999.99
-30˚ to 65˚ C (-22˚ to 148˚ F)
NEMA 4X, IP66
None
12-30 Vdc, 4mA (4-20 mA when loop-powered)
6-digit autorange, 1/2" character height
8-digit, 5/16" character height
4-20 mA loop; 24-30 Vdc
0.1 - 9999999.9 units/pulse
5V pulse or contact closure
1.0 - 1,500 pulses/second
.001 - 99999.999
.01 - 999999.99
-30˚ to 65˚ C (-22˚ to 148˚ F)
NEMA 4X, IP66
Mark
SET
Electronic
Metering Pump
12-32 Vdc
Loop Power Sup
ply
4-20 mA Device
Analog Output
Scaled Pulse Output
Pulse Pass-Through
Remote Display
or PLC
1 2 3 4
Flow Sensor
Flow Sensor Input
4-20 mA Output
SE
Panel Cutout
R .38 Max, Typ.
.20 Max. Panel Thickness
1.50
3.85 Typ
.36
3.620
+.03/-.00
Typ
.70 x .18 Clamp Area, Typ
2.97"
3.00"
2.97"
SET
3.93"
4.60"
3.93"
2.06"
2341678.9
10.5
FT400-SERIES
3.00"
2.97"
.20 Max. Panel Thickness
1.50
.36
Rate/Total Indicator

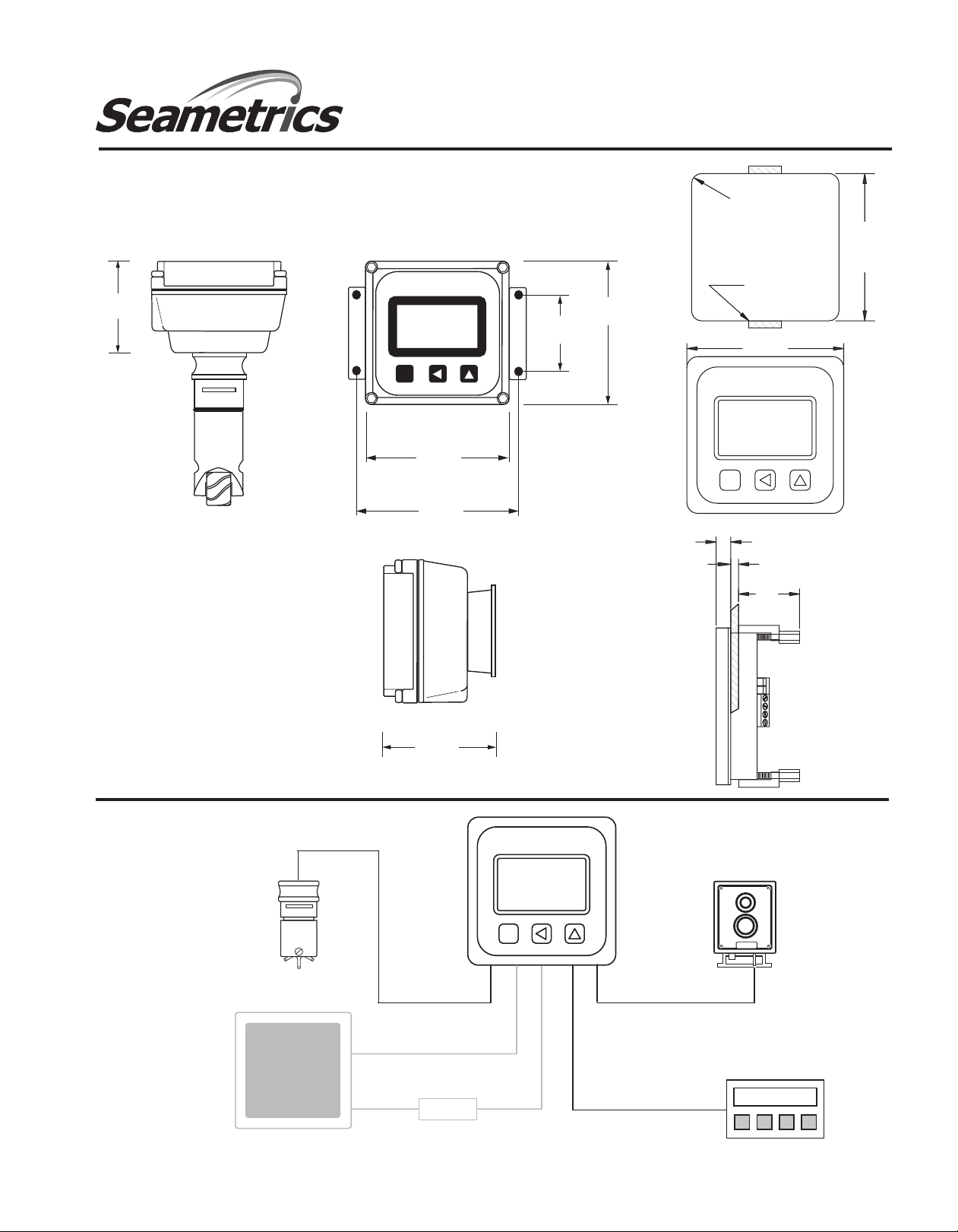

DIMENSIONS
FT415/FT420 Sensor Mount
FT415/FT420
with Wall Mount Brackets
FT420
Panel
Mount
POSSIBLE APPLICATIONS
FT420
ONLY
HOW TO ORDER
MODEL MOUNTING OPTIONS
Battery-powered indicator = FT415
Loop-powered indicator/transmitter = FT420
ACCESSORIES
Premounted on meter = M
Wall mount = W
Panel mount = P
FT400-SERIES
Rate/Total Indicator
Built-in 115 Vac/12-24 Vdc dual power supply (FT420W only, use with magmeters) = -27
Tamper-evident = -32
Non-resettable total = -64
Built-in 115 Vac power supply (FT420 Wonly, use with mechanical meters) = -65
Dual relay output (FT420 only) = -98
Data logger (wall mount) = DL76W
Power converter, plug-in, 115 Vac, 24 Vdc = PC3
Dual power supply, plug-in, 115 Vac, 12/24 Vdc = PC42
Protective cover, hinged = 30785
CONTACT YOUR SUPPLIER
Mounting kit, wall-to-meter conversion = MK10
Mounting kit, meter-to-wall conversion = MK20
LMI pump power cable = 07483
LMI pulse out cable = 12010
Sea m etr i cs I nco r por a ted • 1 9 026 72n d Av e nue Sou t h • Ken t , W a shi n gto n 98 0 32 • US A
(P) 253 . 872 . 028 4 • ( F) 2 53. 8 72. 0 285 • 1 . 800 . 975 . 815 3 • w ww. s eam e tri c s.c o m
LT-65650010-C
6/25/10
