Seametrics EX90 Specifications

EX90-SERIES

ELECTROMAGNETIC INSERTION FLOW SENSOR

Features

• No moving parts

• Economical

• Durable

• Easy to install

• Easy to maintain

Precision Flow Measurement

An ON

CON Brand

APPLICATIONS

Municipal water Water/Wastewater

treatment Reuse/Reclaim water Industrial processes Cooling towers Pump towers Dewatering

The EX90-series battery powered, insertion electromagnetic ow meter is

designed for use with conductive uids in 4”–12” pipe. The EX90’s stainless

steel body allows the meter to operate in a wide range of temperatures,

pressure, and corrosive or dirty environments.

The EX90 is highly suitable for dicult applications. With no moving parts, these meters can be used in “dirty water” applications where debris would foul a mechanical meter. If the EX90 meter is used with a programmable

controller, the output signal can be fed direct, with no other conditioning

required.

• Pulse Output Standard

Contact Your Supplier

Rate and total units can be set via the front panel touch key pad by the user. Bidirectional ow is standard with totals available in forward, reverse, net, batch forward and batch reverse.

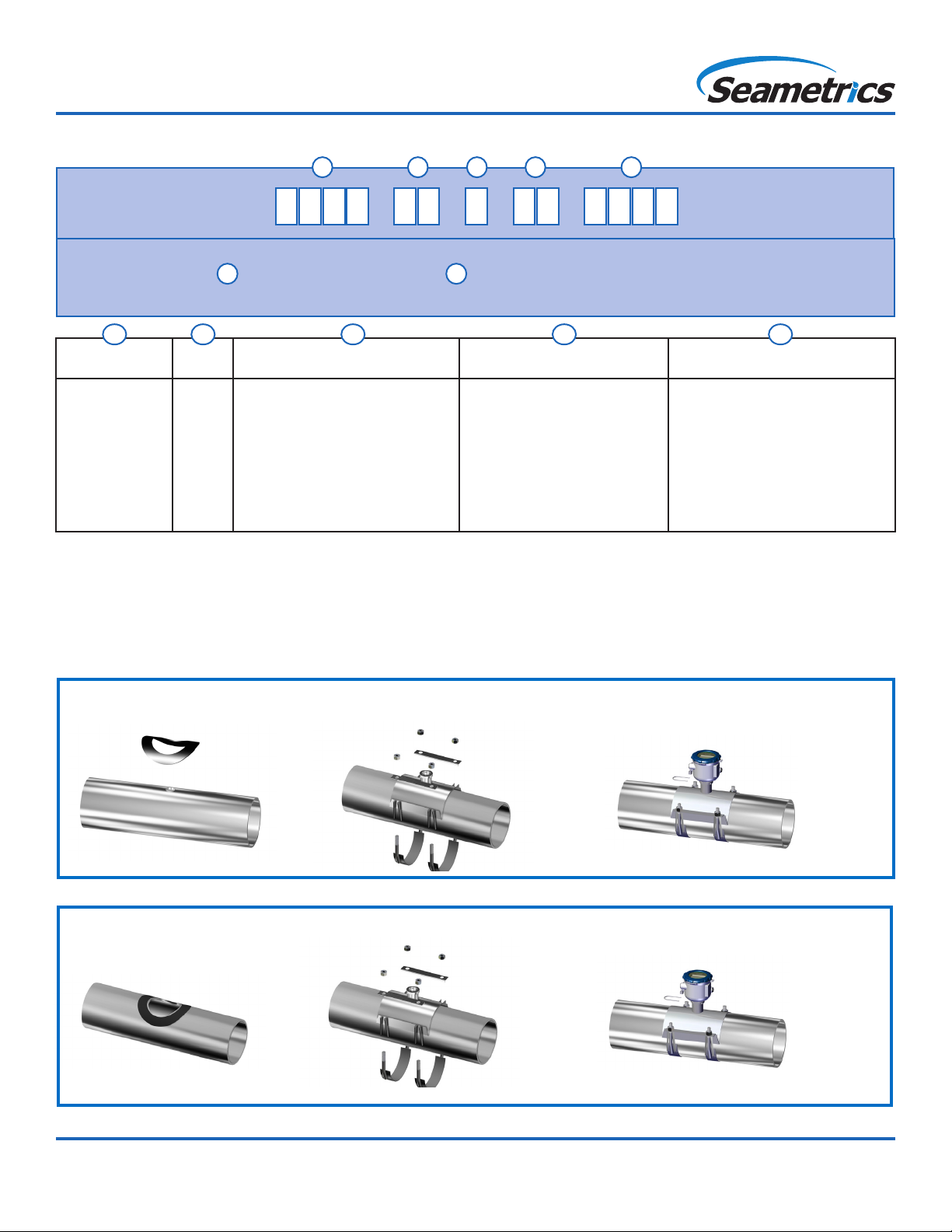

The EX90 is battery powered and an output cable is available for transmitting the pulse signal to remote devices. The EX90 includes a Seametrics saddle

which has been designed to accommodate a wide range of pipe sizes and

types while ensuring correct placement in the pipe. In addition, an optional internal data logger allows local storage of ow history.

ISO

9001

PROUDLY

MADE IN THE

USA

253.872.0284 seametrics.com

EX90-SERIES

ELECTROMAGNETIC INSERTION FLOW SENSOR

Specications*

Pipe Size 4” to 12”

Materials Sensor Body 316 SS

Electrodes Hastelloy

Housing Powder-coated diecast aluminum

Electrode Cap PVDF (Kynar®)

O-Ring EPDM

Temperature Ambient

Pressure 200 psi (14 bar)

Flow Rate 0.5 - 4.5 m/sec (1.64 - 14.8 ft/sec) (Low ow cuto .15 m/sec; .49 ft/sec)

Calibration Accuracy

Display Type 128x64 dot-matrix LCD

Power One lithium 7.2V ‘D’ size battery pack, replaceable.

Scaled Pulse Output

Cable Optional Output

Conductivity >20 microSiemens/cm

Empty Pipe Detection Hardware/software, conductivity-based

Regulatory

Environmental IP68

* Specications subject to change. Please consult our website for the most current data (seametrics.com).

Rate Time Unit is available in Day only.

Kynar is a registered trademark of Arkema, Inc.

Temperature

Fluid Temp. 32˚ to 200˚ F (0˚ to 93˚ C)

0.5 - 4.5 m/s (1.64-14.76 ft/sec)

0.3 - 0.5 m/sec (0.98 - 1.64 ft/sec)

Digits 5 Digit Rate 8 Digit Total

Units

Please Note: All meters are factory set for gallons per minute (GPM) rate and acre foot total. If other units are required, they

can be set in the eld.

Bidirectional Forward Total, Reverse Total, Net Total, Batch Forward, Batch Reverse

Signal Current sinking pulse, isolated, 36 Vdc at 10 mA max

Pulse Rates User-scalable from 0.1 to 99,999.9 volume units/pulse. Pulse width varies with output frequency, 150

Cable

0˚ to 160˚ F (-17˚ to 72˚ C)

+/- 2% of reading

+/- (2% of reading + 0.25% of full scale)

Rate Volume Units Rate Time Units Total Volume Units

Gallons

Liters Barrels (42 gallons)

Cubic Feet Cubic Meters Million Gallons

Mega Liters

Imperial Gallons Million Imperial Gallons

pulses/sec max

20ft (6m) standard length polyurethane jacketed cable—for power and outputs. (Lengths up to 200’ (60 m) available.)

(EN 61326) Pending

Second

Minute Hour Day

Gallons

Gallons x 10 Gallons x 100 Gallons x 1000

Million Gallons

Liters Kilo Liters Mega Liters Barrels (42 gallons)

Cubic Meters

FLOW

Cubic Meters x 1000

Cubic Feet

Cubic Feet x 1000

Million Cubic Feet Imperial Gallons

Imperial Gallons x 1000

Million Imperial Gallons Acre Inch Acre Foot Fluid Ounce

Flow Range*

Nominal Pipe Size

Low Flow Cuto GPM

Low Flow Cuto LPS

Min GPM

Min LPS

Max GPM

Max LPS

4” 6” 8” 10” 12”

19.3

1.22

64.3

4.1

578

36.5

43.11

2.72

144.6

9.1

1301

82.1

77.1

4.86

257

16.2

2313

145.9

120.5

7.6

401.6

25.3

3614

228

173.5

10.95

578.3

36.5

5204

328.3

Upstream straight pipe is selected during initial setup. Upstream options are 5X or 10X the diameter and are based on the

amount of straight pipe available in either new or propeller meter replacement installation. Downstream straight pipe requirement

is 2X the diameter. See programming setup for details.

10x/5x

Pipe Diameter

253.872.0284 seametrics.com

Pipe Diameter
