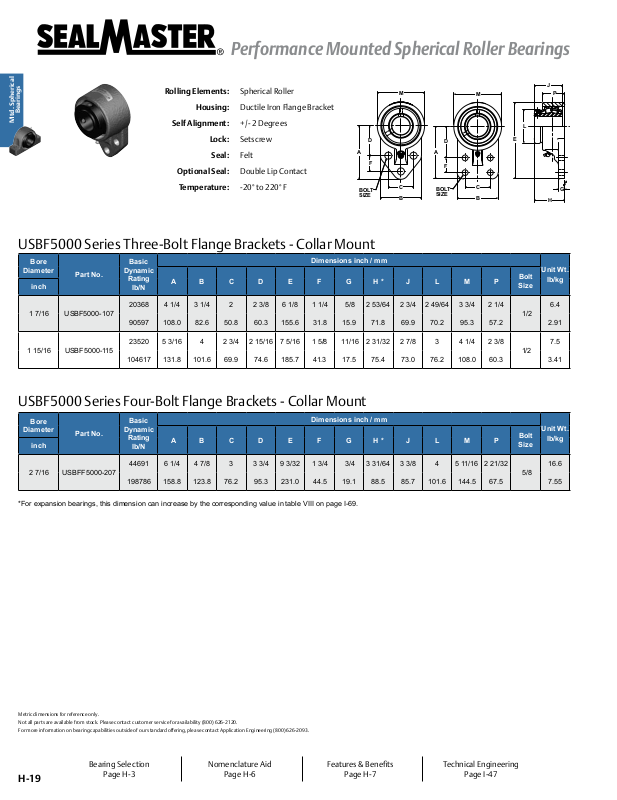

Sealmaster USBF5000 Series Data Sheet

®

Performance Mounted Spherical Roller Bearings

J

Rolling Elements: Spherical Roller

Bearings

Mtd. Spherical

Housing: Ductile Iron Flange Bracket

Self Alignment: +/- 2 Degrees

Lock: Setscrew

Seal: Felt

A

Optional Seal: Double Lip Contact

Temperature: -20° to 220° F

USBF5000 Series Three-Bolt Flange Brackets - Collar Mount

Bore

Diameter

inch

1 7/16 USBF5000-107

1 15/16 USBF5000-115

Part No.

Basic

Dynamic

Rating

lb/N

20368 4 1/4 3 1/4 2 2 3/8 6 1/8 1 1/4 5/8 2 53/64 2 3/4 2 49/64 3 3/4 2 1/4

90597 108.0 82.6 50.8 60.3 155.6 31.8 15.9 71.8 69.9 70.2 95.3 57.2 2.91

23520 5 3/16 4 2 3/4 2 15/16 7 5/16 1 5/8 11/16 2 31/32 2 7/8 3 4 1/4 2 3/8

104617 131.8 101.6 69.9 74.6 185.7 41.3 17.5 75.4 73.0 76.2 108.0 60.3 3.41

A B C D E F G H * J L M P

Dimensions inch / mm

BOLT
SIZE

M

D

F

C

B

A

BOLT
SIZE

D

F

M

E

C

B

Bolt
Size

1/2

1/2

P

L

G

H

Unit Wt.

lb/kg

6.4

7.5

USBF5000 Series Four-Bolt Flange Brackets - Collar Mount

Bore

Diameter

inch

2 7/16 USBFF5000-207

*For expansion bearings, this dimension can increase by the corresponding value in table VIII on page I-69.

Part No.

Basic

Dynamic

Rating

lb/N

44691 6 1/4 4 7/8 3 3 3/4 9 3/32 1 3/4 3/4 3 31/64 3 3/8 4 5 11/16 2 21/32

198786 158.8 123.8 76.2 95.3 231.0 44.5 19.1 88.5 85.7 101.6 144.5 67.5 7.55

A B C D E F G H * J L M P

Dimensions inch / mm

Bolt
Size

5/8

Unit Wt.

lb/kg

16.6

Metric dimensions for reference only.

Not all parts are available from stock. Please contact customer service for availability [phone].

For more information on bearing capabilities outside of our standard offering, please contact Application Engineering [phone].
