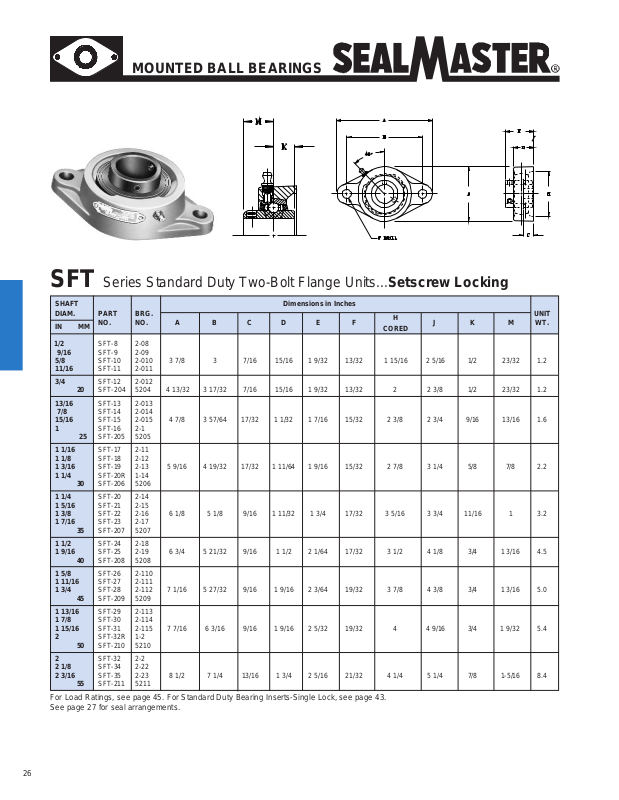

MOUNTED BALL BEARINGS
SFT Series Standard Duty Two-Bolt Flange Units...Setscrew Locking
SHAFT Dimensions in Inches
DIAM. PART BRG.
IN MM
1/2 SFT-8 2-08
9/16 SFT-9 2-09
5/8 SFT-10 2-010 3 7/8 3 7/16 15/16 1 9/32 13/32 1 15/16 2 5/16 1/2 23/32 1.2
11/16 SFT-11 2-011
3/4 SFT-12 2-012
13/16 SFT-13 2-013
7/8 SFT-14 2-014
15/16 SFT-15 2-015 4 7/8 3 57/64 17/32 1 1/32 1 7/16 15/32 2 3/8 2 3/4 9/16 13/16 1.6
1 SFT-16 2-1
1 1/16 SFT-17 2-11
1 1/8 SFT-18 2-12
1 3/16 SFT-19 2-13 5 9/16 4 19/32 17/32 1 11/64 1 9/16 15/32 2 7/8 3 1/4 5/8 7/8 2.2
1 1/4 SFT-20R 1-14
1 1/4 SFT-20 2-14
1 5/16 SFT-21 2-15
1 3/8 SFT-22 2-16 6 1/8 5 1/8 9/16 1 11/32 1 3/4 17/32 3 5/16 3 3/4 11/16 1 3.2
1 7/16 SFT-23 2-17
1 1/2 SFT-24 2-18
1 9/16 SFT-25 2-19 6 3/4 5 21/32 9/16 1 1/2 2 1/64 17/32 3 1/2 4 1/8 3/4 1 3/16 4.5
1 5/8 SFT-26 2-110
1 11/16 SFT-27 2-111
1 3/4 SFT-28 2-112 7 1/16 5 27/32 9/16 1 9/16 2 3/64 19/32 3 7/8 4 3/8 3/4 1 3/16 5.0
1 13/16 SFT-29 2-113
1 7/8 SFT-30 2-114
1 15/16 SFT-31 2-115 7 7/16 6 3/16 9/16 1 9/16 2 5/32 19/32 4 4 9/16 3/4 1 9/32 5.4
2 SFT-32R 1-2
2 SFT-32 2-2
2 1/8 SFT-34 2-22
2 3/16 SFT-35 2-23 8 1/2 7 1/4 13/16 1 3/4 2 5/16 21/32 4 1/4 5 1/4 7/8 1-5/16 8.4
NO. NO.
20 SFT-204 5204 4 13/32 3 17/32 7/16 15/16 1 9/32 13/32 2 2 3/8 1/2 23/32 1.2
25 SFT-205 5205
30 SFT-206 5206
35 SFT-207 5207
40 SFT-208 5208
45 SFT-209 5209
50 SFT-210 5210
55 SFT-211 5211
ABCDEF
For Load Ratings, see page 45. For Standard Duty Bearing Inserts-Single Lock, see page 43.
See page 27 for seal arrangements.
H
CORED
JKM
UNIT
WT.
26
