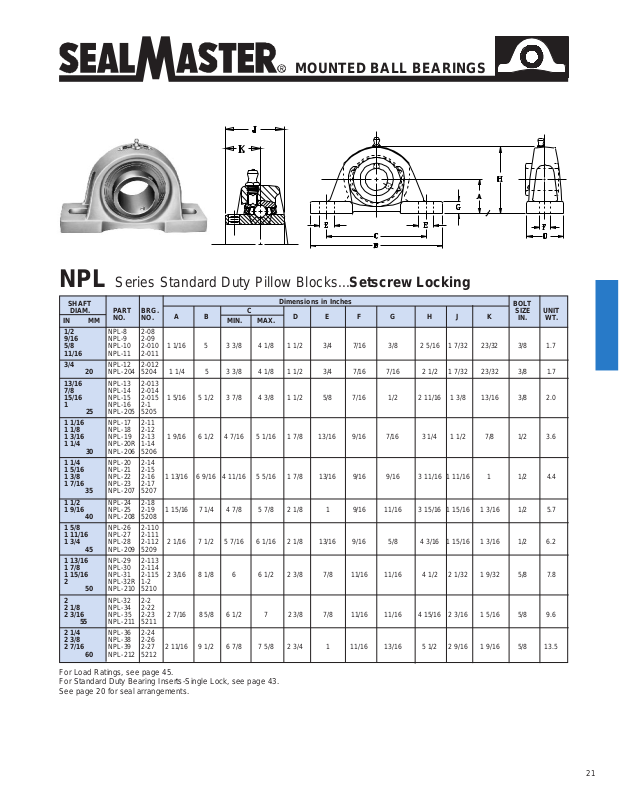

Sealmaster NPL Series Data Sheet

MOUNTED BALL BEARINGS

NPL Series Standard Duty Pillow Blocks...Setscrew Locking

SHAFT

DIAM. PART BRG.
IN MM

1/2 NPL-8 2-08
9/16 NPL-9 2-09
5/8 NPL-10 2-010 1 1/16 5 3 3/8 4 1/8 1 1/2 3/4 7/16 3/8 2 5/16 1 7/32 23/32 3/8 1.7
11/16 NPL-11 2-011

3/4 NPL-12 2-012

20 NPL-204 5204 1 1/4 5 3 3/8 4 1/8 1 1/2 3/4 7/16 7/16 2 1/2 1 7/32 23/32 3/8 1.7

13/16 NPL-13 2-013
7/8 NPL-14 2-014
15/16 NPL-15 2-015 1 5/16 5 1/2 3 7/8 4 3/8 1 1/2 5/8 7/16 1/2 2 11/16 1 3/8 13/16 3/8 2.0
1 NPL-16 2-1
25 NPL-205 5205

1 1/16 NPL-17 2-11
1 1/8 NPL-18 2-12
1 3/16 NPL-19 2-13 1 9/16 6 1/2 4 7/16 5 1/16 1 7/8 13/16 9/16 7/16 3 1/4 1 1/2 7/8 1/2 3.6
1 1/4 NPL-20R 1-14
30 NPL-206 5206

1 1/4 NPL-20 2-14
1 5/16 NPL-21 2-15
1 3/8 NPL-22 2-16 1 13/16 6 9/16 4 11/16 5 5/16 1 7/8 13/16 9/16 9/16 3 11/16 1 11/16 1 1/2 4.4
1 7/16 NPL-23 2-17

35 NPL-207 5207

1 1/2 NPL-24 2-18
1 9/16 NPL-25 2-19 1 15/16 7 1/4 4 7/8 5 7/8 2 1/8 1 9/16 11/16 3 15/16 1 15/16 1 3/16 1/2 5.7

40 NPL-208 5208

1 5/8 NPL-26 2-110
1 11/16 NPL-27 2-111
1 3/4 NPL-28 2-112 2 1/16 7 1/2 5 7/16 6 1/16 2 1/8 13/16 9/16 5/8 4 3/16 1 15/16 1 3/16 1/2 6.2

45 NPL-209 5209

1 13/16 NPL-29 2-113
1 7/8 NPL-30 2-114
1 15/16 NPL-31 2-115 2 3/16 8 1/8 6 6 1/2 2 3/8 7/8 11/16 11/16 4 1/2 2 1/32 1 9/32 5/8 7.8
2 NPL-32R 1-2

50 NPL-210 5210

2 NPL-32 2-2
2 1/8 NPL-34 2-22
2 3/16 NPL-35 2-23 2 7/16 8 5/8 6 1/2 7 2 3/8 7/8 11/16 11/16 4 15/16 2 3/16 1 5/16 5/8 9.6

55 NPL-211 5211

2 1/4 NPL-36 2-24
2 3/8 NPL-38 2-26
2 7/16 NPL-39 2-27 2 11/16 9 1/2 6 7/8 7 5/8 2 3/4 1 11/16 13/16 5 1/2 2 9/16 1 9/16 5/8 13.5

60 NPL-212 5212

NO. NO.

AB

C

MIN. MAX.

Dimensions in Inches

DEFG HJK

BOLT

SIZE UNIT

IN. WT.

For Load Ratings, see page 45.
For Standard Duty Bearing Inserts-Single Lock, see page 43.
See page 20 for seal arrangements.
