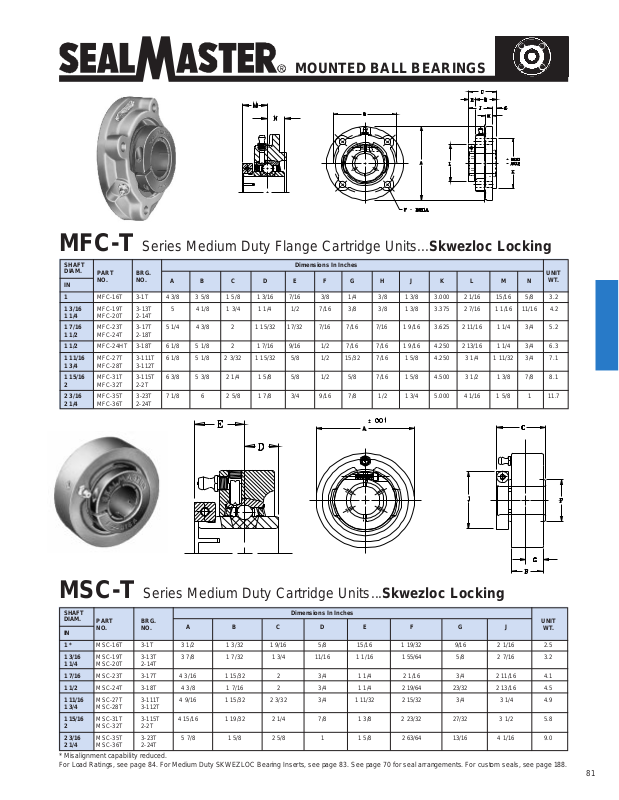

Sealmaster MFC-T Series Data Sheet

MOUNTED BALL BEARINGS

MFC-T Series Medium Duty Flange Cartridge Units...Skwezloc Locking

SHAFT Dimensions In Inches
DIAM.

IN
1 MFC-16T 3-1T 4 3/8 3 5/8 1 5/8 1 3/16 7/16 3/8 1/4 3/8 1 3/8 3.000 2 1/16 15/16 5/8 3.2
1 3/16 MFC-19T 3-13T 5 4 1/8 1 3/4 1 1/4 1/2 7/16 3/ 8 3/8 1 3/8 3.375 2 7/16 1 1/16 11/16 4.2

1 1/4 MFC-20T 2-14T
1 7/16 MFC-23T 3-17T 5 1/4 4 3/8 2 1 15/32 17/32 7/16 7/16 7/16 1 9/16 3.625 2 11/16 1 1/4 3/4 5.2

1 1/2 MFC-24T 2-18T
1 1/2 MFC-24HT 3-18T 6 1/8 5 1/8 2 1 7/16 9/16 1/2 7/16 7/16 1 9/16 4.250 2 13/16 1 1/4 3 / 4 6 .3
1 11/16 MFC-27T 3-111T 6 1/8 5 1/8 2 3/32 1 15/32 5/8 1 / 2 15/32 7/16 1 5/8 4.250 3 1/4 1 11/32 3/4 7.1

1 3/4 MFC-28T 3-112T
1 15/16 MFC-31T 3-115T 6 3/8 5 3/8 2 1/4 1 5/8 5 /8 1 /2 5/8 7/16 1 5/8 4.500 3 1/2 1 3/8 7/8 8.1

2 MFC-32T 2-2T
2 3/16 MFC-35T 3-23T 7 1/8 6 2 5/8 1 7/8 3/4 9/16 7/ 8 1/2 1 3/4 5.000 4 1/16 1 5/8 1 11.7

2 1/4 MFC-36T 2-24T

PART BRG.
NO. NO. WT.

ABC DEFGHJKL MN

UNIT

MSC-T Series Medium Duty Cartridge Units...Skwezloc Locking

SHAFT Dimensions In Inches
DIAM.

IN
1 * MSC-16T 3-1T 3 1/2 1 3/32 1 9/16 5/8 15/16 1 19/32 9/16 2 1/16 2.5
1 3/16 MSC-19T 3-13T 3 7/8 1 7/32 1 3/4 11/16 1 1/16 1 55/64 5/8 2 7/16 3.2

1 1/4 MSC-20T 2-14T
1 7/16 MSC-23T 3-17T 4 3/16 1 15/32 2 3/4 1 1/4 2 1/16 3/4 2 11/16 4.1
1 1/2 MSC-24T 3-18T 4 3/8 1 7/16 2 3/4 1 1/4 2 19/64 23/32 2 13/16 4.5
1 11/16 MSC-27T 3-111T 4 9/16 1 15/32 2 3/32 3/4 1 11/32 2 15/32 3/4 3 1/4 4.9

1 3/4 MSC-28T 3-112T
1 15/16 MSC-31T 3-115T 4 15/16 1 19/32 2 1/4 7/ 8 1 3/8 2 23/32 27/32 3 1/2 5.8

2 MSC-32T 2-2T
2 3/16 MSC-35T 3-23T 5 7/8 1 5/8 2 5/8 1 1 5/8 2 63/64 13/16 4 1/16 9.0

2 1/4 MSC-36T 2-24T

* Misalignment capability reduced.
For Load Ratings, see page 84. For Medium Duty SKWEZLOC Bearing Inserts, see page 83. See page 70 for seal arrangements. For custom seals, see page 188.

PART BRG.
NO. NO. WT.

A BCDE F G J

UNIT

81
