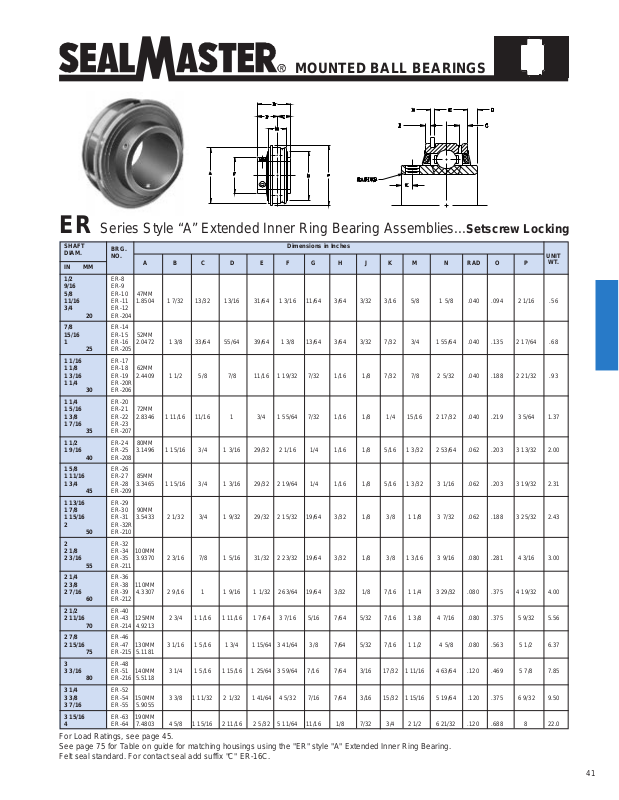

Sealmaster ER Series Data Sheet

MOUNTED BALL BEARINGS

ER Series Style “A” Extended Inner Ring Bearing Assemblies...Setscrew Locking

SHAFT
DIAM.

IN MM
1/2 ER-8

9/16 ER-9
5/8 ER-10 47MM
11/16 ER-11 1.8504 1 7/32 13/32 13/16 31/64 1 3/16 11/64 3/64 3/32 3/16 5/8 1 5/8 .040 .094 2 1/16 .5 6
3/4 ER-12

7/8 ER-14
15/16 ER-15 52MM
1 ER-16 2.0472 1 3/8 33/64 55/64 39/64 1 3/8 13/64 3/64 3/32 7/32 3/4 1 55/64 .040 .135 2 17/64 .68

1 1/16 ER-17
1 1/8 ER-18 62MM
1 3/16 ER-19 2.4409 1 1/2 5/8 7/8 11/16 1 19/32 7/32 1/16 1/8 7/32 7/8 2 5/32 .040 .188 2 21/32 .93
1 1/4 ER-20R

1 1/4 ER-20
1 5/16 ER-21 72MM
1 3/8 ER-22 2.8346 1 11/16 11/16 1 3/4 1 55/64 7/32 1/16 1/8 1/4 15/16 2 17/32 .040 .219 3 5/64 1.37
1 7/16 ER-23

1 1/2 ER-24 80MM
1 9/16 ER-25 3.1496 1 15/16 3/ 4 1 3/16 29/32 2 1/16 1/4 1/16 1/8 5/16 1 3/32 2 53/64 .062 .203 3 13/32 2.00

1 5/8 ER-26
1 11/16 ER-27 85MM
1 3/4 ER-28 3.3465 1 15/16 3/ 4 1 3/16 29/32 2 19/64 1/4 1/16 1/8 5/16 1 3/32 3 1/16 .062 .203 3 19/32 2.31

1 13/16 ER-29
1 7/8 ER-30 90MM
1 15/16 ER-31 3.5433 2 1/32 3/4 1 9/32 29/32 2 15/32 19/64 3/32 1/8 3/8 1 1/8 3 7/32 .062 .188 3 25/32 2.43
2 ER-32R

2 ER-32
2 1/8 ER-34 100MM
2 3/16 ER-35 3.9370 2 3/16 7/8 1 5/16 31/32 2 23/32 19/64 3/32 1/8 3/8 1 3/16 3 9/16 .080 .281 4 3/16 3.00

2 1/4 ER-36
2 3/8 ER-38 110MM
2 7/16 ER-39 4.3307 2 9/16 1 1 9/16 1 1/32 2 63/64 19/64 3/32 1/8 7/16 1 1/4 3 29/32 .080 .375 4 19/32 4.00

2 1/2 ER-40
2 11/16 ER-43 125MM 2 3/4 1 1/16 1 11/16 1 7/64 3 7/16 5/16 7/64 5/32 7/16 1 3/ 8 4 7/16 .080 .375 5 9/32 5.56

2 7/8 ER-46
2 15/16 ER-47 130MM 3 1/16 1 5/16 1 3/4 1 15/64 3 41/64 3/8 7/64 5/32 7/16 1 1/2 4 5/8 .080 .563 5 1 /2 6.37

3 ER-48
3 3/16 ER-51 140MM 3 1/4 1 5/16 1 15/16 1 25/64 3 59/64 7/16 7/64 3/16 17/32 1 11/16 4 63/64 .120 .469 5 7/8 7.85

3 1/4 ER-52
3 3/8 ER-54 150MM 3 3/8 1 11/32 2 1/32 1 41/64 4 5/32 7/16 7/64 3/16 15/32 1 15/16 5 19/64 .120 .375 6 9/32 9.50
3 7/16 ER-55 5.9055

3 15/16 ER-63 190MM
4 ER-64 7.4803 4 5/8 1 15/16 2 11/16 2 5/32 5 11/64 11/16 1 / 8 7/32 3 / 4 2 1/2 6 21/32 .120 .688 8 22.0

BRG.
NO.

20 ER-204

25 ER-205

30 ER-206

35 ER-207

40 ER-208

45 ER-209

50 ER-210

55 ER-211

60 ER-212

70 ER-214 4.9213

75 ER-215 5.1181

80 ER-216 5.5118

A B C D E F G H J K M N RAD O P

For Load Ratings, see page 45.
See page 75 for Table on guide for matching housings using the "ER" style "A" Extended Inner Ring Bearing.
Felt seal standard. For contact seal add suffix "C" ER-16C.

Dimensions in Inches

UNIT

WT.

41
