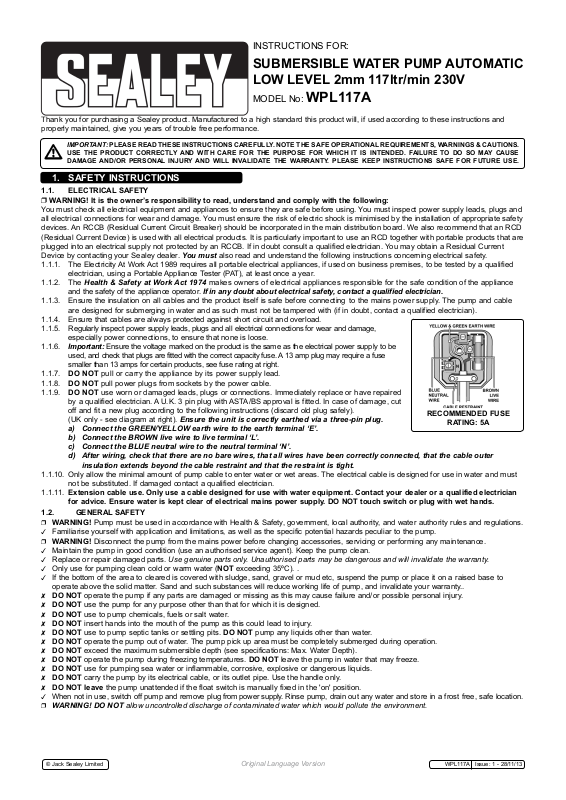

INSTRUCTIONS FOR:

SUBMERSIBLE WATER PUMP AUTOMATIC
LOW LEVEL 2mm 117ltr/min 230V

MODEL No: WPL117A

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY INSTRUCTIONS

1.1. ELECTRICAL SAFETY
WARNING! It is the owner’s responsibility to read, understand and comply with the following:

You must check all electrical equipment and appliances to ensure they are safe before using. You must inspect power supply leads, plugs and
all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD together with portable products that are
plugged into an electrical supply not protected by an RCCB. If in doubt consult a qualified electrician. You may obtain a Residual Current
Device by contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.

1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
electrician, using a Portable Appliance Tester (PAT), at least once a year.

1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.

1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power supply. The pump and cable
are designed for submerging in water and as such must not be tampered with (if in doubt, contact a qualified electrician).

1.1.4. Ensure that cables are always protected against short circuit and overload.

1.1.5. Regularly inspect power supply leads, plugs and all electrical connections for wear and damage,
especially power connections, to ensure that none is loose.

1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply to be
used, and check that plugs are fitted with the correct capacity fuse. A 13 amp plug may require a fuse
smaller than 13 amps for certain products, see fuse rating at right.

1.1.7. DO NOT pull or carry the appliance by its power supply lead.

1.1.8. DO NOT pull power plugs from sockets by the power cable.

1.1.9. DO NOT use worn or damaged leads, plugs or connections. Immediately replace or have repaired
by a qualified electrician. A U.K. 3 pin plug with ASTA/BS approval is fitted. In case of damage, cut
off and fit a new plug according to the following instructions (discard old plug safely).
(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.

 b) Connect the BROWN live wire to live terminal ‘L’.
 c) Connect the BLUE neutral wire to the neutral terminal ‘N’.

d) After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.

1.1.10. Only allow the minimal amount of pump cable to enter water or wet areas. The electrical cable is designed for use in water and must
not be substituted. If damaged contact a qualified electrician.

1.1.11. Extension cable use. Only use a cable designed for use with water equipment. Contact your dealer or a qualified electrician

for advice. Ensure water is kept clear of electrical mains power supply. DO NOT touch switch or plug with wet hands.

1.2. GENERAL SAFETY

 WARNING! Pump must be used in accordance with Health & Safety, government, local authority, and water authority rules and regulations.
 Familiarise yourself with application and limitations, as well as the specific potential hazards peculiar to the pump.
 WARNING!Disconnect the pump from the mains power before changing accessories, servicing or performing any maintenance.
 Maintain the pump in good condition (use an authorised service agent). Keep the pump clean.
 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
 Only use for pumping clean cold or warm water (NOT exceeding 35ºC). .
 If the bottom of the area to cleared is covered with sludge, sand, gravel or mud etc, suspend the pump or place it on a raised base to

operate above the solid matter. Sand and such substances will reduce working life of pump, and invalidate your warranty..

 DO NOT operate the pump if any parts are damaged or missing as this may cause failure and/or possible personal injury.
 DO NOT use the pump for any purpose other than that for which it is designed.
 DO NOT use to pump chemicals, fuels or salt water.
 DO NOT insert hands into the mouth of the pump as this could lead to injury.
 DO NOT use to pump septic tanks or settling pits. DO NOT pump any liquids other than water.
 DO NOT operate the pump out of water. The pump pick up area must be completely submerged during operation.
 DO NOT exceed the maximum submersible depth (see specifications: Max. Water Depth).
 DO NOT operate the pump during freezing temperatures. DO NOT leave the pump in water that may freeze.
 DO NOT use for pumping sea water or inflammable, corrosive, explosive or dangerous liquids.
 DO NOT carry the pump by its electrical cable, or its outlet pipe. Use the handle only.
 DO NOT leave the pump unattended if the float switch is manually fixed in the 'on' position.
 When not in use, switch off pump and remove plug from power supply. Rinse pump, drain out any water and store in a frost free, safe location.
 WARNING! DO NOT allow uncontrolled discharge of contaminated water which would pollute the environment.

RECOMMENDED FUSE

RATING: 5A

© Jack Sealey Limited

Original Language Version

WPL117A Issue: 1 - 28/11/13

2. INTRODUCTION & SPECIFICATIONS

Manufactured from corrosion resistant materials with stainless steel motor case and Noryl base cover. Fitted with automatic cut-out. Puddle

pump with minimum water depth of just 2mm makes this ideal for ood recovery. Designed for clean water although these pumps will accept

small particles up to 5mm. Suitable for the effective drainage of cellars, sinks, cisterns, baths and the general transfer of water.

SPECIFICATION:

Model No: .......................................................................WPL117A

Cut-out: .........................................................................Automatic

Outlet O/D:.............................................................. 32mm(1"BSP)/24mm

Maximum Output:.............................................................117ltr(26gal)/min

Maximum Head:........................................................................7mtr

Maximum Water Depth: ..................................................................5mtr

Minimum Water Depth: .................................................................2mm

Maximum Particle Size: .................................................................5mm

Motor Power: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .400W

Supply:..............................................................................230V

3. OPERATION

 WARNING! Ensure you read, understand and apply safety instructions.

3.1. Fit an appropriate discharge pipe to pump outlet and secure with a clip. Ensure the diameter of the discharge pipe is the same as or

greater than the outlet diameter, as a smaller pipe will adversely effect the pump flow rate.

3.2. Position the pump in the water accordingly, and place the outlet pipe securely in the discharge receptacle or area. It is recommended
that the pump is sunk with its discharge outlet facing up, to release any trapped air.

3.3. Connect the pump to the electrical mains supply and switch it on.

3.4. USING AS A CONVENTIONAL SUBMERSIBLE PUMP: The pump will turn on automatically as the level of water rises (fig.1.A). As the

water level lowers, the float will switch the pump off automatically as it reaches the minimum height (fig.1.B). The float may be adjusted
by shortening or lengthening the cable (fig.2). The pump will switch on if the water level is up to or above the maximum length of the
float cable. To function correctly the float must move freely. Ensure the float can do so and that the cable is not restricted. Check that
the pump and discharge are working correctly.

g.1

g.2
