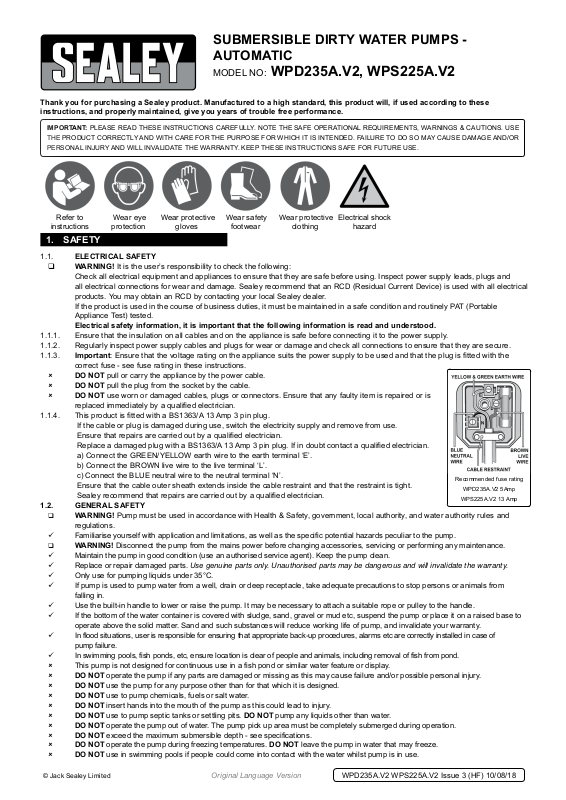

SUBMERSIBLE DIRTY WATER PUMPS -
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
AUTOMATIC
MODEL NO: WPD235A.V2, WPS225A.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
Electrical shock
hazard
1. SAFETY
1.1. ELECTRICAL SAFETY
WARNING! It is the user’s responsibility to check the following:
Check all electrical equipment and appliances to ensure that they are safe before using. Inspect power supply leads, plugs and
all electrical connections for wear and damage. Sealey recommend that an RCD (Residual Current Device) is used with all electrical
products. You may obtain an RCD by contacting your local Sealey dealer.
If the product is used in the course of business duties, it must be maintained in a safe condition and routinely PAT (Portable
Appliance Test) tested.
Electrical safety information, it is important that the following information is read and understood.
1.1.1. Ensure that the insulation on all cables and on the appliance is safe before connecting it to the power supply.
1.1.2. Regularly inspect power supply cables and plugs for wear or damage and check all connections to ensure that they are secure.
1.1.3. Important: Ensure that the voltage rating on the appliance suits the power supply to be used and that the plug is tted with the
correct fuse - see fuse rating in these instructions.
8 DO NOT pull or carry the appliance by the power cable.
8 DO NOT pull the plug from the socket by the cable.
8 DO NOT use worn or damaged cables, plugs or connectors. Ensure that any faulty item is repaired or is
replaced immediately by a qualied electrician.
1.1.4. This product is tted with a BS1363/A 13 Amp 3 pin plug.
If the cable or plug is damaged during use, switch the electricity supply and remove from use.
Ensure that repairs are carried out by a qualied electrician.
Replace a damaged plug with a BS1363/A 13 Amp 3 pin plug. If in doubt contact a qualied electrician.
a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.
Ensure that the cable outer sheath extends inside the cable restraint and that the restraint is tight.
Sealey recommend that repairs are carried out by a qualied electrician.
1.2. GENERAL SAFETY
WARNING! Pump must be used in accordance with Health & Safety, government, local authority, and water authority rules and
regulations.
9 Familiarise yourself with application and limitations, as well as the specific potential hazards peculiar to the pump.
WARNING! Disconnect the pump from the mains power before changing accessories, servicing or performing any maintenance.
9 Maintain the pump in good condition (use an authorised service agent). Keep the pump clean.
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Only use for pumping liquids under 35°C.
9 If pump is used to pump water from a well, drain or deep receptacle, take adequate precautions to stop persons or animals from
falling in.
9 Use the built-in handle to lower or raise the pump. It may be necessary to attach a suitable rope or pulley to the handle.
9 If the bottom of the water container is covered with sludge, sand, gravel or mud etc, suspend the pump or place it on a raised base to
operate above the solid matter. Sand and such substances will reduce working life of pump, and invalidate your warranty.
9 In flood situations, user is responsible for ensuring that appropriate back-up procedures, alarms etc are correctly installed in case of
pump failure.
9 In swimming pools, fish ponds, etc, ensure location is clear of people and animals, including removal of fish from pond.
8 This pump is not designed for continuous use in a fish pond or similar water feature or display.
8 DO NOT operate the pump if any parts are damaged or missing as this may cause failure and/or possible personal injury.
8 DO NOT use the pump for any purpose other than for that which it is designed.
8 DO NOT use to pump chemicals, fuels or salt water.
8 DO NOT insert hands into the mouth of the pump as this could lead to injury.
8 DO NOT use to pump septic tanks or settling pits. DO NOT pump any liquids other than water.
8 DO NOT operate the pump out of water. The pump pick up area must be completely submerged during operation.
8 DO NOT exceed the maximum submersible depth - see specifications.
8 DO NOT operate the pump during freezing temperatures. DO NOT leave the pump in water that may freeze.
8 DO NOT use in swimming pools if people could come into contact with the water whilst pump is in use.
© Jack Sealey Limited
Original Language Version
WPD235A.V2 WPS225A.V2 Issue 3 (HF) 10/08/18
Recommended fuse rating
WPD235A.V2 5Amp
WPS225A.V2 13 Amp
Page 2
8 DO NOT use for pumping sea water or inflammable, corrosive, explosive or dangerous liquids.
8 DO NOT carry the pump by its electrical cable, or outlet pipe. Use the handle only.
8 When not in use switch off pump and remove plug from power supply. Rinse pump, drain out any water and store in a frost free, safe
location.
WARNING! DO NOT allow uncontrolled discharge of contaminated water which would pollute the environment.
2. INTRODUCTION
Manufactured from corrosion resistant materials with - stainless steel motor case and Noryl® base cover - WPD235A.V2
- Stainless steel body and motor case - WPS225A.V2
Fitted with automatic cut-out. Designed for operation in dense and dirty water. Suitable for the effective drainage of cellars, sinks, cisterns,
baths and the general transfer of water and dense liquids.
3. SPECIFICATION
Model No: ........................................................WPD235A.V2 ............................................ WPS225A.V2
Cut-Out: ................................................................. Automatic .................................................. Automatic
Maximum Head: ..............................................................8mtr ........................................................ 7.5mtr
Maximum Output/Min: ........................................ 217ltr(47gal) .............................................. 225ltr(49gal)
Maximum Particle Size: ................................................ 35mm ........................................................ 15mm
Maximum Water Depth: ...................................................7mtr ........................................................... 5mtr
Minimum Water Depth: ................................................. 40mm ........................................................ 30mm
Motor Power: .................................................................750W ......................................................... 750W
Nett Weight: ................................................................5.15Kg ....................................................... 5.98Kg
Outlet OD: ................................................................. Ø38mm ......................................................Ø38mm
Supply: ...........................................................................230V .......................................................... 230V
WPD235A.V2
WPS235A.V2
g.2
g.1
4. OPERATION
WARNING! Ensure you read, understand and apply safety instructions.
4.1. Fit appropriate discharge pipe to pump outlet and secure with clip. Ensure the diameter of the discharge pipe is the same as, or
greater than, the outlet diameter. A smaller pipe will adversely effect the pump flow rate.
4.2. Position pump in the water, and place the outlet pipe securely in the discharge receptacle or area. We recommend the pump is
submerged with its discharge outlet facing up to release any trapped air.
4.3. Plug the pump into the electrical mains supply and switch on. The pump will automatically turn on as the level of water rises (fig.1.A).
As water level lowers, the float will automatically switch the pump off as it reaches the minimum height (B). Float may be adjusted
by shortening or lengthening the cable. The pump will switch on if the water level is up to or above the maximum length of the float
cable. To function correctly the float must move freely. Ensure the float can do so and that the cable is not restricted. Check
© Jack Sealey Limited
Original Language Version
WPD235A.V2 WPS225A.V2 Issue 3 (HF) 10/08/18
Page 3
that the pump and discharge are working correctly.
4.4. The water into which the pump is placed will act as the motor cooling agent. For this reason the pump must remain submerged at all
times. Should the pump have to be used in shallow water DO NOT operate for more than 10 minutes. Failure to follow this rule will
damage the unit and will invalidate your warranty.
NOTE: See fig.2 to determine minimum clearance required if using pump in a restricted area i.e. well, etc.
5. MAINTENANCE
WARNING! With the exception listed below, all pump, float and electrical cable service maintenance and repair must only be
undertaken by an authorised service agent. Failure to observe this rule may be dangerous and will invalidate your warranty.
WARNING! Ensure the pump is disconnected from the mains power supply before attempting any service or maintenance.
5.1. Keep all parts of the pump clean. Rinse, drain and allow to dry before storing pump.
5.2. Regularly check the water inlet on the base of the pump to ensure there are no blockages. To access the impeller carefully undo the
base hex headed screws and remove base. Clean impeller and replace base ensuring that the O ring is correctly located.
8 DO NOT dismantle any other part of the unit.
TROUBLESHOOTING
a. Motor operates but
there is no suction.
b. Reduced water
volume for level
of water
c. The pump will not
start or suddenly
stops during
operation.
1. Water level below min suction depth.
2. Air bubbles in pump accumulated during submersion,
or float is incorrectly positioned so pump does not stop
at minimum level and sucks in air.
3. Clogged intake filter or discharge pipe.
1. Discharge pipe bent, or pinched.
2. Discharge pipe too narrow.
3. Pump partially blocked.
1. No electrical power.
2. Float not working.
3. Impeller is jammed.
1. Stop the pump.
2. Release air by inclining the pump and
re-immersing it in water.
3. Remove blockage, and clean the unit.
1. Straighten pipe.
2. Use wider diameter pipe.
3. Clean pump.
1. Check cable, plug and fuse.
2. Contact authorised service agent.
3. Clean the pump.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
WEEE REGULATIONS
Dispose of this product at the end of its working life in compliance with the EU Directive on Waste Electrical and Electronic Equipment
(WEEE). When the product is no longer required, it must be disposed of in an environmentally protective way. Contact your local solid
waste authority for recycling information.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
© Jack Sealey Limited
Original Language Version
WPD235A.V2 WPS225A.V2 Issue 3 (HF) 10/08/18
