INSTRUCTIONS FOR:
BRAKE PISTON WIND-BACK
TOOl KIT - 30 PIECE
MODEL NO:
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and properly
maintained, give you years of trouble free performance.
IMPORTANT: PlEASE READ THESE INSTRuCTIONS CAREFullY. NOTE THE SAFE OPERATIONAl REQuIREMENTS, WARNINGS AND CAuTIONS.
uSE THE PRODuCT CORRECTlY AND WITH CARE FOR THE PuRPOSE FOR WHICH IT IS INTENDED. FAIluRE TO DO SO MAY CAuSE DAMAGE
AND/OR PERSONAl INJuRY AND WIll INVAlIDATE THE WARRANTY. PlEASE KEEP INSTRuCTIONS SAFE FOR FuTuRE uSE.
1. SAFETY INSTRuCTIONS
WARNING! Ensure all Health and Safety, local authority, and general workshop practice regulations are strictly adhered to
when using tools.
DO NOT use tools if damaged or worn.
Maintain the tools in good and clean condition for best and safest performance.
Ensure all threads are clean and well lubricated.
Ensure that a vehicle which is jacked up is adequately supported with axle stands, ramps, etc. as appropriate.
Wear suitable clothing to avoid snagging. DO NOT wear jewellery. Tie back long hair.
Wear approved eye protection. A full range of personal safety equipment is available from your Sealey dealer.
Account for all tools and parts being used and do not leave them in or on the vehicle. Store all parts in the case
provided when not in use, store case in a safe, dry and child-proof location.
IMPORTANT: Always refer to the vehicle manufacturer’s service instructions, or proprietary manual, to establish the correct
procedure and data. These instructions for use are provided as a guide only.
WARNING! The warnings, cautions and instructions discussed in this document cannot cover all possible
conditions and situations that may occur. It must be understood that common sense and caution are factors which
cannot be built into this product, but must be applied by the operator.
2. INTRODuCTION
Large set of adaptors, suiting a wide range of vehicle applications. Suitable for push-back and wind-back brake pistons. Includes
both left-handed and right-handed thrust bolt assemblies. Left-handed thrust bolt required for Ford, Citroen and Renault
applications. Precision made adaptor plates with thrust bolt assembly and reaction plate. Kit helps prevent damage to pistons and
seals. All components of the kit are coded - for applications see chart overleaf.
VS0285.V2
Original Language Version
VS0285.V2 Issue: 2 - 23/09/10

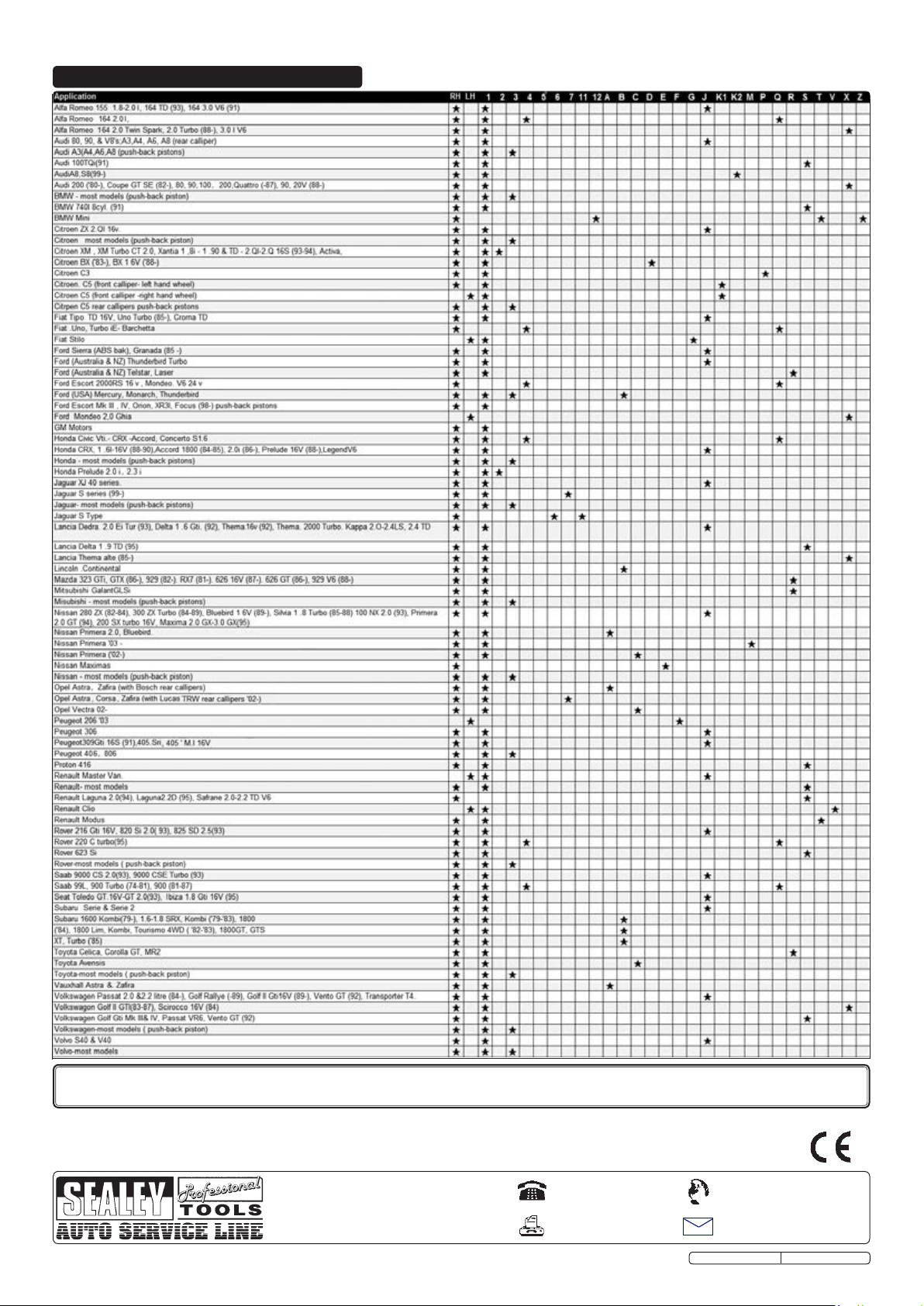

3. APPlICATION CHART
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or phone 01284 757500.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
