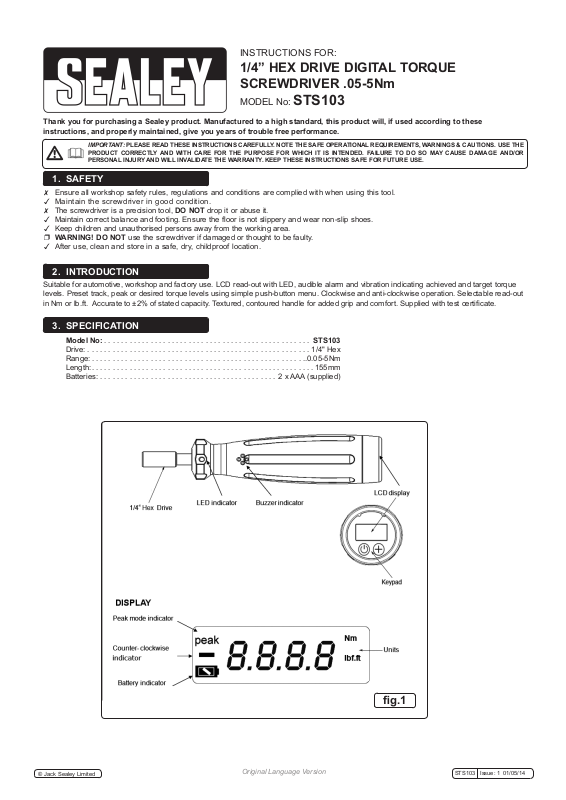

INSTRUCTIONS FOR:
1/4” HEX DRIVE DIGITAL TORQUE
SCREWDRIVER .05-5Nm
MODEL No: STS103
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE
PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Ensure all workshop safety rules, regulations and conditions are complied with when using this tool.
Maintain the screwdriver in good condition.
The screwdriver is a precision tool, DO NOT drop it or abuse it.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Keep children and unauthorised persons away from the working area.
WARNING! DO NOT use the screwdriver if damaged or thought to be faulty.
After use, clean and store in a safe, dry, childproof location.
2. INTRODUCTION
Suitable for automotive, workshop and factory use. LCD read-out with LED, audible alarm and vibration indicating achieved and target torque
levels. Preset track, peak or desired torque levels using simple push-button menu. Clockwise and anti-clockwise operation. Selectable read-out
in Nm or lb.ft. Accurate to ±2% of stated capacity. Textured, contoured handle for added grip and comfort. Supplied with test certicate.
3. SPECIFICATION
Model No: ................................................. STS103
Drive: .....................................................1/4" Hex
Range: ....................................................0.05-5Nm
Length:.....................................................155mm
Batteries: . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 2 x AAA (supplied)
© Jack Sealey Limited
Original Language Version
g.1
STS103 Issue: 1 01/05/14
g.2
© Jack Sealey Limited
Original Language Version
STS103 Issue: 1 01/05/14
