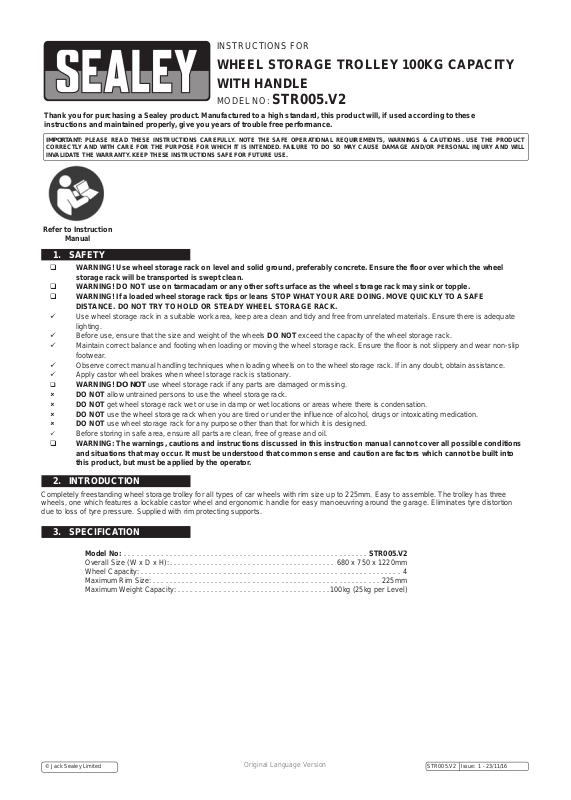

INSTRUCTIONS FOR
WHEEL STORAGE TROLLEY 100KG CAPACITY
WITH HANDLE
MODEL NO: STR005.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
Refer to Instruction
Manual
1. SAFETY
WARNING! Use wheel storage rack on level and solid ground, preferably concrete. Ensure the floor over which the wheel
storage rack will be transported is swept clean.
WARNING! DO NOT use on tarmacadam or any other soft surface as the wheel storage rack may sink or topple.
WARNING! If a loaded wheel storage rack tips or leans STOP WHAT YOUR ARE DOING. MOVE QUICKLY TO A SAFE
DISTANCE. DO NOT TRY TO HOLD OR STEADY WHEEL STORAGE RACK.
9 Use wheel storage rack in a suitable work area, keep area clean and tidy and free from unrelated materials. Ensure there is adequate
lighting.
9 Before use, ensure that the size and weight of the wheels DO NOT exceed the capacity of the wheel storage rack.
9 Maintain correct balance and footing when loading or moving the wheel storage rack. Ensure the floor is not slippery and wear non-slip
footwear.
9 Observe correct manual handling techniques when loading wheels on to the wheel storage rack. If in any doubt, obtain assistance.
9 Apply castor wheel brakes when wheel storage rack is stationary.
WARNING! DO NOT use wheel storage rack if any parts are damaged or missing.
8 DO NOT allow untrained persons to use the wheel storage rack.
8 DO NOT get wheel storage rack wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT use the wheel storage rack when you are tired or under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT use wheel storage rack for any purpose other than that for which it is designed.
9 Before storing in safe area, ensure all parts are clean, free of grease and oil.
WARNING: The warnings, cautions and instructions discussed in this instruction manual cannot cover all possible conditions
and situations that may occur. It must be understood that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
2. INTRODUCTION
Completely freestanding wheel storage trolley for all types of car wheels with rim size up to 225mm. Easy to assemble. The trolley has three
wheels, one which features a lockable castor wheel and ergonomic handle for easy manoeuvring around the garage. Eliminates tyre distortion
due to loss of tyre pressure. Supplied with rim protecting supports.
3. SPECIFICATION
Model No: ...........................................................STR005.V2
Overall Size (W x D x H): ........................................ 680 x 750 x 1220mm
Wheel Capacity:...............................................................4
Maximum Rim Size: ....................................................... 225mm
Maximum Weight Capacity: .....................................100kg (25kg per Level)
© Jack Sealey Limited
Original Language Version
STR005.V2 Issue: 1 - 23/11/16
4. ASSEMBLY
4.1. Assemble as in fig. 1.
g.1
1 “U” Square tube x1
2 Square level x1
3 Plastic base x1
4 Bent tube x2
5 “U” Round tube x1
6 Aluminium tube x1
7 Aluminium tube top x1
8 Plastic plate x4
1
M8x40mm bolt x6
M8 washer x6
2
3
M8 Nut x2
4
M6x35mm Round bolt x2
5
M6 Washer x2
6
M6 Nut x2
7
Round bolt x4
5. OPERATION
WARNING! If loading only one or two wheels DO NOT load them on the upper
section. This will affect the stability of the trolley and may cause damage and/or
injury.
5.1. Make sure path to the storage location is level, clear and free from debris.
5.2. Release brake on the castor (g.2) and reapply the brake once the rack is in its
desired location.
5.3. When not in use, store assembled in a safe, dry, childproof location.
6. MAINTENANCE
6.1. Keep the trolley clean.
6.2. Oil the wheels periodically.
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
g.2
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal of it according to local regulation
NOTE: It is our policy to improve products continually and as such we reserve the right to alter data, specifications and component parts without
prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
© Jack Sealey Limited
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
Environmental Protection
s.
Original Language Version
01284 757500
01284 703534
www.sealey.co.uk
sales@sealey.co.uk
STR005.V2 Issue: 1 - 23/11/16
