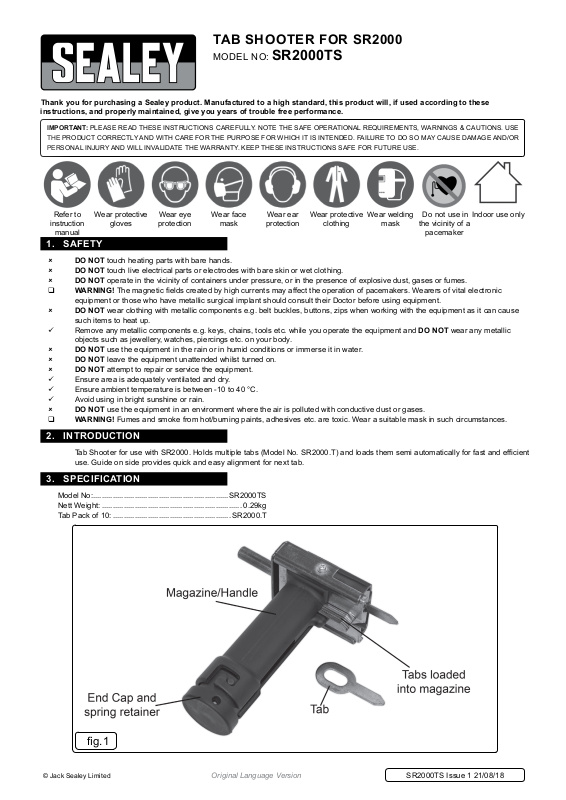

Page 1
TAB SHOOTER FOR SR2000
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
MODEL NO: SR2000TS
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
Refer to
instruction
manual
Wear protective
gloves
Wear eye
protection
Wear face
mask
Wear ear
protection
Wear protective
clothing
Wear welding
mask
Do not use in
the vicinity of a
pacemaker
Indoor use only
1. SAFETY
8 DO NOT touch heating parts with bare hands.
8 DO NOT touch live electrical parts or electrodes with bare skin or wet clothing.
8 DO NOT operate in the vicinity of containers under pressure, or in the presence of explosive dust, gases or fumes.
WARNING! The magnetic elds created by high currents may aect the operation of pacemakers. Wearers of vital electronic
equipment or those who have metallic surgical implant should consult their Doctor before using equipment.
8 DO NOT wear clothing with metallic components e.g. belt buckles, buttons, zips when working with the equipment as it can cause
such items to heat up.
9 Remove any metallic components e.g. keys, chains, tools etc. while you operate the equipment and DO NOT wear any metallic
objects such as jewellery, watches, piercings etc. on your body.
8 DO NOT use the equipment in the rain or in humid conditions or immerse it in water.
8 DO NOT leave the equipment unattended whilst turned on.
8 DO NOT attempt to repair or service the equipment.
9 Ensure area is adequately ventilated and dry.
9 Ensure ambient temperature is between -10 to 40 °C.
9 Avoid using in bright sunshine or rain.
8 DO NOT use the equipment in an environment where the air is polluted with conductive dust or gases.
WARNING! Fumes and smoke from hot/burning paints, adhesives etc. are toxic. Wear a suitable mask in such circumstances.
2. INTRODUCTION
Tab Shooter for use with SR2000. Holds multiple tabs (Model No. SR2000.T) and loads them semi automatically for fast and ecient
use. Guide on side provides quick and easy alignment for next tab.
3. SPECIFICATION
Model No: ..............................................................SR2000TS
Nett Weight: ................................................................ 0.29kg
Tab Pack of 10: ......................................................SR2000.T

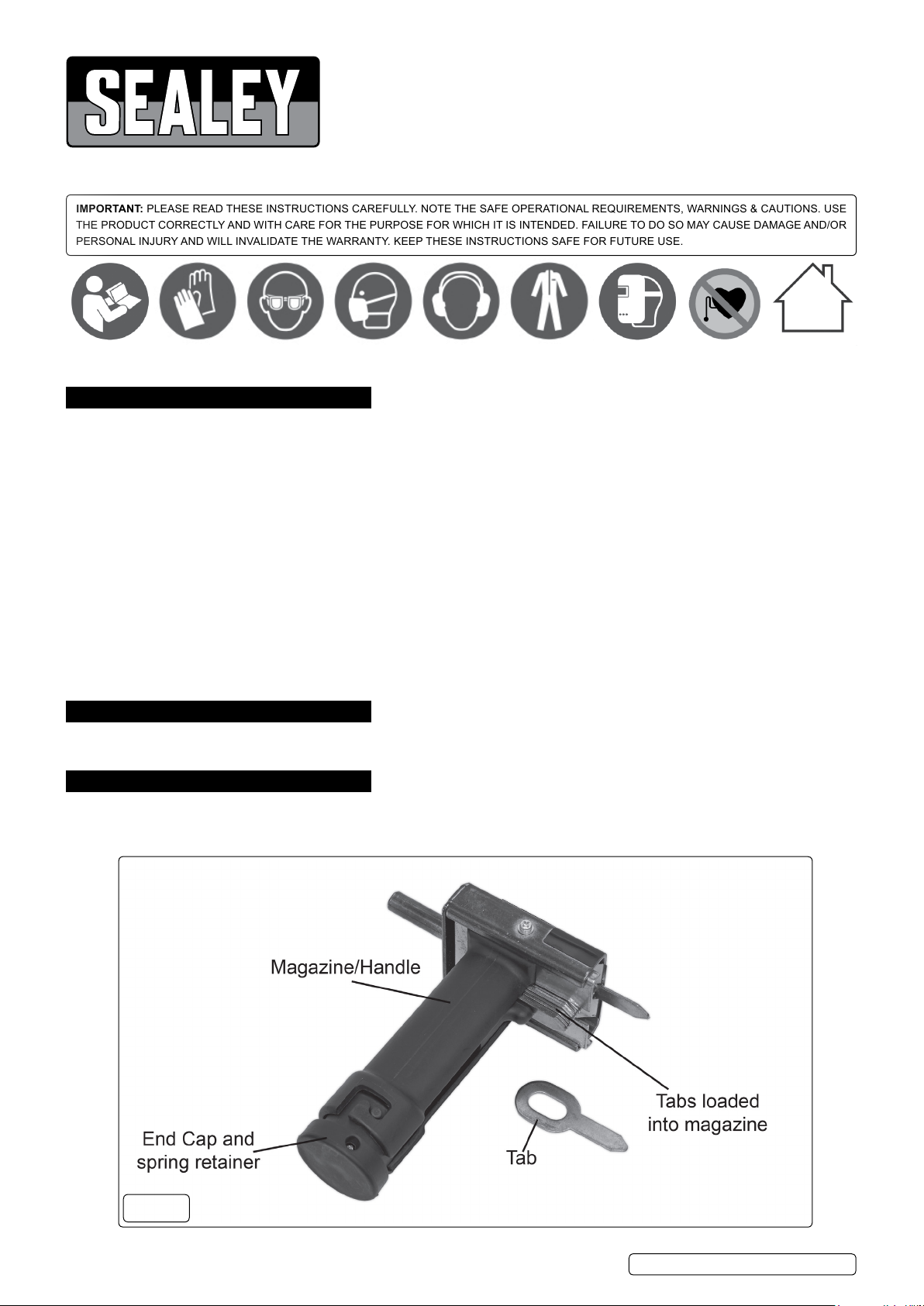

g.1
© Jack Sealey Limited
Original Language Version
SR2000TS Issue 1 21/08/18

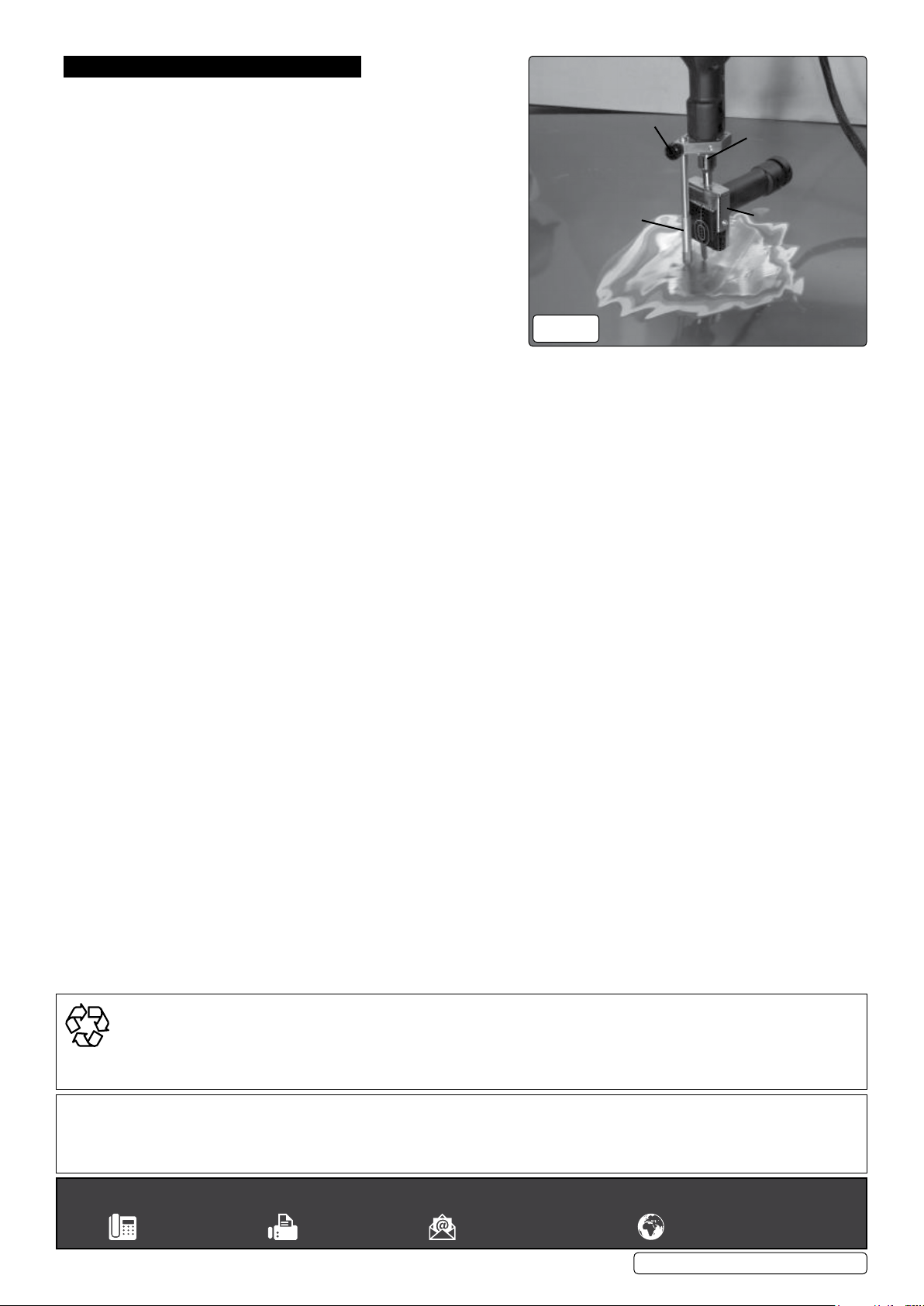

Page 2
4. OPERATION
Ground Pin
locking screw
Ground Pin
Collet lock nut
Tab Shooter
4.1. Disconnect equipment from power supply.
4.1.1. Insert tab shooter into collet of stud welder and secure with collet lock
nut.
4.2. Insert tabs into the magazine.
4.2.1. Slide handle of tab shooter down and up so that a tab is sticking out
from the tab shooter.
4.2.2. Adjust the ground pin such that the tip of the tab protrudes 4mm past
the end of the ground pin (g.2.)
4.3. Loading the tab shooter
4.3.1. Unhook the end cap on the handle, be aware of the spring inside the
handle. This keeps the tabs in-place inside the magazine.
4.4. Operating the tab shooter
4.4.1. Once the tab shooter is set up in the machine, slide the handle down
and then up. This action will make a tab protrude out of the bottom
of the device. The tab will be held rmly by the tab shooter until you
pull the machine away from the work.
g.2
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
© Jack Sealey Limited
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Original Language Version
SR2000TS Issue 1 21/08/18
