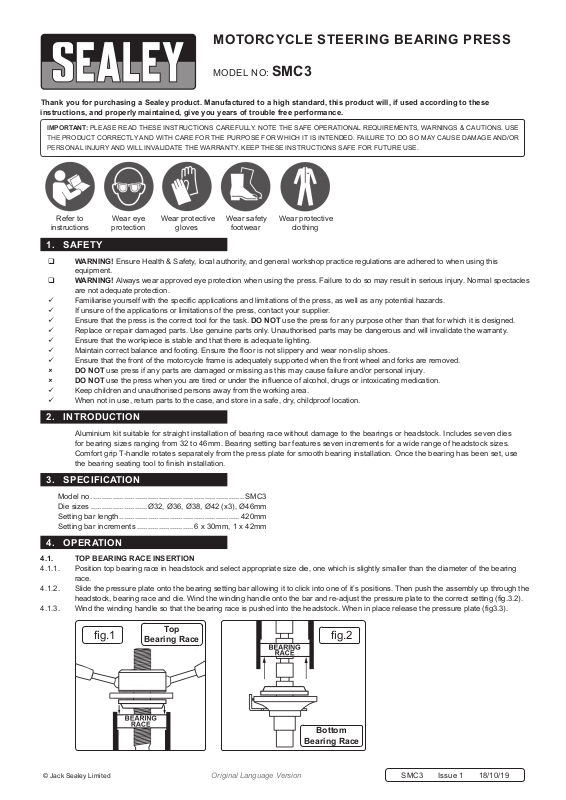

MOTORCYCLE STEERING BEARING PRESS
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
MODEL NO: SMC3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear safety
footwear
Wear protective
clothing
1. SAFETY
WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment.
WARNING! Always wear approved eye protection when using the press. Failure to do so may result in serious injury. Normal spectacles
are not adequate protection.
9 Familiarise yourself with the specific applications and limitations of the press, as well as any potential hazards.
9 If unsure of the applications or limitations of the press, contact your supplier.
9 Ensure that the press is the correct tool for the task. DO NOT use the press for any purpose other than that for which it is designed.
9 Replace or repair damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Ensure that the workpiece is stable and that there is adequate lighting.
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Ensure that the front of the motorcycle frame is adequately supported when the front wheel and forks are removed.
8 DO NOT use press if any parts are damaged or missing as this may cause failure and/or personal injury.
8 DO NOT use the press when you are tired or under the influence of alcohol, drugs or intoxicating medication.
9 Keep children and unauthorised persons away from the working area.
9 When not in use, return parts to the case, and store in a safe, dry, childproof location.
2. INTRODUCTION
Aluminium kit suitable for straight installation of bearing race without damage to the bearings or headstock. Includes seven dies
for bearing sizes ranging from 32 to 46mm. Bearing setting bar features seven increments for a wide range of headstock sizes.
Comfort grip T-handle rotates separately from the press plate for smooth bearing installation. Once the bearing has been set, use
thebearingseatingtooltonishinstallation.
3. SPECIFICATION
Model no. ..................................................................... SMC3
Die sizes ..........................Ø32, Ø36, Ø38, Ø42 (x3), Ø46mm
Setting bar length ....................................................... 420mm
Setting bar increments .......................... 6 x 30mm, 1 x 42mm
4. OPERATION
4.1. TOP BEARING RACE INSERTION
4.1.1. Position top bearing race in headstock and select appropriate size die, one which is slightly smaller than the diameter of the bearing
race.
4.1.2. Slide the pressure plate onto the bearing setting bar allowing it to click into one of it’s positions. Then push the assembly up through the
headstock, bearing race and die. Wind the winding handle onto the bar and re-adjust the pressure plate to the correct setting (fig.3.2).
4.1.3. Wind the winding handle so that the bearing race is pushed into the headstock. When in place release the pressure plate (fig3.3).

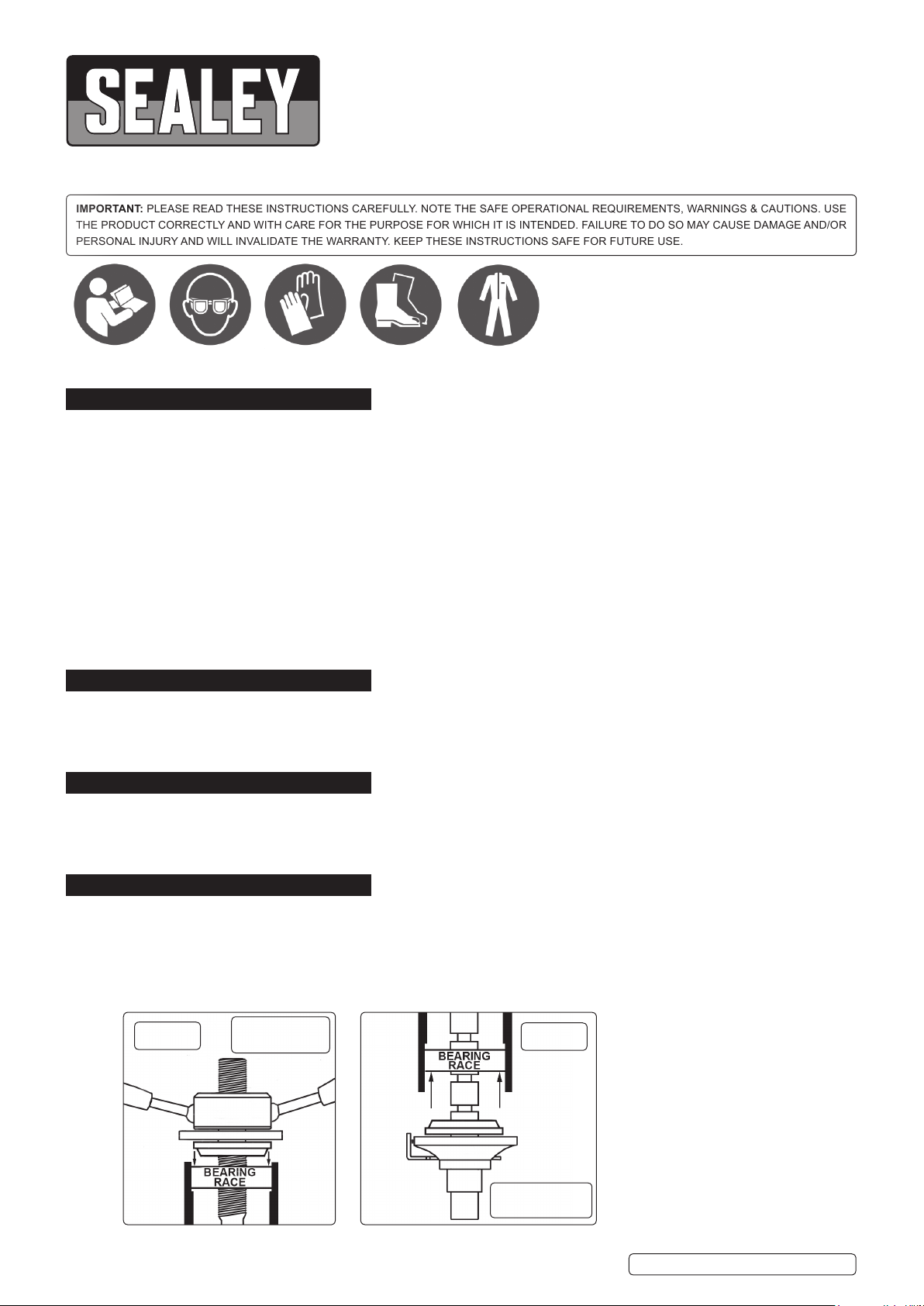

g.1
© Jack Sealey Limited
Top
Bearing Race
Original Language Version
g.2
Bottom
Bearing Race
SMC3 Issue 1 18/10/19
Page 2
4.2. BOTTOM BEARING RACE INSERTION
4.2.1. Position bottom bearing race in headstock and select appropriate size die, one which is slightly smaller than the diameter of the
bearing race.
4.2.2. Slide the pressure plate onto the bearing setting bar, allowing it to click into one of it’s positions (fig.3.4). Continue to wind the winding
handle onto the bar so that the bearing race is pushed into the headstock (fig.3.5). When in place release the pressure plate and
remove the assembly from the headstock.
4.2.3. To ensure that both bearing races are fully driven home, place the die onto the die handle, position it over the bearing race and using a
soft faced hammer, drive the bearing race home. Return all parts to the case, and store in a safe, dry, childproof location.

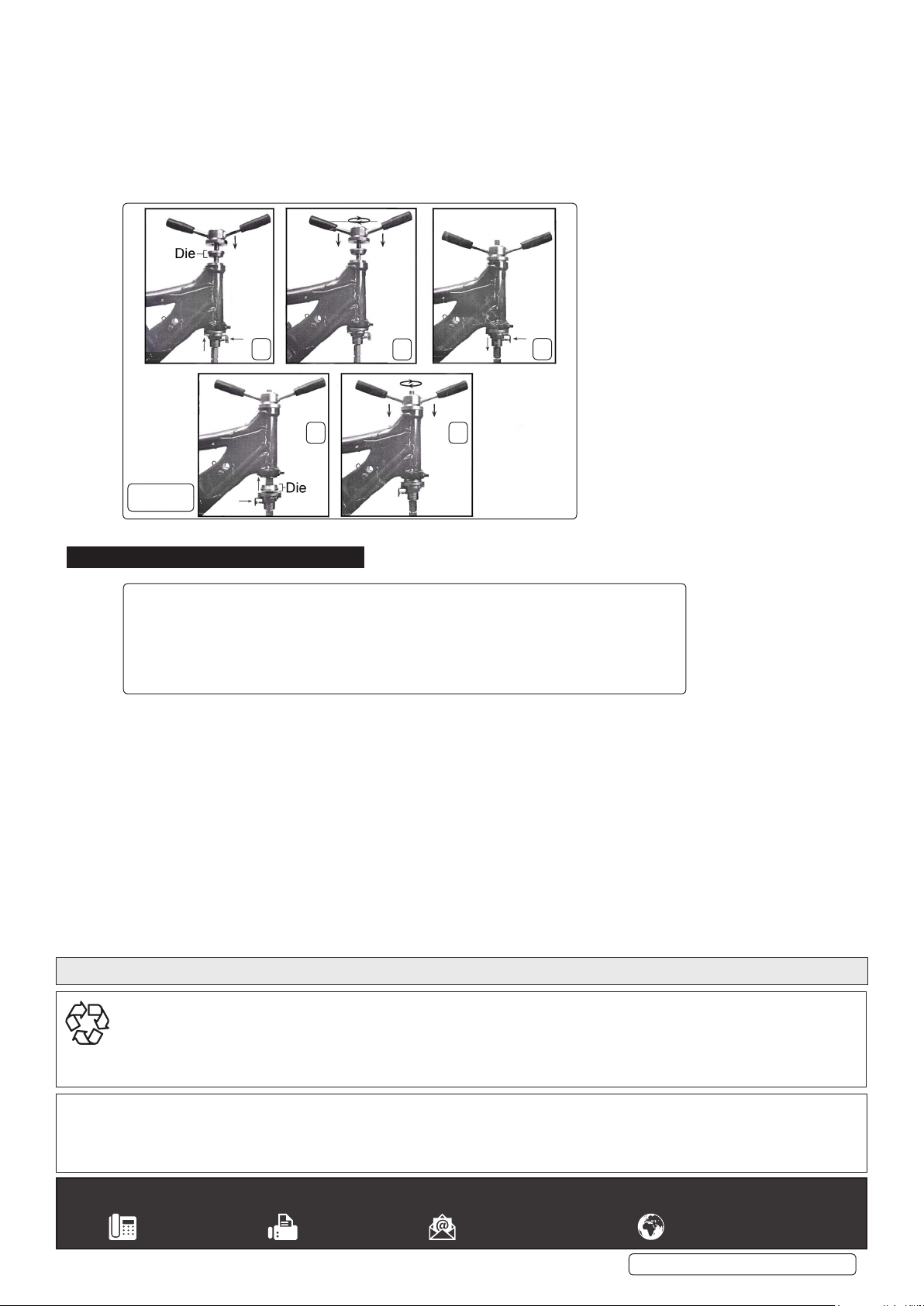

g.3
5. PARTS
SMC3.01 STEP DIE 32mm
SMC3.02 STEP DIE 36mm
SMC3.03 STEP DIE 38mm
SMC3.04-6 STEP DIE 42mm
SMC3.07 STEP DIE 46mm
SMC.08 DRIVE HANDLE
SMC.09 SLIDING PRESS PLATE
SMC.10 HEX SHAFT
1
2
3
4 5
SMC3.11 SLIDING LEVER
SMC3.12 HANDLE
SMC3.13 BLOW MOULD CASE
Parts support is available for these products. Please email [email protected] or telephone 01284 757500
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
Sealey Group, Kempson Way, Suffolk Business Park, Bury St Edmunds, Suffolk. IP32 7AR
© Jack Sealey Limited
Original Language Version
SMC3 Issue 1 18/10/19
