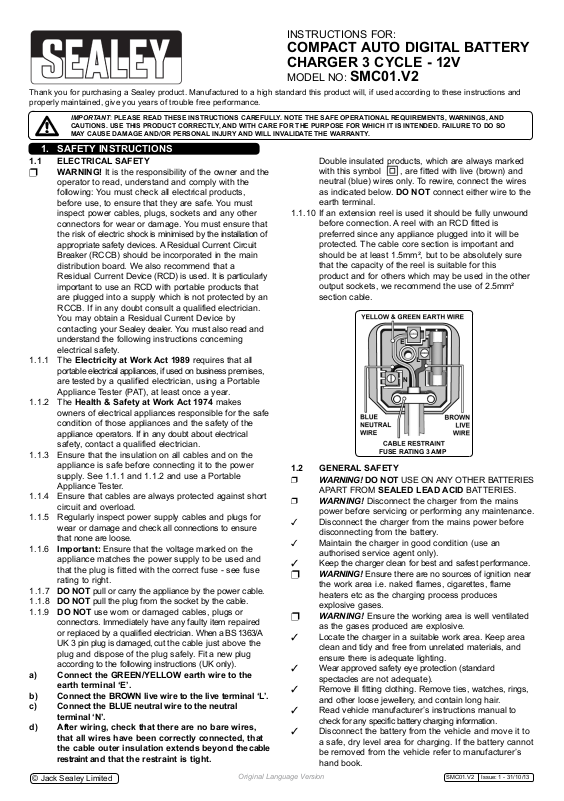

INSTRUCTIONS FOR:
COMPACT AUTO DIGITAL BATTERY
CHARGER 3 CYCLE - 12V
MODEL NO: SMC01.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
1. SAFETY INSTRUCTIONS
1.1 ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the
operator to read, understand and comply with the
following: You must check all electrical products,
before use, to ensure that they are safe. You must
inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that
the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit
Breaker (RCCB) should be incorporated in the main
distribution board. We also recommend that a
Residual Current Device (RCD) is used. It is particularly
important to use an RCD with portable products that
are plugged into a supply which is not protected by an
RCCB. If in any doubt consult a qualified electrician.
You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and
understand the following instructions concerning
electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all
portable electrical appliances, if used on business premises,
are tested by a qualified electrician, using a Portable
Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes
owners of electrical appliances responsible for the safe
condition of those appliances and the safety of the
appliance operators. If in any doubt about electrical
safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the
appliance is safe before connecting it to the power
supply. See 1.1.1 and 1.1.2 and use a Portable
Appliance Tester.
1.1.4 Ensure that cables are always protected against short
circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for
wear or damage and check all connections to ensure
that none are loose.
1.1.6 Important: Ensure that the voltage marked on the
appliance matches the power supply to be used and
that the plug is fitted with the correct fuse - see fuse
rating to right.
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or
connectors. Immediately have any faulty item repaired
or replaced by a qualified electrician. When a BS 1363/A
UK 3 pin plug is damaged, cut the cable just above the
plug and dispose of the plug safely. Fit a new plug
according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the
earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral
terminal ‘N’.
d) After wiring, check that there are no bare wires,
that all wires have been correctly connected, that
the cable outer insulation extends beyond the cable
restraint and that the restraint is tight.
© Jack Sealey Limited
Original Language Version
Double insulated products, which are always marked
with this symbol , are fitted with live (brown) and
neutral (blue) wires only. To rewire, connect the wires
as indicated below. DO NOT connect either wire to the
earth terminal.
1.1.10 If an extension reel is used it should be fully unwound
before connection. A reel with an RCD fitted is
preferred since any appliance plugged into it will be
protected. The cable core section is important and
should be at least 1.5mm², but to be absolutely sure
that the capacity of the reel is suitable for this
product and for others which may be used in the other
output sockets, we recommend the use of 2.5mm²
section cable.
FUSE RATING 3 AMP
1.2 GENERAL SAFETY
WARNING!DO NOT USE ON ANY OTHER BATTERIES
APART FROM SEALED LEAD ACID BATTERIES.
WARNING!Disconnect the charger from the mains
power before servicing or performing any maintenance.
Disconnect the charger from the mains power before
disconnecting from the battery.
Maintain the charger in good condition (use an
authorised service agent only).
Keep the charger clean for best and safest performance.
WARNING! Ensure there are no sources of ignition near
the work area i.e. naked flames, cigarettes, flame
heaters etc as the charging process produces
explosive gases.
WARNING! Ensure the working area is well ventilated
as the gases produced are explosive.
Locate the charger in a suitable work area. Keep area
clean and tidy and free from unrelated materials, and
ensure there is adequate lighting.
Wear approved safety eye protection (standard
spectacles are not adequate).
Remove ill fitting clothing. Remove ties, watches, rings,
and other loose jewellery, and contain long hair.
Read vehicle manufacturer’s instructions manual to
check for any specific battery charging information.
Disconnect the battery from the vehicle and move it to
a safe, dry level area for charging. If the battery cannot
be removed from the vehicle refer to manufacturer’s
hand book.
SMC01.V2 Issue: 1 -
31/10/13
Clean the charger clamps and battery terminals to
remove any oxidation.
Ensure the correct clamp polarity is observed when
connecting to the battery. Positive is indicated by (+)
and is Red, negative is indicated by (-) and is black.
DO NOT pull or carry the charger by its power supply
lead. Products must not be pulled or carried by their
output cables.
DO NOT pull power plugs from sockets by the power
cable.
DO NOT attempt to charge a non-rechargeable battery.
DO NOT use the charger for any purpose other than
that for which it is designed.
DO NOT allow the charger terminal clamps to touch
each other when the power is on. Remember that
gases are produced which may ignite if sparks occur.
DO NOT place the charger inside the vehicle.
Remove the battery to a safe distance for charging.
DO NOT get the charger wet or use in damp or wet
locations or areas where there is condensation.
DO NOT operate the charger if damaged.
DO NOT attempt to modify or open the charger.
DO NOT charge the battery with the engine running.
DO NOT charge a frozen battery.
When not in use unplug from the mains power supply
and store in a safe, dry, childproof area.
DO NOT allow untrained persons to operate the charger.
This appliance is not intended for use by persons
with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given instruction concerning the use of the
appliance and are supervised by a person responsible
for their safety.
Keep children and unauthorised persons away from the
working area. Children must not use the charger and should
be constantly supervised to ensure they do not play with the
charger.
WARNING!Be vigilant and cautious during the
operation of battery charging as the electrolyte is
highly corrosive and any gases emitted are explosive.
DANGER! BE AWARE, LEAD ACID, GEL, AGM,
VRLA, AND LIQUID ELECTROLYTE BATTERIES
GENERATE EXPLOSIVE GASES DURING NORMAL
BATTERY OPERATION. FOR THIS REASON, IT IS
VERY IMPORTANT TO READ AND FOLLOW THESE
INSTRUCTIONS CAREFULLY, EACH TIME YOU
USE THE CHARGER.
Wash immediately with soap and water if battery acid
contacts skin or clothing. If acid enters eye, flush eye
immediately with cool, clean running water for at least
15 minutes and seek immediate medical attention.
Remove personal metallic items such as rings,
bracelets, necklaces and watches. A lead acid
battery can produce a short-circuit current high enough
to weld a ring or similar to metal, which would cause
severe burns.
Ensure hands and clothing are clear of fan blades,
belts and other moving or hot parts of engine.
Remove ties and contain long hair.
DO NOT smoke or allow a spark or flame in the vicinity
of battery or engine.
2. INTRODUCTION
Fully automatic 3-cycle switch mode charger and
maintainer designed for charging a variety of batteries: SLA,
WET, AGM and VRLA. You know exactly how the charger is
performing; the LED’s display indicates power on charging
phase and full. Charger will recover slightly sulphated batteries
and may rescue drained batteries. Supplied with multi-fit
charger cables featuring crocodile clips, eyelets, vehicle
accessory plug and hard-wired terminals incorporating a water
tight plug and socket for permanent installation. For
motorcycles and cars. Plug in, connect to the battery and the
charger does the rest.
SPECIFICATION
MODEL NO: SMC01.V2
Input Voltage: 230V
Output Voltage: 12V
Charging Current 2A
Input Current 0.32A
Efciency >80%
Type 3-Cycle
Back Current Drain <1Ah/month
Ambient Temperature -20°C to +50°C
Housing Protection IP44
Dimensions (LxWxH) 198 x 82 x 40.5
Weight: 0.44kg
Follow these instructions and those published by the
battery and vehicle manufacturers and the manufacturer
of any equipment you intend to use in the vicinity of
the battery. Remember to review warning marks on all
products and on engines.
1.3 PERSONAL PRECAUTIONS
Ensure there is another person within hearing range
of your voice, or close enough to come to your aid,
should a problem arise when working near a lead acid
battery.
Wear safety eye protection and protective clothing.
Avoid touching eyes while working near battery.
Have fresh water and soap nearby in case battery acid
contacts skin, clothing or eyes.
© Jack Sealey Limited
Original Language Version
3. CONNECTION TO BATTERY
NOTE: THE CHARGER SHOULD BE CONNECTED TO
THE BATTERY OR THE VEHICLE ACCESSORY SOCKET,
BEFORE CONNECTING TO THE MAINS SUPPLY.
3.1 The output cable from the charger terminates in a socket
into which three alternative leads can be connected. (see
Fig.1)
3.1.1 One lead set (A) has two colour coded battery clamps which
can be quickly attached to and detached from the battery
posts. The other end of the cable terminates with a
plug for connection to the charger lead socket.
3.1.2 The second lead (B) can be connected to the vehicle via
the vehicle accessory socket. The other end of the cable
terminates with a plug for connection to the charger lead
socket.
3.1.3 The third lead (C) is for semi permanent connection to the
battery via eyelets.The other end of the cable terminates
with a plug for connection to the charger lead socket.
SMC01.V2 Issue: 1 -
31/1013
