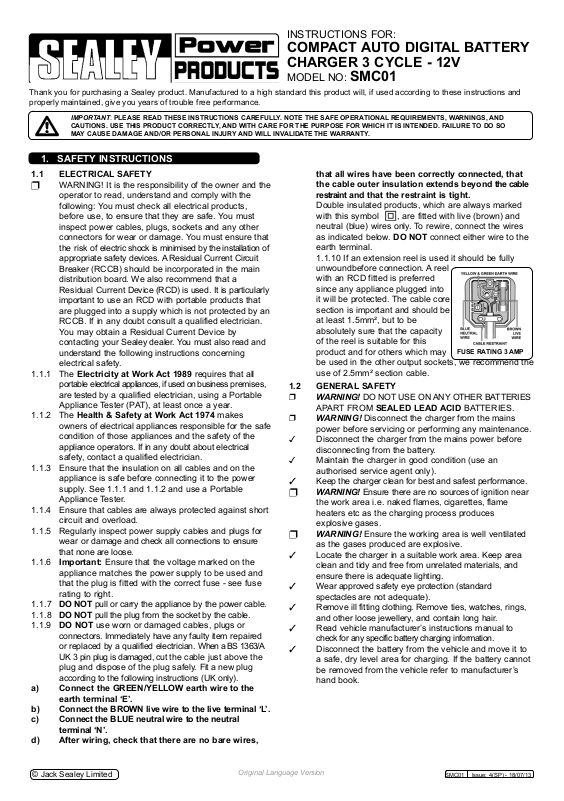

INSTRUCTIONS FOR:
COMPACT AUTO DIGITAL BATTERY
CHARGER 3 CYCLE - 12V
MODEL NO: SMC01
Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions and
properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS, AND
CAUTIONS. USE THIS PRODUCT CORRECTLY, AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO
MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY.
1. SAFETY INSTRUCTIONS
1.1 ELECTRICAL SAFETY
WARNING! It is the responsibility of the owner and the
operator to read, understand and comply with the
following: You must check all electrical products,
before use, to ensure that they are safe. You must
inspect power cables, plugs, sockets and any other
connectors for wear or damage. You must ensure that
the risk of electric shock is minimised by the installation of
appropriate safety devices. A Residual Current Circuit
Breaker (RCCB) should be incorporated in the main
distribution board. We also recommend that a
Residual Current Device (RCD) is used. It is particularly
important to use an RCD with portable products that
are plugged into a supply which is not protected by an
RCCB. If in any doubt consult a qualified electrician.
You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and
understand the following instructions concerning
electrical safety.
1.1.1 The Electricity at Work Act 1989 requires that all
portable electrical appliances, if used on business premises,
are tested by a qualified electrician, using a Portable
Appliance Tester (PAT), at least once a year.
1.1.2 The Health & Safety at Work Act 1974 makes
owners of electrical appliances responsible for the safe
condition of those appliances and the safety of the
appliance operators. If in any doubt about electrical
safety, contact a qualified electrician.
1.1.3 Ensure that the insulation on all cables and on the
appliance is safe before connecting it to the power
supply. See 1.1.1 and 1.1.2 and use a Portable
Appliance Tester.
1.1.4 Ensure that cables are always protected against short
circuit and overload.
1.1.5 Regularly inspect power supply cables and plugs for
wear or damage and check all connections to ensure
that none are loose.
1.1.6 Important: Ensure that the voltage marked on the
appliance matches the power supply to be used and
that the plug is fitted with the correct fuse - see fuse
rating to right.
1.1.7 DO NOT pull or carry the appliance by the power cable.
1.1.8 DO NOT pull the plug from the socket by the cable.
1.1.9 DO NOT use worn or damaged cables, plugs or
connectors. Immediately have any faulty item repaired
or replaced by a qualified electrician. When a BS 1363/A
UK 3 pin plug is damaged, cut the cable just above the
plug and dispose of the plug safely. Fit a new plug
according to the following instructions (UK only).
a) Connect the GREEN/YELLOW earth wire to the
earth terminal ‘E’.
b) Connect the BROWN live wire to the live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral
terminal ‘N’.
d) After wiring, check that there are no bare wires,
© Jack Sealey Limited
Original Language Version
that all wires have been correctly connected, that
the cable outer insulation extends beyond the cable
restraint and that the restraint is tight.
Double insulated products, which are always marked
with this symbol , are fitted with live (brown) and
neutral (blue) wires only. To rewire, connect the wires
as indicated below. DO NOT connect either wire to the
earth terminal.
1.1.10 If an extension reel is used it should be fully
unwoundbefore connection. A reel
with an RCD fitted is preferred
since any appliance plugged into
it will be protected. The cable core
section is important and should be
at least 1.5mm², but to be
absolutely sure that the capacity
of the reel is suitable for this
product and for others which may
be used in the other output sockets, we recommend the
use of 2.5mm² section cable.
1.2 GENERAL SAFETY
WARNING!DO NOT USE ON ANY OTHER BATTERIES
APART FROM SEALED LEAD ACID BATTERIES.
WARNING!Disconnect the charger from the mains
power before servicing or performing any maintenance.
Disconnect the charger from the mains power before
disconnecting from the battery.
Maintain the charger in good condition (use an
authorised service agent only).
Keep the charger clean for best and safest performance.
WARNING! Ensure there are no sources of ignition near
the work area i.e. naked flames, cigarettes, flame
heaters etc as the charging process produces
explosive gases.
WARNING! Ensure the working area is well ventilated
as the gases produced are explosive.
Locate the charger in a suitable work area. Keep area
clean and tidy and free from unrelated materials, and
ensure there is adequate lighting.
Wear approved safety eye protection (standard
spectacles are not adequate).
Remove ill fitting clothing. Remove ties, watches, rings,
and other loose jewellery, and contain long hair.
Read vehicle manufacturer’s instructions manual to
check for any specific battery charging information.
Disconnect the battery from the vehicle and move it to
a safe, dry level area for charging. If the battery cannot
be removed from the vehicle refer to manufacturer’s
hand book.
FUSE RATING 3 AMP
SMC01 Issue: 4(SP) -
18/07/13
Page 2
Clean the charger clamps and battery terminals to
remove any oxidation.
Ensure the correct clamp polarity is observed when
connecting to the battery. Positive is indicated by (+)
and is Red, negative is indicated by (-) and is black.
DO NOT pull or carry the charger by its power supply
lead. Products must not be pulled or carried by their
output cables.
DO NOT pull power plugs from sockets by the power
cable.
DO NOT attempt to charge a non-rechargeable battery.
DO NOT use the charger for any purpose other than
that for which it is designed.
DO NOT allow the charger terminal clamps to touch
each other when the power is on. Remember that
gases are produced which may ignite if sparks occur.
DO NOT place the charger inside the vehicle.
Remove the battery to a safe distance for charging.
DO NOT get the charger wet or use in damp or wet
locations or areas where there is condensation.
DO NOT operate the charger if damaged.
DO NOT attempt to modify or open the charger.
When not in use unplug from the mains power supply
and store in a safe, dry, childproof area.
DO NOT allow untrained persons to operate the charger.
This appliance is not intended for use by persons
with reduced physical, sensory or mental capabilities, or
lack of experience and knowledge, unless they have
been given instruction concerning the use of the
appliance and are supervised by a person responsible
for their safety.
Keep children and unauthorised persons away from the
working area. Children must not use the charger and should
be constantly supervised to ensure they do not play with the
charger.
WARNING!Be vigilant and cautious during the
operation of battery charging as the electrolyte is
highly corrosive and any gases emitted are explosive.
DANGER! BE AWARE, LEAD ACID, GEL, AGM,
VRLA, AND LIQUID ELECTROLYTE BATTERIES
GENERATE EXPLOSIVE GASES DURING NORMAL
BATTERY OPERATION. FOR THIS REASON, IT IS
VERY IMPORTANT TO READ AND FOLLOW THESE
INSTRUCTIONS CAREFULLY, EACH TIME YOU
USE THE CHARGER.
Remove personal metallic items such as rings,
bracelets, necklaces and watches. A lead acid
battery can produce a short-circuit current high enough
to weld a ring or similar to metal, which would cause
severe burns.
Ensure hands and clothing are clear of fan blades,
belts and other moving or hot parts of engine.
Remove ties and contain long hair.
DO NOT smoke or allow a spark or flame in the vicinity
of battery or engine.
2. INTRODUCTION
Plug in, connect to the battery and the charger does the
rest. This charger uses inverter technology with micro-
chip management to read the battery condition and
adjust its behaviour to optimise the battery charging
process. This charger has multiple charging cycles
with profiles designed to cram the battery with the
maximum amount of charge in the most effective time
period and, having done this, maintain it at this level.
The chargers can be connected indefinitely to the
battery and cycle between a maintenance and a float
charge. Safety is also assured. This model has
protection against polarity reversal and shorting out of
clamps.
SPECIFICATION
MODEL NO: SMC01
Input Voltage 230V
Output Voltage 12V
Starting Current 26A
Input Current 0.22A
Efciency >75%
Charging Voltage 12V
Charging Current 1.5A
Back Current Drain 10mA
Ambient Temperature -10°C to +40°C
Type of Batteries AGM, VRLA, GEL, Pb/Ca
Battery Capacity 5 - 60Ah/12V
Dimensions (LxWxH) 119 x 55 x 25mm
Weight: 0.4 kg
Follow these instructions and those published by the
battery and vehicle manufacturers and the manufacturer
of any equipment you intend to use in the vicinity of
the battery. Remember to review warning marks on all
products and on engines.
1.3 PERSONAL PRECAUTIONS
Ensure there is another person within hearing range
of your voice, or close enough to come to your aid,
should a problem arise when working near a lead acid
battery.
Wear safety eye protection and protective clothing.
Avoid touching eyes while working near battery.
Have fresh water and soap nearby in case battery acid
contacts skin, clothing or eyes.
Wash immediately with soap and water if battery acid
contacts skin or clothing. If acid enters eye, flush eye
immediately with cool, clean running water for at least
15 minutes and seek immediate medical attention.
© Jack Sealey Limited
Original Language Version
3. CONNECTION TO BATTERY
NOTE: THE CHARGER SHOULD BE CONNECTED TO THE
BATTERY BEFORE CONNECTING TO THE MAINS SUPPLY.
3.1 The output cable from the charger terminates in a socket
to which two alternative leads can be connected. (see Fig.1)
3.1.1 One lead set has two colour coded battery clamps which
can be quickly attached to and detached from the battery
posts.
3.1.2 The second lead terminates in colour coded eyelets
(Ø10mm) intended for permanent connection to a battery.
3.2 BATTERY PERMANENTLY INSTALLED IN A VEHICLE.
3.2.1 Identify the polarity of the battery terminals which are
usually marked on the battery casing. If it is not clear,
the positive battery post is usually a larger diameter
than the negative post.
3.2.3 Identify the polarity of the battery pole connected to
the chassis (earth). This will normally be the negative
terminal.
SMC01 Issue: 4(SP) -
18/07/13
Page 3
Fig.1
4.3 The ‘BULK CHARGE / OPTIMISED CHARGE’ LED
(seeFig.2)willashtoindicatethefastcharging
stage. This cycle will constantly pulse the current,
whilst avoiding overheating.
4.4 The ‘MAINTENANCE’ LED (see Fig.2) will light up
and stay on to indicate that the battery is fully charged.
The charger will continue to maintain the battery in a
fully charged state without overcharging.
Fig.2
3.2.4 CHARGING A NEGATIVE EARTHED BATTERY:
3.2.5 Ensure that the black clamp on the clamp lead is not
touching the battery or the fuel line.
3.2.6 Connect the positive (+) red clamp to the positive (+)
battery post and connect the negative (-) black clamp
to the negative (-) battery post or vehicle chassis.
3.2.7 CHARGING A POSITIVE EARTHED BATTERY:
3.2.8 Ensure that the red clamp on the clamp lead is not
touching the battery or the fuel line.
3.2.9 Connect the negative (-) black clamp to the negative
(-) battery post and connect the positive (+) red clamp
to the positive (+) battery post or vehicle chassis.
3.3 BATTERY NOT CONNECTED TO A VEHICLE.
3.3.1 Connect the (+) red clamp to the positive (+) battery
post and connect the (-) black clamp to the negative
(-) battery post.
3.4 PERMANENT CONNECTION TO VEHICLE USING
EYELET LEAD.
3.4.1 Connect the eyelet on the red (+) wire to the positive
(+) battery terminal and connect the eyelet on the
black (-) wire to the negative (-) battery terminal.
4. OPERATION
NOTE: Connect the charger to the battery as instructed in
section 3 before connecting to mains power supply.
4.1 CONNECT CHARGER TO MAINS POWER SUPPLY.
4.1.1 Plug the connector on the mains lead into the side of
the charger as shown in Fig.1. Insert the three pin
plug on the mains lead into the mains power supply .
4.2 The ‘CONDITIONING’ LED (see Fig.2) will start to
ashindicatingthatcharginghascommenced.This
stage protects against high current surging through the
battery and calculates the optimal charging rate for the
following stages.
4.5 FAULT INDICATORS See Fig.2.
4.5.1 The ‘NO BATTERY CONNECTED’ LED indicates that
the output leads are not connected to the battery or
that whilst there are connected there is a break in the
circuit and the leads, clamps and terminals should be
inspectedtondthecauseoftheproblem.
4.5.2 The ‘POLARITY REVERSED’ LED indicates that
clamps are connected to the wrong terminals. Reverse
the connections to continue with charging.
4.5.3 The ‘BAD BATTERY / CLAMPS SHORTED’ LED
indicates that there is a fault with either the battery or
the clamps and both should be tested for faults and
replaced if necessary.
4.6 SAFETY THERMAL CUTOUT. The charger is equiped
with a safety thermal cutout which will operate in the
following circumstances:
A) The unit is over temperature. If this is the case all
the LEDs will be shut off.
B) The unit is overloaded.
C) There is a short circuit. The clamps have touched or
the clamps connections to the battery terminals
are reversed.
4.6.1 When the above circumstances occur, take the
following action.
4.6.2 Turn the unit off by disconnecting the mains power
supply.
4.6.3 Allow the charger to cool down, then restart. If the
situation persists it is likely that the battery you are
trying to charge is too high a capacity for this charger.
Recycle unwanted materials instead of disposing of them as
waste. All tools, accessories and packaging should be sorted,
taken to a recycle centre and disposed of in a manner which
is compatible with the environment.
When the product is no longer required, it must be disposed of
in an environmentally protective way.
Environmental Protection.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
INFORMATION: For a copy of our latest catalogue and promotions call us on 01284 757525 and leave your full name and address, including postcode.
© Jack Sealey Limited
Sole UK Distributor, Sealey Group,
Kempson Way, Suffolk Business Park,
Bury St. Edmunds, Suffolk,
IP32 7AR
Original Language Version
01284 757500
01284 703534
www.sealey.co.uk
Web
email
SMC01 Issue: 4(SP) -
18/07/13
Loading...
