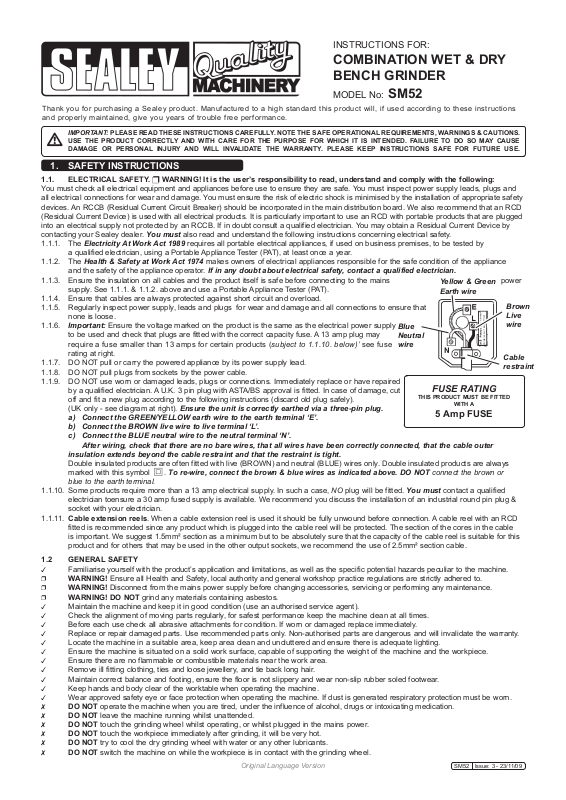

Sealey SM52 Instructions Manual

INSTRUCTIONS FOR:

COMBINATION WET & DRY
BENCH GRINDER

MODEL No: SM52

Thank you for purchasing a Sealey product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.

IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS.
USE THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE
DAMAGE OR PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.

1. SAFETY INSTRUCTIONS

1.1. ELECTRICAL SAFETY.  WARNING! It is the user’s responsibility to read, understand and comply with the following:

You must check all electrical equipment and appliances before use to ensure they are safe. You must inspect power supply leads, plugs and
all electrical connections for wear and damage. You must ensure the risk of electric shock is minimised by the installation of appropriate safety
devices. An RCCB (Residual Current Circuit Breaker) should be incorporated in the main distribution board. We also recommend that an RCD
(Residual Current Device) is used with all electrical products. It is particularly important to use an RCD with portable products that are plugged
into an electrical supply not protected by an RCCB. If in doubt consult a qualified electrician. You may obtain a Residual Current Device by
contacting your Sealey dealer. You must also read and understand the following instructions concerning electrical safety.

1.1.1. The Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by
a qualified electrician, using a Portable Appliance Tester (PAT), at least once a year.

1.1.2. The Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance
and the safety of the appliance operator. If in any doubt about electrical safety, contact a qualified electrician.

1.1.3. Ensure the insulation on all cables and the product itself is safe before connecting to the mains power
supply. See 1.1.1. & 1.1.2. above and use a Portable Appliance Tester (PAT).

1.1.4. Ensure that cables are always protected against short circuit and overload.

1.1.5. Regularly inspect power supply, leads and plugs for wear and damage and all connections to ensure that
none is loose.

1.1.6. Important: Ensure the voltage marked on the product is the same as the electrical power supply
to be used and check that plugs are fitted with the correct capacity fuse. A 13 amp plug may
require a fuse smaller than 13 amps for certain products (subject to 1.1.10. below)’ see fuse

Blue
Neutral
wire

rating at right.

1.1.7. DO NOT pull or carry the powered appliance by its power supply lead.

1.1.8. DO NOT pull plugs from sockets by the power cable.

1.1.9. DO NOT use worn or damaged leads, plugs or connections. Immediately replace or have repaired
by a qualified electrician. A U.K. 3 pin plug with ASTA/BS approval is fitted. In case of damage, cut
off and fit a new plug according to the following instructions (discard old plug safely).
(UK only - see diagram at right). Ensure the unit is correctly earthed via a three-pin plug.

a) Connect the GREEN/YELLOW earth wire to the earth terminal ‘E’.

b) Connect the BROWN live wire to live terminal ‘L’.
c) Connect the BLUE neutral wire to the neutral terminal ‘N’.

After wiring, check that there are no bare wires, that all wires have been correctly connected, that the cable outer
insulation extends beyond the cable restraint and that the restraint is tight.

Double insulated products are often fitted with live (BROWN) and neutral (BLUE) wires only. Double insulated products are always
marked with this symbol . To re-wire, connect the brown & blue wires as indicated above. DO NOT connect the brown or

blue to the earth terminal.

1.1.10. Some products require more than a 13 amp electrical supply. In such a case, NO plug will be fitted. You must contact a qualified
electrician toensure a 30 amp fused supply is available. We recommend you discuss the installation of an industrial round pin plug &
socket with your electrician.

1.1.11. Cable extension reels. When a cable extension reel is used it should be fully unwound before connection. A cable reel with an RCD
fitted is recommended since any product which is plugged into the cable reel will be protected. The section of the cores in the cable
is important. We suggest 1.5mm² section as a minimum but to be absolutely sure that the capacity of the cable reel is suitable for this
product and for others that may be used in the other output sockets, we recommend the use of 2.5mm² section cable.

1.2 GENERAL SAFETY

 Familiarise yourself with the product’s application and limitations, as well as the specific potential hazards peculiar to the machine.
 WARNING! Ensure all Health and Safety, local authority and general workshop practice regulations are strictly adhered to.
 WARNING! Disconnect from the mains power supply before changing accessories, servicing or performing any maintenance.
 WARNING! DO NOT grind any materials containing asbestos.
 Maintain the machine and keep it in good condition (use an authorised service agent).
 Check the alignment of moving parts regularly, for safest performance keep the machine clean at all times.
 Before each use check all abrasive attachments for condition. If worn or damaged replace immediately.
 Replace or repair damaged parts. Use recommended parts only. Non-authorised parts are dangerous and will invalidate the warranty.
 Locate the machine in a suitable area, keep area clean and uncluttered and ensure there is adequate lighting.
 Ensure the machine is situated on a solid work surface, capable of supporting the weight of the machine and the workpiece.
 Ensure there are no flammable or combustible materials near the work area.
 Remove ill fitting clothing, ties and loose jewellery, and tie back long hair.
 Maintain correct balance and footing, ensure the floor is not slippery and wear non-slip rubber soled footwear.
 Keep hands and body clear of the worktable when operating the machine.
 Wear approved safety eye or face protection when operating the machine. If dust is generated respiratory protection must be worn.

 DO NOT operate the machine when you are tired, under the influence of alcohol, drugs or intoxicating medication.
 DO NOT leave the machine running whilst unattended.
 DO NOT touch the grinding wheel whilst operating, or whilst plugged in the mains power.
 DO NOT touch the workpiece immediately after grinding, it will be very hot.
 DO NOT try to cool the dry grinding wheel with water or any other lubricants.
 DO NOT switch the machine on while the workpiece is in contact with the grinding wheel.

Original Language Version

Yellow & Green
Earth wire

Cable
restraint

FUSE RATING

THIS PRODUCT MUST BE FITTED

WITH A

5 Amp FUSE

SM52 Issue: 3 - 23/11/09

Brown
Live
wire

 DO NOT operate the machine if any parts are damaged or missing as this may cause failure or possible personal injury.
 DO NOT use the machine for any purpose other than that for which it is designed.
 DO NOT allow children or untrained persons to operate the machine. Keep them away from the work area.
 DO NOT remove the safety guards whilst the machine is in use.

 When not in use unplug from the mains power supply and make every effort to ensure the machine is childproof.

2. TECHNICAL SPECIFICATIONS

Model ............................SM52

Grinding Wheel - Dry .......125 x 16 x 13mm

Grinding Speed ..................2800rpm

Grinding Wheel - Wet.......250 x 50 x 22mm

Grinding Speed ....................60rpm

Motor ................... 1/4hp, 185 watts

Supply.........................230V/1ph

Weight ............................15kg

3. ASSEMBLY & ADJUSTMENT

3.1. Unpack the product and check contents against the parts listed below.

Should there be any damaged or missing parts contact your supplier immediately.

Contents: 1) Bench Grinder Body

2) Tool Rest Assembly (Wet Stone) including 2 Screws, 2 Washers

3) Tool Rest (Dry Stone), including Thumb Screw, Nut and Washer

4) Eye Shield, including Mounting Bracket, 2 Screws, 2 Nuts

5) Tool Guide Assembly (Wet Stone)

3.2. Eye Shield

3.2.1. Attach mounting bracket to eye shield using screws and nuts provided. Note offset holes in shield and assemble
as shown in fig. 1.

3.2.2. Attach mounting bracket to upper right hand side of 5” wheel guard using thumb screw (supplied fitted to
guard).

3.3. Tool Rest - Dry Stone

3.3.1. Run nut to top of thread on thumb screw and tighten.

3.3.2. Fit tool rest to lower left hand side of 5” wheel guard so that slotted hole is over the two threaded bosses
on the guard. Retain in position with thumb screw and washer (fig. 2).

3.3.3. Adjust so the top of the tool rest is no more than 2mm from the grinding wheel.

Note : The tool rest assembly will need to be adjusted regularly as the grinding wheel wears.

3.4. Tool Rest - Wet Stone

3.4.1. Attach tool rest base to right hand end of water trough using screws and washers provided. Ensure
base does not foul wheel.

3.4.2. Loosen top and bottom locking levers, position tool rest close to, but not touching, wheel. Tighten

fig. 2

locking levers.

Note : The tool rest assembly will need to be adjusted regularly as the grinding wheel wears.

3.5. Mitre Guide

3.5.1. The guide base bar locates in the channel machined in the wet stone tool rest.

3.5.2. Once in position, the guide can be set to the required tool angle by slackening the clamp screw, setting
the guide face and then retightening the screw.

3.6. Water

3.6.1. When using the wet stone the water trough should be filled to approximately 30mm from the top.

4. OPERATING INSTRUCTIONS

fig. 1

 WARNING! Before use, the machine must be bolted to a stable, fireproof bench or table which is strong enough to take the weight of
the machine and the workpiece. Failure to comply with this instruction could result in severe personal injury.

4.1. MANDATORY SAFETY INSTRUCTIONS. (The following instructions must be observed together with those in Section 1).

 DANGER! The use of a damaged wheel is dangerous and may cause damage or personal injury.
 WARNING! Ensure grinder is unplugged from the mains power supply before attempting to change grinding wheels.
 Only persons qualified under the “Abrasive Wheels Regulations” and holding a current grinding wheel certificate are to

change grinding wheels.

 Grinding wheels used with this machine shall be of an adequate speed rating and of the correct composition for the material to be ground.
 Ensure the maximum speed specification of the wheel is higher than that indicated on the machine data plate.
 Before use check that grinding wheels are secure, are not worn or damaged and have no fissures or cracks. Replace faulty wheels immediately.
 Ensure replacement wheel is not damaged in any way - cracks, deformations or splinters etc. Also check the mounting flanges to ensure

that these are not deformed, burred or chipped. Damaged items must not be used as they can produce high stresses in the wheel which
may cause it to break. DO NOT over tighten a wheel. Never tamper with a wheel in order to adapt it to a different size drive shaft.

 Once mounted on the grinder test the wheel(s) before use by facing the grinder in a safe direction (point away from yourself, others and

vulnerable items) and running it for a short time.
