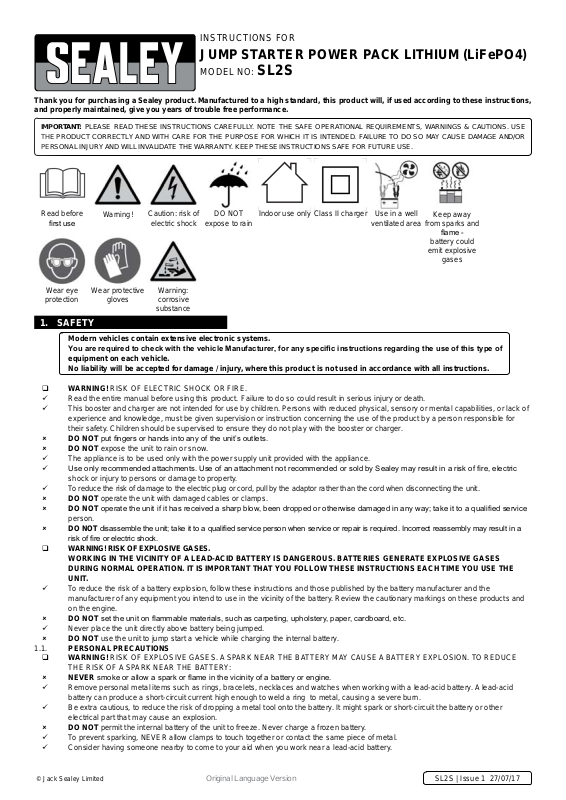

instructions for
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
jUMP STARTER POWER PACK LITHIUM (LiFePO4)
model no: SL2S
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
read before
rst use
Wear eye
protection
Warning!
Wear protective
gloves
caution: risk of
electric shock
Warning:
corrosive
substance
do not
expose to rain
indoor use only class ii charger use in a well
ventilated area
Keep away
from sparks and
ame -
battery could
emit explosive
gases
1. SAFETy
Modern vehicles contain extensive electronic systems.
YouarerequiredtocheckwiththevehicleManufacturer,foranyspecicinstructionsregardingtheuseofthistypeof
equipment on each vehicle.
No liability will be accepted for damage / injury, where this product is not used in accordance with all instructions.
WARNING! risK of electric sHocK or fire.
9 read the entire manual before using this product. failure to do so could result in serious injury or death.
9 this booster and charger are not intended for use by children. Persons with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, must be given supervision or instruction concerning the use of the product by a person responsible for
their safety. children should be supervised to ensure they do not play with the booster or charger.
8 DO NOT put ngers or hands into any of the unit’s outlets.
8 DO NOT expose the unit to rain or snow.
9 the appliance is to be used only with the power supply unit provided with the appliance.
9 Use only recommended attachments. Use of an attachment not recommended or sold by Sealey may result in a risk of re, electric
shock or injury to persons or damage to property.
9 to reduce the risk of damage to the electric plug or cord, pull by the adaptor rather than the cord when disconnecting the unit.
8 DO NOT operate the unit with damaged cables or clamps.
8 DO NOT operate the unit if it has received a sharp blow, been dropped or otherwise damaged in any way; take it to a qualied service
person.
8 DO NOT disassemble the unit; take it to a qualied service person when service or repair is required. Incorrect reassembly may result in a
risk of re or electric shock.
WARNING! RISK OF EXPLOSIVE GASES.
WORKING IN THE VICINITy OF A LEAD-ACID BATTERy IS DANGEROUS. BATTERIES GENERATE EXPLOSIVE GASES
DURING NORMAL OPERATION. IT IS IMPORTANT THAT yOU FOLLOW THESE INSTRUCTIONS EACH TIME yOU USE THE
UNIT.
9 to reduce the risk of a battery explosion, follow these instructions and those published by the battery manufacturer and the
manufacturer of any equipment you intend to use in the vicinity of the battery. review the cautionary markings on these products and
on the engine.
8 DO NOT set the unit on ammable materials, such as carpeting, upholstery, paper, cardboard, etc.
9 never place the unit directly above battery being jumped.
8 DO NOT use the unit to jump start a vehicle while charging the internal battery.
1.1. PERSONAL PRECAUTIONS
WARNING! risK of eXPlosiVe GAses. A sPArK neAr tHe BAtterY mAY cAuse A BAtterY eXPlosion. to reduce
tHe risK of A sPArK neAr tHe BAtterY:
8 NEVER smoke or allow a spark or ame in the vicinity of a battery or engine.
9 remove personal metal items such as rings, bracelets, necklaces and watches when working with a lead-acid battery. A lead-acid
battery can produce a short-circuit current high enough to weld a ring to metal, causing a severe burn.
9 Be extra cautious, to reduce the risk of dropping a metal tool onto the battery. it might spark or short-circuit the battery or other
electrical part that may cause an explosion.
8 DO NOT permit the internal battery of the unit to freeze. never charge a frozen battery.
9 to prevent sparking, neVer allow clamps to touch together or contact the same piece of metal.
9 consider having someone nearby to come to your aid when you work near a lead-acid battery.
© Jack sealey limited
Original Language Version
sl2s | issue 1 27/07/17
9 Have plenty of fresh water, soap and baking soda nearby for use, in case battery acid contacts your eyes, skin, or clothing.
9 Wear complete eye and body protection, including safety goggles and protective clothing. Avoid touching your eyes while working near
the battery.
9 If battery acid contacts your skin or clothing, immediately wash the area with soap and water. If acid enters your eye, immediately ood
the eye with cold running water for at least 10 minutes and get medical attention right away.
9 if battery acid is accidentally swallowed, drink milk, the whites of eggs or water. DO NOT induce vomiting. seek medical attention
immediately.
9 neutralize any acid spills thoroughly with baking soda before attempting to clean up.
9 This product contains a lithium ion battery. In case of re, you may use water, a foam extinguisher, Halon, CO2, ABC dry chemical,
powdered graphite, copper powder or soda (sodium carbonate) to extinguish the re. Once the re is extinguished, douse the product
with water, an aqueous-based extinguishing agent, or other non alcoholic liquids to cool the product and prevent the battery from re-
igniting. neVer attempt to pick up or move a hot, smoking, or burning product, as you may be injured.
1.2. ELECTRICAL SAFETy (with respect to mains chargers)
WARNING! It is the user’s responsibility to check the following:
You must check the Ac adaptor to ensure that it is safe before using. you must inspect the power supply lead, plugs and all electrical
connections for wear and damage.
you must ensure the risk of electric shock is minimised by the installation of appropriate safety devices. An rccB (residual current
circuit Breaker) should be incorporated in the main distribution board. We recommend that an rcd (residual current device) is used
with all electrical products.
it is particularly important to use an rcd with portable products that plug into an electrical supply not protected by an rccB. if in doubt
consult a qualified electrician. You can obtain a residual current device through your sealey stockist.
you must read and understand instructions concerning electrical safety.
1.2.1. the Electricity At Work Act 1989 requires all portable electrical appliances, if used on business premises, to be tested by a qualified
person, using a Portable Appliance tester (PAt), at least once a year.
1.2.2. the Health & Safety at Work Act 1974 makes owners of electrical appliances responsible for the safe condition of the appliance and
the safety of the appliance operator. if in any doubt about electrical safety, contact a qualified electrician.
1.2.3. DO ensure that the insulation on all cables and the product itself is safe before connecting to the mains power supply.
1.2.4. DO ensure that cables are always protected against short circuit and overload.
1.2.5. DO regularly inspect power supply, leads, plugs for wear and damage and power connections to ensure that none is loose.
9 DO check product voltage is the same as power supply to be used and check that all fused plugs are fitted with the correct capacity fuses.
2. INTRODUCTION
Powered by lithium-ion technology and fully protected against reverse charging and overload. A dedicated 12V jump starter pack that benets
from being lightweight but still provides high power output. digital display gives step by step instructions. capable of starting an average 5ltr
petrol or 3.6ltr diesel engine. features safe start protection with a sixty second cool down period between start attempts. li-ion batteries have
numerous advantages over lead acid, including a at discharge curve, this ensures a greater extended performance and holds the charge for
up to ve times longer with high energy density levels giving more battery power per gram. The high power lithium battery coupled with two
usB (5V/2.1A) outlets, can also supply up to ten full charges for smart phones and mp3 players or two full charges for your tablet. supplied with
automatic maintenance charger that featuresdedicated lithium charging algorithms and Patented microprocessor controlled speed charging,
with thermal runaway protection.includes a 12V port to be used with accessory socket adaptor supplied. the unit can act as a memory saver
during vehicle diagnostics (also requires Vs2073 for details visit www.sealey.co.uk).
3. SPECIFICATION
model no: ...................................................................... sl2s
starting current: .............................................................540A
Voltage: ............................................................................12V
Auxiliary output: ........................................ 2 x usB - 5V/2.1A
cable & clamp length: ................................................508mm
size (W x d x H):.....................................290 x 125 x 190mm
Weight: .............................................................................3kg
maximum starting capacity: ...................Petrol 5l, diesel 3.6l
capacity: .................. 24000mAh @ 3.2V, 6000mAh @ 12.8V
Peak amps: ....................................................................800A
4. PREPARATION
WARNING! risK of contAct WitH BAtterY Acid. BAtterY Acid is A HiGHlY corrosiVe sulPHuric Acid.
4.1. make sure the area around the battery is well ventilated while the unit is in use.
4.2. clean the battery terminals before using the jump starter. during cleaning, keep airborne corrosion from coming into contact with your
eyes, nose and mouth. use baking soda and water to neutralize the battery acid and help eliminate airborne corrosion. DO NOT touch
your eyes, nose or mouth.
4.3. Determine the voltage of the battery by referring to the vehicle owner’s manual and make sure that the output voltage is 12V.
4.4. Make sure that the unit’s cable clamps make tight connections.
5. CONNECTION TO A BATTERy
WARNING! A sPArK neAr tHe BAtterY mAY cAuse A BAtterY eXPlosion. to reduce tHe risK of A sPArK neAr
tHe BAtterY:
5.1. Attach the output cables to the battery and chassis as indicated below. never allow the output clamps to touch each other.
5.2. Position the dc cables to reduce the risk of damage by the bonnet, door and moving or hot engine parts. note: if it is necessary to
close the bonnet during the jump starting process, ensure that the bonnet does not touch the metal part of the battery clips or cut the
insulation of the cables.
5.3. stay clear of fan blades, belts, pulleys and other parts that can cause injury.
© Jack sealey limited
Original Language Version
sl2s | issue 1 27/07/17
