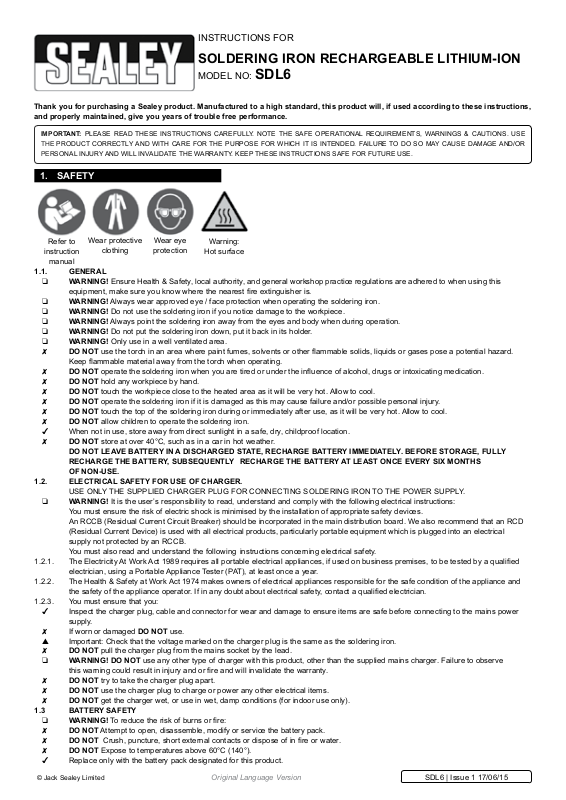

INSTRUCTIONS FOR
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
SOLDERING IRON RECHARGEABLE LITHIUM-ION
MODEL NO: SDL6
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
1. SAFETY
Refer to
instruction
manual
1.1. GENERAL
R WARNING! Ensure Health & Safety, local authority, and general workshop practice regulations are adhered to when using this
equipment,makesureyouknowwherethenearestreextinguisheris.
R WARNING!Alwayswearapprovedeye/faceprotectionwhenoperatingthesolderingiron.
R WARNING!Donotusethesolderingironifyounoticedamagetotheworkpiece.
R WARNING!Alwayspointthesolderingironawayfromtheeyesandbodywhenduringoperation.
R WARNING!Donotputthesolderingirondown,putitbackinitsholder.
R WARNING!Onlyuseinawellventilatedarea.
DO NOTusethetorchinanareawherepaintfumes,solventsorotherammablesolids,liquidsorgasesposeapotentialhazard.
Keepammablematerialawayfromthetorchwhenoperating.
DO NOToperatethesolderingironwhenyouaretiredorundertheinuenceofalcohol,drugsorintoxicatingmedication.
DO NOTholdanyworkpiecebyhand.
DO NOTtouchtheworkpiececlosetotheheatedareaasitwillbeveryhot.Allowtocool.
DO NOToperatethesolderingironifitisdamagedasthismaycausefailureand/orpossiblepersonalinjury.
DO NOTtouchthetopofthesolderingironduringorimmediatelyafteruse,asitwillbeveryhot.Allowtocool.
DO NOTallowchildrentooperatethesolderingiron.
Whennotinuse,storeawayfromdirectsunlightinasafe,dry,childprooflocation.
DO NOTstoreatover40°C,suchasinacarinhotweather.
DO NOT LEAVE BATTERY IN A DISCHARGED STATE, RECHARGE BATTERY IMMEDIATELY. BEFORE STORAGE, FULLY
RECHARGE THE BATTERY, SUBSEQUENTLY RECHARGE THE BATTERY AT LEAST ONCE EVERY SIX MONTHS
OF NON-USE.
1.2. ELECTRICAL SAFETY FOR USE OF CHARGER.
USEONLYTHESUPPLIEDCHARGERPLUGFORCONNECTINGSOLDERINGIRONTOTHEPOWERSUPPLY.
R WARNING! It is the user’s responsibility to read, understand and comply with the following electrical instructions:
Youmustensuretheriskofelectricshockisminimisedbytheinstallationofappropriatesafetydevices.
AnRCCB(ResidualCurrentCircuitBreaker)shouldbeincorporatedinthemaindistributionboard.WealsorecommendthatanRCD
(Residual Current Device) is used with all electrical products, particularly portable equipment which is plugged into an electrical
supplynotprotectedbyanRCCB.
Youmustalsoreadandunderstandthefollowinginstructionsconcerningelectricalsafety.
1.2.1. TheElectricityAtWorkAct1989requiresallportableelectricalappliances,ifusedonbusinesspremises,tobetestedbyaqualied
electrician,usingaPortableApplianceTester(PAT),atleastonceayear.
1.2.2. TheHealth&SafetyatWorkAct1974makesownersofelectricalappliancesresponsibleforthesafeconditionoftheapplianceand
thesafetyoftheapplianceoperator.Ifinanydoubtaboutelectricalsafety,contactaqualiedelectrician.
1.2.3. Youmustensurethatyou:
Inspect the charger plug, cable and connector for wear and damage to ensure items are safe before connecting to the mains power
supply.
If worn or damaged DO NOTuse.
V Important:Checkthatthevoltagemarkedonthechargerplugisthesameasthesolderingiron.
DO NOTpullthechargerplugfromthemainssocketbythelead.
R WARNING! DO NOTuseanyothertypeofchargerwiththisproduct,otherthanthesuppliedmainscharger.Failuretoobserve
thiswarningcouldresultininjuryandorreandwillinvalidatethewarranty.
DO NOTtrytotakethechargerplugapart.
DO NOTusethechargerplugtochargeorpoweranyotherelectricalitems.
DO NOTgetthechargerwet,oruseinwet,dampconditions(forindooruseonly).
1.3 BATTERY SAFETY
R WARNING!Toreducetheriskofburnsorre:
DO NOTAttempttoopen,disassemble,modifyorservicethebatterypack.
DO NOTCrush,puncture,shortexternalcontactsordisposeofinreorwater.
DO NOTExposetotemperaturesabove60°C(140°).
Replaceonlywiththebatterypackdesignatedforthisproduct.
© Jack Sealey Limited
Wear protective
clothing
Wear eye
protection
Warning:
Hot surface
Original Language Version
SDL6|Issue117/06/15
Page 2
Recycleordisposeofusedbatteryasstipulatedbylocalregulation.
Iftheelectrolyteinthecellsgetsonyourskin,thoroughlywashwithsoapandwater.Ifitgetsinyoureyes,rinsethoroughlywithcool
water and seek immediate medical attention
2. INTRODUCTION
ProfessionalLithium-ioncordlesssolderingiron.Idealformultipleapplicationsincludingautomotivesolderinginandaroundenginebays.Much
saferthanusingconventionalgaspoweredsolderingirons.PoweredusingthelatestLithium-ionbatterytechnologywhichenablesfasterheating
timesandimprovedbatterylife.Heatsuptomaximumtemperaturein25seconds.Unitischargedandstoredinthebaseandissuppliedwitha
mainscharger.
3. SPECIFICATION
Model No: ..................................................................... SDL6
Battery:.................................................................3.7VLi-ion
Power rating:.....................................................................6W
Maximumtemperature:................................................510°C
Charging time:................................................................3-4hr
Operating time:............................................................ 75min
Replacement soldering tips:
Conical tip:.............................................................. SDL6.CT
Flat chisel tip:...........................................................SDL6.FT
4. OPERATION
4.1. Pluginchargerandensuresolderingironisfullychargedbeforerstuse.Theredcharginglightwillturngreenwhenfullycharged.
Oncechargedthesolderingironcanbeusedwithoutthechargeleadconnected.
4.2. To switch on remove the soldering iron from the charging dock, slide the on/off switch forward and press down until the red ‘On’
4.3. indicatorilluminates.
4.4. Thesolderingironwillbegintoheatupandwillbereadytousein25seconds.
4.5. Whensolderingisnishedplacethesolderingironbackinitschargingdockandpluginthecharger.
© Jack Sealey Limited
Original Language Version
SDL6|Issue117/06/15
Page 3
Parts support is available for this product. To obtain a parts listing and/or diagram,
pleaselogontowww.sealey.co.uk,email[email protected]ortelephone01284757500.
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
Environmental Protection
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal
dispose according to local regulations.
WEEE Regulations
Dispose of this product at the end of its working life in compliance with the EU Directive on
Waste Electrical and Electronic Equipment (WEEE). When the product is no longer required, it must be disposed
of in an environmentally protective way. Contact your local solid waste authority for recycling information.
Battery Removal
Remove the 2 screws and split the casing apart. Cut the wires to the battery and dispose of according to local government
guidelines.
Under the Waste Batteries and Accumulators Regulations 2009, Jack Sealey Ltd are required to inform potential
purchasersofproductscontainingbatteries(asdenedwithintheseregulations),thattheyareregisteredwithValpak’s
registeredcompliancescheme.JackSealeyLtd’sBatteriesProducerRegistrationNumber(BPRN)isBPRN00705.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
IMPORTANT:Noliabilityisacceptedforincorrectuseofthisproduct.
WARRANTY:Guaranteeis12monthsfrompurchasedate,proofofwhichwillberequiredforanyclaim.
SoleUKDistributor,SealeyGroup.
Kempson Way, Suffolk Business Park,
BurySt.Edmunds,Suffolk.
IP327AR
01284757500
01284703534
www.sealey.co.uk
Web
© Jack Sealey Limited
Original Language Version
SDL6|Issue117/06/15
