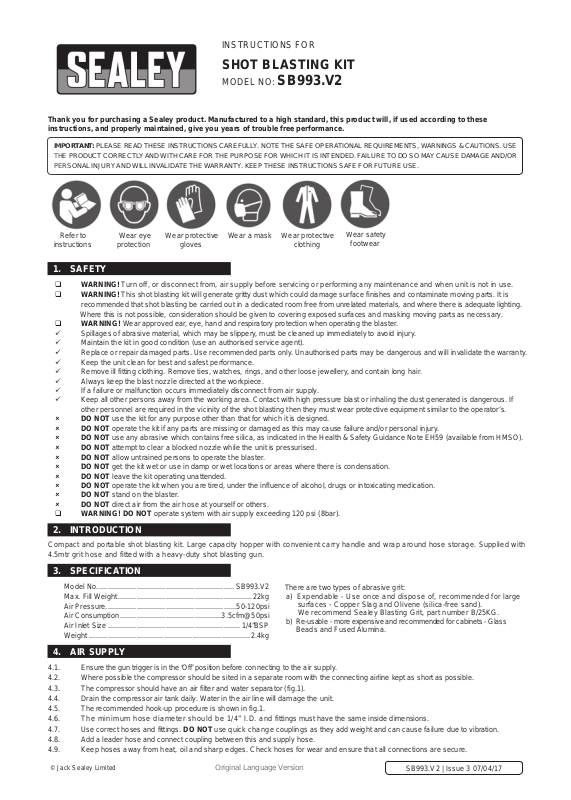

INSTRUCTIONS FOR
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
SHOT BLASTING KIT
MODEL NO: SB993.V2
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions, and properly maintained, give you years of trouble free performance.
Refer to
instructions
Wear eye
protection
Wear protective
gloves
Wear a mask
Wear protective
clothing
Wear safety
footwear
1. SAFETY
WARNING! Turn off, or disconnect from, air supply before servicing or performing any maintenance and when unit is not in use.
WARNING! This shot blasting kit will generate gritty dust which could damage surface finishes and contaminate moving parts. It is
recommended that shot blasting be carried out in a dedicated room free from unrelated materials, and where there is adequate lighting.
Where this is not possible, consideration should be given to covering exposed surfaces and masking moving parts as necessary.
WARNING! Wear approved ear, eye, hand and respiratory protection when operating the blaster.
9 Spillages of abrasive material, which may be slippery, must be cleaned up immediately to avoid injury.
9 Maintain the kit in good condition (use an authorised service agent).
9 Replace or repair damaged parts. Use recommended parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
9 Keep the unit clean for best and safest performance.
9 Remove ill fitting clothing. Remove ties, watches, rings, and other loose jewellery, and contain long hair.
9 Always keep the blast nozzle directed at the workpiece.
9 If a failure or malfunction occurs immediately disconnect from air supply.
9 Keep all other persons away from the working area. Contact with high pressure blast or inhaling the dust generated is dangerous. If
other personnel are required in the vicinity of the shot blasting then they must wear protective equipment similar to the operator’s.
8 DO NOT use the kit for any purpose other than that for which it is designed.
8 DO NOT operate the kit if any parts are missing or damaged as this may cause failure and/or personal injury.
8 DO NOT use any abrasive which contains free silica, as indicated in the Health & Safety Guidance Note EH59 (available from HMSO).
8 DO NOT attempt to clear a blocked nozzle while the unit is pressurised.
8 DO NOT allow untrained persons to operate the blaster.
8 DO NOT get the kit wet or use in damp or wet locations or areas where there is condensation.
8 DO NOT leave the kit operating unattended.
8 DO NOT operate the kit when you are tired, under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT stand on the blaster.
8 DO NOT direct air from the air hose at yourself or others.
WARNING! DO NOT operate system with air supply exceeding 120 psi (8bar).
2. INTRODUCTION
Compact and portable shot blasting kit. Large capacity hopper with convenient carry handle and wrap around hose storage. Supplied with
4.5mtr grit hose and fitted with a heavy-duty shot blasting gun.
3. SPECIFICATION
Model No. ................................................................. SB993.V2
Max. Fill Weight
Air Pressure
Air Consumption
Air Inlet Size
Weight
..............................................................................2.4kg
.................................................................22kg
...............................................................50-120psi
.................................................3.5cfm@50psi
................................................................1/4”BSP
There are two types of abrasive grit:
a) Expendable - Use once and dispose of, recommended for large
surfaces - Copper Slag and Olivene (silica-free sand).
We recommend Sealey Blasting Grit, part number B/25KG.
b) Re-usable - more expensive and recommended for cabinets - Glass
Beads and Fused Alumina.
4. AIR SUPPLY
4.1. Ensure the gun trigger is in the ‘Off’ position before connecting to the air supply.
4.2. Where possible the compressor should be sited in a separate room with the connecting airline kept as short as possible.

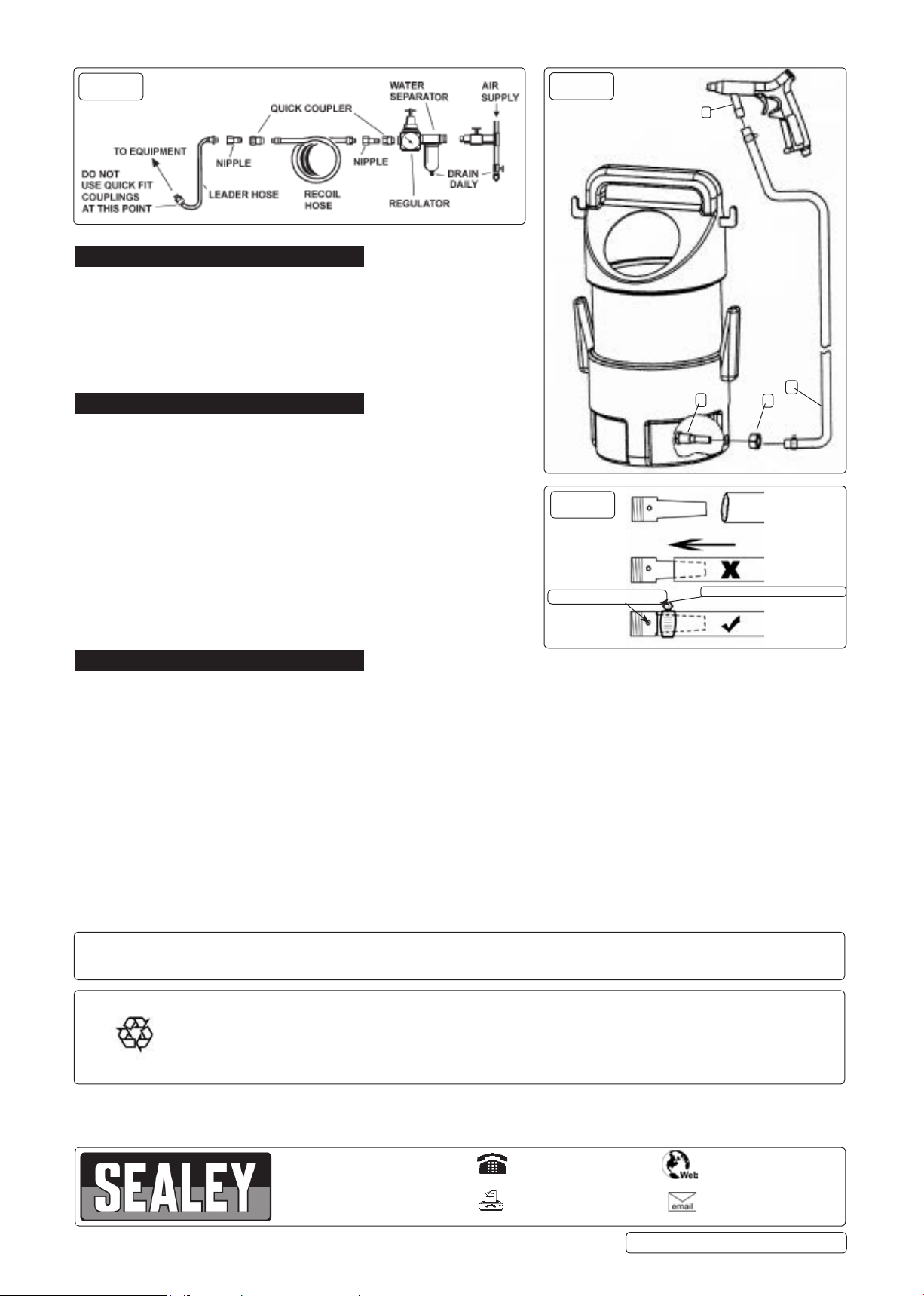

4.3. The compressor should have an air filter and water separator (fig.1).
4.4. Drain the compressor air tank daily. Water in the air line will damage the unit.
4.5. The recommended hook-up procedure is shown in fig.1.
4.6. The minimum hose diameter should be 1/4” I.D. and fittings must have the same inside dimensions.
4.7. Use correct hoses and fittings. DO NOT use quick change couplings as they add weight and can cause failure due to vibration.
4.8. Add a leader hose and connect coupling between this and supply hose.
4.9. Keep hoses away from heat, oil and sharp edges. Check hoses for wear and ensure that all connections are secure.
© Jack Sealey Limited
Original Language Version
SB993.V2 | Issue 3 07/04/17
g.1
5. ASSEMBLY
5.1. Fit the set screw (fig.2.1) through the hole in cabinet and secure using
the lock nut (fig.2.2).
5.2. Fit one end of the hose (fig.2.3) onto the set screw ensuring it is as far
onto the set screw as possible and secured with a hose clip as shown in fig.3.
5.3. Attach the other end of the hose to the gun and secure with a hose clip
(fig.2.4).
5.4. Ensure all fittings have been correctly tightened and the kit is ready to use.
6. OPERATION
WARNING! Ensure that you read, understand and apply the safety
instructions in Section 1 before use.
WARNING! Wear approved ear, eye, hand and respiratory protection when
operating the blaster.
WARNING! Ensure the air supply does not exceed 120psi (8bar) while
operating the unit.
6.1. Fill the cabinet with the required abrasive, checking to ensure it is clean
and dry.
6.2. Attach an airline to the gun and press the trigger.
6.3. Before blasting unfamiliar material, spot test to ensure that damage/pitting
will not occur to the material.
6.4. Use even passes of the blaster to remove material such as rust, body filler
or other soft materials. DO NOT blast in any one area for more than a few
seconds at a time.
g.2
g.3
KEEP HOLE CLEAR
4
1
SECURE WITH HOSE CLIP
3
2
7. MAINTENANCE
WARNING! Disconnect from the air supply before performing any maintenance!
WARNING! Wear approved ear, eye, hand and respiratory protection when performing any maintenance.
7.1. Changing the blasting medium.
7.1.1. It is not necessary to remove the blasting medium from the cabinet after every use, however it must be cleaned out when a
different blasting medium is to be used.
7.1.2. Tip the contents of the hopper into a suitable container. Remove the gun from the hose by loosening the hose clip.
7.1.3. Use a low pressure air line (10 psi) to blow through the hose.
7.1.4. When the cabinet is clean, refit the gun to the hose and tighten the hose clip.
7.2. Gun maintenance.
7.2.1. Remove the gun from the hose by loosening the hose clip.
7.2.2. Lubricate the gun with a few drops of good grade air tool oil, such as Sealey ATO500 or ATO1000, dripped into the air inlet.
7.2.3. Lubricate the plunger, between the trigger and the gun handle.
7.2.4. Refit the gun to the hose and tighten the hose clip.
7.2.5. Attach an airline to the gun and operate the blaster for a few seconds.
Parts support is available for this product. To obtain a parts listing and/or diagram,
please log on to www.sealey.co.uk, email sales@sealey.co.uk or telephone 01284 757500.
Environmental Protection
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be
sorted, taken to a recycling centre and disposed of in a manner which is compatible with the environment.
When the product becomes completely unserviceable and requires disposal, drain off any fluids (if applicable)
into approved containers and dispose of the product and the fluids according to local regulations.
NOTE: It is our policy to continually improve products and as such we reserve the right to alter data, specications and component parts without prior notice.
IMPORTANT: No liability is accepted for incorrect use of this product.
WARRANTY: Guarantee is 12 months from purchase date, proof of which will be required for any claim.
