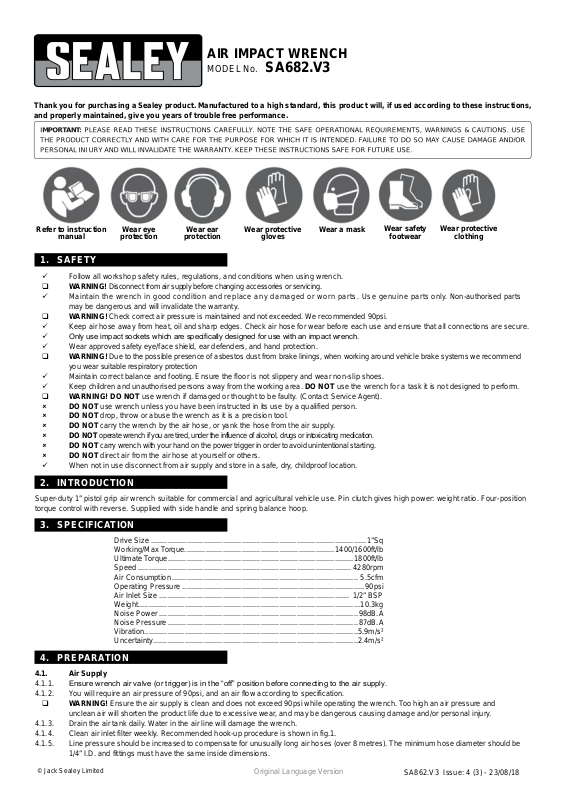

I
MPORTANT:
PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE
THE PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR
PERSONAL INJURY AND WILL INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
AIR IMPACT WRENCH
MODEL No. SA682.V3
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these instructions,
and properly maintained, give you years of trouble free performance.
Refer to instruction
manual
Wear eye
protection
Wear ear
protection
Wear protective
gloves
Wear a mask
Wear safety
footwear
Wear protective
clothing
1. SAfETy
9 Follow all workshop safety rules, regulations, and conditions when using wrench.
WARNING! Disconnect from air supply before changing accessories or servicing.
9 Maintain the wrench in good condition and replace any damaged or worn parts. Use genuine parts only. Non-authorised parts
may be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommended 90psi.
9 Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are secure.
9 Only use impact sockets which are specically designed for use with an impact wrench.
9 Wear approved safety eye/face shield, ear defenders, and hand protection.
WARNING! Due to the possible presence of asbestos dust from brake linings, when working around vehicle brake systems we recommend
you wear suitable respiratory protection
9 Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
9 Keep children and unauthorised persons away from the working area. DO NOT use the wrench for a task it is not designed to perform.
WARNING! DO NOT use wrench if damaged or thought to be faulty. (Contact Service Agent).
8 DO NOT use wrench unless you have been instructed in its use by a qualified person.
8 DO NOT drop, throw or abuse the wrench as it is a precision tool.
8 DO NOT carry the wrench by the air hose, or yank the hose from the air supply.
8 DO NOT operate wrench if you are tired, under the influence of alcohol, drugs or intoxicating medication.
8 DO NOT carry wrench with your hand on the power trigger in order to avoid unintentional starting.
8 DO NOT direct air from the air hose at yourself or others.
9 When not in use disconnect from air supply and store in a safe, dry, childproof location.
2. INTRODuCTION
Super-duty 1” pistol grip air wrench suitable for commercial and agricultural vehicle use. Pin clutch gives high power: weight ratio. Four-position
torque control with reverse. Supplied with side handle and spring balance hoop.
3. SPECIfICATION
Drive Size ......................................................................................................1”Sq
Working/Max Torque .......................................................................1400/1600ft/lb
Ultimate Torque........................................................................................1800ft/lb
Speed .....................................................................................................4280rpm
Air Consumption ........................................................................................ 5.5cfm
Operating Pressure ......................................................................................90psi
Air Inlet Size .......................................................................................... 1/2” BSP
Weight .........................................................................................................10.3kg
Noise Power ..............................................................................................98dB.A
Noise Pressure ..........................................................................................87dB.A
Vibration .....................................................................................................5.9m/s²
Uncertainty .................................................................................................2.4m/s²
4. PREPARATION
4.1. Air Supply
4.1.1. Ensure wrench air valve (or trigger) is in the “o” position before connecting to the air supply.
4.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the wrench. Too high an air pressure and
unclean air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
4.1.3. Drain the air tank daily. Water in the air line will damage the wrench.
4.1.4. Clean air inlet filter weekly. Recommended hook-up procedure is shown in fig.1.
4.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
© Jack Sealey Limited
Original Language Version
SA862.V3 Issue: 4 (3) - 23/08/18
4.1.6. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain that all connections are secure.
4.2. Couplings
Vibration may cause failure if a quick change coupling is connected directly to the wrench. To overcome this, connect a leader hose to
the wrench. A quick change coupling may then be used to connect the leader hose to the air line recoil hose. See fig.1 & 2.
fig.1
4.3. Handle Assembly
Attach the side handle to the wrench with bolts provided.
fig.2
5. OPERATION
WARNING! Ensure you read, understand and apply safety instructions before use.
5.1. Only use impact sockets which are specically designed for use with an impact wrench.
5.2. Connect the wrench to the air hose as in section 4 .
5.3. To undo a nut turn the direction/airow lever on the back face of the unit to the left so that it points to the ‘L’ symbol.
5.4. Place the socket over the subject nut and depress the trigger to operate the wrench.
8 DO NOT use any additional force upon the wrench in order to remove a nut.
5.5. To tighten a nut move the direction/airow lever on the back face of the unit to the right so that it points to the ‘1’ for low power. To
increase the power turn the lever further to the right selecting ‘2’ or ‘3’. When the lever is all the way to the right adjacent to the ‘R’
symbol the unit is at full power.
8 DO NOT allow wrench to free run for an extended period of time, this will shorten its life.
6. MAINTENANCE
WARNING! Disconnect wrench from air supply before changing accessories, servicing or performing maintenance. Replace or repair
damaged parts. Use genuine parts only. Non-authorised parts may be dangerous and will invalidate the warranty.
6.1. Lubricate the air wrench daily with a few drops of Sealey air tool oil dripped into the air inlet to prolong its life.
6.2. Clean the wrench after use. DO NOT use worn, or damaged sockets.
6.3. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air pipe. Incorrect size or type of hose connectors. To remedy check the air
supply and follow instructions in section 4.
b) Grit or gum deposits in the wrench may also reduce performance. If your model has an air strainer (located in the area of the air
inlet), remove the strainer and clean it. Flush the wrench out with gum solvent oil or an equal mixture of SAE No 10 oil and paran.
Allow to dry before use.
6.4. For a full service contact your local Sealey service agent.
6.5. When not in use, disconnect from air supply, clean wrench and store in a safe, dry, childproof location.
ENVIRONMENT PROTECTION
Recycle unwanted materials instead of disposing of them as waste. All tools, accessories and packaging should be sorted, taken to
a recycling centre and disposed of in a manner which is compatible with the environment. When the product becomes completely
unserviceable and requires disposal, drain any fluids (if applicable) into approved containers and dispose of the product and fluids
according to local regulations.
Note: It is our policy to continually improve products and as such we reserve the right to alter data, specifications and component parts without prior
notice.
Important: No Liability is accepted for incorrect use of this product.
Warranty: Guarantee is 12 months from purchase date, proof of which is required for any claim.
