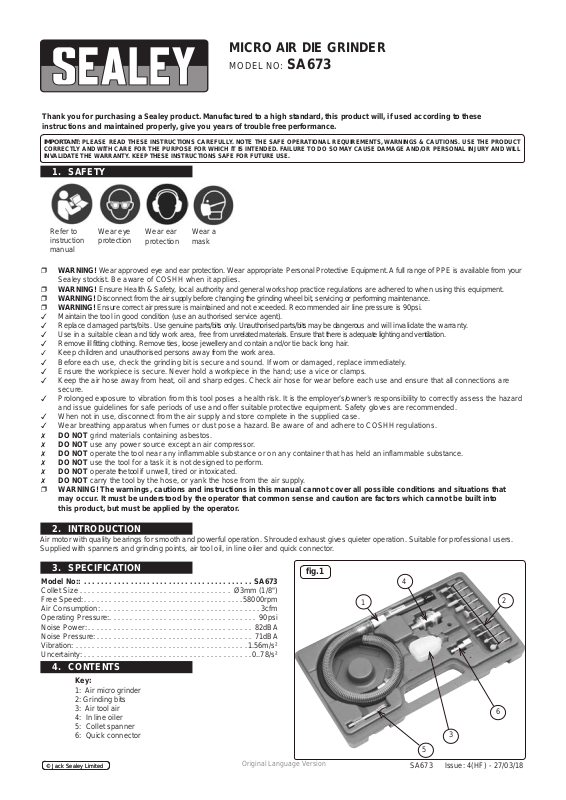

MICRO AIR DIE GRINDER
MODEL NO: SA673
Thank you for purchasing a Sealey product. Manufactured to a high standard, this product will, if used according to these
instructions and maintained properly, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS, WARNINGS & CAUTIONS. USE THE PRODUCT
CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL
INVALIDATE THE WARRANTY. KEEP THESE INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY
Refer to
instruction
Wear eye
protection
Wear ear
protection
Wear a
mask
manual
WARNING! Wear approved eye and ear protection. Wear appropriate Personal Protective Equipment. A full range of PPE is available from your
Sealey stockist. Be aware of COSHH when it applies.
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations are adhered to when using this equipment.
WARNING! Disconnect from the air supply before changing the grinding wheel bit, servicing or performing maintenance.
WARNING! Ensure correct air pressure is maintained and not exceeded. Recommended air line pressure is 90psi.
Maintain the tool in good condition (use an authorised service agent).
Replace damaged parts/bits. Use genuine parts/bits only. Unauthorised parts/bits may be dangerous and will invalidate the warranty.
Use in a suitable clean and tidy work area, free from unrelated materials. Ensure that there is adequate lighting and ventilation.
Remove ill fitting clothing. Remove ties, loose jewellery and contain and/or tie back long hair.
Keep children and unauthorised persons away from the work area.
Before each use, check the grinding bit is secure and sound. If worn or damaged, replace immediately.
Ensure the workpiece is secure. Never hold a workpiece in the hand; use a vice or clamps.
Keep the air hose away from heat, oil and sharp edges. Check air hose for wear before each use and ensure that all connections are
secure.
Prolonged exposure to vibration from this tool poses a health risk. It is the employer’s/owner’s responsibility to correctly assess the hazard
and issue guidelines for safe periods of use and offer suitable protective equipment. Safety gloves are recommended.
When not in use, disconnect from the air supply and store complete in the supplied case.
Wear breathing apparatus when fumes or dust pose a hazard. Be aware of and adhere to COSHH regulations.
DO NOT grind materials containing asbestos.
DO NOT use any power source except an air compressor.
DO NOT operate the tool near any inflammable substance or on any container that has held an inflammable substance.
DO NOT use the tool for a task it is not designed to perform.
DO NOT operate the tool if unwell, tired or intoxicated.
DO NOT carry the tool by the hose, or yank the hose from the air supply.
WARNING! The warnings, cautions and instructions in this manual cannot cover all possible conditions and situations that
may occur. It must be understood by the operator that common sense and caution are factors which cannot be built into
this product, but must be applied by the operator.
2. INTRODUCTION
Air motor with quality bearings for smooth and powerful operation. Shrouded exhaust gives quieter operation. Suitable for professional users.
Supplied with spanners and grinding points, air tool oil, in line oiler and quick connector.
3. SPECIFICATION
Model No::
........................................ SA673
fig.1
4
Collet Size . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . Ø3mm (1/8")
Free Speed:
Air Consumption:......................................3cfm
......................................58000rpm
1
2
Operating Pressure:................................... 90psi
Noise Power:....................................... 82dBA
Noise Pressure:
..................................... 71dBA
Vibration: .........................................1.56m/s²
Uncertainty: ........................................0..78/s²
4. CONTENTS
Key:
1: Air micro grinder
2: Grinding bits
3: Air tool air
4: In line oiler
5: Collet spanner
6: Quick connector
© Jack Sealey Limited
© Jack Sealey Limited
Original Language Version
3
5
SA673 Issue: 4(HF) - 27/03/18
SA673 Issue: 4(HF) - 27/03/18
6
5. OPERATION
fig.2
5.1. Air Supply
Recommended hook-up procedure is shown in fig.2.
5.1.1. Ensure the Air Die Grinder is in the "OFF" position (fig.3) before connecting to the air supply.
5.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
WARNING! Ensure the air supply is clean and does not exceed 90psi while operating the tool. Too high an air pressure and unclean
air will shorten the product life due to excessive wear, and may be dangerous causing damage and/or personal injury.
5.1.3. Drain the air tank daily. Water in the air line will damage the tool.
5.1.4. Clean the air inlet filter weekly.
5.1.5. Line pressure should be increased to compensate for unusually long air hoses (over 8 metres). The minimum hose diameter should be
1/4” I.D. and fittings must have the same inside dimensions.
5.1.6. Keep the hose away from heat, oil and sharp edges. Check the hose for wear, and make certain that all connections are secure.
WARNING! Ensure that you read, understand and apply the safety instructions in Section 1.
fig.3
"OFF"/"ON" Knurled Section
5.2. Grinding
WARNING! Disconnect from the air supply before changing the grinding wheel bits.
5.2.1. Choose the appropriate grinding wheel bit and check it is not flawed. Flawed grinding wheel bits must not be used.
5.2.2. Use the supplied chuck spanners to loosen the collet locking collar. Insert the bit full depth and lock in position with the spanners.
5.2.3. Ensure that the workpiece is properly secured and, if necessary, marked out.
5.2.4. To start, hold the grinder firmly, away from the workpiece and twist the knurled section in fig.3 to the "ON" position.
5.2.5. The bit must be running at its maximum speed before attempting to grind the workpiece.
5.2.6. Always hold the die grinder firmly (fig.4) and ease the grinding wheel against the workpiece with controlled progression. Avoid
subjecting the grinding wheel to jerky or excessive forces; let the grinding wheel do the work.
DO NOT allow the air tool to run free for any length of time, as this will shorten the life of wearing parts.
fig.4
Clamped workpiece
6. MAINTENANCE
WARNING! Disconnect the die grinder from the air supply before changing the bits, servicing or performing maintenance. Replace
damaged parts. Use genuine parts only. Unauthorised parts may be dangerous and will invalidate the warranty.
6.1. Unless the air supply system includes an oiler, lubricate the air grinder daily with a few drops of air tool oil, dripped into the in line
oiler before use. [Item 4 in parts list or Sealey part no’s. ATO500S (500ml) or ATO1000S (1 Litre)].
6.2. Loss of power or erratic action may be due to the following:
a) Excessive drain on the air line. Moisture or restriction in the air line. Incorrect size or type of hose connectors. To remedy, check
the air supply and follow instructions in Section 5.
b) Grit or gum deposits in the grinding wheel bit may also reduce performance. If your model has an air strainer (located in the area of
the air inlet), remove the strainer and clean it. Flush the grinder out with gum solvent oil or an equal mixture of SAE No 10 oil and
kerosene. Allow to dry before use. If you continue to experience problems, contact your local Sealey service agent.
6.3. For a full service, contact your local Sealey service agent.
6.4. When not in use, disconnect from the air supply, clean the grinder with a brush or dry cloth. Wipe clean the sheath with a moist cloth
and mild detergent. Store all in a safe, dry, childproof location.
