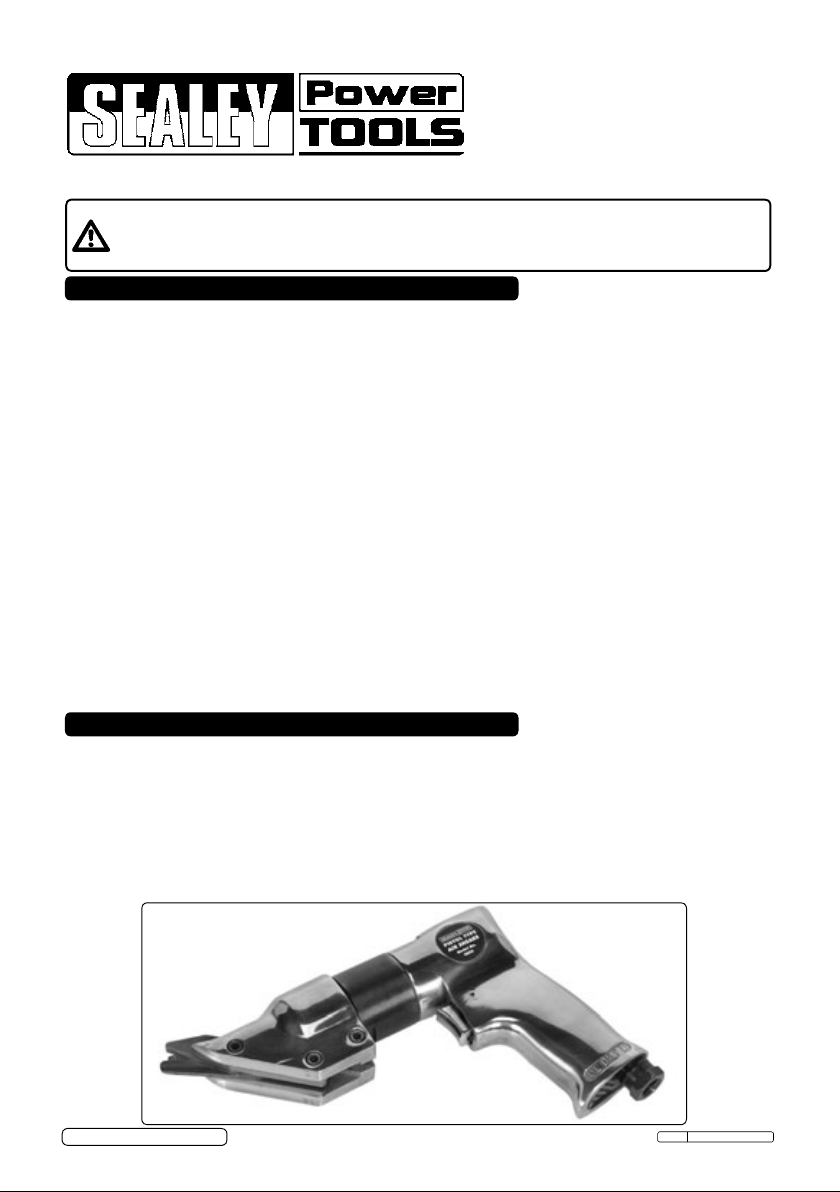

INSTRUCTIONS FOR:
AIR SHEARS PISTOL TYPE
MODEL No: SA56
Thank you for purchasing a Sealey Product. Manufactured to a high standard this product will, if used according to these instructions
and properly maintained, give you years of trouble free performance.
IMPORTANT: PLEASE READ THESE INSTRUCTIONS CAREFULLY. NOTE THE SAFE OPERATIONAL REQUIREMENTS,
WARNINGS AND CAUTIONS. USE THIS PRODUCT CORRECTLY AND WITH CARE FOR THE PURPOSE FOR WHICH
IT IS INTENDED. FAILURE TO DO SO MAY CAUSE DAMAGE AND/OR PERSONAL INJURY AND WILL INVALIDATE
THE WARRANTY. PLEASE KEEP INSTRUCTIONS SAFE FOR FUTURE USE.
1. SAFETY INSTRUCTIONS
WARNING! Ensure Health & Safety, local authority and general workshop practice regulations
are adhered to when using this equipment.
WARNING! Disconnect from air supply before changing accessories or servicing.
Maintain the tool in good condition and replace any damaged or worn parts. Use genuine parts
only. Unauthorised parts may be dangerous and will invalidate the warranty.
WARNING! Check correct air pressure is maintained and not exceeded. We recommend 90psi.
Keep air hose away from heat, oil and sharp edges. Check air hose for wear before each
use and ensure that all connections are secure.
Wear approved safety eye/face shield, ear defenders and hand protection.
Maintain correct balance and footing. Ensure the floor is not slippery and wear non-slip shoes.
Keep children and non essential persons away from the working area.
DO NOT use the tool for a task it is not designed to perform.
WARNING! DO NOT use the tool if damaged or thought to be faulty. Contact a Sealey service
agent.
DO NOT use tool unless you have been instructed in its use by a qualified person.
DO NOT carry the tool by the air hose, or yank the hose from the air supply.
DO NOT operate tool if you are tired or under the influence of alcohol, drugs or intoxicating
medication.
DO NOT carry tool with your hand on the power trigger, this will avoid unintentional starting.
DO NOT direct air from the air hose at yourself or others.
When not in use disconnect from the air supply and store in a safe, dry, childproof location.
2. INTRODUCTION & SPECIFICATION
Pistol grip design for increased control and manoeuvrability. Finger tipped control and polished
aluminium housing with alloy head. Suitable for cutting straight lines in sheet metal up to 1.2mm
thickness. Blades are consumable items and are not covered by warranty.
Maximum cutting capacity: ..... 1.2mm(Steel)
Air consumption:....................4cfm
Operating pressure: .................90psi
Air inlet size: .................... 1/4”BSP
Allen key (supplied): .................4mm
Weight: ..........................1.22kg
Pressure noise level: ............87.8dB(A)
Power noise level...............98.8dB(A)
Measured vibration emission value ...4.0m/s²
Uncertainty value ................0.13m/s²
© Jack Sealey Limited 2013
Original Language Version
SA53 Issue: 1 - 10/05/13

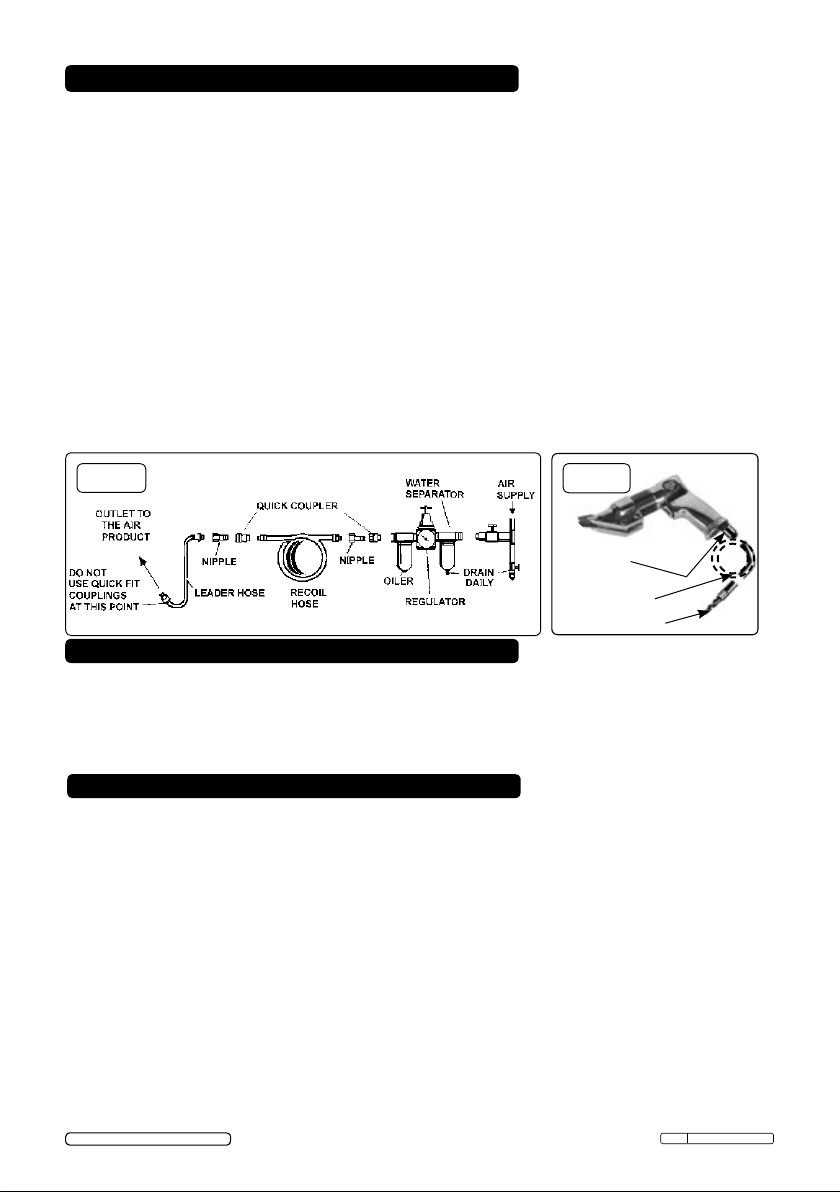

3. PREPARING SHEARS FOR USE
3.1. Air Supply
Recommended hook-up procedure is shown in fig 1.
3.1.1. Ensure tool valve (or trigger) is in the "off" position before connecting to the air supply.
3.1.2. You will require an air pressure of 90psi, and an air flow according to specification.
3.1.3. WARNING! Ensure the air supply is clean and does not exceed 90psi while operating
the tool. Too high an air pressure and/or unclean air will shorten the product life due to
excessive wear, and may be dangerous causing damage and/or personal injury.
3.1.4. Drain the air tank daily. Water in the air line will damage the tool.
3.1.5. Clean air inlet filter weekly.
3.1.6. Line pressure should be increased to compensate for unusually long air hoses (over 8
metres). The minimum hose diameter should be 1/4” I.D. and fittings must have the same
inside dimensions.
3.1.7. Keep hose away from heat, oil and sharp edges. Check hose for wear, and make certain
that all connections are secure.
3.2. Air line couplings.
Vibration may cause failure if a quick change coupling is connected directly to the tool.
To overcome this, connect a leader hose to the tool. A quick change coupling may then
be used to connect the leader hose to the air line recoil hose. See fig.1 and fig.2.
fig.1
fig.2
Male hosetail
adaptor
Leader hose
Quick coupler
4. OPERATING INSTRUCTIONS
WARNING! Ensure you read, understand and apply safety instructions before use.
4.1. Remove the shears from the package. The tool should be assembled and ready to use.
4.2. Connect the shears to the air hose as in section 3 fig.1 and fig.2.
4.3. To start the shears, depress the throttle trigger.
DO NOT allow the shears to free run for extended periods as this will shorten its life.
5. MAINTENANCE
WARNING! Disconnect tool from the air supply before changing accessories, servicing or
performing maintenance. Replace or repair damaged parts.
DO NOT sharpen worn blades, replace with new. Use genuine parts only. Unauthorised
parts may be dangerous and will invalidate the warranty.
Note: Numbers in brackets refer to item numbers in the parts diagram.
5.1 Before replacing blades, note carefully the orientation of cutting blade edges. It is possible
to fit the blades incorrectly. On removal be aware of the two spacers, one between outer
blades and one at the pivot point of the central blade, these are critical to the tool (fig.3).
5.2. To replace the blades (34, 35 and 37), unscrew the three socket head cap screws (32) and
slide the cutter housing (31) off the clamp nut (27). Remove the three socket head cap
screws (32) that secure the blades (34, 35 and 37) and remove the blades. Fit new blades,
ensuring the spacers (36) are correctly positioned and refit the socket head cap screws.
Smear silicone grease or similar on to the outer race of the ball journal fig.4 and slide the
cutter housing onto the eccentric mechanism housing, tighten the cap screw nearest
the trigger. Tighten the other two socket head cap screws, the spacers ensure the blades
will not be clamped.
© Jack Sealey Limited 2013
Original Language Version
SA56 Issue: 1 - 10/05/13
